Luxlink OE-1001 User manual

WARRANTY
All fiber optic transmission systems, products and accessories
manufactured by Liteway, Inc. and it’s subsidiaries are fully tested
prior to shipment and are warranted against defective materials
and workmanship for a period of five full years from the date of the
original shipment. Should a problem occur, a Return Material
Authorization Number (RMA) must be obtained from Liteway Inc.
at [phone] and the item returned to Liteway, Inc. 166
Haverford Road, Hicksville, NY 11801, USA, prepaid. Liteway Inc.
will then, at its option repair or replace the defective item.
Liteway, Inc. maximum liability under this warranty is limited to the
cost of the defective item only. No contingent liabilities of any kind
are either assumed or implied.
Any items returned to Liteway, Inc. that have been misused,
abused, damaged, modified, connected or adjusted in any way
contrary to the instructions furnished by Liteway, Inc. or repaired
by unauthorized personnel will not be covered by this warranty.
Any non-warranty repairs required will be quoted at the current
rate for such services.
Important Notices
CAUTION ! AVOID DIRECT EXPOSURE TO BEAM.
All -7,-8, and -9 Models use laser diodes. These solid-state laser
diodes are located in the optical ports of these units. Laser diodes
produce invisible radiation that may be harmful to human eyes.
Never look directly into the optical port of any fiber optic unit
designed to operate with single-mode optical fiber.
NOT FOR LIFE SUPPORT SYSTEMS
Liteway, Inc. does not authorize or warrant any of its products or
accessories for use in critical life support systems or applications
of any kind.
© Copyright 2017 Liteway, Inc. 117821 Rev G

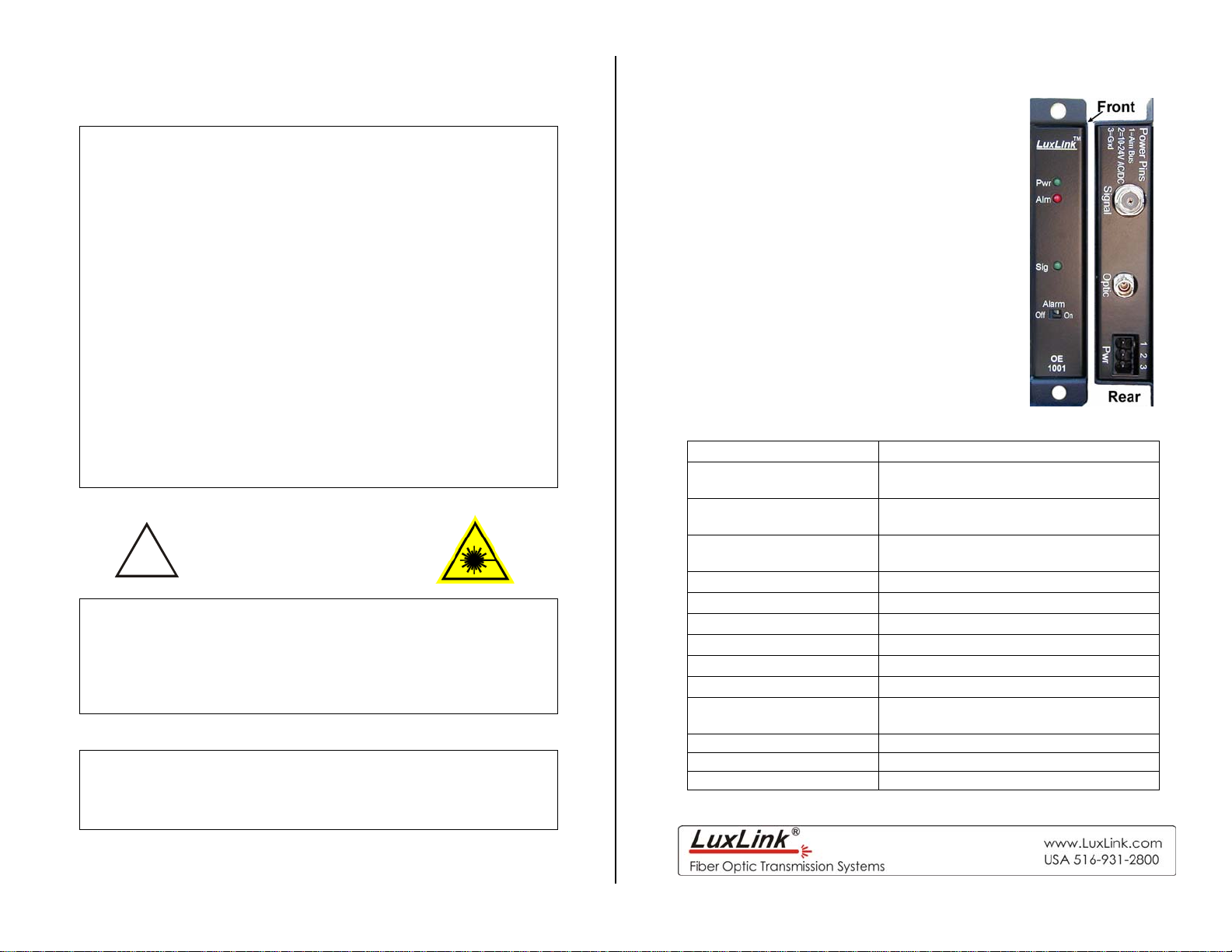

OPERATING INSTRUCTIONS
LuxLink®
Optical to Electrical Converter
Model OE-1001
The LuxLink®OE-1001 is an amplified analog
optical to electrical converter that is utilized to
view optical signals present in a fiber optic cable.
It is useful for research and development appli-
cations as well as for routine troubleshooting.
Technical Specifications
Bandwidth 50 KHz to 1.5 GHz (-3dB)
Rise time < 1 nsec for -3, -7 models
< 2 nsec for -1 models
Optical Input Power Max 0 dBm (1000uW) @850nm
-3 dBm (500uW) @1310/1550 nm
Optical Noise Level
(typical) -20 dBm (10uW) rms @ 850nm -23 dBm (5uW) rms @ 1310/1550nm
Dynamic Range 20 dB usable
Optical Connectors ST (-1, -3) FCPC (-7)
Electrical Output Level 1V peak to peak at max optical input
Output Impedance 50 Ohms
Operating Wavelength 660,850, 1310 or 1550nm
Indicators Power, Signal
Electrical Signal
Connector BNC
Temperature Range -35º to +75ºC
Power Requirements 11-24 VAC/DC @250ma
Physical Size (mm) 5.0”(127)L x 1.0” (25.4)W x 3.0”(7)D
All specifications are subject to change without prior notice.
!

Installation Instructions
The below diagram shows a typical use of the OE-1001 electrical to
optical converter.
Two wavelength rages are available. The sensitivity of these ranges
are as follows;
117821 Rev G
Power Terminal Block Connections
Pin Function
1 Alarm output for use with optional Alarm Sensing Unit
ALM-1000. No other connections should be made to this
terminal
2 +11 to 24 DC or AC Volts input
3 AC or DC return (Common to Housing)
Be certain to check all connections, settings and voltages before
applying power
Indicator Lights
Integral indicators are provided to monitor repetitive signals as well as
the presence of operating power making system troubleshooting
simple.
Indicator Lights when
Pwr Proper power is present.
Alrm The loss of signal alarm is activated and there is
no video present.
Sig A data signal is being received.
The Alarm switch is used to turn the alarm function on and off.
Models OE-1001-3 & -7
Sensitivity
1550nm > 100 mV/mW
1310nm > 80 mV/mW
850nm > 10 mV/mW
Model OE-1001-1
Sensitivity
850nm > 40 mV/mW
660nm > 20 mV/mW
Typical Optical to Electrical Converter Application
Fiber Optic
Cable
OE-1001
Optical
Signal
Source
Signal
Measurement
Oscilloscope
Electrical Coax
Cable
