Luxman LMC-5 User manual
MOVING COIL PHONO CARTRIDGE
LMC-5
OWNER'S MANUAL
1
MOVING COIL PHONO CARTRIDGE LMC-5
2
安全上のご注意
使用上の注意
注意
3
MOVING COIL PHONO CARTRIDGE LMC-5
付属品
本機の特徴
4
外形寸法と各部の名称
側面
18.3
1.5
9.5
7.6
19.5
21.3
17
12.7
カンチレバー
出力端子
スタイラス
シェル取り付け穴
（M2.6）
上面
[mm]
5
MOVING COIL PHONO CARTRIDGE LMC-5
前面
背面
16
7
2
赤（
R⊕）
緑（ R⊖）
白（ L⊕
）
青（ L⊖）
6
使用方法
１．本機をヘッドシェル、またはシェル一体型トーンアームに
取り付けます。

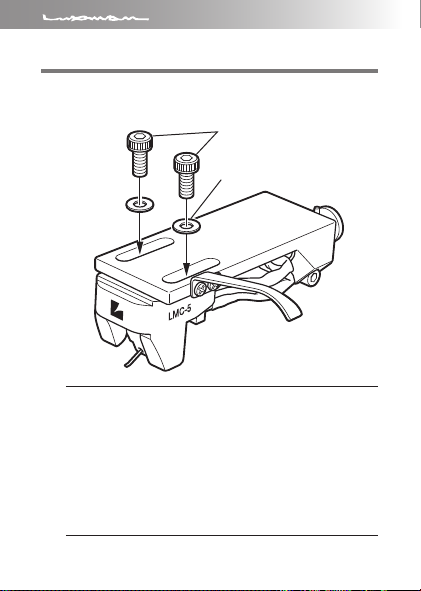

シェル取り付けねじ
ワッシャー
7
MOVING COIL PHONO CARTRIDGE LMC-5
２．出力端子とリード線を接続します。
３．スタイラス保護カバーを取り外します。
赤（ R
⊕）
緑（ R ⊖）
白（ L ⊕
）
青（ L ⊖）
8
使用方法
４．オーバーハングを調整し、本機を固定します。
５．針圧を調整します。
9
MOVING COIL PHONO CARTRIDGE LMC-5
６．トーンアームの高さを調整します。
７．レコードプレーヤーを接続するアンプのカートリッジセレ
クターをMCポジションに設定します。
10
規格
11
MOVING COIL PHONO CARTRIDGE LMC-5
12

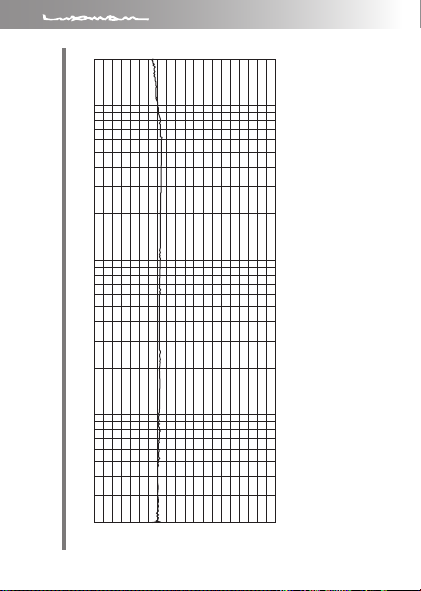

周波数特性
[dBV]
[Hz]
Test Record : JAS AD-1
Sensitivity : -71 dBV
(1kHz) (0.28mV)
-40
-50
-60
-70
-80
-90
-100
-110
-120
-130
20 100 1k 10k
20k
13
MOVING COIL PHONO CARTRIDGE LMC-5
アフターサービスと保証について
針先交換
本社サービスセンター
14
15
MOVING COIL PHONO CARTRIDGE LMC-5
Before you use our products, please read through this Owner’s
Manual so that you can use this unit correctly and safely. Then,
performance of this unit can be maximized and you can enjoy the
played back music at the highest grade. After you have read this
manual, please keep it carefully.
16
Safety Caution
• Please keep this product out of children's reach. Failure to observe
this caution may cause a child to swallow it or to be hurt. In case of
accidental swallowing, see a doctor immediately.
A NOTE ABOUT RECYCLING:
This product's packaging materials are recyclable
and can be reused. Please dispose of any materials
in accordance with the local recycling regulations.
When discarding the unit, comply with local rules
or regulations.
Batteries should never be thrown away or
incinerated but disposed of in accordance with the
local regulations concerning chemical waste.
This product and the accessories packed together constitute the
applicable product according to the WEEE directive except batteries.
Caution
17
MOVING COIL PHONO CARTRIDGE LMC-5
Precautions
• The stylus tip of this product is remarkably sensitive. A drop of this
product or an application of a force to the needle by your nger
may cause a critical damage to it. Therefore, pay extra attention to
handling this product.
• This product is equipped with an extremely strong magnet. If a
screwdriver or a pair of tweezers are carelessly brought to this
product at mounting it on a shell or other situations, those tools are
attracted to the magnet and the stylus tip may be damaged.
• Be sure to put the supplied stylus protection cover at operation.
• When this product is moved, transported, or stored for a long period
of time, be sure to put the supplied stylus protection cover on it.
• Dust on the stylus tip and a analog disc causes not only the sound
quality to deteriorate but also the stylus tip and disc to be damaged.
Remove the dust on the stylus tip with a soft brush or the like in the
direction from the base of the cantilever to the stylus tip in a gentle
manner. Remove the dust and dirt on a analog disc with the use of a
high-grade record cleaner (alcohol-free, solvent-free type), too.
18
Accessories
• Owner's Manual (this book)
• Hex wrench
• Shell mounting screw M2.6 (5 mm × 2, 8 mm × 2, 10 mm × 2)
• Washer × 2
• Protector
* A shell is not attached to this product. Please purchase it separately.
Table of contents
