LVS LUT-SHUNT-FM User manual

MODEL LUT-SHUNT-FM INSTALLATION INSTRUCTIONS
1
LVS
LVS, Inc. 2555 Nicholson Street, San Leandro, CA 94577-4216
Phone: [phone] Fax: [phone]
Web: WWW.LVSCONTROLS.COM
LVS, Inc. warrants to the original purchaser/user for the published warranty period from the date of shipment that should LVS instruments or
equipment prove defecve by reason of improper workmanship or material, LVS will repair or replace the same equipment without charge.
This warranty does not cover defects or malfuncons arising from improper installaon, operaon or repair, or neglect, accident, or abuse. LVS
will honor its warranty provided the equipment has not been physically damaged or improperly installed or connected. To obtain warranty/re-
pair, the defecve product should be shipped freight prepaid within the warranty period to the address below. To the extent permied by
applicable law, all warranes extending beyond repair or replacement as described above are disclaimed, including the implied warranes of
merchantability and fitness for a parcular purpose. Where applicable law prohibits disclaimers or the implied warranes of merchantability
and fitness; those warranes are limited to 12 months from date of shipment. LVS provides a 90 day money back guarantee if equipment
does not perform in accordance with LVS published specificaons. The liability of LVS and its agents under all warranes is limited to repair and
replacement as described herein and under no circumstances shall there be liability for any other kind of loss, damage, or labor, either conse-
quenal or for injury to person or property or otherwise.
5-Year Limited Warranty
1. This product can be used with LED, ballast, tungsten, and general use loads.
2. Make sure all connections are in accordance with the National Electrical Code and local regulations.
3. To reduce the risk of electric shock, disconnect both normal and emergency power supplies before servicing.
4. This product is intended to be used to control indoor and outdoor located loads.
5. An unswitched AC power source is required (120-240VAC/277VAC).
6. Do not install near gas or electric heaters.
7. Do not attempt to service a sealed Emergency Power Control. When malfunctioning, return to the
manufacturer: LVS, Inc. 2555 Nicholson Street, San Leandro, CA 94577.
8. The use of accessory equipment is not recommended by the manufacturer and may cause unsafe condition.
9. Do not use this product for other than its intended use.
10. Servicing should be performed by qualified service personnel.
11. Equipment should be mounted in locations and at heights where it will not readily be subjected to
tampering by unauthorized personnel.
! IMPORTANT SAFEGUARDS !
SAVE THESE INSTRUCTIONS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
Electrical Specfications
120-240/277V Sensing Input
Form C (N.O+N.C.) Contact
3 Amp Electronic/LED Load Rating (120-277V)
5 Amp Ballast Load Rating (120-277V)
5 Amp General Use Rating (120-277V)
360W Incandescent Load Rating (120V)
600W Incandescent Load Rating (277V)
UL924 Listed (usUL/cUL)
Mechanical Specifications
Fixture or Panel Mount
Damp Location Rated
Shipping Weight: 6 oz Color : Black
Temperature: -40˚C-65˚C (14˚F - 149˚F)
Body Size: 5”x1”x1.25” (125mmx25.4mmx30mm)
U
L
®
UL924 LISTED
C US

Conrm body size
will t in xture ballast channel prior
to installation.
Slim Fixture Mount Installation
2
Application
In the past, all emergency lights were left on 24 hours a day to meet safety codes. Now you can
specify & install a UL924 Listed Emergency Shunt Relay LUT-SHUNT-FM, which converts a
normal light fixture into an approved emergency light. During normal operation, the LUT-SHUNT-FM
switches designated emergency light on and off. During a utility power interruption, the
LUT-SHUNT-FM turns designated emergency light on, regardless of switch position.
Intended for use with switching and line voltage dimming controls.
What is the difference between a
SHUNT and an ALCR?
An emergency shunt relay requires a dedicated switch/dimmer to control the emergency
lights. In other words, the switch/dimmer must be wired on the emergency power circuit.
An automatic load control relay allows the same switch/dimmer to control both normal and
emergency lights. In other words, the switch/dimmer can be wired on the normal power
circuit.

3
Installation
In order to install the LUT in accordance with national/local code requirements, a qualified electrician
should review & understand the installation instructions. Check voltage & current requirements.
Verify & lock out circuit breakers on both regular (utility) power & 24 hour emergency generator or
inverter circuit. Install a self-adhesive 2" x 3" caution label in each fixture or load controlled by an LUT
cautioning that the load is supplied from 2 different power sources, normal & emergency. Review
wiring diagram & connect wires, one at a time, in accordance with the numeric identification. In order
to provide a safe light level, when regular power is interrupted, it is recommended that a minimum of
appproximately 5000 lumen are controlled by a 24 hour emergency circuit & are spaced no farther
than 24' in any direction from each other in a normal 9' white ceiling environment.
Initial Testing and Troubleshooting
In a new installation, where hundreds of devices may be used, each having as many as 14 wires to
be correctly connected, it is important that a fast, convenient method is used to check connections.
In order to test that the wires are connected correctly, without any inconvenience to occupants, do
not turn off regular (utility) power off until you have checked each device as follows:
1) Check that regular branch circuit breaker is connected & utility power is available. Green LED
should be lit. If green LED is not lit, check connections & continuity to branch circuit breaker.
2) Check that emergency branch circuit breaker is connected & emergency power is available.
3) Normal Operation Test: Turn switch or other control device to the “ON” position. Emergency
light should turn on. Turn room switch or control to the “OFF” position. Emergency light should turn
off.
4) Emergency Operation Test: Press and hold test button, emergency light should illuminate at full
brightness until test button is released.
Maintenance
No maintenance is required to keep the LUT functional. However, regular testing should be
performed when the lamps or ballasts have been replaced or when remodeling has taken place.

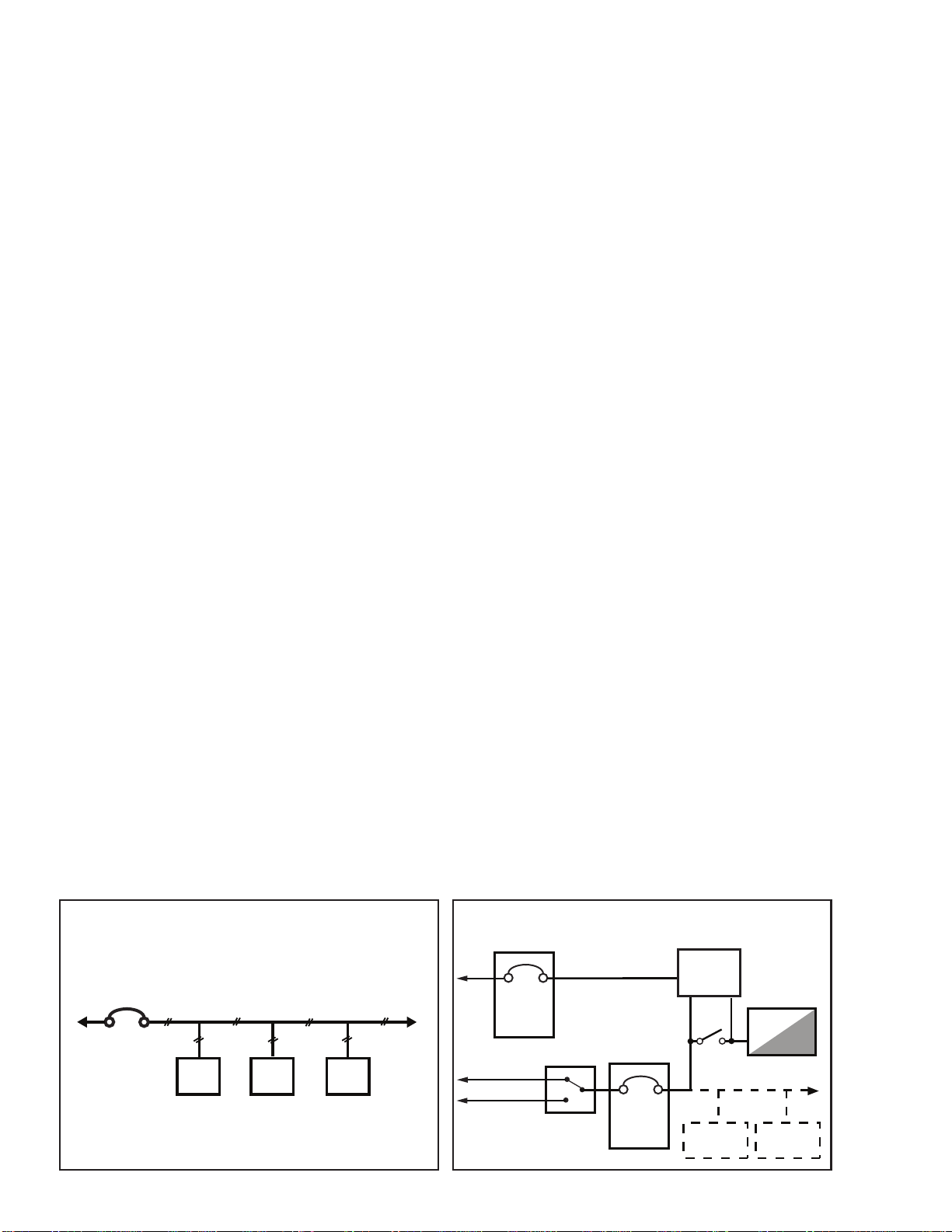

Single Line Drawings



 



Normal/Utility
Power Source
Emergency
Power Source
Neutral
Not Shown
 
One LUT is suggested per emergency fixture.
DESIGNATED
EMERGENCY
LIGHT
EMERGENCY
SHUNT
RELAY
LIGHTING CONTROL
DEVICE (SWITCH,
SENSOR, POWER
PACK, RELAY PANEL)
NORMAL
POWER
PANEL
EMERGENCY
POWER
PANEL
UL 1008
Transfer
Switch Or
Equivalent
EMERGENCY
SHUNT RELAY
EMERGENCY
SHUNT RELAY

4

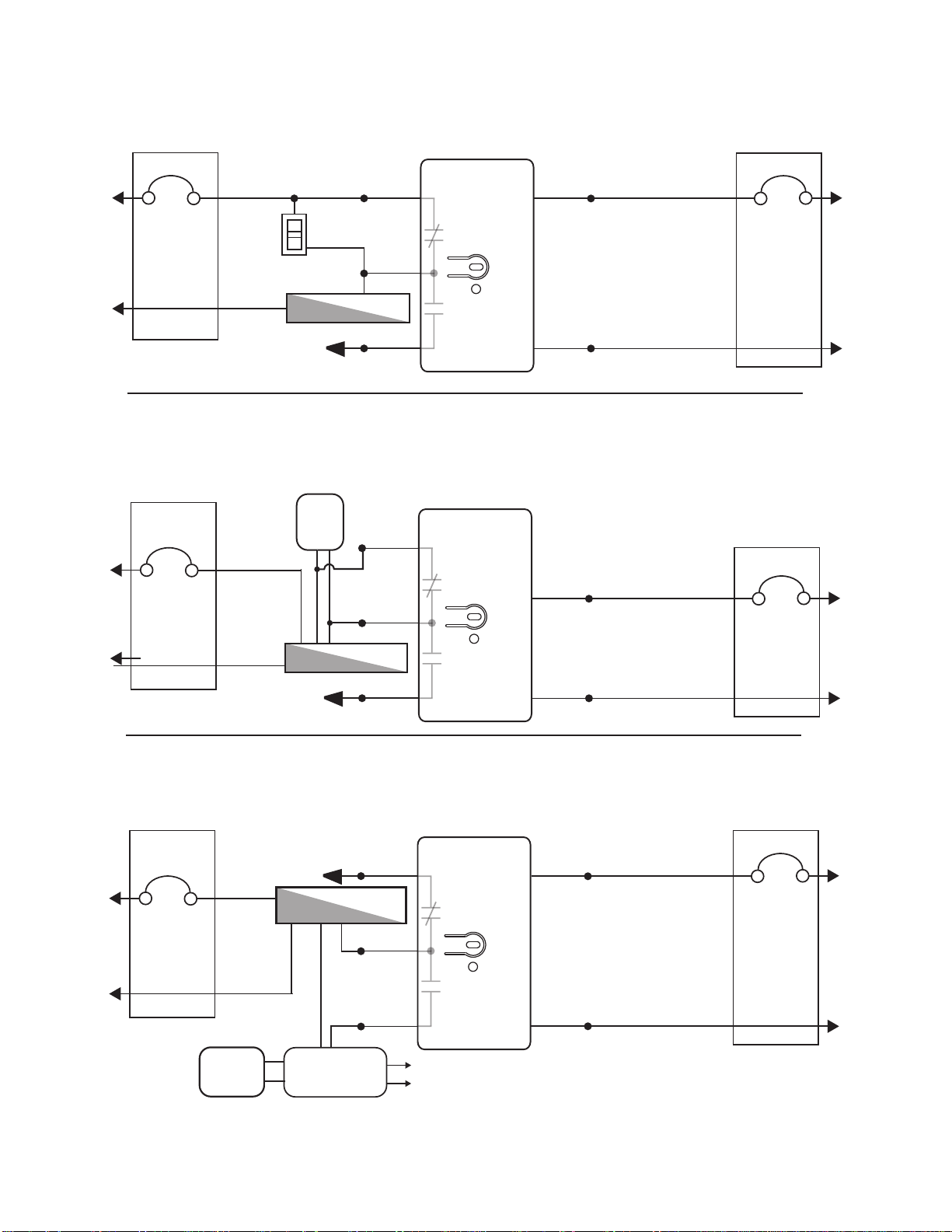

Wiring Diagram #1: A dedicated switch or line voltage dimmer controls emergency lighting in a
space. Upon loss of normal power, the emergency lighting comes on at full brightness regardless of switch
or dimmer position. NOTE: LUT-SHUNT-FM is not for use with 0-10V DIMMER. Use LUT-SHUNT-D-FM.
#3 BROWN
TEST
UTILITY
POWER
#5 YELLOW
#4
BLUE
EMERGENCY
PANEL
OR
INVERTER EMERGENCY
NEUTRAL EMERGENCY LIGHT
EMERGENCY
HOT
NORMAL
(UTILITY)
PANEL
NORMAL
NEUTRAL
NORMAL
HOT
20A 20A
#2 WHITE
#1 BLACK
SWITCH
OR DIMMER
(CAP OFF)
Can I power more than 1 light from the LUT-SHUNT-FM?
It is recommended that the LUT-SHUNT-FM power only one fixture/luminaire.
If you want to control more than one fixture/luminaire, use the higher rated LUT-SHUNT.
Wiring Diagram #2: For use with Lutron Vive integral xture controls and DALI drivers
with self powered DALI link, such as Philips®SR XI040C110V054VPT1 and XI075C200V054VPT1
and Osram ® Dexal (tm) OTi50/120-277/1A4 DX L and OTi30/120-277/1A0 DX L
#3 BROWN
TEST
UTILITY
POWER
#5 YELLOW
#4
BLUE
EMERGENCY
PANEL
OR
INVERTER EMERGENCY
NEUTRAL EMERGENCY LIGHT
EMERGENCY
HOT
NORMAL
(UTILITY)
PANEL
NORMAL
NEUTRAL
NORMAL
HOT
20A
20A
#2 WHITE
#1 BLACK
Lutron
Vive Integral
Fixture Control
(CAP OFF)
Wiring Diagram #3: For use with Lutron Vive integral xture controls and EcoSystem drivers
without self powered DALI link, such as Lutron LDE1, LDE5, L3D, and L3D0
LINE
NEUTRAL
A B
#3 BROWN
TEST
UTILITY
POWER
#5 YELLOW
#4
BLUE
EMERGENCY
PANEL
OR
INVERTER EMERGENCY
NEUTRAL
EMERGENCY LIGHT
EMERGENCY
HOT
NORMAL
(UTILITY)
PANEL
NORMAL
NEUTRAL
NORMAL
HOT
20A 20A
#2 WHITE
#1 BLACK
(CAP OFF)
LINE
NEUTRAL E1E2
Lutron
Fixture Control
Digital Interface
E1E2
Blue Wires
(polarity independent)
Philips®SR: A = SR+ B = SR-
Osram ® Dexal: A = DEXAL+ B = DEXAL-
Violet Wires
(polarity independent)
S+
S-
Blue
Wires
(polarity
independent)
Lutron
Vive
Integral
Fixture
Control
L
N
EMERGENCY HOT
EMERGENCY NEUTRAL
