LW MEASUREMENTS TREE TR-1-NK User manual

Professional Weighing
Equipment
Digital Weight Indicator
TR-1-NK (WD) (2013 Version)

Rev 4, 08.08.2016 2
Operation Manual
Table of Contents
Section Page
Declaration of Conformity 3
Customer Service 4
Introduction 5
Safety 6
Weight Scale 7
Features 8 -9
Application & Conformity 10
Getting Started 11
Delivery 11
Assembly & Installation 12
Functions 13
Weighing Options 14
Parameter Settings 14-16
Calibration 17
Maintenance & Service 18
Transportation & Storage 18
Warranty 19

Rev 4, 08.08.2016 3
Declaration of Conformity
Declaration of conformity for apparatus with CE mark
We hereby declare that the product to which this declaration refers conforms to
the following standards.
Electronic scale: TR-1-NK Indicator
USA model
TR-1-NK
Stainless steel
TR-1-NK (WD)
Stainless
steel/wash-down
Mark applied
EU Directive
Standards
2004/108/EC
EN 61326-1: 2006
Signature:
Boon Lim, R & D Manager
Date: 14. 11. 2012
LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928

Rev 4, 08.08.2016 4
Customer Service
USA
LW Measurements LLC
620 Carlson Court
Rohnert Park, CA 94928
USA
Tel: [phone]
FAX: [phone]
http://lwmeasurements.com
EUROPE
LW Measurements Europe Ltd
Chalkwell Park House 700 London Road
Westcliff-on-Sea Essex SS0 9HQ
United Kingdom
Tel: [phone]
Fax: [phone]
http://lwmeasurements.com

Rev 4, 08.08.2016 5
Introduction
What you should know about these Operating Instructions:
Tree® Professional Weighing Equipment products are simple to operate.
Nevertheless, you should read through these operating instructions in their entirety, so
that you can make optimum use of the full potential and the diverse possibilities of the
weighing scale in your daily work.
These operating instructions contain guidance in the form of pictograms and keyboard
diagrams, which should help you in finding the required information:
For the labeling of potential hazards and advice, please see Safety below.

Rev 4, 08.08.2016 6
Safety
Representations and symbols
Important instructions, which involve safety, are highlighted with the appropriate mark:
Safety recommendations
When using the weighing equipment in surroundings with increased safety requirements,
the corresponding regulations must be observed.
The weighing scale may only be used with the power adapter supplied.
Before connecting the power adapter to the scale, the user must ensure that the
operating voltage stated on the power adapter is compliant with the mains voltage.
If not, please contact Customer Service at the address above.
If the power adapter or its cable is damaged, the weighing scale must immediately be
disconnected from the electricity supply (pull out the power adapter).
If there should be any reason to believe that it is no longer safe to operate the scale, it
should be immediately unplugged from the electricity supply (pull out power adapter) and
secured against inadvertent operation.
In carrying out maintenance work, it is essential to follow the recommendations set out in
maintenance and servicing.
The weighing scale must not be operated in an area subject to explosion risks.
Care must be taken when weighing liquids to ensure that no liquid is spilled into the
inside of the scale or into connections on the rear of the equipment or the power adapter.
If liquid is spilled on the scale, it must immediately be unplugged from the main electricity
supply (pull out power adapter).
The weighing scale may be operated after it has first been inspected by a service
technician.
These operating instructions must be read by each user and should be easily accessible
at the workplace at all times.

Rev 4, 08.08.2016 7

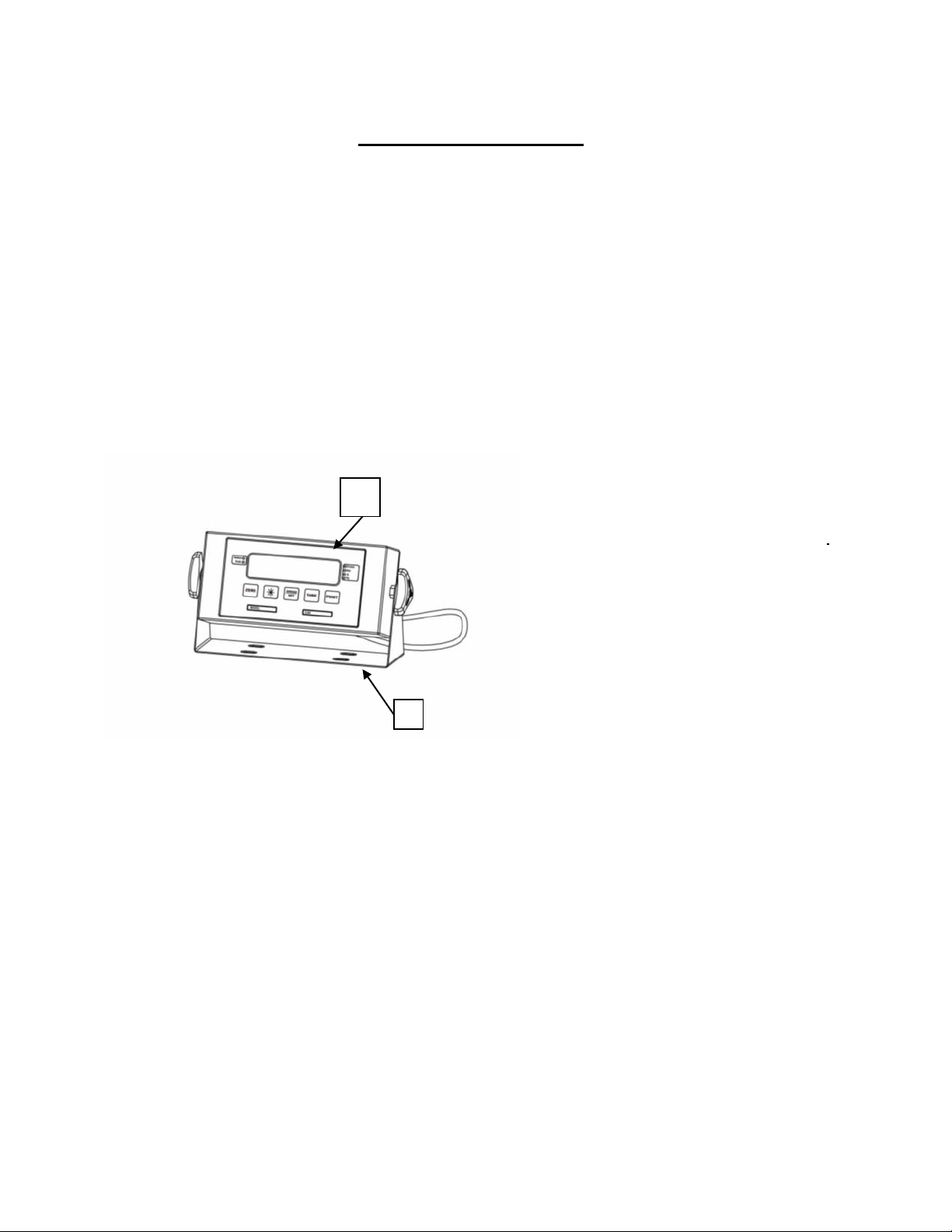

Weight Indicator
Construction & Functions
The indicator consists of the following parts;
Display panel (1)
Mounting Bracket (2)
Operating manual
Figure: your scale
1
2

Rev 4, 08.08.2016 8
Features
Pounds to Kilogram conversion
USB output

Data interface

Counting function that supports HID
format (UPS World Ship Software)
Operation Manual


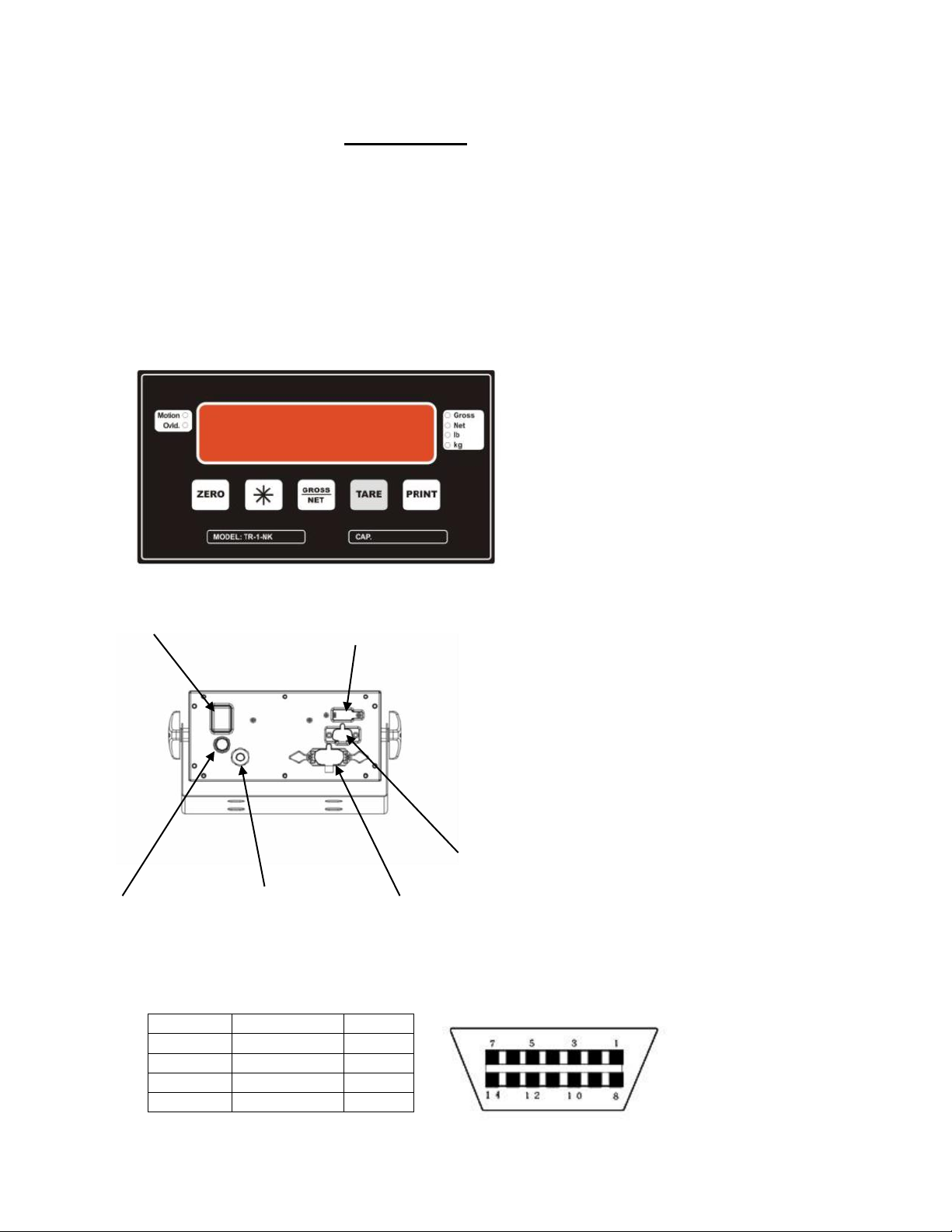

Figure Details of your indicator
Front Panel:
0.54 in 6 digit LED display
6 LEDs for Motion, Ovld, Gross, Net,
lb, Kg
5 function keys
Switch power USB socket
RS232
Fuse socket Input Power AC LOADCELL socket
Back panel diagram for TR-1-NK
LOADCELL Socket ：DB14
PIN NO
WIRE NAME
Color
1, 8
+Excitation
RED
3, 10
- Excitation
BLACK
5, 12
+Signal
GREEN
7, 14
- Signal
WHITE

Rev 4, 08.08.2016 9
RS232 Transmission Agreement：
Mode：Simplex Asynchronous Serial
Baud rate：9600
Data Bit：8
Parity Bit：NONE
Stop Bit：1
Data Format：ASCII
Transmission Information Format：16 Byte ，blank=20H
<STX><POL><7Data><kg/lb><blank ><G/N><M ><CR><LF>
Note: The M character will only appear in continuous mode
As set by parameter #8

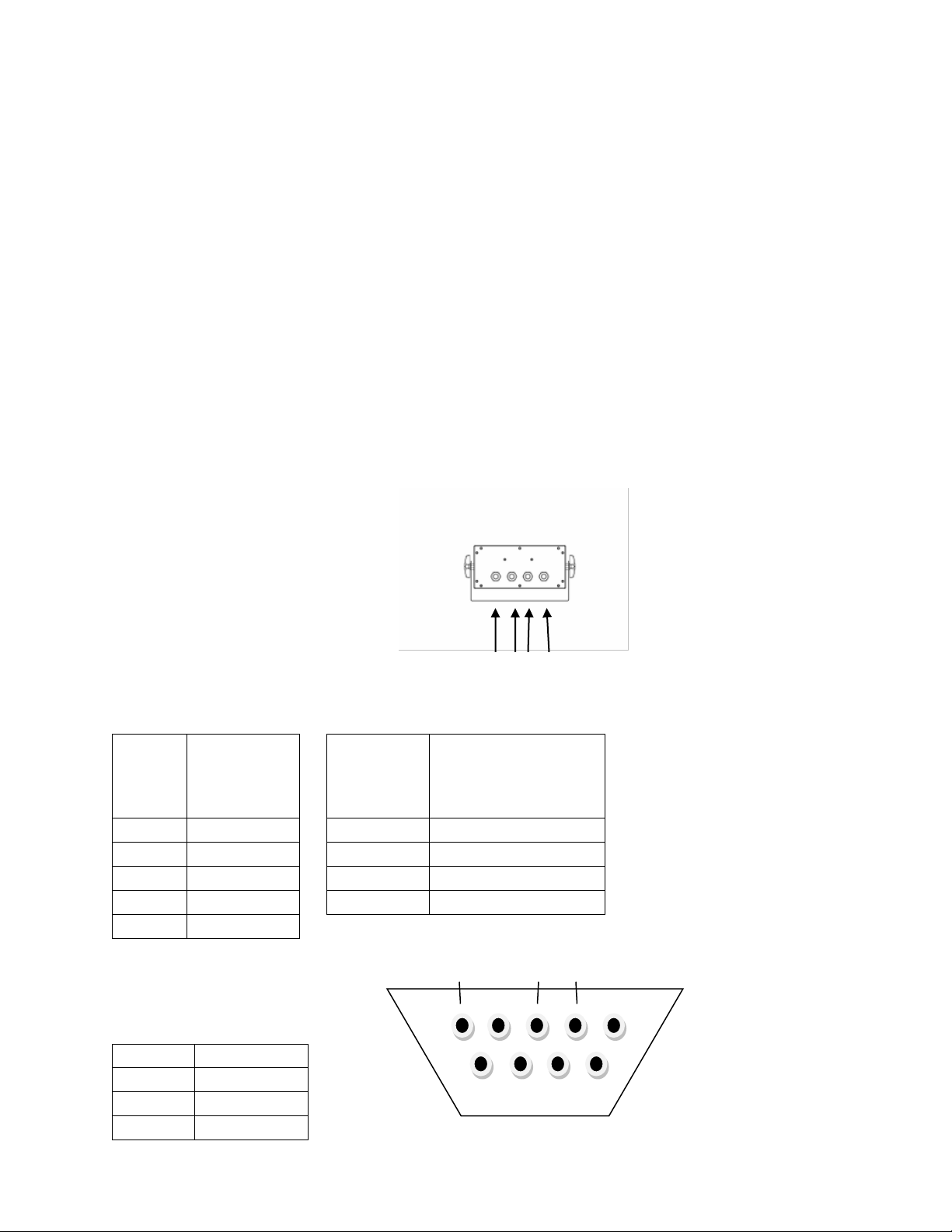

Back panel diagram for TR-1-NK WD
12 3 4
Socket:
RS232
connection:
J2
(mainboard)
PIN No
Socket Name
PIN No
Wire Name
1
AC
1
GND
2
LOAD CELL
2
TXD
3
undefined
3
RXD
4
indefined
RS232 Transmit Function 5 3 2
RS232 interface: DB9
PIN No
Wire Name
2
TXD
3
N.C. RXD
5
GND

Rev 4, 08.08.2016 10
Application & Conformity
The Following are instructions of how to correctly use the weight indicator:
In using the weighing indicator in combination with other devices as well as with devices
produced by other manufacturers, the appropriate regulations for the safe use of the
relevant attachments and their application in accordance with instructions must be
observed.
The weighing indicator has been manufactured and tested in accordance with the
standards and recommendations set out in the declaration of conformity.
The following applies to TR-1-NK
Power supply:
AC 120V±10% (AC Power cord)
Allowable ambient conditions
Temperature: 5°C - 40°C
Relative humidity: 25% - 85%, non-condensing
If you have any questions on the technical data or require detailed technical
information on your balance, please contact your technical representative.

Rev 4, 08.08.2016 11
Getting Started
The indicator is packaged in an environmentally-friendly carton, which provides
optimum protection for the balance during transportation.
We suggest that you keep the original packaging in order to avoid damage if you are
shipping or transporting the indicator to a different location. It is also the best way to
keep it in the best conditions if it will not be used for an extended period of time.
In order to avoid damage, please follow the instructions provided below, when
unpacking the scale:
Unpack the indicator carefully.
When outside temperatures are very low, the indicator should be stored for a
couple hours and kept in its box in a dry room at normal temperature, so that no
condensation settles on the unit when opening the box.
Check the indicator immediately after unpacking for any external visual damage.
If there is any damage on indicator, contact customer service immediately.
If the indicator is not to be used immediately after purchase, it should be stored in
a dry place where fluctuations in temperature are low. (Reference pg.18).
Read through these operating instruction, before you work with the unit and pay
attention to the Safety recommendations (reference Safety pg. 6).
Delivery
Inspect delivery for completeness immediately on unpacking all components.
Checklist for complete delivery
Component delivered present yes / no
Weighing indicator
Operating manual

Rev 4, 08.08.2016 12
Assembly & Installation
The weighing indicator is delivered in a partly dismantled condition. Assemble the
individual components in the following sequence:
Place your machine on a level, clean, and dry.
Connect load cells or weighing platform (refer to p.8)
Connect indicator to main power

The following Safety recommendations must be observed when connecting the
indicator:
The indicator should only be connected to the mains voltage socket. Check before
connecting to the mains socket, that the operating voltage complies with the local mains
voltage.
If the operating voltage is not the same as the mains voltage, the indicator must not be
connected to the mains socket and contact customer service.
Placement of Indicator
The location in which the indicator is placed is very important in order for the indicator to
work to its full potential. Certain conditions can affect the capabilities of the indicator,
conditions like: variations in temperature, and direct sunlight. Please follow the
recommendations given below in choosing a location to place your indicator.
Place the indicator on a solid, firm and preferably vibration-proof, horizontal
base
Make sure that the weighing machine cannot be shaken or knocked over
Protect from direct solar radiation
Avoid drafts and excessive temperature fluctuations
Avoid placing the scale near or on any magnetic surfaces.

Rev 4, 08.08.2016 13
Annunciator messages:
Motion: This light is on whenever the scale is in motion.
OVLD: This light is on whenever the scale is over weight limit.
GROSS: Indicates that the indicator is displaying gross weight.
NET: Indicates that the indicator is displaying net weight.
Lb: Indicates the “lb” unit of the displayed weight.
Kg: Indicates the “kg” unit of the displayed weight.
Key Functions:
ZERO: “Zero” feature works if load is between 0 to 100% of full capacity. To
bring the scale to a zero balance reading, press the zero button. The button will
not activate if the MOTION lamp is on.
UNIT: Push to switch between lb and kg. Each time the button is pushed, the
tare weight will be automatically cleared.
GROSS/NET: Press this key to switch between Gross or Net mode. The lamp
will light to indicate which mode is being displayed.
TARE: “Tare” feature works if load is between 0 to 100% of full capacity. Multiple
tare can be used provided the total mass does not exceed the weighing capacity
of the scale. When the weight is stable (no motion), press the TARE button, and
hold for one display update. If the gross weight was not a negative value, the tare
weight now equals the gross weight and the display will show a NET weight of
zero.
PRINT: Press this button to activate an optional printer.

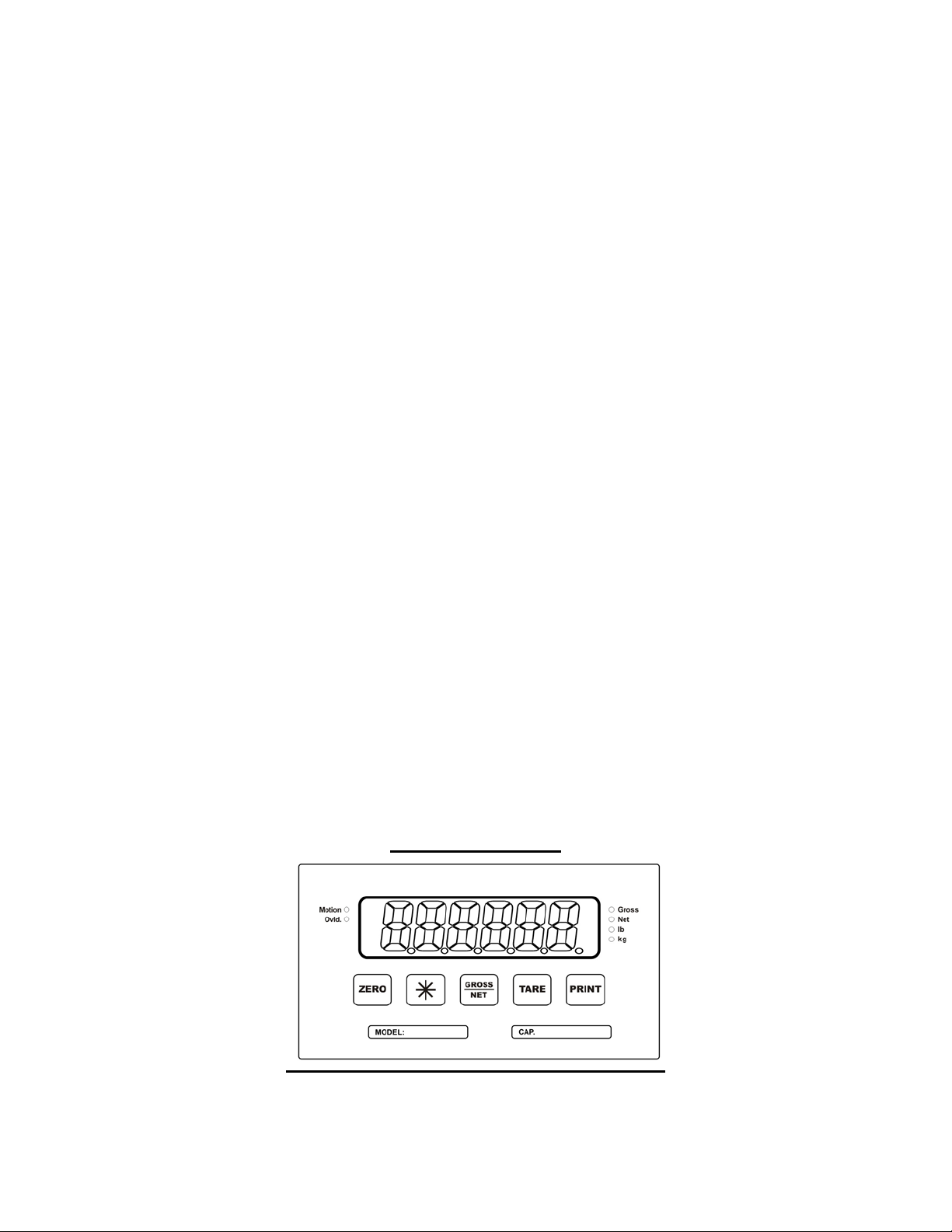

LED Display

Rev 4, 08.08.2016 14
Weighing Options
Please see our web-site at http://lwmeasurements.com for practical demonstrations of
application usage.
Weighing Procedures
Whenever possible, please allow the scale to warm up for several seconds after first
turning the power on so that the scale will function properly and accurately.
Press (ON/OFF) to turn on the scale. When the power is turned on, all display
segments appear for a few seconds and then display the current weight. Press
ZERO o zero scale if required.

Select the weighing unit with (star symbol). Press (star symbol) to switch
between kg/lb.

Start weighing: If you do not use a container for weighing: Verify the reading
is “0”, if not press ZERO to display “0”. Place the items to be weighed on the
platform. If you use a container for weighing: Place an empty container on the
platform. Wait for a stable reading to be displayed and press TARE. Place the
objects to be weighed in the container.


Parameter Settings

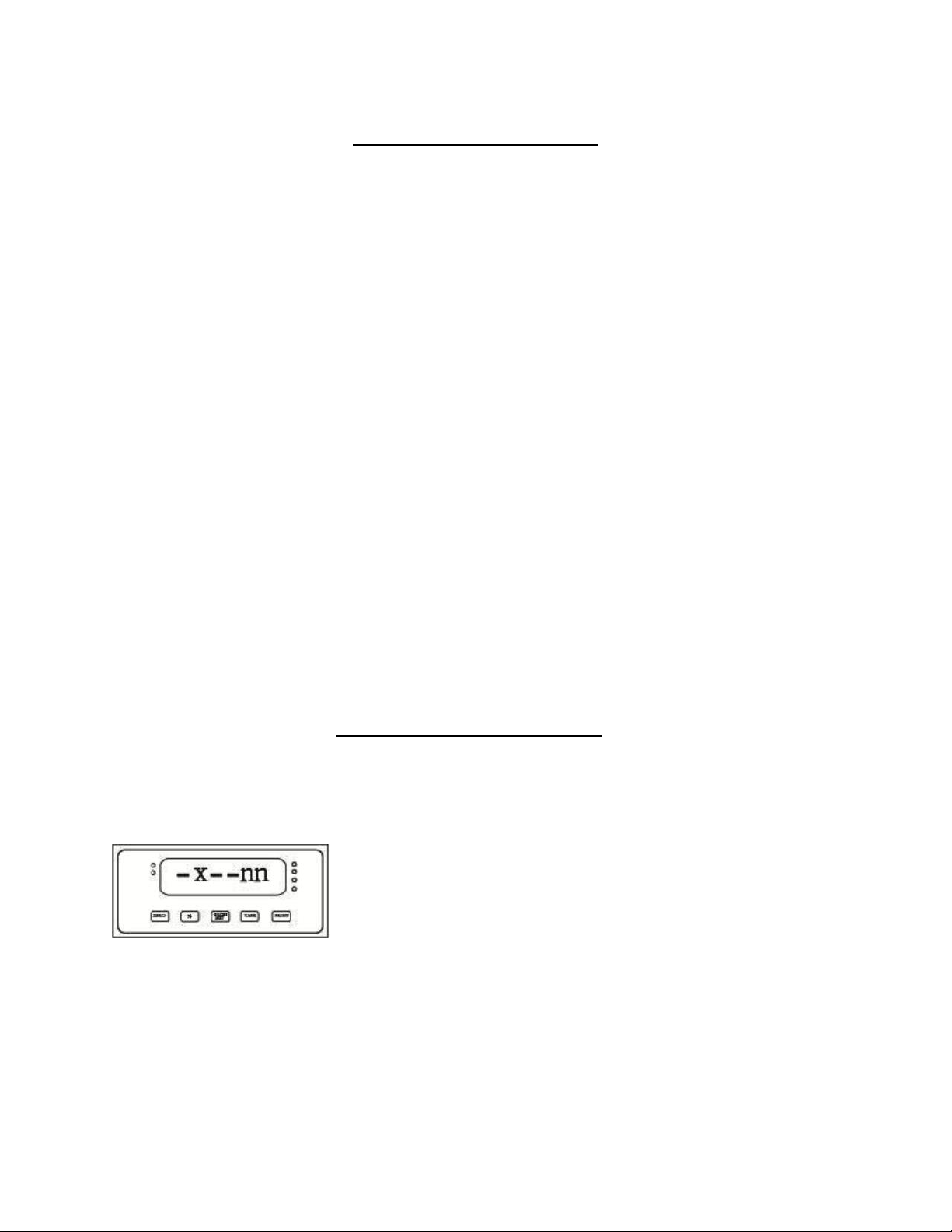

Open the rear cover, then press <CAL> key on the main board and it will show “------“,
then press <Gross/Net> to enter parameter menu. Format of parameter: - x - - nn (“x”
means the parameter and the “nn” means the value that it is currently set to.
Operation: <Gross/Net>: change X parameter number in rotation.
<TARE>: Press to increase the parameter value by 1.
<PRINT>: Press to decrease the parameter value by 1.

Rev 4, 08.08.2016 15
Setup Menu Chart:
Setup Menu Description:
Code
Name
Description
Code/Value
0
LB/KG units
nn=00: Power-on unit is lb and
units conversation is not
available. nn=0: Power-on unit is
lb and units conversation is
available. nn=2: Power-on unit is
kg and units conversation is
available. nn= other value,
same to nn=02.
00,
0,
02,
nn
1
display
sampling
updated rate
nn=00: rate=6.25Hz (the slowest)
nn=01: rate=7.5Hz
nn=02: rate=12.5Hz
nn=03: rate=15Hz
nn=04: rate=25Hz
nn=05: rate=30Hz
nn=06: rate=50Hz
nn=07: rate=60Hz (the fastest)
nn= other value, same to nn=00
00,
01,
02,
03,
04,
05,
06,
07,
nn
2
LB graduation
Example - set 2 for grad size of 2
(decimal point setting at param 6)
01, to
99
3
6
6
Overload limit
nn=00: fixed 10000 divisions
nn=99: No limt
Set to 100s of graduations
Example: set to 50 for 5000 scale
divisin
00,
30,
99
.nn

Rev 4, 08.08.2016 16
4
Motion
detection
Set to the muber of scale division
that is allowed as a no motion
condition
00 to …
99
5
zero tracking
range
Set to number of scale divivsions
off of zero that the uit will auto
zero in one sample update.
01, 02, 03,
04, 05...
6
LB number of
decimal
nn=00: no decimal place
nn=01: one decimal places
nn=02: two decimal places
nn=03: three decimal places
nn=04: four decimal places
nn= others, same to nn=00
00,
01,
02,
03,
04,
nn
7
undefined
8
RS232
Output option for serial
communication poer (9600, N, 8,
1 nn=00: PRINT button output
nn=01: continuous output
nn=others, same to nn=00 date
format: STX, ' '/'-', 7
Date char, 'lb'/kg', ' ' , 'G'/'N', 'M'/'
'  CR, LF
00,
01,
nn

Rev 4, 08.08.2016 17
Calibration
Using a Calibration Weight
Calibration is required when the weighing scale is initially installed or if the
balance is moved to a substantial distance from the original location.
NOTE: All calibration needs to be done in pounds.
NOTE: When setting up a new scale, do the parameter setting first.
Calibration Steps:
Open the rear cover, then press <CAL> button on the main board to cause the display
to show “------“, then press <TARE> to enter calibration.

Please make sure that the scale is empty first, then press <ZERO>.
Put the calibration weight on the scale. (Over 50% of capacity is ideal but
not required).
Press the “star symbol” button to enter the coarse adjust model.
Press <TARE> key to decrease or <PRINT> to increase displayed value and
stop at a number closest to the correct weight. (Note: it will not be correct yet).
Step down to a finer adjustment by pressing the <GROSS/NET> key, then repeat
step #4 and #5 as needed until the display shows the correct weight.
When displayed value is correct, press <CAL> to exit the CAL mode and
return to weighing mode.


Rev 4, 08.08.2016 18
Maintenance & Service
The weighing scale is a precision instrument, it must be treated carefully and cleaned
regularly
For maintenance-work, the balance must be disconnected from the power supply
(remove power adapter plug from socket). Also ensure that the balance cannot be
connected to the power supply during the work by a third party.
Make sure that no liquid spills into the scale while performing maintenance work. If
liquid is spilled on the scale, it must be inspected by a service technician.
Regularly perform maintenance to the weighing pan and the weighing pan holder by
removing any dirt or dust from under the weighing pan and on the weighing scale
housing. Use a soft brush or a soft, lint-free cloth, moistened with a mild soap solution
Never use solvents, acids, alkalis, paint thinners, scouring powders or other aggressive
or corrosive chemicals for cleaning; these substances can cause damage to the
surfaces of the scale housing.
Transport & Storage
Your weighing machine is a precision instrument, treat it carefully. Avoid shaking,
severe impacts and vibration during the transportation. Make sure that there are no
marked temperature fluctuations during the transportation and that the weighing
machine does not become damp (condensation).
If you would like to take the weighing machine out of service for an extended period,
disconnect it from the electricity supply, clean it thoroughly (refer to Maintenance &
Service) and store it in a place which meets the following conditions:
No violent shaking, no vibrations
Minimum temperature fluctuations
No direct solar radiation
Minimum moisture
Warranty

Rev 4, 08.08.2016 19
The products are under warranty against factory defects for a period of two (2) years
from the date of shipment.
For Customers within the lower 48 states of the continental United States. LW
Measurements will pay for fright both ways for the first 30 days after purchase. After 30
days expire the customer is responsible for shipping the product back to us. After the
product is received we will inspect it and as necessary we will repair or replace and will
ship the product back to the customer at our expense.
Any new scales returned for warranty must be properly packaged in the original box. If
they are not properly packed an in the original box, the customer pays for shipping cost.
If we determine there is a factory defect, we will pay for the shipping back. If we
determine that it is not a factory defect, the customer will pay shipping.
For Customers outside the lower 48 States, including Mexico, Canada, Puerto Rico,
Hawaii, Alaska and all other countries, customers must pay for shipping.
Our warranty does not cover misuse or neglect including but not limited to battery or
water damage, overloading, and chewed or cut wires. If the product is found to have
been misused or damaged by the customer, LW measurements is not responsible for
the cost of return.
For warranty claims please go online to lwmeasurements.com and fill out the warranty
submission form or call your customer service representative.
