Lyngdorf Audio DISCREET Series User manual

LYNGDORF DISCREET SERIES INSTALLATION MANUAL
(working document)
D-500
D-500 Center
D-5
D-5 IC
LYNGDORF AUDIO DISCRETE SERIES
D-500, D-500 Center, D-5, D-5 IC
INSTALLATION
MANUAL

Lyngdorf Audio Discrete series – Installation manual 2
TABLE OF CONTEN T S
Table of Contents
COMPLIANCE .......................................................................................................................................... 3
PRE-INSTALLATION ................................................................................................................................. 4
SPEAKER INSTALLATION ......................................................................................................................... 8
D-500 MOUNTING DIMENSIONS ............................................................................................................ 9
D-500 CENTER MOUNTING DIMENSIONS ............................................................................................. 11
D-5 MOUNTING DIMENSIONS .............................................................................................................. 12
D-5 IC MOUNTING DIMENSIONS .......................................................................................................... 13
TECHNICAL SPECIFICATIONS ................................................................................................................. 14
SERVICE INFORMATION ........................................................................................................................ 16

Lyngdorf Audio Discrete series – Installation manual 3
COMPLIANCE
WEEE
The European Parliament and the Council of the European Union have issued the Waste Electrical and
Electronic Equipment Directive. The purpose of the Directive is to prevent waste of electrical and electronic
equipment and to promote reuse, recycling, and other forms of waste recovery. Steinway Lyngdorf products
and the accessories packed with them are subject to the WEEE Directive. Please dispose of any waste
materials in accordance with your local recycling regulations. Products and equipment which must be
collected for reuse, recycling, and other forms of recovery are marked with the icon of the crossed-out waste
receptacle.
FCC
Steinway Lyngdorf products and accessories comply with parts 15 and 68 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must
accept any interference received, including any interference that may cause undesired operation. Changes or
modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment. Equipment marketed to a consumer must be capable of complying with the
necessary regulations in the configuration in which the equipment is marketed.

Lyngdorf Audio Discrete series – Installation manual 4
PRE-INSTALLATION
Unpacking the loudspeaker
Carefully remove the loudspeaker units and accessories from the carton and check for shipping damage.
Contact both the shipper and your local Lyngdorf Audio representative immediately if the unit bears any sign
of damage from mishandling. In some cases, it may be necessary to return the equipment to Lyngdorf Audio
or an authorized service provider for repair; therefore, it is recommended that you save your original packing
materials. If this unit is shipped without the original packing, damage could occur and void the warranty.

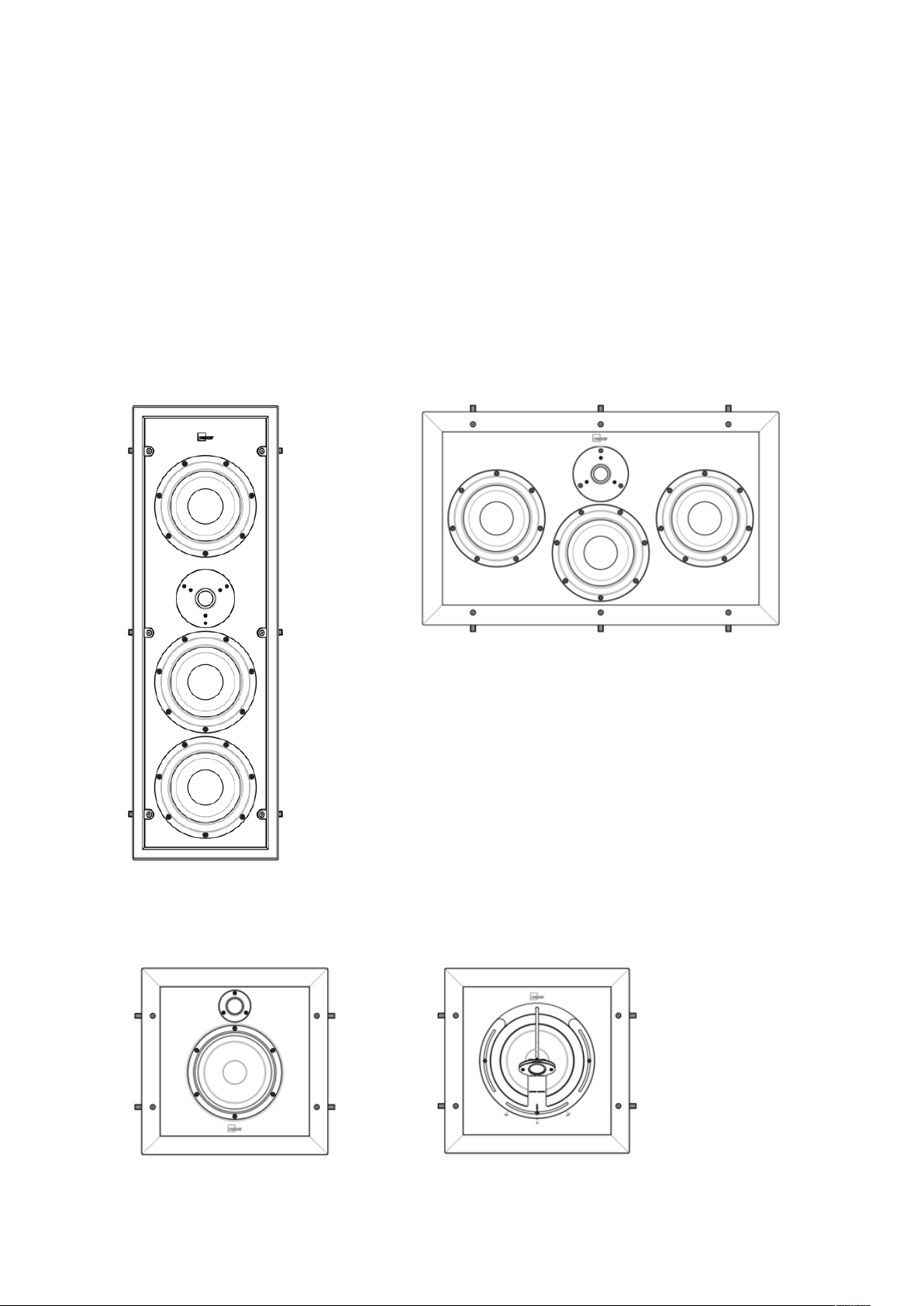

D-500
D-500 Center
D-5
D-5 IC

Lyngdorf Audio Discrete series – Installation manual 5
Inventory
Check the list below to ensure that all necessary product components have been delivered. Please report all
discrepancies to your Steinway Lyngdorf representative immediately.
• Loudspeaker with mounting legs on the sides
• Installation manual
• Installation cut-out template
• Loudspeaker grill
• Lyngdorf logo badge
• Hex 3 bits
• Safety wire (only for D-5 IC)
Weight
Please ensure that the wall or ceiling type can handle the weight of the speaker in the chosen position, and
that the mounting legs can hold tight.
D-500 6,7 kg / 14.7 lb
D-500 Center 11,5 kg / 25.4 lb
D-5 6,4 kg / 14.1 lb
D-5 IC 6,9 kg / 15.2 lb
Cables
Recommended minimum up to 16m / 50ft: AWG 14/2 or 2-lead 2mm2
Recommended minimum from 16m / 50ft and up: AWG 12/2 or 2-lead 3.5mm2
Recommended maximum: Double AWG 10/2 or 2-lead 5mm2
Allow min. 50cm longer cable for each speaker for connecting the cable to the speaker binding posts before
the speaker is placed inside the wall or ceiling.
Safety Wire
When mounting the D-5 IC in the ceiling, the safety wire must be used to prevent damages and accidents.
Make sure the safety wire and safety hook are not making contact with the speaker cable connectors.

Lyngdorf Audio Discrete series – Installation manual 6
Cut-out Hole Dimensions
Be sure there is ample clearance behind the wall or ceiling to allow for the speaker to be properly installed.
With all speaker models you will find the relevant cut-out template. The minimum cut-out dimensions
required are:
Speaker
Depth
Height
Width
D-500
107 mm / 4.2 in
751 mm / 29.6 in
226 mm / 8.9 in
D-500 Center
107 mm / 4.2 in
360 mm / 14.2 in
618 mm / 24.3 in
D-5
107 mm / 4.2 in
334 mm / 13.2 in
334 mm / 13.2 in
D-5 IC
110 mm / 4.3 in
334 mm / 13.2 in
334 mm / 13.2 in
The cutout hole dimensions must be with a maximum deviation of +/- 2 mm equivalent to +/- 0.08 in
Placement of speakers
It is recommended to place the speakers so that they
• align acoustically with each other
• align with the screen and listener’s ear height
• meet the guidelines for either stereo or surround sound placement
Listening view example:

Lyngdorf Audio Discrete series – Installation manual 7
Ceiling view example:
Screen and listener alignment example:

Lyngdorf Audio Discrete series – Installation manual 8
SPEAKER INSTALLATION
1. Hold the loudspeakers near the cutout and connect the loudspeaker wires. Make sure the cable ends
are securely tightened and no bare wire is standing out.
2. Insert the loudspeaker into the cutout and align the speaker.

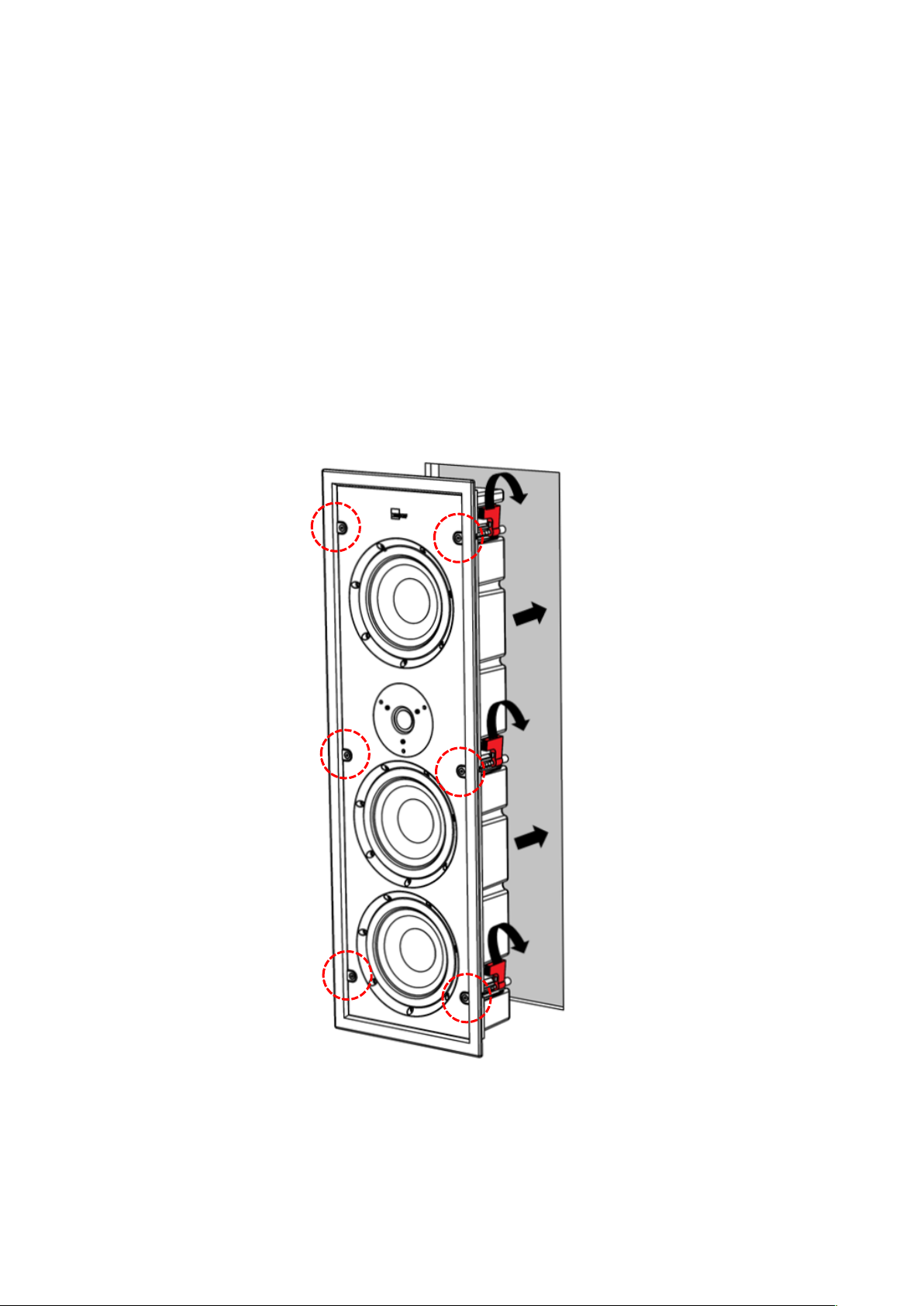

3. Using a Hex 3 key, turn each mounting screw clockwise until it is firmly in place. This will automatically
turn the red mounting legs inside by 90 degrees, and each further turn with the Allen Key will pull the
loudspeaker against the wall. If you are using an electric screwdriver, set it to the lowest torque to
prevent overtightening or damaging the wall, and tighten with a Hex key by hand.

Lyngdorf Audio Discrete series – Installation manual 9
4. Attach the included grill to the loudspeaker and place the Lyngdorf Logo (optional).

Lyngdorf Audio Discrete series – Installation manual 10
D-500 MOUNTING DIMENSIONS
Cutout dimensions back view:
Mounting leg position: Mounting leg span:

Lyngdorf Audio Discrete series – Installation manual 11
D-500 CENTER MOUNTING DIMENSIONS
Cutout dimensions back view:
Mounting leg position: Mounting leg span:

Lyngdorf Audio Discrete series – Installation manual 12
D-5 MOUNTING DIMENSIONS
Cutout dimensions back view:
Mounting leg position: Mounting leg span:

Lyngdorf Audio Discrete series – Installation manual 13
D-5 IC MOUNTING DIMENSIONS
Cutout dimensions back view:
Mounting leg position:
Mounting leg span:

Lyngdorf Audio Discrete series – Installation manual 14
TECHNICAL SPECIFICATIONS
D-500
Description: 2 way speaker with 2 passive woofers
Powerhandling: 100W
Nominal Impedance: 4 Ohm
Tweeter: 28 mm / 1,1” dome
Midrange driver: 175 mm, 38 mm voice coil, aluminum cone, vented magnet
Passive woofer: 2 x 175 mm, aluminum cones
Frequency response: 47 – 22.000 Hz (-6 dB)
Sensitivity: 88 dB 2.83 v/ 1 m
Crossover point: 2,5 kHz
Connections: Binding posts
Mounting: In-wall
Dimensions (W x H x D) 254 x 779 x 106 mm / 10 x 30,7 x 4,2 inches
Weight: 6,4 kg / 14.1 lb
Finish: Matte black, white grill
D-500 Center
Description: 2 way speaker with 2 passive woofers
Power handling: 100 W
Nominal Impedance: 4 Ohm
Tweeter: 28 mm / 1” dome
Midrange driver: 175 mm, 38 mm voice coil, aluminum cone, vented magnet
Passive woofers: 2 x 175 mm, aluminum cones
Frequency response: 47 – 22.000 Hz (-6 dB)
Sensitivity: 88 dB 2.83 v/ 1 m
Crossover point: 2,5 kHz
Connections: Binding posts
Mounting: In wall
Dimensions (Wx H x D): 646 x 388 x 109 mm / 25,4 x 15,3 x 4,9 inches
Weight: 11,5 kg / 25.4 lb
Finish: Matte black, white grill

Lyngdorf Audio Discrete series – Installation manual 15
D-5
Description: 2 way speaker
Power handling: 100 W
Nominal Impedance: 4 Ohm
Tweeter: 25 mm / 1” dome
Midrange driver: 180 mm, 35 mm voice coil, alumi
num cone, vented magnet
Frequency response: 70 – 20.000 Hz (-6 dB)
Sensitivity: 89 dB 2.83 v/ 1 m
Crossover point: 2,2 kHz
Connections: Binding posts
Mounting: In wall
Dimensions (WHD): 362 x 362 x 109 mm / 14,25 x 14,25 x 4,3 inches
Weight: 6,4 kg / 14.1 lb
Finish: Matte black, white grill
D-5 IC
Description: 2 way speaker
Power handling: 100 W
Nominal Impedance: 4 Ohm
Tweeter: 25 mm / 1” dome
Midrange driver: 180 mm, 35 mm voice coil, alumin
um cone, vented magnet
Frequency response: 70 – 20.000 Hz (-6 dB)
Sensitivity: 89 dB 2.83 v/ 1 m
Crossover point: 2,2 kHz
Connections: Binding posts
Mounting: In ceiling
Dimensions (WHD): 362 x 362 x 114 mm / 14,25 x 14,25 x 4,5 inches
Weight: 6,9 kg / 15.2 lb
Finish: Matte black, white grill

Lyngdorf Audio Discrete series – Installation manual 16
SERVICE INFORMATION
To obtain warranty service, you must contact your original dealer or the Steinway Lyngdorf distributor of the
region or country where you are located. If you have trouble locating an authorized representative, please
find contact information at www.steinwaylyngdorf.com,
Steinway Lyngdorf
Ulvevej 28
DK 7800 Skive
Denmark
In some cases, it may be necessary to return the equipment to Steinway Lyngdorf or an authorized service
provider for repair; therefore, it is recommended that you save your original packing materials. Steinway
Lyngdorf will not be responsible for any damage due to unauthorized packing or shipment in non-original
packing materials. If return is made in authorized packaging, risks are borne by Steinway Lyngdorf. Additional
charges may occur if new packing materials are required for return shipment.
Please check the latest version of this printed manual on our website:
www.steinwaylyngdorf.com
