LYNGDORF AUDIO CUE-100
INSTALLATION
MANUAL

Lyngdorf Cue-100 Owner’s manual
2
TABLE OF CONTENTS
COMPLIANCE ..................................................................................................... 3
INTRODUCING THE CUE-100 ............................................................................ 4
UNPACKING THE CUE-100 ................................................................................ 5
ASSEMBLING CUE-100 SPEAKER AND STAND .............................................. 7
PLACEMENT IN THE ROOM .............................................................................. 8
ATTACHING AND REMOVING THE FABRIC COVER ....................................... 9
TECHNICAL SPECIFICATIONS ........................................................................ 11
SERVICE INFORMATION ................................................................................. 12

Lyngdorf Cue-100 Owner’s manual
3
COMPLIANCE
WEEE
The European Parliament and the Council of the European Union have issued the Waste Electrical and Electronic
Equipment Directive. The purpose of the Directive is to prevent waste of electrical and electronic equipment and to
promote reuse, recycling, and other forms of waste recovery. Steinway Lyngdorf products and the accessories packed
with them are subject to the WEEE Directive. Please dispose of any waste materials in accordance with your local
recycling regulations. Products and equipment which must be collected for reuse, recycling, and other forms of recovery
are marked with the icon of the crossed-out waste receptacle.
FCC
Steinway Lyngdorf products and accessories comply with parts 15 and 68 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any
interference received, including any interference that may cause undesired operation. Changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in
which the equipment is marketed.
Safety Warning - Physical Handling
The Cue-100 loudspeakers are very heavy. Follow all instructions for unpacking and installation. Use ergonomically
correct body positions. Be careful not to unbalance or drop the speakers during handling. Lyngdorf Audio cannot be held
responsible for any physical damage which occurs during the installation process.

Lyngdorf Cue-100 Owner’s manual
4
INTRODUCING THE CUE-100
Thank you for purchasing the Lyngdorf Cue-100 loudspeaker.
Designed and made in Skive, Denmark, the Cue-100 is the perfect loudspeaker for audiophile enthusiasts as well as
design-conscious music lovers. The Cue-100 is the first high-end audio loudspeaker merging modern Danish design with
the latest Purifi speaker technology and the outstanding Air Motion Transformer tweeter. The benchmark-setting Purifi
drivers are integrated in a uniquely shaped cabinet, finished in satin black or satin white with solid oak elements, and
optional all-around fabric covers in five colors made by Gabriel® from Denmark.
When using the Cue-100 together with a Lyngdorf amplifier, the RoomPerfectTM technology calibrates the speaker
acoustically to the room, always achieving the best possible sound performance.

Lyngdorf Cue-100 Owner’s manual
5
UNPACKING THE CUE-100
Unpacking the Cue-100 speaker
1. Move the Cue-100 still boxed in its packaging near the final placement of your listening room.
2. Open the Cue-100 cardboard box on the top, fold all the carboard flaps to the sides, and carefully turn the box 180
degrees upside-down.
3. Lift the carboard box up, remove the upper foam pad, and open the plastic bag on top. Do not remove the speaker
from the plastic bag yet, but keep it protected until the stand assembling is completed.
Check the speaker for shipping damage. Contact both the shipper and your local Lyngdorf Audio representative
immediately if the unit bears any sign of damage.
In some cases, it may be necessary to return the equipment to Lyngdorf Audio or an authorized service provider for
repair; therefore, it is recommended that you save your original packing materials. If this unit is shipped without the
original packing, damage could occur and void the warranty.
Unpacking the Cue-100 oak stand
1. Carefully lift out the three oak legs.
2. Lift out the black aluminum based and mounting accessories.

Lyngdorf Cue-100 Owner’s manual
6
Checking the inventory
Check to ensure that all necessary product components have been delivered. Report all discrepancies to your local
Lyngdorf Audio representative immediately.
Speaker package:
• 1 x Cue-100
• 1 x Owner’s Manual
• 3 x Metal feet (M8) for optional use
Stand package:
• 3 x Oak stand legs
• 1 x Black aluminum base plate, for mounting the stand legs
• 3 x Hex socket screw (M8), for mounting the aluminum base
• 1 x Hex Allen Key
• 1 x Cable strips, for attaching speaker cable to one stand leg (optional use)

Lyngdorf Cue-100 Owner’s manual
7
ASSEMBLING CUE-100 SPEAKER AND STAND

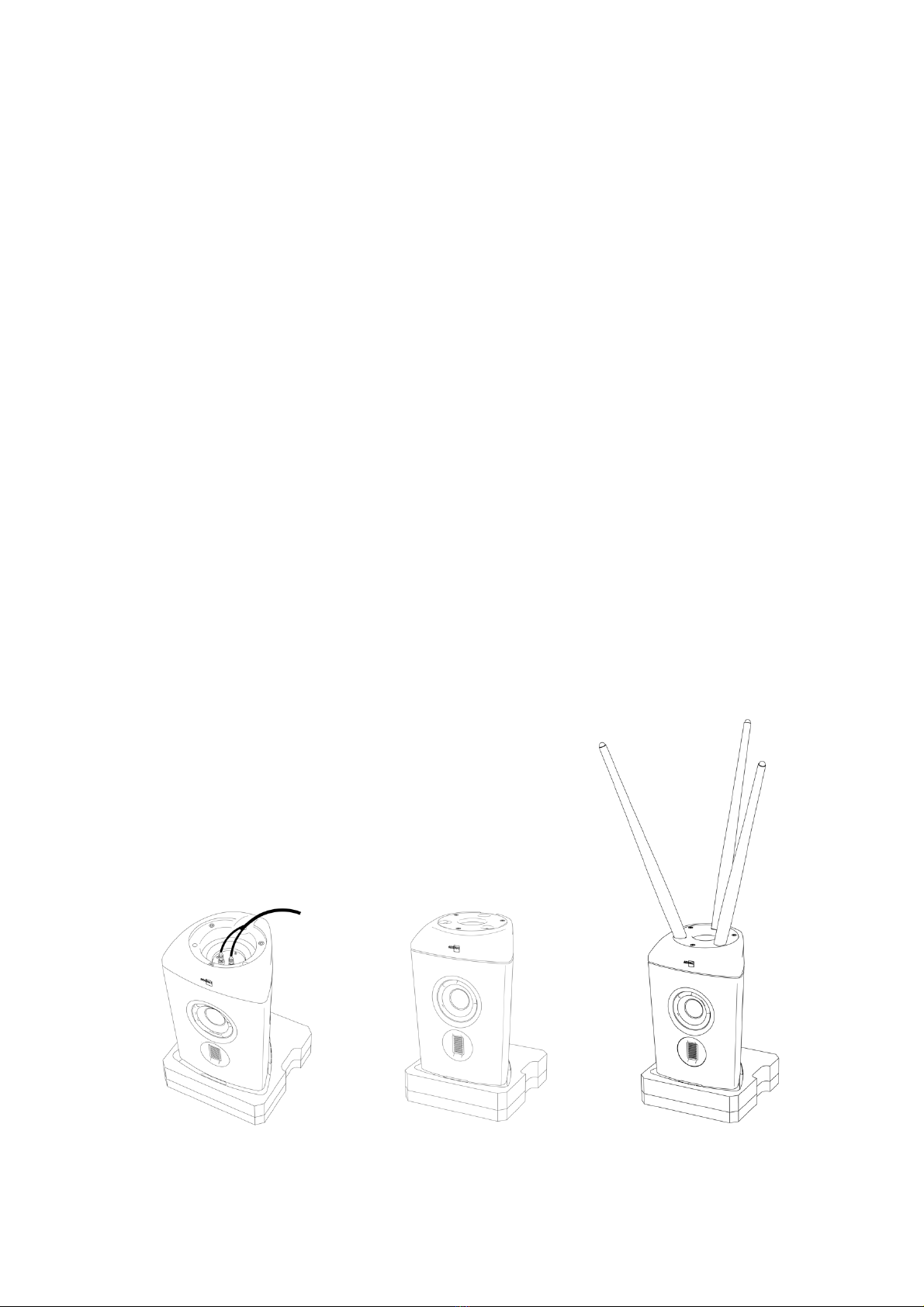

Mounting the stand to the speaker
1. Keep the Cue-100 placed on its foam pad, using it as a mounting base for the speaker. Open the plastic bag so that
the speaker base and speaker cable terminals are accessible.
2. Switch off your amplifier and attach the speaker cables to the Cue-100 speaker terminals. It can take banana plugs,
spades, and bare wire. Make sure the two wires make not contact to each other. Arrange the speaker cable along
the speaker base’s cable canal to the back of the speaker.
3. Place the black aluminum plate on the speaker’s base and align with the three threaded bushings inside the speaker
base. Fix the base tightly using the three hex socket screws and the hex Allen key supplied.
4. Mount the three oak legs to the black aluminum plate by turning each leg clockwise. Important: Take care of the
correct mounting angle where the stand’s metal thread and the plate’s threaded bushing align with the same angle.
5. Hold the speaker with one hand on one top edge and the other hand below the black aluminum base, and carefully
turn speaker and stand assembly 180 degrees around, placing it on its three stand legs. Important: Be careful not to
touch the tweeter or push the three woofers which are placed on all three sides.

Lyngdorf Cue-100 Owner’s manual
8
PLACEMENT IN THE ROOM
General advice
Apart from room design, the speaker placement in the room affects the sound performance. As with every
loudspeaker, some care should be taken to achieve the best sound performance.
• The Cue-100 was designed and tuned free-standing in the room on its dedicated stand.
• The Cue-100 has one front-facing and two side-facing woofers. The space around all woofers should be
kept clear, so that the sound can radiate freely.
• The distance from the speaker to the nearest back wall and side wall depends on the overall room
acoustics and sound performance and cannot be determined in cm or inches.
• Start with placing the speakers in a typical stereo triangle where the distance between the speakers is
similar or slightly less than the distance between the listening position and the left or right speaker. The
ideal stereo width and distances can be determined by listening to music, aiming for the most balanced
sound across all frequencies, as well as the best sound staging and imaging between the speakers.
• The Cue-100 can be toed-in slightly towards the listening position. The exact angle of toe-in can be
determined by listening to music, aiming for the most balanced sound and a precise acoustical center
image.
• The best result is achieved when using the Cue-100 together with a Lyngdorf amplifier and its
RoomPerfectTM room calibration. When not using RoomPerfectTM room calibration, the best speaker
position and listening position in the room can be determined by listening to music, aiming for the most
balanced sound across all frequencies.

Lyngdorf Cue-100 Owner’s manual
9
ATTACHING AND REMOVING THE FABRIC COVER

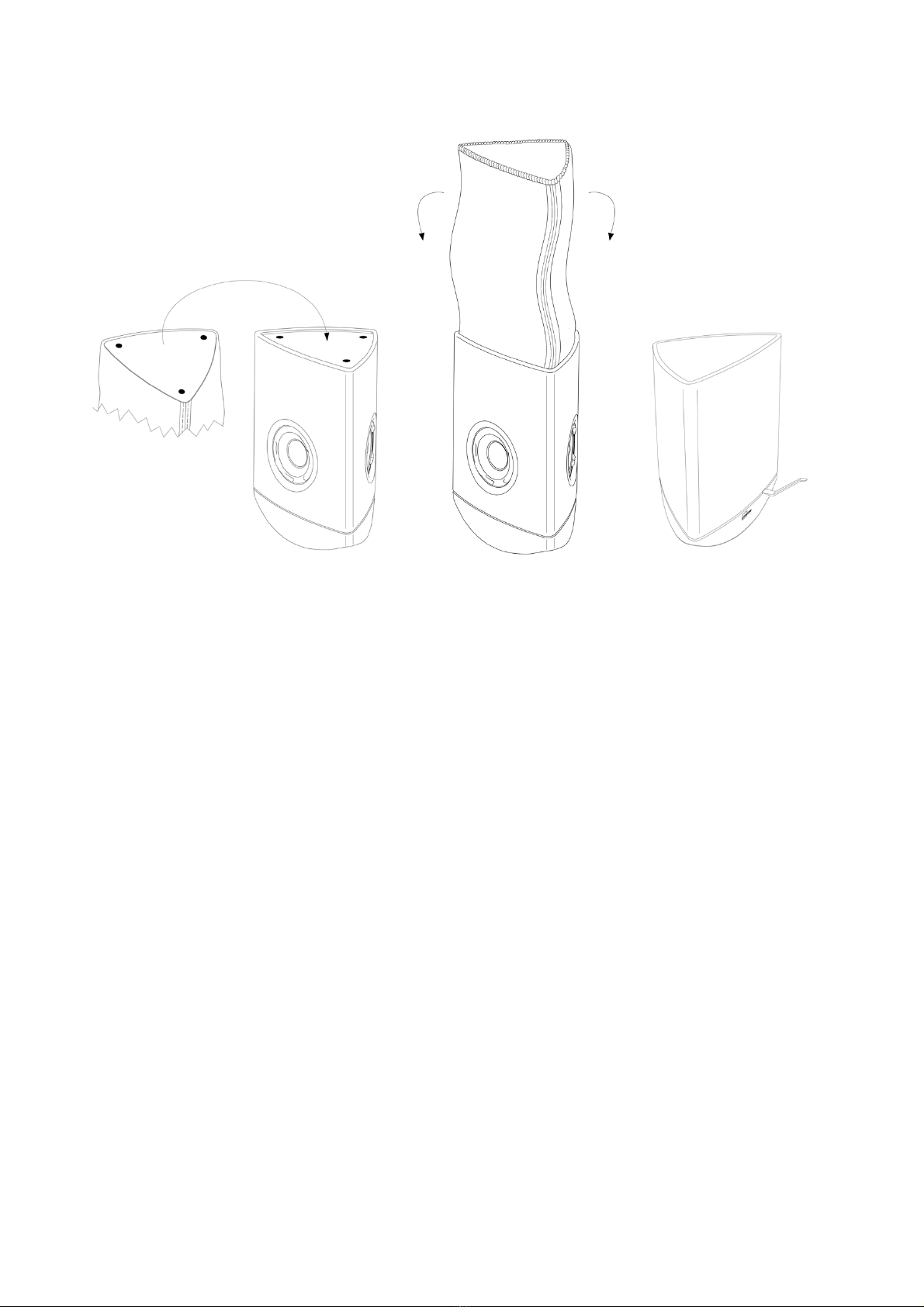

Attaching the fabric cover
1. Remove the triangular oak top by pulling and lifting it from the Lyngdorf logo tag.
2. Take the fabric cover in the hand and pull back all the fabric cloth until the triangular plate, its
grey felt underside, and the three magnetic discs are free from the fabric.
3. Place the triangular plate and its three magnetic discs on grey felt on top of the Cue-100 speaker,
with the fabric seam facing the back of the speaker cabinet. Make sure none of the fabric is
jammed between triangular plate and speaker enclosure.

Lyngdorf Cue-100 Owner’s manual
10
4. Carefully slide down the fabric cover on all three sides to the speaker enclosure’s gap between
speaker and base. Be careful not to push the tweeter or woofers.
5. Push the fabric’s seam ends gently into the cabinet’s gap on all three sides.
6. Use the provided black alignment tool to shift the fabric seam completely into the gap.
Removing the fabric cover
1. Carefully pull the fabric out from the speaker enclosure’s gap by starting on one of the three
corner edges near the speaker base.
2. Slide the fabric cover up by pulling it step by step around the three corner edges.
3. Lift up the top triangular plate, and replace with the original oak top plate, or with another
fabric cover color.

Lyngdorf Cue-100 Owner’s manual
11
TECHNICAL SPECIFICATIONS
Description: Standmount loudspeaker
Power handling: 250 W (IEC)
Tweeter: Air Motion Transformer, Kapton foil, Neodymium magnet
Midrange/woofer: 18 cm / 6.5-inch Aluminum cone, 39 mm 4-layer copper-clad aluminum voice coil on
fiberglass former, Neutral surround geometry, Die-cast vented basket
Woofer: 2 x 18 cm / 6.5-inch passive radiator, Aluminum cone, Neutral surround geometry,
Die-cast vented basket
Enclosure: MDF, oak
Frequency response: 35 – 22,000 Hz (-3 dB)
Nominal impedance: 4 Ohm
Sensitivity: 83 dB 2.83 v/ 1 m
Crossover frequency: 2300 Hz
Connections: Gold-plated speaker binding posts
Recomm. placement: On stand (included)
Dimensions (WxHxD): 350 x 513 x 329 mm /13,8 x 20,2 x 13 inches (without stand)
597 x 1196 x 520 mm / 23,5 x 47,1 x 20,5 inches (including stand)
Weight: 13,8 kg / 30.4 lbs (without stand) 16,2 kg / 35.7 lbs (including stand)

Lyngdorf Cue-100 Owner’s manual
12
SERVICE INFORMATION
Service and Warranty
To obtain warranty service, you must contact your original dealer or the Lyngdorf Audio distributor of the
region or country where you are located. If you have trouble locating an authorized representative, please
find contact information at www.steinwaylyngdorf.com
Steinway Lyngdorf
Rævevej 3
DK-7800 Skive
Denmark
In some cases, it may be necessary to return the equipment to Steinway Lyngdorf or an authorized service
provider for repair; therefore, it is recommended that you save your original packing materials. Steinway
Lyngdorf will not be responsible for any damage due to unauthorized packing or shipment in non-original
packing materials. If return is made in authorized packaging, risks are borne by Steinway Lyngdorf. Additional
charges may occur if new packing materials are required for return shipment.
Please check the latest version and other languages of this printed manual on our website:
www.steinwaylyngdorf.com
