Lynxx 63288 User manual
Visit our website at: http://www.harborfreight.com
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2016 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
REV 16g
Page 2 For technical questions, please call 1-888-866-5797. Item 63288
SAFETY OPERATION MAINTENANCESETUP
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 6
Setup .......................................................... 8
Operation................................................... 10
Maintenance.............................................. 12

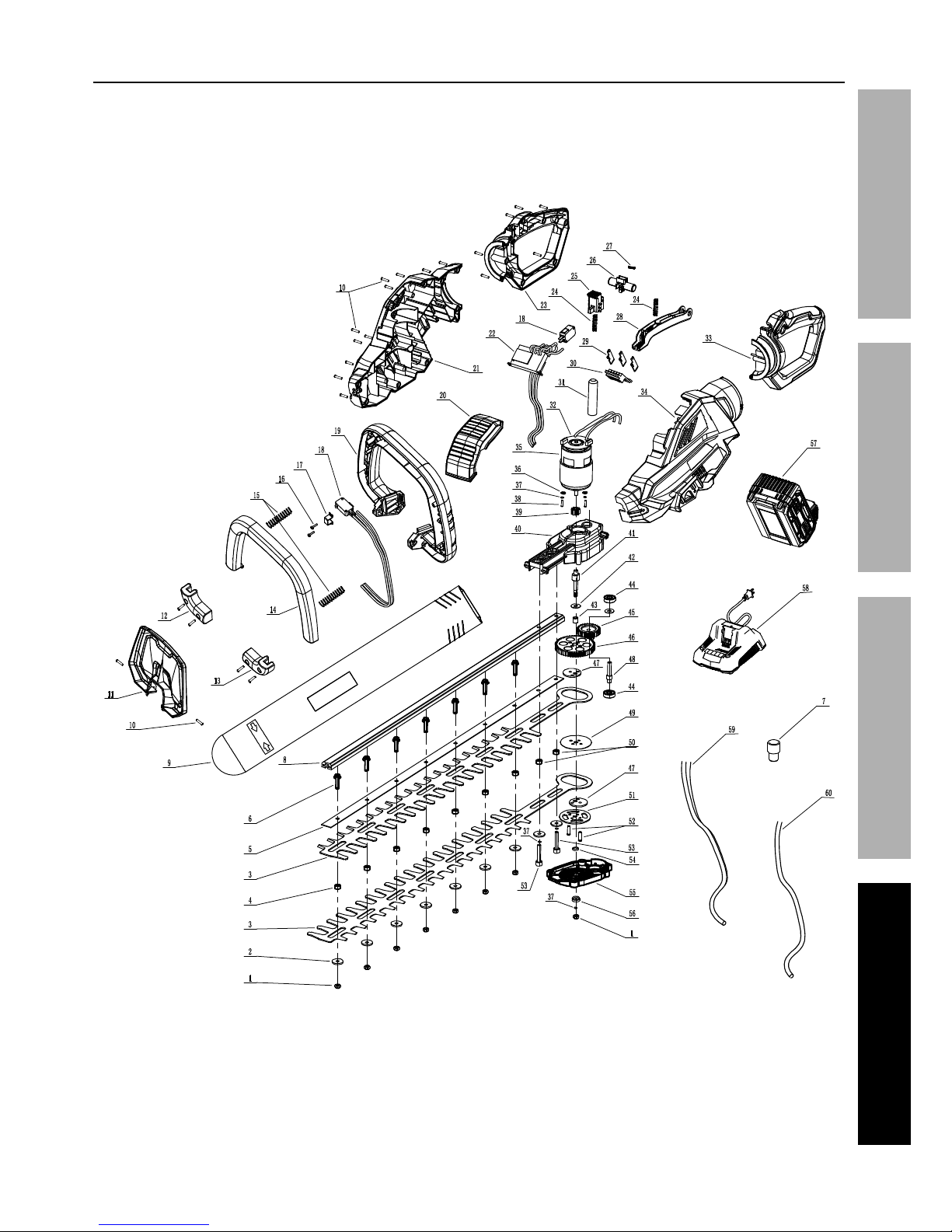

Parts List and Diagram.............................. 14
Warranty .................................................... 16
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
General Power Tool Safety Warnings
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term ″power tool″ in the warnings refers to your battery-operated (cordless) power tool.
Work Area Safety
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose control.
Electrical Safety
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
Page 3For technical questions, please call 1-888-866-5797.Item 63288
SAFETYOPERATIONMAINTENANCE SETUP
Personal Safety
1. Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power
tool while you are tired or under the
influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
2. Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting.
Ensure the Trigger is in the off-position before
connecting to power source, picking up or
carrying the tool.
Carrying power tools with your finger on
the Trigger or energizing power tools that
have the Trigger on invites accidents.
4. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
5. Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
6. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust‑related hazards.
7. Only use safety equipment that has been
approved by an appropriate standards agency.
Unapproved safety equipment may not provide
adequate protection. Eye protection must be
ANSI-approved and breathing protection
must be NIOSH-approved for the
specific hazards in the work area.
Power Tool Use and Care
1. Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better and
safer at the rate for which it was designed.
2. Do not use the power tool if the Trigger
does not turn it on and off.
Any power tool that cannot be controlled with the
Trigger is dangerous and must be repaired.
3. Disconnect the battery pack from the
power tool before making any adjustments,
changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Battery Tool Use and Care
1. Recharge only with the charger specified by
the manufacturer. A charger that is suitable
for one type of battery pack may create a risk
of fire when used with another battery pack.
2. Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the
battery may cause irritation or burns.
Page 4 For technical questions, please call 1-888-866-5797. Item 63288
SAFETY OPERATION MAINTENANCESETUP
Service
Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
Hedge Trimmer Safety
1. Keep all parts of the body away from the cutter
blade. Do not remove cut material or hold
material to be cut when blades are moving.
Make sure the switch is off when clearing
jammed material. Blades coast after turn off.
A moment of inattention while operating the hedge
trimmer may result in serious personal injury.
2. Carry the hedge trimmer by the handle with
the cutter blade stopped. Proper handling
of the hedge trimmer will reduce possible
personal injury from the cutter blades.
3. Hold the power tool by insulated gripping
surfaces only, because the cutter blade
may contact hidden wiring or its own cord.
Cutter blades contacting a “live” wire may make
exposed metal parts of the power tool “live” and
could give the operator an electric shock.
4. DANGER – Keep hands away from blade.
Contact with blade will result in
serious personal injury.
5. Use both hands when operating the hedge
trimmer. Using one hand could cause loss of
control and result in serious personal injury.
6. Do not expose to rain.
7. Dress Properly. Do not wear loose clothing or
jewelry. They can be caught in moving parts.
Use of rubber gloves and substantial footwear
is recommended when working outdoors.
Wear protective hair covering to contain long hair.
8. Wear ANSI-approved safety goggles and
heavy-duty work gloves. Use face or
dust mask if operation is dusty.
9. Do not leave the tool unattended when the
Battery Pack is connected. Turn off the tool,
and remove the Battery Pack before leaving.
10. Carefully inspect the Blade Assembly
before inserting the Battery Pack. Do
not use Trimmer if any part of the Blade
Assembly is bent, dull, or damaged.
11. The Trigger and Safety Switch are important
safety devices. Do not disable or tie
down either Trigger or Safety Switch.
12. Do not use in rain, snow, sprinklers, or wet grass.
Do not rinse off the Trimmer.
13. Use only during daylight hours.
14. Do not cut toward your body or face.
15. The Blade will continue to move for a few seconds
after use. Allow it to stop completely and remove
the Battery Pack before putting the tool down,
making any adjustments, or servicing the tool.
16. Cover the Blade Assembly with the
Blade Cover after every use.
17. Do not overreach. Keep proper
footing and balance at all times.
18. Stay Alert. Watch what you are doing. Use common
sense. Do not operate tool when you are tired.
19. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
20. The battery Charger gets hot during use.
The Charger’s heat can build up to
unsafe levels and create a fire hazard if it
does not receive adequate ventilation,
due to an electrical fault, or if it is used in a
hot environment.
Do not place the Charger on a flammable surface.
Do not obstruct any vents on the Charger.
Especially avoid placing the Charger on carpets
and rugs; they are not only flammable, but they
also obstruct vents under the Charger.
Place the Charger on a stable, solid, nonflammable
surface (such as a stable metal workbench or
concrete floor) at least 1 foot away from all
flammable objects, such as drapes or walls. Keep a
fire extinguisher and a smoke detector in the area.
Frequently monitor the Charger and
Battery Pack while charging.
21. This product is not a toy.
Keep it out of reach of children.
22. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
23. WARNING: The cord of this product contains
lead and/or di (2-ethylhexyl) phthalate (DEHP),
chemicals known to the State of California
to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
(California Health & Safety Code § 25249.5, et seq.)
Page 5For technical questions, please call 1-888-866-5797.Item 63288
SAFETYOPERATIONMAINTENANCE SETUP
24. WARNING: This product contains di (2-ethylhexyl)
phthalate (DEHP), a chemical known to the State
of California to cause cancer and birth defects
or other reproductive harm. (California Health
& Safety Code § 25249.5, et seq.)
25. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
26. The warnings, precautions, and instructions
discussed in this instruction manual cannot cover all
possible conditions and situations that may occur.
It must be understood by the operator that
common sense and caution are factors
which cannot be built into this product,
but must be supplied by the operator.
Lithium Battery Safety Warnings
LITHIUM BATTERIES STORE
A LARGE AMOUNT OF ENERGY AND
WILL VENT FIRE OR EXPLODE IF MISTREATED:
1. Keep Battery
Pack dry.
2. DO NOT DO ANY OF THE FOLLOWING
TO THE BATTERY PACK:
a. Open,
b. Drop,
c. Short-circuit,
d. Puncture,
e. Incinerate, or
f. Expose to temperatures greater than 104°F.
3. Charge Battery Pack only according
to its Charger’s instructions.
4. Inspect Battery Pack before every use;
do not use or charge if damaged.
Battery Charger Safety
1. SAVE THESE INSTRUCTIONS – This manual
contains important safety and operating
instructions for Battery Charger Model 63288.
2. Before using Battery Charger, read all
instructions and cautionary markings on Battery
Charger, Battery, and product using Battery.
3. CAUTION - To reduce risk of injury, charge only li-ion
type rechargeable batteries. Other types of batteries
may burst causing personal injury and damage.
4. Do not charge or use tool in rain, or in wet locations.
5. Do not use battery-operated tool in rain.
6. Remove or disconnect battery after
use, before servicing, cleaning or
removing material from the tool.
7. Do not dispose of battery in a fire. The
cell may explode. Check with local codes
for possible disposal instructions.
8. Do not open or mutilate the battery. Released
electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic if swallowed.
9. Exercise care in handling batteries in order not
to short the battery with conducting materials
such as rings, bracelets, and keys. The battery
or conductor may overheat and cause burns.
Page 6 For technical questions, please call 1-888-866-5797. Item 63288
SAFETY OPERATION MAINTENANCESETUP
Vibration Hazard
This tool vibrates during use. Repeated or long-term
exposure to vibration may cause temporary
or permanent physical injury, particularly to
the hands, arms and shoulders. To reduce
the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check-ups to
ensure medical problems are not being caused or
worsened from use. Pregnant women or people
who have impaired blood circulation to the hand,
past hand injuries, nervous system disorders,
diabetes, or Raynaud’s Disease should not use this
tool. If you feel any symptoms related to vibration
(such as tingling, numbness, and white or blue
fingers), seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use appliances with the lowest vibration when
there is a choice between different processes.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SAVE THESE INSTRUCTIONS.
Specifications
Charger Input Rating 120 VAC / 60 Hz
Battery Rating 40 VDC / 2.5 Ah / 90 Wh
Battery Type Li-ion
Replacement – Item 63285
No Load Speed 2,500 SPM
(Strokes Per Minute)
Branch Capacity 3/4″ diameter
3131666
Page 7For technical questions, please call 1-888-866-5797.Item 63288
SAFETYOPERATIONMAINTENANCE SETUP
Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded.
Do not modify the power cord plug provided with the charger. Do not use the charger if the
power cord or plug is damaged. If damaged, have it repaired by a service facility before use. If
the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
Extension Cords
Note: Extension cords must not be used with this item’s Charger.
Symbology
Double Insulated
Canadian Standards Association
Underwriters Laboratories, Inc.
VVolts
~Alternating Current
AAmperes
n0xxxx/min. No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.
Page 8 For technical questions, please call 1-888-866-5797. Item 63288
SAFETY OPERATION MAINTENANCESETUP
Set Up Instructions
Read the ENTIRE IMPORTANT SAFETY INSTRUCTIONS section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Make sure that the Trigger is in
the off-position and remove the Battery Pack before performing any procedure in this section.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Functions
Blade
Guard
Safety Switch
Rear
Handle
Front Handle
Trigger
Handle Lock
Battery
Pack
Battery Pack
Release Button
(one on each side)
Lockout
Switch
Blade Cover
Trigger and Safety Switch: To increase safety, these have to be used together to activate the Trimmer.
Keep your hands on the Front Handle and Rear Handle at all times during operation.
The Blade will coast to a stop after the Trigger or Safety Switch are released.
Page 9For technical questions, please call 1-888-866-5797.Item 63288
SAFETYOPERATIONMAINTENANCE SETUP
Charger Indicators
Green
Light
Red
Light
• Blinking Green – Ready to charge.
• Solid Red – Charging.
• Solid Green – Charged.
• Blinking Green and Red – Battery
or Charger damaged.
• Solid Green and Red – Battery too hot,
charging will resume when Battery has cooled.
Battery Indicators
Battery
Test
Button Press Battery Test button to
determine battery charge status.
All Four Solid Green Lights – Full charge.
• Three Solid Green Lights – 75% charge.
• Two Solid Green Lights – 50% charge.
• One Solid Green Light – 25% charge
• One Blinking Green Light – Charge Battery.
Page 10 For technical questions, please call 1-888-866-5797. Item 63288
SAFETY OPERATION MAINTENANCESETUP
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
Charging Battery Pack
1. Place Battery Charger on a dry, flat,
fireproof surface indoors.
Note: Allow battery to cool completely before charging.
2. Examine Battery Pack. Do not charge a cracked,
open, or leaking Battery Pack, or charge a
non-recommended type of Battery Pack.
3. Battery Pack is designed to fit this Charger
specifically. If Battery Pack does to not fit
Charger properly, do not try to insert it. Do
not force Battery Pack into the Charger.
4. Plug Charger into a grounded, 120 VAC, 60 Hz
receptacle. The green LED will blink, showing
that power is supplied to the Charger.
5. Slide Battery Pack onto Charger. Red LED
will light continuously while charging.
Note: A fully discharged Battery Pack will
take about 1 hour to fully charge.
Note: While charging, Battery Pack and
Charger may become warm to the touch and the
Charger′s fan may come on. This is normal.
6. Green LED will light continuously when
Battery Pack is charged. Unplug Charger
and remove Battery Pack when finished.
7. Allow Battery Pack to cool completely before use.
Installing and Removing Battery Pack
1. To install: Slide Battery Pack into slot on back
of Hedge Trimmer until it clicks into place.
2. To remove: Press both Battery Pack Release
Buttons and pull Battery Pack out of slot.
Battery
Pack
Battery Pack
Release
Buttons
Figure A: Battery Pack
Page 11For technical questions, please call 1-888-866-5797.Item 63288
SAFETYOPERATIONMAINTENANCE SETUP
General Operating Instructions
1. Before operating the Hedge Trimmer, put on ANSI-
approved safety goggles and other safety gear.
Safety goggles and other safety gear
are sold separately.
2. Mark off the hedge you will trim using stakes and
marking string (sold separately).
Remove all decorations, lighting fixtures, and cords
from the area. Search for all branches thicker than
3/4″ diameter and cut to length using
a lopper (sold separately).
3. Make sure that the Trigger is in the off-position,
then slide the Battery Pack into slot on back
of Hedge Trimmer until it clicks into place.
4. When the area is clear, push the Lockout Switch
to the left or right, then squeeze and hold the
Trigger and simultaneously squeeze the Safety
Switch. With the Trimmer running, you may
release pressure on the Lockout Switch.
NOTE: The Trigger cannot be activated
unless the Lockout Switch is depressed.
The Trimmer will not operate unless both
Trigger and Safety Switch are pressed.
WARNING! TO PREVENT SERIOUS INJURY:
Keep your hands on the Front Handle and
Rear Handle at all times during operation.
NOTICE: Be careful to avoid contacting any chain-link
or wire fence, they may damage the Blade.
5. Take off layers of plant material gradually,
using multiple passes. This will help avoid
damaging the hedge, and will help prevent
accidentally cutting thick branches or other
objects hidden within the hedge.
6. Release the Trigger and Safety Switch to
stop the motor. The Blade will continue to
move for a few seconds after turnoff.
WARNING! TO PREVENT SERIOUS INJURY:
Wait for the Blade to stop completely before
putting down the Trimmer. The Blade will
briefly keep moving, even after the Trigger
and Safety Switch have been released.
7. The Rear Handle may be rotated 90° left or right to
facilitate vertical trimming. To rotate the Handle:
a. Make sure the Trigger is in the off-position.
Handle Lock can only be depressed to rotate
Handle if the Trigger is in the off-position.
b. Press down on Handle Lock and turn Handle
90° in desired direction until Handle Lock snaps
into place to lock the Handle in position.
NOTE: When rotating Rear Handle,
Trigger will not function until Handle Lock
has snapped into locked position.
Handle
Lock
Rotated
90° Left
Normal Position
Figure B: Rotating Rear Handle
8. If the Trimmer gets stuck on a branch:
a. Remove the Battery Pack.
b. Remove the Blade from the branch.
c. Cut the branch to the desired length
using a lopper (sold separately).
9. To prevent accidents, release the Trigger to turn
off the Trimmer and remove its Battery Pack after
use. Clean and lubricate the Blade using a light
machine oil, cover the Blade with the Blade Cover,
then store the tool indoors out of children’s reach.
Page 12 For technical questions, please call 1-888-866-5797. Item 63288
SAFETY OPERATION MAINTENANCESETUP
Maintenance and Servicing
Procedures not specifically explained in this manual
must be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Make sure that the Trigger is in the off-position and remove the Battery
Pack before performing any procedure in this section.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration occurs,
have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• leaking, swollen, or cracked battery pack
• loose hardware
• misalignment or binding of moving parts,
especially Blade assembly
• damaged cord/electrical wiring
• cracked or broken parts
• any other condition that may
affect its safe operation.
2. AFTER USE, clean external surfaces
of the tool with a clean, moist cloth.
Lubricate Blade using a light machine oil.
3. Blade nicks that interfere with normal Blade
movement can be removed after removing the
Battery Pack using a file (sold separately).
4. Disconnect Battery Pack and store Battery
Pack, Charger, and tool in dry, indoor area out of
reach of children and away from metal objects
(i.e., paperclips, coins) to prevent shorting.
5. Do not store near fertilizer or other
gardening chemicals. They may accelerate
corrosion, making the tool unsafe.
Page 13For technical questions, please call 1-888-866-5797.Item 63288
SAFETYOPERATIONMAINTENANCE SETUP
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Page 14 For technical questions, please call 1-888-866-5797. Item 63288
SAFETY OPERATION MAINTENANCESETUP
Part Description Qty
1 Nut 10
2 Flat Washer 9
3 Blade 2
4 Slide Block 7
5 Fixing Bar 1
6 Bolt 7
7 Terminal 4
8 Steel Support 1
9 Blade Cover 1
10 Screw 23
11 Hand Guard 1
12 Left Front Handle Clamp 1
13 Right Front Handle Clamp 1
14 Safety Switch 1
15 Safety Switch Spring 2
16 Screw 2
17 Switch Clamp 1
18 Microswitch 2
19 Front Handle 1
20 Decorative Cover 1
21 Right Housing 1
22 Discharge Plate Assembly 1
23 Right Rear Handle 1
24 Spring 2
25 Handle Lock Button 1
26 Switch Lockout Button 1
27 Switch Lockout Spring 1
28 Trigger 1
29 Insert 3
30 Plug-In Seat 1
Part Description Qty
31 Bushing 4
32 Anti-Interference Assembly 1
33 Left Rear Handle 1
34 Left Housing 1
35 Motor 1
36 Spacer 2
37 Spring Washer 5
38 Bolt 2
39 Motor Gear 1
40 Motor Support 1
41 Big Gear Shaft 1
42 Gear Washer 2
43 Oil-Free Self-Lubricating Bearing 1
44 Deep Groove Ball Bearing 2
45 Gear 1
46 Large Gear 1
47 Eccentric Plate 2
48 Gear Shaft 1
49 Blade Spacer 1
50 Fixed Slider 2
51 Blade Press Plate 1
52 Blade Connecting Pin 2
53 Bolt 2
54 Blade Pressing Sleeve 1
55 Motor Support Cover 1
56 Shaft Sleeve 1
57 Battery Pack 1
58 Charger 1
59 Internal Wire 2
60 Internal Wire 1
Parts List and Diagram
Parts List
Page 15For technical questions, please call 1-888-866-5797.Item 63288
SAFETYOPERATIONMAINTENANCE SETUP
Assembly Diagram
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
Table of contents
Other Lynxx Trimmer manuals
