TRIBUS
EN 795:2012 Type B
PD CEN/TS 16415:2013 Type B
UI_LPP0041_17079.indd 1 08/05/2017 10:06:57
Downloaded from lyon.co.uk

2
This information to be read and
kept for the lifetime of the product
in conjunction with the Lyon
General User Instructions.
Quality assurance
Quality management system
assessed and certied as meeting the
requirements of ISO 9001.
Certication
When used for a single person load:
CE 0120, EN 795:2012 Type B “Personal
fall protection equipment. Anchor
devices”.
When used for a two person load:
CEN/TS 16415:2013 Type B “Personal
fall protection equipment – Anchor
devices – Recommendations for anchor
devices for use by more than one
person simultaneously”.
When used for rescue or a two person
load, this item is not classed as PPE
and is not covered by PPE Directive
89/686/EEC.
Approved bodies
EC Type-examination for Directive
89/686/EEC by:
Notied Body No. 0321,
SATRA,Wyndham Way,Telford Way,
Kettering, Northamptonshire,
NN16 8SD, UK.
Controlling the manufacturing:
Notied Body No. 0120
SGS United Kingdom Ltd, Unit 202b,
Worle Parkway,Weston-super-Mare,
BS22 6WA, UK.
Working Load Limit (WLL)
Please note that the WLL refers to the
total combined load on the TRIBUS.
The combined load must not exceed
this amount.
Where dynamic loads are envisaged, the
WLL may be up to 100 kg for a single-
user (EN 795:2012) and 200 kg for
two-users (CEN/TS 16415:2013).
Where only static loads are applied, the
WLL may be up to 272 kg.
The WLL specied above apply when
used in congurations described in
these User Instructions, with loads
suspended from the anchor point and at
90° to the footprint. Alternative rigging
layouts, terrain and environmental
conditions may apply forces in directions
that reduce the stability of the TRIBUS.
In such circumstances, the WLL must be
decreased. Resultant forces that extend
beyond the footprint of the TRIBUS can
cause overturning.
Ultimately, the user of the TRIBUS is
responsible for determining the WLL
of the TRIBUS based on the specic
circumstances of use and the factor of
safety applied. Users may reduce the
WLL.The user must never exceed the
WLL.
Breaking load
For a single person load:
EN 795:2012 requires a minimum
breaking strength of 12 kN.
For a two person load:
CEN/TS 16415:2013 requires a
minimum breaking strength of 13 kN.
UI_LPP0041_17079.indd 2 08/05/2017 10:06:57
Downloaded from lyon.co.uk

3
Warning
Where accessories are available refer to
the user instructions supplied with the
accessories.
Always inspect the TRIBUS before use.
Refer to instructions for inspection.
A damaged, incorrectly loaded or
overloaded TRIBUS could fail, causing
damage, injury or death.
When carrying out work at height
maintain an appropriate exclusion zone.
Remain vertically below the anchor
point to minimise the risk of a
pendulum fall which may apply loads
outside the footprint of the TRIBUS,
shock load it or destabilise it.
The TRIBUS will transmit any force
applied directly to the structure in the
direction in which it is applied.The
TRIBUS will attempt to align with any
applied force, and may move if the load
is not applied perpendicular to the
structure.
Never adjust any part of the TRIBUS
once it has been deployed and is in use.

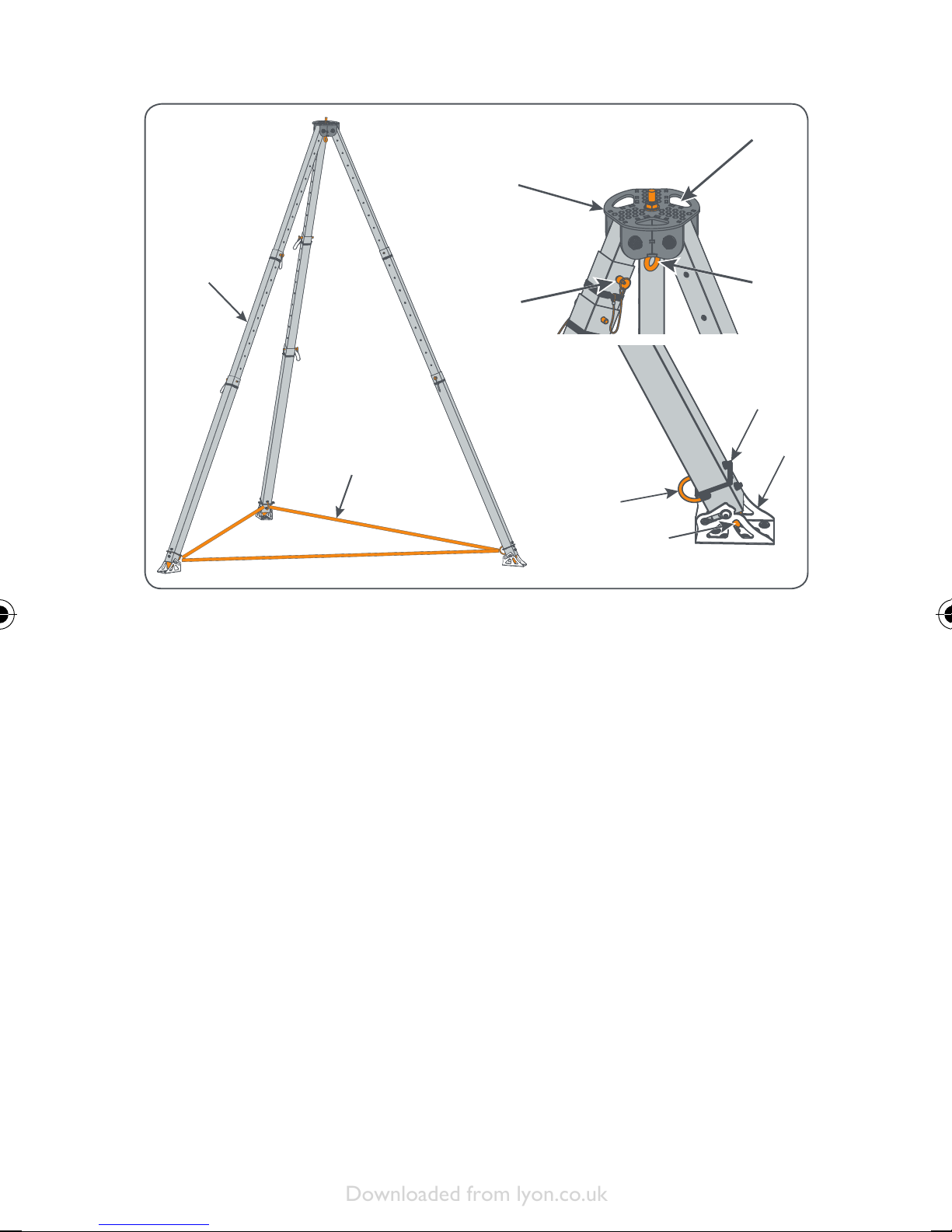

Nomenclature of parts
1. Head
2. Swivel Anchor
Point
3. Locking Pin
4. Guy Line
Attachment Point
5. Leg section (top/
middle/bottom)
6. Foot
7. Spike
8. Leg Restraint
Strap Attachment
Point
9. Leg Restraint
Strap
10. Foot lock
9
5
6
10
7
8
1
4
2
3
UI_LPP0041_17079.indd 3 08/05/2017 10:06:59
Downloaded from lyon.co.uk

4
Use
The TRIBUS is intended to provide an
elevated anchor point(s) for combined
loads not exceeding 272 kg, within the
limits and restrictions dened by these
User Instructions.
For single-user use, the TRIBUS is
Personal Protective Equipment, and
may be a personal issue item. For two
simultaneous users or during rescue,
the TRIBUS is not Personal Protective
Equipment. Please note, for all uses, the
TRIBUS is NOT lifting equipment.
Always know the weight of the intended
load before using the TRIBUS. Do not
overload the TRIBUS.
Under normal operating conditions,
the TRIBUS will not show any obvious
deection.
Always ensure that the surface the
TRIBUS is to be used upon is capable
of withstanding the foreseeable loadings
applied by the TRIBUS.The surface
on which the TRIBUS is placed may
dramatically reduce both the WLL and
the stability of the TRIBUS, e.g. if there
are overhangs, undercuts, voids, slippery
and/or sloping surfaces, free owing
solids.
Always ensure the TRIBUS is of a
suitable size, shape and conguration for
the intended use.

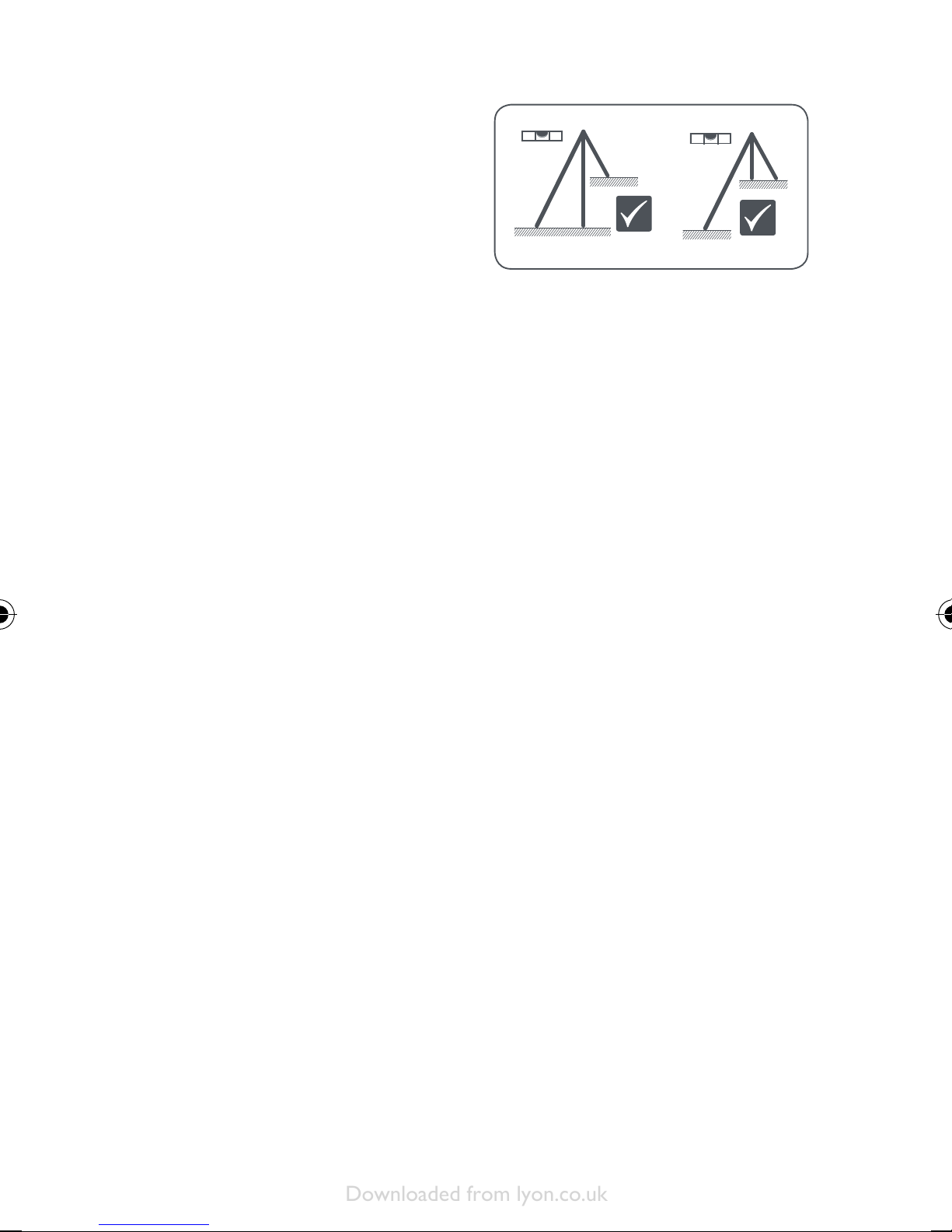

The TRIBUS can be used with
differential leg adjustments in any
combination, e.g. one short leg, two
short legs. Ensure that the Head is level.
NOTE: It is not the intention of
these user instructions to describe
the numerous alternative systems
that may be connected to the
TRIBUS. It is the responsibility of
the user to check compatibility
with the other elements in the
safety chain before using this
product.The performance of the
elements of the safety chain must
not be compromised when the
TRIBUS is installed and in use.
Assembling the TRIBUS
Assemble the TRIBUS a safe distance
from any fall hazard.
Users are responsible for ensuring their
own safety whilst assembling, erecting
and using the TRIBUS.
The TRIBUS may be assembled as
follows:

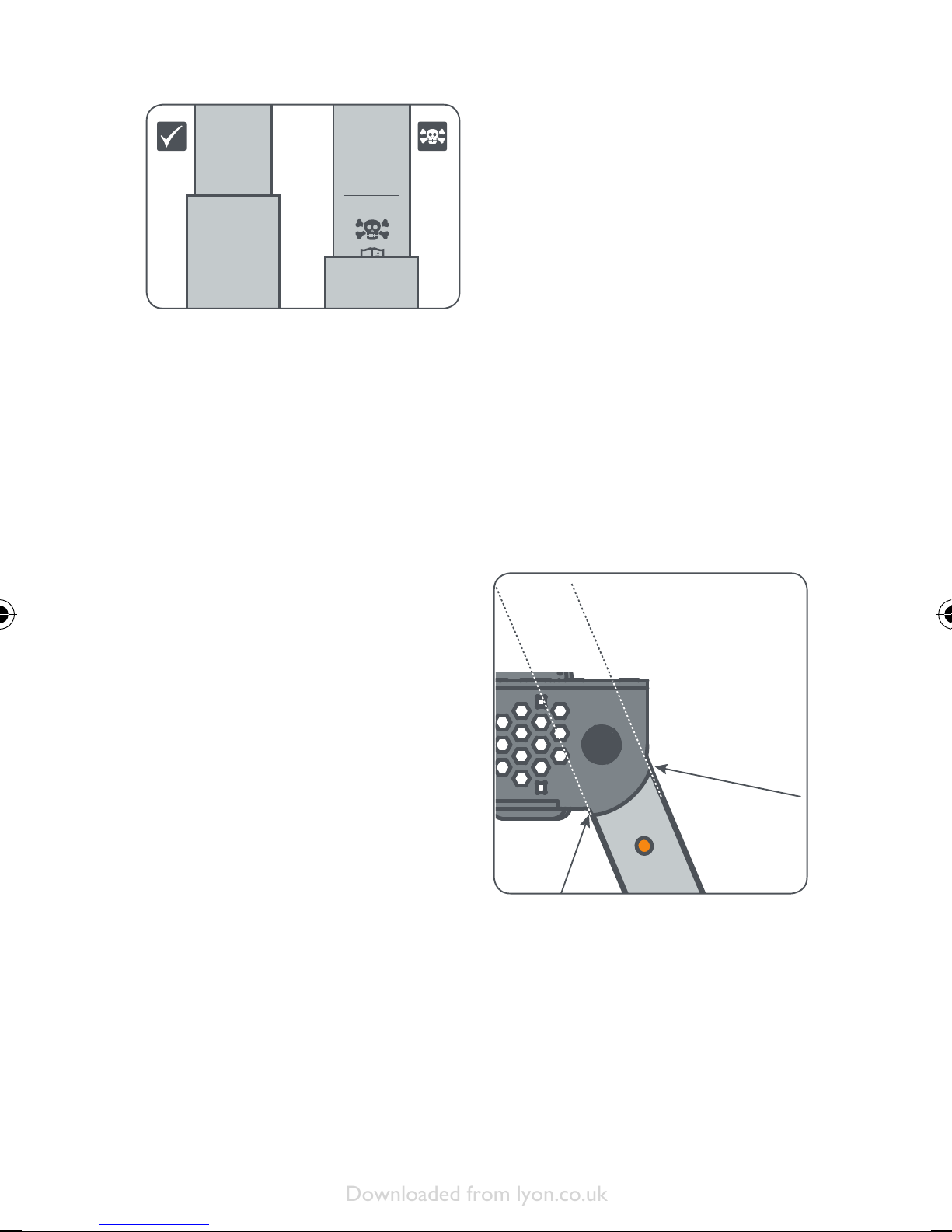

1. Adjust all legs to the expected
operating height and secure with the
attached locking pins. Do not over
extend the legs beyond the warning
signs.
UI_LPP0041_17079.indd 4 08/05/2017 10:06:59
Downloaded from lyon.co.uk

5
NOTE:To adjust the bottom leg section
remove the bottom Locking Pin.To
adjust the middle leg section, remove
both Locking Pins.
2.After assessing the proposed location,
select the foot option most appropriate
for the surface (Foot or Spike). Select
Spikes when on uneven surfaces. When
feet are used, ensure the feet are at on
the surface.
NOTE:To adjust the bottom leg section
remove the bottom Locking Pin.To
adjust the middle leg section, remove
both Locking Pins.
3.At this point it may be appropriate to
attach the required rigging or personal
fall protection equipment to the Swivel
Anchor Point. Be aware that once
the TRIBUS is raised into its working
position this point may be out of reach.
4. Using additional personnel, if required,
raise the TRIBUS into an upright
position.
TAKE CARE - MANUAL
HANDLING AND ENTRAPMENT
RISK DURING THIS OPERATION.
IF THE HEIGHT OF THE TRIBUS
REQUIRES ADJUSTMENT ONCE
IN THE UPRIGHT POSITION,
ALWAYS HOLD THE LEG
SECTIONS ABOVE THE LEG
BEING ADJUSTED TO PREVENT
COLLAPSE WHEN REMOVING
THE LOCKING PIN(S).
5. Re-check all connections and Locking
Pins are securely tted before moving
the TRIBUS into the working position.
6. Move the TRIBUS into the working
position, whilst maintaining the safety
of the users.

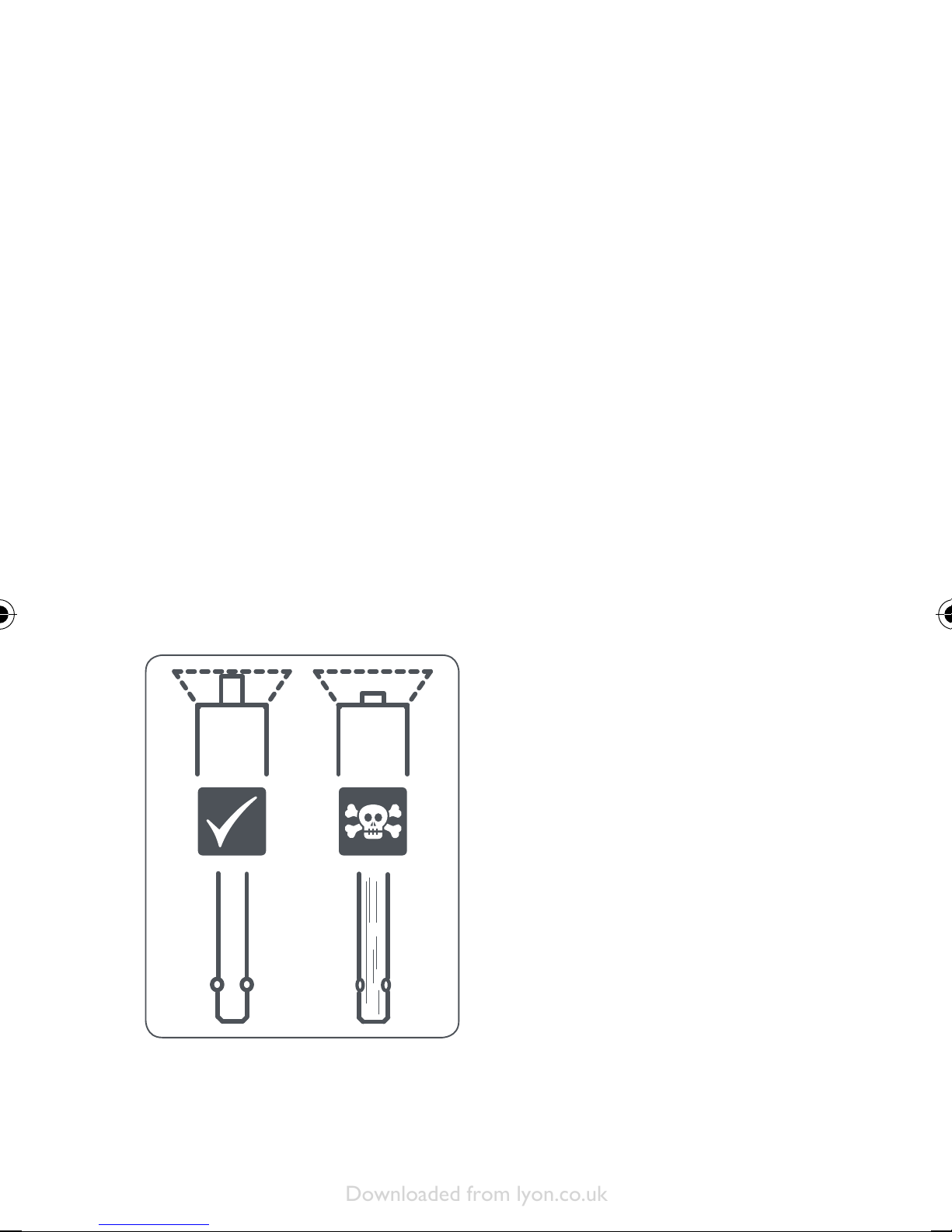

7. Position the legs so that the indicators
on the Head line up with the leg.This
ensures the TRIBUS is set up with the
legs at the approved angle.
8. Install the Leg Restraint Straps (see
section Leg Restraint Straps). Ensure
the straps are adjusted so that all slack
is removed.Where undulations or
obstructions on the worksite surface
prevent a clear path for the Leg
Restraint straps the relevant straps must
be adjusted such that the stability of the
MAX
DANGER
MAX
DANGER
UI_LPP0041_17079.indd 5 08/05/2017 10:06:59
Downloaded from lyon.co.uk

6
TRIBUS is maintained throughout the
activity.Where the strap is forced over
an object causing the strap to raise one
leg off the surface, the TRIBUS must be
repositioned.
The TRIBUS must never be used
without all three Leg Restraint straps
correctly tted and adjusted.
Leg Restraint Straps
Leg Restraint Straps are essential for
the structural stability of the TRIBUS.
They must be used at all times, in all
congurations.
The ultimate load capacity of the
TRIBUS depends on the ability to
secure the feet against movement by
correct use of the Leg Restraint Straps.
In addition to using the Leg Restraint
Straps, it may be appropriate to securely
attach the feet to the surface, e.g.
concrete slab, to prevent movement of
the TRIBUS. Direct attachment of the
feet must not be used as a substitute
for correct TRIBUS placement (risk of
overloading).
To attach the Leg Restraint Strap, clip
one of the sewn-in quick links onto
the Leg Restraint Strap Attachment
Point on one leg. Extend the strap via
the adjustment buckle and attach the
second quick link onto the Leg Restraint
Strap Attachment Point on the second,
adjacent leg (see gure below).
Repeat the process until all legs are
linked in a triangle.
Grasp the tail end of the webbing
exiting each adjustment buckle and
pull, tightening the strap to remove any
slack.Tighten all three straps evenly to
maintain a triangula foot and ensure the
TRIBUS is set up with the legs at the
approved angle (see 7.)
Guy Line Attachment Points
When used as described above, guy
lines are not required. However, in some
circumstances, the user may wish to
maintain the stability of the TRIBUS by
xing guy lines to the identied Guy
Line Attachment Points. Guy lines must
not be used as a substitute for correct
TRIBUS placement.
Suitable EN 362 locking connectors
must be used to attach the guy line to
the Guy Line Attacment point.
Do not attach any part of the safety
system to the Guy Line Attachment
Points.
Attachment of personal fall
protection equipment
Only attach the rigging or personal fall
protection equipment to the Swivel
Anchor Point using a compatible
EN 362 connector.
UI_LPP0041_17079.indd 6 08/05/2017 10:06:59
Downloaded from lyon.co.uk

7
Storage and transport
A storage and transport bag is available
for the TRIBUS.
It is recommended that the TRIBUS is
stored, clean and dry when not in use –
see maintaining your equipment.
The total weight of the TRIBUS is
13.5 kg. It is classed as a single person
load when transporting manually.
The accessory transport bag is provided
with a number of carrying handles.
Transport bags are not rated as lifting
accessories - do not use the handles for
lifting, lowering or suspending the bag
and its contents at height.
Inspection
The TRIBUS should be subject to:
• Pre-use checks
• Thorough inspections (at least once
every 6 months)
• Interim inspections (as appropriate)
The checks should be undertaken in
good light. Any item showing any defect
should be withdrawn from service
immediately.
If in any doubt as to the condition of
the product, it should be withdrawn
from use immediately and not used
again unless conrmed by a competent
person that it is acceptable to do so.
It is recommended the TRIBUS is
marked with the date of the next or last
inspection.
Check that any labels and markings are
still intact and readable.
The TRIBUS and any accessories should
be checked for signs of overloading
and damage including wear, corrosion,
cracking, weld failure, abrasion or
deformity - list not exhaustive.
Metal items - Head, Spike, Feet
inspection
Check for signs of overloading and
damage including wear, corrosion,
cracking, weld failure, abrasion, sharp
edges or deformity. Pay special attention
to the anchor points and all welded
joints.
Ensure there are no sharp edges or
burrs on the Guy Line Attachment
Points. Any burrs or sharp edges may
be removed with the use of emery
cloth.
Ensure the Swivel Anchor Point
functions correctly and is free from
damage.
Metal items – Leg inspection
Ensure that the legs are not split,
deformed, corroded or cracked.
The individual sections should slide
without binding or excessive play.
Locking pins should t without force in
every adjustment position.
Check the leg hinge assembly (bolt,
nut, washers) for security.The hinge
assembly should allow movement
without binding or excessive play.
Check the security and function of the
Leg Restraint Attachment Point, Feet
and Spikes.
UI_LPP0041_17079.indd 7 08/05/2017 10:07:00
Downloaded from lyon.co.uk

8
Metal Items - Locking Pin
inspection
Check that release button moves freely
and that locking detent balls move in
and out when the release button is
operated.
Check that the Locking Pin is not bent
or dented by installing the Locking Pin
into a pin placement; it should move
freely in and out of the placement whilst
the release button is depressed.
Check Locking Pin security in each
pin placement by attempting to pull
the locking pin out of the placement
without depressing the release
button; if removal is possible without
depressing the release button, do not
use and quarantine the Locking Pin
and Leg immediately. Retire defective
component(s).
Figure shows left pin in good working
condition.The right pin should be
retired due to wear and detent pins not
properly working.
Textile items - Leg Restraint
Straps
The Leg Restraint Strap must be
complete with all end connections, and
must fully adjust and lock over its full
range of adjustment.
Check the webbing visually and by
passing the straps slowly through the
hands to detect damage, e.g. cuts in
the edges of the webbing, abrasion,
cuts across the face of the webbing,
softening or hardening of bres,
ingress of contaminants, broken, cut
and worn threads in the stitching. Pay
particular attention to areas where the
webbing is in contact with connectors,
buckles and the Leg Restraint Strap
Attachment Point. Check the webbing
for discolouration, which could be the
result of chemical or UV damage.
The metallic elements should be
inspected for correct function, signs
of overloading and damage, e.g. wear,
corrosion, cracking, weld failure,
abrasion, sharp edges, deformity.
Any of these defects may affect the
performance of the TRIBUS.
Lubrication
All leg hinge assemblies and Locking Pins
should be lightly lubricated after each
use. Use a liquid lubricant with good
adhesion, e.g. light machine oil.
Apply sparingly and wipe off any excess.
UI_LPP0041_17079.indd 8 08/05/2017 10:07:00
Downloaded from lyon.co.uk

9
Chemicals
If the TRIBUS comes into contact with
any chemicals or contaminants, including
biohazard, remove it from service and
quarantine.
Taking appropriate precautions, clean
the metallic parts of the TRIBUS to
remove the contaminants and prevent
contamination of other items in the
safety chain.
Ensure beforehand that the cleaning
process and cleaning materials will not
damage the OBELISK.
All textile parts in contact with
chemicals or contaminants, including
biohazard cannot be effectively cleaned
and must be destroyed.
Spare parts and repairs
A limited number of spare parts are
available for user-tment. A repair
service is also offered. Contact the
manufacturer for details.
Accessories
A range of accessories are available for
the TRIBUS. See www.lyon.co.uk for
information.
Materials
The body of the TRIBUS is made from
stainless steel.
The legs are made from aluminium alloy.
The locking pins are made from stainless
steel.
The leg restraint straps are polyester.
The leg restraint strap quick links are
steel.
The leg restraint strap adjustment
buckles are aluminium alloy.
Customer’s own marking/
serialisation
Marking, if required, can be made by
attaching a tag to the TRIBUS. Ensure
that any tags do not interfere with the
function or performance of the TRIBUS.
Document continues overleaf.
UI_LPP0041_17079.indd 9 08/05/2017 10:07:00
Downloaded from lyon.co.uk

10
Markings
In addition to the markings shown
overleaf, the TRIBUS is made up from
several parts. Each part is marked for
traceability.The table below may be
used to record these markings.
Part Description of
marking/location
Type of
marking
Record here the
idN No.
TRIBUS Laser-etch on the Head idN No.
Leg
5 digit laser-etch at the
bottom of each Leg idN No.Leg
Leg
UI_LPP0041_17079.indd 10 08/05/2017 10:07:00
Downloaded from lyon.co.uk
