Müthing MU-B User manual

OPERATION MANUAL
EN | Original
MU-B
EX MACHINE No 2015
EDITION 02.2020
REFERENCE NUMBER MU-B-AGRIA_BA_15_2020-02_EN

Machine identification
In order for your dealer to assist you as efficiently as possible, you will need to provide some information
about your machine.
Please enter the information here.
Designation
Working width
Weight
Machine number
Additional equipment
Dealer's address
Manufacturer's address
The copyright and usage rights are owned by Müthing GmbH & Co KG, Soest. Reproduction, transfer to other media, translation or the use of
extracts or parts of this manual without the explicit permission of Müthing GmbH & Co KG, is not permitted. All rights reserved. The contents of
this operating manual are subject to change without notice. The right to technical revision is reserved
Müthing GmbH & Co KG Soest
Am Silberg 23
59494 Soest
Germany

3
Handover declaration
Handover declaration
– Fill out this sheet with your dealer.
– Then separate this sheet from the operating manual and send it to the manufacturer within 10 days of delivery.
Only in this way will the guarantee be effective from the date of delivery
.
I have bought the machine described below from Müthing GmbH & Co KG, Soest, and confirm full
delivery and handover of the machine including the operating manual and spare parts list, as well
as training in operating the devices with safety instructions and warning information from your
dealer.
I confirm additionally that I have read and understood the operating manual and am in agreement with the infor-
mation contained therein. This appliesin particular to the chapter Safety.
Client
Machine
--------------------------------------------------------- -------------------------------------------------------------------------
Signature of client Signature and stamp of sales partner
Name First name
Address
Post code Town/city
Telephone Fax
E-mail Date
Machine MU- Serial number
Working width Gear box
Rigid mount-
ing Non-rigid mounting
Year of con-
struction Delivery date
Delivered by
To
Müthing GmbH & Co KG
Am Silberg 23
59494 Soest
Germany

4
Handover declaration

5
Handover declaration – Copy
Handover declaration – Copy
– This sheet remains with the client in the operating manual
I have bought the machine described below from Müthing GmbH & Co KG, Soest, and confirm full
delivery and handover of the machine including the operating manual and spare parts list, as well
as training in operating the devices with safety instructions and warning information from your
dealer.
I confirm additionally that I have read and understood the operating manual and am in agreement with the infor-
mation contained therein. This appliesin particular to the chapter Safety.
Client
Machine
--------------------------------------------------------- -------------------------------------------------------------------------
Signature of client Signature and stamp of sales partner
Name First name
Address
Post code Town/city
Telephone Fax
E-mail Date
Machine MU- Serial number
Working width Gear box
Rigid mount-
ing Non-rigid mounting
Year of con-
struction Delivery date
Delivered by

6
Handover declaration – Copy

7
Table of Contents
Table of Contents
Handover declaration ................................ 3
Handover declaration – Copy ................... 5
About this operating manual .................... 8
Target group 8
Safety 8
Training 8
Other applicable documents 8
Symbols 9
Safety .......................................................... 10
For your safety 10
Warning signs 10
Definitions 12
Who is allowed to operate the machine? 12
Coupling 13
Centre of gravity 14
Road transport 16
Putting the machine into operation 16
Uncoupling the machine 18
Care and maintenance 18
Further regulations 19
Familiarising yourself with the machine . 20
Range of application of the machine 20
Features of the machine 21
Designation of components 22
Technical specifications 23
Delivery and assembly .............................. 25
Checking the scope of delivery 25
MU-B adapter ............................................. 26
Coupling the machine ............................... 27
With support wheels 27
Without support wheels 27
Coupling 28
Tyre diameter 29
Preparation ................................................. 30
Working depth 30
Driving on the road .................................... 31
Transport position 31
Transport without coupling 31
Mulching ..................................................... 32
Task 32
Cleaning and care ...................................... 35
Cleaning 35
Care 35
Parking and storage .................................. 36
Setting down the machine in a secure position
36
Without support wheels 37
With support wheels 37
Storing the machine 37
Maintenance ............................................... 38
For your safety 38
General information 39
Maintenance intervals and setting work 42
Lubricating work 43
Gearbox oil 45
Tools 47
V-belt 48
Runners 50
Additional equipment ................................ 51
Wear insert 51
Y blade set 51
Counter cutter 51
Support wheels 52
Operating hours counter 52
Fault elimination ........................................ 53
Disposal of the machine ........................... 55
EC Declaration of Conformity .................. 56
EC Directive
2006/42/EG 56
Index ........................................................... 57
For your notes ........................................... 58

MU-B
8
About this operating manual
About this operating manual
Target group
This operating manual is intended for trained machine operators and
persons who are otherwise qualified to carry out landscape work and
who have received training in how to use this machine.
Safety
Familiarise yourself with the contents of this operating manual which
are relevant for your activity before commissioning or assembling the
machine. Always read through the safety instructions in the chapter
“Safety” and observe the warning information in the individual chapters.
In this way, you will achieve optimum work results and operational safe-
ty.
For the employer:
Staff must be instructed in the safe handling of the machine before the
initial commissioning. Untrained or unauthorised persons are not per-
mitted to use the machine.
The following are included in this training:
•Checking that staff possess the necessary requirements for safely
handling the machine.
•Handing out the operating manual and the other relevant and appli-
cable documents or an intensive course of training which, in
particular, includes the safe handling of the machine.
Regular instruction ses-
sions
Instruct your staff regularly, but at least once a year, concerning the ba-
sic procedural measures for safely handling the machine.
Training
You will receive training from your dealership concerning using the con-
trols, safe operation and care of the machine. Commissioning without
first receiving training is not permitted.
Other applicable
documents
In addition to the operating manual, other documents also form an inte-
gral part of the machine:
EC Declaration of Conformity Integral part of this operat-
ing manual
Chapter »EC Declara-
tion of Conformity«,
page 56
Spare parts list Integral part of the delivery
with this machine
PTO shaft operating manual Integral part of the delivery
with this machine
List of approved carrier vehicles Integral part of the delivery
with this machine

MU-B
9
About this operating manual
Symbols
In order to make this manual clear and easy to read, we have used var-
ious symbols. They are explained below:
•A bullet point accompanies each item in a list
A triangle indicates operating functions which must be performed
An arrow indicates a cross-reference to other sections of this manual
[+] A plus sign indicates an accessory that is not included in the stand-
ard version.
Pictograms
We have also used pictograms to help you find instructions more quick-
ly:
This symbol indicates information, tips and instructions about operation.
This symbol indicates tips for assembly or adjustment work.
This symbol indicates examples that help you to understand the instruc-
tions better.
Parts in the text which refer to individual machines or to conditions have
a coloured background. After the coloured section, the text then applies
again to all machines. For example:
Only for MU-Farmer/S with pneumatic brake system
Connect hydraulic hoses
The warning triangle indicates warning information. Failure to ob-
serve these safety instructions can result in:
•Moderate to serious injury
•Fatal injury
You will find the warning information associated with individual oper-
ations, where it is important to observe the warning information be-
fore these operations are carried out.
You will also find safety instructions in the chapter »Safety« which
cannot be assigned to any particular operations, but increase your
ability to work safely in different situations.
This sign indicates important instructions regarding the machine.
Failure to observe these safety instructions can result in:
•Serious faults in the correct operation of the machine.
•Damage to the machine.
Connect brake hoses

MU-B
10
Safety
Safety
For your safety
This chapter contains general safety instructions. Each chapter of the
operating manual contains additional warning instructions which are not
described here. Observe the safety instructions:
•in the interest of your own safety,
•in the interest of the safety of others
•to ensure the safety of the machine
Numerous risks can result from handling landscaping machines the
wrong way. Therefore, always work with particular care and never under
time pressure.
For the employer:
Inform personnel working with the machine of these safety instructions
at regular intervals and according to statutory regulations.
Warning signs
On the machine you will find labels that serve to ensure your safety. The
labels must not be removed. If labels become illegible or begin to peel
off, new labels can be ordered and attached in the appropriate places.
STOP
A C 351 057
A C 35 1057
A C 351 057

MU-B
11
Safety
Meaning of warning
signs
Read the operating manual carefully and follow the instructions
Commissioning of the machine must not take place before the operating
manual has been read and understood. This particularly applies to safe-
ty instructions.
Do not stand between the carrier vehicle and the machine
Standing between the carrier vehicle and the machine while the engine
is running is prohibited, especially during coupling and uncoupling. The
carrier vehicle must also be secured so that it cannot roll away.
Riding on the machine is prohibited
It can result in serious or even fatal injury.
Do not remove protective devices
Do not open or remove the protective devices while the engine of the
carrier vehicle is running. Never operate the machine without the pro-
tective device.
Shackles
Only raise the machine using loading equipment at the points indicated.
Rotating and trailing machine parts
Only approach the machine when all machine parts have stopped mov-
ing.
Danger of objects being thrown out
During operation, there is a danger of objects such as stones being
picked up and thrown out by the machine. Ensure that no persons are
present in the hazard area.
Retighten screws
After the first hours of operation, and as required, all screws must be
checked and tightened if necessary. Vibrations might have loosened the
screwed connections.
AC 351057
STOP

MU-B
12
Safety
Definitions
All direction information is given in relation to the direction of travel of
the machine:
Who is allowed to
operate the
machine?
Only qualified personnel
Only qualified persons who have been informed of the dangers associ-
ated with handling the machine are permitted to operate, service or re-
pair the machine. As a rule, such persons are trained and experienced
in agricultural work or have been thoroughly trained in a similar fashion.
Up
Right
Down
Left
Front
Rear

MU-B
13
Safety
Coupling
Increased risk of injury
When the machine is being coupled to the tractor, there is an increased
risk of injury. Therefore:
•Only couple the machine with the road chassis raised
•Secure the tractor against rolling away
•The tractor and machine must belong to the same category
•Never stand between the tractor and the machine during coupling
•Actuate the three-point power lift system slowly and carefully
Failure to observe these instructions can result in serious or fatal injury.
Connect electric wires or cables only after mounting the attach-
ment
The electrical supply to the tractor must not be connected when the
lighting equipment is being fitted. Short circuits and damage to the elec-
tronics are possible.
Only connect hydraulics at zero pressure
Only connect hydraulic hoses to the tractor hydraulic system if the trac-
tor and machine hydraulic system is at zero pressure. A hydraulic sys-
tem under pressure can trigger unpredictable machine movements.
High pressures in the hydraulic system
The hydraulic system is under high pressure. Regularly check all lines,
tubes and screwed connections for leaks and externally visible damage.
Only use suitable tools when looking for leaks. Rectify any damage im-
mediately. Oil escaping under pressure may result in injuries and fires.
In the event of injuries, seek medical attention immediately.
Colour-coded hydraulic hoses
To prevent operating errors, plug sockets and plugs for hydraulic con-
nections between the tractor and the machine must be colour-coded.
Wrongly connected hydraulic hoses can trigger unpredictable move-
ments of the machine.

MU-B
14
Safety
Centre of gravity
Observe the total weight, axle loads, tyre load-bearing capacity
and minimum ballast specifications
The front or rear mounting of machines must not cause the tractor's per-
missible total weight, its permissible axle load or its tyre load-bearing
capacity to be exceeded. In order for steering capability to be main-
tained, the front axle must bear at least 20 % of the tractor's empty
weight.
By investing some effort in making the calculations it is possible to de-
termine the:
•Total weight
•Axle loads
•Tyre load-bearing capacity and
•Minimum ballast

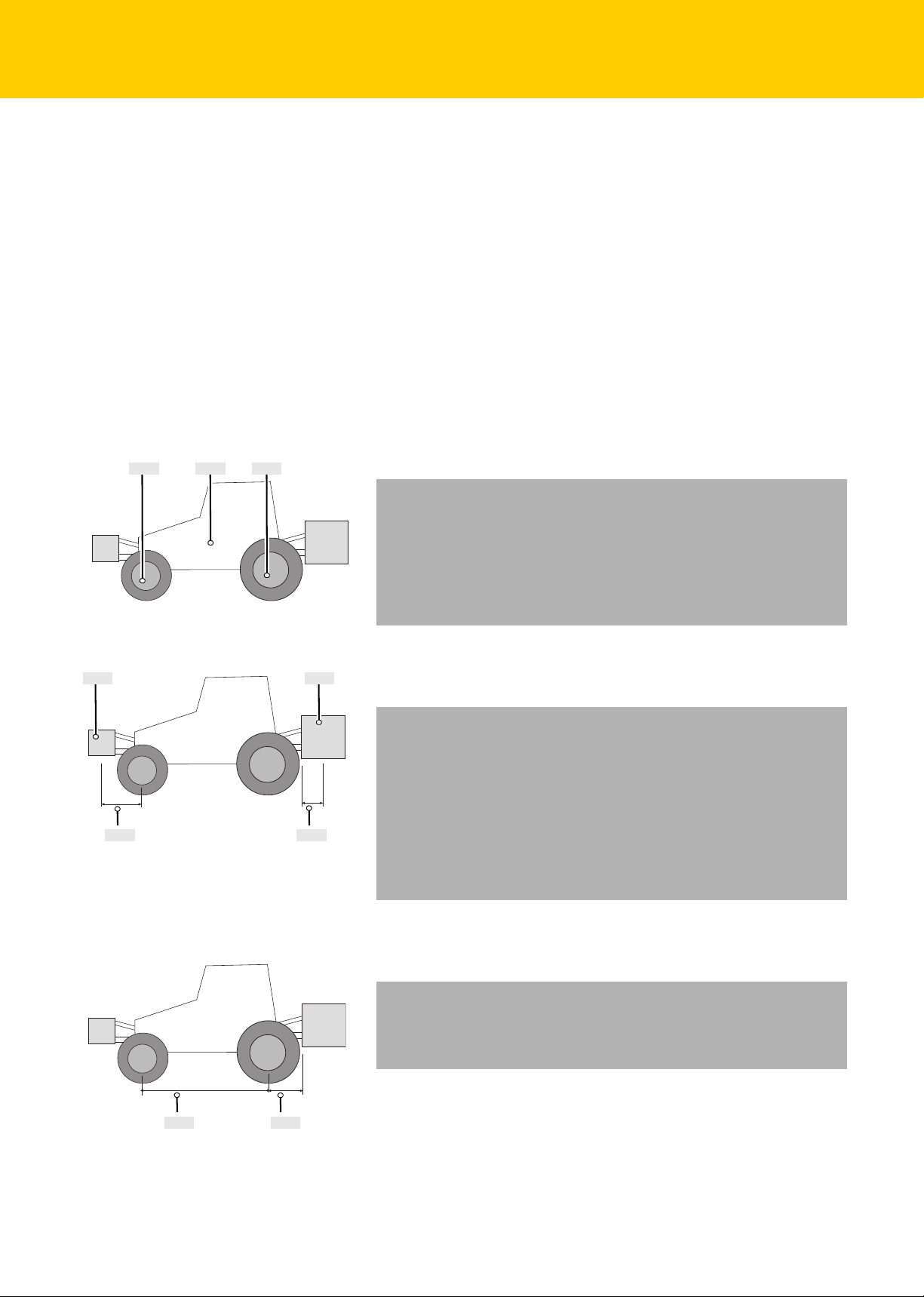

For this calculation, the following data is required:
Data from the tractor's operating manual:
Data from this operating manual:
Data which you can determine by measuring:
•(A) unladen weight
•(B) front axle load
•(C) rear axle load
Please take into consideration, for example, the weight of water in the
tyres, accessories, etc.
•(D) total weight of the machine when rear-mounted; the supporting
load with the machines attached
•(E) total weight of the machine when front-mounted
•(F) distance between the machine's centre of gravity when front-
mounted and the front-axle midpoint
•(G) distance between the lower link ball midpoint and the machine's
centre of gravity when rear-mounted. With machines attached, G=0.
•(H) the tractor's wheel base
•(I) distance between the rear axle midpoint and the lower link ball
midpoint
Front axle
load Empty
weight
Total weight front
attachment Totalweightrear
attachment
Distance:
Between front at-
tachment centre of
gravity and front
axle midpoint
Distance:
Between lower link
ball midpoint and
rear attachment
centre of gravity
Wheel
base
Rear axle
load
Distance:
Rear axle midpoint to
lower link ball midpoint
(B) (A) (C)
(E) (D)
(F) (G)
(I)
(H)

MU-B
15
Safety
Calculation
The measured values can now be inserted into the formulae.
Ballast with front weights
Calculating the ballast with front weights 
on rear-mounted machines.
Front ballast in kg =
Ballast with rear weights
Calculating the ballast with rear weights 
on front-mounted machines.
Rear ballast in kg =
Front axle load
Calculating the actual front axle load
Front ballast in kg =
Total weight
Calculating the actual total weight
Total weight =
Rear axle load
Calculating the actual rear axle load
Rear axle load in kg = actual total weight - actual front axle load
Tyre load-bearing capacity
Data on the tyre load-bearing capacity of the front and rear wheels can
be found in the tyre manufacturer's documentation.
•The front tyre load-bearing capacity for two wheels is equal to twice
the permissible tyre load-bearing capacity of a single front wheel.
•The rear tyre load-bearing capacity for two wheels is equal to twice
the permissible tyre load-bearing capacity of a single rear wheel.
Summary
Check if the following conditions are met:
•The actual values for the rear axle load must be less than the per-
missible values given in the tractor's operating manual.
•The tyre load-bearing capacity must be greater than the values for
the rear axle load given in the operating manual.
•The actual total weight must be less than the permissible total weight
given in the tractor's operating manual.
If these conditions are not met, the machine must not be attached to this
tractor.
If you have a sufficiently large weigh-bridge, you can determine the total
weight and the rear axle load by weighing.
DIG+ BH02 A H,+–FH+
-------------------------------------------------------------------------------------------
EFCH045 A H,+–
HIG++
-------------------------------------------------------------------------------------
EFHBHDIG+–++
H
---------------------------------------------------------------------------------------
EAD++

MU-B
16
Safety
Road transport
Make sure that the condition of the machine conforms to road traf-
fic regulations
The machine must conform to current traffic regulations if you intend to
drive it on public roads. This includes for example:
•Fitting lighting equipment, warning devices and protective devices
•Observing the permissible transport widths, transport weights, axle
loads, tyre load-bearing capacity and total weights
The driver and owner of the vehicle are liable if traffic regulations are not
observed.
Closing ball valves
If ball valves are provided on the hydraulic lines or the chassis cylinders,
the ball valves must be closed for road transport. Accidental actuation
of control devices on the tractor might otherwise cause movements in
the machine. Accidents or damage to the machine may be caused as a
result.
Check release cable for the quick-release coupling
Release cables must hang loose and must not, when in their lowered
position, release the couplings of their own accord. Attached machines
might otherwise come loose from the three-point linkage of their own ac-
cord.
Riding on the machine is strictly prohibited
People or objects must never be transported on the machine. Riding on
the machine poses a risk to life and limb and is strictly prohibited.
Take altered driving and braking behaviour into account
Driving and braking performance is altered when the machine is at-
tached to the tractor. Take the width and balancing weight of the ma-
chine into consideration, especially when cornering. A driving style
which not adjusted to the road conditions can lead to accidents.
Drive at a suitable speed
Always adjust your driving speed to the road conditions. Driving at ex-
cessive speeds in poor road conditions may create extremely large forc-
es, which will severely load or overload the tractor and the machine.
Driving at unsuitable speeds can cause machine damage and lead to
accidents.
Putting the
machine into oper-
ation
Training required before commissioning
The machine must not be put into operation until the user has been giv-
en proper training by an employee of the dealer, a factory representa-
tive, or an employee of the manufacturer. Commissioning without train-
ing can lead to damage to the machine due to false operation or acci-
dents can happen.
Ensure that the machine is in perfect working condition
Do not operate the machine unless it is in perfect working condition.
Check all important components and replace any defective components
before starting the machine. Defective components can cause damage
to equipment and personal injury.

MU-B
17
Safety
Do not remove the protective equipment
The protective equipment must not be removed or by-passed. Check all
protective equipment before starting the machine. Unprotected ma-
chine parts can cause serious or fatal injury.
Riding on the machine is strictly prohibited
People or objects must never be transported on the machine. Riding on
the machine poses a risk to life and limb and is strictly prohibited.
Height of the machine and overhead power lines
If a height of 4.00 m is exceeded when folding the machine in and out,
the machine must not be folded in the vicinity of live overhead power
lines. Danger of electrocution! Should the machine come into contact
with a live overhead power line:
•Do not attempt to exit the tractor cabin
•Do not touch any metal parts on the tractor
•Do not create any conductive contact with the ground
•Warn all persons in the area not to approach the tractor or the
machine
•Wait for help from professional emergency service personnel as
power in the live overhead power line must first be switched off
Never climb onto the machine beneath live overhead power lines. The
voltage can jump across even if the lines are not actually touching the
machine.
Check the hazard area
Before driving off, folding out, and operating the machine and during op-
eration, check its hazard area. Make sure that you have an adequate
view. Do not begin work until the hazard area is cleared of any persons
or objects. Information regarding the hazard area can be found in the
corresponding chapter.
Chapter »Mulching«, section »Task«, Page 32.
Parts could be ejected from the machine at high speed in certain cir-
cumstances. The hazard area, particularly in front of and behind the ma-
chine, must be cleared of any persons, animals or objects before start-
ing.
Any use of the machine without verification of the hazard area can lead
to serious or fatal accidents.
Retighten all nuts, bolts and screws
Nuts, bolts and screws should be checked at regular intervals and tight-
ened if necessary. Screws can come loose unnoticed while operating.
Damage to the machine or accidents may be caused as a result.
What to do in the event of a fault
In the event of a malfunction, shut down and secure the machine imme-
diately. The fault may be eliminated immediately, or a specialist work-
shop must be assigned the task. Further operation of the machine can
lead to damage to the machine or injury to persons.

MU-B
18
Safety
Uncoupling the
machine
Increased risk of injury
There is an increased risk of injury when uncoupling the machine from
the tractor. Therefore:
•Secure the tractor against rolling away
•Never stand between the tractor and the machine during uncoupling
•Actuate the three-point power lift system slowly and carefully
•Make sure the machine is standing on a secure and level surface
•Do not disconnect hydraulic hoses until there is no pressure in the
tractor and machine hydraulic system
Failure to observe these instructions can result in serious or fatal injury.
Care and mainte-
nance
Observe the care and maintenance intervals
Observe prescribed intervals for maintenance checks and inspections
specified in the operating manual. If these periods are not observed, this
can lead to damage to the machine, poor quality of work or accidents.
Use original replacement parts
Many components have special properties that are essential for the sta-
bility and correct operation of the machine. Unsuitable spare parts or ac-
cessory parts or incorrectly performed repairs or changes can cause
damage to the machine, accidents or serious injury.
Müthing strongly recommends using only approved original Müthing ac-
cessories and spare parts. Müthing can guarantee the safety, reliability
and suitability of these parts only.
Use of non-original Müthing spare parts shall invalidate any warranty
claims.
When performing any care and maintenance work:
•Switch off the PTO stub shaft
•Depressurise the hydraulic system
•Whenever possible, uncouple the tractor
•Make sure the machine is standing securely. Provide additional sup-
port as required
•Do not use parts of the machine as climbing aids; use only secure
steps, ladders or other means of access
•Secure the machine against rolling away
•Never reach into the V-belt while it is running
It is only possible to guarantee work safety during care or maintenance
work through observing these regulations.
Turn off the electrical supply
Prior to carrying out work on the electrical system, disconnect the sys-
tem from the power supply. Systems supplied with electrical power can
cause damage to equipment and personal injury.

MU-B
19
Safety
Replace hydraulic hoses
Replace hydraulic hoses every six years. Hydraulic hoses can age with-
out any externally visible damage. Defect hydraulic lines can lead to se-
vere or fatal injuries.
Caution when cleaning with a high-pressure cleaner
The machine can be cleaned using either water or a steam jet. Only use
a low pressure to clean bearings, fans, signal mixer units, plastic parts
and hydraulic hoses. Excessively high pressures can cause damage to
these parts.
Before carrying out welding work, disconnect the battery and al-
ternator
Before carrying out any electric welding work on the attached machine,
disconnect the tractor battery and the alternator. This avoids damage to
the electrical system.
Tighten all screwed connections
All screw connections that are released during maintenance and repair
work must now be retightened. Loose screwed connections can cause
bolts to undo without you noticing during your work. As a result, ma-
chine parts can become detached. Otherwise, this may result in severe
injury or damage to equipment.
Further regula-
tions
Observe the regulations
In addition to these safety instructions, observe the following:
•Accident prevention regulations
•Generally recognised safety regulations, occupational health re-
quirements and road traffic regulations
•Information and instructions in this operating manual
•Operation, maintenance and repair instructions

MU-B
20
Familiarising yourself with the machine
Familiarising yourself with the machine This chapter contains general information on your machine as well as
information on:
•Range of application
•Features
•Designation of components
•Technical specifications
Range of applica-
tion of the
machine
The machine is only allowed to be used for its intended purpose in land-
scaping or similar fields of work in accordance with its tooling.
Since the conditions of use are very varied, the user must pay particular
attention to the machine's performance limits. The machine must be
switched off immediately if there is any indication of overstress.
Proper use
The machine should only be used for the designated work as described
in this operating manual. Any application other than or beyond this is
considered improper use.
Examples of improper use:
•Transporting persons or objects
•Cutting of any products other than those specified or those of a sim-
ilar nature
»Range of application of the machine«
•Transferring power to other objects
•Front mounting of machines designed for rear mounting
•Rear mounting of machines designed for front mounting
•Working depths under 25 mm clearance from ground
•Any type of ground work
•Use of the machine in a position in which the tools do not point to-
wards the ground, for example in a vertical position
The manufacturer and dealers are not liable for damage caused by im-
proper use. The risk is borne solely by the user.
Tool Purpose
Carbide M shackle flails To cut grass, other growth or sections up
to a maximum of 2 cm diameter. The
shackle flails can deviate sideways. As
they are made from carbide, the flails
can be used for longer and need to be
replaced less often.
