M-TI FREEDOM CORE II Power Sensor User manual

FREEDOM CORE II™ POWER/SCREAMER SENSOR
1
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
Product Manual for
FREEDOM CORE II™
POWER/SCREAMER SENSOR
DO NOT REMOVE FROM STORE
Contents
1. Materials in Box 2
2. Anchor Installation 3
3. Merchandising 4
4. Using Transfer Tape 5
5. Arming The System 6
6. Remerchandising 7
7. Changing the Anchor 8
8. Sensor Riser Installation 9
9. LED Troubleshooting 10
10. Limited Warranty 11
USER INFO
For additional support, please reach out to our
Contact Center at 800-426-6844
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
2
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
MTI

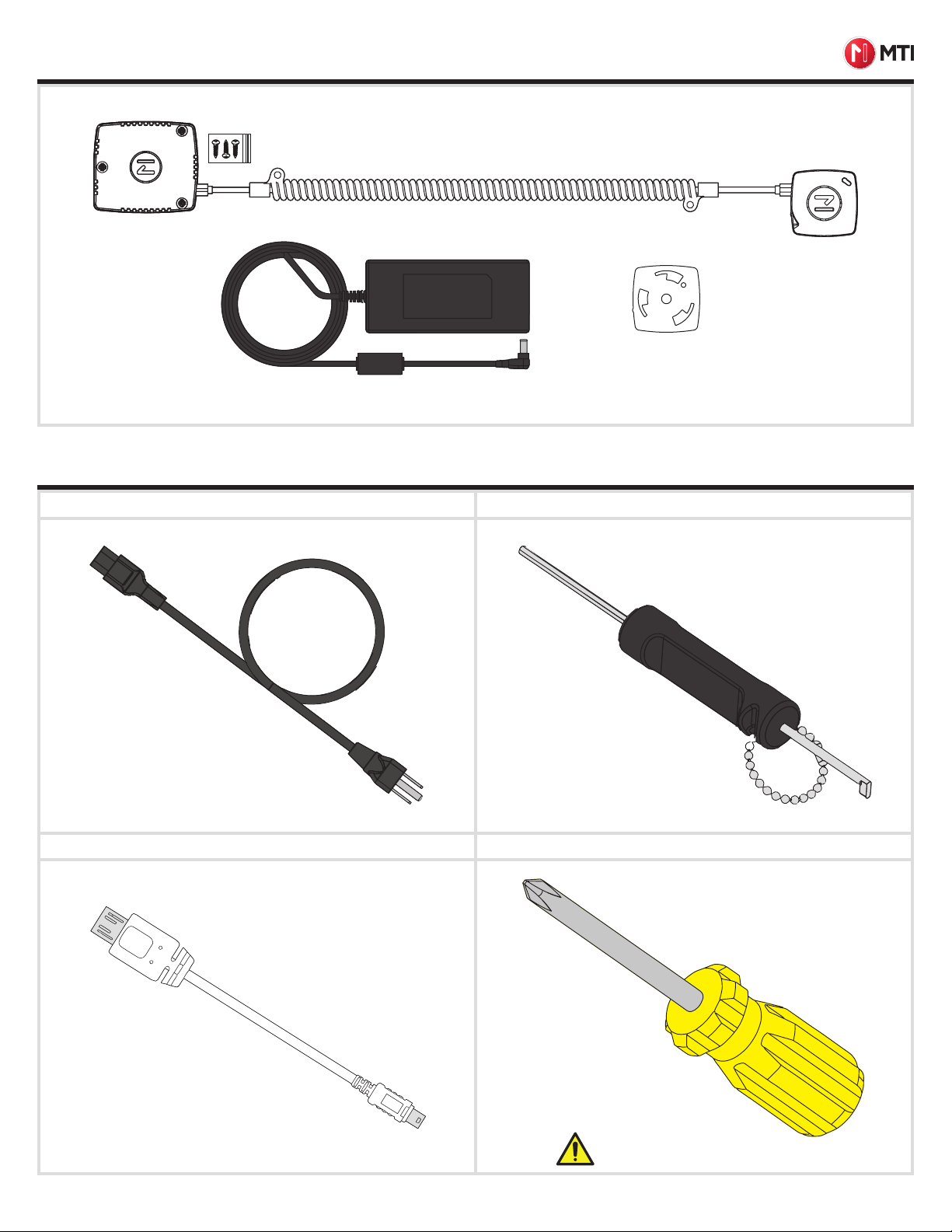

MATERIALS IN BOX
REQUIRED BUT NOT INCLUDED
Double-Sided System ToolPower Supply Cable
GeniusCables Philips-Head Screwdriver
Core II Power/
Screamer Sensor
Sensor Plate
Screws (x3)
Core II Power/
Screamer Anchor
Power Supply
Required for screw down installations.
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
3
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
1
1
2
2
3
3
Short Length
Philips-Head
Screwdriver
Plungers
Double Sided
System Tool
Double-Sided
System Tool
Clean the xture with an alcohol
swab and let air dry or wipe dry
with a clean cloth.
Using the Double-Sided System
Tool, remove the cover on the
Power/Screamer Anchor.
Peel the red lm from the VHB
adhesive (pre-installed on the
Power/Screamer Anchor).
Using a short length philips head
screwdriver, secure the anchor to
the desired location.
Place in desired location.
Ensure VHB is fully adhered
and plungers are fully depressed
or they may cause false alarm
condition.
Replace the cover on the Power/
Screamer Anchor using the
Double-Sided System Tool.
SCREW DOWN ANCHOR INSTALLATION
VHB ANCHOR INSTALLATION
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
4
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
1
3
5
2
4
6
Double Sided
System Tool
A.
B.
Use the pin for
alignment.
The socket-outlet shall be installed near the
equipment and shall be easily accessible.
Clean the demo device with an alcohol swab and let
air dry or wipe dry with a clean cloth. Peel the red lm
from the VHB adhesive on the Sensor. If not using
GeniusCables, skip to step 6.
Using the Double-Sided System Tool, turn clockwise
and then twist to remove the Sensor from the base
plate.
Insert the desired GeniusCable into the Sensor port.
The Sensor must be detached from device before
GeniusCable can be installed. GeniusCable is locked
into the Sensor after re-installation.
Connect GeniusCable to device.
Using the pin on the Sensor for alignment, twist the
Sensor onto base plate until it snaps and locks into
place.
Use the individual power supply and plug it into the
nearest outlet.
MERCHANDISING
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
5
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
1 2
3 4
IF USING TRANSFER TAPE
Peel the red lm from the VHB adhesive on the Sensor.
Peel the lm from the Adhesive Transfer Tape.
Place the Adhesive Transfer Tape on the Power
Screamer Sensor, lining up the center hole on the
Adhesive Transfer Tape with the plunger on the sensor.
Place on the desired device.
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
6
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
1
3
2
ARMING THE SYSTEM
LED is solid white upon removing key,
indicating system has now armed.
After about 5 seconds LED will turn
green, indicatating system is armed.
Insert IntelliKey into Power/Screamer Sensor.
Wait until the IntelliKey LED turns green.
Remove IntelliKey from Power/Screamer Sensor to arm the system. LED will turn solid white.
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
7
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
1
3
5
2
4
6
Hold the Adhesive Pad Removal Tool with both hands
and using a sawing motion, pull one side of the tool,
then the other back and forth until the VHB is released
from the base plate. Remove excess VHB by rolling it
off the surface.
Clean the Power Screamer with an alcohol swab and
let air dry or wipe dry with a clean cloth. Replace VHB
with extra pads provided.
Insert IntelliKey into Power Screamer port until LED
turns green.
Turning clockwise, twist off the Power Screamer from
the base plate.
Using the Double-Sided System Tool, turn clockwise.
Remove the GeniusCable.
REMERCHANDISING THE SENSOR
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
8
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
1
3
5
2
4
6
CHANGING THE ANCHOR
Insert IntelliKey into Power Screamer port until LED
turns green.
Unplug the power supply from the Power/Screamer
Anchor and remove the Power/Screamer Sensor cable
(if needed).
Remove excess VHB by rolling it off the surface.
Remove the three screws in the top of the Power/
Screamer Anchor using the Double-Sided System Tool.
Hold the Adhesive Pad Removal Tool with both hands
and using a sawing motion, pull one side of the tool,
then the other back and forth until the VHB is released
from the Power/Screamer Anchor.
Clean the Power/Screamer Anchor with an alcohol swab
and let air dry or wipe dry with a clean cloth. Replace
VHB with extra pads provided.
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
9
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
1 2
3REMOVAL
Attach the cup to the riser shell and interior bracket
using the two screws. To remove the screwed down position, simply reverse
the installation process. To remove a VHB position, Hold
the Adhesive Pad Removal Tool with both hands and
using a sawing motion, until the VHB is released from
the base plate. Remove excess VHB by rolling it off the
surface.
Mount the internal riser bracket either by applying VHB
to the bottom and placing it in the desired location or
by screwing the bracket to the surface of the xture.
Place the riser shell over the internal bracket.
SENSOR RISER
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
10
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844

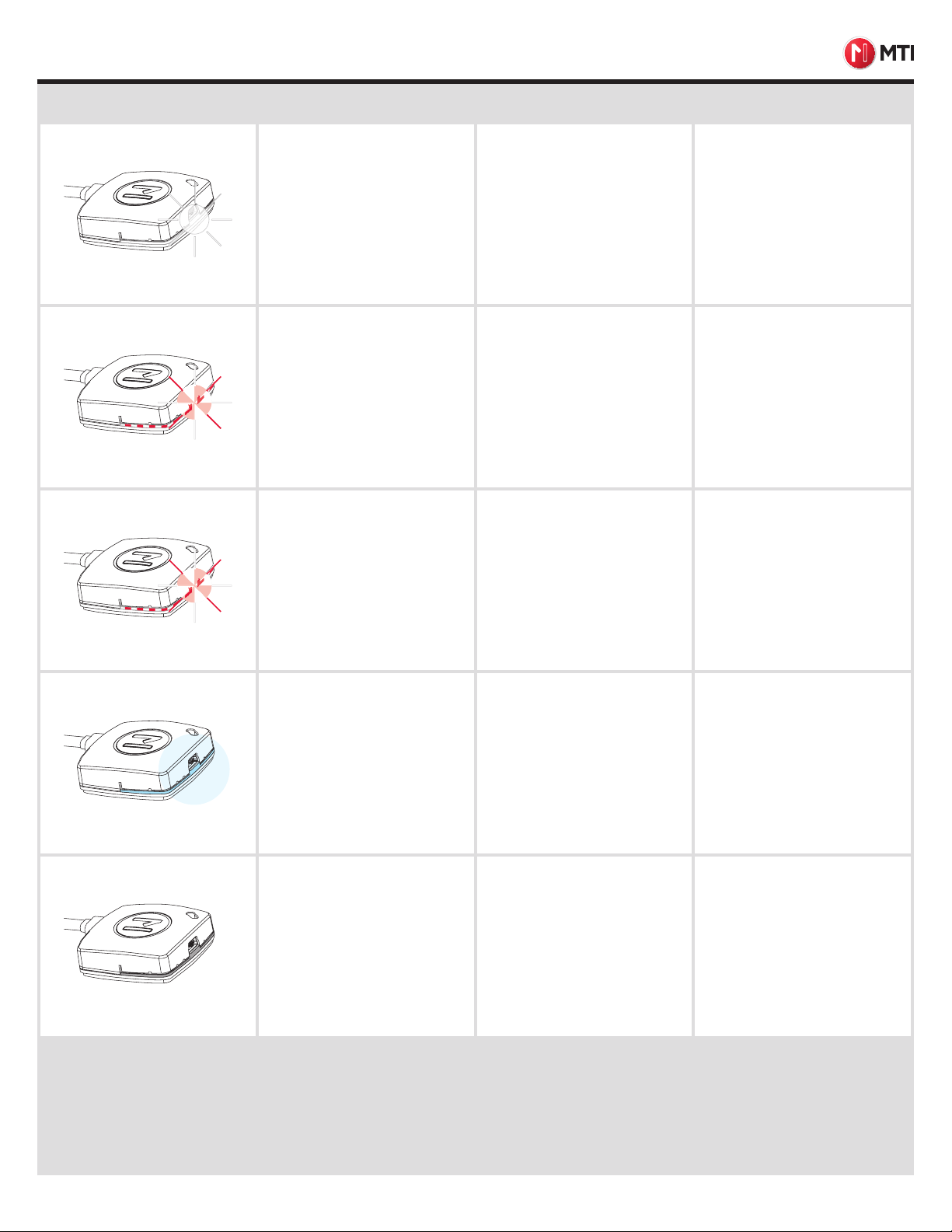

LED TROUBLESHOOTING
Visual Reference System Status Condition Solution
Sensor white double ash every
8 seconds
No audible alarm
Power is on, Sensor is disarmed Mount customer product and
program/arm system
Sensor ashes red and white
Steady alarm
Sensor is in a state of alarm due
to theft, tampering or improperly
mounted customer product
Insert IntelliKey to silence alarm
Fix alarming condition (check
mounted product)
Remove IntelliKey
Sensor ashes red and white
No audible alarm
Sensor has been alarming for
more then 10 minutes.
Insert IntelliKey to silence alarm
Fix alarming condition (check
mounted product)
Remove IntelliKey
Sensor LED solid blue
No audible alarm
Short circuit in GeniusCable or
over current from the device
Replace GeniusCable
If issue is not resolved, the
device is too power hungry for
Freedom Core II system and
cannot be merchandised with it
Sensor LED off
Five double-beeps
System is in a state of battery
back-up mode
SYSTEM CANNOT BE
PROGRAMMED IN THIS STATE
Reconnect power
In order to maximize consumer shopping experience during open hours, consider the following steps to extend battery life:
• TURN OFF or put all displayed devices/SKUs in SLEEP mode for the off hours for your store.
• Lowering the brightness level (during open hours) on your devices by 15-20%
If you experience any condition not listed above, please contact Customer Service at 1-800-426-6844, Opt. 1
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737

FREEDOM CORE II™ POWER/SCREAMER SENSOR
11
MTI P/N 063-00229 rev A ©2018 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
LIMITED WARRANTY
Seller warrants all Products manufactured by Seller to be free from defects in material and workmanship. Seller’s warranty shall
begin on the date of shipment to Customer. The length of the warranty is determined by the Product type as set forth below.
Base units, display puck assemblies (enclosure and ECB, excluding puck battery), alarm modules (enclosure and ECB),
Piezo alarms, secondary sensors, electronic security sensors, quad cables, power/data link cables, IntelliKey Switch Module
assemblies, Keyswitch assemblies, Keypad assemblies, puck adapters and custom design brackets/adapters for the Freedom™
Consumer Electronic Handheld (CEhh) Merchandising System (“Freedom™ System”), and NFC electronics boards in the
Freedom™ System, all OnSite® switching modules and video/audio switching and distribution modules for the Audition Signal
Management System (“Audition System”), multimedia players, format converters, resolution scalers and audio/video cables for
the Audition System are warranted for a period of one (1) year.
CarbonTether™ assemblies, both powered and mechanical and SmartTether™ assemblies are warranted for a period of one
(1) year.
AirTether™ assemblies are warranted for a period of six (6) months.
Seller provides no warranty hereunder for Power Supplies, and Customer must rely solely upon any warranty provided by the
manufacturer of such Power Supplies. Certain manufacturer warranties are on le with Seller and may be made available upon
Customer’s request. Seller warrants all batteries to be free from defects in materials and factory workmanship, and warrants any
battery that fails to perform as specied within six (6) months after date of shipment. This warranty shall not apply if buyer fails to
notify MTI of such defect within ten (10) days after discovery, or if battery has been subjected to misuse, negligence or accident.
The following components of the Freedom™ System are considered consumable items and Seller provides no warranty for
such items: USB interconnect cables, extension cables, SmartCables, FlexSensors, Membrane Sensors, anti-skid pads, anti-
rotation brackets, VHB adhesive pads, X- and L-brackets, CC- and DC-brackets, cable clamps, zip ties, and installation, retrieval
and removal tools. Unused SmartCables and Secondary Sensors that are demonstrated by Customer to have been faulty upon
delivery to Customer will be replaced at Seller’s expense; provided, however, Customer shall be responsible for any and all related
shipping and handling costs.
All other Seller-manufactured Products, not specied above, are warranted for a period of one (1) year.
Seller’s warranty expressed herein does not apply to the following:
• Cartons, cases, cabinets, displays, or any other unit attached to or otherwise connected to a Seller-manufactured Product.
• The labor and other costs associated with the removal and replacement of the warranted Product or any component thereof.
• Products used in applications beyond their normal intended use, application, or rated specications.
• Products damaged by accident, abuse, improper voltage, faulty installations, mechanical failure, re, ood, lightning, civil
unrest, or any act of God.
• Warranty services rendered by any party other than Seller unless so authorized by Seller.
• Replacement parts and equipment that have been discontinued or are otherwise unavailable.
• Products from other manufacturers that are integrated by Seller into Customer’s system(s) are not warranted by Seller and
are subject only to that warranty, if any, provided by the manufacturer of such Product(s).
Subject to the limitations stated herein, and at Seller’s sole discretion, Seller will replace or repair defective Products or components
thereof at no charge to Customer so long as Customer’s account with Seller is current and Customer has returned the Product(s)
or component thereof pursuant to a properly issued Return Material Authorization.
Replacement of any Product or any component thereof by Seller under this warranty provision shall not extend, in any way, the
length of the original applicable warranty period otherwise provided for herein.
Seller reserves the right to replace a defective Product or component thereof with a refurbished Product or component.
Seller’s warranty herein is non-transferable and shall extend only to Customer.
-CONTROLLED DOCUMENT- 063-00229 A-0 Status: Approved ECO-106737
ECO-106737
