Maaselan Kone hakki pilke 38 easy TR Quick guide

1
Hakki Pilke 38 Easy Original Version 6
Hakki Pilke 38
Easy
LOG SPLITTER
–Instructions for assembly, operation and maintenance
–EU Declaration of Conformity
–Safety instructions
–Warranty terms
MAASELÄN KONE OY
Valimotie 1, 85800 Haapajärvi
tel.[phone], fax.[phone]
[email protected]
www.maaselankone.fi
English
The operator must read and understand these instructions
before operating the log splitter!

2
Hakki Pilke 38 Easy Original Version 6
Contents
1. General information.....................................................................................................................4
1.1. Introduction........................................................................................................................................... 4
1.2. Purpose of use....................................................................................................................................... 4
1.3. Machine models and basic information................................................................................................ 4
1.4. Operating conditions............................................................................................................................. 4
1.5. Safety instructions................................................................................................................................. 5
1.6. Noise and vibration ............................................................................................................................... 5
1.7. Warning symbols ................................................................................................................................... 6
2. Receipt and assembly...................................................................................................................7
2.1. Receipt inspection ................................................................................................................................. 7
2.2. Lifting and moving the machine............................................................................................................ 8
2.3. Main components of the machine ........................................................................................................ 8
2.4. Preparing the machine for operation.................................................................................................... 9
3. Control functions and preparation ..............................................................................................9
3.1. Arranging the machine for operation and transport ............................................................................ 9
3.1.1. Placing the input conveyor in the operating or transport position ..................................................9
3.1.2. Placing the output conveyor in the operating or transport position .............................................10
3.2. Controls ............................................................................................................................................... 11
3.2.1. Tractor drive....................................................................................................................................12
3.2.2. Electrical drive.................................................................................................................................13
3.2.3. Adjusting the log length ..................................................................................................................14
3.2.4. Using the output conveyor .............................................................................................................15
3.2.5. Adjusting the splitting blade ...........................................................................................................15
3.2.6. Using the dust collector ..................................................................................................................15
4. Operating the machine ..............................................................................................................16
4.1. Test running the machine.................................................................................................................... 16
4.2. Placing logs on the log holder ............................................................................................................. 17
4.3. Feeding and sawing wood ................................................................................................................... 17
4.3.1. Jamming of the cutting blade .........................................................................................................17
4.3.2. Sawing the last log ..........................................................................................................................17
4.3.3. Using the quick couplings of the additional hydraulics ..................................................................18
4.3.4. Using the quick couplings of the auxiliary feed rollers...................................................................18
4.4. Splitting logs ........................................................................................................................................ 19
4.4.1. Wood jamming on the splitting blade ............................................................................................19

3
Hakki Pilke 38 Easy Original Version 6
4.4.2. Re-splitting or splitting without cutting..........................................................................................19
4.4.1. Replacing the splitting blade...........................................................................................................20
4.4.2. Adjusting the length of the splitting motion...................................................................................20
4.5. Using the output conveyor.................................................................................................................. 21
4.6. After use .............................................................................................................................................. 22
5. Machine maintenance ...............................................................................................................23
5.1. Cutting blade and drive end ................................................................................................................ 23
5.1.1. Replacing and tightening the blade chain.......................................................................................23
5.1.2. Replacing the blade flange..............................................................................................................24
5.2. Replacing and tightening the V-belts .................................................................................................. 24
5.3. Changing the oil of the splitter............................................................................................................ 25
5.4. Changing the oil of the angle transmission ......................................................................................... 26
5.5. Conveyor maintenance ....................................................................................................................... 26
5.5.1. Replacing and tightening the belt of the input conveyor ...............................................................26
5.5.2. Replacing and tightening the belt of the output conveyor ............................................................27
5.5.3. Replacing the plates of the output conveyor .................................................................................28
6Lubrication ......................................................................................................................................28
7Blade chain lubrication....................................................................................................................29
8Solenoid and pressure regulating valves ........................................................................................30
9Washing and cleaning .....................................................................................................................31
10 Storage ............................................................................................................................................31
11 Maintenance table ..........................................................................................................................32
12 Failures and remedial measures .....................................................................................................33
13 Electrical and hydraulic diagrams ...................................................................................................34
14 Guarantee terms................................................................................................................................... 36
The guarantee covers....................................................................................................................................36
The guarantee does not cover ......................................................................................................................36

4
Hakki Pilke 38 Easy Original Version 6
1. General information
1.1.Introduction
The purpose of this manual is to ensure that the machine is used in the manner intended by the
manufacturer, taking safety into consideration. Everyone operating the machine or working in close
proximity to it must carefully study this manual.
Operators of the machine are expected to have basic skills in tractor handling, such as utilising the cardan
shaft drive and the tractor's lifting equipment. Before commencing work, operators must also familiarise
themselves with the machine's control and safety equipment, and ensure their proper operation.
Additional information on Maaselän Kone Oy's products is available on our Web site at
www.maaselankone.fi.
Keep this manual in the immediate vicinity of the machine.
1.2.Purpose of use
The Hakki Pilke 38 Easy log splitter is designed for preparing firewood from pruned wood or logs. The log
splitter must not be used to process any treated wood, such as is found in construction waste. Sand, nails or
other impurities in the wood may damage the machine.
The maximum diameter for logs to be split is 38 cm. This limit must not be exceeded. When estimating the
diameter of the log you are about to cut, note that the shape of the log and other factors, such as branches
and burrs, make the actual diameter larger, and may prevent the log from being fed to the machine. The
splitting groove is designed for logs up to 60 cm in length. Never cut or split logs that exceed the maximum
length.
1.3.Machine models and basic information
Model
TR
Combi
Drive
Tractor's cardan shaft (TR)
TR
Electricity
Weight
900kg
980kg
TR/Electrical drive
min. min. 25 hp/max 500r/min 10kW (min 25 A fuse)
Height/width/length
in the transport position 2,500/2,460/1,300 (mm)
Input/output conveyor
2,200/4,000 (mm)
Blade flange/chain
Flange: 16” groove 1.5mm chain: 67 loops, pitch 0.325”
Max log diameter
38cm
Max/min log length
max. 60cm; min 17cm
The machine’s serial number, manufacturing date, weight, operating voltage (electrically-operated
machines) and model are indicated on the grey type plate located on the machine frame, below the locking
latch of the output conveyor, on the right side of the operator.
1.4.Operating conditions
The temperature range within which the machine can be operated is -20 –+30 °C. In the winter, the
operator must ensure that there is no risk of slipping in the working area.

5
Hakki Pilke 38 Easy Original Version 6
The working area must be even and clear of unnecessary items. No extra or unauthorised persons are
allowed in the working area. The working area must also be sufficiently illuminated.
The machine may not be used indoors.
1.5.Safety instructions
This machine is intended to be operated by only one operator. The danger zone around the machine
is 10 metres.
Persons under 18 years of age may not operate the machine.
The operator must ensure that using the machine does not cause danger to others and that there are
no extra or unauthorised persons in the danger zone.
The machine may not be operated while under the influence of alcohol or drugs, or when tired.
The machine may not be operated unless the operator has familiarised themselves with this
instruction manual.
The machine has been designed solely for making firewood.
The machine must be arranged for transport whenever it is moved. When transporting the machine
on a public road, it must be equipped with additional lights.
The operator is not permitted to modify the structure or operation of the machine, or to remove
protective equipment.
Operators must wear ear protection, sufficiently tight-fitting work clothing, work gloves, protective
goggles and safety footwear.
Before starting up the splitter, the operator must ensure that the machine and its shields are intact.
When powering the machine with a tractor, the operator must ensure that the cardan shaft is
undamaged and that the rpm range is correct. The machine must be attached to the tractor's lifting
equipment during operation.
Before starting up the splitter, the operator must ensure that all the control and safety devices are
functional.
When cleaning or maintaining the machine, it must be disconnected from its power source.
1.6.Noise and vibration
A-weighted sound pressure level at the working location is 87.0 dB (A), and the sound power level
is 98.0 dB (A). The vibration values do not exceed 2.5 m/s2.

6
Hakki Pilke 38 Easy Original Version 6
1.7. Warning symbols
Read the machine’s manual before
operating the machine.
Wear eye and ear protection.
Wear safety footwear and
work gloves.
Do not wear any loose items of
clothing.
Always grab the piece of
wood or log from the side.
Lifting point for forklift
Beware of moving parts.
Beware of the cardan shaft.
Beware of the chain.
Beware of the blade.
Only one person may
operate the machine.
Disconnect the power supply
before maintenance.

7
Hakki Pilke 38 Easy Original Version 6
The danger zone around the machine
10 metres.
Risk of crushing
The maximum permitted angle of the
conveyor is 40°.
Do not walk under the conveyor.
The maximum speed for the
cardan shaft is 500 rpm.
The rotation direction is in the
direction of the arrow.
Hydraulic oil
Blade chain oil
Danger zone
Lubrication point
2. Receipt and assembly
2.1.Receipt inspection
Dispose of the machine’s packaging materials in an environmentally friendly manner.
Check that the splitter has not sustained any damage during transit, and ensure that all necessary parts are
included in the package. In case of any defects or damage, contact the retailer immediately.

8
Hakki Pilke 38 Easy Original Version 6
2.2.Lifting and moving the machine
When moving the machine, make
sure that the moving and lifting
capacity of your tractor or forklift is
sufficient for the machine’s weight.
Only lift the splitter by the indicated
lifting points or with the lifting
equipment of the tractor.
Figure 1. Lifting points
When connecting the machine to the tractor's lifting equipment, the tractor cabin must be free of people in
order to prevent any accidental contact with the controls. Check all connecting devices of the tractor and
the log splitter before connecting them. Never use faulty equipment. The pins that are used to connect the
pushbars and drawbars to the log splitter must be of the correct size, and the appropriate locking pins must
be used to secure them.
The splitter must be placed in the transport position if it is to be moved more than 5 metres. Exercise
extreme caution when moving the machine in the operating position. Always lower the machine to the
ground when you stop.
Note! Incorrect lifting may cause a hazardous situation or damage the machine.
2.3.Main components of the machine
The Hakki Pilke 38 Easy is a log splitter with fully hydraulic controls. In other words, all of the machine's
functions are controlled hydraulically with operating levers on the machine's control panel. The guard of the
cutting and splitting section is interlocked to the machine's operation: opening the guard stops all functions.
A. Input conveyor
B. Control unit
C. Cutting and
splitting unit
D. Output
conveyor
Figure 2. Main components of the machine.

9
Hakki Pilke 38 Easy Original Version 6
2.4.Preparing the machine for operation
Note! The pushbar lugs may be installed either way depending on the size of the tractor.
3. Control functions and preparation
3.1.Arranging the machine for operation and transport
Before arranging the machine for transport, ensure that the operating conditions detailed in Section 1.4 are
met and review the safety instructions in Section 1.5.
Note! Inspect and clean the machine according to Sections 4.3 and 5.8 before arranging it for transport.
3.1.1. Placing the input conveyor in the operating or transport position
Place the input conveyor in the operating
position as follows:
1. Ensure that sufficient room is
available to lower the input
conveyor (approx. 2 m).
2. Release the lock by lifting handle A
upward with your left hand. Note!
At the same time, hold the end of
the input conveyor with your right
hand!
3. Lower the input conveyor down
with your right hand and, at the
same time, use your left hand to
guide the support leg C into slots B,
as instructed in Figure 4.
When placing the input conveyor in the
transport position, lift the conveyor up
and ensure that the locking latch locks it in
place, as instructed in Figure 3.
Figure 3.
Figure 4.

10
Hakki Pilke 38 Easy Original Version 6
3.1.2. Placing the output conveyor in the operating or transport position
Place the output conveyor in the operating position as follows:
1. Ensure that there is
sufficient room for
lowering the output
conveyor.
2. Turn off the machine.
3. Keep lock A open and
lower the output
conveyor down with a
winch to its lowest
position.
Note! Leave a sufficient
clearance (approx. 30
cm) for the discharge
opening of the
conveyor.
4. Turn the upper section
of the conveyor to the
operating position with
handle C at the upper
end.
5. Turn the output
conveyor's support bar B
to the side.
6. Straighten the splitting
groove guard E into the
operating position.
7. Lift the conveyor to the
desired angle with the
winch, and use lock D on
the bottom of the
conveyor to lock the
upper section of the
output conveyor in the
operating position.
Figure 5.
Figure 6. Figure 7.
Figure 8. Figure 9.

11
Hakki Pilke 38 Easy Original Version 6
Place the output conveyor in the transport position as follows:
1. Turn off the machine.
2. Release lock D that holds the upper section of the conveyor in place, and lower the conveyor to the
lowest possible position with the winch.
3. Position support bar B over the belt, and fold the upper section of the conveyor onto the lower section
with handle C.
4. Turn the conveyor to the middle position. See Section 3.2.4.
5. Turn the splitting groove guard E into transport position, as shown in Figure 9.
6. Lift the conveyor with the winch until it locks into the raised position. Ensure that lock A connects
firmly.
3.2.Controls

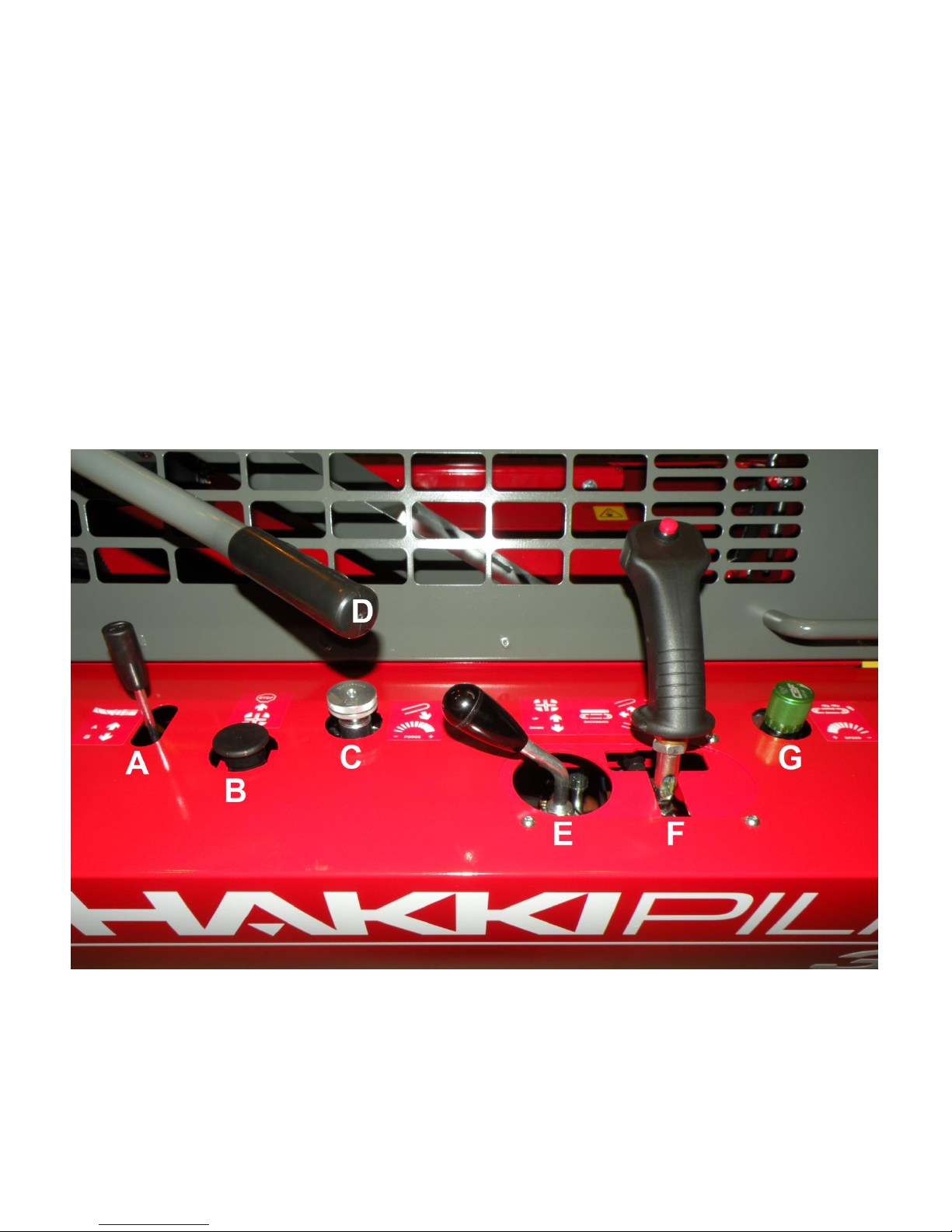

Figure 10. The control of the machine

12
Hakki Pilke 38 Easy Original Version 6
Names and functions of the controls in Figure 10
A. Control of an auxiliary device (such as log hoist).
B. Splitting cylinder reversal.
C. Adjustment of the lowering speed of the cutting
flange
-Turning the knob clockwise increases the speed
of the motion, and vice versa.
D. Wood press handle. With the handle, wood can be
pressed against the table during sawing in order to
make cutting the wood as safe and stable as
possible.
E. Height adjustment for the cutting blade.
F. Joystick
Input conveyor control –upper right and
upper left
Cutting control –down
Splitting activation –up and down movement
(the flange must be fully in the lowest
position)
Blade chain activation –button A in Figure 11
Splitting motion activation –button B
G. Adjustment for the running speed of the output
conveyor
Turning the knob anti-clockwise increases the
speed.
The conveyor slows down and eventually stops
when the knob is turned clockwise.
Figure 11: Joystick.
3.2.1. Tractor drive
A tractor-powered splitter must be connected to a
three-point lifting device and the tractor's cardan
shaft. To connect the machine to the cardan shaft,
you have to move the protective cover A of the socket
and angle transmission into a position where it covers
the socket.
Connecting the cardan shaft is a task for only one
person. The tractor cabin must be free of people in
order to prevent accidental contact with the controls
while the log splitter is being connected to the tractor.
Check all connecting devices of the tractor and the log
splitter before connecting them. Never use faulty
equipment.
The power cable for the electric controls is connected
to the tractor's 12 V socket for lights.
Figure 12.

13
Hakki Pilke 38 Easy Original Version 6
When using the cardan shaft, observe any instructions provided by the shaft's manufacturer. The splitter
requires 10 kW of power, which must be taken into account with regard to the capacity of the cardan shaft.
A suitable cardan shaft is of power class four. Check that the shaft is properly locked to the splined shaft of
the angle transmission. Connect the chain that prevents the protective cover from rotating to opening B. If
necessary, the cardan shaft can be suspended from hook C. Finally, ensure that all the connections are safe
and secure. Never use a damaged or unprotected cardan shaft.
Note! Tractor-powered splitters must be attached to the tractor's lifting equipment.
Note! The starter (Figure 15) only functions when the machine is powered by electricity.
3.2.2. Electrical drive
An electrically-powered splitter functions
with a power of 10 kW. The electric
motor IP- rating is 55. The fuse must be
at least 25 A. The electrical cable must
be at least 5 x 4 mm². In order to connect
the cable, move the protective cover B of
the socket A and angle transmission into
a position where it covers the angle
transmission.
In an electrically-powered machine, the
power cable of electric control is
connected to the socket on the side of
the machine.
The splitter can be activated with the
green button of the starter in the control
panel in the front panel of the machine.
If the electric motor rotates in the wrong
direction (i.e. the machine makes an
abnormal noise and the hydraulic
functions are inoperable), the current
phase is incorrect. We recommend using
an extension cord that allows you to
switch the current phase, or an adapter.
Note! If the extension cord does not
have a phase switch, the electrical work
related to changing the phase must be
performed by an electrician.

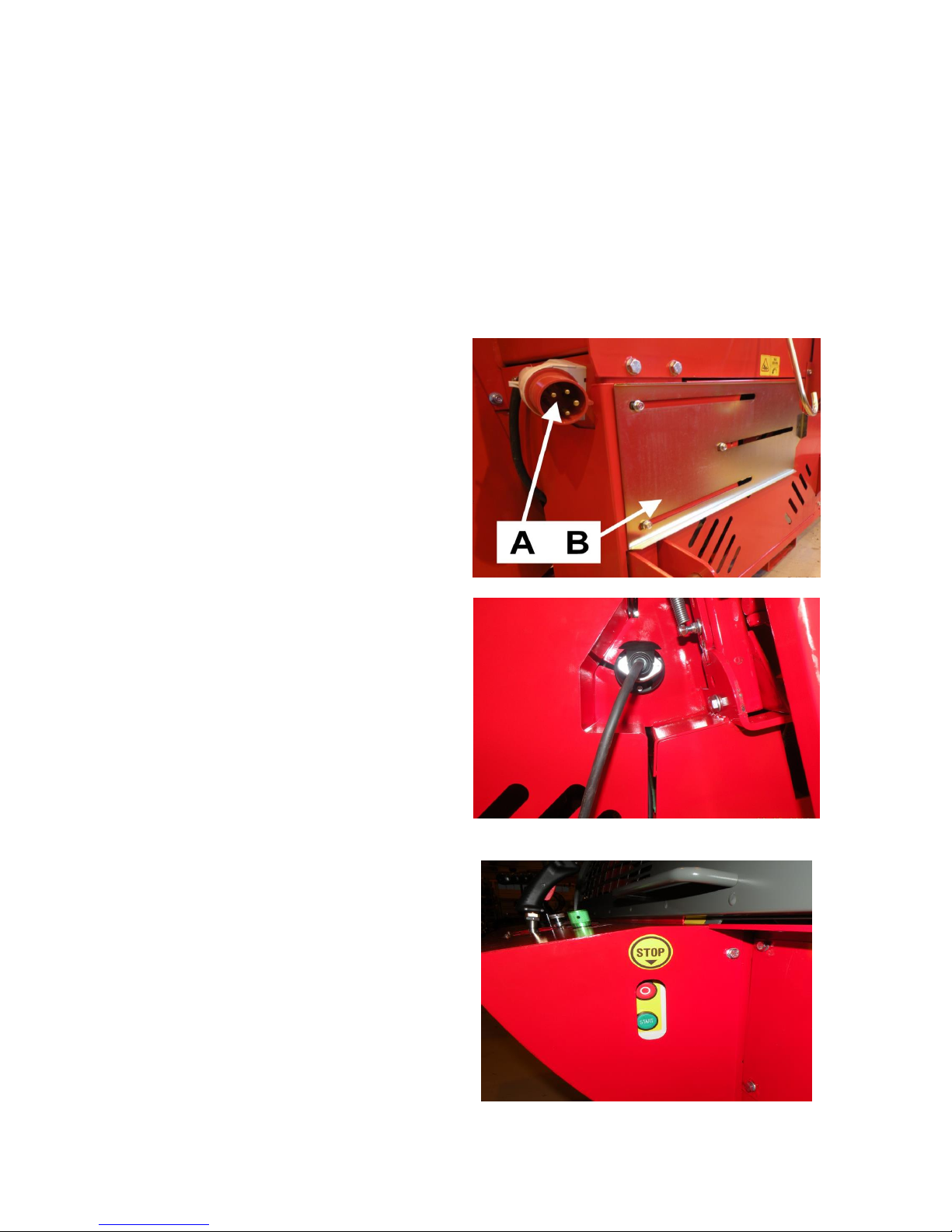

Figure 13. Powering the machine with electricity
Figure 14. Electrical connector for an electric control
device
Figure 15. Starter

14
Hakki Pilke 38 Easy Original Version 6

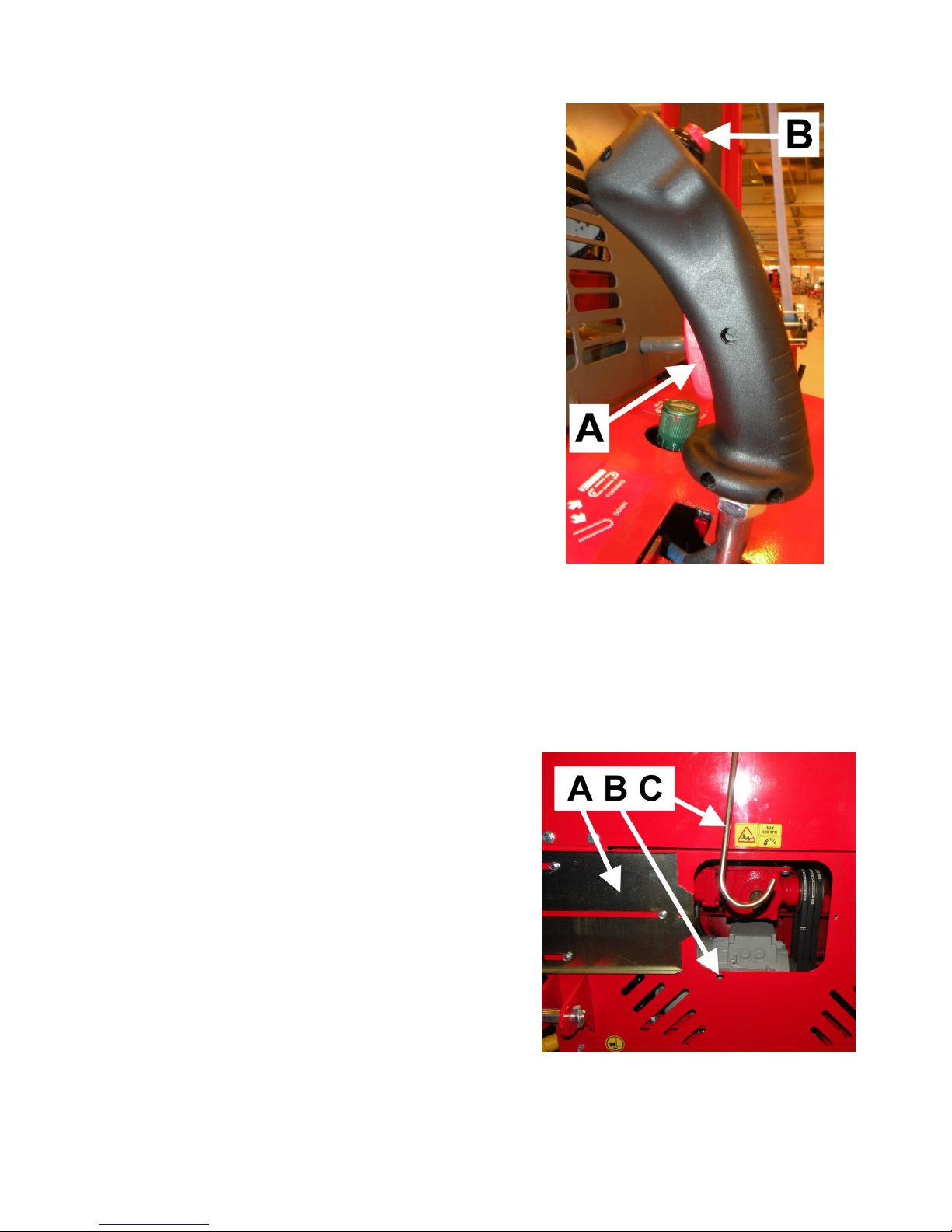

3.2.3. Adjusting the log length
The Hakki Pilke 38 Easy is equipped with a mechanical log measurement device with an incremented
adjustment value of 25–60 cm.
1. Turn the machine off, disconnect it from
any power source, and open the
protective cover of the machine.
2. When the wood limiter is in the splitting
position, set it to the desired length by
removing the cotter pin B in the limiter's
locking pin and by pulling out the locking
pin A. Lock the limiter plate C in the
desired position. Re-insert the locking
pin A and the cotter pin B.
Note! If necessary, turn the limiter plate
to the correct position according to the
thickness of the log. (See Figures 17 and
18).
Figure 17. Limiter plate position for large logs of
more than 25 cm in diameter.
Figure 16. Log length adjustment
Figure 18. Limter plate position for small logs

15
Hakki Pilke 38 Easy Original Version 6
3.2.4. Using the output conveyor
The belt of the Hakki Pilke 38 Easy log splitter’s output conveyor is driven by a hydraulic motor. To change
the speed of the belt, use the adjuster G shown in Figure 10. The following describes how the conveyor can
be turned laterally by using the turning lever A and handle B:
Figure 19.
Release the lock of the conveyor by pushing the lever A towards the conveyor, and turn the conveyor to the
desired position with the handle B.
3.2.5. Adjusting the splitting blade
The splitting blade can be controlled hydraulically by moving the control lever E in Figure 10 up or down.
Logs should always be as centred as possible when passing the blade in order to keep the size of the
firewood consistent.
The blade can be driven to the lowest position by raising the blade and clearing the space under the blade.
The machine must be shut down and disconnected from its power source for the duration of the cleaning.
3.2.6. Using the dust collector
A hydraulic dust collector is available as an accessory for the splitter. It allows you to collect sawdust for any
purposes you may wish to use it. The dust collector is automatically activated when the machine starts up.

16
Hakki Pilke 38 Easy Original Version 6
4. Operating the machine
4.1.Test running the machine
The machine may not be used before a test run testing all of the functions of the machine has been carried
out. Both the test run and testing can only be performed by a person who has studied the manual of the
machine.
Before the test run, all components of the log splitter must be checked. If any faults or wear that may affect
the safe use of the machine are discovered, the log splitter may not be used until the faulty or worn
component is replaced and safe use can be ensured.
1. Check that the guard of the log splitter's cutting and splitting section is down.
2. Check that the input and output conveyors are in the operating position.
3. Ensure that the splitting groove is empty.
4. Make sure that you are familiar with the functions of the splitter's controls. If necessary, refer to
Section 3.2.
5. Activation
6. Tractor-powered: Insert the connector of the electric control device into the tractor's electrical socket.
Start the tractor and connect the output, starting with a slow speed and increasing the speed to a
maximum of 500 rpm.
7. Electrically-powered: Connect the cable to the log splitter's socket, start the splitter by pressing the
start button and wait a moment. This activates the electric motor at full speed.
8. Start the splitting motion with the joystick F of the machine, shown in Figure 10, by lowering the
cutting flange fully into the lowered position by lifting the joystick to the upper position. The splitting
motion must be normal. The splitting motion can also be activated by pressing the B button of the
joystick (as shown in Figure 11).
9. Do the following to ensure that the blade chain lubrication functions automatically: (If necessary, see
Section 7.0.)
a. Use the joystick F in Figure 10 to perform a few sawing motions without sawing any actual logs.
b. Turn off the splitter and disconnect it from the power source.
c. Open the guard and see if the blade chain has been supplied with oil.
10. Ensure that the blade chain can be activated by pressing button A of the joystick (please see Figure
11).
11. Start the splitting motion and stop it by opening the cradle guard of the cutting and splitting section.
12. Make sure that the splitting beam returns to its initial position (in the middle of the splitting motion)
by pressing button B (please see Figure 10).
13. Test run the input conveyor's feed and return motion with joystick F in Figure 10.
14. Start the output conveyor by using the control G (please see Figure 10) to adjust the speed to an
appropriate level.
If a fault occurs during the test run, determine the cause and take remedial action as deemed necessary. The
machine must be shut down and disconnected from the power source for the duration of both the
diagnostics and repairs.

17
Hakki Pilke 38 Easy Original Version 6
4.2.Placing logs on the log holder
We recommend the use of auxiliary devices, such as the HakkiFeed 422 log holder. If a log holder is not
attached to the splitter, the maximum allowed log length is 4.5 m. Puun nosto ja asettaminen syöttöpöydälle
on tehtävä turvallisesti ja käyttäjää vaarantamatta.
Note! Placing logs directly on the input table with a loader is strictly prohibited.
Note! Make sure that the log's centre of gravity stays on the conveyor.
4.3.Feeding and sawing wood
The input conveyor feeds the wood to be processed into the splitter. Push the joystick F in Figure 10 of
Section 3.2 to the upper right direction to feed wood into the machine. The feed can be cancelled by pushing
the joystick to the upper left direction.
When feeding the log to machine, make sure that it does not present a risk of your clothes, hands or other
parts getting caught in the machine, for example due to the shape of the log. Do not use your hand to guide
the log into the cutting section. Adjust the wood measuring device to the desired length and make sure that
the speed of the output conveyor belt is suitable by adjusting it.
1. Choose the log to process. Note that the maximum log diameter is 38 cm. The knottiness and shape
of the log increase the diameter.
2. Feed the logs for cutting with the input conveyor with the joystick F. Push the joystick in the upper
right direction to activate the feeding function.
3. Once the log stops for cutting in the mechanical measuring device, lock the log in place with the
wood press by pressing the handle D of the press (please see Figure 10) downward.
4. Cut the log by pressing the push button A (Figure 11) of the joystick, which activates the blade chain,
and by lowering the cutting flange by moving the joystick F (Figure 11) backwards.
5. Return the cutting flange to the raised position by pushing the joystick F forwards, which
automatically starts the splitting function.
Note! The splitting motion can be prevented by pressing the button B (Figure 10). This prevents the
splitting motion from starting in any situation. The splitting motion can be re-activated by pressing the
button B again.
4.3.1. Jamming of the cutting blade
Make sure that the downward motion of the cutting flange has not been adjusted (pressure regulating valve
C in Figure 10 of Section 3.2) to be too fast in proportion to the size of the log.
If the cutting blade gets jammed in the log, stop sawing and try again from another section of the log. If the
cut is misaligned because the flange drags to one side, the sharpness of the blade chain must be checked. A
chain that is not evenly sharp will always drag to the duller side, which makes cutting a thick log impossible.
On the other hand, sawing with an evenly dull chain is inefficient, and the blade chain must be sharpened or
replaced (see Section 5.1.1).
4.3.2. Sawing the last log
When sawing wood, the second to last piece should be sawed in such a way that the remaining piece is of a
sufficient length. This ensures that the log will stay firmly under the wood press and that the sawing will be
steady and safe. Drive the last log directly into the splitting section, and start the splitting process with the
control lever F.

18
Hakki Pilke 38 Easy Original Version 6
4.3.3. Using the quick couplings of the additional hydraulics
Connect the additional hydraulics (for example Connect the additional hydraulics (for example when using
the WoodLift 381 log hoist) by pushing the hydraulic hoses of the auxiliary device to quick couplings C and D
(please see Figure 20 in Section 4.3.4).
4.3.4. Using the quick couplings of the auxiliary feed rollers
The auxiliary feed rollers can be connected in series with the input conveyor. This way, the rollers are
automatically synchronised to operate with the input conveyor when feeding logs with the joystick F.
1. Connect the hoses of the auxiliary
rollers to quick couplings C and D
in the Figure 20.
2. Remove the guard as instructed in
the instructions of point 2 of
Section 4.4.4.
3. Turn ON the cock A in Figure 21
with the handle B, which allows oil
to flow to the quick couplings
shown in Figure 20.
4. Make sure that the rotation
direction of the rollers is the same
as the conveyor’s direction. If
necessary, change the connections.
Note! Cock A must be closed (as in
Figure 21) whenever the quick
couplings C and D in Figure 20 are
not in use!
-{}-
Figure 20.
Figure 21.
C
D
A
B
A

19
Hakki Pilke 38 Easy Original Version 6
4.4.Splitting logs
The splitting beam of the machine performs the splitting motion automatically every time the cutting flange
is lowered fully into the low position with control lever F and the control lever F is used in the raised
position. In other words, the splitting motion starts when the log is dropped into splitting groove after
cutting and the cutting flange is lifted up.
Splitting can also be activated by the push button B of control lever F (see Figure 11). This function is useful,
for example, when the last log to be split has been driven into the splitting groove: this way, the operator
does not have to unnecessarily move the cutting flange into the low position, but the splitting function can
be activated with this button much quicker.
In order to prevent unnecessary splitting motions, press button B in Figure 10 once, which prevents the
splitting function of the machine from being used. Please note that you can also use this button to stop
splitting even in the midst of the splitting motion. This function can be used, for instance, when the log to be
split is small (less than 5 cm in diameter) and several logs are to be split with the same splitting motion. The
splitting motion can be re-activated by pressing the button B again.
4.4.1. Wood jamming on the splitting blade
If a piece of wood gets jammed on the splitting blade in a situation where the splitting force is insufficient to
push the piece past the blade despite several attempts to do so, do the following:
1. Restore the splitting beam into its initial position with the reverse switch B (please see Figure 10).
2. Lift the splitting blade to the highest possible position with lever E (in Figure 10) and activate the
splitting.
3. If necessary, cut a sufficiently thick piece of wood (approx. 20–25 cm) into the splitting groove, and
activate the splitting process. The new piece will then push the jammed piece past the blade.
4. Lower the blade some 10 cm lower and repeat step 3. Repeat step 4 until the jammed piece of
wood has passed the blade piece by piece.
4.4.2. Re-splitting or splitting without cutting
1. Raise the guard of the cutting and splitting section.
2. Place the log you want to split in the splitting groove.
3. Close the guard of the cutting and splitting section.
4. Activate the splitting process with push button B (Figure 11).
As necessary, the above procedure can be used to split wood without cutting it.

20
Hakki Pilke 38 Easy Original Version 6
4.4.1. Replacing the splitting blade
Exercise extreme caution when handling the blade, and wear protective gloves.
1. Lower the splitting blade into
its low position, which
releases shaft A from the
blade slot B.
2. Shut down the splitter and
disconnect it from its power
source.
3. Open the guard and lift the
splitting blade out of its slot.
4. Install a new splitting blade by
reversing the above steps.
Figure 22. Replacing the splitting blade
4.4.2. Adjusting the length of the splitting motion
In the Hakki Pilke 38 Easy log splitter, the
splitting cylinder controlled electrically
with sensor A and C in Figures 24 and 25.
Stroke length of the splitting cylinder
can be adjusted as follows:
1. Shut down the splitter and
disconnect it from its power
sources.
2. Remove the cover plate shown in
Figure 23. Note! The fastening
bolts (5 pcs) do not have to be
removed completely. Simply
loosen the bolts and slide the
cover plate so that the bolt heads
fit through the hole.
Figure 23.
