Mac Afric ZD10 Series User manual

VACUUM CLEANER
USER MANUAL
ZD10 Series Wet&Dry Dual-Use Vacuum Cleaner

1
Content:
Circuit diagram, Technical Parameter...........................................................1
Names of parts........................................................... ..................................2
Important safety precautions......................................................................3-4
Connecting the parts.....................................................................................5
How to use....................................................................................................6
Other Safety Precautions..............................................................................7
Correct Disposal of the machine...................................................................8
Warranty information.....................................................................................8
Special Notice for Buoy and Maintenance................................................ ...9
Circuit diagram:
Technical Parameter:
Specification model: ZD10 Series
Voltage Rating: 220-240V
Rated Frequency: 50Hz
Rated Input Power: 1200W
Maximum Suction: 18kpa
AC 220-240V
50Hz
KND2-12/2
12(10)A 250V-T85/55
220-240V~50Hz
1200W
L
S
C
N
PLUG
M
0.22μF

2

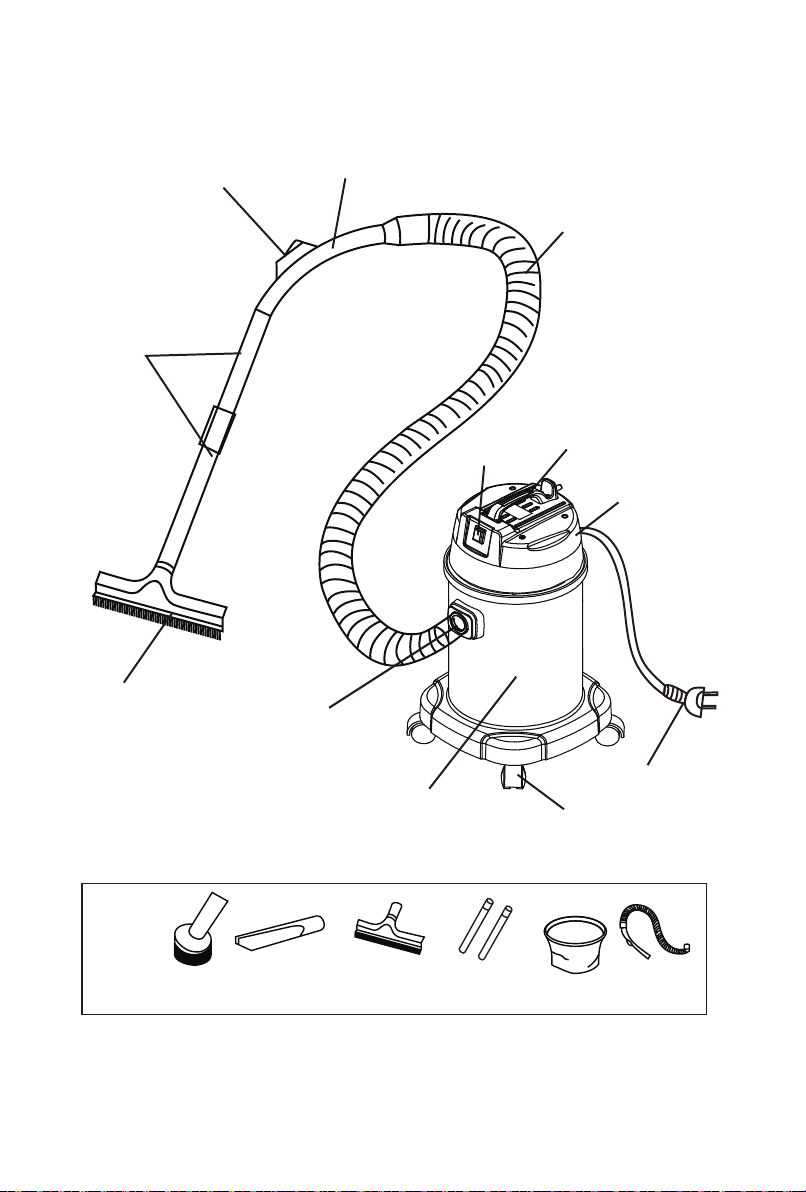

Names of parts
Airregister block
Double link pipe
Switch
Scrubbing floor bruch
The main suction pipe
Container
Universal wheel
Power cord
Handle
Top covev
Hand lever
Tube
Flat suction nozzle Long link pipe
ASSY accessory
Filter bagBrush Eibulous floor brush Tube

3

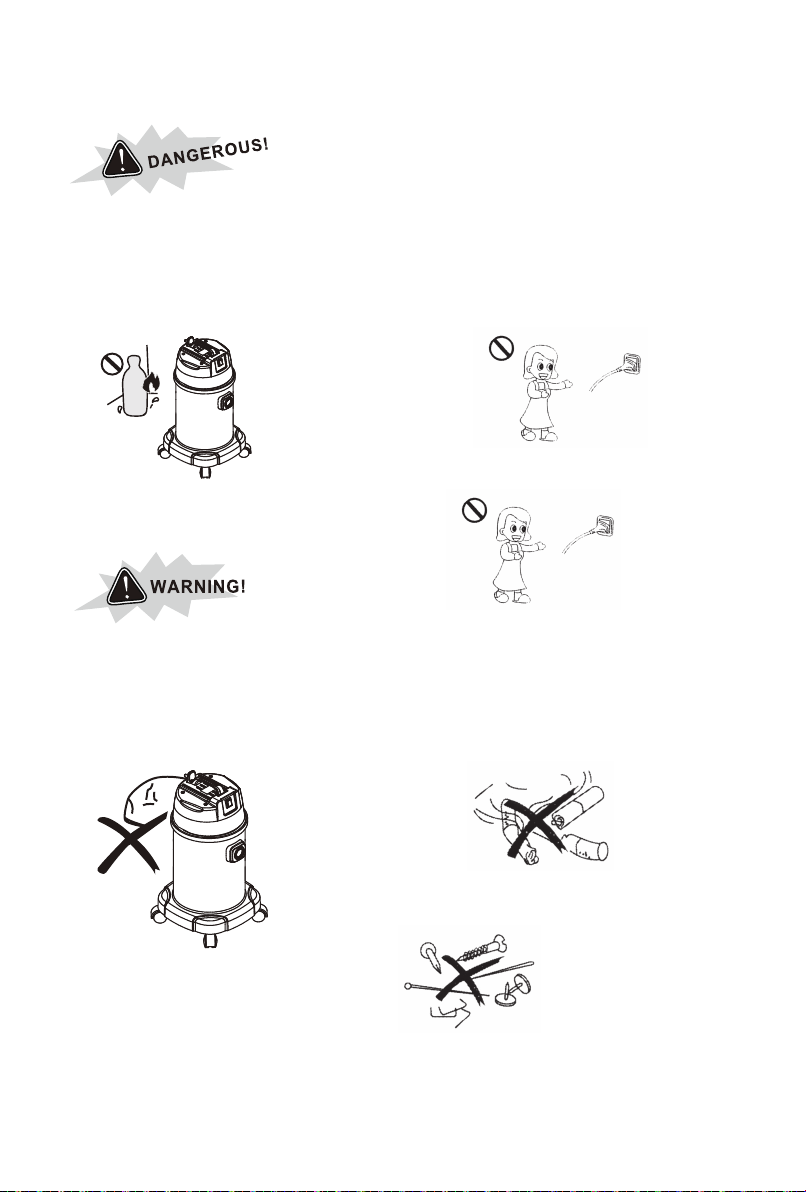

Important safety precautions
1.) To avoid fire accident, please
do not use the appliance near
inflammable and explosive liquids
and gases.
1.) Do not block the vent or
otherwise temperature of the
appliance will be too high and
cause damage.
2.) To avoid danger of electric shock,
turn off the power before inserting
the mains plug into/removing the
mains plug from the wall socket.
3.) Do not touch the plug with wet hands.
2.) Do not vacuum the following
substances: burning cigarettes,
coal oil, kerosene and other
inflammable, explosive and
volatile materials.
3.) Do not vacuum sharp objects.

4
Important safety precautions
Do not use the appliance to vacuum ashes,
fine sand, lime, cement dust and similar
substances, the pores of the paper dust
bag will become clogged and cause
damage to machine.
Do not overturn the appliance or otherwise water.
Will leak into the machine and cause damage.
Turn off the power and unplug the machine when you have finished using,
Inspection or maintenance.
To avoid deformation of the plastic parts, please do not put cleaner under sun
Or in high-temperature places.
Do not bend or stretch tube by force or otherwise will cause damage or
deformation.
Do not clean the container by immersing into water or rinsing because water
will flow in and cause damage to electrical components and also electric
shock. You should only use soft damp cloth to wipe the surface lightly.
Please pay attention that
static electricity may
appear in the tube and
machine body during
operation.

5
Connecting the parts
A.) Connecting the tube with the machine
1.) Connecting: Insert the tube into the opening.
Turn the tube clockwise until it’s locked
2.) Disconnecting: Hold the tube, turn it anticlockwise
to unlock and then pull it out
B.) Connecting hand lever with the long link pipe
1.) Connecting: insert the one end of the hand
Lever into the long link pipe; turn it clockwise until
It’s fitted tightly
2.) Disconnecting: hold ends of hand lever and long
Link pipe; turn it and anti-clockwise and pull out
C.) Connecting the long link pipe
1.) Connecting: insert the one end of the long link pipe into another’s end;
Turn it clockwise until it’s fitted tightly
2.) Disconnecting: hold ends long link pipe; turn it anti-clockwise and pull out

6
How to use:
1. Power on
1.) Insert the plug into the socket
2.) Turn on the switch.
3. When the switch of vacuum cleaner placed in II, the plug
of external tool insert into the vacuum cleaner's socket,
when the tool starts, the vacuum cleaner extend the time
for 3-5S, and when the tool stop working, the vacuum
cleaner will extend the time for 8-10S before stop working.
Attention: The maximum power for external tools is 2000W.
Assemble different ASSY accessory for different
cleaning purpose
2. Wind flow adjustment
Vacuum strength will decrease
when the air register is open;
it will increase when the
register is closed
Brush for cleaning dust on bookshelf,
Window table, etc.
Bibulous floor brush for
cleaning floor, carpet.. etc.
Flat suction nozzle suitable for
cleaning dust and sopping up
water at corners and gaps.

Other Safety Precautions
1. Please connect to 220-240V~, 50Hz socket only
2. When the power supply cord is damaged, it has to be replaced by the
manufacturer/service agent/qualified person.
3. Keep the machine away from children or persons with physical, sensory
or mental disabilities; or anyone who are not familiar of the usage of this
machine unless proper guidance given.
Correct Disposal of the machine
This product should not be disposed with other household waster
throughout the EU. This is to prevent possible harm to the environment or
human health due to uncontrolled waste disposal and recycle. Please contact
the retailer where you purchase this product or call collection system to take
the machine for environmental safe recycling.
7

Warranty Information
Manufacturer provides warranty in accordance with legislation of the
customer’ own country of residence, with 1 year starting from the date of
purchase.
This warranty only covers defects in material and workmanship, it doesn’t
include the following:
-Normal wearing of the product
-Improper use such as overloading the product/use of non-approved
accessories
-Improper use due to without reading the user manual; e. g. connecting to an
unsuitable mains supply or non-compliance with the installation instructions
-Damage by intention/accident
Repairing under warranty should be conducted by an authorized service
centre.
Original bill of purchase (with purchase date) must be submitted when
making a claim under warranty.
8

9
Special Notice for Buoy (safety valve)
1. The buoy will be activated when the dust container is filled with water.
Vacuum action will stop and you will hear unusual noise due to high-speed
operation of the machine. Please turn off the power immediately, pour out
the water and install the container back to the machine. The vacuum cleaner
will return to normal then.
2. The buoy will be activated when the vacuum cleaner is overset. Please
turn off the power supply, put the machine back to upright position and turn
it on again.
3. Do not use the machine when the buoy is activated or otherwise this will
cause fire. Pour out the water before you use it again.
Maintenance
1. Cleaning dust container:
-After using the vacuum cleaner or if you find the vacuum power is
decreasing (due to overload of dust in the container), please turn off the
power supply and clean the container
a. Unlock and open the lid
b. Take out the filter bag and clear the dust in the container
c. Put the filter bag back to original position and close the lid. (Please
make sure the power switch and the inlet opening are facing the same
direction)

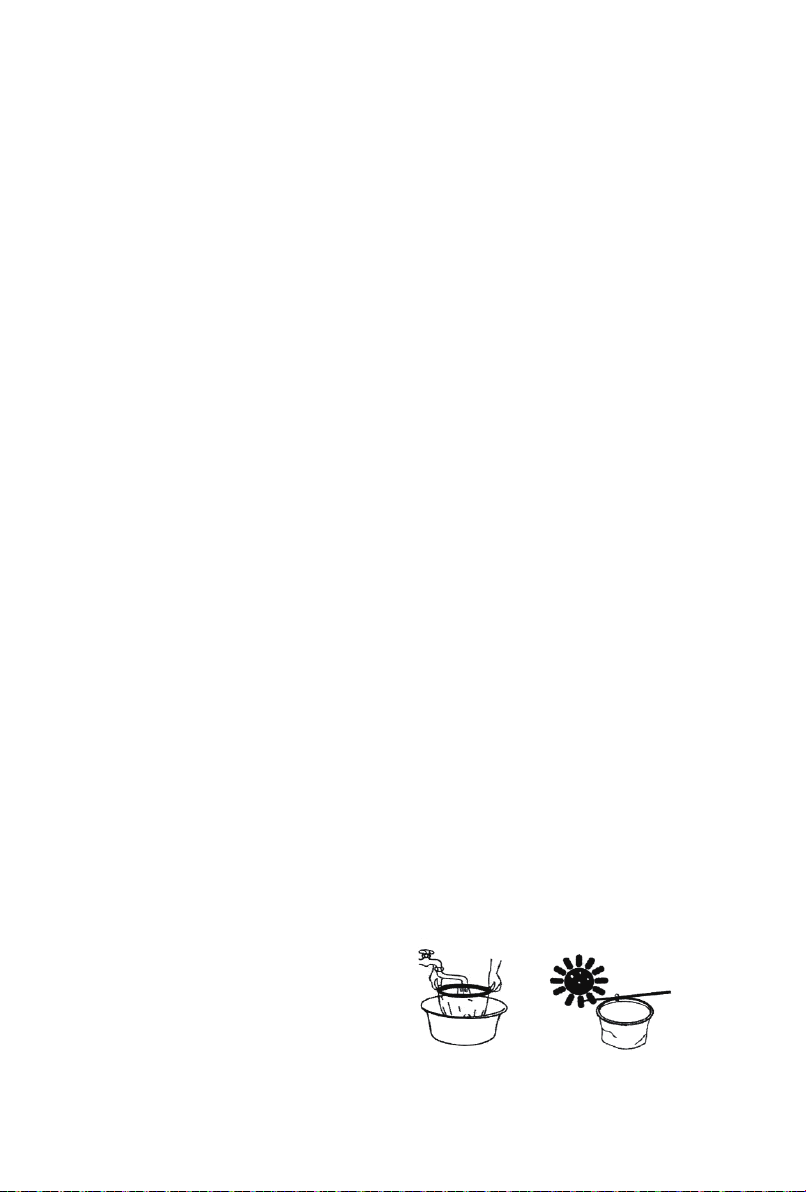

2. Cleaning the filter bag
-Use warm water to clean the seriously clogged bag, you may clean with
neutral cleaning detergents when it’s necessary
a. Take off the filter bag
b. Clean it
c. Dry it before putting back to original position
