Mackie SRM 150 Compact User manual

SRM150 CoMpaCt
aCtive pa SySteM
USeR’S ManUal
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFF LEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOM POWER
MAIN
INSTRUMENT (CH 1)
48V

2
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. This apparatus shall not be exposed to dripping or splashing, and no
object filled with liquids, such as vases, shall be placed on the apparatus.
16. This apparatus has been designed with Class-I construction and must
be connected to a mains socket outlet with a protective earthing con-
nection (the third grounding prong).
17. This apparatus has been equipped with an all-pole, rocker-style AC
mains power switch. This switch is located on the rear panel and
should remain readily accessible to the user.
18. This apparatus does not exceed the Class A/Class B (whichever is
applicable) limits for radio noise emissions from digital apparatus as
set out in the radio interference regulations of the Canadian Department
of Communications.
ATTENTION — Le présent appareil numérique n’émet pas de bruits
radioélectriques dépassant las limites applicables aux appareils numériques de
class A/de class B (selon le cas) prescrites dans le réglement sur le brouillage
radioélectrique édicté par les ministere des communications du Canada.
19. Exposure to extremely high noise levels may cause permanent hearing
loss. Individuals vary considerably in susceptibility to noise-induced
hearing loss, but nearly everyone will lose some hearing if exposed to
sufficiently intense noise for a period of time. The U.S. Government’s
Occupational Safety and Health Administration (OSHA) has specified
the permissible noise level exposures shown in the following chart.
According to OSHA, any exposure in excess of these permissible limits
could result in some hearing loss. To ensure against potentially danger-
ous exposure to high sound pressure levels, it is recommended that all
persons exposed to equipment capable of producing high sound pres-
sure levels use hearing protectors while the equipment is in operation.
Ear plugs or protectors in the ear canals or over the ears must be worn
when operating the equipment in order to prevent permanent hearing
loss if exposure is in excess of the limits set forth here.
IMPORTANT SAFETY INSTRUCTIONS
WARNING — To reduce the risk of fire
or electric shock, do not expose this appara-
tus to rain or moisture.
Duration Per Day Sound Level dBA, Typical
In Hours Slow Response Example
 8 90 Duoinsmallclub
 6 92 
 4 95 SubwayTrain
 3 97
 2 100 Veryloudclassicalmusic
 1.5 102
 1 105 TamiscreamingatAdrianaboutdeadlines
 0.5 110
 0.25orless 115 Loudestpartsatarockconcert
PORTABLE CART WARNING
Carts and stands - The
Component should be used
only with a cart or stand
that is recommended by
the manufacturer.
A Component and cart
combination should be
moved with care. Quick
stops, excessive force, and
uneven surfaces may cause
the Component and cart
combination to overturn.
CAUTION AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
ATTENTION: POUR EVITER LES RISQUES DE CHOC
ELECTRIQUE, NE PAS ENLEVER LE COUVERCLE. AUCUN
ENTRETIEN DE PIECES INTERIEURES PAR L'USAGER. CONFIER
L'ENTRETIEN AU PERSONNEL QUALIFIE.
AVIS: POUR EVITER LES RISQUES D'INCENDIE OU
D'ELECTROCUTION, N'EXPOSEZ PAS CET ARTICLE
A LA PLUIE OU A L'HUMIDITE
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be
of sufficient magnitude to constitute a risk of electric shock to persons.
Le symbole éclair avec point de flèche à l'intérieur d'un triangle
équilatéral est utilisé pour alerter l'utilisateur de la présence à
l'intérieur du coffret de "voltage dangereux" non isolé d'ampleur
suffisante pour constituer un risque d'éléctrocution.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Le point d'exclamation à l'intérieur d'un triangle équilatéral est
employé pour alerter les utilisateurs de la présence d'instructions
importantes pour le fonctionnement et l'entretien (service) dans le
livret d'instruction accompagnant l'appareil.

Part No. 0019782 Rev. A 12/06
©2006 LOUD Technologies Inc. All Rights Reserved. Printed in China.
3
Don’t forget to visit our website at www.mackie.com
for more information about this and other Mackie products.
Contents
IMPORTANT SAFETY INSTRUCTIONS ..................................................................................................2
INTRODUCTION ........................................................................................................................................ 4
QUICK START ...............................................................................................................................................5
HOOKUP DIAGRAMS ............................................................................................................................... 6
FRONT PANEL DESCRIPTION .................................................................................................................8
1. MIC/LINE Inputs .............................................................................................................................................................8
2. Stereo Input .....................................................................................................................................................................8
3. Channel Gain Controls ..................................................................................................................................................8
4. INSTRUMENT Switch (CH 1) ........................................................................................................................................8
5. 48V PHANTOM POWER Switch and Indicator .......................................................................................................8
6. MAIN LEVEL .....................................................................................................................................................................9
7. HIGH, MID, and LOW EQ ...............................................................................................................................................9
REAR PANEL DESCRIPTION....................................................................................................................10
8. POWER Switch ...............................................................................................................................................................10
9. FUSE ...................................................................................................................................................................................10
10. AC Power Receptacle .................................................................................................................................................10
11. THRU Connector ...........................................................................................................................................................10
12. MIC/LINE Switch .........................................................................................................................................................10
13. MAIN IN ..........................................................................................................................................................................10
PLACEMENT ................................................................................................................................................11
THERMAL CONSIDERATIONS ................................................................................................................11
AC POWER CONSIDERATIONS .............................................................................................................12
CARE AND MAINTENANCE ....................................................................................................................12
CONNECTIONS .........................................................................................................................................13
SERVICE INFORMATION .........................................................................................................................14
Warranty Service ...............................................................................................................................................................14
Troubleshooting.................................................................................................................................................................14
Repair ....................................................................................................................................................................................15
SRM150 SPECIFICATIONS .......................................................................................................................16

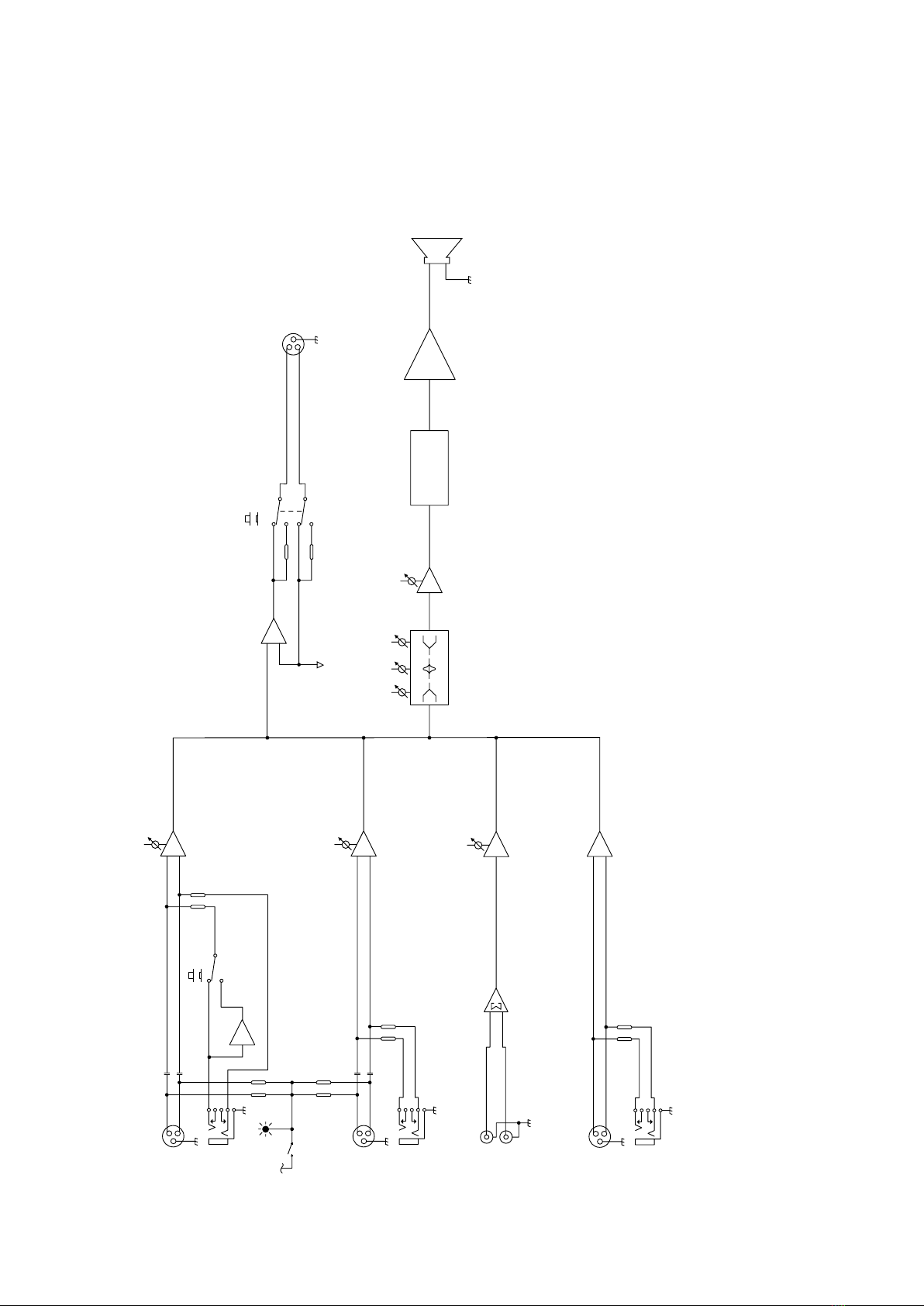

SRM150 BLOCK DIAGRAM .....................................................................................................................18
SRM150 LIMITED WARRANTY ..............................................................................................................19

4
INTRODUCTION
Thank you for choosing a Mackie compact active PA
system for your sound reinforcement applications.
The SRM150 is an active PA system that provides a
built-in mixer, high sound pressure levels, and is de-
signed to give you the best performance of any compact
PA system in its class and price range.
Our design goal was to build a compact PA system with:
1. High precision, high output, and accurate playback.
2. Controlled, smooth dispersion of mid and high
frequencies.
3. Ultra-clean, high-headroom mic preamps.
4. High-output Class-D amplification.
5. Onboard Mackie mixer with 3-band EQ.
Through the combined resources of our top-notch me-
chanical and analog engineers, we were able to achieve
our design goals in every aspect. The result is a sound re-
inforcement PA system equally at home in a concert setting,
in the studio, or impromptu concerts on the studio roof.
The Transducer
The SRM150 active loudspeaker features a full-range
5.25-inch neodymium driver.
Power Amplier
Each SRM150 includes a Class-D power amplifier
capable of producing 150 watts peak before clipping.
The amplifier includes the following features:
• The amplifier produces up to 100 watts rms continuous
before clipping (150 watts peak).
• A built-in limiter acts when the input signal is large
enough to cause clipping, distortion, and excessive
voice coil heat. The limiter will automatically decrease
the signal going to the amplifier to a safe level.
Warning: Although the amplifier has
a limiter protection circuit, you must
still make sure you don’t overdrive
the amplifier. If you hear any distor-
tion, turn down the input (MIC/LINE)
gain control, or turn down the MAIN
LEVEL control.
The Cabinet
The SRM150 cabinet was designed with the same
material as our SRM350 and SRM450 loudspeakers, the
strongest molded composite cabinet on the planet. It
has an insert in the bottom for mic stand mounting (us-
ing the mic stand adapter included with your SRM150),
and a threaded insert in the top for mounting a micro-
phone boom (using the included boom extender).
Its light weight and durable finish make it ideal for
portable sound system use. In addition, the unique de-
sign of the cabinet makes it easy to use as a floor wedge
for stage monitor applications.
The Active Advantage
There are a number of advantages to using an active
speaker system over a passive loudspeaker:
• The amplifiers are designed specifically for the speaker
load impedance. There is no guesswork as to what load
the amplifier has to drive, so it can provide maximum
acoustic output from the speaker, yet minimize the
danger of speaker damage due to overdriving a lesser
amplifier.
• The connecting wires between the amplifier output and
the driver is kept to a minimum, so the damping factor
of the amplifier isn’t compromised by the resistance of
long speaker cables. In addition, all the power from the
amplifier is transferred directly to the driver with no
speaker cable losses.
• The presence of active circuits within the speaker
cabinet allow the designer to add on extra details, such
as a high quality mic/line input section.
In short, all the complex interconnected components
in the system are designed to work in harmony with
each other to produce the best possible sound.

5
QUICK START
1. Start with the following settings on the front of the
SRM150:
• MAIN LEVEL [6] control down.
• PHANTOM POWER [5] switch out (unless you are
using condenser microphones).
• INSTRUMENT [4] switch out (unless you have an
electric guitar connected to channel 1).
• Channels 1-3 gain [3] controls down.
• EQ [7] controls centered.
And on the rear panel:
• Turn the POWER [8] switch off (down).
• MIC/LINE [12] switch out.
WARNING: Turn the MAIN LEVEL
[6]control down (counterclockwise)
before every use. If not, you could be
in for a startling surprise, especially
if the last time you used it was with
a microphone and now you want to
connect a line-level source.
2. Connect the output from your signal source (mixing
console, microphone, preamp, or other mic- or line-
level source) directly to the MIC/LINE [1] combo
connector on the front of the SRM150. It accepts
balanced line-level signals from mixers, preamplifi-
ers, CD players, tape decks, etc., and accepts direct
connections from microphones. Channel 3 has ste-
reo RCA jacks [2] specifically for a stereo line-level
input from a tape deck or CD player.
3. Connect the supplied AC power cord to the AC
power receptacle [10] on the back of the SRM150.
Plug the other end into an AC outlet properly con-
figured with the correct voltage for your particular
model. (The SRM150 has a universal power supply
that accepts an AC mains voltage ranging from 100V
to 240 V.)
4. Turn on your signal source. Make sure its Master
Volume control (if it has one) is turned all the way
down.
5. Turn on the SRM150 POWER [8] switch.
6. Start the signal source, whether it be speaking into
a microphone, playing a guitar, or starting a CD
player. Adjust any volume controls on the signal
source for normal operation.
7. Turn up the MAIN LEVEL [6] control about halfway
(12 o’clock).
8. Slowly turn up the gain [3] controls for the input
channels until the desired volume is reached.
9. If it gets really loud, really fast, try turning down
the MAIN LEVEL control (or the input source
volume control, if it has one).
If it doesn’t get very loud, even with the input chan-
nel gain control all the way up, try turning up the
MAIN LEVEL control (or the input source volume
control, if it has one).
10. If there is no sound, always turn down the SRM150
MAIN LEVEL control before investigating. There
may be a mixer or preamplifier mute or tape switch
engaged, or a mic switch off.
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFF LEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOM POWER
MAIN
INSTRUMENT (CH 1)
48V
SRM150
THRU
POWER
FUSE
100V - 240V ~ 50/60Hz 45VA MAIN IN
USC
LINE
MIC
3
A
M
P

6
SRM150: SMALL CLUB SETUP WITH SRM450
HOOKUP DIAGRAMS
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFFLEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOMPOWER
MAIN
INSTRUMENT (CH1)
48V
Boom Extender
(Included)
Mic Stand
Adapter
(Included)
Electric Guitar
Vocal Mic
SRM450
Power
Cord
THRU Out
To Input
Powe
r
Cord
Here the SRM150 is used
as a personal monitor and
the SRM450 is the main PA
speaker.
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFFLEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOM POWER
MAIN
INSTRUMENT(CH 1)
48V
Power
Cord
Boom Extender
(Included)
Mic Stand
Adapter
(Included)
Electric Guitar
Vocal Mic
MP3 Player
This illustrates how to use the SRM150 as a per-
sonal monitor. Mount the SRM150 on a microphone
stand using the Mic Stand Mounting Bracket in-
cluded with the SRM150. Attach the Boom Extender
(also included) to the top of the SRM150 and use a
microphone boom to hold your microphone.
Connect the microphone and an instrument to the
SRM150 (Channels 1 and 2), and a playback device
like an MP3 player to Channel 3.
SRM150: PRACTICE SETUP USING MIC STAND AND BOOM

7
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFFLEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOMPOWER
MAIN
INSTRUMENT(CH 1)
48V
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFFLEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOMPOWER
MAIN
INSTRUMENT(CH 1)
48V
ALT3/4 ALT3/4 ALT3/4 ALT 3/4 ALT3/4 ALT3/4 ALT3/4 ALT 3/4
1
O
N
Y
X
M
I
C
P
R
E
GAIN
+40dB
U
-20dB
U
20
30
40
60
GAIN
+40dB
U
-20dB
U
20
30
40
60
GAIN
+40dB
U
-20dB
U
20
30
40
60
GAIN
+40dB
U
-20dB
U
20
30
40
60
HIGH
12kHz
MID MID MID MID
U
+15
-
15
U
+15
-
15
U
+15
-
15
LOW
80Hz
FREQ
EQ
8k100
1k
FREQ
8k100
1k
FREQ
8k100
1k
FREQ
8k100
1k
AUX
2
1
OO
MAX
OO
MAX
OUT
IN
2
O
N
Y
X
M
I
C
P
R
E
HIGH
12kHz
U
+15
-
15
U
+15
-
15
U
+15
-
15
LOW
80Hz
EQ
AUX
2
1
OO
MAX
OO
MAX
OUT
IN
3
O
N
Y
X
M
I
C
P
R
E
HIGH
12kHz
U
+15
-
15
U
+15
-
15
U
+15
-
15
LOW
80Hz
EQ
AUX
2
1
OO
MAX
OO
MAX
LINE
3
OUT
IN
4
O
N
Y
X
M
I
C
P
R
E
HIGH
12kHz
U
+15
-
15
U
+15
-
15
U
+15
-
15
LOW
80Hz
EQ
AUX AUX AUX AUX AUX
2
1
OO
MAX
OO
MAX
2
1
OO
MAX
OO
MAX
2
1
OO
MAX
OO
MAX
2
1
OO
MAX
OO
MAX
2
1
OO
MAX
OO
MAX
AUXMASTER
2
1
OO
+15
OO
+15
AUXRETURN
2
1
OO
+10
OO
+10
LINE
4
OUT
IN EQ
OUT
IN EQ
OUT
IN EQ
OUT
IN EQ
OUT
IN
LR
PAN
LR
PAN
LR
PAN
LR
PAN
LR
PAN
LR
PAN
LR
PAN
LR
PAN
MAIN
MIX
TALKBACK
L
(MONO)
R
BAL/
UNBAL
BAL/
UNBAL
BAL/
UNBAL
L
(MONO)
R
BAL/
UNBAL
L
(MONO)
R
BAL/
UNBAL
L
(MONO)
R
BAL/
UNBAL
LINEIN 5-6 LINE IN 7-8 LINEIN 9-10 LINEIN11-12
TAPE
IN OUT
LL
RR
GAIN
+20dB-20dB
GAIN
+20dB-20dB
GAIN
+20dB-20dB
GAIN
+20dB-20dB
PHONES
RIGHT
LEFT
(MONO)
BAL/UNBAL BAL/UNBAL BAL/UNBAL
AUXRETURN
2 1 RIGHT
LEFT
(MONO) 21
BAL/UNBAL
AUXSEND
RIGHT
LEFT
MAINOUT
ALT3-4
TAPE
CONTROL
ROOM/
PHONES
SOURCE
FIREWIRE
(OPTION)
ASSIGNTO
MAINMIX
PHONES
CONTROL
ROOM
OO
MAX
OO
MAX
MAINMIX
MID
2.5kHz
U
+15-15
U
+15-15
LOW
80Hz
U
+15-15
HIGH
12kHz
MID
2.5kHz
U
+15-15
U
+15-15
LOW
80Hz
U
+15-15
HIGH
12kHz
MID
2.5kHz
U
+15-15
U
+15-15
LOW
80Hz
U
+15-15
HIGH
12kHz
MID
2.5kHz
U
+15-15
U
+15-15
LOW
80Hz
U
+15-15
HIGH
12kHz
RUDE
SOLO
20
10
7
4
2
0
2
4
7
10
20
30
LEFT RIGHT
0dB=0dBu
LEVEL
SET
CLIP
TALK
BACK MIC POWER
PRE
POST
PRE
POST
FXTO
MON
PREMIUM ANALOGMIXER
w/PERKINS EQ & FIREWIREOPTION
HI-Z
1
HI-Z
2
HI-Z
MIC
75Hz
18dB/OCT
75Hz
18dB/OCT
HI-Z
MIC
UUUU
dB
30
20
10
40
50
5
5
U
60
10
OL
+10
0
-20
OL
+10
0
-20
OL
+10
0
-20
OL
+10
0
-20
OL
+10
0
-20
OL
+10
0
-20
OL
+10
0
-20
OL
+10
0
-20
OO
dB
30
20
10
40
50
5
5
U
60
10
OO
dB
30
20
10
40
50
5
5
U
60
10
OO
dB
30
20
10
40
50
5
5
U
60
10
OO
1234dB
30
20
10
40
50
5
5
U
60
10
OO
5
6dB
30
20
10
40
50
5
5
U
60
10
OO
7
8dB
30
20
10
40
50
5
5
U
60
10
OO
9
10 dB
30
20
10
40
50
5
5
U
60
10
OO
11
12 dB
30
20
10
40
50
5
5
U
60
10
OO
AUX
1-2
PHONES
DESTINATION
EXTERNAL
MIC
TALKBACK
LEVEL
OO
MAX
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE MUTE MUTE MUTE MUTE
SOLO
48V 48V 48V 48V
SOLO SOLO SOLO SOLO
MAIN IN
Keyboard or other line-level instrument
Stereo
Monitor
Out Power
Cord
Power
Cord
MAIN IN
Stereo line-level output
Electric Guitar
Vocal Mics
Two SRM150s are used as floor
monitors to provide a stereo
monitor mix for the keyboard
player.
TWO SRM150s: STEREO MONITORING
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFFLEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOM POWER
MAIN
INSTRUMENT(CH 1)
48V
Power
Cord
DVD Player
TV Monitor
Audio
Mic Stand
Adapter
(Included)
SRM150: A/V CART

8
FRONT PANEL DESCRIPTION
Plugging a guitar straight into a
typical line-level input can result in
the loss of gain, especially at high
frequencies, resulting in a dull sound.
Normally, you must use a direct box
between a guitar and a mixer’s or preamplifier’s input,
which serves to convert the impedance of the guitar
from high to low. The Instrument input on channel 1
makes the need for a direct box unnecessary. It’s like it
has its own built-in direct box!
However: The Instrument input is unbalanced, so if you
are running a long cord between the instrument and the
SRM150 (say over 20 feet), it is best to use a direct box
with a balanced output to avoid picking up noise over
the length of the cord.
5. 48V PHANTOM POWER Switch and
Indicator
Most professional condenser microphones require phan-
tom power, which is a low-current DC voltage delivered
to the microphone on pins 2 and 3 of the XLR micro-
phone connector. Push in the 48V button if your micro-
phone requires phantom power. An LED lights next to
the button to indicate that phantom power is active.
Most of the connections and controls on the SRM150
are located on the front panel for easy access.
1. MIC/LINE Inputs
Channels 1 and 2 have Neutrik® combo connectors,
which accept balanced microphone inputs from an XLR
connector, or balanced and unbalanced line-level inputs
from a 1/4" TRS or TS connector.
The XLR inputs are wired as follows:
Pin 1 = Shield or ground
Pin 2 = Positive (+ or hot)
Pin 3 = Negative (– or cold)
The 1/4" inputs are wired as follows and will accept
both balanced and unbalanced inputs:
Sleeve = Shield or ground
Tip = Positive (+ or hot)
Ring = Negative (– or cold)
2. Stereo Input
Channel 3 has a pair of RCA connectors, which accept
a stereo line-level input from a CD player or MP3 player
(or any other line-level device).
3. Channel Gain Controls
These are used to adjust the signal level for each
individual channel. Since the SRM150 incorporates
Mackie’s world-class low-noise mic preamp technology,
you can connect either a line-level or a microphone-level
signal to the input, and use this control to adjust the
level correctly.
Follow the Quick Start guide on page 4 for setting
the gain controls. For most applications, it will be in
the 12 o’clock position. If you have a particularly high
line- level signal connected to the SRM150, you may
need to turn the control down to the 9 o’clock position.
If you have a low line-level or mic-level signal con-
nected, you may need to turn the gain control up to the
3 o’clock position.
4. INSTRUMENT Switch (CH 1)
Push in this button to change the 1/4" line input
on channel 1 to an instrument input. When the but-
ton is out, the 1/4" input accepts normal line-level
signals from low-impedance sources. When the button
is pushed in, the 1/4" input accepts high-impedance
signals from instruments with electric pickups, which
you would normally run through a DI box.
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFF LEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOM POWER
MAIN
INSTRUMENT (CH 1)
48V

9
This is a global phantom power switch and applies 48V
to the XLR input connectors on channels 1 and 2.
Dynamic microphones, like Shure’s SM57 and SM58, do
not require phantom power. However, phantom power
will not harm most dynamic microphones should you
accidentally plug one in while the phantom power is
turned on. Be careful with older ribbon microphones.
Check the manual for your microphone to find out for
sure whether or not phantom power can damage it.
6. MAIN LEVEL
This is used to adjust the signal level from the
SRM150 mixer, going into the built-in power amplifier.
Follow the Quick Start guide on page 4 for setting the
MAIN LEVEL control.
7. HIGH, MID, and LOW EQ
Use the EQ controls to make overall adjustments to
the sound of the SRM150.
The HIGH EQ provides a boost or cut of up to 15
dB for the very high frequencies, above 12 kHz. These
frequencies include the sizzle of cymbals, the edge of
a guitar, or the upper harmonics of vocals. In general,
boosting the HIGH EQ will brighten the sound of the
loudspeaker.
The MID EQ provides a boost or cut of up to 15 dB for
the mid-range frequencies around 2.5 kHz. Most vocals
are located in the mid-range frequencies, so this can be
used to bring the vocals up or down in the mix.
The LOW EQ provides a boost or cut of up 15 dB for
the very lowest frequencies, below 100 Hz. These fre-
quencies are represented by the punch in bass drums,
bass guitar, and some really serious male singers.
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFF LEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOM POWER
MAIN
INSTRUMENT (CH 1)
48V

10
REAR PANEL DESCRIPTION
SRM150
THRU
POWER
FUSE
100V - 240V ~ 50/60Hz 45VA MAIN IN
USC
LINE
MIC
3
A
M
P
8. POWER Switch
Switch up to turn the SRM150 on, and switch down
to turn it off. Make sure the MAIN LEVEL [6] control is
down before you turn it on.
When the POWER switch is turned on, and the line-
cord is connected to an active AC Mains supply, the cool
blue LED on the front of the speaker glows to let you
know that you’re ready to rock and roll.
9. FUSE
This is a resettable circuit breaker that monitors the
amount of current being drawn by the SRM150. Under
normal operating conditions, this should never pop. An
unusual condition may cause the breaker to pop, such
as a mains voltage surge occurring at the same time as a
peak amplifier output.
To reset the breaker:
• Turn the POWER [8] switch off and push the FUSE
switch to its UP position.
• Turn the POWER switch back on and the SRM150
should resume normal operation. If the circuit
breaker pops again, there may be something wrong
inside the SRM150. Refer to “Repair” on page 15.
10. AC Power Receptacle
This is a standard 3-prong IEC connector. Connect
the detachable linecord (included with your SRM150)
to the power receptacle, and plug the other end of the
linecord into an AC outlet. The SRM150 has a universal
power supply that can accept any AC voltage ranging
from 100VAC to 240 VAC. No need for voltage select
switches. It will work virtually anywhere in the world.
Note: If you happen to lose the AC linecord, replace-
ments are readily available at any office or computer
supply store. Always use a three-pin plug with a ground
pin.
11. THRU Connector
This is a male XLR connector that produces the main
signal just prior to the EQ [7] controls and the MAIN
LEVEL [6] control. The signal at the THRU connector
includes the input signals connected to channels 1-3
[1/2] and the MAIN IN [13] signal.
Use this connector to patch the signal from the
SRM150 to another SRM150 or other active loudspeaker
(like an SRM350 or SRM450), or to a mixer.
12. MIC/LINE Switch
The MIC/LINE switch affects the output level of the
THRU connector. Leave the switch out (LINE) when
connecting the THRU connector to another SRM150
or to a line-level input on a mixer. Push the switch in
(MIC) when connecting the THRU connector to a mi-
crophone input on a mixer or a stage snake.
13. MAIN IN
This is a Neutrik combo connector that accepts a
balanced line-level signal from an XLR connector or a
1/4" TRS connector. The signal is mixed with the signals
from channels 1-3 on the main mix bus, just prior to
the THRU [11] output, EQ [7] controls and the MAIN
LEVEL [6] control.

11
PLACEMENT
The SRM150 compact active PA systems are designed
to sit on the floor, a tabletop, or to fit on a standard
microphone stand.
You can place the SRM150 on the floor and angle
it back to use it as a floor monitor. The unique shape
of the cabinet provides a perfect angle for aiming up
toward performers from the front of the stage.
You can also use the Mic Stand Adapter (included),
which allows you to mount the SRM150 onto a standard
microphone stand.
Insert into the bottom
of the SRM150
5/8” adapter threads onto mic stand
MIC STAND ADAPTER
In addition, there is a threaded insert on top of the
cabinet for mounting the boom extender (included).
This allows you to attach a microphone boom on top of
the SRM150 for your microphone.
Thread into the top
of the SRM150
Mount Mic Boom on this end
5/8” threaded boom extension
BOOM EXTENDER
As with any powered components, protect them from
moisture. If you are setting them up outdoors, make
sure they are under cover if you expect rain.
THERMAL CONSIDERATIONS
The amplifier inside the SRM150
is convection cooled by a large
heatsink. For efficient cooling, it is
important to allow at least six inches
of free space behind the SRM150.
If the ambient temperature in the room is high, it
could cause the amplifier to overheat. In this case, you
should try aiming a fan at the heatsink to increase the
air flow through the fins.
In the unlikely event that the amplifier does over-
heat, a built-in thermal switch will activate, placing
the SRM150 amplifier into standby. When the amplifier
has cooled down to a safe operating temperature, the
thermal switch will reset and the SRM150 will resume
normal operation.
Here are some other placement tips:
• Avoid placing loudspeakers in the corners of a room.
This increases the low-frequency output and can cause
the sound to be muddy and indistinct.
• Avoid placing loudspeakers against a wall. This, too,
increases the low frequency output, though not as
much as corner placement. However, if you do need to
reinforce the low frequencies, this is a good way to do it.
• Avoid placing the active loudspeaker directly on a hol-
low stage floor. A hollow stage can resonate at certain
frequencies, causing peaks and dips in the frequency
response of the room. It’s better to place the active
loudspeaker on a sturdy table or microphone stand.

12
AC POWER CONSIDERATIONS
Be sure the SRM150 is plugged into an outlet that is
able to supply enough current for the amplifier.
Under maximum SPL conditions, where musical peaks
are just hitting the limiter, the SRM150 model draws 2
amps on average. Under normal conditions, the current
draw is below 1 amp.
We recommend that a stiff (robust) supply of AC
power be used because the amplifier places high cur-
rent demands on the AC line. The more power that is
available on the line, the louder the speaker will play
and the more peak output power will be available for
cleaner, punchier bass. A suspected problem of “poor
bass performance” is often caused by a weak AC supply
to the amplifier.
If lighting is used in a show, it is preferable to power
the lights from a separate AC circuit than the one
powering the audio equipment. This will help minimize
noise from the lights coupling into the audio (particu-
larly if SCRs, or light-dimmer switches, are used).
Wherever possible, connect all of your audio equip-
ment to the same electrical circuit. This will help
reduce the possibility of a ground loop problem causing
an annoying hum in your speakers.
A maximum of five SRM150s can be connected per
15A service (120 VAC). This allows each SRM150 to be
safely operated at its maximum level.
When turning your system on, turn on the SRM150s
last. This will stop any turn-on thumps and bangs from
your source equipment being amplified.
When turning off your system, turn off the SRM150s
first. This will prevent any turn-off thumps and bangs
from your source equipment being amplified.
When setting up for a show, often
you are plugging into an AC power
distribution system you know nothing
about. You may even be faced with 2-
wire outlets that are missing the third
safety ground pin. It’s a good idea to have a three-wire AC
outlet tester in your toolbox so you can check the outlets
yourself to make sure they are wired correctly. These
testers will tell you if the polarity of the hot and neutral
wires is reversed and if the safety ground is disconnected.
Don’t use an outlet if it is wired im-
properly! This is to protect yourself
as well as your equipment.
Never remove the ground pin on the
power cord of the SRM150 or any other
component. This is very dangerous.
CARE AND MAINTENANCE
Your Mackie active loudspeaker will provide many
years of reliable service if you follow these guidelines:
Avoid exposing the loudspeaker to
moisture. If it is set up outdoors, be
sure it is under cover if you expect rain
or you live in Washington.
• Avoid exposure to extreme cold (below freezing
temperatures). If you must operate the loudspeaker
in a cold environment, warm up the voice coil slowly
by sending a low-level signal through it for about 15
minutes prior to high-power operation.
• Use a slighty damp cloth with a mild soap solution
to clean the cabinet. Only do this when the power
is turned off. Avoid getting moisture into any of the
openings of the cabinet, particularly where the driver is
located.

13
CONNECTIONS
1/4 " TS Phone Plugs and Jacks
“TS” stands for Tip-Sleeve, the two connection points
available on a mono 1/4" phone jack or plug. They are
used for unbalanced line-level signals and the high-
impedance instrument input on Channel 1.
SLEEVE
TIP
TIPSLEEVE
TIP
SLEEVE
1/4" TS Unbalanced Wiring:
Sleeve = Shield
Tip = Hot (+)
RCA Plugs and Jacks
RCA-type plugs (also known as phono plugs) and jacks
are often used in home stereo and video equipment, and
to make S/PDIF connections on consumer digital audio
devices. They are unbalanced and electrically equiva-
lent to a 1/4" TS phone plug.
TI
P
SLEEVE
TIPSLEEVE
RCA Unbalanced Wiring:
Sleeve = Shield
Tip = Hot (+)
XLR Connectors
Inputs 1-2 accept 3-pin male XLR connectors on the
Neutrik combo inputs. They are wired as follows,
according to standards specified by the AES (Audio
Engineering Society).
2
2
31
1
SHIELD
COLD
HOT
SHIELD
COLD
HOT
3
SHIELD
COLD
HOT
3
2
1
XLR Balanced Wiring:
Pin 1 = Shield
Pin 2 = Hot (+)
Pin 3 = Cold (–)
1/4" TRS Phone Plugs and Jacks
The Neutrik combo inputs also accept 1/4" TRS connec-
tors. “TRS” stands for Tip-Ring-Sleeve, the three connec-
tion points available on a stereo 1/4" or balanced phone
jack or plug. TRS jacks and plugs are used for balanced
signals and stereo headphones.
Balanced Mono
SLEEVE
TIPSLEEVE
TIP
RING
RING
TIP
SLEEVERING
1/4" TRS Balanced Mono Wiring:
Sleeve = Shield
Tip = Hot (+)
Ring = Cold (–)
Stereo Headphones
SLEEVE
TIPSLEEVE
TIP
RING
RING
TIP
SLEEVERING
1/4" TRS Stereo Unbalanced Wiring:
Sleeve = Shield
Tip = Left
Ring = Right

14
SERVICE INFORMATION
Bad sound!
• Is it loud and distorted? Follow the procedures de-
scribed in the “Quick Start” section to verify that the
levels are set properly.
• Is the input connector plugged completely into the
jack? Be sure all connections are secure. It’s a good
idea to periodically clean all electrical connections with
a non-lubricating electrical contact cleaner.
Noise
• Make sure all connections to the active speakers are
good.
• Make sure none of the signal cables are routed near
AC cables, power transformers, or other EMI-inducing
devices.
• Is there a light dimmer or other SCR-based device on
the same AC circuit as the SRM150? Use an AC line
filter or plug the SRM150 into a different AC circuit.
Hum
• Turn the MAIN LEVEL control all the way down. If the
noise disappears, it’s coming from the signal source. If
not, try disconnecting the cables connected to the input
jacks one at a time. If the noise disappears, it could be a
“ground loop,” rather than a problem with the SRM150.
Try some of the following troubleshooting ideas:
• Use balanced connections throughout your system for
the best noise rejection.
• Whenever possible, plug all the audio equipment’s line-
cords into outlets which share a common ground. The
distance between the outlets and the common ground
should be as short as possible.
Never remove the ground pin on the
power cord of the SRM150 or any other
component. This is very dangerous.
Warranty Service
Details concerning Warranty Service are spelled out
on page 19 of this manual.
If you think your loudspeaker has a problem, please
check out the following troubleshooting tips and do your
best to confirm the problem. Visit the Support section of
our website (www.mackie.com/support) where you will
find lots of useful information such as FAQs, documenta-
tion, and user forums. You may find the answer to the
problem without having to send your loudspeaker away.
Troubleshooting
No power!
• Our favorite question: Is it plugged in? Make sure the
AC outlet is live (check with a tester or lamp).
• Our next favorite question: Is the POWER switch on? If
not, try turning it on.
• Is the blue light on the front panel illuminated? If not,
make sure the AC outlet is live. If so, refer to “No sound”
below.
• The resettable circuit breaker has popped. Refer to
“FUSE” [9] on page 10 for information on the circuit
breaker.
No sound!
• Is the input gain control [3] or the MAIN LEVEL [6]
control turned all the way down? Follow the procedures
in the “Quick Start” section on page 4 to verify that all
the volume controls in the system are properly adjusted.
• Is the signal source working (and making union scale)?
Make sure the connecting cables are in good repair and
securely connected at both ends. Make sure the output
volume (gain) control on whatever is connected to the
SRM150 is turned up sufficiently to drive the inputs of
the speaker.

15
8. You will need to contact the authorized service
center for their latest turn-around times when you
call for your Service Request N umber. The SRM150
must be packaged in its original packing box, and
must have the Service Request Number on the box.
Once it’s repaired, the authorized service center will
ship it back prepaid (if it was a warranty repair).
Note: Under the terms of the warranty, you must
ship or drop-off the unit to an authorized service
center. The return ground shipment is covered for
those units deemed by us to be under warranty.
Note: You must have a sales receipt from an Autho-
rized Mackie Dealer to qualify for a warranty repair.
Repair
Service for Mackie products is available at a factory-
authorized service center. Service for Mackie products
living outside the United States can be obtained through
local dealers or distributors.
If your SRM150 needs service, follow these instructions:
1. Review the preceding troubleshooting suggestions.
Please.
2. Call Tech Support at 1-800-898-3211, 7 am to 5 pm
PST, to explain the problem and obtain a Service
Request Number. Have your SRM150’s serial num-
ber ready.
You must have a Service Request Number before
you can obtain factory-authorized service.
3.
Keep this owner’s manual and the detachable line-
cord. We don’t need them to repair the SRM150.
4. Pack the SRM150 in its original package, including
endcaps and box. This is VERY IMPORTANT. When
you call for the Service Request Number, please
let Tech Support know if you need new packaging.
Mackie is not responsible for any damage that oc-
curs due to non-factory packaging.
5. Include a legible note stating your name, shipping
address (no P.O. boxes), daytime phone number,
Service Request Number, and a detailed description
of the problem, including how we can duplicate it.
6. Write the Service Request Number in BIG PRINT
on top of the box. Units sent without the Service
Request Number will be refused.
7. Tech Support will tell you where to ship the
SRM150 for repair. We suggest insurance for all
forms of cartage.
Need Help?
• Visit www.mackie.com and click Support to nd:
FAQs (Frequently Asked Questions), manuals, addendums, and
user forums.
• Email us at: [email protected]om.
• Telephone [phone] to speak with one of our splendid
technical support representatives (Monday through Friday,
from 7 AM to 5 PM PST).
R

16

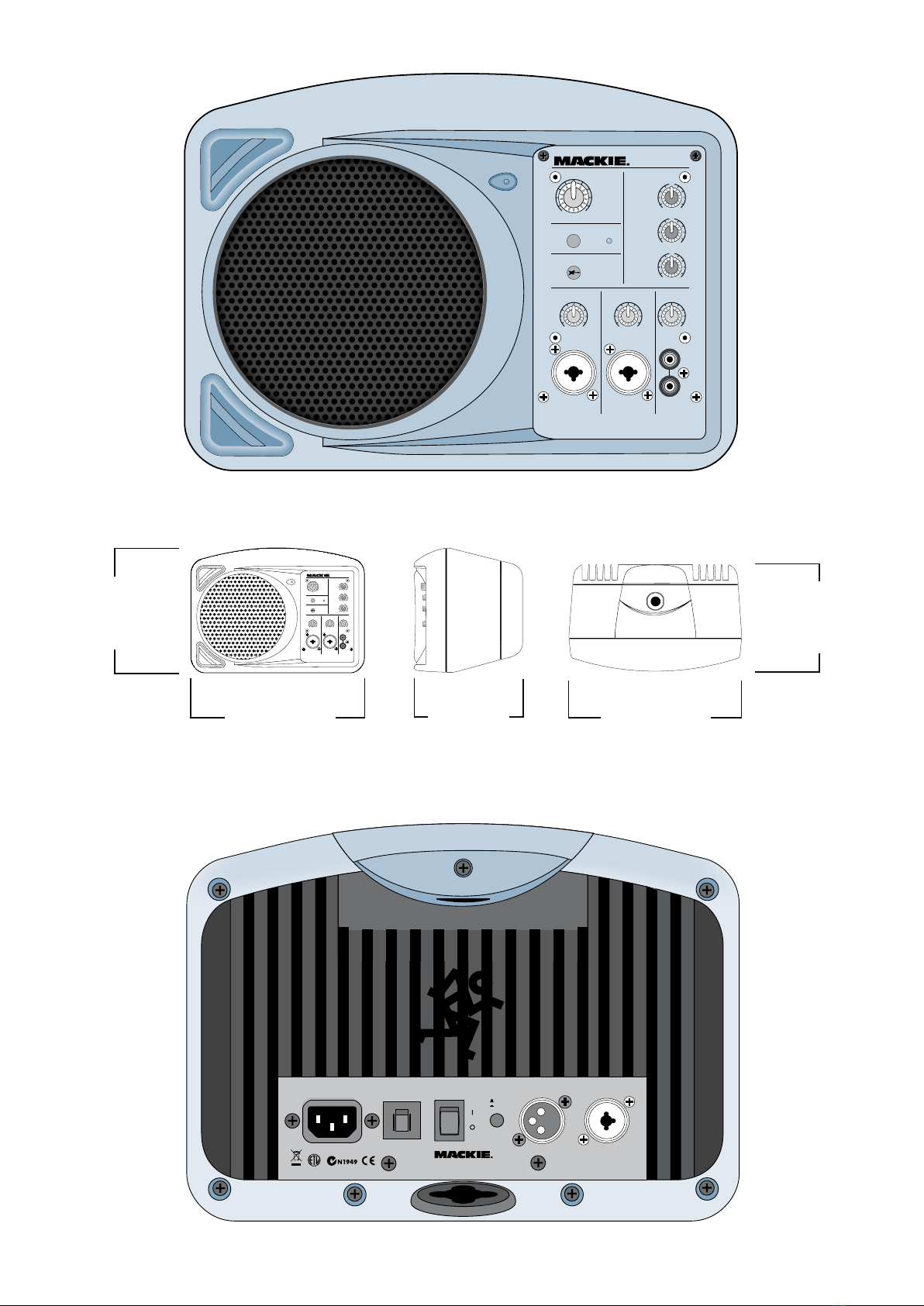

SRM150 SPECIFICATIONS
Transducer
Diameter 5.25 in/134 mm
Voice Coil Diameter 1.0 in/25.4 mm
Sensitivity (1W@1m) 90 dB
Nominal Impedance 8 ohms
Power Handling 150 watts
Frequency Range 90 Hz – 20 kHz
Magnet Type Neodymium
Safety Features
Overload Protection Limiter
Thermal Protection Amplifier shutdown, auto-reset
Construction Features
Material Polypropylene
Finish Grey textured finish
Handle Top mounted
Grille Perforated metal with weather-
resistant coating
Physical Properties
Height 8.0 in/20.3 cm
Width 11.2 in/28.4 cm
Depth 6.8 in/17.3 cm
Weight 7.6 lb/3.4 kg
Mounting Methods Mic stand mountable via the built-in
socket on the bottom of the cabinet
with the supplied adapter.
AC Power Requirements
100 VAC – 240 VAC, 50/60 Hz, 35 VA
AC Connector 3-pin IEC 250 VAC
Disclaimer
Since we are always striving to make our products better by
incorporating new and improved materials, components, and manu-
facturing methods, we reserve the right to change these specifica-
tions at any time without notice.
“Mackie.” and the “Running Man” figure are registered trade-
marks of LOUD Technologies Inc.
All other brand names mentioned are trademarks or registered
trademarks of their respective holders, and are hereby acknowl-
edged.
©2006 LOUD Technologies Inc.
All Rights Reserved.
System Specifications
Frequency Response (–3 dB) 100 Hz – 17.5 kHz
Frequency Range (–10 dB) 60 Hz – 22 kHz
Max SPL Long-term @ 1m 110 dB
Max SPL Peak @ 1m 120 dB
Mixer Section
Frequency Response (–3 dB)
Mic Input to Line Out (Gain at 0 dB)
5 Hz – 40 kHz (+0, –1 dB)
Input Impedance
Mic 3 kohm balanced
Hi-Z 20 kohm balanced
Instrument 1 Mohm
Line 10 kohm balanced
Stereo 10 kohm balanced
Maximum Voltage Gain
Mic Input 1 51 dB
Mic Input 2 51 dB
Stereo Input 9 dB
Maximum Input Level
Mic –28 dBu, gain at +50 dB
+15 dBu, gain at +6 dB
Line –8 dBu, gain at +30 dB
+35 dBu, gain at –15 dB
Stereo +20 dBu, gain at 0 dB
3-Band Equalization
High ±15 dB @ 12 kHz
Mid ±15 dB @ 2.5 kHz
Low ±15 dB @ 100 Hz
Line Out Pad –30 dB
Common Mode Rejection Ratio (CMRR)
55 dB @ 1 kHz, gain at unity
Noise (20 Hz to 20 kHz BW, 150 ohm source impedance)
Equivalent Input Noise (EIN)
–129 dBu
Residual Output Noise
(Line out, channel and master levels off)
–85 dBu
Power Amplifier
Rated Power 100 watts rms continuous,
20 Hz to 20 kHz
Maximum Power 150 watts peak
Rated THD 0.05%
Cooling Convection Extrusion
Design Class D
R

17
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFFLEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOM POWER
MAIN
INSTRUMENT(CH 1)
48V
8.0 in/
20.3 cm
6.8 in/
17.3 cm
6.8 in/
17.3 cm
11.2 in/
28.4 cm
11.2 in/
28.4 cm
HIGH
12kHz
MID
2.5kHz
LOW
100Hz
MAXMIN
U
+15-15
U
+15-15
U
+15-15
MAXMINMAXMIN
SRM150
MAXOFF LEVEL
EQ
MIC/LINE MIC/LINE
12 3
L
R
PHANTOM POWER
MAIN
INSTRUMENT (CH 1)
48V
SRM150
THRU
POWER
FUSE
100V - 240V ~ 50/60Hz 45VA MAIN IN
USC
LINE
MIC
7
A
M
P

18
SRM150 BLOCK DIAGRAM
Channel 2 Channel 3
Channel 1
Mic
Line
Gain
2 3
1+
-
+
-
Phantom
48V
Main Level Power Amplifier
Mic
Line
Gain
2 3
1+
-
Gain
Instrument
Line
Hi-Z
Main In
2 3
1+
-
Mic (–30 dB)
Line
3-Band EQ
LO
100 2.5K 12K
HIMID
2 3
1THRU
Limiter Loudspeake
r

19
A. LOUD Technologies Inc. warrants all materials,
workmanship and proper operation of this product for a period
of five years from the original date of purchase, with the
following exception: warranty on all loudspeaker components
including woofers and compression drivers are only warranted
for two years. If any defects are found in the materials or
workmanship or if the product fails to function properly
during the applicable warranty period, LOUD Technologies, at
its option, will repair or replace the product. This warranty
applies only to equipment sold and delivered within the
U.S. by LOUD Technologies Inc. or its authorized dealers.
B. Failure to register online or return the product registration
card will not void the one-year warranty.
C. Service and repairs of Mackie products are to be
performed only at a factory-authorized facility (see D below).
Unauthorized service, repairs, or modification will void this
warranty. To obtain repairs under warranty, you must have a
copy of your sales receipt from the authorized Mackie dealer
where you purchased the product. It is necessary to establish
purchase date and determine whether your Mackie product is
within the warranty period.
D. To obtain factory-authorized service:
1. Call Mackie Technical Support at 800/898-3211, 7 AM
to 5 PM Monday through Friday (Pacific Time) to get a
Service Request Number. Products returned without a
Service Request Number will be refused.
2. Pack the product in its original shipping carton. Also
include a note explaining exactly how to duplicate the
problem, a copy of the sales receipt with price and date
showing, and your return street address (no P.O. boxes or
route numbers, please!). If we cannot duplicate the problem
or establish the starting date of your Limited Warranty, we
may, at our option, charge for service time.
3. Ship the product in its original shipping carton, freight
prepaid to the authorized service center. The address of
your closest authorized service center will be given to you
by Technical Support.
IMPORTANT: Make sure that the Service Request
Number is plainly written on the shipping carton.
E. LOUD Technologies reserves the right to inspect any
products that may be the subject of any warranty claims before
repair or replacement is carried out. LOUD Technologies may,
at our option, require proof of the original date of purchase in
the form of a dated copy of the original dealer’s invoice or sales
receipt. Final determination of warranty coverage lies solely
with LOUD Technologies.
F. Any products returned to one of the LOUD Technologies
factory-authorized service centers and deemed eligible for
repair or replacement under the terms of this warranty will
be repaired or replaced within thirty days of receipt. LOUD
Technologies and its authorized service centers may use
refurbished parts for repair or replacement of any product.
Products returned to LOUD Technologies that do not meet the
terms of this Warranty will be not be repaired unless payment
is received for labor, materials, return freight, and insurance.
Products repaired under warranty will be returned freight
prepaid by LOUD Technologies to any location within the
boundaries of the USA.
G. LOUD Technologies warrants all repairs performed
for 90 days or for the remainder of the warranty period.
This warranty does not extend to damage resulting from
improper installation, misuse, neglect or abuse, or to exterior
appearance. This warranty is recognized only if the inspection
seals and serial number on the unit have not been defaced or
removed.
H. LOUD Technologies assumes no responsibility for the
quality or timeliness of repairs performed by an authorized
service center.
I. This warranty is extended to the original purchaser and to
anyone who may subsequently purchase this product within
the applicable warranty period. A copy of the original sales
receipt is required to obtain warranty repairs.
J. This is your sole warranty. LOUD Technologies does not
authorize any third party, including any dealer or sales
representative, to assume any liability on behalf of LOUD
Technologies or to make any warranty for LOUD Technologies
Inc.
K. THE WARRANTY GIVEN ON THIS PAGE IS THE SOLE
WARRANTY GIVEN BY LOUD TECHNOLOGIES INC.
AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
AND IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE WARRANTY GIVEN ON THIS PAGE
SHALL BE STRICTLY LIMITED IN DURATION TO FIVE
YEARS FROM THE DATE OF ORIGINAL PURCHASE
FROM AN AUTHORIZED MACKIE DEALER. UPON
EXPIRATION OF THE APPLICABLE WARRANTY PERIOD,
LOUD TECHNOLOGIES INC. SHALL HAVE NO FURTHER
WARRANTY OBLIGATION OF ANY KIND. LOUD
TECHNOLOGIES INC. SHALL NOT BE LIABLE FOR ANY
INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES
THAT MAY RESULT FROM ANY DEFECT IN THE MACKIE
PRODUCT OR ANY WARRANTY CLAIM. Some states do
not allow exclusion or limitation of incidental, special, or
consequential damages or a limitation on how long warranties
last, so some of the above limitations and exclusions may not
apply to you. This warranty provides specific legal rights and
you may have other rights which vary from state to state.
Please keep your sales receipt in a safe place.
SRM150 LIMITED WARRANTY

16220 Wood-Red Road NE • Woodinville, WA 98072 • USA
United States and Canada: 800.898.3211
Europe, Asia, Central and South America: 425.487.4333
Middle East and Africa: 31.20.654.4000
Fax: [phone] • www.mackie.com
E-mail: [email protected]
