Magic Chef MCD775RW User manual

OWNER’S MANUAL
0.7 cu. ft. Microwave Oven
MCD775RW
1.READ these instructions carefully before installing and operating the
oven. Keep them for future reference.
2.Record in the space below the SERIAL NO. found on the nameplate on
your oven and retain this information for future reference.
SERIAL NO.:


CONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY………………….…………………………………………….…2
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY
INTERFERENCE STATEMENT ………………………………………………………...2
IMPORTANT SAFETY INSTRUCTIONS……………….…………………….………3-4
GROUNDING INSTRUCTIONS.…………………………….……………………..…4-5
UTENSILS GUIDE……………………………………………………………….......…5-6
COOKING TECHNIQUES………………………………………………………..….. ....7
BEFORE YOU CALL FOR SERVICE……………………….…………………..………8
SPECIFICATIONS…………………………………………….……………………...…...8
PART NAMES… .……………………………………………………………...…..….…..8
CONTROL PANEL……………………………………………………………….…... ….9
OPERATION INSTRUCTIONS…………………………………………………..…..9-10
CLEANING AND CARE…………………………………………………………..…10-11

2
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door
operation can result in harmful exposure to microwave energy. It is
important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or
allow food particle or cleaner residue to accumulate on sealed surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door close properly and that there is no damage to the
Door (bent),
Hinges and latches (broken or loosened),
Door seals and sealed surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE
STATEMENT
WARNING :
This equipment generates and uses ISM frequency energy and if not
installed and used properly, that is in strict accordance with the
manufacturer’s instructions, may cause interference to radio and television
reception. It has been type-tested and found to comply with limits for an ISM
Equipment pursuant to part 18 of FCC Rules, which are designed to provide
reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
followings.
•Reorient the receiving antenna of radio or television.
•Relocate the Microwave oven with respect to the receiver.
•Move the microwave oven away from the receiver.
•Plug the microwave oven into a different outlet so that microwave
oven and receiver are on different branch circuits.
THE MANUFACTURER is not responsible for any radio or TV interference
caused by UNAUTHORIZED MODIFICATION to this microwave oven. It is
the responsibility of the user to correct such interference.

3
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic
safety precautions should be followed,
including the following:
WARNING - To reduce the risk of burns,
electric shock, fire, injury to persons or
exposure to excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Read and follow the specific
“
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY” on page 2.
3. Select a level surface that provides
enough open space for the intake
and/or outlet vents. A minimum
clearance of 3 inches is required
between the oven and any adjacent
wall. One side must be open. Leave a
minimum clearance of 3 inches above
the oven. Do not cover or block any
openings on the appliance. Do not
remove feet from the bottom of the
oven. This
appliance must be
grounded and connected only to
properly grounded outlet. See
“GROUNDING INSTRUCTIONS” on
page 4.
4. Some products such as whole eggs
and sealed containers, for example,
closed glass jars may explode and
should not be heated in this oven.
5. Use this appliance only for its intended
use as described in this manual. Do not
use corrosive chemicals or vapors in
this appliance. This type of oven is
specifically designed to heat, cook or
dry food. It is not designed for industrial
or laboratory use.
6. As with any appliance, close
supervision is necessary when used by
children.
7. To reduce the risk of fire in the oven
cavity:
a. Do not overcook food. Carefully
attend appliance if paper, plastic or
other combustible materials are
placed inside the oven to facilitate
cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing them in
the oven.
c. If materials inside the oven should
ignite, keep oven door closed, turn
oven off, and disconnect the
power cord or shut off power at
the fuse or circuit breaker panel.
d. Do not use the cavity for storage
purposes. Do not leave paper
products, cooking utensils or food in
the cavity when not in use.
SAVE THESE INSTRUCTIONS

4
8. Microwave heating of beverage can
result in delayed eruptive boiling,
therefore care has to be taken when
handling the container.
9. Do not deep fry food in the microwave.
It is difficult to control the fat which
could cause a fire hazard.
10. Pierce foods with heavy skins such as
potatoes, whole squash, apples and
chestnuts before cooking.
11. The contents of feeding bottles and
baby jars should be stirred or shaken
and the temperature should be
checked
before serving in order to avoid burns.
12. Cooking utensils may become hot
because of heat transferred from the
heated food. Potholders may be
needed to handle the utensil.
13. Do not cover or block any openings on
the appliance.
14. Do not store or use this appliance
outdoors. Do not use this product near
water, for example, near a kitchen sink,
in a wet basement, or near a swimming
pool, etc.
15. Do not operate this appliance if it has a
damaged cord or a plug, if it is not
working properly or if it has been
damaged or dropped.
16. Do not immerse cord or plug in water.
Keep cord away from heated surface.
Do not let cord hang over edge of table
or counter.
17. Use only thermometers which are
specifically designed for use in
microwave ovens.
18. Do not operate any heating or cooking
appliance beneath this appliance.
19. Be certain the glass tray and roller ring
are in place when you operate the
oven.
20. When cleaning surfaces of door and
oven that comes together on closing
the door, use only mild, nonabrasive
soaps, or detergents applied with a
sponge or soft cloth.
21. WARNING: It is hazardous for anyone
other than a trained person to carry out
any service or repair operation which
involves the removal of any cover which
gives protection against exposure to
microwave energy. If there is any
damage, do not operate the oven and
contact MC Appliance Corp. for service.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces risk of electric shock by providing an escape wire for the electric current.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.

5
SAVE THESE INSTRUCTIONS
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. It is recommended that
a separate circuit serving only the oven be provided. The oven is equipped with a 3-prong
grounding plug. It must be plugged into a wall receptacle that is properly installed and
grounded.
Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3
blade grounding plug and a 3-slot receptacle that will accept the plug on the microwave
oven. The marked rating of the extension cord shall be equal to or greater than the
electrical rating of the appliance.
Notes: 1. If you have any questions about the grounding or electrical instructions, consult
a qualified electrician or a service person.
2. Neither MC Appliance Corp nor the dealer can accept any liability for damage to
the oven or personal injury resulting from failure to observe the electrical
connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check
that the microwave oven is on a different circuit, relocated the radio or TV as far away from
the oven as feasible or check position and signal of receiving antenna.
UTENSILS GUIDE
This section lists which utensils can be used in the microwave, which ones have limited
use for short periods, and which ones should not be used in the microwave.
Recommended
·Microwave browning dish — Use to brown the exterior of small items such as steaks,
chops, or pancakes. Follow the directions provided with your browning dish.
·
Microwaveable plastic wrap — Use to retain steam. Leave a small opening for some
steam to escape and avoid placing it directly on the food.
·Paper towels and napkins —Use for a short-term heating and covering; these absorb
excess moisture and prevent spattering. Do not use recycled paper towels, which may
contain metal and could ignite.
SAVE THESE INSTRUCTIONS

6
·Glass and glass-ceramic bowls and dishes — Use for heating or cooking.
·Paper plates and cups — Use for short-term heating at low temperatures. Do not use
recycled paper, which may contain metal and could ignite.
·Wax paper — Use as a cover to prevent spattering.
·Thermometers — Use only those labeled “Microwave Safe” and follow all directions.
Check the food in several places. Conventional thermometers may be used on
microwave food once the food has been removed from the oven.
Limited Use
·
Aluminum foil — Use narrow strips of foil to prevent overcooking of exposed areas.
Using too much foil can damage your oven, so be careful. You should keep distance of 1
inch (2.54cm) between aluminum foil and cavity.
·Ceramic, porcelain, and stoneware — Use these if they are labeled “Microwave Safe”.
If they are not labeled, test them to make sure they can be used safely.
·Plastic — Use only if labeled “Microwave Safe”. Other plastics can melt.
·Straw, wicker, and wood — Use only for short-term heating, such as warming dinner
rolls for a few seconds; baskets and bowls may be flammable.
Not Recommended
·Glass jars and bottles — Regular glass is too thin to be used in a microwave. It can
shatter and cause damage and injury.
·Paper bags — These are a fire hazard, except for popcorn bags that are designed for
microwave use.
·Styrofoam plates and cups — These can melt and leave an unhealthy residue on food.
·Plastic storage and food containers — Containers such as margarine tubs can melt in
the microwave.
·Metal utensils — These can damage your oven. Remove all metal before cooking.
Note: Should you wish to check if a dish is safe for microwaving, place the empty dish in
the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot
should not be used.
SAVE THESE INSTRUCTIONS

7
COOKING TECHNIQUES
Stirring
Stir foods such as casseroles and
vegetables while cooking to distribute heat
evenly. Food at the outside of the dish
absorbs more energy and heats more
quickly, so stir from the outside to the
center. The oven will turn off when you
open the door to stir your food.
Arrangement
Arrange unevenly shaped foods, such as
chicken pieces or chops, with the thicker,
meatier parts toward the outside of the
turntable where they receive more
microwave energy. To prevent overcooking,
place delicate areas, such as asparagus
tips, toward the center of the turntable.
Shielding
Shield food with narrow strips of aluminum
foil to prevent overcooking. Areas that
need shielding include poultry wing-tips,
the ends of poultry legs, and corners of
square baking dishes. Use only small
amounts of aluminum foil. Larger amounts
can damage your oven.
Turning
Turn foods over midway through cooking
to expose all parts to microwave energy.
This is especially important with large
foods such as roasts.
Standing
Foods cooked in the microwave build up
internal heat and continue to cook for a few
minutes after heating stops. Let foods
stand to complete cooking, especially
foods such as cakes and whole vegetables.
Roasts need this time to complete cooking
in the center without overcooking the outer
areas. All liquids, such as soup or hot
chocolate, should be shaken or stirred
when cooking is complete. Let liquids
stand a moment before serving. When
heating baby food, stir well at removal and
test the temperature before serving.
Adding moisture
Microwave energy is attracted to water
molecules. Food that is uneven in moisture
content should be covered or allowed to
stand so that the heat disperse evenly. Add
a small amount of water to dry food to help
it cook.
SAVE THESE INSTRUCTIONS

8
3
7
6
2
4
5
1
BEFORE YOU CALL FOR SERVICE
If the oven fails to operate:
A) Check to ensure that the oven is
plugged in securely. If it is not, remove the
plug from the outlet, wait 10 seconds and
plug it in again securely.
B) Check for a blown circuit fuse or a
tripped main circuit breaker. If these
seem to be operating properly, test the
outlet with another appliance.
C) Check to ensure that the control panel
is programmed correctly and the timer
is set.
IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT MC APPLIANCE
CORPORATION TO OBTAIN SERVICE.
DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
SPECIFICATIONS
Power Consumption:
Output:
Operation Frequency:
Unit Dimensions(H×W×D):
Oven Capacity:
Net Weight:
120V~60Hz, 1050W
700W
2450MHz
11. 0×17.4×13.0 in.
0.7 cu.ft.
Approx. 26.9 lbs.
PART NAMES
 Door
Safety Lock System
 Oven Window
 OvenAirVent
 Turntableroller
 Glass Tray
 Control Panel
 Door ReleaseButton

9

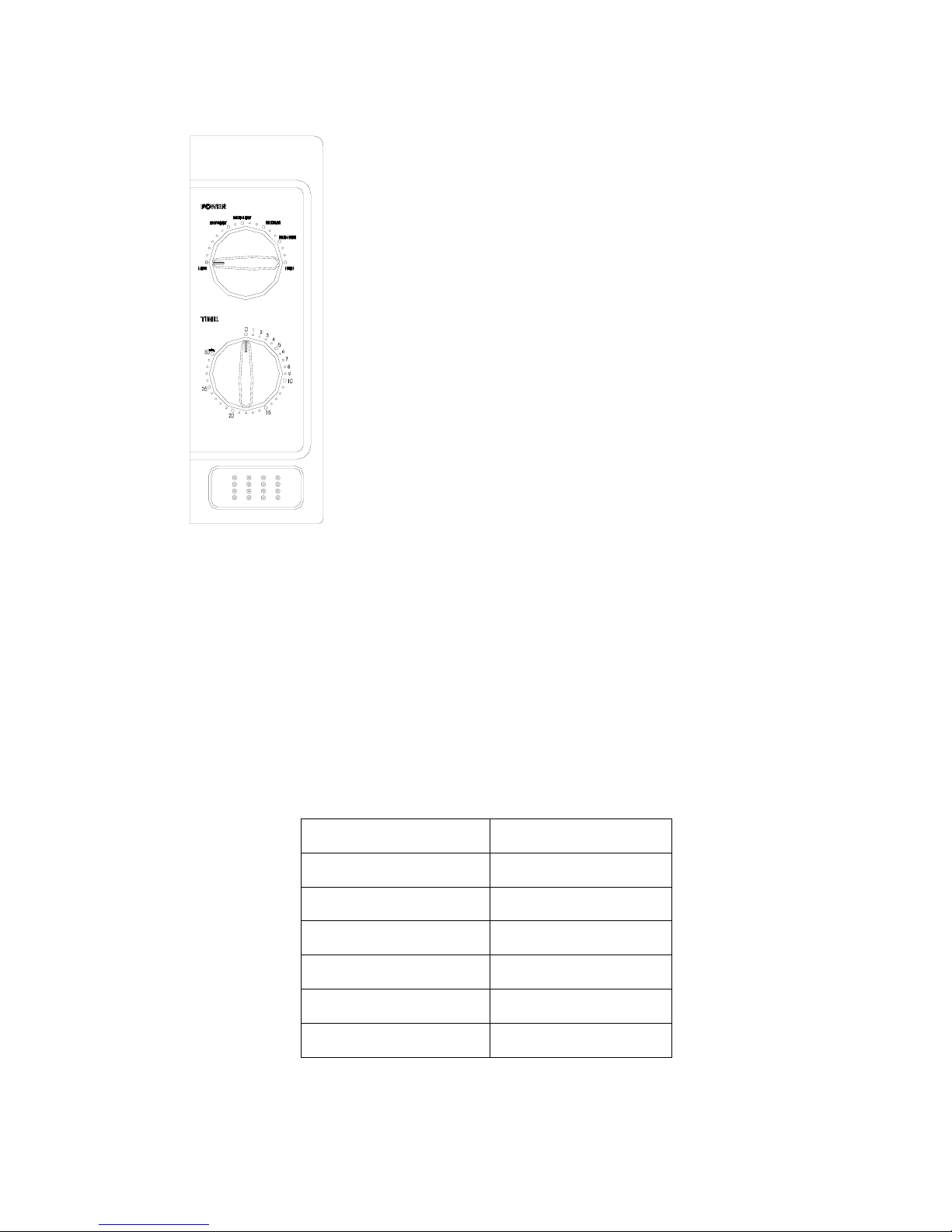

CONTROL PANEL
POWER
Used in select a microwave power level.
TIMER ( 0 ~ 30 minutes )
Used in setting cooking time for all
functions.
OPERATION INSTRUCTIONS
1. Plug Power supply cord into a standard 3-pronged 15 Amp, 120V AC 60Hz power
outlet.
2. After placing the food in a suitable container, open the oven door and put it on the
glass tray. The glass tray and roller must always be in place during cooking
3. Close the door. Make sure that it is firmly closed.
4. Set the variable power control to the desired power level.
POWER LEVEL OUTPUT POWER
LOW 17 %
DEFROST 40 %
MED-LOW 48 %
MEDIUM 66 %
MED-HIGH 85 %
HIGH 100 %

10
5. Set the operating time by turning the timer control to the desired cook time and the
microwave cooking starts.
NOTE : If setting the timer control for less than 2 minutes, turn it past 2 minutes and
then back to the desired time.
6. Microwave energy will be turned off automatically when the timer reaches “0”
position. Then food can be taken out of the oven.
· To prevent the oven from operating with the door open, your microwave oven is
fitted with safety door interlock switches.
· If you wish to inspect the food while it is cooking simply open the door. The oven
will automatically stop cooking, To continue cooking, you simply close the door.
· If you wish to stop cooking, simply turn the timer knob to the “0” position. Cooking
can be reset at any time during the cooking cycle by turning the timer control.
· Do not let the timer continue to operate after removing or when there is no food.
CLEANING AND CARE
1. Turn off the oven and remove the power
plug from the wall socket before
cleaning.
2. Keep the inside of the oven clean.
When food splatters or spilled liquids
adhere to oven walls, wipe with a damp
cloth. Mild detergent may be used if the
oven gets very dirty. Avoid the use of
spray and other harsh cleaners as they
may stain, streak or dull the door
surface.
3. The outside surfaces should be cleaned
with a damp cloth. To prevent damage
to the operating parts inside the oven,
water should not be allowed to seep
into the ventilation openings.
4. Wipe the window on both sides with a
damp cloth to remove any spills or
spatters.
5. Do not allow the control panel to
become wet. Clean with a soft, damp
cloth. When cleaning the control panel,
leave oven door open to prevent oven
from accidentally turning on.
6. If steam accumulates inside or around
the outside of the oven door, wipe with a
soft cloth. This may occur when the
microwave oven is operated under high
humidity conditions, this is normal.
7. It is occasionally necessary to remove

11
the glass tray for cleaning. Wash the tray
in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be
cleaned regularly to avoid excessive
noise. Simply wipe the bottom surface
of the oven with mild detergent. The
roller ring may be washed in mild sudsy
water or dishwasher. When removing
the roller ring from cavity floor for
cleaning, be sure to replace in the
proper position.
9. Remove odors from your oven by
combining a cup of water with the juice
and skin of one lemon in a deep
microwaveable bowl, microwave for 5
minutes. Wipe thoroughly and dry with
a soft cloth.
10. When it becomes necessary to
replace the oven light, please consult a
dealer to have it replaced.
SAVE THESE INSTRUCTIONS

12
Microwave Oven Warranty
MC Appliance Corp. warrants each new Microwave Oven to be free from defects in material and workmanship and
agrees to remedy any such defect or to furnish a new part(s) (at the company’s option) for any part(s) of the unit that
has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year after
the date of purchase. In addition, MC Appliance Corp. warrants the Magnetron (parts only) to be free from defects in
material and workmanship for a period of 8 years. The consumer is responsible for all labor and transportation
expenses related to the diagnosis and replacement of the magnetron after the initial one- year warranty has expired. If
in the event the unit requires replacement or refund under the terms of this warranty the consumer is responsible for
all transportation expenses to return the unit to our factory prior to receiving a replacement unit or refund. A copy of
the dated sales receipt / invoice is required to receive warranty service.
This warranty covers appliances in use within the continental United States, Puerto Rico and Hawaii. The warranty
does not cover the following:
Damages due to shipping damage or improper installation.
Damages due to misuse or abuse.
Content losses due to failure of the unit.
Inside components such as door panels, door shelves, racks, light bulbs etc…
Repairs performed by unauthorized service agents.
Service calls that do not involve defects in material and workmanship such as instruction on proper use of the product, or
improper installation.
Replacement or resetting of house fuses or circuit breakers.
Failure of this product if used for other than its intended purpose.
Disposal costs of failed units not returned to our factory.
Any delivery / installation costs incurred as the result of a unit that fails to perform as specified.
The consumer is responsible for a $35.00 delivery charge for all replacement units provided under warranty.
This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume
for us any other liability in connection with the sale of this product. Under no circumstances is the consumer permitted
to return this unit to the factory without prior written consent from MC Appliance Corp.
Model Parts Labor Magnetron (Part Only) Type of Service
MCD775RW One- Year One- Year Eight Years Carry In
For Service or Assistance please call 888 775-0202 or visit us on the web at www.magicchef-ewave.com
