Ch pter 1: Introduction
1-1 CPU
• Supports Intel FC-PGA 370 Celeron / Pentium III (Coppermine) CPU at
300MHz up to 750MHz or higher.
• Supports VIA Cyrix III (Joshua) CPUs.
• Supports CPU voltage auto-detect circuit.
• Supports 66 / 75* / 83* / 100 / 103* / 112* / 124* / 133* / 140* / 150* MHz
system bus speed.
• Clock multipliers up to 8x or higher.
1-2 CHIPSET
• VIA VT82C693A + VT82C596B chipset with 133MHz FSB.
• PCI Rev 2.1, 5V, 33MHz interface compliant.
• Supports 66 / 100 / 133MHz, 3.3V AGP (Accelerated Graphics Port) slot.
1-3 L2 CACHE
• Pentium II / Pentium !!! supports 512K write back cache with Pipelined
Burst SRAMs.
1-4 MAIN MEMORY
• Memory range from 8MB up to 768MB (SDRAM) with DRAM Table Free
configuration.
• Supports SDRAM with 12 / 10 / 8 / 6 ns speed.
• Supports 3pcs 168pin DIMM sockets. (3.3V Unbuffered and 4 clock type)
• DRAM supports ECC or Parity function.
1-5 BIOS
• Award Plug and Play BIOS.
• Supports ACPI and legacy APM.
• Flash Memory for easy upgrade.
1-6 SUPER I/O FUNCTON
• Integrated USB (Universal Serial Bus) controller with 2 USB ports.
• Supports 2 IDE channels with 4 IDE devices. (including ZIP / LS-120 devices)
• Provides PCI IDE Bus Master function and supports Ultra DMA33 / 66
function.

MAGIC-PRO MP-6VIP-C2
5
• Provides 1 floppy port.
• 2 high speed 16550A FIFO UART ports.
• 1 parallel port with EPP / ECP / SPP capabilities.
• PS/2 mouse connector and PS/2 keyboard connector.
• Built-In RTC, CMOS, keyboard controller on single I/O chip.
• Peripherals boot function. (with AT power)
1-7 OTHER FEATURES
• AT size 17.0cm x 30.5cm.
• 5x PCI Master slots, 1x ISA slot, 3x DIMM sockets, and 1x AGP slot.
• Provides DIP switch setting.
• Supports 66 / 100 / 133MHz Bus Clock.
• Supports WOL (Wake On LAN) function.
• Supports Keyboard Power On function.
• BIOS supports 103 / 112 / 133 / 150MHz Bus Clock.
• Provides Voice Diagnostic function for easy debug. (MP-6VIP-C2X only)

MAGIC-PRO MP-6VIP-C2
6
NOTE: FOR 100 / 133MHz CPU ENVIRONMENT, THE SDRAM MUST COMPLY WITH PC-100 / PC-
133 SPEC.

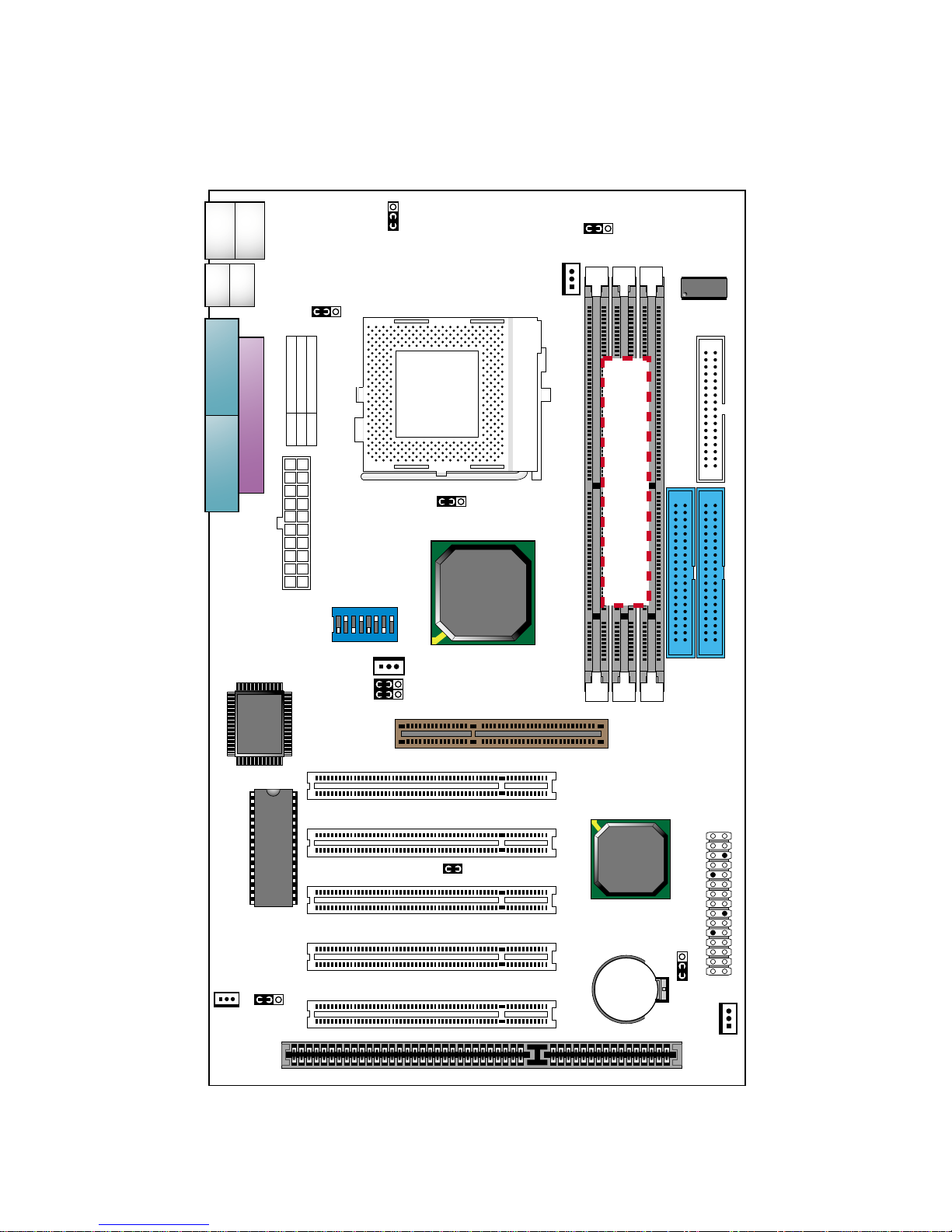

1-8.1 MOTHERBOARD LAYOUT --- MP-6VIP-C2
• DEFAULT SETTING: Celeron 300/66MHz, Pentium II / Pentium !!! 450/
100MHz.
1 3
JP5
1 3
JP4
3

1
JP2
1 3
JP3
1 3
1 3
JVGA1
JP6
JP7
1 3
JP12
1 3
JBAT1
CFAN1
SFAN1
PFAN1
SPK RST PWR/LED SUSLED
HD/LED IR PWR SMI
J1 J2
15 15
JWOL1
AGP
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
FDC
DIMM1 DIMM2 DIMM3
IDE2 IDE1
SOCKET 370
ATX POWER
ISA
FLASH BIOS
Li
Battery
Clock
Gener tor
I/O
Controller
Intel
Cyrix
1-2 SHORT
JP3/JP4/JP5
2-3 SHORT
VIA
693A
VIA
596B
USB0 USB1 PS/2
MOUSE PS/2 K/B
LPT1
COM2 COM1
upper
lower
upper
lower
SW1
ONDIP
8 7 6 5 4 3 2 1
PC100/PC133 SDRAM

MAGIC-PRO MP-6VIP-C2
7
NOTE: FOR 100 / 133MHz CPU ENVIRONMENT, THE SDRAM MUST COMPLY WITH PC-100 / PC-
133 SPEC.
1-8.2 MOTHERBOARD LAYOUT --- MP-6VIP-C2X
• DEFAULT SETTING: Celeron 300/66MHz, Pentium II / Pentium !!! 450/
100MHz.
1 3
JP5
1 3
JP4
3

1
JP2
1 3
JP3
1 3
1 3
JVGA1
JP6
JP7
1 3
1 3
JP9
JP8
1 3
JP12
1 3
JP11
1 3
JBAT1
CFAN1
SFAN1
PFAN1
SPK RST PWR/LED SUSLED
HD/LED IR PWR SMI
J1 J2
15 15
JWOL1
AGP
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
FDC
DIMM1 DIMM2 DIMM3
IDE2 IDE1
SOCKET 370
ATX POWER
ISA
FLASH BIOS
Li
Battery
Clock
Gener tor
I/O
Controller
Intel
Cyrix
1-2 SHORT
JP3/JP4/JP5
2-3 SHORT
VIA
693A
VIA
596B
USB0 USB1 PS/2
MOUSE PS/2 K/B
LPT1
COM2 COM1 upper
lower
upper
lower
SW1
ONDIP
8 7 6 5 4 3 2 1
PC100/PC133 SDRAM

MAGIC-PRO MP-6VIP-C2
8
SOCKET 370
2-1 CPU INSTALLATION
1. Pull the lever sidways away from the socket, and then raise the lever up
to a 90-degree angle.
2. Take note of the red circle as below picture. When insert the CPU into
socket, you can find out there is a definite pin orientation for CPU and
socket.
SOCKET 370
Ch pter 2: H rdw re Setup

MAGIC-PRO MP-6VIP-C2
9
3. Make sure that the CPU positions in the socket tightly, and then put the
lever down to complete the CPU installation.
SOCKET 370

MAGIC-PRO MP-6VIP-C2
10
2-2 CPU TYPE CONFIGURATION
BUS CLOCK SELECT
BUS RATIO SELECT
SW1 DIP1 ~ DIP4 SETTING
3.0x 3.5x
4.0x 4.5x
5.0x 5.5x
6.0x 6.5x
7.0x 7.5x
8.0x
ON
ON ON ON
87654321
OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON ON
87654321
OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON
87654321
OFF OFF OFF
ON
ON ON ON
87654321
OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON
87654321
OFF OFF OFF
ON
ON ON
87654321
OFF OFF
Auto Select 66/100/133 MHz
(def ult)
SW1 DIP5 ~ DIP8 SETTING
66MHz
100MHz
133MHz
ON
ON ON
87654321
OFF OFF
ON
ON
87654321
OFF OFF OFF
ON
87654321
OFF OFF OFF OFF
ON
ON ON
87654321
OFF OFF

MAGIC-PRO MP-6VIP-C2
11
CPU MODEL BUS RATIO BUS CLOCK
NOTE: (#) Pentium III Coppermin FC-PGA CPUs.
Celeron 300/66
(66MHz * 4.5x)
Pentium III 600EB/133#
(133MHz * 4.5x)
Pentium III 533EB/133#
(133MHz * 4.0x)
Celeron 333/66
(66MHz * 5.0x)
Pentium III 500E/100#
(100MHz * 5.0x)
Pentium III 667B/133#
(133MHz * 5.0x)
Celeron 366/66
(66MHz * 5.5x)
Pentium III 550E/100#
(100MHz * 5.5x)
Pentium III 733B/133#
(133MHz * 5.5x)
Celeron 400/66
(66MHz * 6.0x)
Pentium III 600E/100#
(100MHz * 6.0x)
Celeron 433/66
(66MHz * 6.5x)
Pentium III 650/100#
(100MHz * 6.5x)
Celeron 466/66
(66MHz * 7.0x)
Pentium III 700/100#
(100MHz * 7.0x)
Celeron 500/66
(66MHz * 7.5x)
Pentium III 750/100#
(100MHz * 7.5x)
Celeron 533/66
(66MHz * 8.0x)
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON ON
87654321
OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON
87654321
OFF OFF OFF
ON
ON ON ON
87654321
OFF
ON
ON ON
87654321
OFF OFF
ON
ON ON
87654321
OFF OFF
ON
ON
87654321
OFF OFF OFF
ON
ON ON
87654321
OFF OFF
Over 8.0x
Using these CPUs which bus r tio exceed
8.0x, user c n not ch nge ll v lues from 
the DIP switch but detection by BIOS 
utom tic lly.

MAGIC-PRO MP-6VIP-C2
12
2-3 SYSTEM MEMORY CONFIGURATION
• This VIA 693 Apollo Pro Plus motherboard supports 168pin DIMM of 4MB,
8MB, 16MB, 32MB, 64MB, 128MB, and 256MB to form a memory size
between 8MB up to 768MB (SDRAM). VIA 693 Apollo Pro Plus chipset
provides “Table-Free” function. It means that users can install DRAM with
any configuration and in any bank, and that is why the DRAM table is not
needed but do remember that the DRAM must be 3.3V type. For 100 /
133MHz CPU environment, the SDRAM specific tion must comply with
PC-100 / PC-133 spec.
2-4 JUMPER DEFINITIONS
• The figure below shows the location of the motherboard’s jumper blocks.
CAUTION
• Do not move the jumper with the power on. Always turn off the power and unplug
the power cord from the computer before changing the jumper. Otherwise, the
motherboard could be damaged.
GND
+12V
SENSOR
Those connectors support processor/system/chassis cooling fan with +12V. Those
support three pin head connector. When connecting the wire to FAN connectors
user should give attention that the red wire is the positive and should be connected
to the +12V the black wire is Ground and should be connected to GND. If your
motherboard has Hardware Monitor chipset on-board you must use a specially
designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor every rotation of the fan will send out 2 pulses.
System Hardware Monitor will count and report the fan rotation speed.
NOTE 1: Always consult vendor for proper CPU cooling fan.
NOTE 2: CPU FAN supports the FAN control. You can install PC
Alert utility. This will automatically control the CPU
FAN speed according to the actual CPU temperature.
CPU FAN
CFAN1/SFAN1/PFAN1: ONBOARD FAN (12V)
SFAN1
CFAN1
CHASSIS FAN PFAN1
SYSTEM FAN

MAGIC-PRO MP-6VIP-C2
13
Intel CPU (default)
VIA Cyrix III (Joshua) CPU
JP3/JP4/JP5: CPU SELECT
1 3
1 3
JP3
JP3
1 3
1 3
JP4
JP4
1 3
1 3
JP5
JP5
Disabled (default)
Enabled
JP2: KEYBOARD POWER ON
3
1
JP2
3
1
JP2
NOTE: When the keyboard power on fun tion shows any ompatible
problem, hoose Disabled and report to the keyboard vendor/
manufa turer,
Chinese Language
English Language (default)
JP8/JP9: VOICE DIAGNOSTIC LANGUAGE SELECT
1 3
1 3
JP9
JP8
1 3
1 3
JP9
JP8
1 3
1 3
JP9
JP8
1 3
1 3
JP9
JP8
Japanese Language
Spanish Language
NOTE: JP8, JP9 and JP11 are supported by MP-6VIP-C2X only.
Enabled (default)
Disabled
JP11: VOICE CONTROLLER CHIP
3
1
JP11
3
1
JP11
Redirect USB port to USB 1
connector (default)
JP6/JP7: USB PORT SELECT
1 3
1 3
JP6
JP7
1 3
1 3
JP6
JP7
Redirect USB port to AGP

MAGIC-PRO MP-6VIP-C2
14
NOTE: For support WOL fun tion, the ATX power supply must
provide at least 5V / 720mA standby urrent.
Connect the Wake On LAN signal from LAN card 
to JWOL1
JWOL1 : WAKE ON LAN (WOL) FUNCTION
JWOL1
NOTE: We re ommend user to unplug the power ord from ATX
power supply to take pre autions. Clear CMOS memory by
shorting this jumper pin 2 & pin3 momentarily, and then
remove the ap ba k to pin 1 & pin2 to retain original CMOS
setting.
Clear CMOS Data
Retain Data (default)
JBAT1: CLEAR CMOS DATA
3
1
JBAT1
3
1
JBAT1
Enabled
Normal (default)
JP12: POWER LOST RESUME
1 3
JP12
1 3
JP12
NOTE: This jumper allows user to use the swit h of ATX power supply
to ontrol ON/OFF swit h dire tly instead of using the power
swit h on the motherboard.

MAGIC-PRO MP-6VIP-C2
15

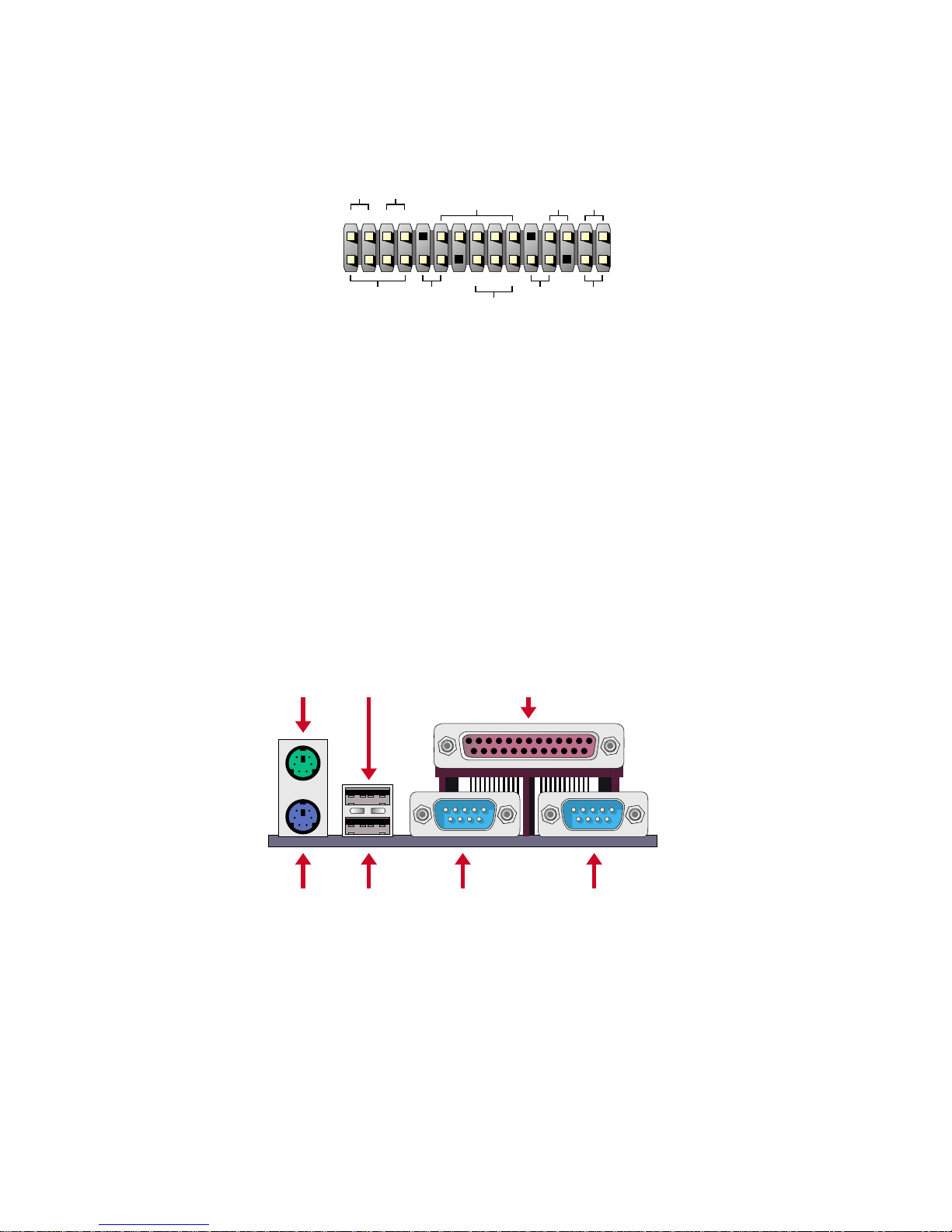

A : PS/2 MOUSE
B : USB O
C : LPT 1
D : PS/2 KEYBOARD
E : USB 1
F : COM 1
G : COM 2
A.
D. E. F. G.
B. C.
2-5 CONNECTORS
A1 : 1st HDD LED
A2 : 2nd HDD LED
B : INFRARED (IR)
C : POWER SWITCH
D : SMI
E : SPEAKER
F : RESET SWITCH
G : POWER LED
H : KEYLOCK
I : SUSPEND LED
EF G
C
H I
D
A1 A2 B
++
--
+-
J1
J2
1 15
1 15

MAGIC-PRO MP-6VIP-C2
16

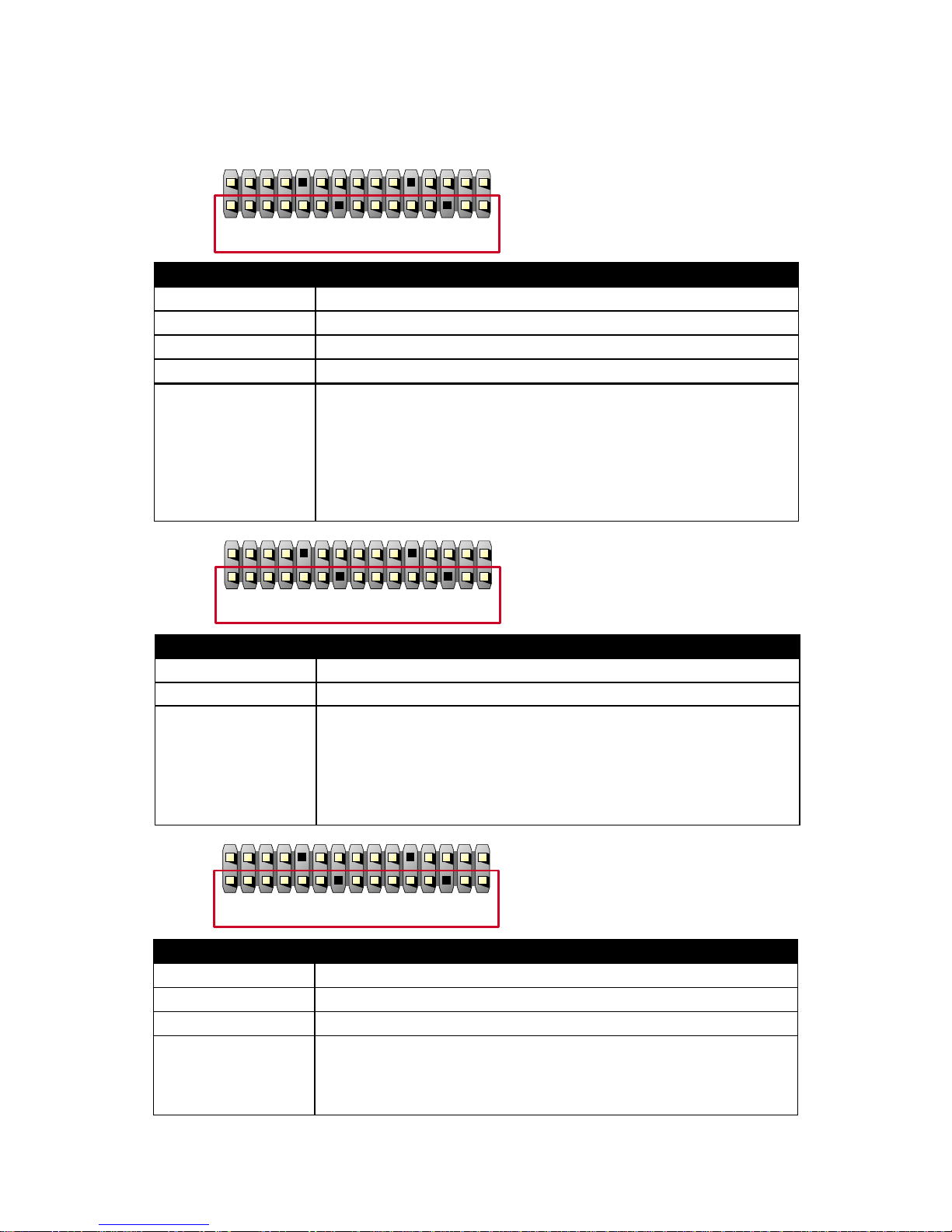

2-5.1 J1 SWITCH SIGNAL SUMMARY

123456789101112131415
J2
J1
PIN 1 +5V
HDD LED CONNECTOR
PIN 2 HDD LED SIGNAL
PIN 3 HDD LED SIGNAL
PIN 4 +5V
DESCRIPTION
This connector supplies power to the c binet's IDE
ctivity LED. Re d nd write ctivity by devices
connected to the Prim ry or Second ryIDE
connector will c use the LED to light up.

1234567891011 12 13 14 15
J2
J1
INFRARED CONNECTOR
PIN 6 INFRARED TRANSMIT SIGNAL
PIN 7 GND
PIN 8 INFRARED RECEIVE SIGNAL
PIN 9 NONE
PIN 10 +5V
DESCRIPTION
This connector supports n option l wireless
tr nsmitting nd receiving infr red module. This
module mounts to sm ll opening on system c ses
th t support this fe ture.
User must lso configure the setting through
BIOS progr m "Peripher l Setup" to select whether
UART2 is directed for use with COM2 or IrDA.
Use the five pins nd connect ribbon c ble from
the module to the motherbo rd's IR connector
ccording to the pin definitions.

MAGIC-PRO MP-6VIP-C2
17

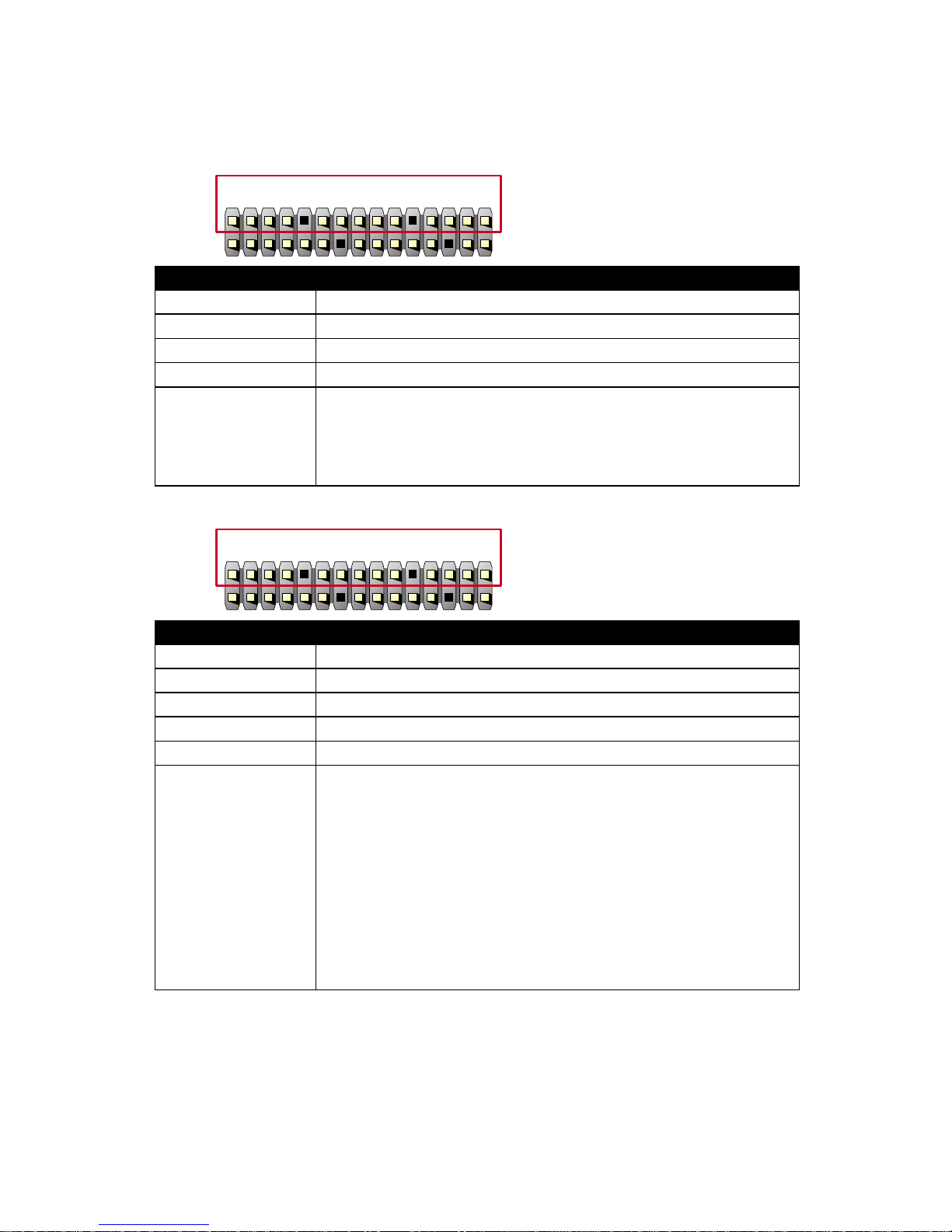

ATX POWER SWITCH
PIN 12 ATX POWER SWITCH
PIN 13 GND
DESCRIPTION
The system power is controlled by moment ry
switch connected to this le d.
Pressing the button once will switch the system
between ON nd SOFT OFF.
Pushing the switch while in the ON mode for more
4 seconds will turn the system off.
The system power LED shows the st tus of the
system's power.

123456789101112 13 14 15
J2
J1
SMI CONNECTOR
PIN 14 SMI(System M n gment Interrupt) SIGNAL
PIN 15 GND
DESCRIPTION
This llows user to m nu lly pl ce the system into
suspend mode or "Green" mode, where system
ctivity is decre sed to s ve electricity nd prolong
the life of cert in components when the system is
not in use. This 2-oin connector connects to the
c se-mounted suspend switch. If you do not h ve
switch for the connector, you m y use the "Turbo
Switch".
SMI is ctiv ted when it detects short to open
moment nd therefore le ving it shorted will not
c use ny problems. This m y require one or two
presses depending on the position of the switch.
W ke-Up c n be controlled by settings in the BIOS
but the keybo rd will lw ys llow w ke-up(the SMI
le d c nnot w ke up the system).

1234567891011121314 15
J2
J1

MAGIC-PRO MP-6VIP-C2
18

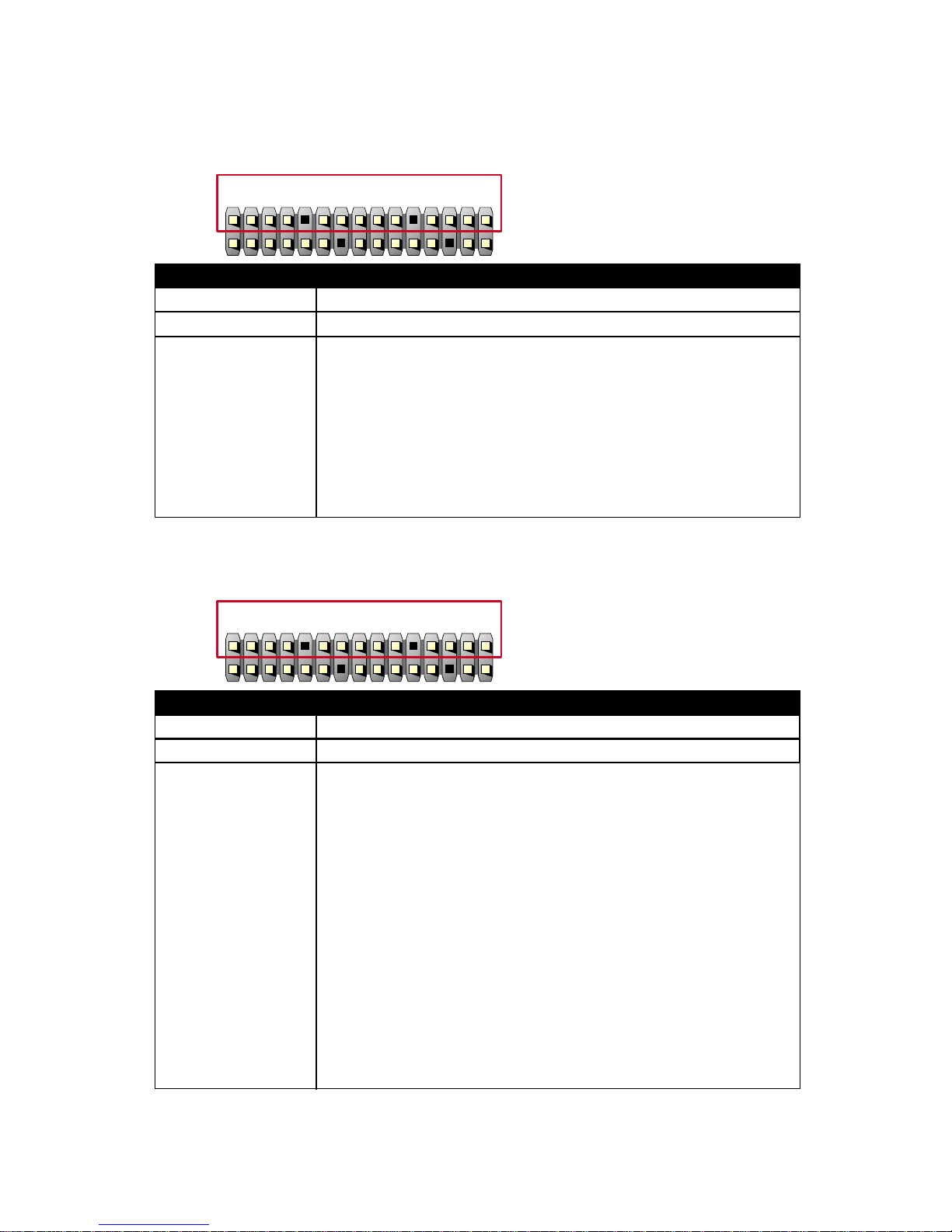

2-5.2 J2 SWITCH SIGNAL SUMMARY

123456789101112131415
J1
J2
PIN 1 SPEAKER SIGNAL
SPEAKER CONNECTOR
PIN 2 NONE
PIN 3 GND
PIN 4 +5V
DESCRIPTION
This SPEAKER connector connects to the c se-
mounted spe ker. Two sources (LINE OUT nd
SPEAKER) llow you to he r system beeps nd
w rnings. Only SPEAKER llows you to he r system
beeps before the integr ted udio h s been properly
initi lized.

1234567 8 9 10 11 12 13 14 15
J1
J2
PIN 5 RESET SIGNAL
RESET SWITCH CONNECTOR
PIN 6 GND
DESCRIPTION
RESET SWITCH connector connects to the c se-
mounted reset switch for rebooting your system
without h ving to turn off your power switch. This is
preferred method of reboot to prolong the life of
the system's power supply.

1234567891011 12 13 14 15
J1
J2
PIN 8 +5V
POWER LED CONNECTOR
PIN 9 NONE
PIN 10 GND
DESCRIPTION This Power LED connector connects the system
power LED, which lights when the system is
powered on nd blinks when it is in sleep mode.

MAGIC-PRO MP-6VIP-C2
19

1234567891011121314 15
J1
J2
PIN 14 SUSPEND LED SIGNAL
SUSPEND LED
PIN 15 GND
DESCRIPTION Connect to Suspend indic tor light.
