Magic-Pro MP-7VIP-A User manual

MP-7VIP-A
Motherboard
User’s Manual
Product Name:MP-7VIP-A
Manual Revision:English, 1.00
Release Date:June, 2000

POST-CONSUMER
RECYCLED PAPER
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two
conditions:
wThis device may not cause harmful interference
wThis device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy. If this equipment is not installed and
used in accordance with the manufacturer's instructions, it may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
wReorient or relocate the receiving antenna.
wIncrease the separation between the equipment and receiver.
wConnect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
wConsult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required to
assure compliance with FCC regulations. Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user's authority to operate
this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for audio noise emissions from
digital apparatusses set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Manufacturer's Disclaimer Statement
The information in this document is subject to change without notice and does not represent a
commitment on the part of the vendor. No warranty or representation, either expressed or implied,
is made with respect to the quality, accuracy or fitness for any particular purpose of this document.
The manufacturer reserves the right to make changes to the content of this document and/or the
products associated with it at any time without obligation to notify any person or organization of such
changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or
consequential damages arising out of the use or inability to use this product or documentation, even
if advised of the possibility of such damages. This document contains materials protected by
copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any
form, by any means or for any purpose without expressed written consent of it's authors. Product
names appearing in this document are mentioned for identification purposes only. All trademarks,
product names or brand names appearing in this document are registered property of their
respective owners.
Copyright Magic-Pro Computer Co., LTD.
All rights reserved
Author : Raymond
Printed in Taiwan June 2000

2
MAGIC-PRO MP-7VIP-A
C O N T E N T
Chapter 1
NTRODUCT ON .......................................................... 4
1-1 ITEM LIST CHECKUP .................................................................. 4
1-2 PROCESSOR ............................................................................... 4
1-3 CHIPSET ...................................................................................... 4
1-4 MEMORY...................................................................................... 5
1-5 BIOS ............................................................................................. 5
1-6 MULTI-I/O FUNCTION.................................................................. 5
1-7 FORM FACTOR............................................................................ 6
1-8 AC’ 7 CODEC FUNCTION........................................................... 6
1- MISCELLANOUS.......................................................................... 6
1-10.1 MOTHERBOARD LAYOUT --- MP-7VIP-A..............................7
1-10.2 MOTHERBOARD LAYOUT --- MP-7VIP-AX...........................8

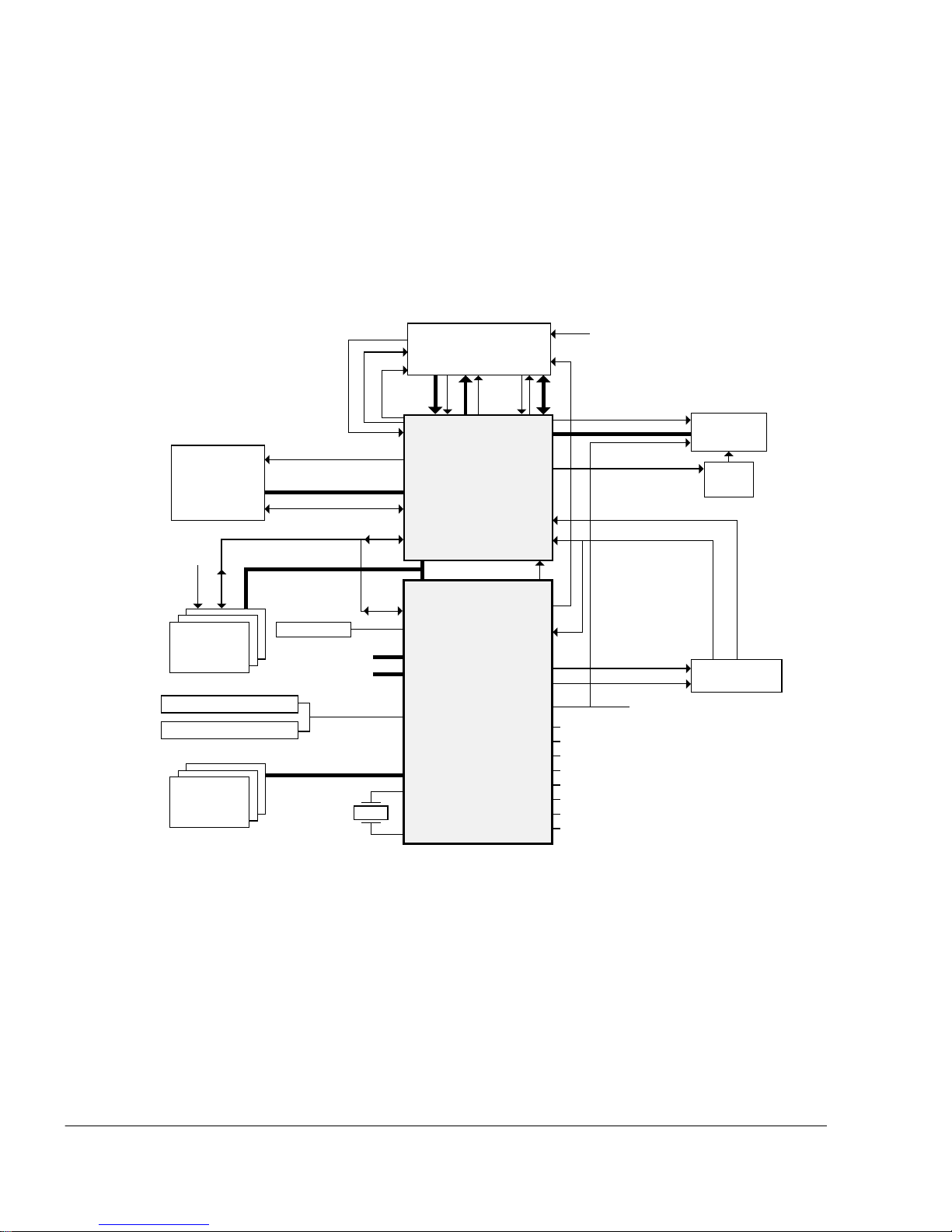

1-11 CHIPSET DIAGRAM...................................................................
Chapter 2
HARDWARE SETUP .................................................. 10
2-1 CPU INSTALLATION .................................................................. 10
2-2 AMD SOCKET A (SOCKET 462) PROCESSOR .........................11
2-3 CPU FREQUENCY..................................................................... 12

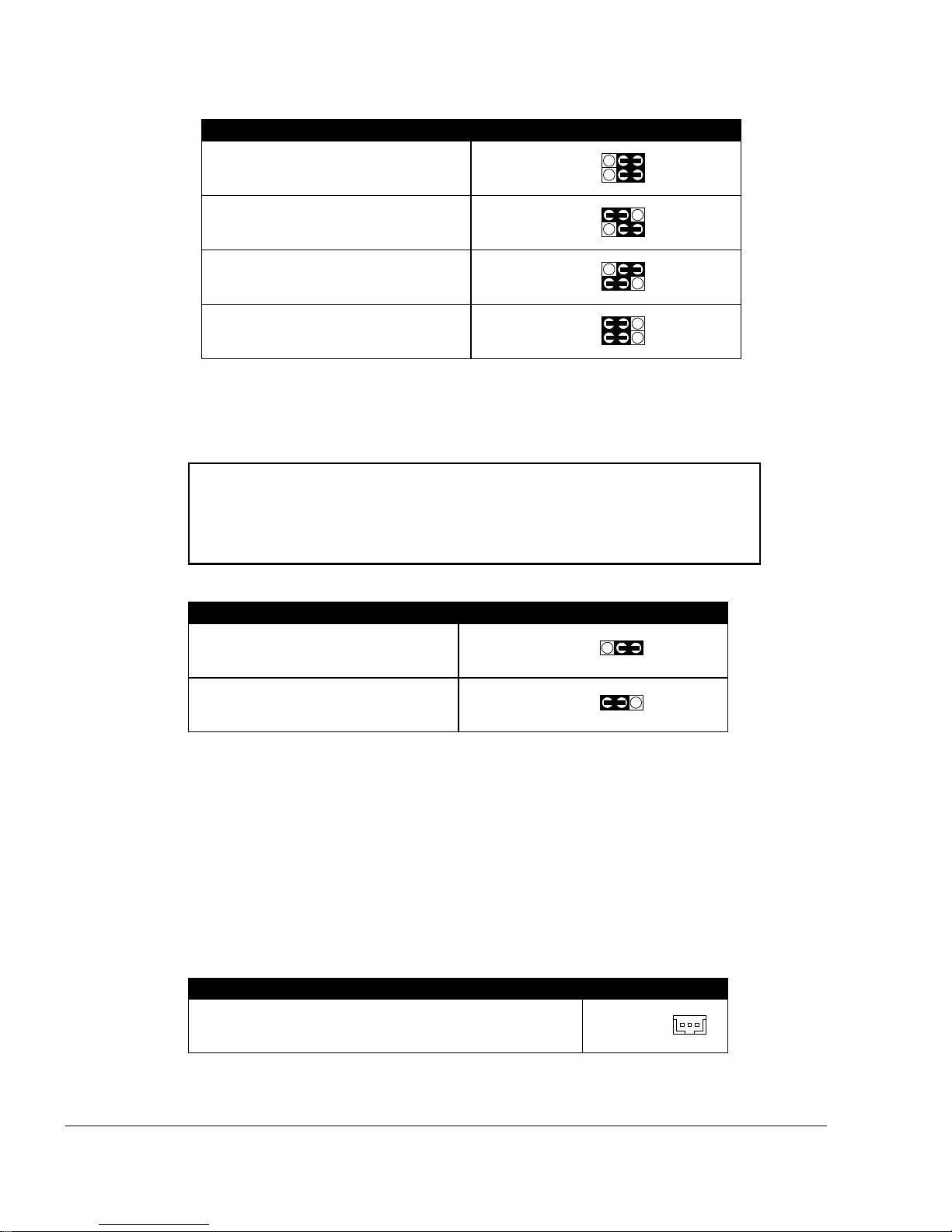

2-4 JUMPER DEFINITIONS ............................................................. 13
2-5 CONNECTORS .......................................................................... 17
2-5.1 J3 AND J4 ................................................................................ 17
2-5.2 CHASSIS PANEL CONNECTOR............................................. 21
2-5.3 ATX POWER SUPPLY CONNECTOR..................................... 22
2-5.4 SECOND USB CONNECTOR ................................................. 23
2-5.5 PS/2 MOUSE AND PS/2 KEYBOARD..................................... 24
2-5.6 IRQ DESCRIPTION ................................................................. 25
2-6 VOICE DIAGNOSIS TECHNOLOGY .........................................26

3
MAGIC-PRO MP-7VIP-A
Chapter 3
SOFTWARE SETUP................................................... 27
3-1 AC’97 AUDIO CODEC INSTALLATION .....................................27
3-2 VIA CHIPSET DRIVER INSTALLATION (4-IN-1 DRIVER).........27
3-3 HARDWARE MONITOR INSTALLATION ..................................28
3-4 VIA USB FILTER DRIVER INSTALLATION ................................28
Chapter 4
B OS Setup................................................................29
4-1 INTRODUCE THE BIOS.............................................................29
4-2 WHAT IS BIOS SETUP...............................................................29
4-3 HOW TO RUN BIOS SETUP......................................................29
4-4 WHAT IS CMOS.........................................................................29
4-5 WHAT IS POST..........................................................................30
4-6 BIOS UPGRADE.........................................................................30
4-6.1 BEFORE UPGRADE BIOS......................................................30
4-6.2 UPGRADE PROCESS.............................................................30
4-7 CMOS SETUP UTILITY..............................................................33
4-8 STANDARD CMOS SETUP........................................................34
4- ADVANCED BIOS FEATURES...................................................36
4-10 ADVANCED CHIPSET FEATURES..........................................40
4-11 INTEGRATED PERIPHERALS.................................................46
4-12 POWER MANAGEMENT SETUP.............................................51
4-13 PNP / PCI CONFIGURATION...................................................56
4-14 PC HEALTH STATUS...............................................................59
4-15 FREQUENCY/VOLTAGE CONTROL.......................................60
4-16 LOAD FAIL-SAFE DEFAULTS..................................................61
4-17 LOAD OPTIMIZED DEFAULTS................................................61
4-18 SET SUPERVISOR / USER PASSWORD................................62
4-1 SAVE & EXIT SETUP...............................................................63
4-20 EXIT WITHOUT SAVING..........................................................63

4
MAGIC-PRO MP-7VIP-A
CHAPTER 1
NTRODUCT ON
1-1 TEM L ST CHECKUP
• Motherboard
• Support CD
• User’s Manual
• Temperature Sensor Cable
• ATA66 IDE Cable
• RS232 Cable
1-2 PROCESSOR
• Supports AMD Athlon ThunderbirdTM 700MHz/ 750MHz/ 800MHz/ 850MHz/
00MHz/ 50MHz/1.0GHz processors or higher.
• Supports AMD Athlon DuronTM 600MHz/ 650MHz/ 700MHz processors or
higher.
• Supports 66MHz/ 100MHz/ 133MHz CPU Front Side Bus(FSB).
• Supports processor voltage auto-detect circuit.
1-3 CH PSET
• KT133 Chipset: VT8363 system controller (552 pin BGA)and VT82C686A
PCI to ISA bridge (352 pin BGA).
--- The VT8363 supports two 32-bit 3.3V / 5V system buses (one AGP and
one PCI) that are synchronous / pseudo-synchronous to the CPU bus.
--- Single chip Athlon system controller with 64-bit Socket-A Athlon CPU,
64-bit system memory, 32-bit PCI and 32-bit AGP interfaces.
--- PCI-to-ISA bridge chip includes UltraDMA-33/66 EIDE, 4 USB Ports,
Integrated Super-I/O, AC 7 / MC 7 link(for Audio and Modem support).
Hardware Monitoring, Power Management, and Keyboard / PS2 Mouse
Interfaces plus RTC / CMOS on chip.
--- Supports separately powered 3.3V (5V tolerant) interface to system
memory, AGP, and PCI bus.

5
MAGIC-PRO MP-7VIP-A
--- 100MHz DDR(Double Data Rate) transfer on Athlon CPU address and
data buses.
--- Supports full AGP v2.0 capability for maximum bus utilization including
1x, 2x, and 4x mode transfers.
--- Both Windows 5 VxD and Windows 8 / Windows 2000 miniport driv-
ers are supported for ineroperability with major AGP-based 3D and DVD-
capable multimedia accelerators.
1-4 MEMORY
• Supports PC133 and PC100 SDRAM and Virtual Channel Memory (VCM)
up to 3 DIMMs.
• Supports up to 1.5GB memory space (256MB DRAM technology).
• The six banks of DRAM can be composed of an arbitrary mixture of 1M/
2M/ 4M/ 8M/ 16M/ 32MxN DRAMs.
• Different DRAM types may be used in mixed combinations.
• 64-bit data width and 3.3V DRAM Interface.
• Concurrenct CPU, AGP, and PCI access.
1-5 B OS
• Award BIOS.
• Supports Plug & Play (PnP).
• Flash Memory for easy upgrade.
• Supports Advanced Power Management (APM) Rev 1.2 function.
• Advanced Configuration Power Management Interface (ACPI) Rev 1.0
compliant.
• Year 2000 compliant.
1-6 MULT - /O FUNCT ON
• One floppy port supports up to 2.88MB.
• Provides 2 Built-In USB Ports. (Another 2 internal USB ports for extensible
purpose require an optional USB connect cable)
• Ultra ATA33/66 bus master IDE supports up to 4 IDE devices (including
ZIP/LS-120 floppy devices).
• 2x 16550A Built-In fast UART compatible serial port connectors.
• Built-In SPP/EPP/ECP parallel port connector.
• Built-In standard IrDA TX/RX header.
• Peripherals boot-up function with ATX power.

6
MAGIC-PRO MP-7VIP-A
1-7 FORM FACTOR
• ATX form factor, 4 layers PCB.
• Motherboard size: 22.0cm x 30.5cm
1-8 AC’97 CODEC FUNCT ON
• Adopts onboard AC’ 7 Audio Codec controller chip.
1-9 M SCELLANOUS
• PCI 2.2 compliant, 32-bit 3.3V PCI interface with 5V tolerant inputs.
• Provides 5 PCI master slots, 1 ISA slot, 1 4xAGP PRO slot, and 3 DIMM
slots.
• Clock Generator supports 1MHz linear clock setting.
• Provides DIP switch for easy adjusting.
• Supports SCSI, CD-ROM, ZIP/LS-120, and USB boot-up function.
• Supports Wake On LAN(WOL) boot-up function.
• Supports BIOS Writing Protection.
• Supports BIOS CPU Core Voltage setting. ( optional )
• Supports Hardware Monitor function.
• Supports Voice Diagnosis Technology for easily debugging. (MP-7VIP-AX only)
• Supports Suspend To RAM(STR) function.

7
MAGIC-PRO MP-7VIP-A

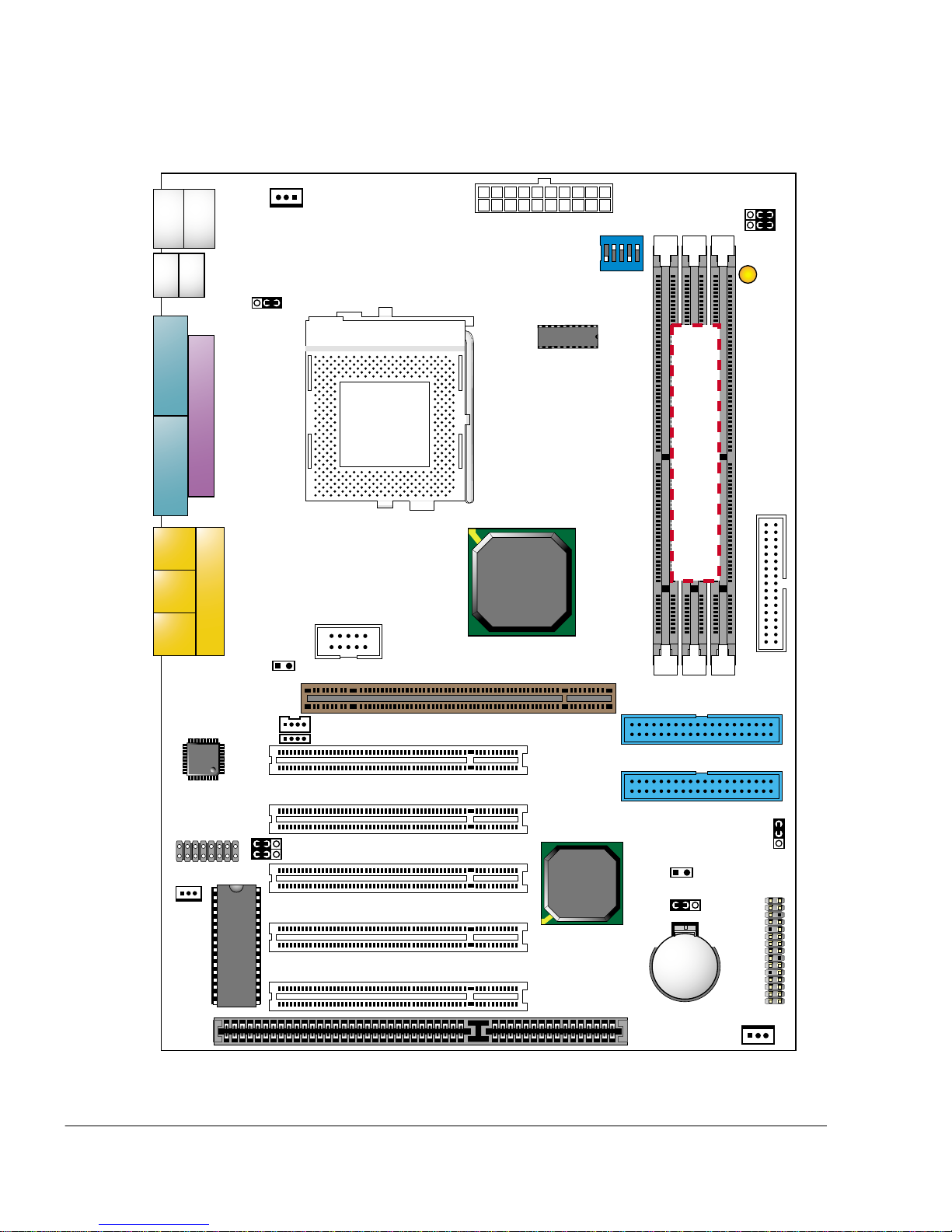

1-10.1 MOTHERBOARD LAYOUT --- MP-7VIP-A
• Default Setting: AMD Athlon ThunderbirdTM 100MHz.
SOCKET A
FLASH B OS
V A
KT-133
V A
686A
ATX POWER
SW1
USB0 USB1 PS/2
MOUSE PS/2 K/B
LPT1
COM 1
GAME/M D PORT
L NE OUT
L NE N
M C
USB1
2 16


1 15
AC'97
Codec
Li
Battery
SA
J3 J4
SPK RST PWR/LED T/LED
HDD/LED R PWR SM
++
--
+-
1 15 1 15
4x AGP PRO
PC 1
COM 2
PC 2
PC 3
PC 4
PC 5
FDD1
DE2
DE1
D MM1 D MM2 D MM3
13
13
1 3
1 3
1 3
1 3
JBAT1
JP7
JP1
JP2
1 3
JP9
PC100/PC133 SDRAM
WOL1
CD_ N2
CD_ N1
FAN2
W5280
W210
FAN1
JP3
RT2
ZD1
1 3
1 3
JP10


JP11
ON
D P
5 4 3 2 1

8
MAGIC-PRO MP-7VIP-A

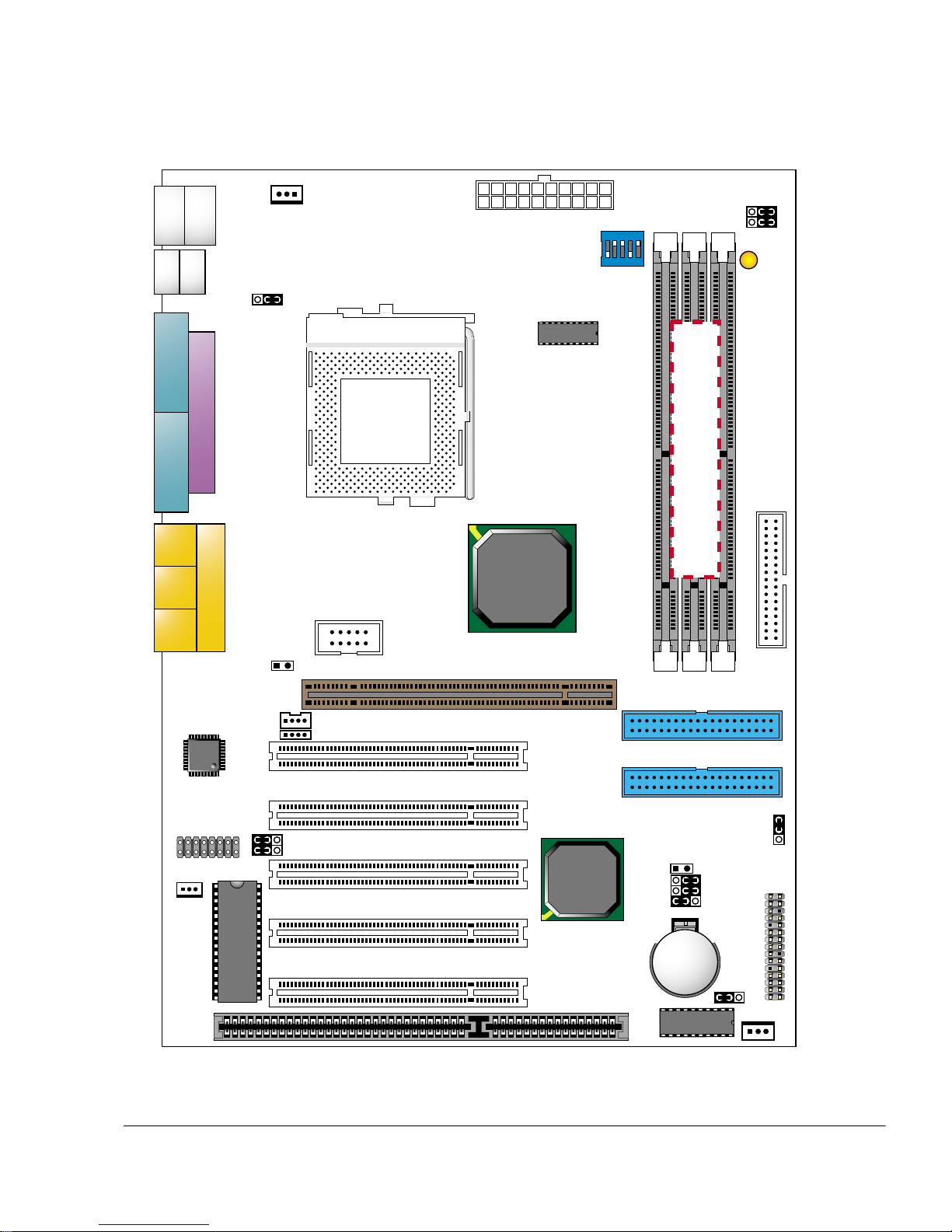

1-10.2 MOTHERBOARD LAYOUT --- MP-7VIP-AX
• Default Setting: AMD Athlon ThunderbirdTM 100MHz.
SOCKET A
FLASH B OS
V A
KT-133
V A
686A
ATX POWER
SW1
USB0 USB1 PS/2
MOUSE PS/2 K/B
LPT1
COM 1
GAME/M D PORT
L NE OUT
L NE N
M C
USB1
2 16


1 15
AC'97
Codec
Li
Battery
SA
J3 J4
SPK RST PWR/LED T/LED
HDD/LED R PWR SM
++
--
+-
1 15 1 15
4x AGP PRO
PC 1
COM 2
PC 2
PC 3
PC 4
PC 5
FDD1
DE2
DE1
D MM1 D MM2 D MM3
13
13
1 3
1 3
1 3
1 3
1 3
1 3
JP4
JP5
JBAT1
JP7
JP1
JP2
1 3
JP9
1 3
JP8
PC100/PC133 SDRAM
WOL1
CD_ N2
CD_ N1
FAN2
W5280
W210
FAN1
JP3
RT2
ZD1
1 3
1 3
JP10


JP11
ON
D P
5 4 3 2 1

9
MAGIC-PRO MP-7VIP-A
KT133
VT8363
North Bridge
552 BGA
South Bridge
352 BGA
VT82C
686A
Super South
Power Plane & Peripheral Control
GP O and ACP Events
Hardware Monitoring nputs
Keyboard / PS2 Mouse
Serial Ports 1 and 2
Parallel Port
Floppy Drive nterface
M D / Game Ports
RTC Crystal
PCLK
SMBus
Clock
Generator
PC STP#
CPUSTP#
MCLK
n
Data
Address
Out
SDRAM
Clock
Buffer
GCLK
CFWDRST CONNECT
PROCRDY
GCKRUN#
AGP Bus
PC Bus SUSCLK,
SUSST1#
PCKRUN#
ATA 33 / 66
USB Ports 0 - 3
SA Bus
AC97 Link
Memory Bus
CKE
HCLK
PCLK
SYSCLK, SYSCLK#
NTR, NM , SM #, STPCLK#,
GNNE#, FERR#, A20M#,
PWROK, N T#, RESET#
Athlon
Host CPU
3D Graphics
Controller
MC97 Modem Codec
AC97 Audio Codec
B OS ROM
KT133 System Block Diagram Using the VT82C686A South Bridge
1-11 CH PSET D AGRAM
• The KT133 / VT8363 and VT82C686A chipset is a high performance, cost-
effective and energy efficient system controllor for the implementation of
AGP / PCI / ISA desktop personal computer system based on 64-bit Socket-
A (AMD Athlon) processors.

10
MAGIC-PRO MP-7VIP-A
CHAPTER 2
HARDWARE SETUP
2-1 CPU NSTALLAT ON
1. Pull the lever sideways away from the socket, and then raise the lever up
to a 0-degree angle.
2. Take note of the red circle as below picture. While inserting the CPU into
the socket, you can find out there is a definite pin orientation for CPU and
socket.
SOCKET 462
SOCKET 462
AMD

11
MAGIC-PRO MP-7VIP-A
3. Make sure that the CPU position in the socket tightly, and then put the
lever down to complete the CPU installation.
AMD
SOCKET 462
2-2 AMD SOCKET A (SOCKET 462) PROCESSOR
• MP-7VIP-A motherboard works with AMD Athlon ThunderbirdTM and
DuronTM processor series. There is a simply way for user to distinguish
between these two kinds of CPU. As the demontration, you can see some
little descriptions on the center of processor. Please pay attention to the
first alphabert: the “D” represents AMD Athlon DuronTM processor, and the
“A” represents AMD Athlon ThunderbirdTM processor.
AMD
XXXXXXXXXXX
XXXXXXXXXXXX
XXXXXXX
XXXXXXXXX
XXXXXXXXXXX
XXXX DXX
XXX
AMD
XXXXXXXXXXX
XXXXXXXXXXXX
XXXXXXX
XXXXXXXXX
XXXXXXXXXXX
XXXX AXX
XXX

12
MAGIC-PRO MP-7VIP-A
2-3 CPU FREQUENCY
ON
ON ON
12345
OFF OFF OFF
100MHz
(default) 33.3MHz
ON
ON ON
12345
OFF OFF OFF
105MHz 35.0MHz
ON
ON ON ON
12345
OFF OFF
110MHz 36.7MHz
ON
ON ON ON
12345
OFF OFF
112MHz 37.3MHz
ON
ON ON ON
12345
OFF OFF
115MHz 38.3MHz
ON
ON ON ON ON
12345
OFF
120MHz 40.0MHz
ON
ON
12345
OFF OFF OFF OFF
124MHz 31.0MHz
ON
ON ON
12345
OFF OFF OFF
140MHz 35.0MHz
ON
ON
12345
OFF OFF OFF OFF
150MHz 37.5MHz
ON
12345
OFF OFF OFF OFF OFF
133.3MHz 33.3MHz
ON
ON ON ON ON
12345
OFF
103MHz 34.3MHz
SW1 CPU CLOCK PC CLOCK
Premature wearing of the processor may result when
overcloc ing. Be sure that the DIMM you use can
handle the specified SDRAM MHz or else bootup will
not be possible.

13
MAGIC-PRO MP-7VIP-A
2-4 JUMPER DEF N T ONS
• The figure below shows the location fo the motherboard’s jumper blocks.
CAUTION
• Do not move the jumper with the power on. Always trun off the power and
unplug the power cord from the computer before changing the jumper.
Otherwise, the motherboard could be damaged.
CPU FAN
FAN1/FAN2: ONBOARD FAN (12V)
FAN2
FAN1
SYSTEM FAN
Those connectors support processor/system/chassis cooling fan
with +12V. Those support three pin head connector. When con-
necting the wire to FAN connectors, user should give attention that
the red wire is the positive and should be connected to the +12V,
the black wire is Ground and should be connected to GND. If your
motherboard has Hardware Monitor chipset on-board, you must
use a specially designed fan with speed sensor to take advantage
of this function.
For fans with fan speed sensor, every rotation of the fan will send
out 2 pulses. System Hardware Monitor will count and report the
fan rotation speed.
NOTE 1: Always consult vendor for proper CPU cooling fan.
NOTE 2: CPU FAN supports the FAN control. You can install PC
Alert utility. This will automatically control the CPU FAN
speed according to the actual CPU temperature.
GND
+12V
SENSOR
Redirect USB port 3 to USB 2 
connector (default)
JP1/JP2: USB PORT SELECT
13
13
JP1
JP2
13
13
JP1
JP2
Redirect USB port 3 to AGP

14
MAGIC-PRO MP-7VIP-A
Only for factory test.
JP3: FACTORY TEST
JP3
Enabled (default)
Disabled
JP8: Super-Voice CONTROLLER CH P
1 3
JP8
1 3
JP8
Chinese Language
English Language (default)
JP4/JP5: VO CE D AGNOST C LANGUAGE SELECT
1 3
1 3
JP4
JP5
1 3
1 3
JP4
JP5
1 3
1 3
JP4
JP5
1 3
1 3
JP4
JP5
Japanese Language
Spanish Language
NOTE: The Voice Diagnosis Technology (JP4, JP5, and JP8) is
only supported with MP-7VIP-AX motherboard.
Disabled (default)
JP9: USB POWER ON
13
JP9
13
JP9
Enabled
Normal (default)
JP7: POWER LOST RESUME
1
3
JP7
Enabled
1
3
JP7
This jumper allowes you to use the switch of ATX power supply
to control ON/OFF switch directly instead of using the power
switch on the motherboard.

15
MAGIC-PRO MP-7VIP-A
3.3V (default)
JP10/JP11: V O SELECT
1 3
1 3
JP10
JP11
3.4V
1 3
1 3
JP10
JP11
3.5V
1 3
1 3
JP10
JP11
3.6V
1 3
1 3
JP10
JP11
V O allows you to select the voltage supplied to the DRAM,
chipset, AGP, PC , and the CPU’s /O buffer. The default voltage
(3.3V) should be used unless processor overclocking requires
a higher voltage.
NOTE! Using a higher voltage may help when overcloc ing
but may result in the shortening of your computer
components’s life. It is strongly recommended that you
leave this setting on its default.
Clear CMOS Data
Retain Data (default)
JBAT1: CLEAR CMOS DATA
JBAT1
1 3
JBAT1
1 3
A battery must be used to retain the motherboard configuration
in CMOS RAM.
NOTE : You can clear CMOS by shorting 2-3 pin when the
system is POWER OFF. Then, return to 1-2 pin
position (default). It may damage the motherboard if
clearing the CMOS in POWER ON status. Unplug
the power cord from power supply before clearing
CMOS will be a best bet for user.
Connect the Wake On LAN signal from LAN card 
to WOL1
WOL1 : WAKE ON LAN (WOL) FUNCT ON
WOL1
NOTE: For support WOL function, the ATX power supply
must provide at least 5V / 720mA standby current.

16
MAGIC-PRO MP-7VIP-A
CD_IN1PIN NO.
CD_ N1/CD_ N2: CD-ROM AUD O CONNECTOR
CD_IN2
Left ChannelP N 1 Left Channel
GNDP N 2 GND
GNDP N 3 Right Channel
Right ChannelP N 4 GND

17
MAGIC-PRO MP-7VIP-A
2-5 CONNECTORS
• In this section we list all external connectors that user will use them.
2-5.1 J3 AND J4

123456789101112131415
J4
J3
P N 1 +5V
HDD LED CONNECTOR
P N 2 HDD LED S GNAL
P N 3 HDD LED S GNAL
P N 4 +5V
DESCR PT ON
This connector supplies power to the cabinet's DE 
activity LED. Read and write activity by devices 
connected to the Primary or Secondary DE 
connector will cause the LED to light up.

1234567891011 12 13 14 15
J4
J3
NFRARED CONNECTOR
P N 6 NFRARED TRANSM T S GNAL
P N 7 GND
P N 8 NFRARED RECE VE S GNAL
P N 9 NONE
P N 10 +5V
DESCR PT ON
This connector supports an optional wireless
transmitting and receiving infrared module. This 
module mounts to a small opening on system cases
that support this feature.
User must also configure the setting through 
B OS program "Peripheral Setup" to select whether 
UART2 is directed for use with COM2 or rDA. 
Use the five pins and connect a ribbon cable from 
the module to the motherboard's R connector 
according to the pin definitions.

18
MAGIC-PRO MP-7VIP-A
ATX POWER SW TCH
P N 12 ATX POWER SW TCH
P N 13 GND
DESCR PT ON
The system power is controlled by a momentary
switch connected to this lead.
Pressing the button once will switch the system
between ON and SOFT OFF.
Pushing the switch while in the ON mode for more
4 seconds will turn the system off.
The system power LED shows the status of the
system's power.

123456789101112 13 14 15
J4
J3
SM CONNECTOR
P N 14 SM (System Managment nterrupt) S GNAL
P N 15 GND
DESCR PT ON
This allows user to manually place the system into a
suspend mode or "Green" mode, where system
activity is decreased to save electricity and prolong
the life of certain components when the system is 
not in use. This 2-oin connector connects to the 
case-mounted suspend switch. f you do not have a 
switch for the connector, you may use the "Turbo 
Switch".
SM is activated when it detects a short to open
moment and therefore leaving it shorted will not 
cause any problems. This may require one or two 
presses depending on the position of the switch.
Wake-Up can be controlled by settings in the B OS
but the keyboard will always allow wake-up(the SM 
lead cannot wake up the system).

1234567891011121314 15
J4
J3

19
MAGIC-PRO MP-7VIP-A

123456789101112131415
J3
J4
P N 1 SPEAKER S GNAL
SPEAKER CONNECTOR
P N 2 NONE
P N 3 GND
P N 4 +5V
DESCR PT ON
This SPEAKER connector connects to the case-
mounted speaker. Two sources (L NE OUT and
SPEAKER) allow you to hear system beeps and
warnings. Only SPEAKER allows you to hear system
beeps before the integrated audio has been properly
initialized.

1234567 8 9 10 11 12 13 14 15
J3
J4
P N 5 RESET S GNAL
RESET SW TCH CONNECTOR
P N 6 GND
DESCR PT ON
RESET SW TCH connector connects to the case-
mounted reset switch for rebooting your system
without having to turn off your power switch. This is
a preferred method of reboot to prolong the life of
the system's power supply.

1234567891011 12 13 14 15
J3
J4
P N 8 +5V
POWER LED CONNECTOR
P N 9 NONE
P N 10 GND
DESCR PT ON This Power LED connector connects the system
power LED, which lights when the system is
powered on and blinks when it is in sleep mode.
