MAGINON WLR-753AC User manual

WIFI RANGE EXTENDER
AMPLIFICADOR WIFI
English...............01
Español............. 49
User Manual
Manual del usuario

Contents
1
Contents
Overview ................................................................................................ 3
Device parts............................................................................................ 4
Product contents/device parts............................................................. 5
Getting started....................................................................................... 6
Initial setup ......................................................................................................7
Set up your WiFi range extender wirelessly ...............................................8
Wired setup......................................................................................................11
Getting to know your dual-band WiFi range extender .......................... 12
System requirements.................................................................................... 15
Install the range extender using the installation wizard .................16
Connecting to the web interface of the range extender .......................22
Advanced settings.........................................................................................22
Installation via app.............................................................................. 26
Set up using the WPS button................................................................32
Troubleshooting .................................................................................. 33
I cannot log into the web interface ............................................................33

Contents
2
The range extender is having trouble connecting to your wireless
network ...........................................................................................................33
Storing .................................................................................................. 34
Cleaning................................................................................................ 34
Technical specification ........................................................................ 36
Safety.....................................................................................................37
Correct use......................................................................................................37
Safety information........................................................................................ 38
After sales support .............................................................................. 43
FCC compliance statement................................................................... 43
Disposal ................................................................................................ 45
License and Sourcecode information................................................. 47

Overview
3
Overview
A
1
2

Device parts
4
Device parts
B
4
10
11
6
7
8
9
3
12
5

Product contents/device parts
5
Product contents⁄device parts
1WiFi Range Extender 7WPS-LED
2Ethernet cable 8WAN/LAN LED
3Reset button 9LAN LED
4On/Off switch 10 Power-LED
5WPS button 11 Mode switch
6WiFi LEDs 12 2x Ethernet ports
VI.1.0.us

Getting started
6
Getting started
This WiFi Range Extender quickly and effectively helps to eliminate
dead spots in your existing WiFi-Network. The WiFi Range Extender
extends your 2.4 and 5.0 GHz networks.
It supports WLAN standards 802.11 b/g/n in the 2.4 GHz- range and
WLAN standards 802.11 a/n in the 5.0GHz range. Transmission speed
is up to 733 Mbit/s.
The WPS button allows simple configuration with the touch of a
button.
You can also use the fast-ethernet port to connect to network
devices by cable (such as network cameras) with up to 100 Mbit/s,
with the configuration described here.
The device has a compact design with 3 integrated antennas for
optimum and fault-free data transmission.

Getting started
7
Initial setup
To get started you will need:
− Your wireless router, the network name of your WiFi Network and
the password.
− A personal computer with any web browser.

Getting started
8

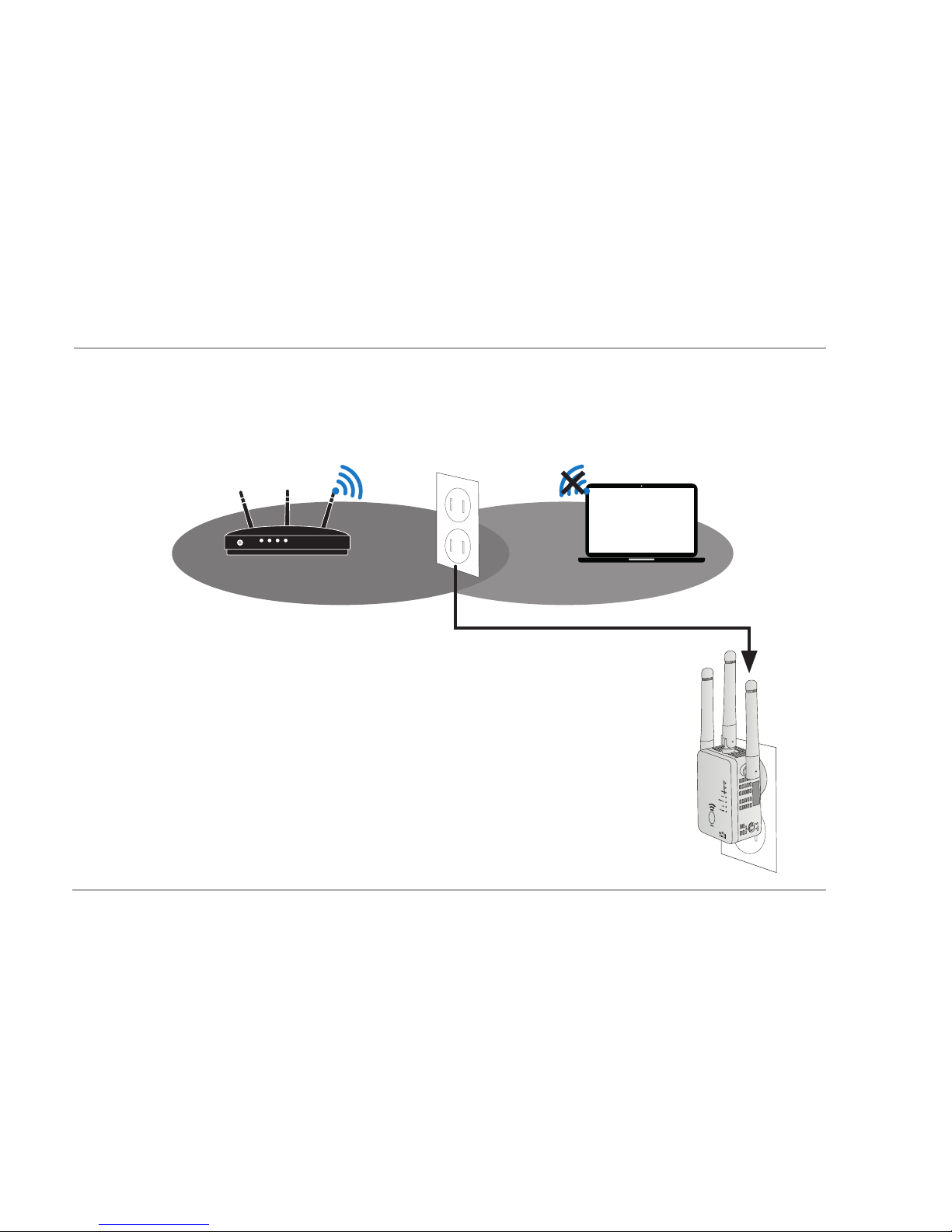

Set up your WiFi range extender wirelessly
1. Use an outlet near the edge of the coverage area of your network.
2. Plug in the WiFi Range Extender. Make sure that
the power switch is on “ON” and the Mode Selector
is on “Repeater”.

Getting started
9
3. Use a WiFi device like a laptop, tablet or mobile phone. Connect
your WiFi device to the WiFi-Network “WiFi-Extender”.
Test Cisco
WiFi-Extender Connect
4. Open your browser and enter “http://192.168.10.1”. The Setup-
interface of the WiFi Range Extender appears. Enter the password
“admin” and select your language.

Getting started
10
http://Maginon.extender
When your computer is connected to the WiFi Range Extender for the
first time, the Installation Wizard appears on your screen after you
logged into the Web Interface.
Please follow the On-Screen instructions to set up the WiFi Range
Extender.

Getting started
11
Wired setup
1. Connect the WiFi Range Extender to your laptop or personal
computer using the included ethernet cable.
2. Plug the WiFi Range extender into a wall socket.
3. Turn off the WiFi-function on your computer.
4. Open a browser and enter “http://192.168.10.1”. The Login
password is “admin”. Follow the On-Screen instructions to install
the WiFi Range Extender.
5. After you have completed the setup, turn on the WiFi-function on
your computer again.

Getting started
12
Getting to know your dual-band WiFi range
extender
WiFi-LEDs 6: Flashing Green light - The Wifi Range Extender is not
connected to the Wifi-Network.
WPS-LED 7: Flashing green light - The WiFi Range Extender is
listening for a WPS enabled computer or other device.
7
8
10
9
6

Getting started
13
WAN/LAN LED 8:Solid green light - The WiFi Range Extender is
connected to a broadband modem with the included Ethernet cable.
LAN LED 9:Solid green light - The WiFi Range Extender is
connected to a Computer with the included ethernet cable.
Power LED 10 :Off - The WiFi Range Extender is switched off or not
plugged into a power source.

Getting started
14

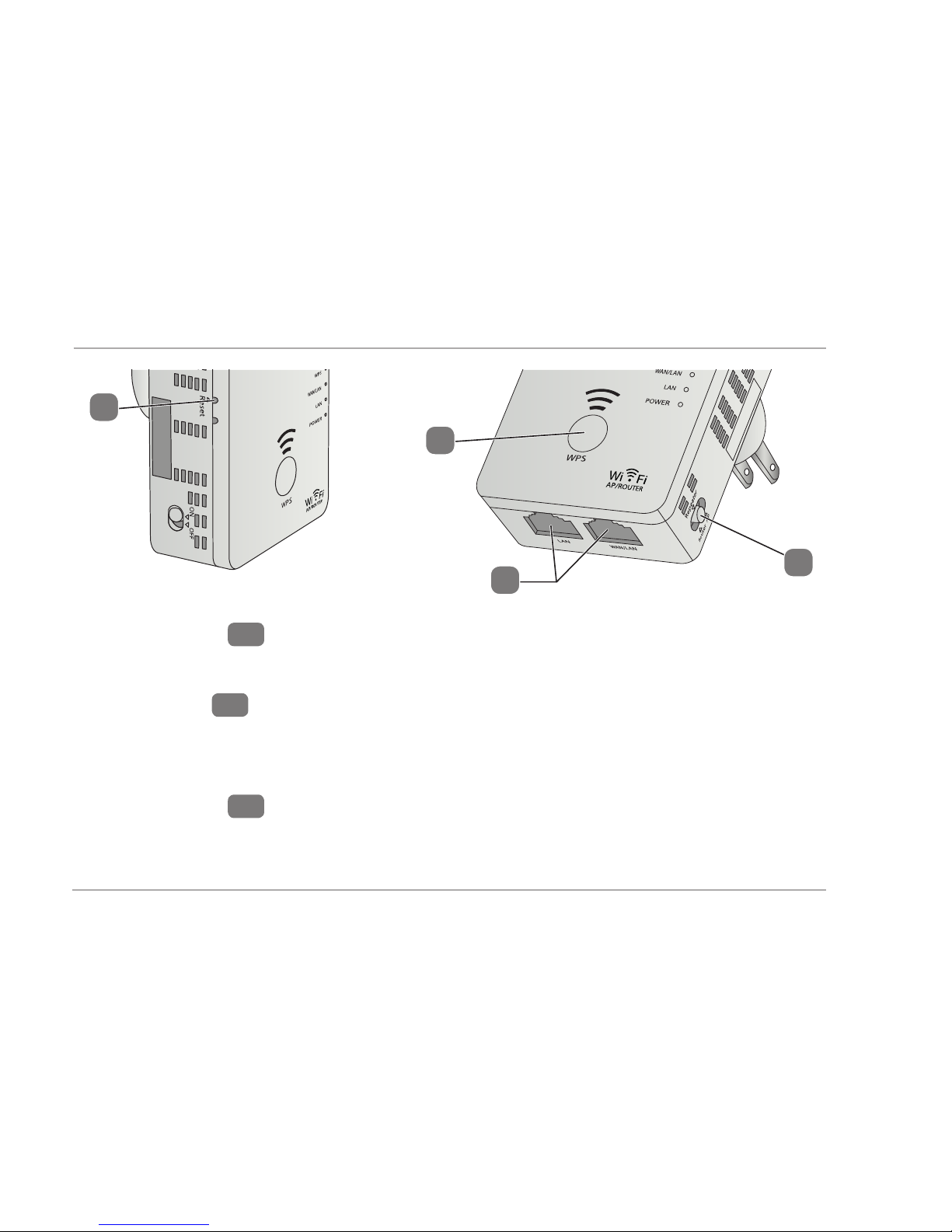

Reset Button 3:To reset the WiFi Range Extender to the default
settings if you change your router´s network name or password.
WPS Button 5:Establishes secure connection between your WiFi
Range Extender and a WPC enabled WiFi device, such as a router or
computer.
Mode Button 11 :Select the usage of the WiFi Range Extender as a
Router or a Range Extender.
3
12
11
5

Getting started
15
LAN & WAN/LAN Connector 12 :To connect a device like a
Computer, TV, Gaming Console or other wired devices using the
included Ethernet cable you can use both connectors. To connect the
WiFi Range Extender to a broadband modem when the WiFi Range
Extender is used as a router, use the WAN/LAN connector.
System requirements
A wireless router with 2.4GHz and/or 5 GHz with a broadband
internet connection with WiFi Standart 802.11 a/b/g/n
A computer with
• A 1.8 GHz Processor or faster
• 512 MB RAM or more
• An installed wireless network interface and TCP/IP protocol.
• Windows 7 (32/64 bit) or Mac OS X v10.5 or above
• Internet Explorer (Version7 or above), Firefox, Google Chrome or Safari

Install the range extender using the installation wizard
16
Install the range extender using the
installation wizard
When entering the Web-Interface wirelessly or wired the first time,
the Installation Wizard appears on your screen. Select the desired
option to install the WiFi Range Extender as an “AP”(Access point) to
convert a wired network into a wireless network or as an “Extender”
to extend the range of your existing wireless network.
1. AP (Access point)
Log into the Web-Interface as per Step 1-4 of the chapter “Getting
started”. Select the Option “AP”(Access point). The AP Wizard
appears on your screen.

Install the range extender using the installation wizard
17

Install the range extender using the installation wizard
18
Enter the data for the Access Point:
• WIFI SSID: Enter a name for your WiFI Network
• Security type: Enter encryption type
• Static IP: Chose if the Range Extender should obtain a static IP
address
Click on “Apply” to accept the settings. Once restarted the WiFi Range
Extender can be used as an Access Point.
After the WiFi Range Extender has been set up, you can connect a
computer to the WiFi Range Extender using the wireless option or an
ethernet cable.
2. Extender
To extend the range of an existing wireless network chose the option
“Extender”.The device will search automatically for all available
networks in your local area.
