MAGMATIC JAVELIN User manual

User Manual
JAVELIN
US SKU#: RSJ150
UPC#: 810008261545

©2021 MAGMATIC EFFECTS all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. MAGMATIC EFFECTS logo and identifying
product names and numbers herein are trademarks of MAGMATIC EFFECTS. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be
trademarks or registered trademarks of their respective companies and are hereby acknowledged.
All non-MAGMATIC brands and product names are trademarks or registered trademarks of their
respective companies.
MAGMATIC EFFECTS and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-
tion of this product.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of this document
may be available online.
Please check www.elationlighting.com for the latest revision/update of this manual before
beginning installation and/or programming.
MAGMATIC EFFECTS | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | sales@magmaticeects.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
Elation Professional Mexico | AC Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
2
Date Document
Version
Software
Version > DMX Channel Mode Notes
10/14/20 1.0 1.0 1 / 4 / 7 / 12 Channels Initial Release
12/11/20 1.1 1.0 1 / 4 / 7 / 12 Channels Added Fog Burst to Specifications
02/26/21 1.2 N/C No Change Updated Dim Drawings & Specifications
03/12/21 1.3 N/C No Change Updated Specifications, added Optional
Accessories, Added FCC Statement
08/18/21 1.4 N/C No Change Added Operation section, updated Safety
Guidelines and Specifications.

CONTENTS
3
General Information 4
Limited Warranty (USA Only) 5
Warranty Returns (USA Only) 6
Safety Guidelines 7
Overview 9
Installation 10
Operation 11

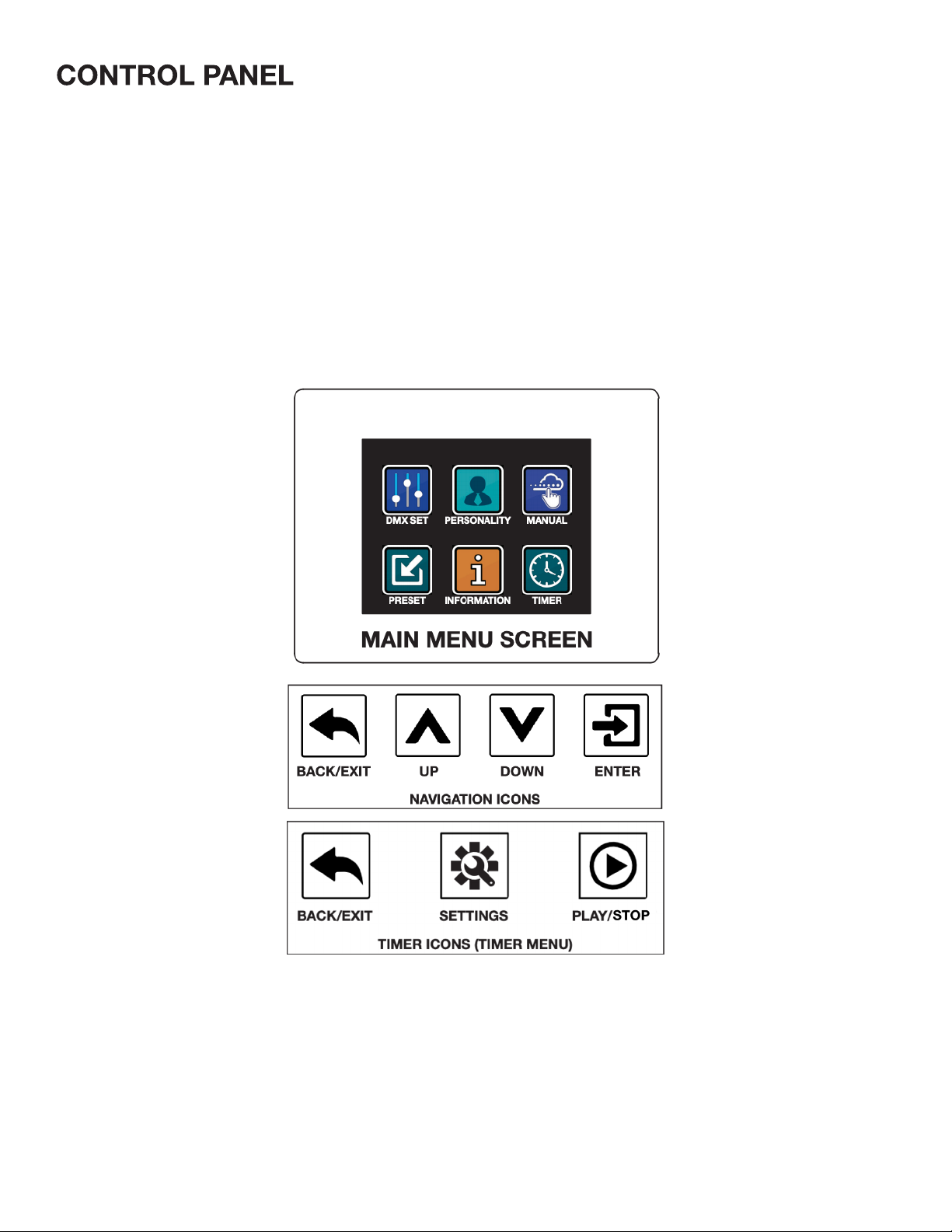

Control Panel 12
System Menu 13
DMX Channel Functions & Values 17

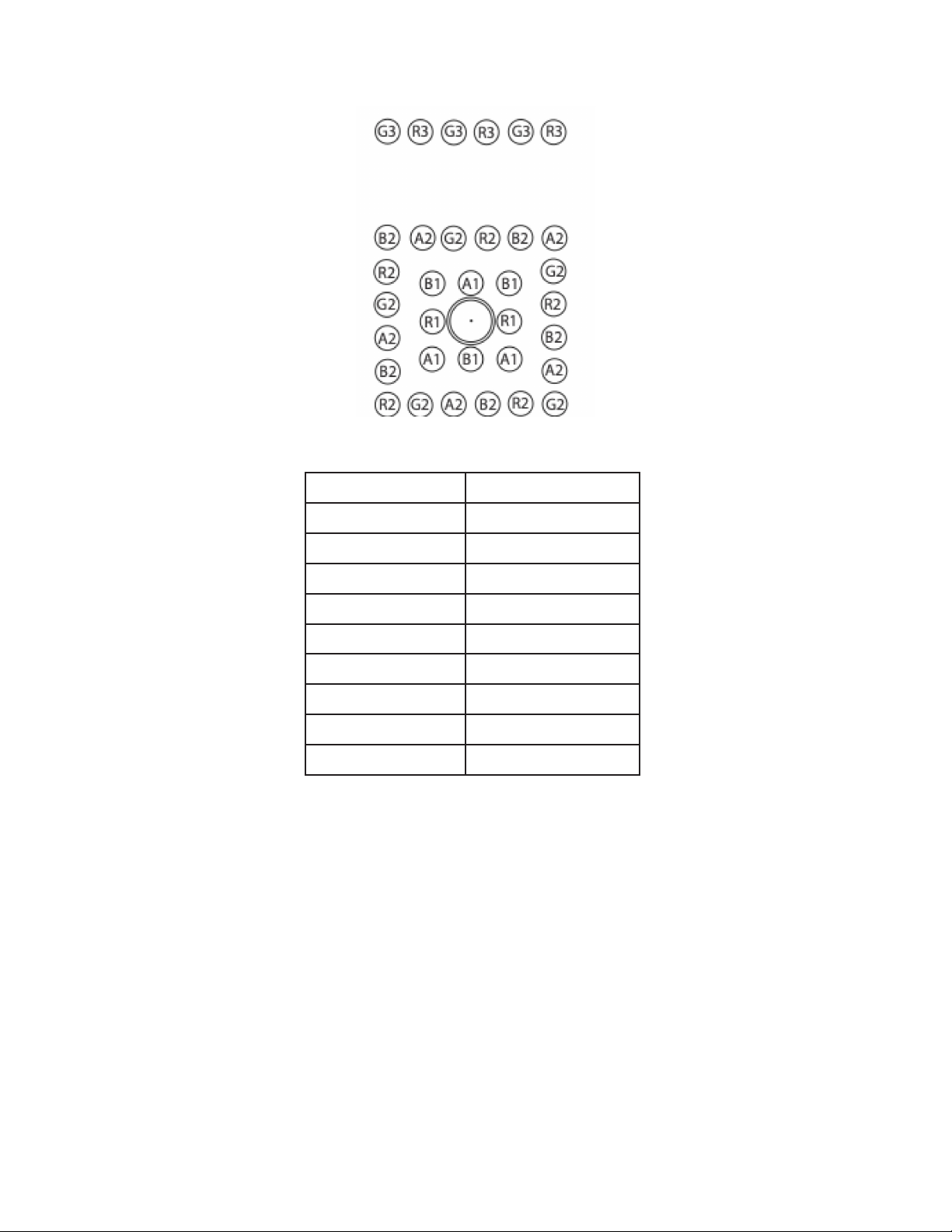

LED Layout 18
Macros Table 19
Color List 20
Dimensional Drawings 21
Trouble Shooting | Cleaning & Maintenance | Optional Accessories 22
Specifications 23
FCC Statement 24

INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before attempting
to operate this device. These instructions contain important safety and use information.
This product is intended to be used by professionally trained personnel only and is not suitable
for private use.
UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating condition. Care-
fully check the shipping carton for damage that may have occurred during shipping. If the carton is
damanged, carefully inspect the device for damage, and be sure all accessories necessary to install
and operate the device have arrived intact. In the event that damage has been found or parts are miss-
ing, please contact our customer support team for further instructions. Please do not return this device
to your dealer without rst contacting customer support. Please do not discard the shipping carton in
the trash. Please recycle whenever possible.
BOX CONTENTS
Twist-locking power cable
CUSTOMER SUPPORT
Contact MAGMATIC customer service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments, or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax 323-832-9142 | sales@magmaticeects.com
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
REPLACEMENT PARTS: Please visit parts.elationlighting.com
GENERAL INFORMATION
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY
REPAIRS YOURSELF. DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY. DAM-
AGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF
SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S
WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
NEVER POINT OR AIM A FOG MACHINE TOWARDS PEOPLE OR THEIR CLOTHING. THIS
UNIT EMITS HOT VAPOR AND SHOULD BE USED WITH THE SAME CARE THAT YOU WOULD
OBSERVE WHEN USING AN ELECTRIC KETTLE OR IRON.
IMPORTANT NOTICE!
4

A. Magmatic Effects hereby warrants, to the original purchaser, Magmatic products to be free of
manufacturing defects in material and workmanship for a period of two years (730 days) from the
original date of purchase. This warranty excludes discharge lamps and all product accessories. This
warranty shall be valid only if the product is purchased within the United States of America, includ-
ing possessions and territories. It is the owner’s responsibility to establish the date and place of pur-
chase by acceptable evidence, at the time service is sought.
B. For warranty service, send the product only to the Magmatic Effects factory. All shipping charges
must be pre-paid. If the requested repairs or service (including parts replacement) are within the
terms of this warranty, Magmatic Effects will pay return shipping charges only to a designated point
within the United States. If any product is sent, it must be shipped in its original package and pack-
aging material. No accessories should be shipped with the product. If any accessories are shipped
with the product, Magmatic Effects shall have no liability what so ever for loss and/or or damage to
any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the
product is modified in any manner which Magmatic Effects concludes, after inspection, affects
the reliability of the product; if the product has been repaired or serviced by anyone other than the
Magmatic Effects factory unless prior written authorization was issued to purchaser by Magmatic
Effects; if the product is damaged because not properly maintained as set forth in the product
instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or
periodic check-up. During the periods as specified above, Magmatic Effects will replace defective
parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of Magmatic Effects under this warranty
shall be limited to the repair of the product, or replacement thereof, including parts, at the sole dis-
cretion of Magmatic Effects. All products covered by this warranty were manufactured after January
1, 1990, and bear identifying marks to that effect.
E. Magmatic Effects reserves the right to make changes in design and/or performance improve-
ments upon its products without any obligation to include these changes in any products theretofore
manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory sup-
plied with the products described above. Except to the extent prohibited by applicable law, all
implied warranties made by Magmatic Effects in connection with this product, including warranties
of merchantability or fitness, are limited in duration to the warranty periods set forth above. And no
warranties, whether expressed or implied, including warranties of merchantability or fitness, shall
apply to this product after said periods have expired. The consumer’s and/or dealer’s sole remedy
shall be such repair or replacement as is expressly provided above; and under no circumstances
shall Magmatic Effects be liable for any loss and/or damage, direct and/or consequential, arising out
of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Magmatic Effects products and super-
sedes all prior warranties and written descriptions of warranty terms and conditions heretofore pub-
lished.
LIMITED WARRANTY (USA ONLY)
5

WARRANTY RETURNS (USA ONLY)
To obtain warranty service, a Return Material Authorization (RMA) number must first be obtained
from MAGMATIC. It is the Customer’s responsibility to provide product proof of purchase and serial
number by acceptable evidence such as an invoice copy or an approved MAGMATIC Extended
Warranty Certificate (“EWC”) and any relevant maintenance records at the time warranty service is
sought. Failure to provide acceptable evidence of product proof of purchase or EWC and any rel-
evant maintenance records may be cause for denial of warranty service.
Products returned for warranty service must be sent without any accessories (i.e., power, data, and
safety cables, brackets, clamps, rigging hardware, frost filters, gel frames, barn doors, lenses, hoses,
nozzles, rack mounting hardware, etc.), must be boxed using the original and/or suitable packag-
ing materials (double-box and foam) that provides ample product protection for ground and/or air
freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA
or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside
of the return box, and a brief description of the problem and the RMA number must be documented
and included in the box.
Products returned for warranty service without an RMA number clearly marked on the outside of the
package will be refused and returned to the shipper at the Customer’s expense. Products returned
for warranty service, which are received damaged due to inadequate and/or improper packaging
and/or due to damage caused by the shipping carrier, may incur additional repair charges before
warranty service begins and/or may void this warranty. If any product accessories (included and/
or optional) are shipped with the product, MAGMATIC and/or the MAGMATIC Authorized Service
Center shall have no liability what so ever for the loss and/or damage to any such accessories, nor
the safe return thereof. If the requested warranty repairs or service (including parts replacement) are
within the terms of this warranty, MAGMATIC will pay return ground transportation shipping charges
to a single designated point within the United States.
6

SAFETY GUIDELINES
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is
important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible
for injury and/or damages resulting from the misuse of this fixture due to the disregard of the infor-
mation printed in this manual. Only qualified and/or certified personnel should perform installation of
this fixture and only the original rigging parts included with this fixture should be used for installation.
Any modifications to the fixture and/or the included mounting hardware will void the original manu-
facturer’s warranty and increase the risk of damage and/or personal injury.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO
NOT ATTEMPT ANY REPAIRS YOURSELF. DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS
TO THIS DEVICE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND
GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND
ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG THIS UNIT INTO A DIMMER PACK
DO NOT REMOVE THE COVER UNDER ANY CONDITIONS
KEEP UNIT IN AN UPRIGHT POSITION
NEVER OPERATE THIS UNIT WITH THE COVER REMOVED
UNPLUG POWER DURING LONG PERIODS OF NON-USE
ENSURE TANK IS EMPTY BEFORE STORAGE OR TRANSPORT
DO NOT MOVE WHEN FILLED WITH FLUID
DISCONNECT POWER BEFORE ADDING FLUID OR PERFORMING
MAINTENANCE
FOR USE IN INDOOR / DRY LOCATIONS ONLY
DO NOT EXPOSE DEVICE TO RAIN AND/OR MOISTURE
PLACE UNIT IN A WELL VENTILATED AREA
ALLOW 40” (100CM) ABOVE AND AROUND THE UNIT FOR PROPER
VENTILATION.
7
PROTECTED AGAINST INTRUSION OF SOLID THE SIZE OF A HUMAN FINGER OR
LARGER.
NOT PROTECTED AGAINST LIQUID EXPOSURE OF ANY KIND!
IP20

SAFETY GUIDELINES
8
IMPORTANT SAFETY INSTRUCTIONS. READ THESE INSTRUCTIONS THOROUGHLY BEFORE
USE, AND SAVE THEM FOR FUTURE REFERENCE.
CAUTION:
• Risk of burn, re, or electric shock.
• For indoor use only.
• Please read the instruction manual carefully before use.
• Do not immerse in liquid.
• Not for space heating use.
WARNING: To prevent risk of personal injury, re, and electric shock:
• Never leave unit unattended while plugged in. Unplug device when not in use.
• Read all important safety instructions and cautions before attempting to use.
• Connect only to a properly grounded power outlet.
• Place product on a at, level, HARD surface and connect the cord to prevent the product from
tipping or overturning.
• For use in covered areas only! Keep unit dry, and do not expose to rain, moisture, or liquid im-
mersion.
• Leave enough space for adequate ventilation. Keep the device cool and away from other objects.
• Do not operate the device without fog liquid in the reservoir.
• Use caution when lling the uid reservoir in order to avoid spillage, as spilled liquid can result in
electrical shock.
• Do not use if liquid spills into or onto the unit, and allow the device to dry completely before at-
tempting usage.
• Do not overll the uid reservoir.
• Keep away from ames and ammable or explosive substances.
• Never pour ammable liquids, such as gas, perfume, etc, into the fog machine.
• Keep the device and fog uid out of reach of children.
• Use only under adult supervision.
• Do not direct fog output in the direction of people or open ame.
• Stay at least 20 inches (50cm) from the output nozzle on the front of the unit.
• Do not obstruct the output nozzle.
• Do not open the unit for any reason. There are no user serviceable parts inside, and all mainte-
nance and repair procedures should be referred to an authorized vendor or technician.
• Only a certied electrician may replace the power cord.
• Clean the unit prior to storage to avoid damage.
POWER SUPPLY CORD:
• A short power supply cord (or short detachable power-supply cord) is provided to reduce the risk
of a person becoming entangled in or tripping over the cord.
• Extension cords (or long detachable power-supply cords) are available and may be used as long
as care is exercised during use.
• If an extension cord (or long detachable power-supply cord) is used, follow the guidelines below:
1. The indicated electrical rating of the cord should be meet or exceed the rating of the device.
2. If the device is of the grounded type, the cord must use a grounding type 3-wire cord.
3. The cord should be routed in such a way as not to cause a tripping hazard or result in uninten-
tional snagging or pulling of the cord, especially in the presence of children.

1. Fog Outlet
2. LED Array
3. Wired Remote Port
4. DMX In
5. DMX Out
6. Power In
7. Breaker
8. Carry Handle
9. Touch Screen Display
10. Tank Fill Cap
11. Safety Cable Attachment
12. Tank Level Indicator
OVERVIEW
9

RIGGING
Overhead rigging requires extensive experience, including but not limited to: calculating working
load limits, understanding the installation material being used, and periodic safety inspection of all
installation material and the device. If you lack these qualications, do not attempt the installation
yourself. Improper installation can result in bodily injury.
INSTALLATION
10
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS UNIT IN A
SUSPENDED ENVIRONMENT TO ENSURE THAT THE DEVICE WILL NOT FALL IF
THE CLAMPS FAIL.

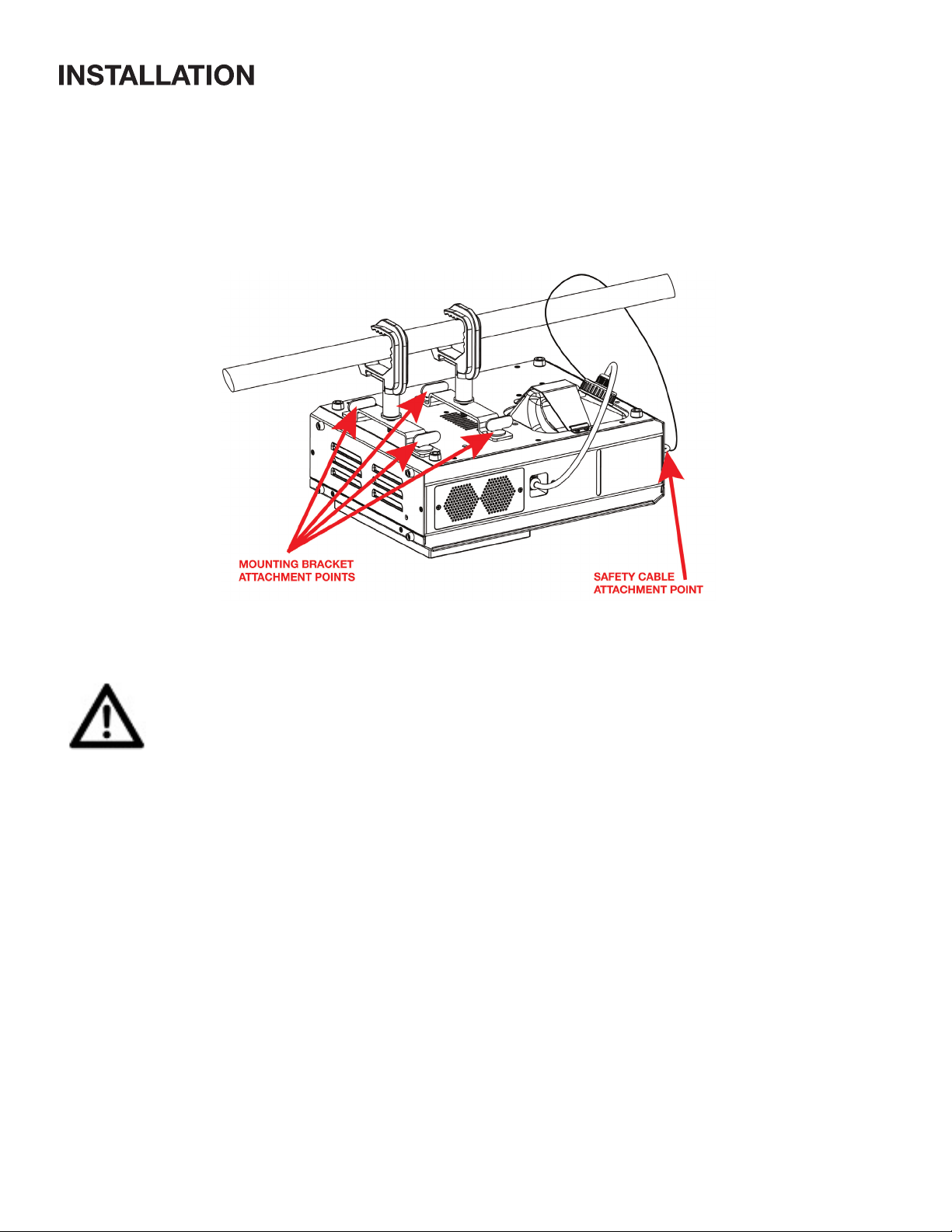

CLAMP INSTALLATION
This device features attachment points for two (2) omega brackets located on the device underside,
near the underside vents. A safety cable rigging point is also included, located beside the carry
handle (see the illustration below). When mounting this unit to truss, be sure to secure appropriately
rated omega brackets (not included) to the mounting bracket attachment points and attach a sepa-
rate SAFETY CABLE of the appropriate rating to the safety cable rigging point.

OPERATION
FOG FLUID
Fill tank only with approved Atmosity Flash Fog Fluid (AFF-4L) or Atmosity Extreme Filtered Fog
Fluid (AEF-4L).
WARM UP
Allow the device 540 seconds (9 minutes) to warm up after initial power up or relling the uid tank.
FOG DURATION
While the fog duration setting can be set as high as 250 seconds, the individual bursts of continuous
fog output will only occur for a maximum of 8 seconds. For example, when the user sets a duration
of 250 seconds, this does NOT mean that the device will be emitting fog continuously for the entire
250-second period. Rather, the device will produce a series of shorter fog bursts, each lasting up to
8 seconds, throughout the 250-second period.
11

This unit includes a system menu with an easy to navigate touch screen control panel where all nec-
essary settings and adjustments are made. When rst powering on the machine, the main menu will
be displayed (see Main Menu Screen below).
Press the main menu icon you would like to access. Use the ENTER button to access sub-menus
and use the UP and DOWN buttons to make adjustments. Press the ENTER button to conrm your
adjustments. You may exit to the main menu at any time without making any adjustments by pressing
the BACK/EXIT button.
CONTROL PANEL
12

DMX SET
DMX ADDR 1 - 512
DMX MODE
1-CH
4-CH
7-CH
12-CH
PERSONALITY
MagApp Set
MagApp Name
MagApp Passcode
MagApp IP
MagApp Port
MagApp Reset
Complete
Failed, try
again
MagApp >
DMX & Magy On / O
Allows MagApp
data to be con-
verted to DMX
data and then
sent out via DMX
port and Magy
LCD Set
Screen OFF
Never
10s
40s
1 min
2 min
5 min
10 min
20 min
Display Flip 0 deg
180 deg
Magy Set
Magy
Channel 0 - 14 When Magy is
not equipped,
selecting this
function causes
“Optional Module
Not Installed”
to show on the
screen.
Magy ON / OFF
CONTINUED ON NEXT PAGE
SYSTEM MENU
13

SYSTEM MENU
PERSONALITY
(cont’d from
prev page)
MagRF Learn
Frequency Match-
ing feature.
Display will read
“Connected” if
connection at-
tempt succeeds
within 20 sec-
onds. Otherwise,
display will read
“Connection
Failed.”
When Magy is not equipped, select-
ing this function causes “Optional
Module Not Installed” to show on the
screen.
Last State Yes / No
When powered up, device
adheres to last settings from
before power was shut off
Default Yes / No Restore to factory settings
MANUAL
LED Off
Start or pause device operation
according to these values by
pressure the Play/Start icon.
Auto 1 - 4
Color 1 - 75
(see Color
Table)
Intensity
0 - 100%
TIMER
Duration 0 - 250 s
Start or pause device operation
according to these values by
pressure the Play/Start icon.
Interval 0 - 2500 s
LED Off
Auto 1 - 4
Color 1 - 75
(see Color
Table)
Intensity
0 - 100%
CONTINUED ON NEXT PAGE
14

SYSTEM MENU
PRESET
OPT Eect
OPT1
Selection eect for dierent
liquid (types)
OPT2
OPT3
OPT4
LED Status
On LED always on
Follow LED illuminates when fog is
outputted
O LED always o
LED Bright 0 - 100% LED brightness adjustment
LED Eect
O
Random
Pulse
Strobe
LED Style
LED O
Auto 1 - 4
Color 1 - 75 see Color Table
MagRF1 Style
LED O
Auto 1 - 4
Color 1 - 75 see Color Table
MagRF2 Style
LED O
Auto 1 - 4
Color 1 - 75 see Color Table
MagRF3 Style
LED O
Auto 1 - 4
Color 1 - 75 see Color Table
MagRF4 Style
LED O
Auto 1 - 4
Color 1 -75 see Color Table
INFORMATION
State Normal / Error Operational status of unit
Slot 1
Null
Displays what type of module
is connected to Slot 1
MagFly
MagApp
MagRF
CONTINUED ON NEXT PAGE
15

INFORMATION
(cont’d from
prev page)
Slot 2
Null
Displays what type of module is
connected to Slot 2.
MagFly
MagApp
MagRF
Last Control
LCD_auto
Displays current control method
LCD_manual
DMX
MagApp
MagRF
MagRemote
Error
MagRemote
State Yes / No Displays whether remote has
been connected
MagApp
Connect
Null
Displays the type of the device
that the MagApp has connected
to
Phone
Route (router)
No
MagApp IP IP address set by user
MagFly Ch 0 - 14 Current MagFly channel
DMX Addr 1 - 512 Current DMX address of unit
DMX Mode 1 / 4 / 12 Current DMX mode of unit
Timer Int 0 - 2500 s Current timer interval setting
Timer Dur 0 - 250 s Current timer duration setting
Heating 0 - 100% Progress of fluid heating
Heater State
Normal Operational status of fluid
heater
Error
No Heat
LCD Ver. V1.2 LCD version
Sftwr Ver. V1.0 Software version
SYSTEM MENU
16

DMX CHANNEL FUNCTIONS & VALUES
CHANNEL VALUES FUNCTION
1-CH 4-CH 7-CH 12-CH
1 1 1 1
Fog
000 - 009 Off
010 - 127 LED on (switches LEDs on w/ 1-second
delay)
128 - 255 Max Fog with LED On
2
Macro
000 - 004 LED Off
005 - 154 Macros 1 - 75 (see Macro Table)
155 - 180 Fog burst & lighting display loop (2s loop)
181 - 205 Fog burst & lighting display loop (1s loop)
206 - 230 Auto 2
231 - 255 Auto 1
2 2 000 - 255 Red1, 0 to 100%
4 3 000 - 255 Blue1, 0 to 100%
5 4 000 - 255 Amber1, 0 to 100%
5 000 - 255 Red2, 0 to 100%
3 6 000 - 255 Green2, 0 to 100%
7 000 - 255 Blue2, 0 to 100%
8 000 - 255 Amber2, 0 to 100%
9 000 - 255 Red3, 0 to 100%
10 000 - 255 Green3, 0 to 100%
3 6 11
Strobe
000 - 031 Off
032 - 095 Random, slow to fast
096 - 159 Pulse Effect, in sequence
160 - 255 Strobe, slow to fast
4 7 12
Dimmer
000 - 003 LED Off
004 - 255 1% to 100%
17

LED LAYOUT for 12-Channel Mode
ABBREVIATION LED ZONE NAME
R1 Red 1
B1 Blue 1
A1 Amber 1
R2 Red 2
G2 Green 2
B2 Blue 2
A2 Amber 2
R3 Red 3
G3 Green 3
18

MACROS LIST
DMX
VALUE MACRO DMX
VALUE MACRO DMX
VALUE MACRO
005 - 006 Macro 1 065 - 066 Macro 31 125 - 126 Macro 61
007 - 008 Macro 2 067 - 068 Macro 32 127 - 128 Macro 62
009 - 010 Macro 3 069 - 070 Macro 33 129 - 130 Macro 63
011 - 012 Macro 4 071 - 072 Macro 34 131 - 132 Macro 64
013 - 014 Macro 5 073 - 074 Macro 35 133 - 134 Macro 65
015 - 016 Macro 6 075 - 076 Macro 36 135 - 136 Macro 66
017 - 018 Macro 7 077 - 078 Macro 37 137 - 138 Macro 67
019 - 020 Macro 8 079 - 080 Macro 38 139 - 140 Macro 68
021 - 022 Macro 9 081 - 082 Macro 39 141 - 142 Macro 69
023 - 024 Macro 10 083 - 084 Macro 40 143 - 144 Macro 70
025 - 026 Macro 11 085 - 086 Macro 41 145 - 146 Macro 71
027 - 028 Macro 12 087 - 088 Macro 42 147 - 148 Macro 72
029 - 030 Macro 13 089 - 090 Macro 43 149 - 150 Macro 73
031 - 032 Macro 14 091 - 092 Macro 44 151 - 152 Macro 74
033 - 034 Macro 15 093 - 094 Macro 45 153 - 154 Macro 75
035 - 036 Macro 16 095 - 096 Macro 46
037 - 038 Macro 17 097 - 098 Macro 47
039 - 040 Macro 18 099 - 100 Macro 48
041 - 042 Macro 19 101 - 102 Macro 49
043 - 044 Macro 20 103 - 104 Macro 50
045 - 046 Macro 21 105 - 106 Macro 51
047 - 048 Macro 22 107 - 108 Macro 52
049 - 050 Macro 23 109 - 110 Macro 53
051 - 052 Macro 24 111 - 112 Macro 54
053 - 054 Macro 25 113 - 114 Macro 55
055 - 056 Macro 26 115 - 116 Macro 56
057 - 058 Macro 27 117 - 118 Macro 57
059 - 060 Macro 28 119 - 120 Macro 58
061 - 062 Macro 29 121 - 122 Macro 59
063 - 064 Macro 30 123 - 124 Macro 60
19

COLOR LIST
Color 1 Color 32 Color 63
Color 2 Color 33 Color 64
Color 3 Color 34 Color 65
Color 4 Color 35 Color 66
Color 5 Color 36 Color 67
Color 6 Color 37 Color 68
Color 7 Color 38 Color 69
Color 8 Color 39 Color 70
Color 9 Color 40 Color 71
Color 10 Color 41 Color 72
Color 11 Color 42 Color 73
Color 12 Color 43 Color 74
Color 13 Color 44 Color 75
Color 14 Color 45
Color 15 Color 46
Color 16 Color 47
Color 17 Color 48
Color 18 Color 49
Color 19 Color 50
Color 20 Color 51
Color 21 Color 52
Color 22 Color 53
Color 23 Color 54
Color 24 Color 55
Color 25 Color 56
Color 26 Color 57
Color 27 Color 58
Color 28 Color 59
Color 29 Color 60
Color 30 Color 61
Color 31 Color 62
20
