MAGMATIC CRISP User manual

1
User Manual
CRISP
SKU#: PSC001
UPC#: 810008260913

2
©2022 MAGMATIC EFFECTS all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. MAGMATIC EFFECTS logo and identifying
product names and numbers herein are trademarks of MAGMATIC EFFECTS. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by statuto-
ry or judicial law or hereinafter granted. Product names used in this document may be trademarks or
registered trademarks of their respective companies and are hereby acknowledged. All non-ELATION
brands and product names are trademarks or registered trademarks of their respective companies.
MAGMATIC EFFECTS and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as a
result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and operation
of this product.
MAGMATIC EFFECTS | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com I sales@magmaticeects.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
[phone] | [phone] fax | www.elationlighting.eu | [e-mail]
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
DOCUMENT VERSION
Date Document
Version
Software
Version > DMX Channel Mode Notes
03/04/20 1 1.0 1 / 3 / 5 channels Initial Release
10/29/20 2 1.0 1 / 3 / 5 channels Updated Specications
12/16/20 3 1.0 1 / 3 / 5 channels Added FCC Statements
04/26/22 4 1.1 1 / 3 / 5 channels
Updated Safety Guidelines, Overview, System
Menu, Cleaning, Dimensional Drawings, &
Specications; added Fuse Replacement

3
CONTENTS
General Information 4
Limited Warranty (USA Only) 5
Warranty Returns (USA Only) 6
Safety Guidelines 7
Overview 10
Operation 11
Control Panel 12
System Menu 13
Message Icons 15
DMX Channel Functions & Values 16

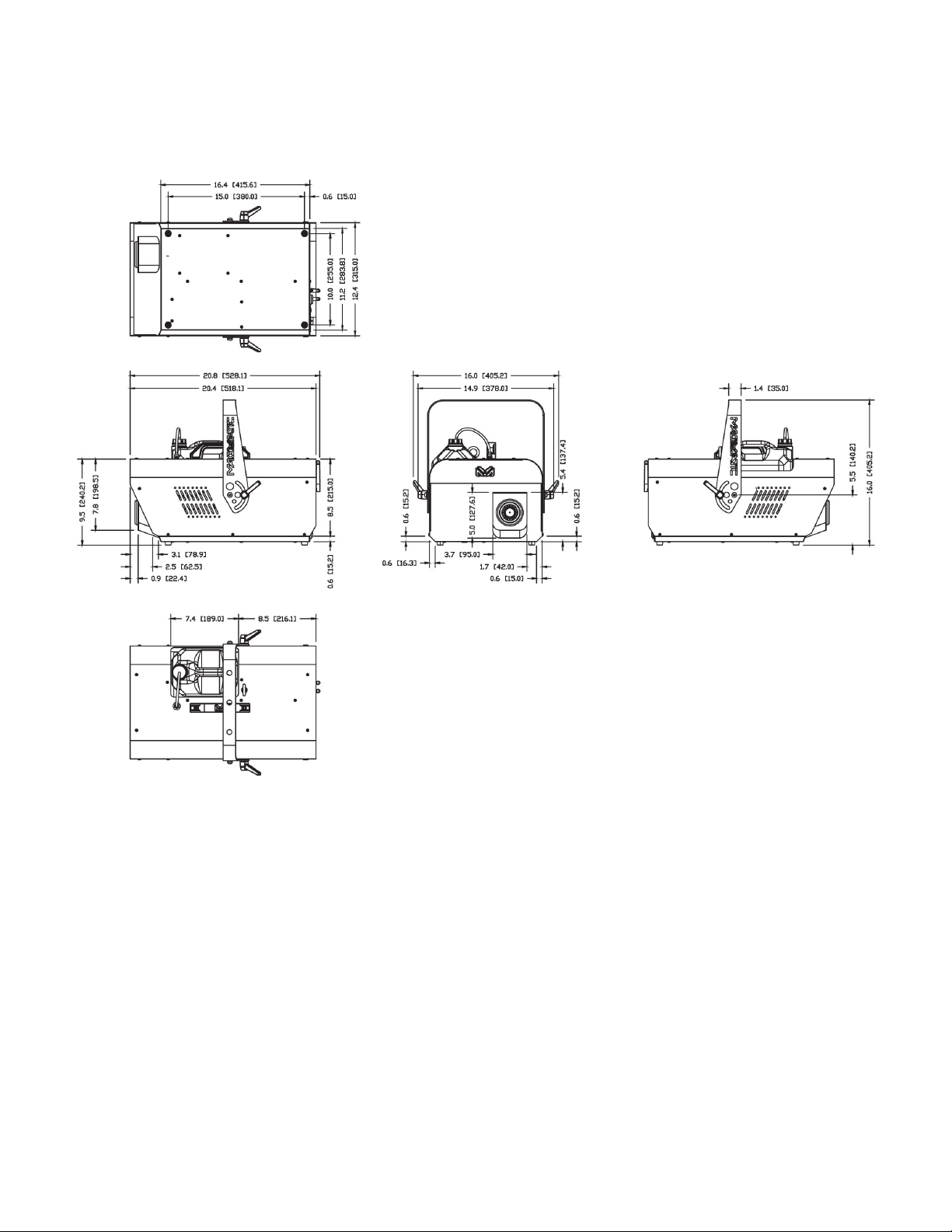

Dimensional Drawings 17
Trouble Shooting | Cleaning & Maintenance | Fuse Replacement 18
Specications 19
FCC Statement 20

4
GENERAL INFORMATION
INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before attempting
to operate this device. These instructions contain important safety and use information.
This product is intended to be used by professionally trained personnel only and is not suit-
able for private use.
UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating condition. Care-
fully check the shipping carton for damage that may have occurred during shipping. If the carton is
damaged, carefully inspect the device for damage, and be sure all accessories necessary to install
and operate the device have arrived intact. In the event damage has been found or parts are miss-
ing, please contact our customer support team for further instructions. Please do not return this
device to your dealer without rst contacting customer support. Please do not discard the shipping
carton in the trash. Please recycle whenever possible.
BOX CONTENTS
Locking Power Cable
CUSTOMER SUPPORT
Contact MAGMATIC customer service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | sales@magmaticeects.com
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | [email protected]
REPLACEMENT PARTS please visit parts.elationlighting.com
IMPORTANT NOTICE!
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS
YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY. DAMAGES RESULTING
FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS
AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT
SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.

5
LIMITED WARRANTY (USA ONLY)
A. Magmatic Eects hereby warrants, to the original purchaser, Magmatic products to be free of
manufacturing defects in material and workmanship for a period of two years (730 days) from the
original date of purchase. This warranty excludes all product accessories. This warranty shall be valid
only if the product is purchased within the United States of America, including possessions and territories.
It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at
the time service is sought.
B. For warranty service, send the product only to the Magmatic Eects factory. All shipping charges
must be pre-paid. If the requested repairs or service (including parts replacement) are within the
terms of this warranty, Magmatic Eects will pay return shipping charges only to a designated point
within the United States. If any product is sent, it must be shipped in its original package and packaging
material. No accessories should be shipped with the product. If any accessories are shipped with
the product, Magmatic Eects shall have no liability what so ever for loss and/or or damage to any
such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product
is modied in any manner which Magmatic Eects concludes, after inspection, aects the reliability
of the product; if the product has been repaired or serviced by anyone other than the Magmatic Eects
factory unless prior written authorization was issued to purchaser by Magmatic Eects; if the product
is damaged because not properly maintained as set forth in the product instructions, guidelines and/
or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or
periodic check-up. During the periods as specied above, Magmatic Eects will replace defective
parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of Magmatic Eects under this warranty
shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion
of Magmatic Eects. All products covered by this warranty were manufactured after January 1, 1990,
and bare identifying marks to that eect.
E. Magmatic Eects reserves the right to make changes in design and/or performance improvements
upon its products without any obligation to include these changes in any products theretofore
manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied
with the products described above. Except to the extent prohibited by applicable law, all implied
warranties made by Magmatic Eects in connection with this product, including warranties of merchantability
or tness, are limited in duration to the warranty periods set forth above. And no warranties, whether
expressed or implied, including warranties of merchantability or tness, shall apply to this product
after said periods have expired. The consumer’s and/or dealer’s sole remedy shall be such repair or
replacement as is expressly provided above; and under no circumstances shall Magmatic Eects be
liable for any loss and/or damage, direct and/or consequential, arising out of the use of, and/or the
inability to use, this product.
G. This warranty is the only written warranty applicable to Magmatic Eects products and supersedes
all prior warranties and written descriptions of warranty terms and conditions heretofore published.

6
WARRANTY RETURNS (USA ONLY)
To obtain warranty service, a Return Materials Authorization (RMA) number must rst be obtained
from MAGMATIC. It is the Customer’s responsibility to provide product proof of purchase and serial
number by acceptable evidence such as an invoice copy or an approved MAGMATIC Extended
Warranty Certicate (“EWC”) and any relevant maintenance records at the time warranty service is
sought. Failure to provide acceptable evidence of product proof of purchase or EWC and any rele-
vant maintenance records may be cause for denial of warranty service.
Products returned for warranty service must be sent without any accessories (i.e., power, data, and
safety cables, brackets, clamps, rigging hardware, frost lters, gel frames, barn doors, lens, hoses,
nozzles, rack mounting hardware, etc.), must be boxed using the original and/or suitable packaging
materials (double-box and foam) that provides ample product protection for ground and/or air freight
transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or an
MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of
the return box, and a brief description of the problem and the RMA number must be documented
and included in the box.
Products returned for warranty service without an RMA number clearly marked on the outside of the
package will be refused and returned to the shipper at the Customer’s expense. Products returned
for warranty service, which are received damaged due to inadequate and/or improper packaging
and/or due to damage caused by shipping carrier, may incur additional repair charges before warranty
service begins and/or may void this warranty. If any product accessories (included and/or optional)
are shipped with the product, MAGMATIC and/or the MAGMATIC Authorized Service Center shall
have no liability what so ever for the loss and/or damage to any such accessories, nor the safe return
thereof. If the requested warranty repairs or service (including parts replacement) are within the
terms of this warranty, MAGMATIC will pay return ground transportation shipping charges to a single
designated point within the United States.

7
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual.
MAGMATIC is not responsible for injury and/or damages resulting from the misuse of these devices
due to the disregard of the information printed in this manual. Only qualied and/or certied personnel
should perform installation of these devices and only the original rigging parts included with these
devices should be used for installation. Any modications to these devices and/or the included
mounting hardware will void the original manufactures warranty and increase the risk of damage
and/or personal injury.
PROTECTION CLASS 1 – DEVICES MUST BE PROPERLY GROUNDED
THERE ARE NO USER SERVICEABLE PARTS INSIDE THESE DEVICES. DO NOT
ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURES
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THESE DEVICES AND/
OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO
ANY WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG THIS UNIT INTO A DIMMER PACK!
DO NOT REMOVE THE COVER UNDER ANY CONDITIONS!
KEEP UNIT UPRIGHT!
NEVER OPERATE THIS UNIT WITH THE COVER REMOVED!
UNPLUG POWER DURING LONG PERIODS OF NON-USE
ENSURE TANK AND COOLER ARE EMPTY BEFORE STORAGE OR TRANSPORT!
DO NOT MOVE UNIT WHEN FILLED WITH WATER AND ICE!
DISCONNECT POWER BEFORE ADDING WATER OR PERFORMING MAINTENANCE!
INDOOR / DRY LOCATIONS USE ONLY!
DO NOT EXPOSE DEVICES TO RAIN AND/OR MOISTURE!
PLACE UNIT IN A WELL VENTILATED AREA.
ALLOW 40” (100CM) ABOVE AND AROUND THE UNIT FOR PROPER VENTILATION
SAFETY GUIDELINES

8
SAFETY GUIDELINES
IMPORTANT SAFETY INSTRUCTIONS. READ THESE INSTRUCTIONS THOROUGHLY BEFORE USE,
AND SAVE THEM FOR FUTURE REFERENCE.
CAUTION:
• Risk of burn, re, or electric shock.
• For indoor use only.
• Please read the instruction manual carefully before use.
• Do not immerse in liquid.
• Not for space heating use.
WARNING: To prevent risk of personal injury, re, and electric shock:
• Never leave unit unattended while plugged in. Unplug device when not in use.
• Read all important safety instructions and cautions before attempting to use.

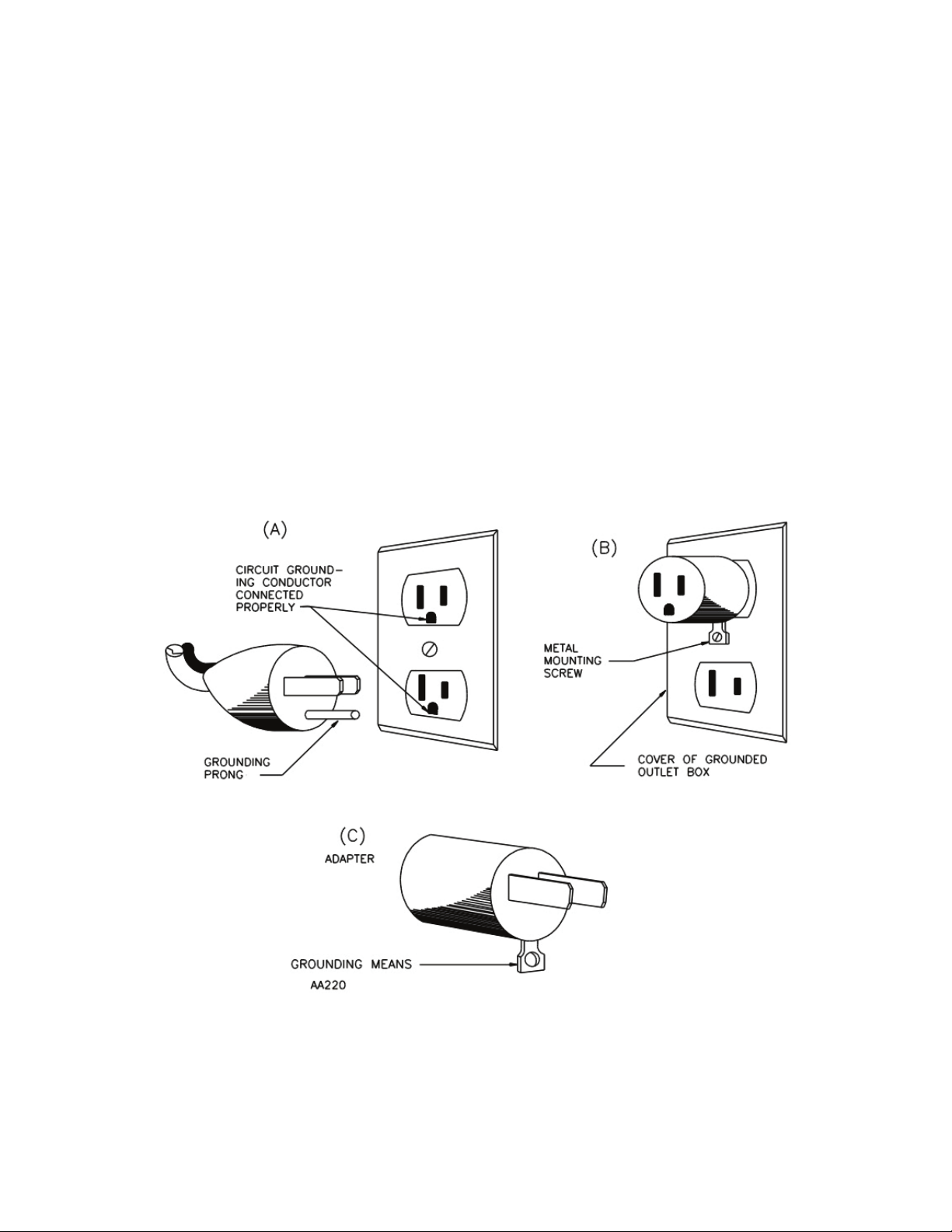

• Connect only to a properly grounded power outlet.
• Place product on a at, level, HARD surface and connect the cord to prevent the product from tipping or
overturning.
• For use in covered areas only! Keep unit dry, and do not expose to rain, moisture, or liquid immersion.
• Leave enough space for adequate ventilation. Keep the device cool and away from other objects.
• Do not operate the device without fog liquid in the reservoir.
• Use caution when lling the uid reservoir in order to avoid spillage, as spilled liquid can result in electrical
shock.
• Do not use if liquid spills into or onto the unit, and allow the device to dry completely before attempting
usage.
• Do not overll the uid reservoir.
• Keep away from ames and ammable or explosive substances.
• Never pour ammable liquids, such as gas, perfume, etc, into the fog machine.
• Keep the device and fog uid out of reach of children.
• Use only under adult supervision.
• Do not direct fog output in the direction of people or open ame.
• Stay at least 20 inches (50cm) from the output nozzle on the front of the unit.
• Do not obstruct the output nozzle.
• Do not open the unit for any reason. There are no user serviceable parts inside, and all maintenance and
repair procedures should be referred to an authorized vendor or technician.
• Only a certied electrician may replace the power cord.
• Clean the unit prior to storage to avoid damage.
POWER SUPPLY CORD:
• A short power supply cord (or short detachable power-supply cord) is provided to reduce the risk of a
person becoming entangled in or tripping over the cord.
• Extension cords (or long detachable power-supply cords) are available and may be used as long as care is
exercised during use.
• If an extension cord (or long detachable power-supply cord) is used, follow the guidelines below:
1. The indicated electrical rating of the cord should be meet or exceed the rating of the device.
2. If the device is of the grounded type, the cord must use a grounding type 3-wire cord.
3. The cord should be routed in such a way as not to cause a tripping hazard or result in unintentional
snagging or pulling of the cord, especially in the presence of children.

9
SAFETY GUIDELINES
DANGER:
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
The conductor with insulation that is green (with or without yellow stripes) is the equipment-ground-
ing conductor. If the power cord is damaged or in need of replacement or repair, do not connect the
equipment-grounding conductor to a live terminal. Check with a qualied electrician or serviceper-
son if the grounding instructions are unclear to you in any way. Do not modify the plug provided
with the appliance. If it will not t the outlet, it will be necessary to have a proper outlet installed by
a qualied technician. This appliance is for use on a nominal 120V circuit, and has a grounding plug
that looks like a plug illustrated in Figure A below.
A temporary adaptor, as illustrated in Figure C, maybe used to connect this plug to a 2-prong outlet
as shown in Figure B if a properly grounded outlet is not available. The temporary adaptor should be
used only until a properly grounded, 3-prong outlet can be installed by a qualied electrician. The
green colored rigid ear and lug extending from the adaptor must be connected to a permanent
ground, such as properly grounded outlet box cover. Whenever the adaptor is used, it must be
secured in place by the metal screw. A qualied electrician should be consulted if there is any doubt
as to whether an outlet is properly grounded.

10
OVERVIEW
1. Hanging Bracket
2. Bracket Knobs
3. Output Nozzle
4. Safety Cable Attachment Point
5. Carrying Handle
6. Card Inputs
7. Locking 5-Pin XLR Connector In
8. Locking Power Cable Input
9. Breaker
10. Power Switch
11. Locking 5-Pin XLR Connector Out
12. Remote Control Connection
13. Touch Screen Display
14. Fluid Reservoir
15. Fluid Feeder Line 12
13
6
7
8
9
10
11
14
5
4
3
1
22
15

11
OPERATION
1. Open the shipping carton and carefully remove the unit and all included items from the shipping
carton.
2. Be sure to remove all the packing material especially around the nozzle.
3. Set the machine on a flat dry surface. Remove the fluid reservoir cap and carefully fill the snow
fluid reservoir with Atmosity Premium Snow Fluid. Once the fluid tank is filled, replace and tighten
the reservoir cap.
4. Connect the unit to a matching power supply and put the power switch into the “ON” position.
5. To emit snow, select your desired operating mode using the touch screen display. See the
Control Panel and System Menu sections of this manual for details.
6. When powering this device down after use, the CLEANING icon will flash on the screen. Do NOT
disconnect the device from power while the CLEANING icon is flashing. The device’s self-clean
cycle must be allowed to finish before power is disconnected. This process should only take
about 12 seconds.

12
CONTROL PANEL
NAVIGATION ICONS
BACK/EXIT UP DOWN ENTER
This xture includes a system menu with an easy to navigate touch screen control panel where all
necessary settings and adjustments are made. When rst powering on the xture, the xture’s main
menu will be displayed (see Main Menu Screen below).
Press the main menu icon you would like to access. Use the ENTER button to access sub menus
and use the UP and DOWN buttons to make adjustments. Press the ENTER button to conrm your
adjustments. You may exit the main menu at any time without making any adjustments by pressing the
BACK/EXIT button.
TIMER MENU: The timer sub menu includes snow output adjustment, fan adjustment, duration adjustment,
and interval adjustment. To access the TIMER adjustment menu, press the SETTINGS icon located
at the bottom of the screen. Use the UP and DOWN buttons to make your adjustments and press
ENTER to conrm. When all settings have been made, press the PLAY/START button to begin the
timer function.
BACK/EXIT SETTINGS PLAY/STOP
TIMER ICONS (TIMER MENU)

13
SYSTEM MENU
DMX SETUP
DMX Addr 001 - 512 DMX Addressing
DMX Mode
1 CH
DMX Channel Mode
Selection
3 CH
5 CH
PERSONALITY
MagApp Set
MagApp Name 0-XXXX Displays Wifi Name
MagApp Passcode 0000000 - 00009999 Wifi Password
MagApp IP 0-255.0 ~ 255.0 ~ 255.0
~ 255 Displays Wifi IP
MagApp Port 0-65535 Network Port
MagAPP Reset Complete Network Connection
Reset
Failed, try again
MagApp->DMX & Magfly On / Off Magfly Transmit On
LCD Set Screen OFF: Never/10s/40s/1min/2min/5min/
10min/20min
Display Blackout
Time
Magfly Set Magfly Channel: 0-14 Magfly Channel
Setting
Magfly: On / Off Magfly Activation
No Fluid On / Off Activate/Deactive No
Fluid Warning
MagRF Learn Will notify whether MagRF connection is successful after 20s
Last State Yes / No Activate/Deactive
Last State
Default Press ‘ENTER’ Restore Factory
Settings
MANUAL Snow
1% - 100%
Manual Control
Fan
50% - 100%
TIMER
Snow Output 1% - 100% Snow Output
Setting
Fan Speed 50% - 100% Fan Speed
Setting
Interval 0-2500s Interval Setting
Duration 0-250s Duration Setting
CONTINUED ON NEXT PAGE

14
SYSTEM MENU
PRESET
Preset 1
- 10 min duration
- 3 min interval
- 100% snow
- 100% fan
Preset Settings 1
(Not Adjustable)
Preset 2
- 5 min duration
- 2 min interval
- 50% snow
- 100% fan
Preset Settings 2
(Not Adjustable)
Preset 3
- 3 min duration
- 1 min interval
- 30% snow
- 100% fan
Preset Settings 3
(Not Adjustable)
Preset 4
- 5 min duration
- 2 min interval
- 10% snow
- 100% fan
Preset Settings 4
(Not Adjustable)
Preset 5
- 3 min duration
- 1 min interval
- 10% snow
- 100% fan
Preset Settings 5
(Not Adjustable)
INFORMATION
State Normal / Error Machine Status
Slot 1 Null / Magfly / MagApp / MagRF Slot 1 Status
Slot 2 Null / Magfly / MagApp / MagRF Slot 2 Status
Last Control LCD_auto / LCD_manual / DMX / MagApp /
MagRF / MagRemote / Error Current Control Status
MagRemote
Status Yes / No Remote Control Status
MagApp Connect Null / Phone / Route / No Wifi Connection Status
MagApp IP No / 0~255, 0~255, 0~255, 0~255 Currrent Wifi IP Status
Magfly CH 0-14 Current Magfly
Channel Setting
DMX Addr 1-512 Current DMX Address
Setting
DMX Mode 1 / 3 / 5 Current DMX Ch. Mode
Setting
Timer Output 1% - 100% Current Timer Output
Setting
Timer Blower 50% / 100% Current Timer Fan
Setting
Timer Int. 0s - 2500s Current Timer Interval
Setting
Timer Dur. 0s - 250s Current Timer Duration
Setting
No Fluid Normal / Empty Current Fluid Tank
Status
LCD Ver V1.5 Current LCD Version
Sftwr Ver V1.1 Current Software
Version

15
MESSAGE ICONS
Icon Description
Icon appears when MagFly module is connected. 4-bar symbol
on the right indicates signal strength, with 0 bars being weakest
and 4 bars being strongest.
Icon appears when MagApp module is connected. 4-bar symbol
on the right indicates signal strength, with 0 bars being weakest
and 4 bars being strongest.
Icon appears when MagRF module is connected. Note that the
icon will only appear if an RF signal exists.
Icon appears when MagRemote is connected.
Icon indicates that the uid tank is empty, and disappears when
uid is added to the tank.
Icon appears and ashes during the duration of the 12-second
self-cleaning operation.*
*NOTE: WHEN POWERING DOWN THE DEVICE, THE CLEANING ICON WILL FLASH ON THE
SCREEN. DO NOT DISCONNECT THE POWER CORD UNTIL THE CLEANING ICON STOPS
FLASHING. THE DEVICE MUST BE ALLOWED TO COMPLETE THE SELF-CLEANING PROCE-
DURE BEFORE POWER IS DISCONNECTED.

16
DMX CHANNEL FUNCTIONS & VALUES
CHANNEL DMX
VALUES FUNCTION
1CH 3CH 5CH
1
Volume
000 - 005 Off
006 - 255 1% - 100%
1 1
On/Off
000 - 005 Off
006 - 255 On
2 2 000 - 255 Volume, 1% - 100%
3 3
Fan
000 - 127 50%
128 - 255 100%
4
Duration
000 - 005 0s
006 - 255 1s - 250s
5
Interval
000 - 005 0s
006 - 255 10s - 2500s

17
DIMENSIONAL DRAWINGS

18
CLEANING & MAINTENANCE
STORAGE
When storing your snow machine be sure to store it in a cool area. Cover the machine so that dust
does not build up on the unit. When storing the machine for long periods of time, it is highly advised
to at least run the machine every 2-3 months. Long periods of inactivity can severly shorten the life
of your machine.
SNOW FLUID
Only run Atmosity Premium Snow Fluid through your machine. NEVER run any other liquid solution
through your machine. Running anything other then water based SNOW fluid will severly damage your
machine.
TROUBLE SHOOTING
If you experience low output, pump noise, or no snow output at all, disconnect and discontinue use
immediately. Do not attempt to continue to operate as this may damage the machine. Check the
fluid level, the breaker, and be sure the wall outlet is sending power. If all of the above appears to be
okay, and the unit fails to operate correctly, the unit will require service. Please contact Magmatic
Effects.
FUSE REPLACEMENT
If the unit fails to function when connected to the main power supply, check to see whether the fuse
has blown.
WARNING: Risk of electric shock and fire. Disconnect from main power supply before attempting to
replace fuse.
1. Using a Phillips head screwdriver, remove fuse cover on back of unit. Rotate the fuse cover
counter clockwise to remove the fuse and the cover.
2. Remove the blown fuse from the fuse cover.
3. Install a replacement fuse of the same size and rating as the original fuse: 10A, 125V. Place the
replacement fuse in the fuse cover, and reinstall by rotating the fuse cover clockwise. Do not
overtighten the fuse cover.

19
SPECIFICATIONS
KEY FEATURES
High-Powered 1,250W Snow Machine
Silent Operation for Noise Sensitive Environments
Advanced APF (air pump fan) Technology
Auto-Clean Process
Compact Light Weight Robust Design
Onboard LCD Touch Control Panel
Dynamic Eects
Snow Adjustment: 1-100%
Fan Speed Adjustment 50% or 100%
Snow Distance Output: 39.3 ft/ 12m
Self-Clean Function
Auto Shut-o
Advanced HPA (High Pressure Air Pump)
Control
2 Card Inputs (For optional Magy & MagRF cards)
RDM (Remote Device Management)
Control Protocol: DMX512
DMX Modes: 3 (1 / 3 / 5)
On-Board Timing Control
5 Factory Presets
4-pin Wired Remote Input
Touch Screen Display
On-Board Manual Snow Trigger
Connections
Data Connectors: 5-pin locking XLR In/Out
4-pin Connector for optional wired remote
Locking Power Connector
Compatible Fluid
Recommended uid: Atmosity Premium Snow Fluid. APS-
2L, APS-4L, APS-20L, APS-220L (220LDrum *Special Order)
Construction / Physical / Performance
Dimensions (LxWxH): 20.8in x 16.0in x 16.0in / 528.1 x
405.2 x 405.2mm
Weight: 33.5 lbs / 15.2kg
External Visual Fluid Level Detection
Fluid Tank Capacity: 5L
Fluid Consumption: 16.9oz/min / 500ml/min
Electrical
Power Consumption: 1250w
Input Voltage: U.S. Version - 120VAC @ 60Hz and Eu-
rope Version - 230 - 240VAC @ 50Hz
Breaker Size: 15A (120V version).Breaker Size: 9A
(230-240V version)
Certications / Qualications / Thermal
IP Rating: IP20, dry location
Maximum Temperature (Ambient): 104° F (40° C)
Exterior Surface Temperature: 122° F (50° C)
What’s Included
Hanging Bracket
14 AWG Locking Power Cable
Optional Accessories
MagFLY Card
MagRF Card
CE | cETLus | IP20
Specifications are subject to change without prior notice.
4010765

20
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
This product has been tested and found to comply with the limits as per Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This device uses and can radiate radio frequency energy and, if not
installed and used in accordance with the included instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device o and on, the user is encouraged
to try to correct the interference by one or more of the following methods:
• Reorient or relocate the device.
• Increase the separation between the device and the receiver.
• Connect the device to an electrical outlet on a circuit dierent from which the radio receiv-
er is connected.
• Consult the dealer or an experienced radio/TV technician for help.
