LCD TV
LCD TV
3138 155 23293
1

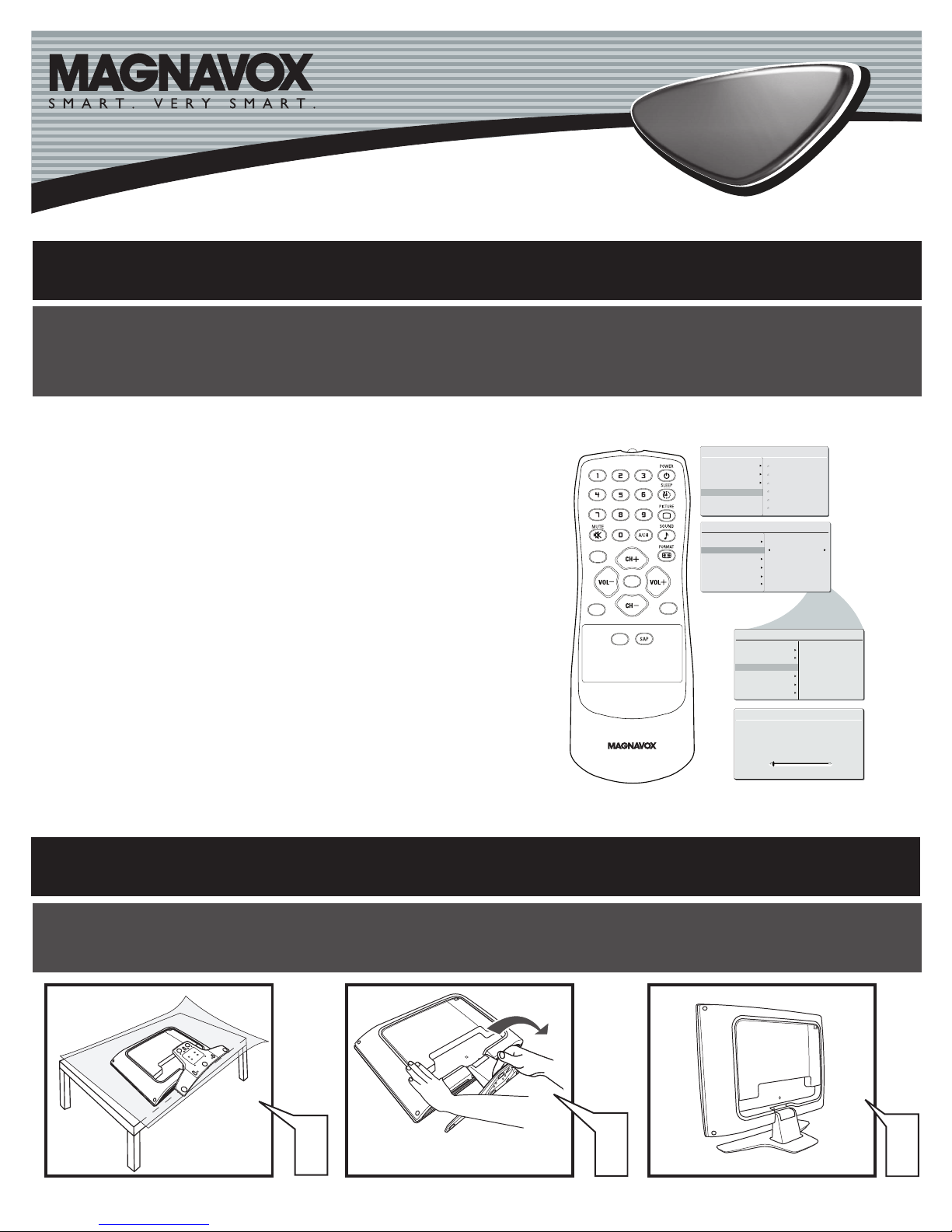

TV CHANNEL INSTALLATION
A U T O S T O R E
P L E A S E W A I T
P R O G . F O U N D 0
C H A N N E L 3
C C
SO UR CE
P I P
M E N U
O K
I N S T A L L
L A N G U A G E
T U N E R M O D E
A U T O P R O G R A M
C H A N N E L E D I T
F A C T O R Y R E S E T
cable
I N S T A L L
L A N G U A G E
T U N E R M O D E
A U T O P R O G R A M
C H A N N E L E D I T
F A C T O R Y R E S E T
S T A R T ?
M A N U A L F I N E T U N E
M A N U A L F I N E T U N E
M A I N C O N T R O L S
P I C T U R E
A U D I O
F E A T U R E S
I N S T A L L
L A N G U A G E
T U N E R M O D E
A U T O P R O G R A M
C H A N N E L E D I T
F A C T O R Y R E S E T
M A N U A L F I N E T U N E
Please follow these steps to install TV channels:
Select a TV channel via SOURCE button on your remote control.
Press MENU button on your remote control to open the onscreen menu.
Press CH(-) to move to INSTALL,press VOL(+) on your remote control to enter
INSTALL.
Press CH(-) to select TUNER MODE, press VOL(+) on your remote control to
select CABLE, ANTENNA or AUTO mode.
CABLE IF you have a cable input
ANTENNA IF you have an antenna input
AUTO IF you are not sure what kind of TV signal input you have
(Cable or Antenna)
Press CH(-) to move to AUTO PROGRAM.
Press VOL(+) to start auto install the TV Channels.
1
2
3
4
For more detailed explanation of AUTO PROGRAM, please refer to
AUTO PROGRAM section on page 5.
5
Immediately after unpacking and plugging in your new television, run the auto program function
to set up the TV for the broadcast or cable channels available in your area. If you do not run the
auto program function to set up the channels , your television may not operate properly.
Expanding the base requires a degree of force; please use sufficient force to unfold the base.
When unfolding the base, place the TV on a flat, sturdy surface before expanding the base.
13
2
6
UNFOLD THE BASE

2
LCD TV
LCD TV
Quick Use and Hookup Guide

S - VIDEO
VIDEO
Side Jack Panel
of Television
AUDIO

CONTENTS IMPORTANT
NOTE: This quick setup guide is used with several
different LCD TV models. Not all features (and drawings)
discussed in this manual will necessarily match those
found with your LCD TV set. This is normal and does not
require that you contact your dealer or request service.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD
DO NOT EXPOSE THIS UNIT TO RAIN OR EXCESSIVE.
PRESENTATION OF THE LCD TV
Television Keys
• VOLUME + / - : To adjust sound level.
• CHANNEL + / - : To select programs.
• MENU : To access or close onscreen menu,
Power button, LED light and infrared sensor
• : To switch the TV on or off.
• Aim remote control at infrared sensors to activate
TV controls.
Rear connectors
Remove the cable cover to access the connectors at
the rear of the LCD TV.
Bottom connectors
Located at the bottom of the set.
1
2
3
4
-  + 



TV CHANNEL INSTALLATION . . . . . . . . 1
UNFOLD THE BASE. . . . . . . . . . . . . . . 1
INSTALLING LCD TV ON THE WALL . . 2
PRESENTATION OF THE LCD TV . . . . . 2
ACCESSORIES. . . . . . . . . . . . . . . . . . . . 3
BATTERY INSTALLATION . . . . . . . . . . . . 3
REMOTE CONTROL OPERATION . . . . . . 3
ANTENNA TV . . . . . . . . . . . . . . . . . . 4
BASIC CABLE TV CONNECTION . . . . . 4
T
UNER MODE CONTROL . . . . . . . . . . . . . 5
AUTO PROGRAM (SETTING UP
CHANNELS) . . . . . . . . . . . . . . . . . . . . 5
CABLE BOX (WITH RF IN/OUTPUTS) . . 6
CABLE BOX (WITH AUDIO/VIDEO
OUTPUTS) . . . . . . . . . . . . . . . . . . . . . 6
S-VIDEO CONNECTIONS . . . . . . . . . . . 7
COMPONENT (HD) CONNECTIONS . . . 7
PC (MONITOR) INPUTS . . . . . . . . . . . 8

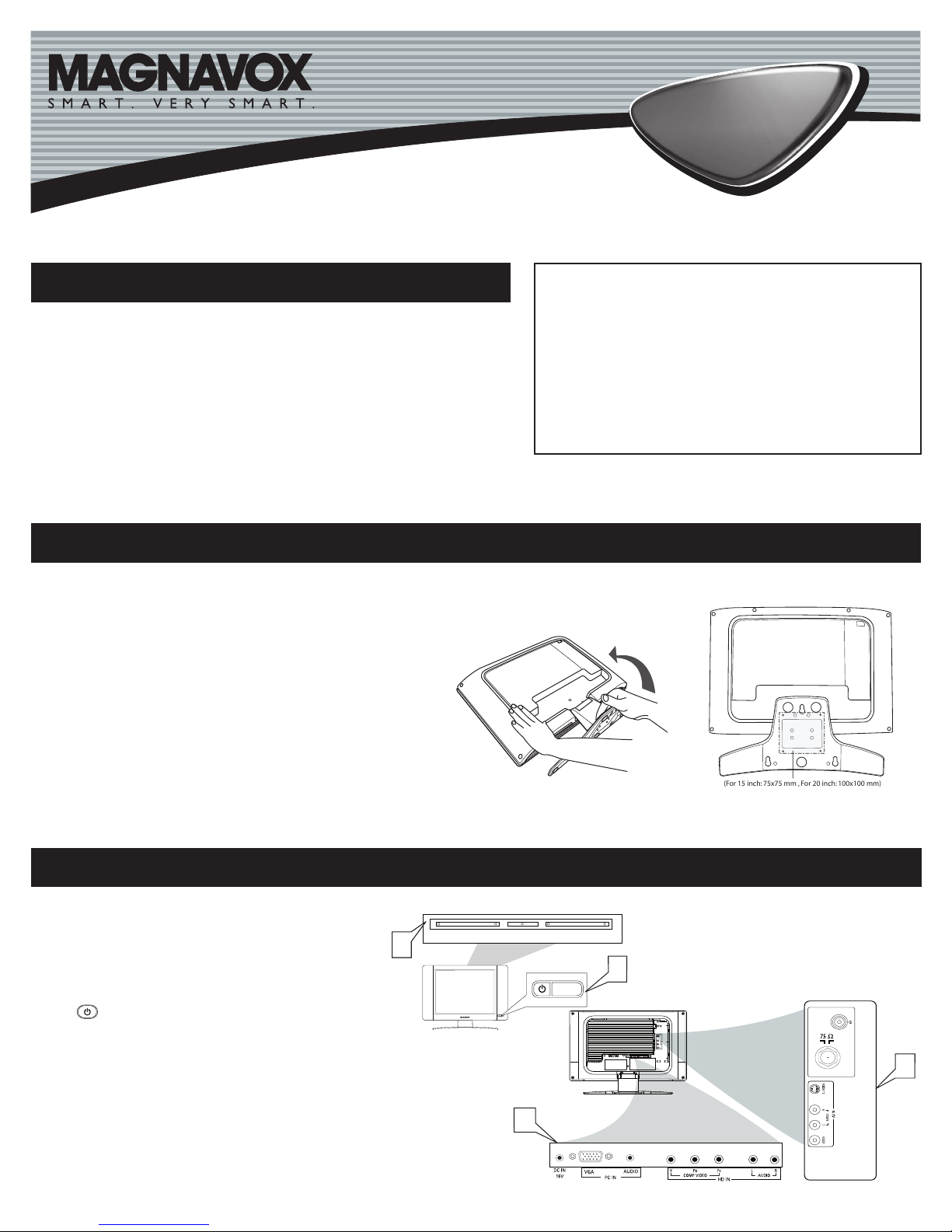

INSTALLING LCD TV ON THE WALL
The stand of your LCD TV complies with the VESA standard, if you intend to install the LCD TV on the wall,
please consult a professional technician for proper installing.
(For 15 inch: 75x75 mm , For 20 inch: 100x100 mm)
Wall Mounting of your LCD TV :
Fold the base backward
Use for the TV set a Vesa compliant wall mount (not included).
(For 15 inch: 75x75 mm , For 20 inch: 100x100 mm)
Use for installation a professional technician.
Note: The manufacture accepts no liability, ensure installation is
done by a professional technician.
1
2
3

3

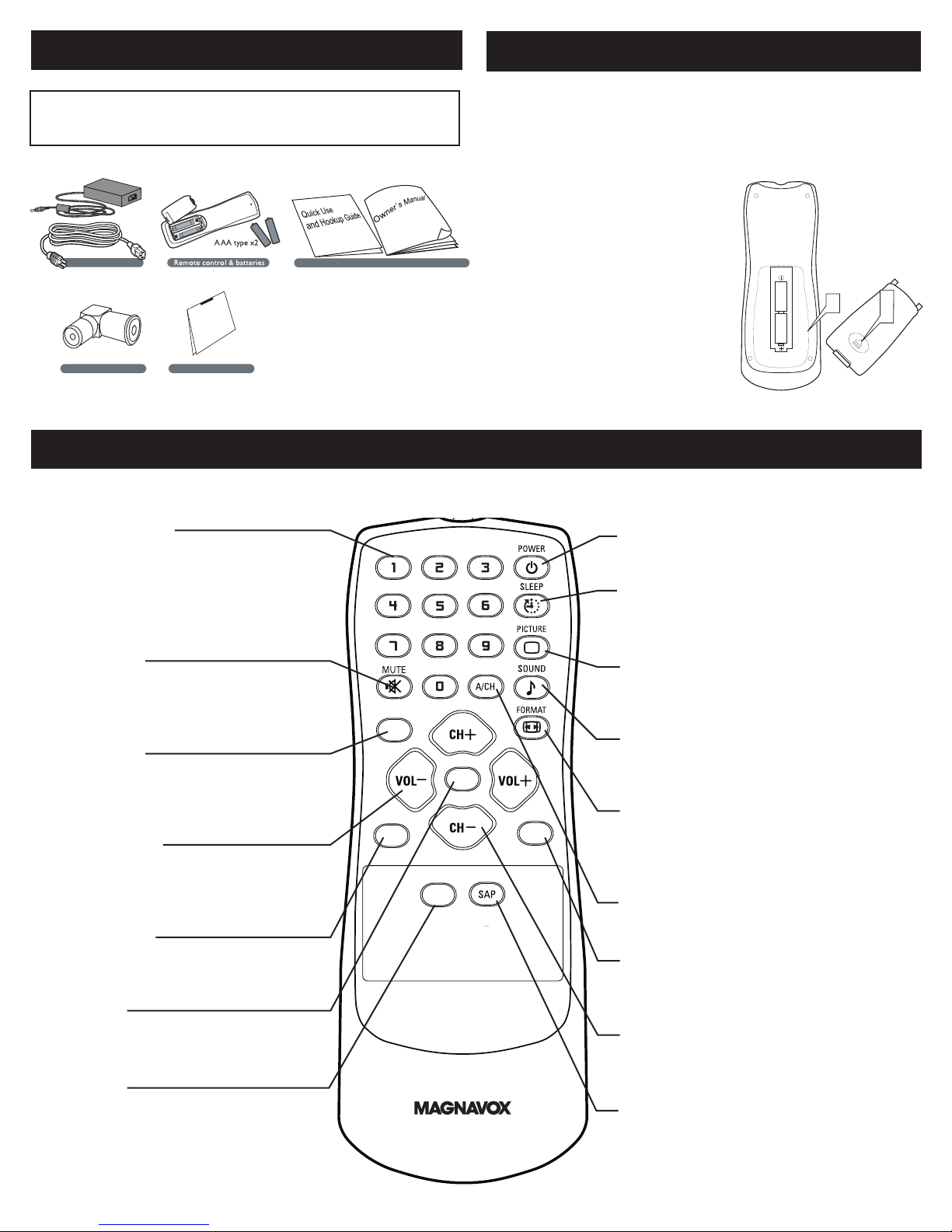

BATTERY INSTALLATION


Remove the battery compartment
lid on the back of the remote.
Place two AAA batteries in the
remote. Be sure the (+) and (-) ends
of the batteries line up as marked
inside the battery compartment.
Reattach the battery compartment
lid.
1
2
3
REMOTE CONTROL OPERATION
C C
SOURCE P I P
M E N U
OK
Number buttons
Press to select TV channels. When selecting
single-digit channels, press the number of the
desired channel.
The LCD TV will pause for a few seconds then
tune to the selected channel.
Mute button
Press to eliminate or restore the LCD TV
sound. Mute will appear on the screen when
the sound is muted.
Menu button
Press to activate onscreen menu, back to
previous level inside the onscreen menu, also
press to exit the onscreen menu.
Volume button
Press to increase or decrease the sound level,
also press to navigate left/right in onscreen
menu.
Source button
Press to select the video input source: AV,
S-Video, HD, PC, TV.
OK button
Press to confirm the option you selected in the
onscreen menu.
C.C button
Press the C.C button to select CC on or CC
off.
Standby (Power) button
Press to turn the LCD TV on or off.
Sleep button
Press to set the LCD TV to turn itself off within a
certain time.
Smart Picture button
Press repeatedly to select either Personal, Movie,
Sports, Weak signal, or Multimedia picture setting.
Smart Sound button
Press repeatedly to select among the 4 settings;
Personal, News, Music, or Theater.
Picture Format button
Press the FORMAT button repeatedly to toggle
among the four screen format sizes; 4:3, EXPAND
4:3, COMPRESS 16:9, or HD 4:3.
Previous Channel button
Press to go to previously selected channel.
PIP button
Press repeatedly to change the size of PIP window
in PC mode.
Channel button
Press to adjust the channel up or down. Also press
to select or navigate up/down in onscreen menu.
SAP button
Press to select a sound mode if available with the
TV programming:Mono, Stereo, or SAP.
ACCESSORIES
When you unpack this unit, make sure it includes the
following:
Owner`s Manual & Quick Use and Hookup Guide Tuner L-Adapter Warranty Card
Power adapter & cable
Warranty Card
Owner`s Manual & Quick Use and Hookup Guide Tuner L-Adapter Warranty Card
Power adapter & cable
Warranty Card

4
ANTENNA TV
A combination antenna receives normal broadcast channels (VHF 2–13 and UHF 14–69). Your connection is easy because there is only
one 75 Ω (ohm) antenna jack on the side of your TV, and that’s where the antenna goes.
If your antenna has a round cable (75 ohm) on the end, then
you’re ready to connect it to the LCD TV. If your antenna
has flat, twin-lead wire (300 ohm), you first need to at-
tach the antenna wires to the screws on a 300- to 75-ohm
adapter(not supplied).
Connect the antenna (or adapter) to one end of the
supplied L-Adapter as shown, and connect the other end of
the L-Adapter to the TV jack on the side of the LCD TV.
Plug the DC adapter into the DC IN 16V jack on the LCD
TV. Plug the power cable into an outlet and switch TV set on.
Run the AUTO PROGRAM function to set up the TV for the
broadcast or cable channels available in your area. If you do
not run the auto program function to set up the channels ,
your television may not operate properly.
1
2
1
Antenna
with 75 Ω
cable
Rear Jack panel of
Television
Outdoor or Indoor Antenna
(Combination VHF/UHF)
OR
2
Twin-lead
wire to
300-75Ω
adapter
DC Adapter
Power
Cable
3

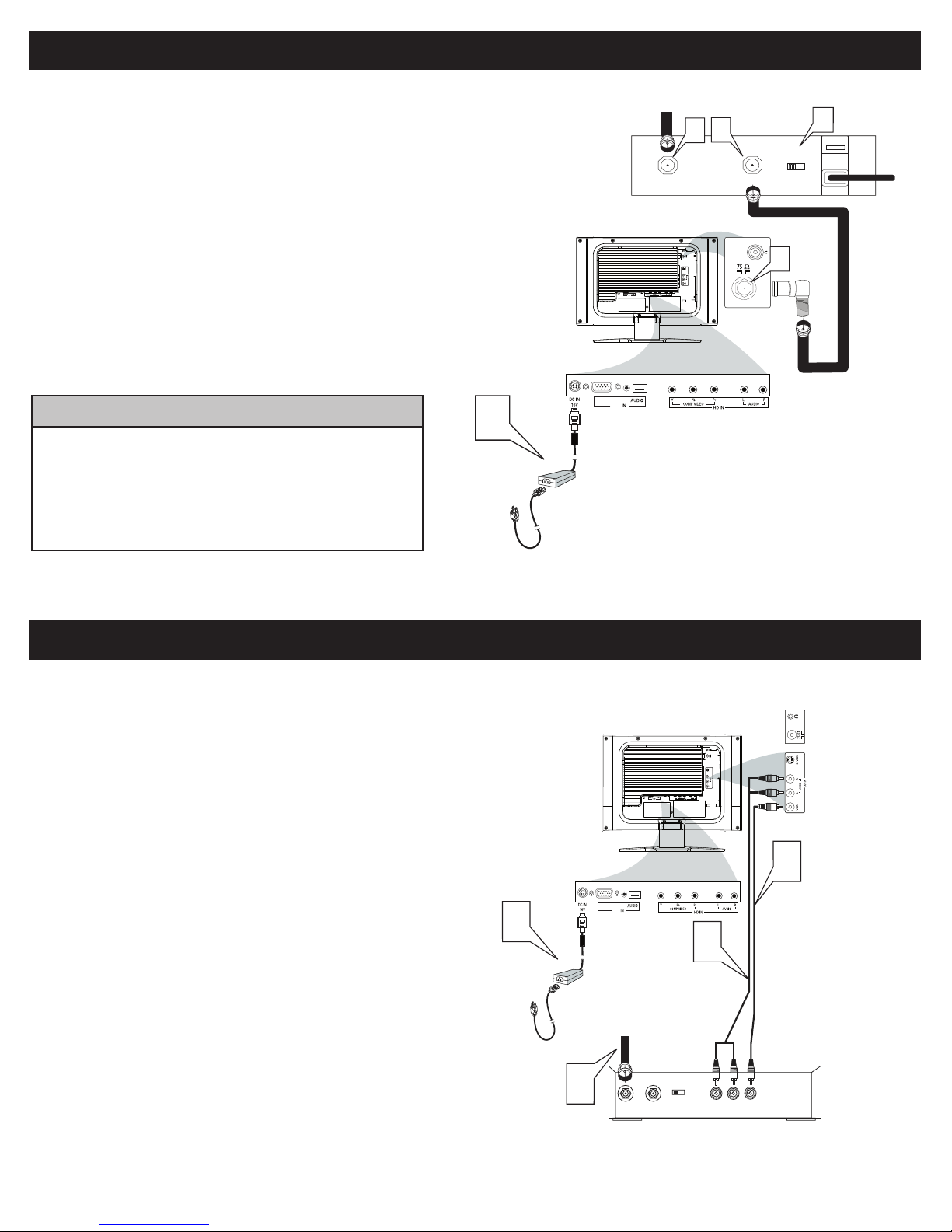

Your Cable TV input into your home may be a single (75 ohm) cable or use a cable box decoder. In either case the connection is very
simple. Follow the steps below to connect your cable signal to your new television.
Direct cable connections:
Connect the Cable TV signal to one end of the supplied
L-Adapter as shown, and connect the other end of the
adapter to the TV jack on the LCD TV.
Plug the DC adapter into the DC IN 16V jack on the LCD
TV. Plug the power cable into an outlet and switch TV set on.
Run the AUTO PROGRAM function to set up the TV for the
broadcast or cable channels available in your area. If you do
not run the auto program function to set up the channels ,
your television may not operate properly.
1
3
2
BASIC CABLE TV CONNECTION
1
The Cable TV signal from
Cable Company
(75 coaxial cable)
Rear Jack panel of
Television
Ω
DC
L Adapter
Adapter
Power
Cable
2
4
3
• Remember, an antenna or cable TV signal must first be connected to
your LCD TV.
• Please make sure that you have selected the TV mode with source key
on your remote control, before installing TV channels.
HELPFUL HINT
• Remember, an antenna or cable TV signal must first be connected to
your LCD TV.
• Please make sure that you have selected the TV mode with source key
on your remote control, before installing TV channels.
HELPFUL HINT

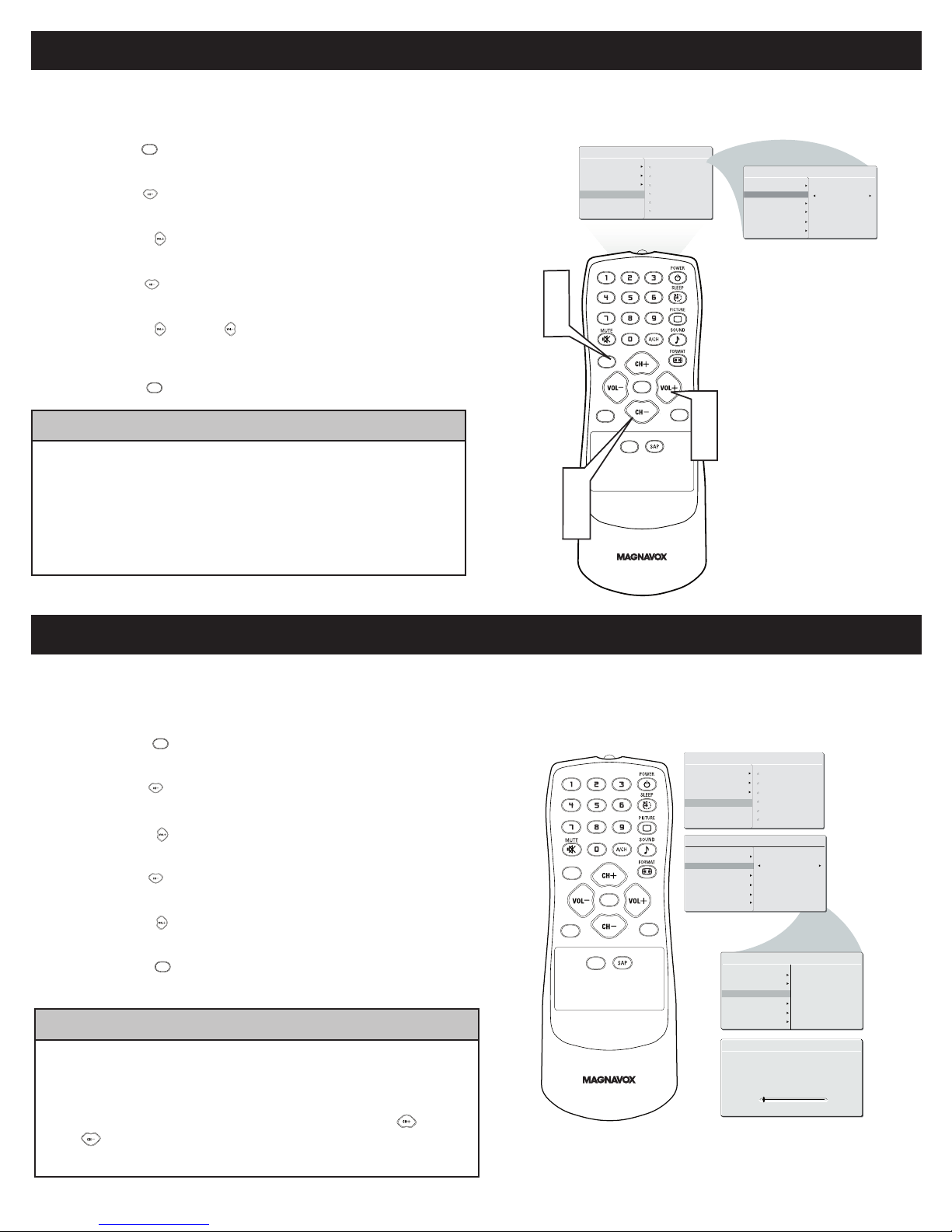

TUNER MODE CONTROL
The Tuner Mode allows you to change the LCD TV’s signal input to Cable or Air
(antenna). It’s important for the LCD TV to know if you want to receive channels from a cable TV signal or an antenna signal.
MAIN CONTROLS
AUDIO
FEATURES
INSTALL
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
FACTORY RESET
MANUAL FINE TUNE
C C
SOURCE PIP
MENU
O K






INSTALL
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
FACTORY RESET
CABLE
MANUAL FINE TUNE
• When CABLE is selected, channels 1-125 are available.
• When ANTENNA is selected, channels 2-69 are available.
• When AUTO is selected, your LCD TV will search automatically for antenna
or cable channels.
• Immediately after unpacking and plugging in your new television, run the AUTO
PROGRAM function to set up the TV for the broadcast or cable channels
available in your area. If you do not run the auto program function to set up the
channels, your television may not operate properly.
HELPFUL HINT
Press the Menu button to see the onscreen menu.
Press the (CH-) button to highlight the INSTALL menu.
Press the (VOL+) button to enter the INSTALL menu.
Press the (CH-) button to highlight the TUNER MODE menu.
Press the (VOL+) or (VOL-) buttons to select CABLE, ANTENNA
or AUTO.
Press the MENU button repeatedly to clear the menu from the screen.
1
2
3
4
5
6
M E N U
M E N U
Your LCD TV can automatically set itself for local area (or cable TV) channels. This makes it easy for you to select only the TV stations in
your area by pressing the CH (+) or CH (-) button.
AUTO PROGRAM (SETTING UP CHANNELS)
Press the MENU button on the remote control to show the
onscreen menu.
Press the (CH-) button to
highlight the INSTALL menu.
Press the (VOL+) button
to enter the INSTALL menu.
Press the (CH-) button to
highlight the AUTO PROGRAM control.
Press the (VOL+) button to start the AUTO PROGRAM scanning of
channels.
Press the MENU button repeatedly to clear the menu from the screen,
after AUTO STORE has finished.
1
2
3
4
5
6
A U T O S T O R E
P L E A S E W A I T
P R O G . F O U N D 0
C H A N N E L 3
C C
SO U RC E
P I P
M E N U
O K
I N S T A L L
L A N G U A G E
T U N E R M O D E
A U T O P R O G R A M
C H A N N E L E D I T
F A C T O R Y R E S E T
cable
I N S T A L L
L A N G U A G E
T U N E R M O D E
A U T O P R O G R A M
C H A N N E L E D I T
F A C T O R Y R E S E T
S T A R T ?
M A N U A L F I N E T U N E
M A N U A L F I N E T U N E
M A I N C O N T R O L S
P I C T U R E
A U D I O
F E A T U R E S
I N S T A L L
L A N G U A G E
T U N E R M O D E
A U T O P R O G R A M
C H A N N E L E D I T
F A C T O R Y R E S E T
M A N U A L F I N E T U N E
M E N U
M E N U
• Immediately after unpacking and plugging in your new television, run the auto
program function to set up the TV for the broadcast or cable channels available in
your area. If you do not run the auto program function to set up the channels ,
your television may not operate properly.
• After you’ve run Auto Program, check out the results. Press the CH+ or the
CH- button and see which channels you can select.
• Remember, an antenna or cable TV signal must first be connected to your LCD TV.
HELPFUL HINT
5

6
CABLE BOX (WITH RF IN / OUTPUTS):
Connect the Cable TV signal to the IN jack (or RF IN or CABLE
IN) on the Cable Box.
Connect an RF coaxial cable (not supplied) to the OUT jack (or
TO TV or RF OUT) of the Cable Box.
Connect the other end of the coaxial cable to one end of the
supplied L-Adapter as shown, and connect the other end of the
adapter to the TV jack on the LCD TV.
Plug the DC adapter into the DC IN 16V jack on the LCD TV.
Plug the power cable into an outlet and switch TV set on.
Set the Channel 3/4 (or Output channel) switch of the Cable Box
to 3 or 4. Set the TV to the same channel. When watching TV
programming, change channels at the Cable Box, not the LCD TV.
1
2
3
4
5
CABLE BOX (WITH AUDIO / VIDEO OUTPUTS):
This connection will supply stereo sound to the LCD TV.
Connect the Cable TV signal to the IN jack (or RF IN or CABLE
IN) on the Cable Box.
Using an RCA-type video cable (not supplied) connect one end of
the video cable to the Video Out jack of the Cable Box. Connect
the other end of the cable to the yellow VIDEO jack on the side
of the TV. Video cables are usually marked with yellow and are
available from Magnavox or electronics retailers. Video jacks on
most equipment are yellow.
Using RCA-type, stereo audio cables (not supplied), connect one
end of the cables to the left and right Audio Out jacks of the Cable
Box. Connect the other end of that cable to the Audio jack on the
side of the LCD TV. Audio cables are usually marked with red and
white and are available from Magnavox or electronics retailers. The
right audio jack is red and the left audio jack is white. Match the
cable colors to the jack colors.
Plug the DC adapter into the DC IN 16V jack on the LCD TV.
Plug the power cable into an outlet and switch TV set on.
1
2
3
Note: Use the Source button on the remote control to tune to the AV
channel for the cable box signal. Once tuned, change channels at the cable
box, not the television.
4
TO TV
CABLE
IN



OUTPUT
CH
3 4
The Cable TV signal from
the Cable Company
75
Coaxial
Cable
Side Jack Panel of
�elevision

�
DC Adapter
Power
Cable

VGA
PC
S - VIDEO
CABLE
IN
TO
TV
VIDEO
OUT
LR
AUDIO
OUT
3 4
OUTPUT
CH
VIDEO



Cable
TV signal
Video Cable
Cable Box
Audio Cable
Side Jack Panel
of �elevision
AUDIO
DC Adapter
Power
Cable

VGA
PC
L-Adapter
• Immediately after unpacking and plugging in your new television,
run the auto program function to set up the TV for the broadcast
or cable channels available in your area. If you do not run the auto
program function to set up the channels , your television may not
operate properly.
• Please make sure that you have selected the TV mode with source key
on your remote control, before installing TV channels.
HELPFUL HINT

7


C C
SOURCE
PIP
MENU
O K


  



 










ACCESSORY DEVICE
EQUIPPED WITH COMPONENT
VIDEO OUTPUTS.


Component Video input provide the highest possible color and
picture resolution in the playback of digital signal source material,
such as with DVD players. If you are using a HD (High Definition)
receiver that can transmit high definition programming, the TV can
accept those signals through the Component input located on the
bottom of the TV.
Connect the component (Y, Pb, Pr) Video OUT jacks from the
DVD player (or similar device) to the COMP(onent) VIDEO Input
jacks on the bottom of the LCD TV.
Connect the red and white AUDIO CABLES to the Audio (left
ad right) output jacks on the rear of the accessory device to the
AUDIO IN jack. Connect the other end of the cable to the Audio
jack on the rear of LCD TV.
Plug the DC Adapter into the DC IN 16 V jack on the LCD TV.
Plug the power cable into an outlet. Turn on the LCD TV and other
equipment.
Press the SOURCE button on the remote control to select HD.
HD will appear in the upper left corner on the TV screen.
Insert a DVD disc into the DVD player and press the PLAY button
on the DVD Player.
1
2
3
4
5
The S-Video connection on the rear of the LCD TV can provide you
with better picture detail and clarity for the playback of accessory
sources such as DBS (digital broadcast satellite), DVD (digital video
discs), video games, and VHS VCR (video cassette recorder) tapes
than the normal antenna picture connections.
Connect an S-Video cable to the S-VIDEO jack of the other
equipment (DVD Player, Camcorder, etc.) and to the S-VIDEO jack
on the rear of the LCD TV.
Connect RCA-style audio cables (usually red and white) to the
AUDIO OUT (left and right) jacks on the other equipment.
Connect the other end of the cables to the AUDIO jack on the
side of the LCD TV.
Plug the DC Adapter into the DC IN 16V jack on the LCD TV.
Plug the power cable into an outlet. Turn on the LCD TV and other
equipment.
Press the Source buttons to set the LCD TV to its S-VIDEO mode.
Press PLAY on the other equipment to view its material on the
LCD TV.
1
2
3
4
5
Note:
• The Magnavox LCD TV remote control can not be used to operate other video/audio equipment.
• The Audio jack of AV IN is shared between Video (CVBS) and S-Video signals. If Audio and Video
is connected to S-Video input, you can still hear sound if you select Video via Source select, even
there appears no image on screen.
S-VIDEO CONNECTIONS
COMPONENT (HD) CONNECTIONS
C C
SOU RCE
P I P
M E N U
OK
ANT E NNA
OUT
ANT E NNA
IN
VIDE O
AUDI O
IN
IN
OUTOUT
LR
S-V HS OU T
35
1
2
Jack Panel
Side of Television
S- Video
Cable
Audio Cable
VCR or External
Accessory Device
(with S-Video
Output)
4
VIDEO
3
wPo er Cable
S - VIDEO
AUDIO
Note:
• The Magnavox LCD TV remote control can not be used to operate
other video/audio equipment.

8
This LCD TV can be used as a PC. Your computer will have to be
equipped with a VGA type video output and VGA cable.
Connect one end of the VGA Video cable (not supplied) to the
Monitor (video) output on the computer, while connecting the
other ends to the VGA INPUT jack on the LCD TV.
Although audio connections are not required, the LCD TV can
reproduce the computers audio out by an AUDIO ADAPTER to
the Audio output jack on the computer (if available) while
connecting the other ends of the Audio cables to the PC AUDIO
Jacks on the bottom of the TV.
Plug the DC Adapter into the DC IN 16V jack on the LCD TV. Plug
the power cable into an outlet. Turn on the LCD TV and PC.
Press the SOURCE button until PC MODE appears on the screen.
1
2
3
C C
SOURCE PIP
MENU
O K


Side Jack Panel
of Television








PC (MONITOR) INPUTS:
4
