Magnetic Days MD JARVIS User manual

MANUALE MD JARVIS
1

assembly and connection instructions MD JARVIS
1. introduction:
1.1. TECNICHE TECHNICAL DATA;
1.2. PACKAGE CONTENTS;
1.3. DIMENSIONS;
1.4. PARTS DESCRIPTION.
2. ASSEMBLY:
2.1. OPENING THE SYSTEM;
2.2. MOUNTING THE BIKE.
3. Peripherals CONNECTIONS:
3.1. POWER SUPPLY CONNECTION;
3.2. PC CONNECTION (VIA CABLE);
3.3. WIRELESS RPM SENSOR CONNECTION;

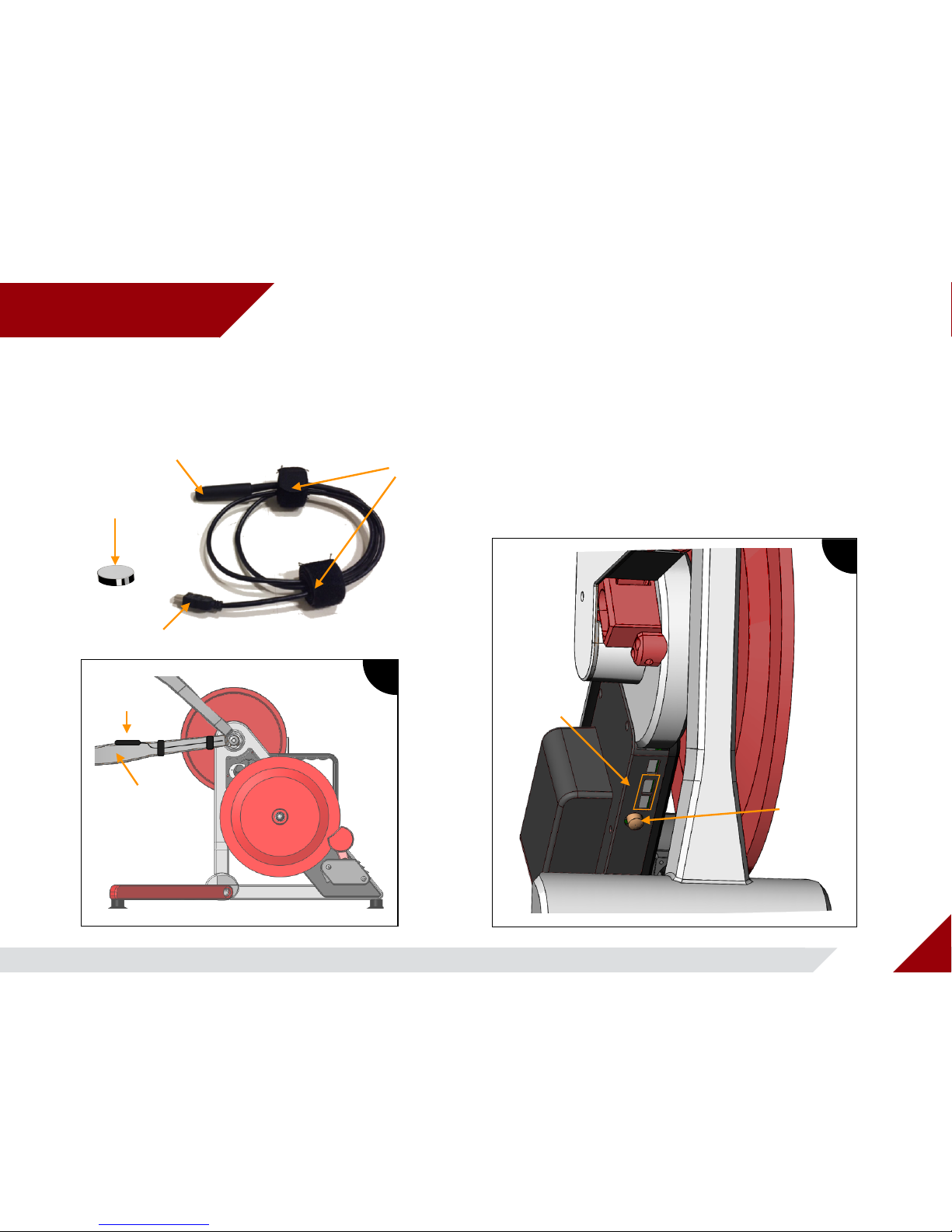

3.4. RPM SENSOR CONNECTION (VIA CABLE);
3.5. OPTICAL KEYS CONNECTION.
4. TECHNICAL SECTION:
4.1. BELT STRETCHER ADJUSTMENT;
4.2. MOTOR ELECTRONIC BOARD REPLACEMENTE;

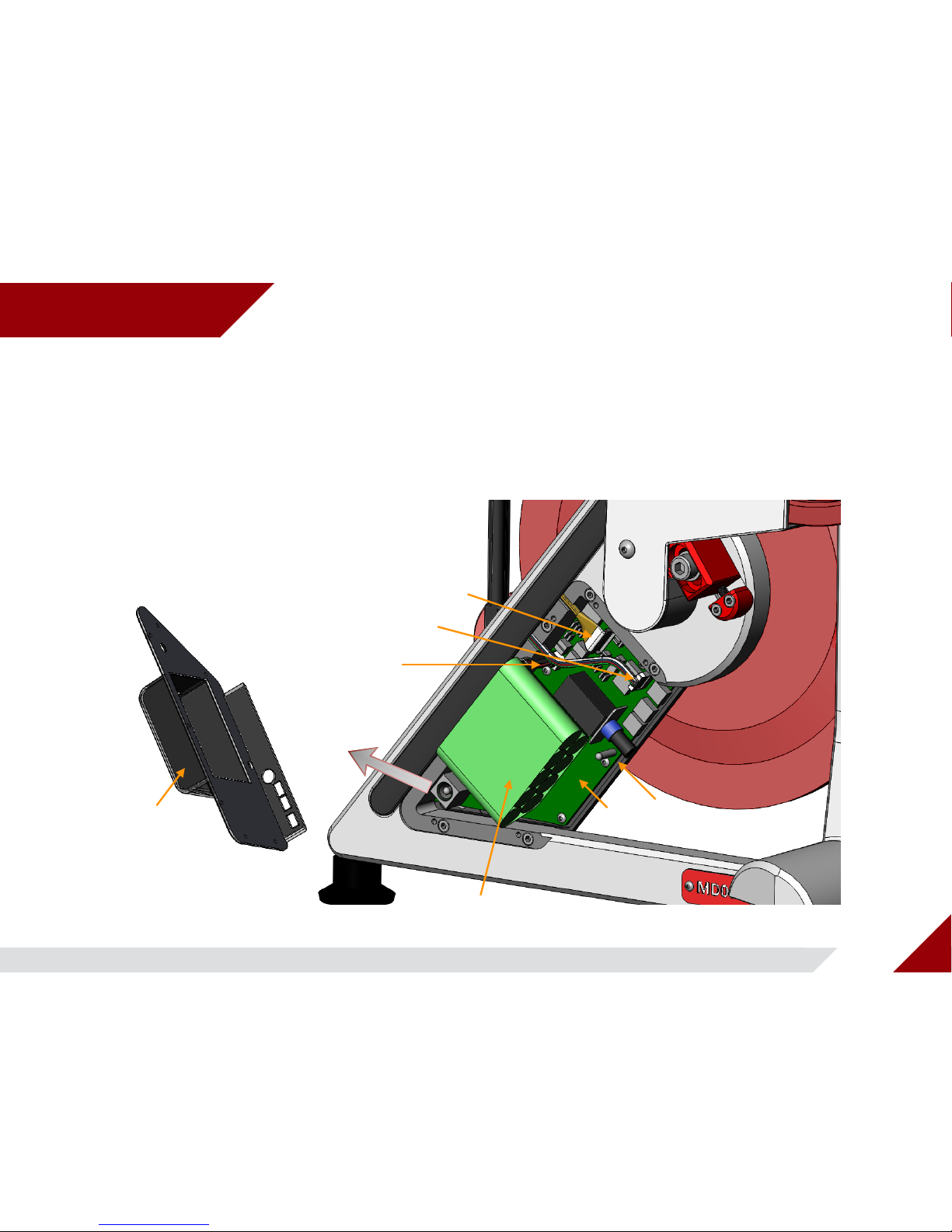

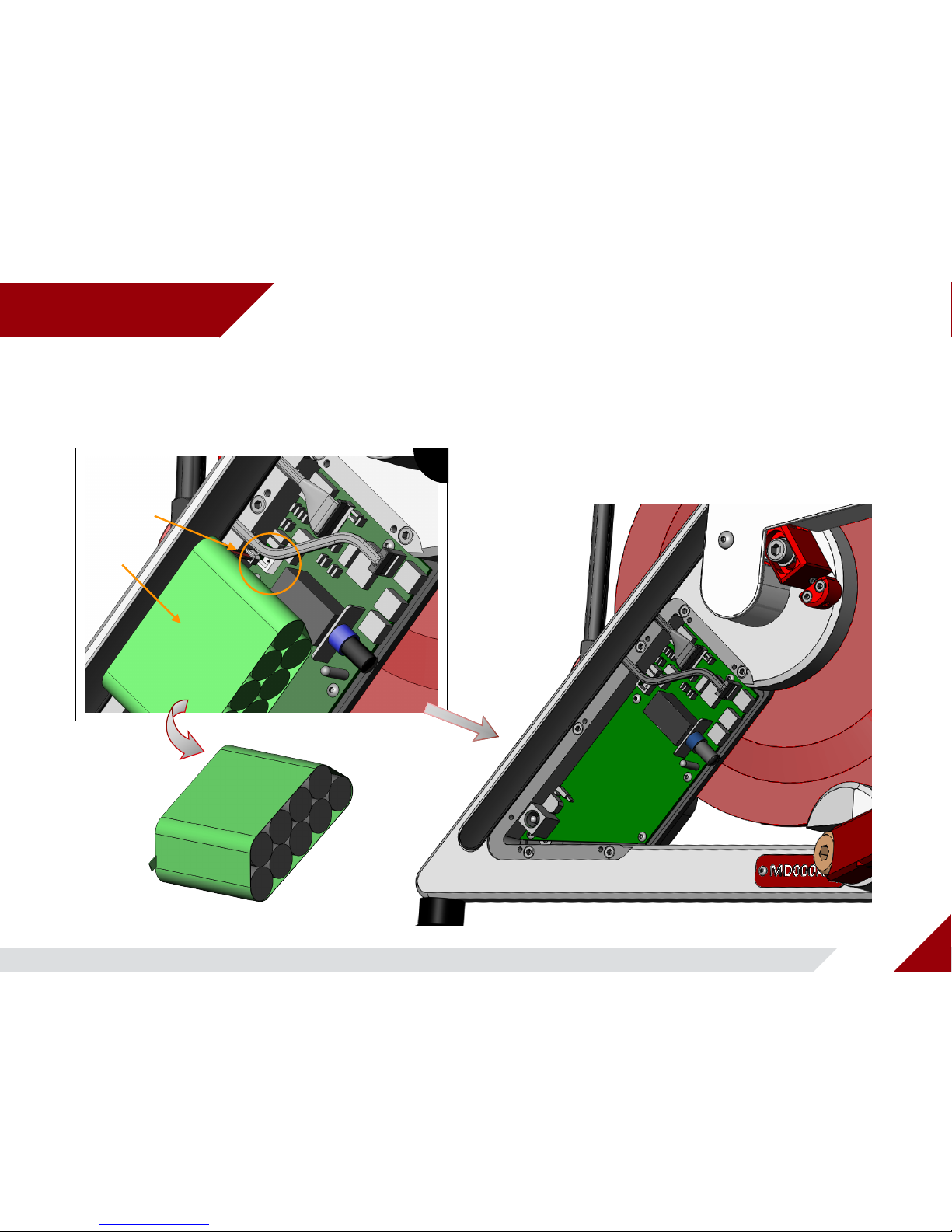

4.3. MOTHER BOARD REPLACEMENT;
4.4. MOTHER BOARD SETTING RESET.
ìì
MAGNETICDAYS JARVIS
!2

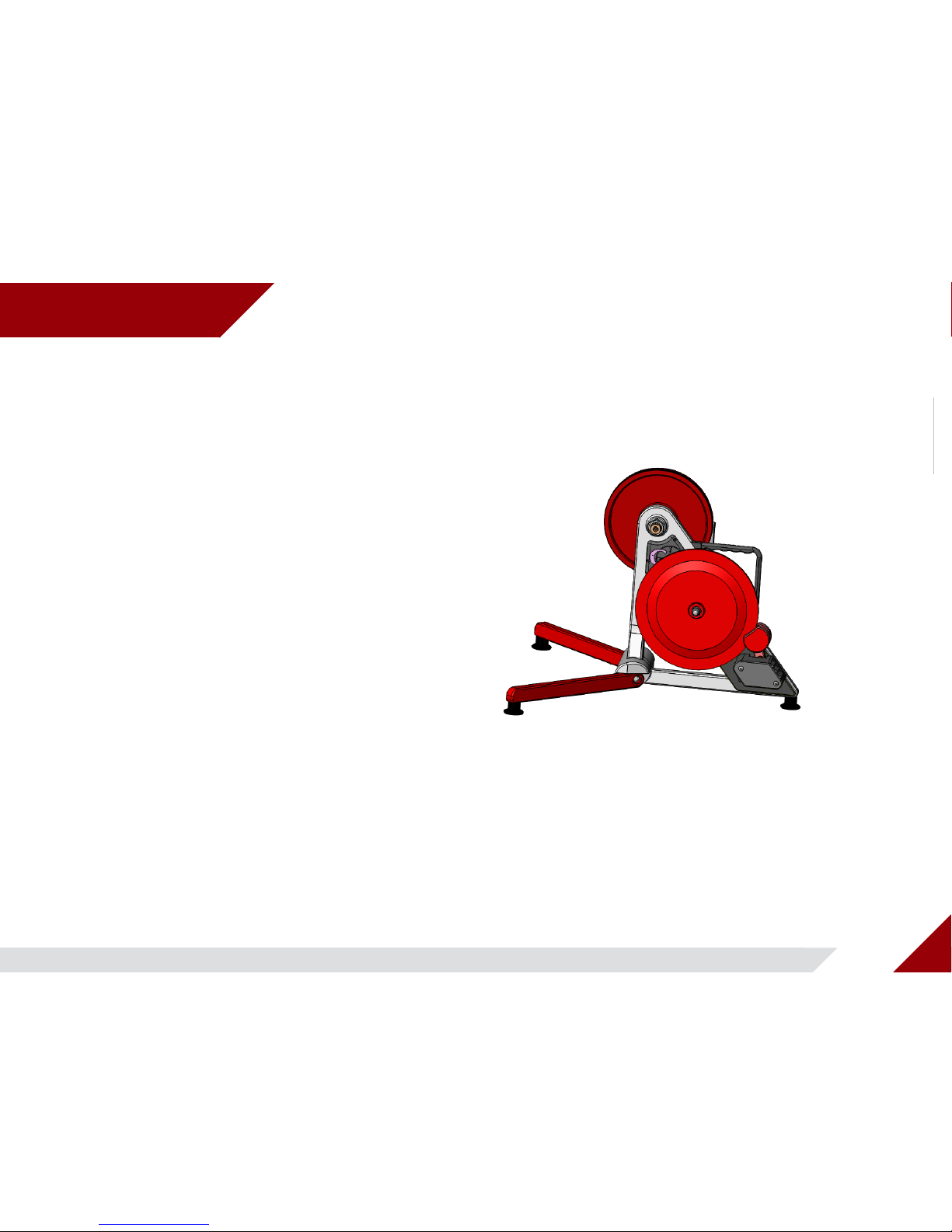

1.1. TECHNICAL DATA
•Weight: 9 Kg;
•Battery (2800 mA, approx. 4 h use);
•Connectivity: Bluetooth 4.0, USB, ANT+, Wifi.
1.2. PACKAGE CONTENTS:
•MD JARVIS spinner;
•Calibration certificate
•Accessory pack:
•Power cable;
•PC connector cable (USB/A male – USB male) length 4.5 m;
•RPM Sensor Ant+ Garmin (or Sigma);
•Heartbeat monitor Ant+;
•Remote control optical keys;
•Mechanical accessories (for assembly): right crank, left crank (with a longer threaded shaft), n° 4 shims to adapt the
chassis, crank locking key (seated inside the right crank and is easily extracted with the ring on the end.
Optional:
•Lowered bushing for Fixed bikes (rear carriage 125 mm).
1. introduCTION
!3

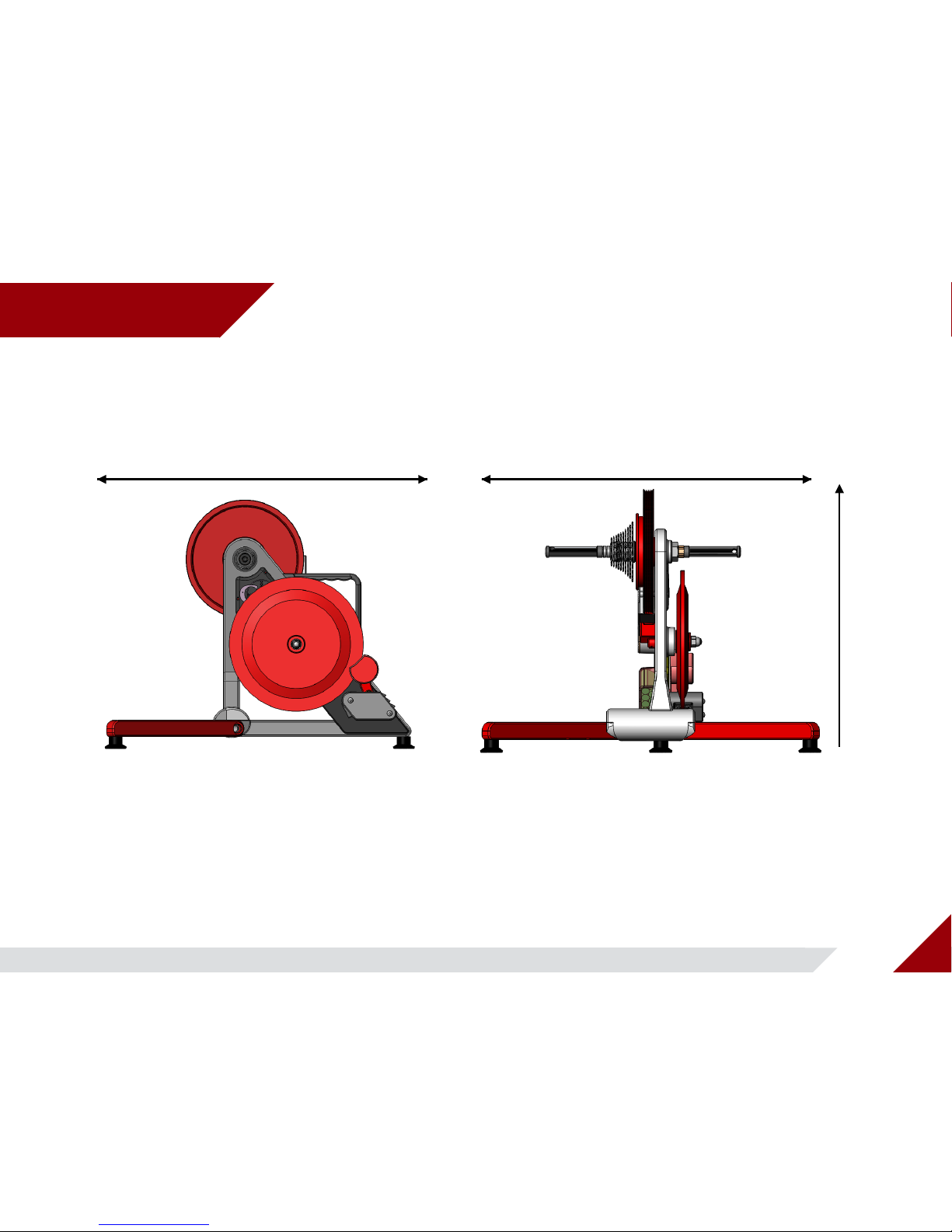

CLOSED:
L = 432 mm;
W = 173mm;
H = 464mm.
HEIGHT (H)
WIDTH (W)LENGHT (L)
OPEN:
L = 576 mm;
W = 595mm;
H = 464mm.
1.3. dimensionS
!4
1. introduCTION

A: Fly wheel
B: Brake
C: Brake motor with
cooling fan
D: Left stand
E: Mother board cover
F: Bike carriage width
adjustment bush
G: Large pulley
H: Pinion rack
I: Right stand
J: Serial number
K: Battery
L: Power connector
M: Brake motor electronic board
N: Belt cover
MD000XX
A
B
C
D
E
c
G
N
M
L
KJ
I
H
LEFT SIDE RIGHT SIDE
1.4. parts description
!5
1. introduCTION

2. package contents
RIGHT SIDE LEFT SIDE
Swing forward up to
the mechanical stop

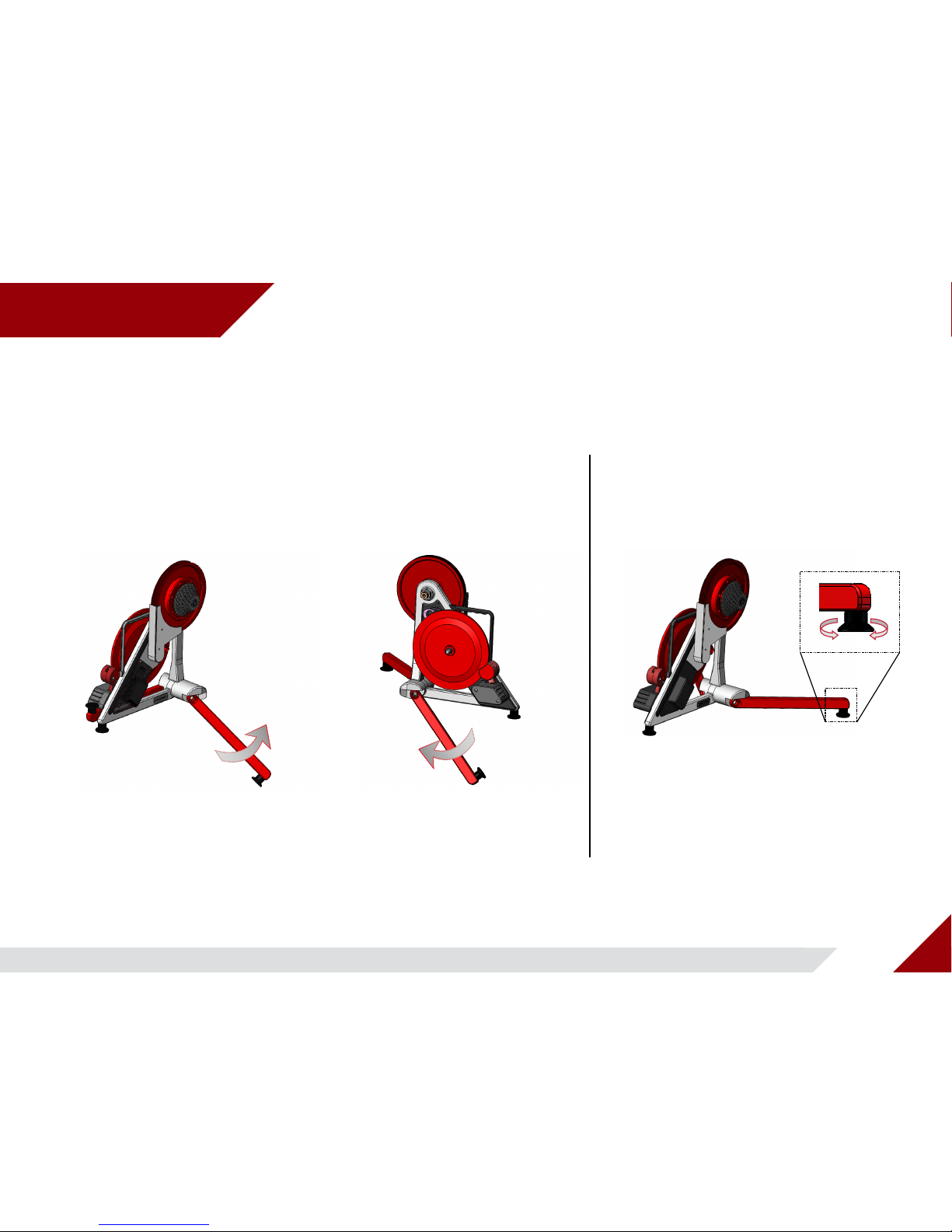

Swing the two stands (D and J) forward up to the mechanical stop. So the
system then rests on three points guaranteeing perfect adherence even on
unlevel surfaces, thanks to the adjustable supports.
2.1. system opening
!6

Right crank
Left crank
Left crank (longer
threaded shaft)
Right crank
Adjustment
shims
Right crank
Shim

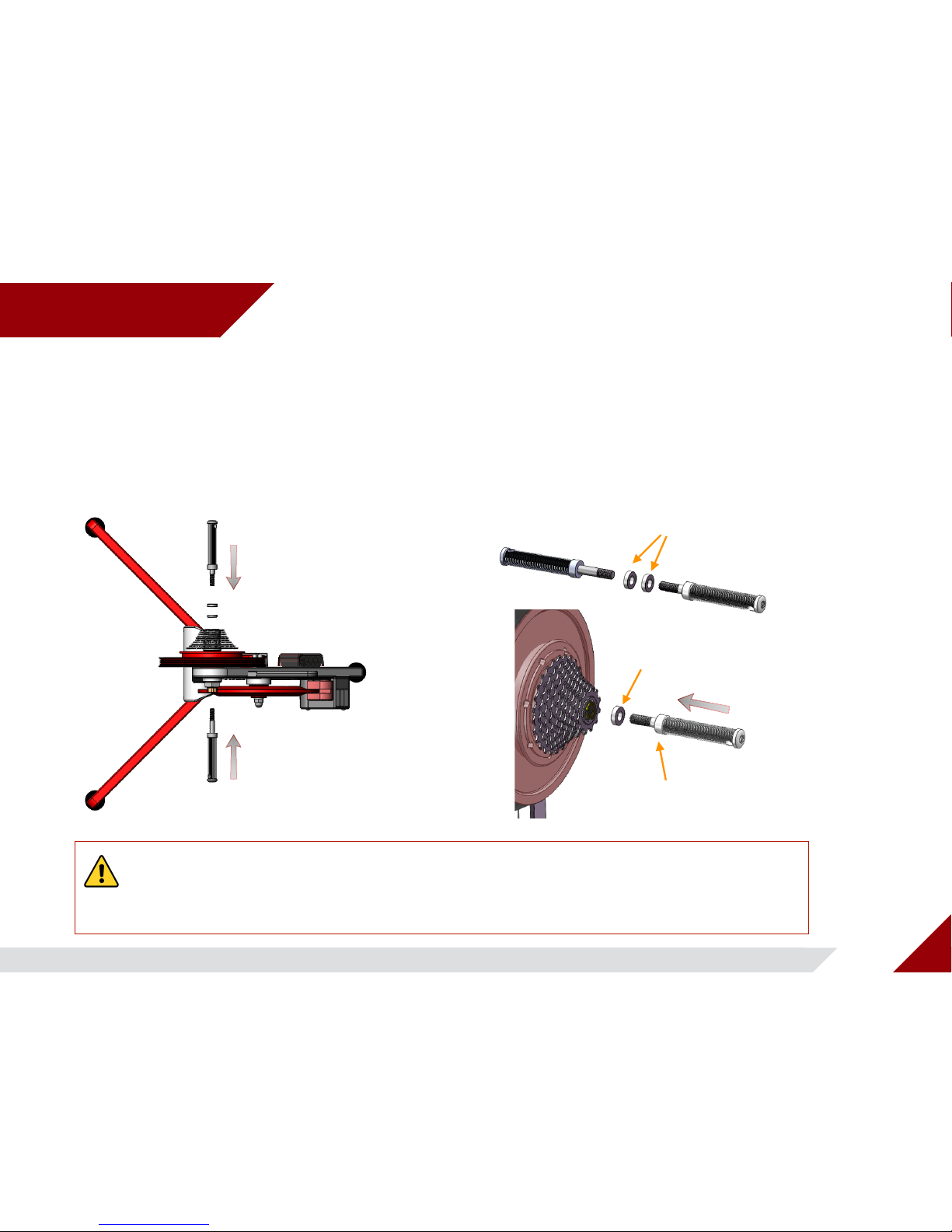

2.2. MOunting the bike
The Jarvis fits on the bike like a rear wheel using the provided mechanical accessories.
- Insert the cranks into their housings on the Jarvis, lightly screwing them in.
- If the rear carriage of the bike is 125 mm (Fixed Bike) the Standard bushing can be replaced (F) with a lowered bushing (optional);
- Leaving the Standard bushing (F) in place, the width of the MD fits bikes with a rear carriage of 130 mm (Road Bikes);
- Settings for wider carriages (MTB) are carried out using the shims provided.
For narrower settings the shims may be used externally like washers.
!7
2. package contents

B) ) Insert the rear carriage fork;
C) Fit the chain onto the pinion rack aligning it correctly;
D) Verify that the fork is correctly fitted on both crank pins, tighten them by hand to
grip the chassis.
.
Once finished, lock both cranks using the key provided inserted into the external
holes.
The key is housed inside the right crank and is easily removed thanks to the ring on
the end. Once both cranks are tightened replace the key in it’s housing.
B
C D
!8
2. package contents
2.2. MOunting the bike

3. Peripherals connections
Jarvis start button
Insert the power cable to
charge the battery
•During the battery charge the Jarvis
must be switched on (start button in
postion ON).
•The first charging must last 6 hours.
•When the battery is on, the RED LED
will be lit.
•When the battery is on and there is an
electrical supply connected both LEDS
RED and GREEN will be lit.
3.1. POWER SUPPLY CONNECTION
!9

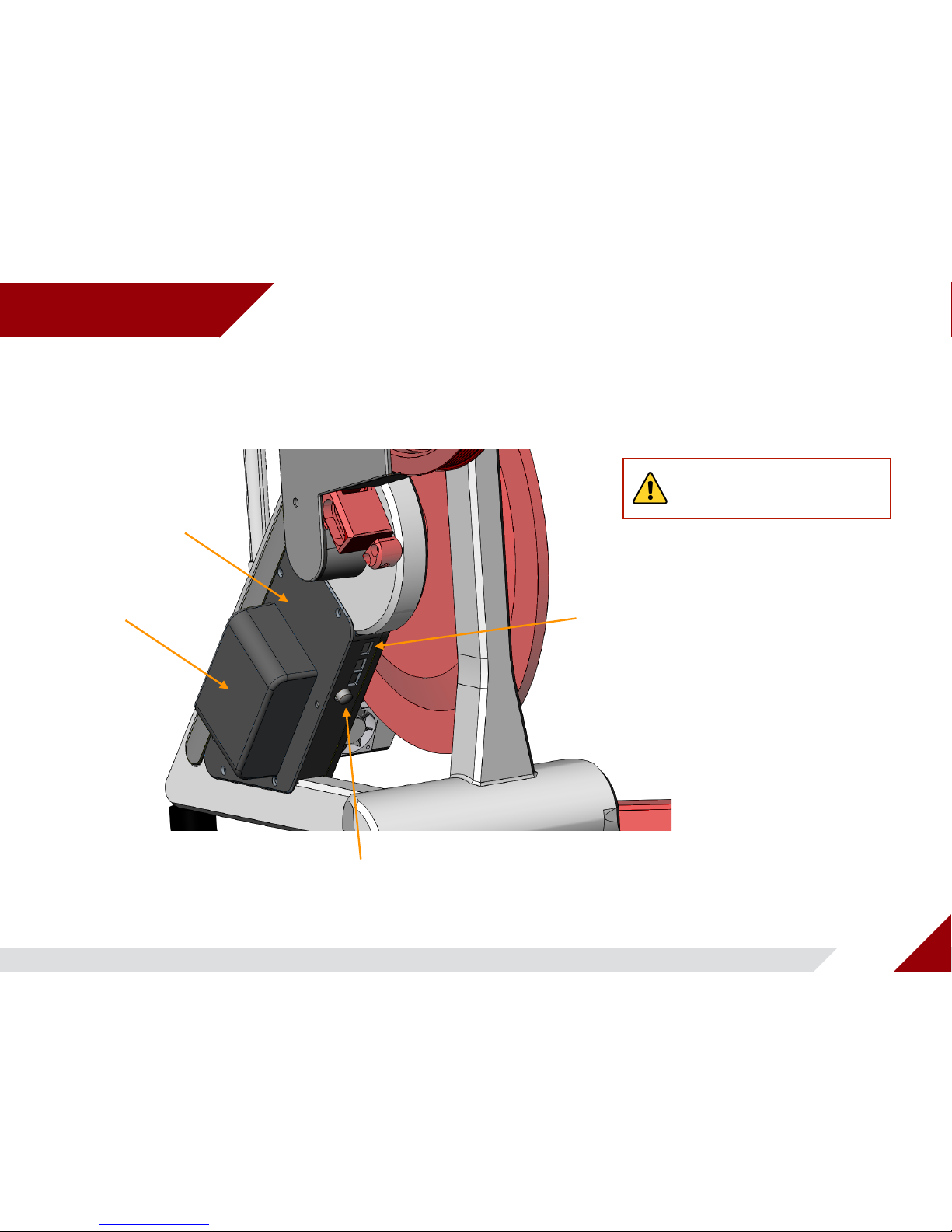

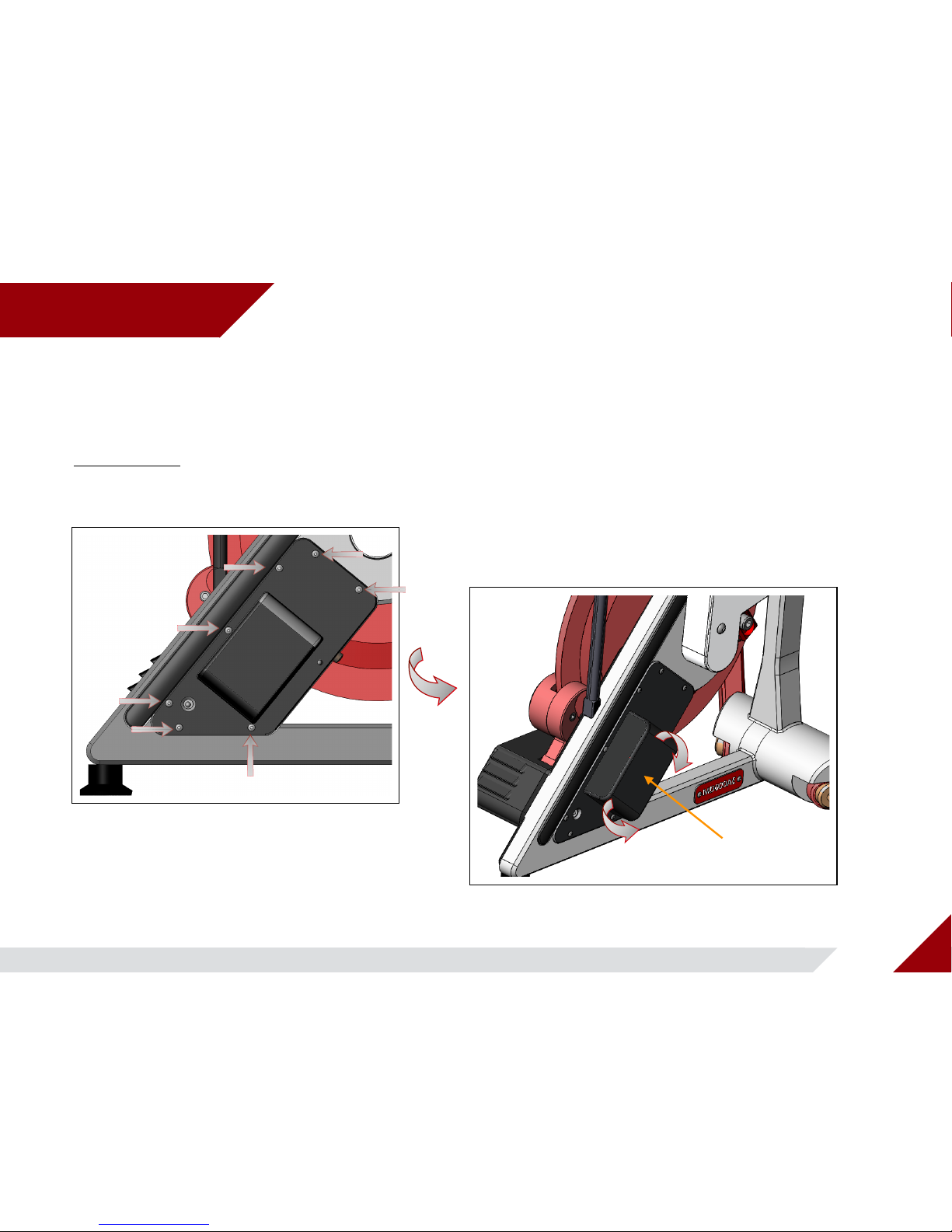

JARVIS start button
Electronic motor
board
Do not insert the PC cable into the other two
USB sockets.
Battery housing
cover Insert the PC cable
provided
3.2. pc connection
!10
3. Peripherals connections
