Magnum Energy KISAE TS15A User manual

CSW-TS15 Owner’s Guide
Part Number: 64-0064 Rev A 1
Magnum Energy, Inc.
2211 West Casino Road
Everett, WA, USA 98204
www.magnumenergy.com
Introduction
The CSW-TS15 is a 15-amp AC transfer switch that is designed to automatically
switch the AC load connections between Utility power (or generator) and the
AC output of Magnum’s CSW1012 inverter.
WARNINGS: Failure to follow these instructions can result in
death or serious injury.
• All wiring should be performed by a certifi ed technician or electrician
in compliance with all applicable electrical safety wiring regulations.
• The transfer switch is rated for indoor use only. Keep the unit away
from moist or damp areas. Never expose the unit to snow, water, etc,.
• Do not use the transfer switch in the vicinity of fl ammable fumes or
gases (such as propane tanks or large engines).
• Do not disassemble the transfer switch. There are no user-serviceable
parts inside.
• Before installing or using, read this entire manual and adhere to all
cautionary markings located on the inverter and on the batteries.
Installing the CSW-TS15 Transfer Switch
CAUTION: Incorrect connection of the AC input source to the AC
output may result in equipment damage or a fire hazard.
CAUTION: All AC wiring should be copper with a minimum temper-
ature rating of 105°C and sized to #12 AWG (3.3 mm²) minimum.
Torque wiring connections to 16-18 lbf-in (1.8-2.0 N-m).
Use the following steps to assist in wiring the CSW-TS15. Before beginning,
refer to Figure 1 to view a basic installation diagram; and to Figure 2 for
information on wiring to the terminal block in the CSW-TS15.
1. Ensure all power sources are disconnected or turned off prior to
beginning the installation process.
2. Remove the two screws that attach the wiring compartment cover to the
transfer switch unit. Remove the cover.
3. Connect AC Input wires (line, neutral, ground) to the AC Input 2 (Utility)
terminals, and then route these wires through the strain relief to a 15A
branch circuit on the main AC source panel - powered by utility power
(or generator).
4. Connect AC Output wires (line, neutral, ground) to the AC Output (Load)
terminals, and then route these wires through the strain relief to a
branch circuit sub-panel that is connected to the inverter loads.
5. Tighten both strain reliefs and re-attach the wiring compartment cover.
6. Plug the transfer switch’s AC Input 1 (Inverter) cord into the GFCI outlet
on the CSW1012 inverter.
7. Test the transfer switch to ensure it is installed and working correctly -
refer to the Functional Test.

CSW-TS15 Owner’s Guide
2 © 2013 Magnum Energy, Inc.

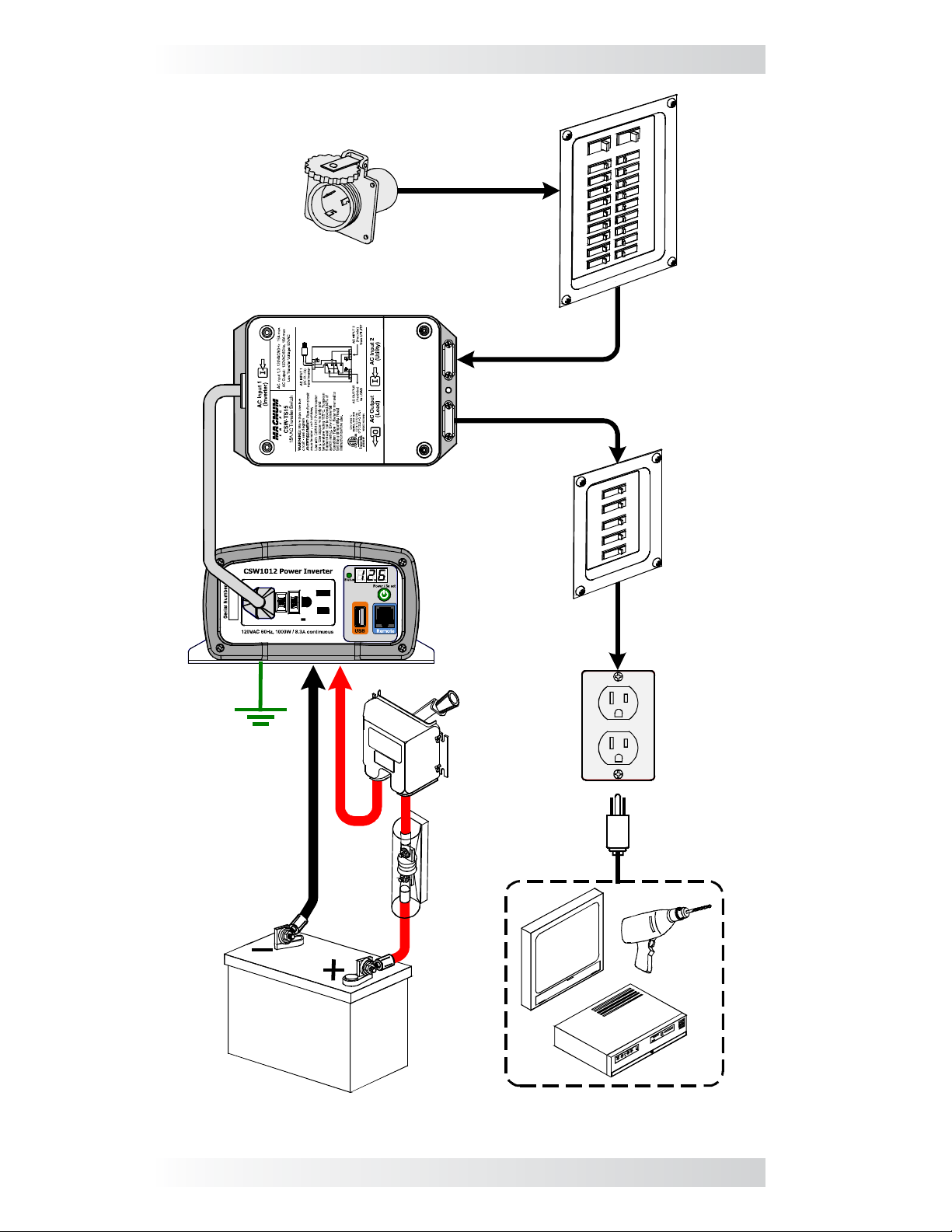

Figure 1, Basic Installation Diagram
AC
Main Panel
(
Branch Circuit
Breaker:
15A max)
AC IN
AC OUT
AC Source
(120VAC, 60 Hz Sinewave)
CSW-TS15
Transfer Switch
CSW1012
Inverter
AC Loads
(15A max)
DVD
Tools
TV
AC
Sub-Panel
AC
Outlet
DC
Disconnect
Battery
Bank
Fuse
DC
Ground
(Vehicle chassis,
DC ground bus,
or engine
negative bus)

CSW-TS15 Owner’s Guide
© 2013 Magnum Energy, Inc. 3
Testing the CSW-TS15 Transfer Switch
To test your CSW-TS15 transfer switch:
1. Turn the AC source (utility power or generator) and the CSW1012 inverter
ON. Verify that 120VAC is available at the AC output.
2. Turn off the AC source by switching the 15A branch circuit breaker OFF.
Verify that 120VAC remains at the AC output.
3. Turn OFF the CSW1012 inverter. Verify that there is no AC voltage at the
AC output.
4. If all steps above are successful, the transfer switch is functioning prop-
erly. If any of the above steps are unsuccessful, repeat the installation
steps from page 1.
CSW-TS15 Specifi cations
Figure 2, CSW-TS15 Transfer Switch (with wiring cover removed)
Line
Line
Neutral
Neutral
Ground
Ground
AC Output
(Load)
AC Input 2
(Utility)
AC Input 1
(Inverter)
AC Input 1 (Inverter) Pure Sinewave 120VAC/60Hz (15A max)
AC Input 2 (Utility) 120VAC/60Hz (15A max)
AC Output (Load) 120VAC/60Hz (15A max)
Low Transfer Voltage 90VAC
Transfer Time 80mSec
Environmental Condition TYPE 1 (indoor only)
Load Current ≤15 Amps continuous; Tungsten fi lament load
not to exceed 30% of switch rating (4.5 AAC)
Compliance UL STD 1008/CSA STD C22.2 No.178-1,
FCC Class B
Unit Dimensions 6.6 x 4.3 x 1.8 (inches) / 168 x 110 x 46 (mm)
Ship Dimensions 9.6 x 7.3 x 2.4 (inches) / 243 x 186 x 62 (mm)
Unit Weight 1.8 lbs (0.8kg)
Ship Weight 2.2 lbs (1.0kg)
Note: Specifi cations are subject to change without notice.
