MAGUIRE Weigh Scale Blender Guide

MAGUIRE
Weigh Scale Blender
With
"Twelve" Component Software
OPERATION MANUAL
AND
MAINTENANCE MANUAL
MAY 20, 2002
© COPYRIGHT MAGUIRE PRODUCTS, INC. 2000

2
Maguire Weigh Scale Blender
12 Software Operation & Maintenance Manual
Table of Contents
Table of Contents ________________________________________________________________ 2
EC Declaration of Conformity ______________________________________________________ 4
EC Declaration of Conformity ______________________________________________________ 4
SECTION 1 – BLENDER STARTUP _____________________________________________ 5
Getting Started – Read this page! ___________________________________________________ 5
Safety Hazards___________________________________________________________________ 6
Safety Features __________________________________________________________________ 6
Blender Parts Key ________________________________________________________________ 8
Controller Parts Key _____________________________________________________________ 10
Assembly and Installation Instructions _____________________________________________ 11
Wiring Considerations ___________________________________________________________ 15
Check Out Procedure ____________________________________________________________ 16
Check Out Procedure Diagnostics _________________________________________________ 18
Selecting the Correct Model_______________________________________________________ 19
SECTION 2 - OPERATION ___________________________________________________ 20
Load Cell Calibration ____________________________________________________________ 20
Turning on Material Type Outputs _________________________________________________ 20
Turning on Material Type Outputs__________________________________________________ 21
Material Type Definitions _________________________________________________________ 21
Setting Material Types ___________________________________________________________ 22
Examples of Making Settings______________________________________________________ 23
Materials Rate Calibration ________________________________________________________ 26
Entering Materials Settings _______________________________________________________ 27
Assigning Material Settings to Thumbwheels ________________________________________ 27
Special Instructions for Selected Models ____________________________________________ 28
Instructions for Normal Operation__________________________________________________ 29
Normal Operating Sequence - Each Cycle ___________________________________________ 30
Special Features ________________________________________________________________ 30
Controller: Controls and Outputs __________________________________________________ 32
Controller Keypad – Summary Description __________________________________________ 36
Controller Keypad – Description of Functions________________________________________ 37
Star Functions - What they relate to:________________________________________________ 43
Star Functions __________________________________________________________________ 43
Star Functions __________________________________________________________________ 44

3
Parameters - What they relate to: __________________________________________________ 50
Parameters Introduction__________________________________________________________ 50
Parameters Introduction__________________________________________________________ 51
Navigating Parameters ___________________________________________________________ 52
Parameter List - Explanations _____________________________________________________ 52
General Parameters _____________________________________________________________ 52
Component Parameters__________________________________________________________ 54
Changing Parameter Settings _____________________________________________________ 58
Saving Parameters in the EEPROM_________________________________________________ 58
SECTION 3 - PRINTED OUTPUTS _____________________________________________ 60
Monitoring System Accuracy______________________________________________________ 60
*54 - Cycle Printout Information____________________________________________________ 60
Interpreting the *54 Cycle Printout _________________________________________________ 60
Troubleshooting with the *54 Printout ______________________________________________ 61
Parameter Settings Printout_______________________________________________________ 64
Load Cell Calibration - Printout Verification__________________________________________ 64
Special Tests - Printout Verification ________________________________________________ 64
Material Usage Printout __________________________________________________________ 65
SECTION 4: TROUBLESHOOTING ____________________________________________ 66
What To Do ____________________________________________________________________ 66
Typical Problems________________________________________________________________ 67
Mix Problems ___________________________________________________________________ 68
Increasing Throughput ___________________________________________________________ 69
Normal Operating Sequence ______________________________________________________ 69
Load Cell Raw Signal Readout_____________________________________________________ 71
Clear Routine ___________________________________________________________________ 73
Clear All _______________________________________________________________________ 73
SECTION 5 - HARDWARE MAINTENANCE______________________________________ 75
Hardware Adjustments ___________________________________________________________ 75
Load Cell Recalibration __________________________________________________________ 76
Disclaimers ____________________________________________________________________ 80
Accuracy of this Manual __________________________________________________________ 80
Warranty_______________________________________________________________________ 80

4
EC Declaration of Conformity
Manufacturer: Maguire Products Inc.
Address: 11, Crozerville Road, Media, Pennsylvania, 19014, USA
Declares the following range of equipment described;
Make: Maguire Weigh Scale Blender
Model: WSB
Conforms to the following CE directives;
EEC 89/392 Machinery Directive
EEC 89/336 Electromagnetic Compatibility
Using the following CE standard references:
CEI EN 50081-1/2 CEI EN 55022
CEI EN 55082-2 CEI EN 61000-4-2
CEI EN 61000-4-3 CEI EN 61000-4-4
CEI EN 61000-4-5 CEI EN 61000-4-6
CEI EN 60204-1
And complies with the relevant Health and Safety requirements.
Responsible Person: Steve Maguire
President, Maguire Products, Inc.
Please Note: All Maguire blenders shipped within Europe have a CE Certificate with the shipping documentation, which is specific to the
model and serial number of the Maguire WSB blender shipped. Please refer to your shipping documentation for further information.
EC Declaration of Conformity
Manufacturer: Maguire Products Inc.
Address: 11, Crozerville Road, Media, Pennsylvania, 19014, USA
Declares the following range of equipment described;
Make: Maguire Weigh Scale Blender
Model: WSB
Conforms to the following CE directives;
EEC 89/392 Machinery Directive
EEC 89/336 Electromagnetic Compatibility
Using the following CE standard references:
CEI EN 50081-1/2 CEI EN 55022
CEI EN 55082-2 CEI EN 61000-4-2
CEI EN 61000-4-3 CEI EN 61000-4-4
CEI EN 61000-4-5 CEI EN 61000-4-6
CEI EN 60204-1
And complies with the relevant Health and Safety requirements.
Responsible Person: Steve Maguire
President, Maguire Products, Inc.
Please Note: All Maguire blenders shipped within Europe have a CE Certificate with the shipping documentation, which is
specific to the model and serial number of the Maguire WSB blender shipped. Please refer to your shipping documentation for
further information.

5
SECTION 1 – BLENDER STARTUP
Getting Started – Read this page!
THE NEXT 13 PAGES OF THIS MANUAL WILL GUIDE YOU, STEP BY STEP, TO A SUCCESSFUL STARTUP.
IT WON'T TAKE LONG; SO.... PLEASE, DON'T SKIP AHEAD.
HERE ARE THE STEPS YOU WILL FOLLOW:
Page 4 SAFETY HAZARDS………………………….. TWO HAZARDS exist on this unit: MIX BLADES and SLIDE VALVES.
Read this short sensible page so no one gets hurt.
Page 6 ASSEMBLY INSTRUCTIONS………………. Very little assembly is required. But you might as well get it right the first
time. ALSO: Pay attention to the section on WIRING.
Page 11 CHECK OUT PROCEDURE………………. This is to see if you did it right. It also will tell if anything was damaged in
shipping.
Page 15 LOAD CELL CALIBRATION……………… We already did this. But shipping or rough handling during assembly
sometimes creates load cell problems. If weight readings are not correct,
you MUST recalibrate the load cells.
Page 16 SETUP OUTPUTS & MATERIAL TYPES... To "TURN ON" a component, it must be designated as to TYPE, either
REGRIND, NATURAL, or ADDITIVE. Each is handled differently by the
MATH routines. The controller MUST know the material TYPE to know
what the setting means. This is IMPORTANT. Be SURE you
UNDERSTAND this section before trying to operate your system.
Page 19 RATE CALIBRATION……………………… This is NOT really necessary. But if your system uses non-standard
equipment, you MAY want to do this.
Page 20 SETTINGS and NORMAL OPERATION… From this point forward, operating your system is a snap. This section
tells you just how simple it is and exactly what to expect under normal
operating conditions.
Page 22 SPECIAL FEATURES……………………... Your system can do much more then you may know. This page reviews
briefly some of the added features that are available to you and where in
this manual you can find them.
PROCEED TO: SAFETY HAZARDS NEXT PAGE

6
Safety Hazards
Safety Features
ADDITIONAL MIX BLADE HAZARD
Over time, Mix Blades may become RAZOR SHARP.
ALWAYS be careful when TOUCHING or CLEANING these blades.
Check for Sharp Edges frequently
Replace Blades if a Hazard exists.
SLIDE VALVES
Slide valves in hoppers SLAM CLOSED without warning.
They WILL injure your fingers.
ALWAYS keep fingers clear of slide gate openings.
NEVER use your fingers to clear an obstruction.
NEVER use
y
our fin
g
ers to move a stickin
g
slide
g
ate.
SAFETY INTERLOCK SWITCH
The ACCESS DOOR is equipped with a safety interlock
switch that prevents the mix motor from running and the slide valves from opening.
DO NOT defeat this safety switch.
MIX BLADE HAZARD
Mix Blades are driven with substantial Torque.
Never place your hand in the Mix Chamber while the blades are turning.
SERIOUS INJURY WILL RESULT
HOPPER FINGER GUARDS
Finger Guards are fitted into each Material Hopper compartment.
DO NOT reach through these Guards.
DO NOT use your fingers to clear an obstruction below these Guards.
DO NOT remove these Guards.

7
CONTINUE CONTINUE
END OF CYCLE
IATE
STOP
LOAD CELLS
PRINTER
COMPUTER
LOCKED OUT
ADD897
WEIGH SCALE BLENDER
TOTAL WEIGHT - GRAMS
10W ATTS
MIX
AIR SOLENOID VALVES
HOLD
MAGUIRE
PARA
*
ZERO FULL
0CE
ALRM
DUMP
5AMP
FUSE
MAGUIRE PRODUCTS, INC. ME DIA,PA
120 VOLTS
3A MP
COLORADDITIVE
1/2AM P ON-OFF
FUSE
0
REGRIND
00
%OF MIX
REPT
VER
VIEW
SET
4
RCP
OPER
BTCH
TIME
2
TAG
31
56
NAT REG COL ALM DMP ADD HLD MIX
EXIT
CAL
NAT
REG
COL
ALARMS
C R A
%O F NA T URAL
COLOR
0 0
ADDITIVE
00 00
%O F NA T URAL
2
1
3
4
5 6 7
8
9
10 11
12 13
14
15
16 17 18 22 20
19
21
19
22
2
3
6
9
18
7

8
Blender Parts Key
1. Auger Feeder – Screw Feeder for feeding in small percentage materials such as Colors and Additives
2. Fixed Material Hopper – Material Hopper for main materials to be dosed by the slide gates
3. Removable Hopper – Removable Material hopper for small percentage materials such as Colors and Additives
4. Hopper Access Door – Door to access inside of hopper for quick cleaning and materials changes
5. Sight Glass – Means to view current material level inside the hopper
6. Vertical Valve – Dispense Device mounted inside removable hopper for small percentages up to 10%
7. Slide Gate – Dispense Device mounted below fixed hoppers to dispense large percentages
8. Auger Screw – Dispense Device mounted inside removable hopper for small percentages up to 10%
9. Controller – Central Controller for all settings on the blender
10. Air Assembly & Solenoids – Pneumatic assembly for activating pneumatic parts automatically and manually
11. Cleaning Airline – Airline for quick and easy cleaning of blender during materials changes
12. Load Cells – Load Cells monitor continuously the weight in the Weigh Bin
13. Load Cell Bracket – Load Cell Bracket for mounting Weigh Bin onto the Load Cells
14. Safety Interlock – Pneumatic and Electrical Safety interlock – stops blender operating if door is opened
15. Weigh Bin – Weigh Bin holds materials as materials are dispensed during a batch and weighed
16. Dump Valve – Pneumatic Valve and Flap to release materials from Weigh Bin when a batch is complete
17. Mix Chamber – Area where materials are blended together after being weighed
18. Mix Blades – Removable Mix Blades to fold the materials together to achieve an effective blend
19. Level Sensor – Sensor to monitor material level in the Mix Chamber, pauses blender when covered and mix chamber
is full, once uncovered signals Controller to begin a new batch of material.
20. Mix Chamber Insert – Stainless Steel removable insert to assist in quick materials cleaning and changes
21. Mix Motor – Electric Motor to drive Mix Blades – Note on WSB MB and WSB 100 Series blenders this motor is a
pneumatic Mix Motor
22. Flow Control Valve – (Optional) – Additional pneumatic slide gate with finger guards to be used when blender is not
mounted directly on the throat of a machine but instead a stand or surge hopper. The Flow Control Valve ensures
material remains inside the Mix Chamber long enough to be mixed efficiently. Automatically controlled by the blender
Controller.

9
FUSEFUSE
000
000
000
END OF CYCLE
IMMEDIATE
PAUSE
CONTINUE
CONTINUE
STOP
LOAD CELLS
COMPUTER
PRINTER
3 AMP
LEVEL SENSOR
MIXER
SILENCE ALARM
ON
TIMED
OFF FUSE
120VOLTS
3AMP
MAGUIRE PRODUCTS, ASTON, PAWEIGH SCALE BLENDER
AIR SOLENOID VALVES
COL
HLD
ALM
MIX
DMP
ADD
REG
NAT
COLORADDITIVE
TOTAL WEIGHT-GRAMS
ON-OFF
1/2AMP
ALARMS
R
LOCKEDOUT
C
A
REGRINDADDITIVECOLOR
%OFNATURAL
%OFNATURAL
%OFMIX
PARA
*
FULLZERO
0
MIX
CE HOLD
BTCH FASTVIEW RECP
SET
7
1
4
8
2
5
9
3
6
TIME
TAG
OPER
ALRM
DUMP
EXIT
B
C
ADD
A
NAT
COL
REG
CAL
EXTRUSION
CONTROL
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.9
1.11
1
23
2.1
2.6
2.2
2.3
2.4
2.5 3.5
3.6
3.1 3.2
3.3
3.4
1.8
1.101.12

10
Controller Parts Key
1. Front Panel
1.1 Keypad
1.2 LED Status Display
1.3 Main Display
1.4 Alarm Beacon
1.5 Materials Thumbwheels
1.6 Fuses
1.7 Power Cord
1.8 On / Off Switch
1.9 Outputs for additional Feeders
(NOTE – Feeder Outputs – These 2 outputs are not available on WSB MB and WSB 100 Series Blenders.)
1.10 Options - High Sensor Mount or Remote Alarm Output
1.11 Air Solenoid Connection
1.12 Optional – Low Sensor Mount
2. Left Side Panel
2.1 Stop End of Cycle / Continue Switch
2.2 Computer Serial Connection / Optional Fieldbus Connection
2.3 Printer Parallel Output
2.4 Load Cell Port Input
2.5 Optional – Extrusion Control 2 Way Interface
2.6 Immediate Pause / Continue Switch
3. Right Side Panel
3.1 Silence Alarm Press Down Button
3.2 Electrical Mix Motor Operation Switch – Timed (Default), On or Off
3.3 Electrical Mixer Output Fuse
3.4 Electrical Mix Motor Power Plug
(NOTE – Mixing Controls – These 3 features not available on WSB MB and WSB 100 Series Blenders – fitted instead
with Pneumatic Mixers.)
3.5 Mix Chamber Level Sensor Input
3.6 Audible Alarm Loudspeaker

11
Assembly and Installation Instructions
The following items have been shipped to you:
1. FRAME and HOPPER assembly: (bolted to skid)
2. CONTROLLER BOX: with the instruction manual.
3. FEEDER BOX: contains a COLOR or ADDITIVE feeder: optional.
4. FLOW CONTROL ASSEMBLY: optional
5. FLOOR STAND or VACUUM TAKEOFF ASSEMBLY: optional
RED INSTRUCTION STICKERS will assist you during assembly.
LIFT HANGERS are available to allow lifting the blender with a strap or chain. Contact Maguire if you require them.
1A. If your unit is to be MACHINE mounted:
For WSB MB, 100, 200, and 400 series models:
Two ways to do this are suggested ON THE NEXT PAGE:
The LEFT diagram shows the FRAME and SLIDE GATE both drilled with the proper bolt pattern for your machine and
THROUGH BOLTED to your press.
The RIGHT diagram shows only the 10 x 10 steel slide-gate plate drilled for your bolt pattern and bolted to your press.
The FRAME is then bolted to it using the existing 8 x 8 inch bolt pattern holes and bolts provided. With this method,
bolt head clearance holes are required in the poly-pro slide gate plate. This mounting works well on smaller machines.
For WSB 900 and 1800 series models:
An additional machine mount adaptor plate may be required. If you have ANY DOUBT about the STABILITY of the
unit when bolted directly to your machine throat, please call us for advice.
NOTE: When choosing proper orientation, be sure to retain access to the controller and weigh chamber, clearance for
hinged doors, and access to removable feeder hoppers.
1B. If your unit is STAND mounted:
A stand is provided and your unit will bolt directly to it. An assembly DIAGRAM is provided on the following pages.
An air operated FLOW CONTROL ASSEMBLY is provided for dispensing into a container. The purpose of this unit is
to allow time for mixing to occur after each dispense. This flow valve keeps the mix chamber full to just below the
sensor. This assembly bolts directly to the bottom of the Weigh Scale Blender frame.
CAUTION: LOAD CELLS ARE EASILY DAMAGED
If the FRAME is dropped from TWO FEET, the load cells WILL BE DAMAGED.
THE WARRANTY DOES NOT COVER DAMAGED LOAD CELLS.

12

13
"Vacuum Takeoff Assmbly"
With Optional VTA
WSB STANDS
37-1/4 [946]
51-1/4 [1302]
Barrel VTA WSB 100/200/400
10-1/8 [257]
AB DC
25-7/8 [657]36 [914]
39-7/8 [1012]
8-1/8 [206]
EF
Gaylord WSB 900/1800
51-7/8 [1318]63-1/4 [1607] 56 [1422]
VTA Barrel Gaylord
36 [914] 8 [203]
8 [203]
43-1/4 [1099] 69-1/4 [1759] 57-1/4 [1454]
16-1/8 [410] 36 [914]
56 [1422]
36 [914]
15 [381] 15 [381] 15 [381]

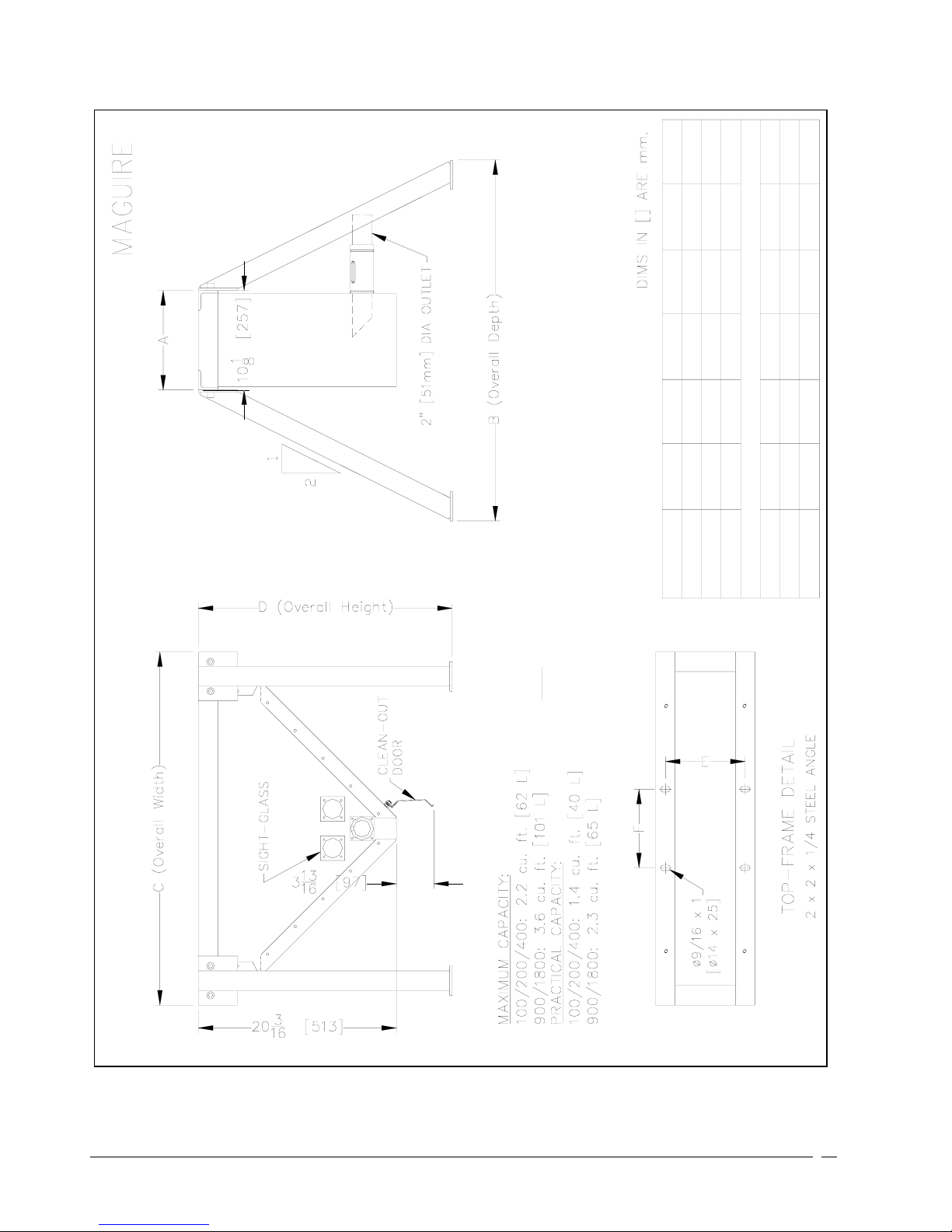

STAND DIMENSIONS
NOTE:
WSB 100/200/400 VTA Stand shown to scale.
10-1/8 [257] 10-1/8 [257]
8 [203]
8-1/8 [206] 8-1/8 [206]
14-1/8 [359] 14-1/8 [359] 14-1/8 [359]51-7/8 [1318]
39-7/8 [1012]
25-7/8 [657]
16-1/8 [410] 16-1/8 [410]

14
2. Slide the WEIGH BIN into position. It rests behind the clear-hinged access window. Install with the air cylinder toward you. If bin is
already in place, remove any shipping materials, packing tape or string.
3. Hang the Color and Additive Feeders: (Optional)
a. Lift side latches and fully extend slide assembly. Remove the hopper. Leave slide extended.
b. Tilting the entire slide assembly, motor end up, insert one corner of hanger cross bar behind frame corner post.
c. Rotate assembly into place so both ends of cross bar are behind corner posts.
d. Lower into place, bottom edge resting on frame and cross bar properly positioned behind corner posts.
e. Re-install hopper. Slide motor forward until latches engage.
4. Place the controller on the support tray and plug in all cords:
a. Air solenoid 8 or 14 pin plug into the matching receptacle.
b. Auger feeder drive motors into duplex receptacle.
c. Mixer motor into right side of controller.
d. Sensor cord plug into right side of controller.
e. Load Cell plug into port on left side of controller.
5. Plug the CONTROLLER into the receptacle located under the controller tray.
IMPORTANT: Do NOT plug the controller into a separate power source. The controller ground path MUST be the same as the
blender frame ground path. If your system has the controller located in a remote location, MAKE CERTAIN that the power to
the controller comes from the receptacle mounted on the Blender frame.
6. Plug the power cord coming from this box into a 110-volt power source (220 volt outside USA).
This cord MUST provide the ONLY power source for the entire system, including the controller. See: WIRING
CONSIDERATIONS, next page. 1800 series blenders also require a 240-volt power source for the mix motors.
7. Connect Compressed Air to the unit.
About 80 psi (5.5 bar) is recommended (40 psi for the Micro Blender). Lubricated air is NOT recommended.
NOTE: Micro Blenders should be set to 40 psi (2.7 bar). The Vertical Valves used in removable hoppers on 100, and 200 series
blenders are more accurate at the lower 60 psi pressure setting.
8. Remove all protective paper from the plastic windows.

Wiring Considerations
The wiring of your blender is very important to its proper operation. Electronics are very susceptible to voltage spikes and static
charges, both of which are very common in plastics factories.
To MINIMIZE these things, consider the following:
•The power supply should be solid; a strong supply, not limited by a "just adequate" control transformer. A source
of voltage that comes from a large transformer that supplies a large portion of the plant is better then a small
power supply transformer that is intended to supply only this device. Power supplies, even though they may be
"isolation" transformers, will still pass all voltage spikes right through. Their small size limits their ability to dampen
RF (Radio Frequency) noise that is often induced into the system from outside sources. This proves worse then
connection to larger central transformers.
•Avoid running the power supply line along side any heavy power lines. An unshielded power supply in a
raceway along side other heavy power lines will pick up induced RF noise and transfer it into the WSB steel
enclosure causing computer trouble.
•Long extension cords should be avoided. They also reduce the ability to provide a dampening effect on spikes
and static. The further the equipment is from a substantial power source, the more susceptible it is to spikes.
•The CONTROLLER and the WSB frame MUST share the same GROUND PATH. This is why you MUST plug the
controller into the OUTLET that is provided ON THE FRAME.
•REMOTE SYSTEMS. If you have your controller mounted in a remote location, you will have a number of power
and signal cords running between the frame and the controller. BE SURE that the LOW VOLTAGE lines are NOT
BUNDLED to the HIGH VOLTAGE lines and keep them away from other nearby electrical lines.
LOW VOLTAGE lines are: Load Cell cable, Level Sensor cord, Air Solenoid cable, and Printer and Computer
cables.
HIGH VOLTAGE lines are: Mixer motor cable, Feeder motors, and MAIN POWER line.
Keep these sets of cables SEPARATED.
•VACUUM LOADER CONVEYING LINES. Keep them away from all electrical lines, particularly the Load Cell lines.
Conveying plastic produces extreme static sources. A power supply line, even in conduit, that runs next to a
vacuum line, can introduce extreme static pulses into the processor. Keep conveying lines SEPARATED from
electrical supply lines.
•We use many internal tooth "STAR" washers in assembling the WSB to ensure good ground between painted
parts. Do not remove them.

16
Check Out Procedure
As you go through this procedure, if WHAT SHOULD HAPPEN, doesn't happen, see next section, DIAGNOSTICS, for what
to check.
PLEASE NOTE: 100/200 series models (3K load cells), display all weights in 1/10 grams (xxxx.x).
400/900/1800 series models (10K load cells) display weights in FULL grams, NO decimal point (xxxxx).
On this page we show all weights with NO decimal point.
Start with NO MATERIAL in any hoppers.
Be sure an AIR SUPPLY is connected.
Place ALL switches DOWN; POWER (on front); STOP and PAUSE (on left).
PROCEDURE: WHAT SHOULD HAPPEN:
1. POWER UP CONTROLLER
PLUG IN CONTROLLER Nothing should happen.
Air pressure should be holding ALL valves CLOSED.
This means all air cylinders are extended. If any slide gate or flap is open, air lines
are reversed.
If a FLOW CONTROL VALVE is installed, check it.
TURN POWER ON Display should say ( TWELVE ),
Followed by version date (V=xxxxxT)
Followed by the check sum number (CKS=xxxx)
Followed by (ROM OK )
Followed by (RAM = 8K)
Followed by model number (MODEL220) or the model you have:
(MB, 140, 14R, 220, 240, 24R, 420, 440,44R, 940, 184)
Followed by ( 0), then the actual weight of material in the bin. This number
should be zero, plus or minus several grams ( 20) to (-20).
AT THIS POINT
Be sure the model number that was displayed matches your blender model
number (first digit only). If this is not the case see two sections ahead,
SELECTING CORRECT MODEL.
TOUCH WEIGH BIN VERY LIGHTLY Display should update the weight every second reflecting the light pressure that
you are exerting on the bin.
2. OPERATE DISPENSE DEVICES
PRESS
Display will say (PASSWORD)
PRESS
Enters the PROGRAM mode. 2's will be displayed as you enter them.
Display will show (P x) when done.
PRESS
Display will say (OPERATE)
PRESS
Device number 1 will operate.
LED # 1 will light.
Press "1" repeatedly to observe operation.
PRESS
Device number 2 will operate.
LED # 2 will light.
Press "2" repeatedly to observe operation.
REPEAT THIS SEQUENCE For each dispense valve on your WEIGH SCALE BLENDER.
Up to 12 outputs are possible numbered 1 through to 9, A, B, and C.
Only those connected to devices will operate.

17
3. NOTE HOPPER NUMBERS
AT THIS POINT NOTE which component NUMBER is assigned to each hopper.
You will want to know each hopper's correct component number.
FOR WSB 940 & WSB 1840 SERIES: On 9000 and 18000 gram, FOUR hopper compartment systems, facing the
Controller side of the blender:
Device 1 is the NEAR hopper, 2 the FAR hopper, 3 the LEFT CENTER, and 4
the RIGHT CENTER hopper.
FOR WSB 100, 200 & 400 SERIES: On 1000, 2000, and 4000 gram, FOUR hopper systems facing the Controller
side of the blender:
Devices 1, 2, 3, and 4 are counter-clockwise starting with far left corner hopper.
FOR WSB 200, 400, 900 & 1800
SERIES:
On 2000, 4000, 9000 and 18000 gram SIX hopper systems facing the Controller
side of the blender:
Devices 1, 2, 3, 4, 7, and 8 are counter-clockwise starting with far left corner
hopper.
FOR WSB 100, 200, 400, 900 & 1800
SERIES:
On the blender Controller:
Device 5 is the LEFT Panel-front OUTLET.
Device 6 is the RIGHT Panel-front OUTLET.
4. OPERATE OTHER DEVICES
PRESS
The weigh bin air solenoid will operate.
LED # 13 will light.
The weigh bin dump valve will open.
Press, "DUMP" repeatedly to observe operation.
PRESS
This key controls the mix motor outlet on the side of the controller.
The mixer motor will run.
LED # 14 will light.
Mix blade turns clockwise facing the motor shaft or 270º on Pneumatic Mix
Motors.
Mixer switch must be down; timed position.
PRESS
The Flow Control Valve will operate.
(Under the mix chamber - this device is optional)
LED # 15 will light.
PRESS
The Strobe light and Beeper will operate.
LED # 16 will light.
PRESS
Press twice, to return to normal mode.
Verify normal mode by observing that there is NO letter P in the display ( x).
If you have made it this far, congratulations.
You have done well.
The load cells and controller are functioning properly.
LOAD CELL CALIBRATION – SKIP 2 PAGES

18
Check Out Procedure Diagnostics
If display fails to come on at all:
Check for power at outlet
Check the 1/2 amp panel front fuse.
If first display says (FOUR):
Then this is NOT the correct manual for this software. Obtain and use a FOUR software manual.
Possible model numbers are:
MB, 140, 14R, 220, 240, 24R, 420, 440, 44R, 940, 184.
If model number is not correct for you unit: see the next page, SELECTING CORRECT MODEL.
If display shows randomly drifting numbers:
Check to see load cells are plugged in.
If display shows about (- 1250.0) or (-4500):
Check that the weigh bin is in place properly.
If display is steady but not near zero:
An over stressed load cell will display a permanently high or low reading. Recalibrate load cells; next section.
If there is no response from the display when the bin is touched:
Check for damaged wires to load cells.
Check that load cell plug screws are secure.
If response is not sensitive or does not return to its start point:
Check for interference around weigh bin.
If pressing * does not display (PASSWORD):
You are not in the normal power-up mode or the keypad doesn't work. Normal mode is indicated by the ABSENCE
of the letter M or P at the left of the display.
If display says INVALID after entering the password number:
You pressed the wrong keys or the password number has been changed and it is no longer 22222. Call us for help.
If an air solenoid does not operate:
Check the 1/2 amp fuse.
Check solenoid cable connected properly and fully seated.
Check mix chamber door closed, safety interlock engaged.
If a slide or dump valve does not open:
Check the air supply and regulator adjustment: (minimum 20 psi, 80 psi (5.5 bar) recommended).
Check for proper air line connection to cylinder.
If an auger feeder motor does not run:
Check the 3 amp fuse.
Check that the motor is plugged into the proper outlet.
Check for faulty motor by plugging it into a known source of 110 volt A.C. power (240 volt outside USA).

19
Selecting the Correct Model
Controllers are programmed to control all sizes of Weigh Scale Blenders.
The MODEL number that your unit is set for will be displayed during the start up sequence every time power is turned on.
The possible models are:
Blender Model Blender Display
Code
Batch Weight
(Grams)
Weigh Bin
Dimensions
Load Cell
Rating
MB MB 400 5” x 5” x 5” High 1 @ 3Kg
140 / 140R 140 / 14R 1000 10” x 6” x 6” High 1 @ 3Kg
220 220 2000 10” x 10” x 7” High 2 @ 3 Kg
240 / 240R / 260 240/24R 2000 10” x 10” x 7” High 2 @ 3 Kg
420 420 4000 10” x 10” x 10” High 2 @ 10 Kg
440 / 440R / 460 440/44R 4000 10” x 10” x 10” High 2 @ 10 Kg
940 / 960 940 9000 16” x 16” x 12” High 2 @ 10 Kg
1840 / 1860 1840 18000 16” x 16” x 17” High 2 @ 20 Kg
“R” Models have 2 removable hoppers
The addition of feeders will change the last digit of the model number.
This digit can be ignored for selecting the correct Model.
400, 1000 and 2000 gram systems with 3 Kg load cells; weights are displayed in tenths of grams (xxxx.x).
4000, 9000, and 18000 gram systems with 10 or 20 Kg load cells; weights are displayed in full grams (xxxxx).
If your unit is NOT set correctly to match the hardware you have, you must change it. To do so:
Turn power on. From the NORMAL mode:
Model Setup Keypad Sequence:
Press
Display will say: (PASSWORD)
Press
Display will say: (MODEL 220)
Or
Whatever model it is currently set for.
Press
To scroll through all model sizes.
When the model you want is displayed, then:
Press
Wait a few seconds.
Controller will reset and restart as the system you have
selected.
When switching models, all parameter table information is lost and the new "default" information for this model is loaded
from ROM.
If you should be in any doubt as to which is the correct model you should select please stop and contact your local Maguire
representative who will inform you by return.

20
SECTION 2 - OPERATION
Load Cell Calibration
NOTE: Displays shown here are in full grams. MB, 100 and 200 series models are in 1/10 grams, with a decimal.
If your load cells already display a weight close to zero, plus or minus 10 grams, you may skip this section and go directly to:
TURNING ON OUTPUTS (next page).
If your unit DOES NOT display an acceptable weight, you should recalibrate them, that is reset your ZERO weight, at this
time.
To do so:
BE SURE the weigh bin is EMPTY.
BE SURE the load cell plug is plugged into the side of the controller.
BE SURE the weigh bin is resting on the load cells freely.
BE SURE the air line to the dump valve is connected, as it would be during normal operation. A disconnected air line adds
weight.
BE SURE the load cells and bin are not jammed in any way. To test for this see that a light touch on the bin causes the
display to change. When the pressure is removed the display must return to exactly where it was, plus or minus 1 gram.
If this does not happen, something is touching something and the bin is not entirely free to move. Check EVERYTHING
around the bin.
LOAD CELL CALIBRATION:
The sequence of keystrokes is as follows:
Load Cell Zero Calibration Keypad Sequence:
Press
Display will say: (PASSWORD)
Press
Display will say: (P x)
Press
Display will say: (CAL OFF)
Press
Display will say: (CAL ON)
Press
Display will say: (P x)
Press
Display will say: (-- WAIT --)
Followed by: (P 0)
Press
Display will say: ( x)
The ZERO point of the load cells is now set properly. FULL weight calibration may also be done at this time, however, it
probably is NOT NECESSARY. When load cell readings shift due to rough handling, the entire range of readings from
ZERO to FULL shift together. The ZERO weight calibration routine resets the full range of the cells and, therefore, corrects
FULL weight readings as well. For information on FULL weight calibration, see RECALIBRATION OF LOAD CELLS.
PROCEED TO: TURNING ON OUTPUTS – MATERIAL TYPES NEXT PAGE
