Magus 21Series User manual

Page 1/78
statement:
· We strive to ensure the exactness and integrality of the manual in the process of preparation, but
still errororomission is inevitable.
· The copy, transmission, plagiary, storage in retrieval system, or translation into any language
without written authorization is prohibited.

Page 2/78
Content
CHAPTER I MAJOR FUNCTION INTRODUCTION............................................................. .......................................7
CHAPTER II NSTALL INSTRUCTION……………………………………………………………………………………………………..9
2.1 INSTALL HARD DISK……………………………………………………………………………………………………………....9
2.2 INSTALL DEVICE..........................................................................................................................................9
2.3 INTERFACE ON REAR PANEL................................... ..................................................................................10
CHAPTER III OPERATION NSTRUCTION……………………………………………………………………………….…………….12
3.1 MOUSE OPERATION...................................................................................................................................12
3.2 REMOTE CONTROLLER..............................................................................................................................13
3.3 ICON INSTRUCTION...................................................................................................................................15
CHAPTER IV BASIC OPERATION...........................................................................................................................17
4 MAIN MENU................................................................................................................................................17
4.1.1 TURN ON………………………………………………………………………………………………………………………18
4.1.2 LOGIN.................................................................................................................................................18
4.1.3 TURN OFF…………………………………………………………………………………………………………………….18
4.1.4 LOGOUT.............................................................................................................................................19
4.2 TIME ADJUST AND RECORD CONFIGURATION………………………………………………..…………………………19
4.2.1 TIME ADJUST.....................................................................................................................................19
4.2.2 RECORD CONFIGURATION........ ........................................................................................................20

Page 3/78
4.3 RECORD CONTROL......................................................................... ..........................................................20
4.3.1 START TIME / MOTION DETECTION / ALARM RECORDING....................................... .......................21
4.3.2 START MANUAL RECORDING.............................................................................................................21
4.3.3 STOP RECORD....................................................................................................................................21
4.4 RECORD SETTING（TIME RECORD）..... ...................................................................................................21
4.5 ENCODING SETTINGS................................................................................................................................22
4.5.1 RECORD QUALITY..............................................................................................................................22
4.5.2 NETWORK TRANSMISSION IMAGE QUALITY.......................................................................................23
4.5.3 AUODIO&VEDIO SWITCH...................................................................................................................23
4.5.4 MASK AREA SETTING........................................................................ ................................................23
4.5.5 TIME LOGO LOCATION................................................................................. .....................................24
4.6 RECORD SEARCH/ PLAYBACK / CUT / BACKUP.......................................................................................24
4.6.1 SEARCH ACCORDING TO TIME...........................................................................................................26
4.6.2 RECORD PLAYBACK OPERATION.......................................................................................................26
4.7 ALARM IMPUT/OUTPUT SETTING..............................................................................................................28
4.8 PTZ CONTROL…………………………………………………………………………………………...…………………………29
4.8.1 PTZ MANUAL CONTROL...................................................................... ...............................................30
4.8.2 PRESET FAST POINT AND MANUAL CRUISE…………………………………………………………………………30
4.8.3 MANUAL CRUISE................................................................................................................................30
4.8.4 AUXILIARY LIGHTS.............................................................................................................................31

Page 4/78
CHAPTER V MENU AND PARAMETER SETTINGS..................................................................................................32
5.MAIN MENU..................................................................................................................................................32
5.1 SYSTEM INFORMATION..............................................................................................................................32
5.1.1 HDD INFO...........................................................................................................................................33
5.1.2 BIT STREAM STATISTICS....................................................................................................................33
5.1.3 LOG INFORMATION............................................................................................................................34
5.1.4 VERSION INFORMATION/UPGRADE SYSTEM.....................................................................................35
5.1.5 ONLINE USER ....................................................................................................................................36
5.2 SYSYTEM SETTING....................................................................................................................................36
5.2.1 GENERAL SETTING............................................................................................................................37
5.2.3 RECORD SETTING..............................................................................................................................38
5.2.4 PTZ SETTING......................................................................................................................................39
5.2.5 NETWORK CONFIGURATION..............................................................................................................40
5.2.5.1 STATIC IP SETTING..................................................................................................................40
5.2.5.2 AUTOMATICALLY OBTAIN IP ADDRESS SETTINGS...................................................................41
5.2.5.3 ALARM CENTER SERVER SETTINGS........................................................................................41
5.2.5.4 ADSL DIAL / MOBILE 3G / UNICOM 3G / 3G SETTINGS TELECOMMUNICATIONS ..................41
5.2.5.5 DDNS SET AND SUPPORT DYNAMIC DOMAIN NAME RESOLUTION PROTOCOL.......................42
5.2.5.6 EMAIL SETTING.......................................................................................................................45
5.2.5.7 AUTOMATIC TIME ADJUST / NTP SETTING..............................................................................46

Page 5/78
5.2.8 ALARM SETTING.................................................................................................................................46
5.2.9 VIDEO DETECTION............................................................................................................................47
5.2.10 PTZ SETTING....................................................................................................................................49
5.2.10.1 COMMUNICATION PROTOCOL.............................................................................................49
5.2.10.2 PRESET POINT SETTING....................................................................................................50
5.2.10.3 CRUISE SETTING.................................................................................................................50
5.2.11 OUTPUT MODE AND CHANGE CHANNEL'S NAME............................................................................50
5.2.12 RESTORE DEFAULT.........................................................................................................................51
5.3 ADVANCED................................................................................................................................................52
5.3.1 HDD MANAGE....................................................................................................................................52
5.3.2 EXCEPTION HANDLING......................................................................................................................53
5.3.3 ALARM OUTPUT..................................................................................................................................54
5.3.4 VIDEO CONTROL................................................................................................................................54
5.3.5 USER ACCOUNT.................................................................................................................................55
5.3.6 AUTO MAINTENANCE……………………………………………………………………………………………………..56
5.3.7 TV ADJUSTMENT................................................................................................................................57
5.3.8 VIDEO MATRIX...................................................................................................................................58
5.3.9 CARD NUMBER SUPERPOSITION AND SPECIAL DATA………………………………………….………………....58
5.3.10 CONFIGURATION BACKUP…………………………………………………….………………………………………...58
5.4 FILE BACKUP………………………………………….…………………………………………………………………………...58

Page 6/78
5.4.1 OPERATION BEFORE THE BACKUP....................................................................................................59
5.4.2 NAMING RULE OF THE BACKUP FILE ………………………………………………………………………………...59
5.4.3 PARTITION FORMAT SUPPORT………………………………………………………………………………………....59
5.4.4 SUPPORTED BACKUP MEDIA………………………………………………….………………………………………..59
5.4.5 BY THE BACKUP TIME... ..................................................................................................................59
5.4.6 BACKUP BY SECTION…………………………………………………………..…………………………………………59
5.4.7 BACKUP FILE PLAY……………………………………………………………………………………………………......59
5.5 CLOSED SYSTEM……………………………………………………..…………………………………………………………..60
5.5.1 DEFAULT THE MENU USER…………………………………………………………………………...………………...60
5.5.2 TURN OFF THE MACHINE………………………………………………………………………………………………..60
5.5.3 REBOOT THE SYSTEM.......................................................................................................................60
5.5.4 SWITCH USER……………………………………………………………………………………………………………....60
CHAPTER Ⅵ ROUTER SETING FOR IE & REMOTE MONITORING………………………………………………..….......60
CHAPTER Ⅶ INSTRUCTIONS FOR MOBILE PHONE MONITORING.......................................................................69
1. Installation for "zmeye plus" …………………………………………………………………………………………………………69
2. Introduction for how to use “ zmeye plus “…………………………………………………………………….………………...75

Page 7/78
Chapter I Major Function Introduction
Support multi-language
The basic system support Chinese, English, Dutch, Hungarian, French, Danish, Turkish, Italian, SPANISH, Czech, Portuguese,
Russian, Korean, Indonesian, Vietnamese and so on. There will be other new language later.
Optimized compression
Compressed/decompressed in H264algorithm provide higher definition and stable network;
Independent channel design; static and dynamic bit steam are available.
Live configuration
Compound video input, built in anti-lightning protection
Multi output：BNC output ,VGA output，HDMI output (high end DVR)；
Each channel at 25F/S (PAL)or30F/S（NTSC）is real time playing, no delay.
Live configuration adjusting: contrast, brightness, hue, sharpness adjusting
Chinese name for channel: support Chinese input
Video recording
the parameters of video recording of each channel can be set separately; frame rate is adjustable(0.1F/S –25F/S PAL), frame rate is
adjustable(0.1F/S –30F/S NTSC)
Multi recording methods: manual/schedule/alarm/motion detection recording and outer alarm;
Each channel can set record image independently to make full use of HDD.
Motion detection function
48motion detection areas can be set in each image;
5 sensitivity degrees can be set in each image, there are lowest, lower, common, higher, highest
Search recording
Search by date/time, list or exact search;
Normal/alarm recording search;
Multi channel playback
Synchronized playback at single channel,2channel, 4channel or 16 channel A/V;

Page 8/78
Playback: Fast forward, fast rewind, pause, single frame, previous track, next track, track head, track end,mute;
Fast forward: 1/2×,2×,4×,8×, 16×,32×
slow forward 1/2×,1/4×；
Anti-fake watermark
Anti-fake watermark is available if required by client；
P.T.Z. control
Support multi-protocol decoder with RS485 bus;
Support dome camera presetting positions, cruising, pattern ID setting and adjusting
Alarm function
Alarm input/ output without trigging point;
Upload alarm manually or by remote control/network;
Customize alarm input type :NC/NO;
Alarm shoot the picture and send email to Alarm centre automatically.
Remote control function
Support10/100MBself-adaptive network;
Support remote set time, remote download/revise data
Provide matched network software for free; Support WEB browsing;
Control PTZ/lens/speed dome camera by controlling network software;
Support remote search and download log
Safety protection
administrator and operator’s permission can be customized.
Group permission can be customized
Backup
Backup by some pointed channel or backup according time period
Backup with USB, DVDRW or USB HDD;(USB 2.0)
Backed files can be back played
Server update
Upgrade by USB and network

Page 9/78
Chapter II Installation Instruction
2.1 Install hard disk：
This digital video recorder isn’t equipped with hard disk. Before install the digital video recorder, please prepare the hard disk. It can
not work without the hard disk. Please choose the supplier recommended HDD, suitable for DVR working, to meet the time and capacity
request. Prefer to purchase it from regular disk supplier, to sure the quality, which will affect DVR working.
Install hard disk: get across screwdriver first.
Step1:Open the case.
Step2:Put the hard disk into the holder and fix it with screws on both left and right
Step3:Using a SATA cord to connect HDD onto SATA connector.
Step4:Put the holder back to the device and fix it with screws.
①②③ ④
2.2 Install device：
Select appropriate installation position to provide good ventilation and prevent over heating of the device.
Do not install the device near heat sources like radiator and vent duct, or places with direct sunshine irradiation,
Too much dust, or mechanical vibration or impact.
Do not cover the machine, or put liquid stuff onto it.

Page 10/78
2.2.1DVR Front Panel
DVR is a short form of Digital Video Recorder.

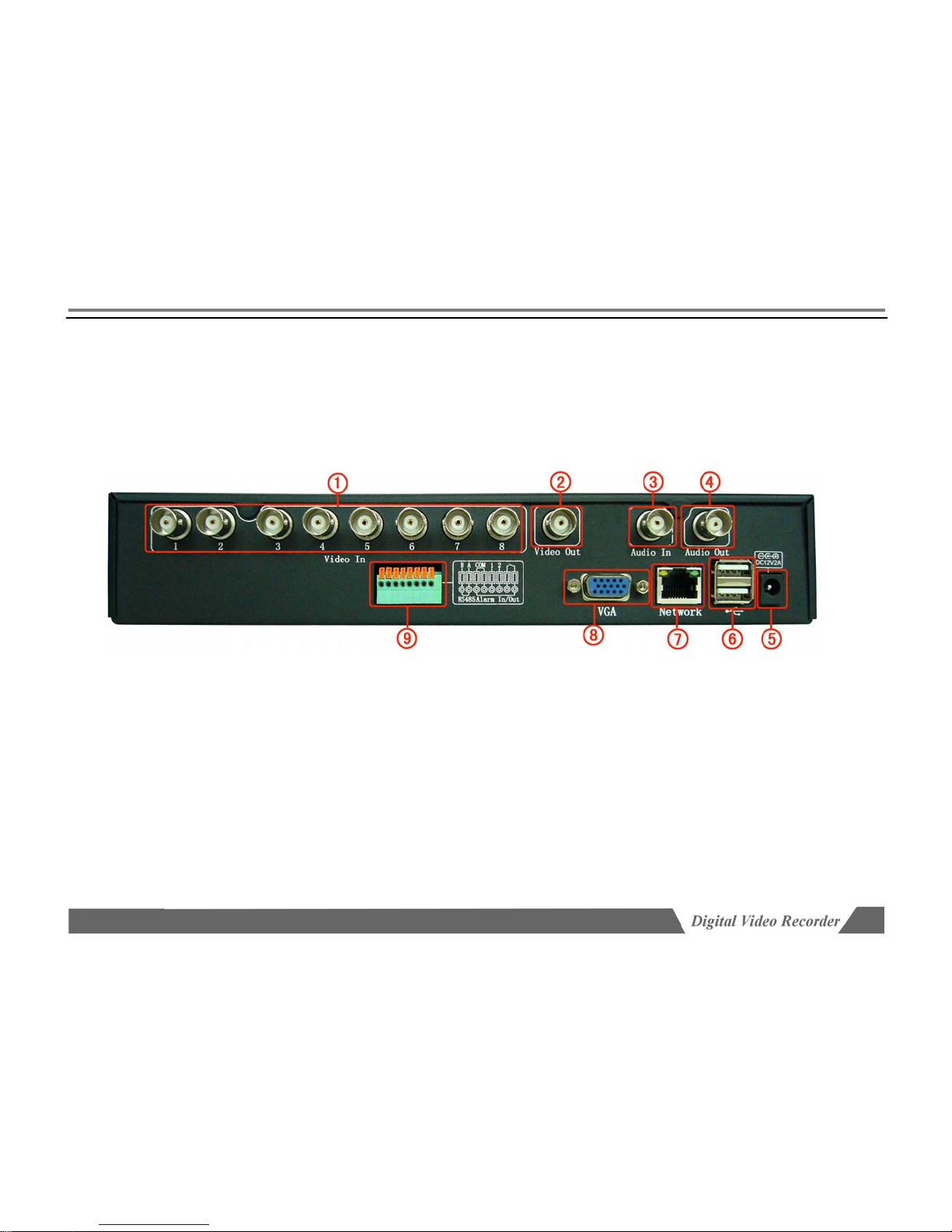

2.3 Interface on rear panel：
Above picture is rear panel picture. Different model will be with different rear panel.
1. Video input
Connect to video input device. Input signal should be PAL/NTSC BNC（1.0V P-P ，75Ω）
2. Video output
Connect to monitor and output video signals. Signal should be BNC(PAL/NTSC BNC（1.0V P-P ，75Ω）。
3. Audio input
Connect to (analog)Audio input device. Sound pick up device need be with cables, support talking.
4. Audio output
Connect to (analog) audio output device. Audio output signal usually larger than 200mv 1KΩ(BNC)，which can connect low resistance
earphone and cabled speakers ,or it can drive other sound device through sound box. If it cannot spatial separation with the sound box and

Page 11/78
sound pick up device, it may has noise. We can take measure as below,
Take sound pick up device with good direction.
Adjust sound box volume，make it lower than noise range.
Using absorb sound material in the environment，which can reduce sound reflect, improve the sound environment.
Adjust the position of the sound pick up device and sound box, it can lower the noise.
5. Power supply
Connect to DC12V power adaptor
6. USB interface
Connect mouse, USB flash, USB mobile device interface. USB device can upgrade and backup the software.
7. UTP network port
Connect to Ethernet devices, e.g. Ethernet switch, Ethernet hub, etc.
Note：when the Ethernet device connect to the network card directly, use cross wire. When the Ethernet devices connect to the computer,
use parallel cable.
8. VGA output
Connect to VGA display，support CRT、LCD display。
9. Alarm output
Send alarm signals; connect to alarm buzzer or lamp. Alarm output cannot connect large power device（Not exceed 1A）. When alarm
output, we should prevent over current destroy the device. If using large power device, must be separated by contactor.
Alarm input
Receive alarm signals; connect to alarm sensor, such as wave sensor, door status switch and shock sensor.
Alarm detector’s GND port connect with com port（Alarm detector should connect with external electricity）；
Alarm detector’s GND port connect with DVR’ s GND port.
Alarm detector’s NC port connect with DVR’ s alarm input port.（ALARM）；
Alarm input and DVR use the same GND port.
RS485 interface
Connect to P.T.Z device.
PTZ should use the same GND port with DVR,or it may cannot control PTZ. We suggest use the shield cable, the shield one can connect

Page 12/78
to the GND.
Prevent the high-voltage, install the cable in good position to prevent the ray.
Input 120 Ω resistance to reduce reflect ,to make sure the good signal.
DVR’ s 485 AB cable cannot connect to other 485 output device.
Voltage between Decoder AB cable should be small than 5V。（Note A connect to + B connect to -）

Page 13/78
Chapter III Operation Instruction
3.1 Mouse operation
Right click menu is shown as below: The list order will be different while controlled by cursor or by front panel.
(Note: Right click to back to previous menu)
S/N Name Remark
1 View 1 Detect one image on full screen
2 View 4 Detect four image at the same time
3 View 9 Detect nine image at the same time
4 View 16 Detect sixteen image at the same time
5 Pan/Tilt/Zoom Move cursor to the PTZ, come to the PTZ control interface
6 Color setting Set the color, brightness, Contrast Ratio, sharpness in different time

Page 14/78
7 Search Come to search interface, take other passage for reference.
8 Record Come to record interface, with handle record,auto-record,stop record
9 Alarm out Select Alarm output model,auto,by hand, stop
10 Main menu Come to Main menu
3.2 Remote controller
S/N Name Remark
1 Add Check IP address

Page 15/78
2 record recording manually interface
3 Power Power on/Power off
4 Switch with number ,character and other keys
5 10+ Numerical keys 10+ Numerical keys，for example,press10+ and 2,then come to 12.
6 Numerical &character
keys Numerical keys
7 Record playback control area keyboard layout: Play, pause, FF and FR on front panel, previous/next track, first/last track
8 Backup Backup menu
9 exit Exit the interface
10 Function
When it is at Single-screen monitor status, press button to display the Auxiliary Function: PTZ
control and image color; when setting motion detection area, press the Fn key and direction keys to
complete set.；
Clear Function: Continued Press the Fn key (1.5 seconds) to empty all the contents of the edit box;
text box is selected, press the button continuously, switch the input between the number, English
and Chinese . each menu page tips the special features functions
11 Menu control
PTZ direction control
Come to menu, turn up, down, left, right.
PTZ turn up, down, left, right on PTZ condition.
12 PTZ focus control ±
13 PTZ zoom control ±
14 Volume control +volume up,- volume down
15 PTZ IRIS control ±

Page 16/78
16 Multi image
Image will switch to 1/4/9/16 screen in cycle on spot;image switch normal / full screen display on
playback status.
17 PTZ switch control
On PTZ switch control spot image status, to start PTZ control buttons; when on playback status,
start the AB Cut function
18 Clear
On spot image status, clear the alarm port, returned to normal; on playback status, turn on the
video list loop play.
19 Mute Turn off sound
3.3 Icon instruction
MONITOR SCREEN IS LOCKED；
MOTION DETECT IS TRIGGERED TO MARK THE CHANNEL WHICH SHOULD BE PAY ATTENTION TO；
RECORD MARK, LABELING THIS CHANNEL IS RECORDING NOW；
CAMERA VIDEO SIGNAL IS LOST ；
THE CURRENT SCREEN CAN BE PARTIALLY ENLARGE LOGO, PRESS THE LEFT MOUSE BUTTON, DRAG THE RECTANGLE,
RELEASE THE LEFT BUTTON, THE RECTANGLE IMAGE TO ENLARGE TO FULL SCREEN THE WINDOW；
ENLARGED WINDOWS PARTIALLY, ENLARGED STATE IS NOT ACTIVATED
INSTRUCTIONS CD / DVDRW IS CONNECTED TO STANDBY;
INSTRUCTIONS DIAL-UP NETWORKING (PPPOE / CHINA UNICOM 3G / MOBILE 3G / TELECOM3G) CONNECTION STATUS；
INSTRUCTIONS THE ESATA STORAGE DEVICE IS CONNECTED, ON STANDBY；
Instructions no hard disk in DVR. Device operate without hard disk , the buzzer will sounds 4 short tone;
INDICATE THE SD CARD STORAGE DEVICE IS CONNECTED TO STANDBY;
INDICATES THE MUTE STATUS;
INDICATES THAT THE USB STORAGE DEVICE IS CONNECTED TO STANDBY

Page 17/78
CHAPTER IV BASIC OPERATION
4 Main Menu
4.1 SYSTEM LOGIN

Page 18/78
After power on, click the left mouse button or press the enter key, user input user name and password.
Remark: there are 3 original user name: admin、88888888、66666666.The password is the same as user name.
Admin,88888888 is a high privilege user, and 66666666 is lower power user which only can monitoring, playback, backup and others
4.1.1 Turn on
Check whether the current and voltage of power supply accord with the digital video recorder before turning it on.
Check whether video recording device is connected and whether the connection is proper. Check whether monitor is
connected to VOUT port or VGA port on rear panel. Connect properly and then turn on the recorder. Press Power button
on front panel to turn on the recorder. Note: If the hard disk has been used and “Hard disk hasn’t been formatted. Format now?” is
displayed; click
“Yes” to format the hard disk and then you can record video normally. Click “No”, the hard disk won’t be formatted and
You can’t record video normally.
4.1.2 LOGIN
Only when user log in, can adjust the device, manage the user group. Different group has different permission, details we can find in
Advanced Options - User Account section. See the login and interface icons.
4.1.3 Turn off

Page 19/78
Press the Power key on front panel to turn off there coder.
There coder shouldn’t turned off in backup process; otherwise the backup recording will be lost.
Prompt: Cut off the power supply of recorder first and then turn off the peripheral devices. If you won’t use the recorder for long time,
remove the power cord from outlet
4.1.4 Logout
Cancellation is logged out of the current account，logout the account to protect your operation.
Check detail from main menu-turn off the software - users logout the menu
Restart: After reset internet Parameter, need to restart the device to work normally.
4.2 Time adjust and Record configuration
You need to set date/time before record video.Only set time can you search recorded files timely.. Press [↑],[↓],[←], and [→] to move
cursor.

Page 20/78
4.2.1 Time adjust
Main menu—system setting—general setting.Save and go to former menu automatically.
If it is inrecording state, the status bar will indicate the state and the settings won’t take effect. Please stop record and then adjust time
if it didn’t take effect.china TV format is pal,other country’s format pls take local tv format for reference.
4.2.2 Record configuration：
Video length: is the length of each video, it is recommended to set length of time not less than 30 minutes. For example, set 30 minutes
(0030). Each video channel longer, the greater the video data file, the backup may need more time.
4.3 Record control
Remark： Make sure the hard disk has been installed correctly and already format with operating authority before record, or the device
may reboot frequently to detect the hard disk.
