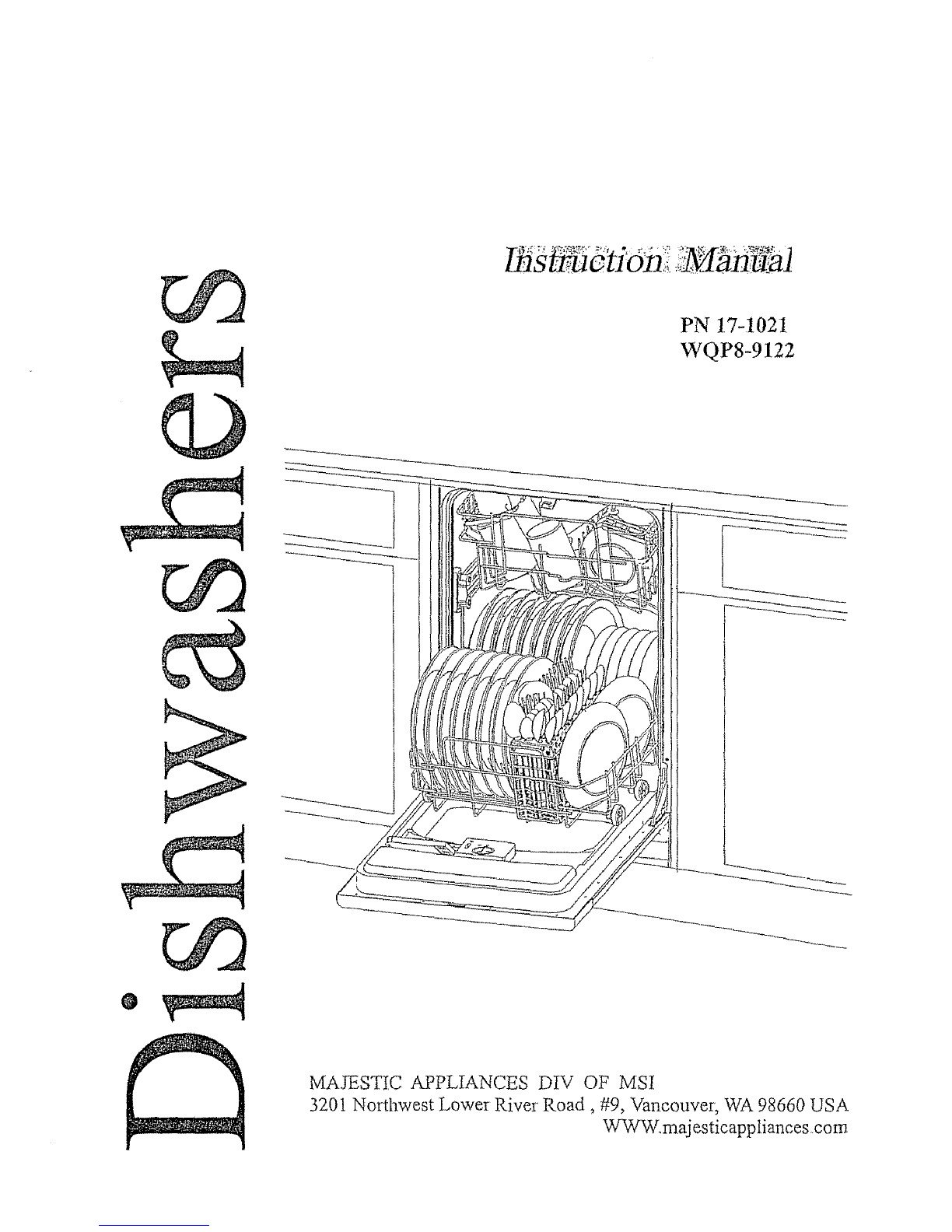

Majestic Appliances WQP8-9122 User manual

<O
#9, Vancouver, WA 98660 USA
MA.TEsTtC APPLIANCES DtV OF MS1
3201 Nortl_west Lowe_ River Road, WWW.rnajesticapptiances c°m

We & You,
A S vice Parmers.hip
]hank you fbr buying this product. As a home
appliances producer, we are proud of our quality
products and we are committed to providing dependable
service We are able to utilize our gtoba[ resources in
creating innovation that makes housework lighter and
easier, and provide a truly comfortable home for you to
relax and enjoy
.2 Read this Manual
This manual contains sections of Safety
Instructions,Operating Instructions,
Installation Instructions and iroubleshooting
'tips etc Carefully reading it before using the
dishwasher wilt help you to use and maintain
the dishwasher properly
Before CM1ingfor Service
I0 review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself'and not need to ask for the help of
professional technicians
i_L -- If You Need Service
If you can not solve the problems by yourself
after reading the section of Troubleshooting
Tips,please contact the professional
technicians of the service center We are happy
to help you with your questions,24 hours a
day,7 days a week
Safety Information.
Operating Instructions
Control Panel ........................................... 2
Dishwasher Features ............................. 2
Wash Cycle Table .............................. 3
Detergent Dispenser ........................................ 5
Rinse Aid Dispenser ................................... 5
Loading the Dishwasher Rack ............... 6,7
Turning On theAppliance ........................ 7
Filtering System ........................ 8
Caring for the Dishwasher ...................... 8,9
Troubleshooting Tips
Before calling for service ..... 10,11

,IMPORTANT SAFETY 1NFOR_fVIATION
READ ALL INSTRUCTIONS BEFO_R] USING
tVhen nsmg you( djshw_her,!f_I16_y:_e b_lb w baszcpr¢caut!o_,
WARN;NG! HYDROGEN GAS IS EXPLOSIVE
Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two
weeks ormore HYDROGEN GAS IS EXPLOSIVE
If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water
faucets and let the water flow from each for several minutes this will release any accumulated hydrogen gas
As the gas is flammable, do not smoke or use an open flame during this time
GROUNDING INSTRUCTIONS
Power Cord Models
This appliance must be grounded,, In the event of a malfunction or breakdown, grounding will reduce the risk
ofelectrie shock by providing apath of least resistance for electric eurtenL This appliance is equipped with a
cord having an equipment ..grounding conductor" and a grounding plug., The plug must be plugged into an
appropriate outlet that is installed in an aeem dance with all local codes and ordinances°
• Impropeti conhection of th'ecquipmentx4grou_ding'_:otiduet0r c_hrcsti[t:iff _isk 0,£.eleetrie Shock ;Chci!k:with aqualified
electrician or servlce rep resentative ffyou are in doubt wether the appliance is pronerly grounded. Do you modify the pln_
provided with,the appliance; If it }yllt not fitthe outletl hav,e aproper ontl_{nstall_by aqualified eleetneaano
Cable Direct
This appliance must be connected to agrounded metal, permanent wMng system ,or an equipment-grounding
conductor" must be run with the circuit conductors and connected to the equlpment-grounding terminal or' lead
on appliance.
ark WARNING I,PROPER USE
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher
Do not touch the heating element during or
immediately after use
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent For plastic
items not so marked, check the manufactures
recommendations
Use only detergent and rinse additives designed
for an automatic dishwasher. Never use soap,
laundry detergent, or hand washing detergent
in your dishwasher Keep these products out of
children..
Do not operate your dishwasher unless afl
enclosure panels are properly inplace Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not pIace any heavy objects of stand on the door
when it is open The appliance could tip forward
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seat;
2) Load sharp knives with the handles up to reduce
the risk of cut-type injuries
When using your dishwasher, you shoutd prevent
plastic item from contacting with heating element
Keep child away fiom detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside
The door should not be left in the open position
since this coutd present a tripping hazards
During installation, the power supply must not
be excessively or dangerously bent or flattened
To reduce the risk os injure, do not allow children to
play in or on a dishwasher
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard
Please dispose of packing materiaIs properly
Use the dishwasher only for its intended function
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it
Do not tamper with controls.
READ AND FOLLO W THIS SAFETY INFORMATION CAREFULLY
SAVE THESE INSTRUCTIONS

CONTROL PANEl,
ON Rapid ['ttt_
OFF
(e i:':_
_"---'--v_ _'_'-i -'t_
3 :4 5 2
<
1
2
3
Power ON Light: 70 come on when the ON/OFF Button is
pressed down
Rinse Aid Warning Light: To come on when dispenser
needs to be refilled,
ON/OFF Button: To turn ontoff the power supply
4 Rapid Button: Only used with cycle"7 "
5 Plus Button: Only used with cycie "O"
:6 Door Handle: Pull it to open the door
,7 Washing Program Selector: Turn the knob clockwise
to select wash cycles
DISHWASHER FEATURES
2
3
4
5
Front View
Back View
11
1,3
Front View
12
1 Upper Rack
2Spray Arms
3[owerRack
'4 Main Filter
5 Detergent Dispenser
6 CupShelf
_ Silverware Basket
;8 Coarse Filter
9RinseAid Dispenser
tODrain Hose
'I 1 Inlet Valve
-12Junction Box
13 I_cycling Leg

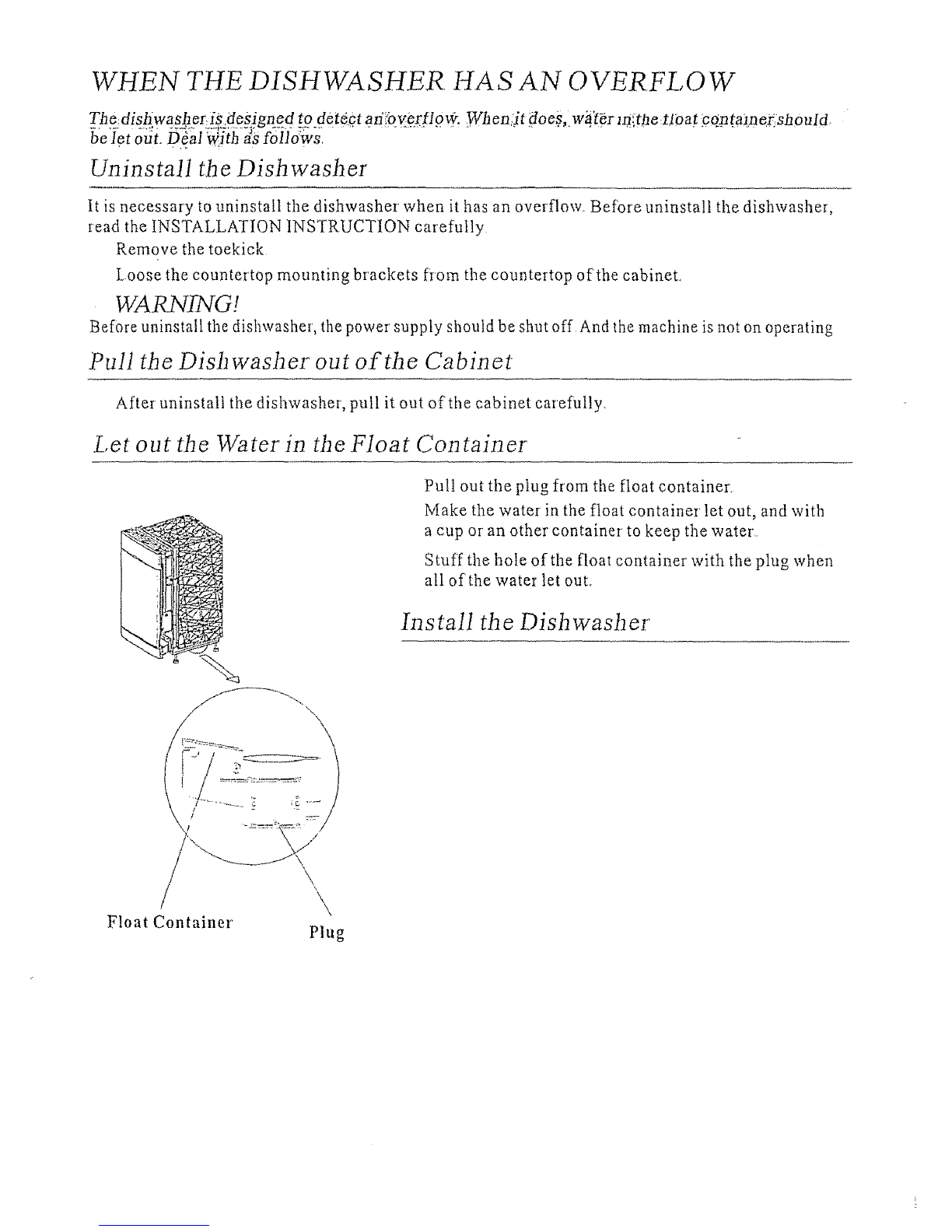

WHEN THE DISHWASHER HAS AN OVERFLOW
Thedishwasher':i_ flesigned to detect afi_overflow. When/it doeR, w_i't_r ln_the tlOat cOntametshould
........ _: _?'t ';r-.!'=...... y_v----7_.............................................
be 1el out. Deat W,!thas foI1ows
Uninsta11the Dishwasher
It is necessary to uninstalI the dishwasher when it has an overflow Befm'e uninstall the dishwasher,
read the INSTALLATION INSTRUCTION carefully
Remove the toekick
Loose the countertop mounting brackets from the countertop of the cabinet
WARNING !
Before uninstaI1 the dishwasher, the power supply should be shut off And lhe machine is not on operating
Putl the Dishwasher out of the Cabinet
After uninstall the dishwasher, pull it out of the cabinet carefully,
Let out the Water in the Float Container
Pull out the plug from the float container
Make the water in the float container' let out, and with
a cup or an other container to keep the water
Stuff the hole of the float container with the plug when
all of'the water let out.
Install the Dishwasher
/
Float Container
\\\\
Plug

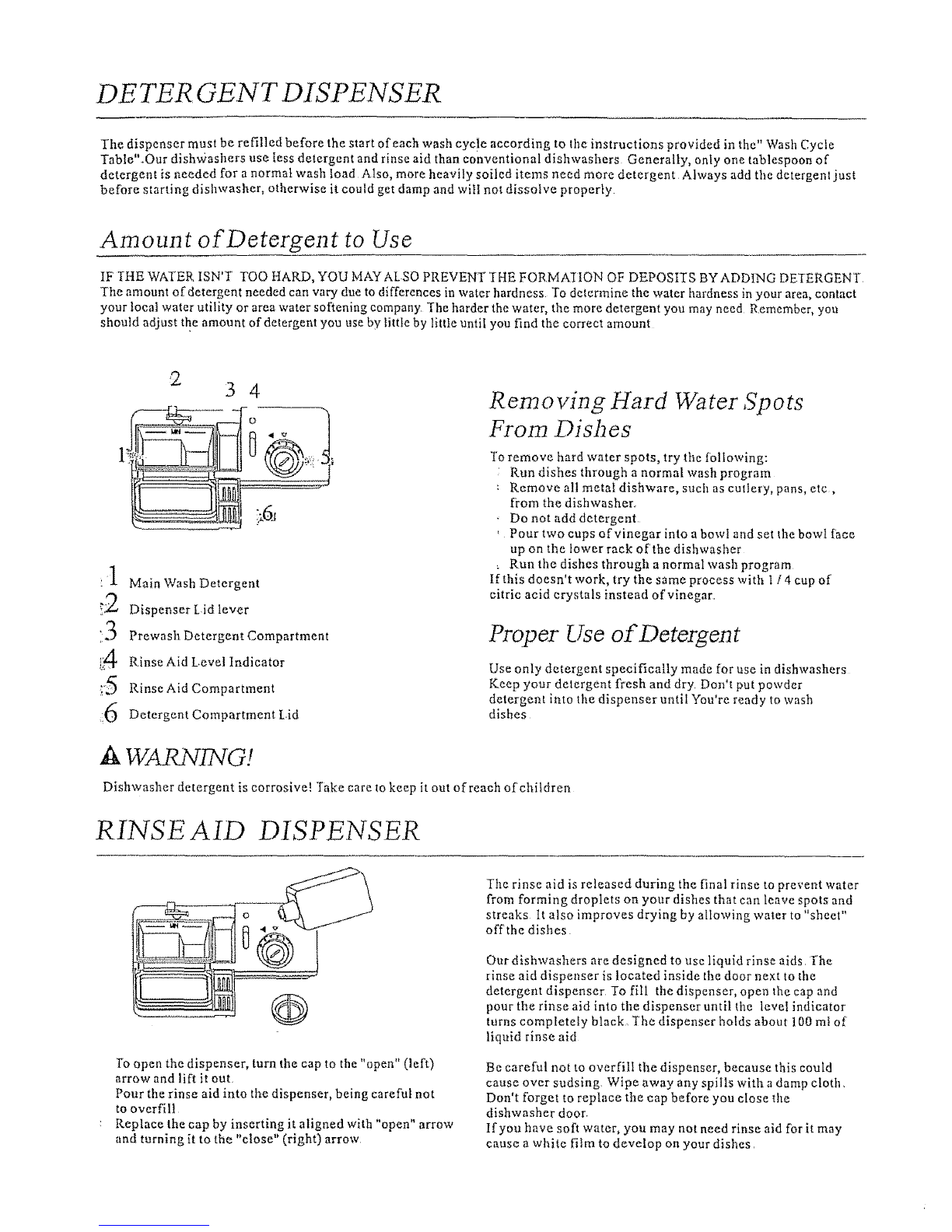

DE TER GENT DISPENSER
The dispenser must be refilled before the start of each wash cyc!e according to the instructions provided in the" Wash Cycle
Table"Our dishv)ashers use less detergent and rinse aid than conventional dishwashers Generally, only one tablespoon of
detergent is needed for a normal wash load Also, more heavily soiled items need more detergent Always add the detergent just
before starting dishwasher, otherwise it could get damp and wiIl not dissolve properly
Amount of Detergent to Use
IF THE WATER ISN'T TOO HARD, YOU MAY ALSO PREVENT _ HE FORMAT ION OF DEPOSITS BY ADDING DETERGENT
The amount of detergent needed can vary due to differences in water hardness To determine the water hardness in your area, contact
your local water utility or area water softening company Timeharder the water, the more detergent you may need Remember, you
should adjust the amount of detergent you use by littte by little until you find the correct amount
234
1 Main Wash Detergent
_2 DispenserLid lever
:3 PrewashDetergent Compartment
ii,4 Rinse Aid I_.evel Indicator
_'5 RinseAid Compartment
6 Detergent Compartment Lid
Removing Hard Water Spots
From Dishes
To remove hard water spots, try the fi31towing:
Run dishes through a normal wash program
Remove all metM dishware, such as cutlery, pans, etc,
flrom tile dishwasher.
Do not add detergent
Pour two cups of vinegar into a bowl and set the bowl face
up on the lower rack of'the dishwasher
Run the dishes through a normal wash program
Ifthls doesn't work, try the same process with 114 cup of
citric aeid crystals instead of vinegar.
Proper Use of Detergent
Use only detergent specifically made for use in dishwashers
Keep your detergent fl'esh and dry Don't put powder
detergent into the dispenser until You're ready to wash
dishes
AWARNING!
Dishwasher detergent is corrosive! Take care to keep it out of reach of children
RINSE AID DISPENSER
To open tire dispenser, turn the cap to the "open" (left)
arrow and lift it out.
Pour the rinse aid into the dispenser, being carefol not
to overfill
Replace the cap by inserting it aligned with "open" arrow
and turning it to the "close" (right) arrow
Timerinse aid is released during the final rinse to prevent water
from forming droplets on your dishes that can leave spots and
streaks It also improves drying by allowing water to "sheet"
off the dishes
Our dishwashers are designed to use liquid rinse aids. l'he
rinse aid dispenser is located inside the door next to the
detergent dispenser To fill tlre dispenser, open the cap and
pour the rinse aid into the dispenser untit the leve! indicator
turns compIetely black, The dispenser holds about 100 ml of
liquid rinse aid
Be careful not to overfill tile dispenser, because this could
cause over sudsing. Wipe away any spills with a damp c!oth,
Don't forget to replace tile cap before you close tile
dishwasher door.
If you have soft water, you may not need rinse aid for it may
cause a white film to develop on your dishes.

BEFORE CALLING FOR SERVICE...
Problem Possible Causes WT atTo Do
Dishwasher doesn't Fuse blown, or the RepIace fuse or reset circuit breaker Remove any other
run circuit breaker acted appIiances sharing the same circuit with the dishwasher
Power supply is not Make sure the dishwasher is mined on and the doo_ is
turned on closed securely
Make sure the power cord is properly plugged into the
walt socket
Water pressure is low Check that the water supply is connected properly and
the water is turned on
Diain pump doesd tOverflow i-he system is designed to detect an overflow When it
does, it shuts off the circulation pump and toms on the
stop drain pump
Noise Some audible sounds are Sound from soft food shredding action and detergent cup
nomm[ opening.
Utensils are not secure _0 ensure everything is secured in the dishwasher
in the baskets or something
small has dropped into
the basket
Motor trams Dishwasher has not been used regularly If you do not use it
often, remember to set it to fill and pump out every week,
which will help keep the seal moist
Suds zn &e tub hnproper detergent Use only the special dishwasher detergent to avoid suds
if this occurs, open the dishwasher and Iet suds evaporate
Add l gallon of cold water to the tub Close and latch the
dishwasher, then drain out the water by slowly turning the
Dial until a drain period is reached Repeat if necessary
Spilled rinse agent Always wipe up rinse agent
spills immediately
Stained _ub interior Detergent with Make sure that the detergent is the one without colorant
colorant was used
Dishes are not &ted Rinse agent dispenser Make sure that the rinse agent dispense is filled
is empty
Dishes and/Tatware Improper program Select Stronger program
not clean Improper rack loading Make sure that tl_eaction of the detergent dispenser and
spray arms are not blocked by large dishware,
Spots and filming
on glasses and
natware
1Extremely hard water
2Low inlet
temperature
3Overloading the
dishwasher
4hnproper loading
5Old or damp powder
detergent
6Empty rinse agent
dispenser
7IncotTect dosage of
detergent
"tOremove spots from glassware:
1Take out all mmal utensils out of the dishwasher
2Do not add detergent
3Choose the longest cycle
4Start the dishwasher and aIlow it to run for about
!g to 22 minutes, then it will be in the main wash.
5Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher
6Close the door and let the dishwasher complete
the cycle lfthe vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar

BEFORE CALL17VG FOR SERVICE...
Cloudiness on Combination of'soft
glassw_e water and too much
detergent
Use less detergent ityou have soft water and select a
shortest cycle to wash the glassware and to get them clean
Yellow or brown fihJ_ Iea or coft_estains
on inside smfaces using a solution of 112cup of bleach and 3 cups warm water
to remove the stains by hand
AWARNING
You have to wait for 20 minutes after acycle to let the heating
elements cool down before cleaning interior; othetavise, burns
will happen
Iron deposits in water You have to call a water softener company for a special filter
can cause an overall film
White film on inside Hard water minerals 'I'bclean the interior, use a damp sponge with dishwasher
surface detergent and wear rubber gloves,,Never use any, other cleaner
than dishwasher detergent for the risk of foaming or suds
Detergent let? in Dishes block detergent Re-loading the dishes properly
dispenser cups cups
Steam Normal phenomenon Ihere is some steam coming through the vent by the door
latch during drying and water dmlning
Black or gray Aluminum utensils have Use a mild abrasive cleaner to diminate those marks
marks on dishes robbed against dishes
Water standing in This is normal A small amount of clean water around the outlet on
the bottom of the tub the tub bottom at the back of the tub keeps the water
seal lubricated
Water doesn'tpump Drain is clogged Make sure the kitchen sink is draining wetl
out of the tub If the dishwasher drains into a disposer, run it clear
Dishwasher leaks Overfill dispenser or rinse Be careful not to overfill the rinse aid dispenser
aid spills Spilled rinse aid could cause oversudsing and lead
tooverflowing Wipe away any spills with a damp cloth
Dishwasher isd t level Make sure the dishwasher is level

WASH CYCLE TABLE
"_
h__J
Norm_ Wash
(IEC-EN 50242)
Cycle Selectton_i
For normally soiled loans,
such as pots, plates,glasses
and lightly soiled pans
standard daily cycle,
DdgcritidO_'.i
og.Cvcle:_;_
Pre-rinse
Wash (60 _)
Rinse
Rin'se (72 _)
Drying
4/20 gr
Intensive
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes lhat have
been sitting with dried food
on them fora whiIe
Pre-rinse(50_)
Wash (60 N)
Rinse
Rinse
Rinse (72 _C)
Drying
4120 gr
"-.,..___,,
Economic ",, /
Light Wash
For fightly soiled loads,such
as plates,glasses,bowls and
light|y soited pans
Wash (60 _)
Rinse
Rinse (72 '_)
Drying
20 gr
:Ring6
Rinse
Glass
//_,)_ For dishes that need to be
rinsed and dried only Rinse
Rinse Rinse (68 _)
nrT_g
For lightly soiled loads, Rinse (45 _)
such as gIasses, crystal and Rinse _72 _)
fine china Drying
Glassware
15 gr
Rapid _'__ A shorter wash fbr lightly
soiled loads that do not
need drying
Gl_is_ware
Rinse (45 _)
Rinse (50 _3)
Drying
_772
soak Torinsedishesth yoa
plan towash later that day Pre-rinse
Soak
15 gr
WASH CYCLE A_DJUSTMENT B UTTONS
Plus Button
this button (see" Control panel " ) is used with the normal cycle in the case where pots and pans with dry caked-on food must be
washed
l'his is not recommended for delicate items in so far as the high temperature could make their surfaces opaque or lighten
decorative colors after repeated washing
Rapid Button
This button (see "Control panel " )when pressed with wash cycle 4(glassware)makes it possible to run the wash cycle at a lower
temperature (50"C) and eliminates the drying phase
Overf!ow Protection
Your Midea dishwasher has an overfill protection device which could automatically shuts off'the inlet valve and starts the drain
pump if the water overflow, tf this occurs, turn off the main water supply be fore calling a service I f there is water in the base pan
because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. "Toremove the
spray arm, screw offthe nut to take out the washer on top of the spray arm and remove the arnt Wash the arms in soapy and warm
water and use a soft brush to clean the jets Replace them after rinsing them thoroughly,
AWARaXglNG!
Cleaning the Filters
Filter assembly
For best performance and results, the filter assembly must be cleaned.
"fhe filter efficiently removes food particles fl'om the wash water, allowing it to be recirculated
during the cycle: For this reason, it is a good idea to remove the larger food particles trapped in
the filter after each wash cycle by rinsing the semicircular filter and cup under running water
To remove the filter assembly, pull on the cup handle in the upward direction 'The entire filter
assembly should be cfeaned at least once a month
To clean the coarse filter and the fine filter, use a cleaning brush Then, reassemble the filter
parts as shown in the figures Ieft and reinsert the entire assembly in the dishwasher,
positioning in its seat and pressing downward
The dishwasher must never be used without the filters Improper replacement of the filter may
reduce the performance level of the appliance and damage dishes and utensils
Never run the dishwasher without the filters in piace
Cleaning the Door
To clean the edge around the door, you should use onty a soft warm, damp rag T9 prevent
penetration of water into the door lock and electrical components, do not use a spray cleaner
of any kind
AIso, never use abrasive cleaners or scouring pads on the outer surfaces because they will
scratch the finish Some papers towels can also scratch or leave marks on the surface
Cleaning the Drain Pump
Something wilt occasionally move into the filters and the drain pump if this occurs, the drain pumps
employed in our dishwashers are designed to automatically reverse, ejecting the item back into the
sump area or down the drain. If you have to remove an obstacle from the drain pump, before you
remove the filters, you should turn offthe power; Then remove the small black insert from the sump
area (You might want to remove arty standing water first). Scoop out the item that is probably in the
sump area and causes the obstruction Remember to replace the black insert before you put the filters
back in
How to Keep Your Dishwasher in Shape
!L After Every Wash
After every wash, turn off the water supply to the appliance
and leave the door slightly ajar so that moisture and odors
are not trapped inside,
;;,>No Solvents orAbrasive Cleaning
Products
When You Go on Holiday
When you go on holiday, it is recommended that you run a
wash cycle with the dishwasber empty and then remove
the plug from the socket, turn offthe water supply and
leave the door of the appliance slightly ajar This will help
the seals last longer and prevent odors from forming
within the appliance
To clean the exterior and rubber parts of the dishwasher, do
not use solvents or abrasive cleaning products. Rather, use
only a cloth and warm soapy water. To remove spots or
stains from the surface ofthe interior, use a cloth dampened
with water and a little white vinegar, or a e_eaning product
made specifically fbr dishwashers
Seals
One of the factors that cause odors to form in th'e
dishwasher is food that remains trapped in the seals
Periodic cleaning with a damp sponge will prevent this
from occurring
