Majestic fireplaces NVBC42 Installation instructions

Decorative Gas Appliances
INSTALLER: DO NOT DISCARD THIS MANUAL - Leave in fireplace for homeowner.
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE.
IMPORTANT: Read all instruc-
tions and warnings carefully
before starting installation.
Failure to follow these instruc-
tions may result in a possible
fire hazard and will void the
warranty.
WARNING: If the information in
this manual is not followed
exactly, a fire or explosion may
result causing property dam-
age, personal injury or loss of
life.
FOR YOUR SAFETY
Installation and service must
be performed by a qualified
installer, service agency, or the
gas supplier. Do not store or
use gasoline or other flam-
mable vapors and liquids in the
vicinity of this or any other
appliance.
FOR YOUR SAFETY
If you smell gas:
1. Open windows
2. Do not touch electrical
switches.
3. Do not try to light any appli-
ance.
4. Extinguish any open flame.
5. Do not use the phone in
your building.
6. Immediately call your gas
supplier from a neighbor's
phone.
7. Follow your gas supplier's
instructions.
8. If you cannot reach your gas
supplier, call the fire depart-
ment.
INSTALLER/CONSUMER
SAFETY INFORMATION
Models: NVBR36, NVBC36
NVBR42, NVBC42
Homeowner's Installation and
Operating Manual
™
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
7412950 9/03 Rev. 12
NVBR36
NVBC42 950

2
Majestic Fireplaces®NVB Series B-Vent
7412950
Table of Contents
Thank you and Congratulations on your purchase of a
Vermont Castings, Majestic Products fireplace.
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible fire hazard and will void the warranty.
Installation & Operating Instructions...........................................................................................3
General Information ...........................................................................................................3
Fireplace Dimensions.........................................................................................................4
Clearance to Combustibles ................................................................................................6
Mantels ..............................................................................................................................6

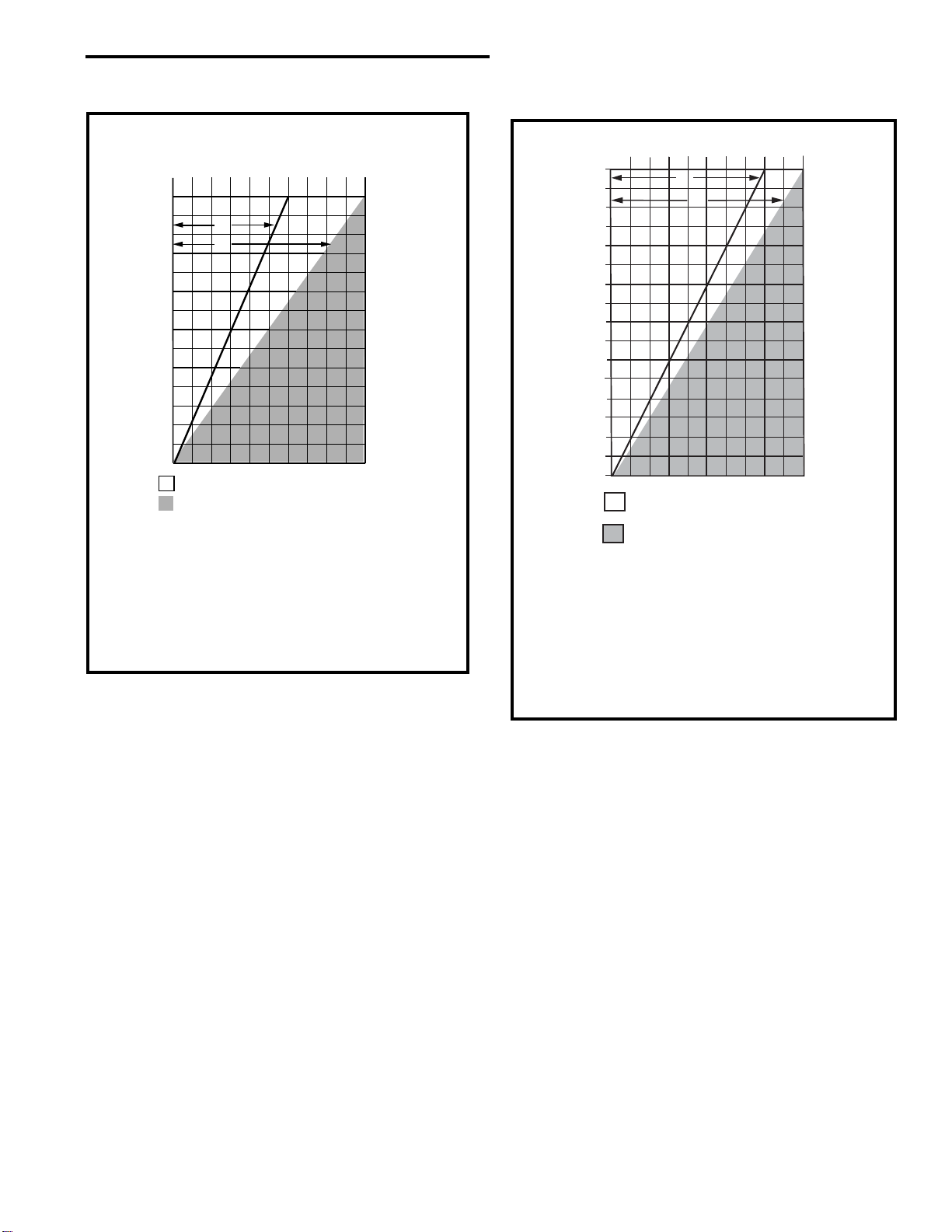

Mantel Chart.......................................................................................................................6
Hearth ..............................................................................................................................6
Insulating for Cold Climates ...............................................................................................6
Framing & Finishing ...........................................................................................................7
Final Finishing ....................................................................................................................7
Gas Specifications .............................................................................................................7
Gas Inlet & Manifold Pressures..........................................................................................7
High Elevations ..................................................................................................................7

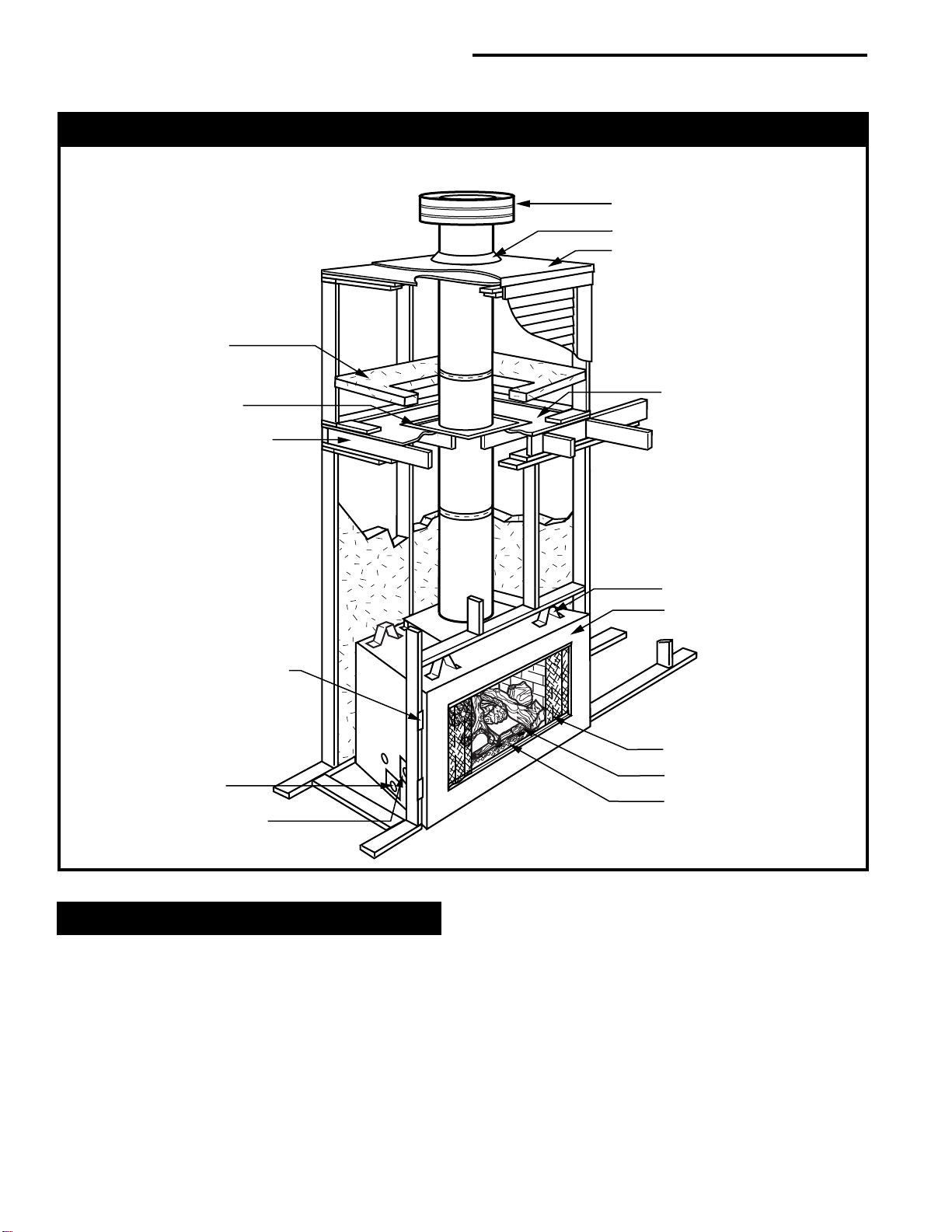

Parts Identification and Chase Installation .........................................................................8
Gas Line Installation...........................................................................................................8
Remote Wall Switch ...........................................................................................................9

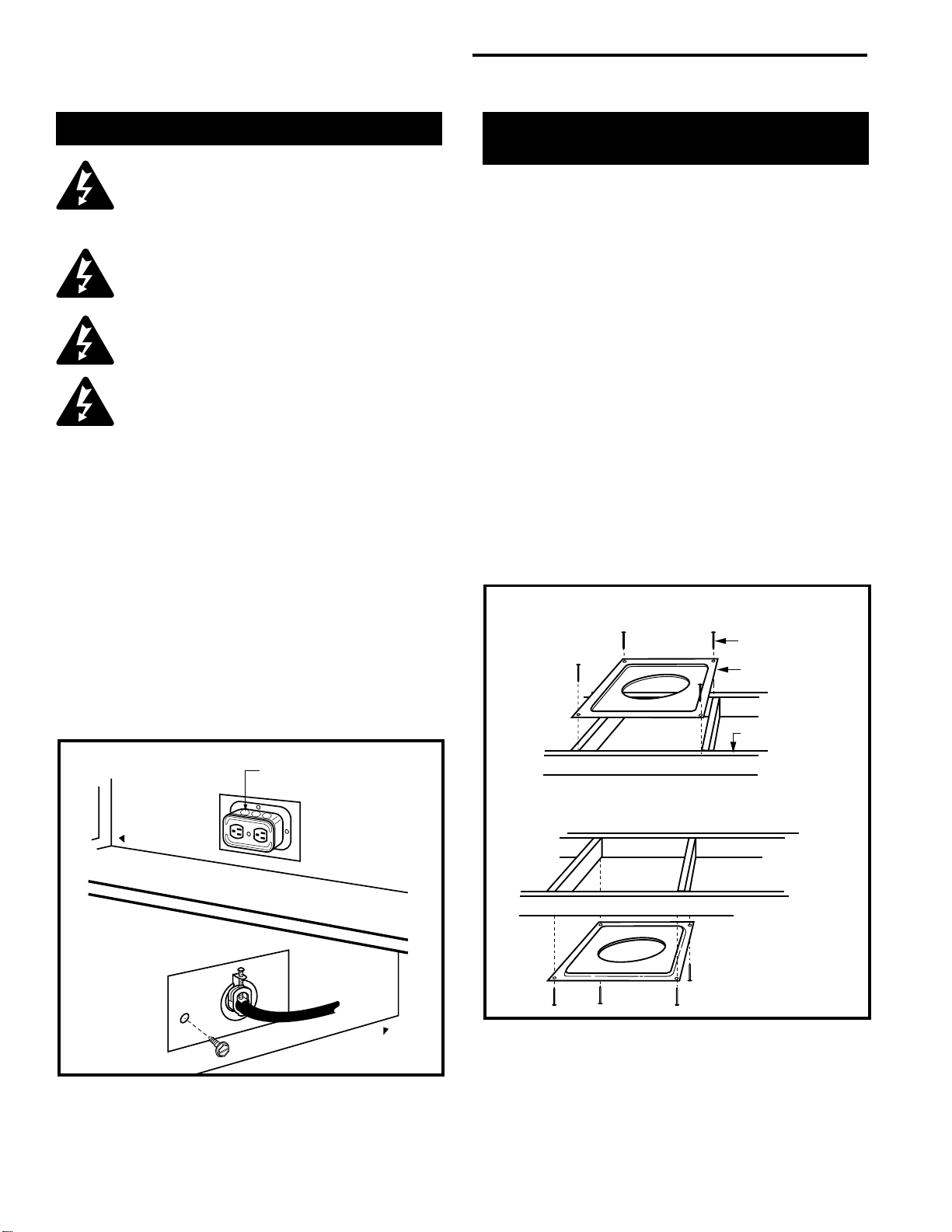

EB-1 Electrical Box ..........................................................................................................10
Install the Venting System, Flashing, and Termination ....................................................10
Venting Runs....................................................................................................................11
Operating Instructions
Glass Information .............................................................................................................12
Glass Cleaning.................................................................................................................12

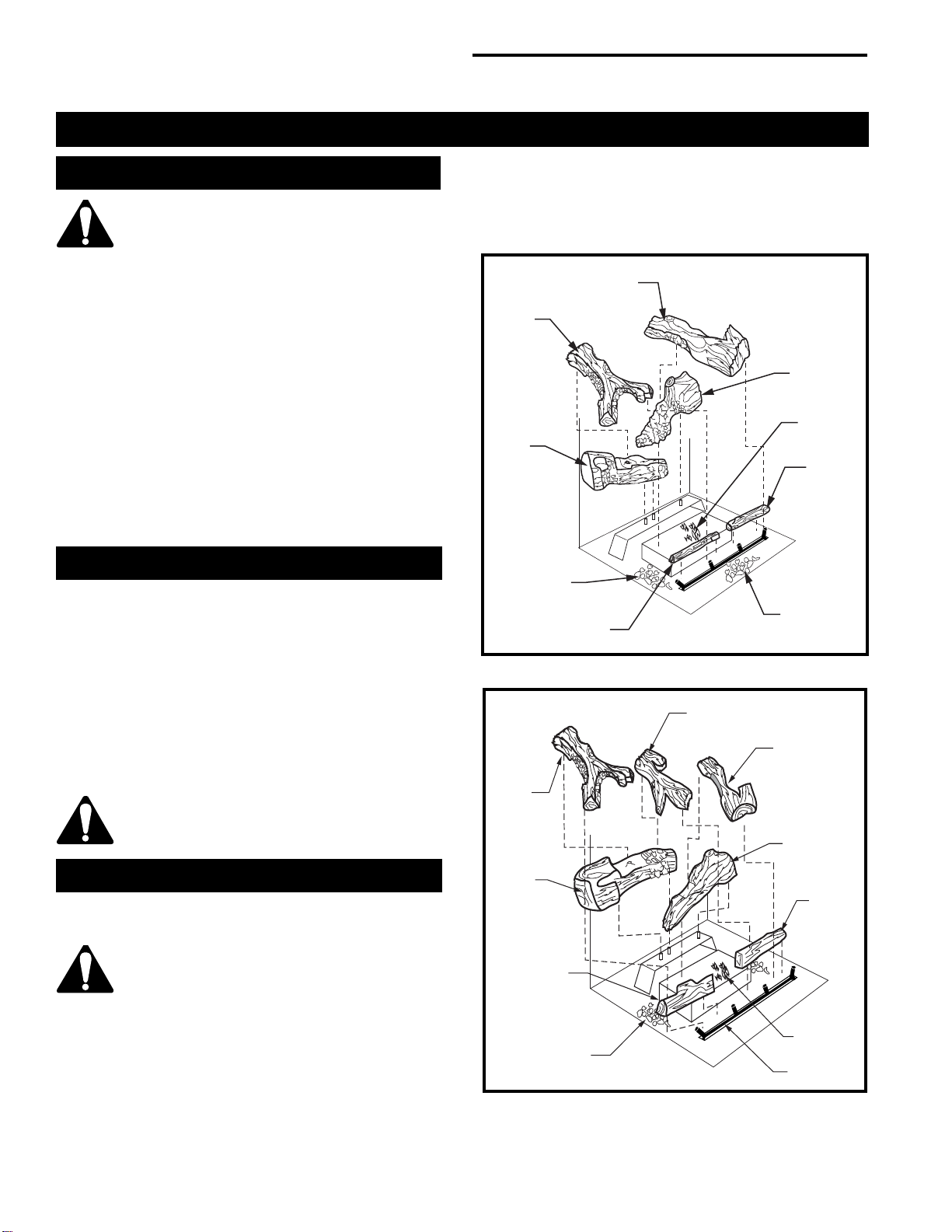

Log Installation .................................................................................................................12
Ember Material Placement...............................................................................................13
Lava Rock ........................................................................................................................13
First Firing ........................................................................................................................13
Flame Adjustment ............................................................................................................13
Flame Characteristics ......................................................................................................13
Inspecting the Venting System.........................................................................................13
Lighting & Operating Instructions .....................................................................................14
Troubleshooting ...............................................................................................................16
Maintenance .................................................................................................................................18
Replacement Parts.......................................................................................................................19
Optional Accessories ..................................................................................................................21
Warranty .......................................................................................................................................22

3
Majestic Fireplaces®NVB Series B-Vent
7412950
General Information
This gas appliance should be installed by a qualified
installer in accordance with local building codes and with
current CSA-B149.1 Installation codes for Gas Burning
Appliances and Equipment.
FOR U.S.A Installations follow local codes and/or the
current National Fuel Gas Code. ANSI Z223.1.
FOR SAFE INSTALLATION AND OPERATION PLEASE
NOTE THE FOLLOWING:
1. This appliance gives off high temperatures and should
be located out of high traffic areas and away from
furniture and draperies.
2. Children and adults should be alerted to the hazards
of the high surface temperatures of this appliance and
should stay away to avoid burns or ignition of clothing.
3. Children should be carefully supervised when they are
in the same room as your appliance.
4. Under no circumstances should this appliance be
modified. Parts having to be removed for servicing
should be replaced prior to operating this appliance
again.
5. Installation and any repairs to this appliance should be
carried out by a qualified service person. Aprofes-
sional service person should be contacted to inspect
this appliance annually. Make it a practice to have all
of your gas appliances checked annually. More
frequent cleaning may be required due to excess lint
and dust from carpeting, bedding material, etc.
6. Control compartments, burners and air passages in
this appliance should be kept clean and free of dust
and lint. Make sure that the gas valve and pilot light
are turned off before you attempt to clean this unit.
7. The venting system (chimney) of this appliance should
be checked at least once a year and if needed your
venting system should be cleaned.
8. Keep the area around your appliance clear of combus-
tible materials, gasoline and other flammable vapour
and liquids. This appliance should not be used as a
drying rack for clothing, nor should Christmas stock-
ings or decorations be hung in the area of it.
9. Under no circumstances should any solid fuels (wood,
coal, paper or cardboard etc.) be used in this appli-
ance.
10.The flow of combustion and ventilation air must not be
obstructed in any way.
11.Whether the appliance is installed directly on carpet-
ing, vinyl tile or any combustible material other than
wood, this appliance must be installed on a metal or
wood panel extending the full width and depth of the
appliance.
12. This appliance requires adequate ventilation and
combustion air to operate properly.
Description
NVB Series are radiant or heat circulating, natural draft
appliances and use a 6" B-vent system. Do not burn
wood or other materials in these appliances. Each model
is available with standing pilot or electronic ignition for
use with Natural or Propane gas units.
Report to your dealer any parts damaged in shipment.
Adequate combustion and ventilation air must be pro-
vided. The flow of combustion and ventilation air MUST
NOT be obstructed.
Provide adequate clearances around the air opening into
the combustion chamber; and adequate accessibility
clearance for servicing and proper operation. NEVER
obstruct the front opening of the appliance or cover the
top and bottom louvres (grilles).
The 6" vent system MUST connect to the appliance and
terminate out-of-doors in a vertical position and terminate
with a B-vent cap.
This appliance must not be connected to a chimney flue
servicing a separate solid-fuel burning appliance.
A draft hood is an integral part of the appliance.
Proposition 65 Warning: Fuels used in gas,
woodburning or oil fired appliances, and the products
of combustion of such fuels, contain chemicals known
to the State of California to cause cancer, birth defects
and other reproductive harm.
California Health & Safety Code Sec. 25249.6
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
Remove any plastic from trim parts before turning the
fireplace “ON”.
It is normal for fireplaces fabricated of steel to give off
some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found
with your furnace heat exchanger or car engine.
It is not unusual for your Vermont Castings, Majestic
Products gas fireplace to give off some odor the first
time it is burned. This is due to the curing of the paint
and any undetected oil used in the manufacturing
process.
Please ensure that your room is well ventilated.
Open all windows.
It is recommended that you burn your fireplace for at
least ten (10) continuous hours the first time you use it.
If the optional fan kit has been installed, place the fan
switch in the “OFF” position during this time.

4
Majestic Fireplaces®NVB Series B-Vent
7412950
Fig. 1 NVBR36 Series specification and framing dimensions.
NVBR36 Series Gas Appliance
FP561
36"
(914mm)
14"
(356mm)
13¹⁄₄"
(337mm) 40"
(1016mm)
36"
(914mm)
3"
(76mm)
⁵⁄₈" (16mm)
45³⁄₄" (1162mm)
45³⁄₄" (1162mm)
¹⁄₂" (13mm)
¹⁄₂"
32³⁄₈" (822mm)
64³⁄₄" (1645mm)
19 ³⁄₄"
(502mm)
21"
(533mm)
40¹⁄₂"
(1029mm)
7¹⁄₂"
(191mm)
6¹⁄₂"
(165mm)
7¹⁄₂"
(191mm)
7¹⁄₂"
(191mm)
Outside
Air
Electrical
Access
Gas Line
Access
Rough
Opening
Height
⁵⁄₈"
(16mm)
8 ³⁄₈"
(213mm)
20"
(508mm)
20¹⁄₂"
(521mm)
22" (559mm)
Recessed
Nailing
Flange
6" DIA.
Rough Opening Width 41"
Rough
Opening
Depth
3"
(76mm)
(1041mm)
FP562
Fig. 2 NVBC36 Series specification and framing dimensions.
NVBC36 Series Gas Appliance — Circulating Model
36"
(914mm)
14"
(356mm)
13¹⁄₄"
(337mm) 40" (1016mm)
36"
(914mm)
3"
(76mm)
⁵⁄₈" (16mm)
45³⁄₄" (1162mm)
45³⁄₄" (1162mm)
¹⁄₂" (13mm)
¹⁄₂"
32³⁄₈" (822mm)
64³⁄₄" (1645mm)
19 ³⁄₄" (502mm)
21" (533mm)
40¹⁄₂"
(1029mm)
35¹⁄₂" (902mm)
7¹⁄₂"
(191mm)
6¹⁄₂"
(165mm)
7¹⁄₂"
(191mm)
7¹⁄₂"
(191mm)
Outside
Air
Electrical
Access
Gas Line
Access
Rough
Opening
Height
⁵⁄₈"
(16mm)
8 ³⁄₈"
(213mm)
20"
(508mm)
20¹⁄₂"
(521mm)
22" (559mm)
Recessed
Nailing
Flange
6" DIA.
Rough Opening Width 41"
Rough
Opening
Depth
3"
(76mm)
34" (864mm)
2"
(51mm)
(1041mm)

5
Majestic Fireplaces®NVB Series B-Vent
7412950
NVBR42 Series Gas Appliance
FP563
Fig. 3 NVBR42 Series specification and framing dimensions.
42"
(1067mm)
14"
(356mm)
13¹⁄₄"
(337mm) 46"
(1168mm)
36"
(914mm)
3"
(76mm)
⁵⁄₈" (16mm)
49" (1245mm)
49" (1245mm)
¹⁄₂" (13mm)
¹⁄₂"
69¹⁄₂" (1765mm)
19 ³⁄₄"
(502mm)
21"
(533mm)
40¹⁄₂"
(1029mm)
7¹⁄₂"
(191mm)
6¹⁄₂"
(165mm)
7¹⁄₂"
(191mm)
7¹⁄₂"
(191mm)
Outside
Air
Electrical
Access
Gas Line
Access
Rough
Opening
Height
⁵⁄₈"
(16mm)
8 ³⁄₈"
(213mm)
20"
(508mm)
20¹⁄₂"
(521mm)
28" (711mm)
Recessed
Nailing
Flange
6" DIA.
Rough Opening Width 47"
Rough
Opening
Depth
3"
(76mm)
35¹⁄₄" (895mm) (1194mm)
FP564
Fig. 4 NVBC42 Series specification and framing dimensions.
NVBC42 Series Gas Appliance — Circulating Model
8 ³⁄₈"
(213mm)
42"
(1067mm)
14"
(356mm)
13¹⁄₄"
(337mm 46" (1168mm)
36"
(914mm)
3"
(76mm)
⁵⁄₈" (16mm)
49" (1245mm)
49" (1245mm)
¹⁄₂" (13mm)
¹⁄₂"
69¹⁄₂" (1765mm)
19 ³⁄₄" (502mm)
21" (533mm)
40¹⁄₂"
(1029mm)
7¹⁄₂"
(191mm)
6¹⁄₂"
(165mm)
7¹⁄₂"
(191mm)
7¹⁄₂"
(191mm)
Outside
Air
Electrical
Access
Gas Line
Access

6
Majestic Fireplaces®NVB Series B-Vent
7412950
Clearance to Combustibles
Appliances
Top .......................................................... 0” (0mm)
Bottom .................................................... 0” (0mm)
Side ........................................................ 0” (0mm)
Back........................................................ 0” (0mm)
Perpendicular Sidewall ........................... 0” (0mm)
Top of unit to ceiling.......................... 36” (914mm)
Front of unit to combustibles ............ 36” (914mm)
Venting
B-Vent................................................... 1” (25mm)
Mantels\
The height that a combustible mantel is fitted above the
fireplace is dependent on the depth of the mantel. This
also applies to the distance between the mantel leg (if
fitted) and the fireplace.
For the correct mounting height and widths refer to
Figures 5a and 5b
The distances and reference points are not affected by
the fitting of a bay window front trim kit.
Noncombustible mantels and legs may be installed at
any height and width around the appliance.
When using paint or lacquer to finish the
mantel, such paint or lacquer must be
heat resistant to prevent discoloration.
J
F
G
H
I
Mantel
Leg
O
NM
L
K
Ref. Mantel Ref. Mantel Leg From
Leg Depth of Comb. Opening
F14" (356mm) K 14" (356mm)
G12" (305mm) L 12" (305mm)
H10" (254mm) M 10" (254mm)
I8" (203mm) N 8" (203mm)
J1¹⁄₂" (38mm) O 1¹⁄₂" (38mm)
Black
Surround
Face
CFM164
CFM170
Fig. 5b Combustible mantel leg minimum installation.
Side of
Combustion Chamber
Hearth
A hearth is not mandatory but is recommended for
aesthetic purposes. We recommend a noncombustible
hearth.
Insulating For Cold Climates
When an appliance is installed in a chase or an outside
wall, the enclosure should be insulated like any other
wall of the home. Insulation should be installed under
the appliance and on the inside of the exterior walls.
In a chase, it is a good idea to install a firestop at the
first ceiling level above the appliance. Also, install
insulation on the side walls. Insulation may then be
placed above the ceiling to assure the space around the
appliance is protected. Refer to Page 8, Figure 7.
Ref. Mantel Ref. Mantel From Top
Shelf Depth of Comb. Chamber
V14" (356mm) A 18" (457mm)
W12" (305mm) B 16" (406mm)
X10" (254mm) C 14" (356mm)
Y8" (203mm) D 12" (305mm)
Z1¹⁄₂" (38mm) E 8" (203mm)
CFM146
ABCDE
V
W
X
Y
Z
Fireplace
Top of Combustion
Chamber
Fig. 5a Mantel clearances.
Side View

7
Majestic Fireplaces®NVB Series B-Vent
7412950

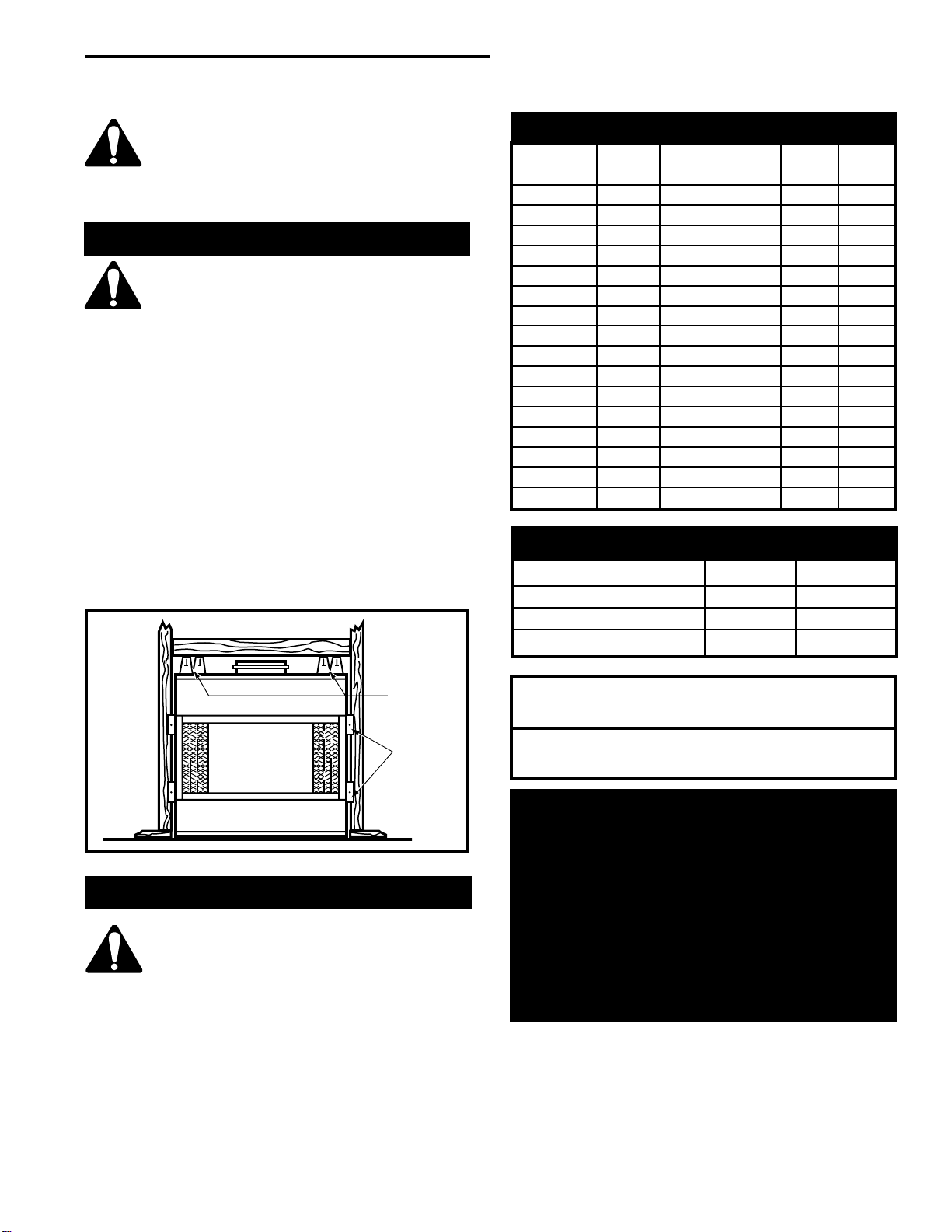

Framing and Finishing
Check appliance to make sure it is
levelled and properly positioned.
The appliance should only be mounted on the following
surfaces:
• Aflat combustible (burnable) surface.
• Araised wooden platform.
• Aconcrete block or other solid object
placed beneath each of the four corners
of the appliance.
To mount the appliance:
1. Choose unit location.
2. Four (4) nailing flanges are supplied with the fire-
place (found on the fireplace hearth). To level the box
and secure it firmly in place, remove the nailing
flanges from the hearth and install at the sides of the
fireplace as shown in Figure 6.
FP549
Fig. 6 Adjustable drywall strip (nailing flange).
Nail Top
Standoffs
Nail Side-
Nailing
Flanges
Finishing
CAUTION: All joints between the finished
wall and the appliance surround (top and
sides) may be sealed only with non-
combustible material. Only noncombus-
tible material can be applied as facing to
the appliance surround (the black painted
face).
When finishing the appliance, never obstruct or modify
the air inlet/outlet grilles in any manner.
Finish the wall with the material of your choice. Refer to
Figures 5a and 5b for specific clearances when install-
ing a combustible mantel or other combustible projec-
tion.
Gas Specification
Max. Min.
Model Fuel Gas Control Input Input
NVBR36RN Natural Millivolt Hi/Lo 30,000 21,500
NVBC36RN Natural Millivolt Hi/Lo 30,000 21,500
NVBR36RP Propane Millivolt Hi/Lo 30,000 22,000
NVBC36RP Propane Millivolt Hi/Lo 30,000 22,000
NVBR36EN Natural Electronic Ignition 30,000 21,500
NVBC36EN Natural Electronic Ignition 30,000 21,500
NVBR36EP Propane Electronic Ignition 30,000 22,000
NVBC36EP Propane Electronic Ignition 30,000 22,000
NVBR42RN Natural Millivolt Hi/Lo 30,000 21,500
NVBC42RN Natural Millivolt Hi/Lo 30,000 21,500
NVBR42RP Propane MIllivolt Hi/Lo 30,000 21,500
NVBC42RP Propane Millivolt Hi/Lo 30,000 21,500
NVBR42EN Natural Electronic Ignition 30,000 21,500
NVBC42EN Natural Electronic Ignition 30,000 21,500
NVBR42EP Propane Electronic Ignition 30,000 22,000
NVBC42EP Propane Electronic Ignition 30,000 22,000
Gas Inlet & Manifold Pressures
Natural LP
Minimum Inlet Pressure 5.5” w.c. 11.0” w.c.
Maximum Inlet Pressure 14.0” w.c. 14.0” w.c.
Manifold Pressure 3.5”w.c. 10.0” w.c.
NVBR36 / NVBC36 / NVBC42 / NVBR42
Certified to
ANSI Z21.50a-1999/CSA 2.22A-M-99
Vented Gas Fireplace
High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the
current ANSI Z223.1 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
Be sure to always maintain the proper
one (1) inch distance to combustibles
around B-vent pipe sections.
NOTE: Insulating for cold climates is strictly a recom-
mendation and not a requirement.

8
Majestic Fireplaces®NVB Series B-Vent
7412950
Parts Identification and Chase Installation
Fig. 7 Parts identification and system installation.
(Insulation methods shown are optional for cold climate,
not a requirement for unit operation.)
FP597
*Do not install header
until unit is in place.
See Page 8, "Mounting
the Appliance."
Termination Cap
Storm Collar
Pan Flashing
Draftstop
Firestop
Standoff
Nailing Flange
Electrical
Access
Outside Air
Cover Plate
Surround
Batt Insulation
(cut out around
firestop)
Screen
Grate
Firebox
Ceiling Level
Gas Line Installation
This appliance must be isolated from the gas supply
piping system by closing its individual manual shut off
valve during any pressure equal to or less than 1/2 psig
(3.45 kPa).
The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.45 kPa).
If gas piping from the source to the appliance location
has not been accomplished, install the required pipe.
Consult local plumbing code to assure proper pipe size.
The gas pipeline can be brought in through the right
side of the appliance. A knockout is provided to allow
for the gas pipe installation and testing of any gas
connection. It is most convenient to bring the gas line
in from the right side, as this allows fan installation or
removal without disconnecting the gas line.
NOTE: The gas line connection can be made with 3/8"
copper tubing approved for propane or natural gas, 1/2"
rigid pipe or an approved flex connector, then reduced
to 3/8" to the appliance. Because some municipalities
have some additional local codes, it is always best to
consult your local authority.

9
Majestic Fireplaces®NVB Series B-Vent
7412950

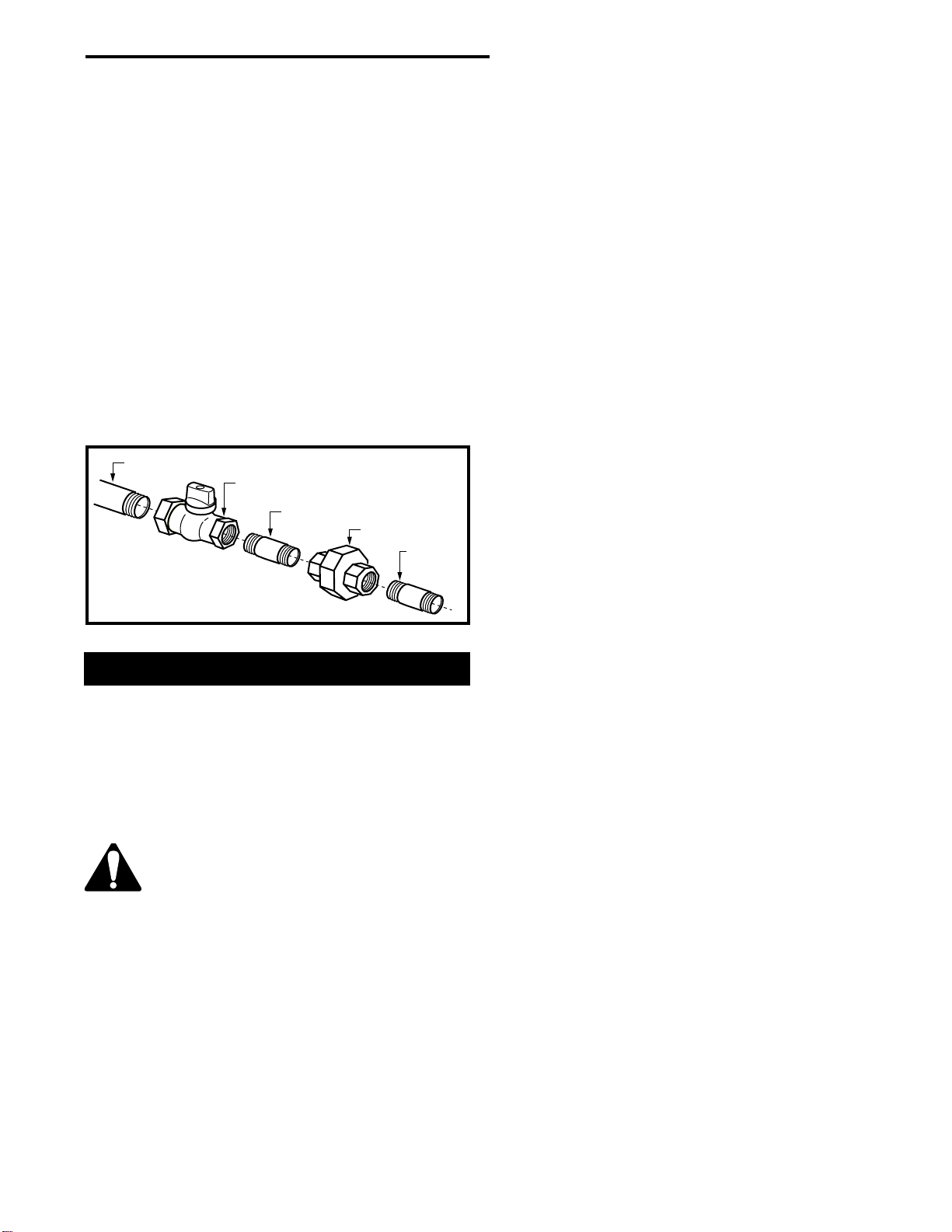

U.S.: Consult the current National Fuel Gas Code,
ANSI Z223.1
Canada: CSA - B149.1 installation code.
Test for leaks. Use a 50/50 solution of liquid soap and
water to test for leaks at gas fittings and joints. Apply
water/soap solution with brush only -
do not over
apply. NEVER test with an open flame.
The gas control is equipped with a captured screw
type pressure test point, therefore it is not necessary
to provide a 1/8" test point up stream of the control.
When using copper or flex connector use only ap-
proved fittings. Always provide a union so that gas
line can be easily disconnected for burner or fan
servicing. See gas specification for pressure details
and ratings. NOTE: If flex connector is used, it must be
kept inside of the appliance. (Fig. 8)
FP598
Fig. 8 Typical gas supply installation.
1/2" Gas Supply 1/2" x 3/8" Shut-off Valve
3/8" Union
3/8" Nipple
3/8"
Nipple
Remote Wall Switch
1. Thread wire through the electrical knockout located
on side of unit. Do not cut wire or insulation on metal
edges. Ensure that wire is protected. Run the other
end to a conveniently located wall receptacle box.
2. Attach wire to switch and install switch into recep-
tacle box. Attach cover plate to switch.
3. Connect wiring to gas valve. Refer to Figure 9 or 10.
CAUTION: Do not wire millivolt remote
wall switch for gas appliance to a 120v
power supply.
For lighting instructions, see Page 14.
R Models

10
Majestic Fireplaces®NVB Series B-Vent
7412950
EB-1 Electrical Box
The fireplace, when installed, must be
electrically connected and grounded in
accordance with local codes or, in the
absence of local codes, with the current
CSA C22.1 Canadian Electrical Code.
For USA installations, follow local codes
and the National Electrical Code, ANSI/
NFPA No. 70.
It is strongly suggested that the wiring of
the EB-1 electrical junction box be car-
ried out by a licensed electrician.
Ensure that the power to the supply line
has been disconnected before commenc-
ing this procedure.
Once the fireplace is secured, complete wiring the fan
kit. Remove knockout in the center of the back of the
EB1 and install listed cable clamps. Feed electrical wire
through cable clamp leaving approximately six (6)
inches of wire exposed through the EB1. Secure cable
clamp to the wire.
Attach white wire from power source to one (1) wire of
receptacle and secure with a nut. Attach black wire from
power source to the other wire of the receptacle and
secure with a nut. Be sure nuts are tightened securely.
Secure the EB1 assembly to the inside of the electrical
box coverplate using two (2) screws. Attach the cover to
the face of the EB1 while being careful to position
excess wire completely within the EB1. Attach the
coverplate to the fireplace. (Fig. 11)
Fig. 11 Junction box (EB-1) hook-up.
FP580
Outside
Electrical Box
Front Of Unit
Inside
Front Of Unit
Install the Venting System,
Flashing and Termination
See venting installation instructions provided by the B-
Vent manufacturer.
Refer to Pages 4-5, Figures 1-4 to locate chimney
centerline dimension from a combustible back wall.
• Minimum vertical chimney height — 12 feet (3.65m).
• Maximum vertical height — 40 feet (12m).
• Minimum height with two 90°elbows — 16 feet
(4.06m)
• Elbow requirements allow a maximum of two
90 degree elbows or four 45 degree elbows
per installation. (Two 45 degree elbows =
One 90 degree elbow.) See venting chart for
proper elbow offset runs. Use Table 4 for NVB36/42
installations when not installing the GSKBB Single
Panel Glass Door. Use Table 5 for NVB36/42 instal-
lations when installing the GSKBB Single Panel
Glass Door.
For firestop positioning, refer to Figure 12. Only one (1)
firestop required per frame. NOTE: A firestop is not
required at the roof.
Fig. 12 Firestop/draftstop positions.
Ceiling Installation
Attic Installation
Firestop position when area above ceiling is an attic.
Firestop position when area above ceiling is NOT an attic.
(Firestop/draftstop
appearances may
vary. Only 1 firestop
required per frame.)
Firestop
Spacer
Nails (4)
Joist
FP384

11
Majestic Fireplaces®NVB Series B-Vent
7412950
FP567
Fig. 13 Venting configurations.
Venting Runs
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
8 9 101 2 3 4 5 6 7
Horizontal Run (in feet)
Vertical Run (in feet)
A
A: Vertical installations up to 40 feet (12m) in
height. Up to a 6 ft. horizontal vent run can be
installed within the vent system using a
maximum of two 90-degree elbows or four
45-degree elbows.
B: Vertical installations up to 40 feet (12m) in
height. Up to a 10 ft. horizontal vent run can be
installed within the vent system using a
maximum of two 45-degree elbows.
B
= Acceptable venting configuration
= Unacceptable venting configuration
FP567a
Fig. 14 Venting configurations when installing 36GSKBB.
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
246810 12 14 16 18 20
A
Horizontal Run (in feet)
Vertical Run (in feet)
= Acceptable venting configuration
= Unacceptable venting configuration
A: Vertical installation up to 40 feet (12m) in
height. Up to a 16 ft. horizontal vent run
can be installed within the vent system
using a maximum of two 90 degree elbows
or four 45 degree elbows.
B: Vertical installation up to 40 feet (12m) in
height. Up to a 20 ft. horizontal vent run
can be installed within the vent system
using a maximum of two 45 degree elbows.
B

12
Majestic Fireplaces®NVB Series B-Vent
7412950
Operating Instructions
Glass Information
Only glass approved for use in Majestic
Fireplaces products may be used for
replacement.
•Glass doors are optional. The appliance may be
operated safely without glass doors.
•The use of any non-approved replacement glass will
void all product warranties.
•Bi-fold glass doors MUST BE completely open or
closed while the appliance is in operation.
•Care must be taken to avoid breakage of the glass.
•Under no circumstances should this appliance be
operated with broken glass. Replacement of the
glass as supplied by the manufacturer should be
completed by a licensed qualified service person.
•Replacement glass is available through your
Majestic Fireplaces dealer and should only be
installed by a licensed qualified service person.
Glass Cleaning
It will be necessary to clean the glass periodically.
During start-up, condensation, which is normal, forms
on the inside of the glass and causes lint, dust and
other airborne particles to cling to the glass surface.
Also, initial paint curing may deposit a slight film on the
glass. It is therefore recommended that the glass be
cleaned two or three times with a non-ammonia
household cleaner and warm water (we recommend
gas fireplace glass cleaner). After that the glass should
be cleaned two or three times during each heating
season depending on the circumstances present.
Clean glass after first two weeks of
operation.
Log Installation
1. Open glass door (if installed).
2. Remove logs from the packaging.
As with all plastic, these bags are not
toys and should always be kept away
from children and infants.
3. Place left rear log on rear log support. Ensure that
log is firmly positioned and there is no side-to-side
movement. (Figs. 15 & 16)
4. Carefully place Ember Left and Right Logs between
grate and burner. (Figs. 15 & 16)
Right Cross
Log
Left
Cross
Log
LeftRear
Log
Right Rear
Log
Embers
Ember
Right
Log
(Short)
Lava Rock
Lava Rock
Ember Left
Log (Long) LG149
Fig. 15 NVB36 log placement.
Left Rear
Log
Left Cross
Log Middle Cross
Log
Right Cross
Log
Right Rear
Log
Ember
Left
Log
Embers
Grate
Lava
Rock
Ember
Right
Fig. 16 NVB42 log placement.
LG148
5. Place the front of right rear log on the burner and the
back of the log on the rear log support.
6. Place the top logs onto the locator notches. Ensure
the logs are secure. (Fig. 15 & 16)

13
Majestic Fireplaces®NVB Series B-Vent
7412950
Ember Material Placement
Separate the ember material into small pieces, roughly
1/2" in diameter and place on bracket over front burner
tube. Do not pack down; leave in loose, fluffy condition
for most realistic ember effect. (Fig. 15 & 16)
Lava Rock
The lava rock provided with this fireplace must be
placed on the firebox base on either side of the burner
assembly. Under no circumstances should lava rock
be placed on any part of the burner
assembly.
First Firing
Upon completing the gas line connection, a small
amount of air will be trapped in the line. When first
lighting the unit with pilot light, it will take a few minutes
to purge the trapped air. Once purging is complete, the
pilot and burner will light and operate as indicated in the
instruction manual. Subsequent lightings of the appli-
ance will not require purging.
When lit for the first time, the appliance will emit a slight
odor for an hour or two. This is due to paint and lubri-
cants used in the manufacturing process. After each
lighting, vapor may condense and fog the glass; this
moisture disappears in a few minutes of burning.
Flame Adjustment
For units equipped with Hi/Lo valves, flame adjustment
is accomplished by rotating the Hi/Lo adjustment knob
located near the center of the gas control.
L
O
H
I
Turn
counterclockwise
to increase
flame height
Turn clockwise
to lower
flame height
Fig. 17 Flame adjustment knob for SIT820 valve.
Flame Characteristics
It is important to periodically perform a visual check of
the pilot and the burner flames. Compare them to the
illustrations below (Figs. 18, 19, 20). If any of the
flames appear abnormal call a service person.
Red Glow Embers LG151
Fig. 18 NVB36 flame appearance.
Inspecting the Venting System
The appliance venting system was designed and
constructed to develop a positive flow adequate to
remove flue gases to the outside atmosphere.
Any foreign objects in the venting system, except those
designed specifically for the venting system, may cause
spillage of flue gases (i.e.: carbon monoxide) into the
room.
To inspect the venting system, make sure the main gas
valve is off. Remove the glass panel. Using a flashlight,
check the combustion dome and behind the top grille.
Clean if necessary.
Fig. 20 Proper pilot flame height. FP581
3/8"-1/2"
NOVA SIT PILOT ELECTRONIC
IGNITION
LG150
Fig. 19 NVB42 flame appearance.

14
Majestic Fireplaces®NVB Series B-Vent
7412950
3. Open control access panel.
4. Push in gas control knob slightly and turn
clockwise to "OFF". Do not force.
5. Close control access panel.
1. STOP! Read the safety information above.
2. Turn OFF all electrical power to the fireplace.
3. For MN/MP/TN/TP appliances ONLY, go on to
Step 4. For RN/RP appliances turn the On/Off
switch to “OFF” position or set thermostat to
lowest level.
4. Open control access panel.
5. Push in gas control knob slightly and turn
clockwise to "OFF".
10. Push the control knob all the way in and hold.
Immediately light the pilot by repeatedly depress-
ing the piezo spark ignitor until a flame appears.
Continue to hold the control knob in for about one
(1) minute after the pilot is lit. Release knob and it
will pop back up. Pilot should remain lit. If it goes
out, repeat steps 5 through 8.
FOR YOUR SAFETY READ BEFORE LIGHTING
•If you cannot reach your gas supplier, call the
Fire Department
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, do not try to repair it, call
a qualified service technician. Applying force or
any attempted repair may result in a fire or
explosion.
D. Do not use this fireplace if any part has been
under water. Immediately call a qualified service
technician to inspect the heater and to replace
any part of the control system and any gas control
which has been under water.
A. This heater has a pilot which must be lit
manually. When lighting the pilot follow these
instructions exactly.
B. BEFORE LIGHTING smell all around the
heater area for gas. Be sure to smell next to
the floor because some gas is heavier than air
and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any fireplace
•Do not touch any electric switch
• Do not use any phone in your building
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
To Turn Off Gas to Heater
Lighting and Operating Instructions
1. Turn the On/Off switch to "OFF" position or set
the thermostat to lowest setting.
2. Turn off all electric power to the fireplace if
service is to be performed.
Lighting Instructions
6. Wait five (5) minutes to clear out any gas.
Then smell for gas, including near the floor. If
you smell gas, STOP! Follow "B" in the
safety information above. If you do not smell
gas, go to the next step.
7. Remove glass door before lighting pilot. (See
Glass Frame Removal section).
8. Visibly locate pilot by the main burner.
9. Turn knob on gas control counterclockwise
to "PILOT".
•If knob does not pop up when released, stop
and immediately call your service technician or
gas supplier.
• If after several tries, the pilot will not stay lit,
turn the gas control knob to "OFF" and call your
service technician or gas supplier.
11. Replace glass door.
12. Turn gas control knob to “ON” position.
13. For RN/RP appliances turn the On/Off switch to
“ON” position or set thermostat to desired setting.
14. Turn on all electrical power to the fireplace.
WARNING:If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
Euro SIT SIT NOVA Honeywell
PILOT
ON
OFF
ON
P
I
L
O
T
O
F
F
O
F
F
5
4
3
2
1
O
F
F
P
i
l
o
t

15
Majestic Fireplaces®NVB Series B-Vent
7412950
1/2" Gas Supply 1/2" x 3/8" Shut-off Valve
3/8" Union
3/8" Nipple
3/8"
Nipple

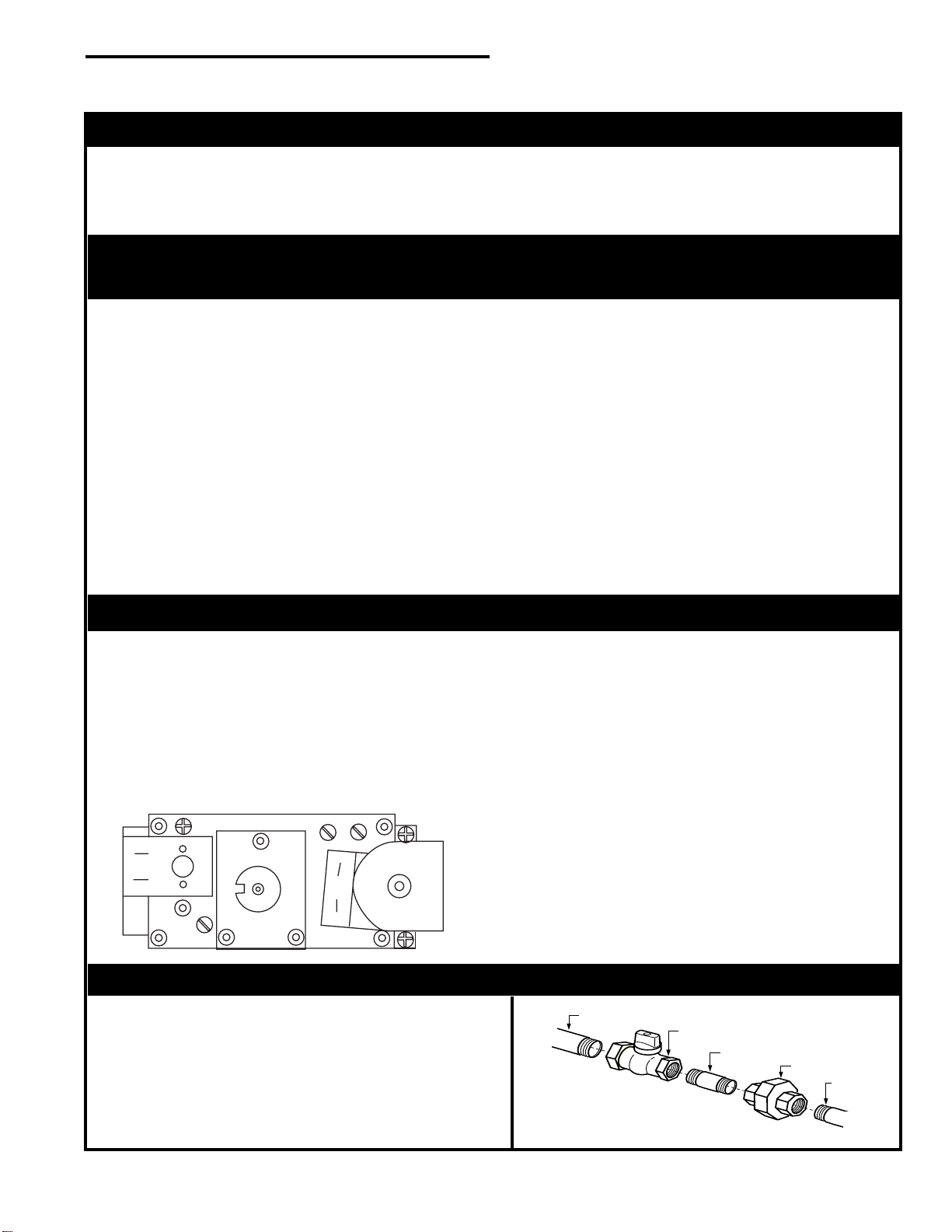

Lighting and Operating Instructions
For Fireplaces equipped with SIT822 Gas Valve (EN or EP)
A. This fireplace is equipped with an ignition device
which automatically lights the pilot. DO NOT try to
light the pilot by hand.
B. BEFORE OPERATING, smell all around the
appliance area for gas. Be sure to smell next to
the floor because some gas is heavier than the air
and will settle on the floor.
What to do if you smell gas
•Do not try to light any appliance
•Do not operate any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor’s phone.
FOR YOUR SAFETY READ THE FOLLOWING WARNINGS
BEFORE LIGHTING THE APPLIANCE
1. STOP! Read the safety information above before
continuing.
2. Turn off all electrical power to the appliance.
3. This appliance is equipped with an ignition device
which automatically lights the pilot. DO NOT try to
light the pilot by hand.
4. Access the gas control by lowering the lower
access door (louvre assembly).
Follow the gas suppliers instructions.
•If you cannot contact your gas supplier call
the Fire Department
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand do not try to repair it, call a qualified
service technician. Force or attempting repair may
result in a fire or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and replace any
part of the control system and any gas control that
has been under water.
5. Turn the remote switch, if used, OFF. Turn the
wireless remote, if used, OFF.
6. Wait five (5) minutes to clear out any gas. Then
smell for gas, including near the floor. If you smell
gas STOP. Follow instructions B in the safety
warnings above. If you do not smell gas go onto the
next step.
7. Close the access door.
8. Turn ON all electrical power to the appliance.
9. Turn remote switch or wireless remote to “ON”.
10. If the appliance will not operate, follow the
instructions TURNING OFF THE GAS TO THE
APPLIANCE and call your service technician or
gas supplier.
1. Turn the remote switch to the “OFF” position.
2. Turn OFF all electrical power to the fireplace if
service is required.
3Open the lower access panel.
4. Turn the shut-off valve on the flexible gas line to
the “OFF” position.
Warning: If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury and loss of life.
Lighting Instructions
Turning Off the Gas to the Appliance
HI
LO
FP297A
Valve in the “ON” position

16
Majestic Fireplaces®NVB Series B-Vent
7412950
Troubleshooting
FP396
Gas Supply On • Supply Line Hooked up
• Shutoff Valve Open
NO
NO
NO
NO
• Lockout has engaged. Wait 60
seconds and try again.
• Piezo not tight enough for good
ground.
• For spark at electrode while
depressing Piezo (Red Button)
1/8" gap to pilot hood needed.
• All wiring connections
• Replace Piezo Ignitor
• Thermodisk
• For Air in the lines
• Thermopile needs a minimum
325mV. Adjust pilot flame height.
• All wiring connections
• Replace Thermopile
• Thermocouple needs a minimum
of 14mV.
• Defective valve. Turn to pilot,
meter should read greater than
100mV.
• Thermodisk
Pilot Lights with
Piezo Ignitor
YES
YES
YES
YES
Pilot Stays Lit
Pilot Lights Main
Burner
System OK
START CHECK
• Wall switch is not turned on.
Watch for grounded wires!
• Thermopile needs a minimum
325mV
• Plugged burner orifice
Nova SIT 820 Standing Pilot

17
Majestic Fireplaces®NVB Series B-Vent
7412950
FP649
• Turn gas supply off
• Turn ON/OFF Switch
to call for heat.
NO
NO
NO
NO
NO
NO
NO
Spark across
Ignitor Sensor gap
Power to module
(24V nominal)
YES YES
YES
YES
YES
YES
YES
• Turn gas on
Pilot burner lights?
Spark stops when pilot
is lit?
Main Burner lights?
• Replace Module
START
• Line Voltage (120VAC)
• Low Voltage Transformer
(19.5 minimum VAC)
• ON/OFF Switch
• Wiring connections
• Thermodisk
• Check continuity of ignition cable and ground wire.
• Clean flame rod.
• Check electrical connections beween flame rod and module.
• Check for cracked ceramic flame rod insulator.
• Check that pilot flame covers flame rod and is steady blue.
• Adjust pilot flame.
• If problem persists, replace module.
Unplug Ignition Lead
and check spark
at module
(24VAC nominal)
Spark OK?
• Check ignition cable, ground wiring, Ceramic Insulator and gap. Correct as necessary
• Check boot of ignition cable for signs of melting or buckling. Take protective
actions to shield cable and boot from excessive temperatures.
• Check for 24VAC across MV-MV/PV terminals. If no voltage, replace module.
• Check electrical connections between module and gas control. If okay, replace gas
control or gas control operator.
• Check for continuity of igniton cable and ground wire. NOTE: If ground is poor or
erratic, shutdowns may occur occasionally even though operation is normal
at time of checkout.
• Check that the pilot flame covers flame rod and is steady and blue.
• If checks are okay, replace module.
Troubleshooting
Ends
• Check that all manual gas valves are open, supply tubing and pressures are good,
and pilot burner orifice is not blocked.
• Check electrical connections between module and pilot operator on gas control.
• Check for 24VAC across PV-MV/PV terminals on module. If voltage is okay, replace
gas control. If not, replace module.
NOTE: If S8600B goes into lockout, reset system.
NOTE: If S8600B goes into lockout, reset system.
CHECK :
System runs until
ON/OFF switch is in
"OFF" position
Troubleshooting
Remove glass panel before servicing.
NOVA SIT 822 with Honeywell S8600 B Electronic Ignition

18
Majestic Fireplaces®NVB Series B-Vent
7412950
Maintenance
Burner and Burner Compartment
It is important to keep the burner and the burner
compartment clean. At least once per year the logs and
lava rock/ember material should be removed and the
burner compartment vacuumed and wiped out. Remove
and replace the logs as per the instructions in this
manual.
Always handle the logs with care as they are fragile
and may also be hot if the fireplace has been in
use.
FK12 Fan Assembly
The fan unit requires periodic cleaning. At least once
per month in the operating season, open the lower
louvre panels and wipe or vacuum the area around the
fan to remove any build up of dust or lint.
Brass Trim
Clean the brass trim pieces using a soft cloth lightly
dampened with lemon oil. Do not use water or
household cleaners on any brass components.
Contact your local representative to arrange an annual
service program.
Cleaning the Standing Pilot
Control System
The burner and control system consists of:
• main burner
• gas orifice
• pilot burner
• thermopile
• combination millivolt gas valve
Most of these components may require only an occa-
sional checkup and cleaning and some may require
adjustment. If repair is necessary, it should be per-
formed by a qualified technician.
In order to properly clean the burner and pilot assembly,
turn off the gas to the unit, open the glass door (if
used), remove logs exposing the burner and pilot
assembly. Clean all foreign materials from the top of the
burner. Check to make sure that burner parts are clean.
Visually inspect pilot. Brush or blow away any dust or
lint accumulation If pilot orifice is plugged, disassembly
may be required to remove any foreign material from
the orifice or tubing.
To obtain proper operation, it is imperative that the pilot
and burner's flame characteristics are steady, not lifting
or floating.
Typically, the top 3/8" or 1/2" of the thermopile should
be engulfed in the pilot flame. (Fig. 21)
To adjust pilot burner, turn pilot screw marked "pilot" for
proper flame size.
The air shutter is set at factory no adjustment should be
necessary.
Cleaning Electronic Ignition System
The Electronic Ignition burner/control system consists
of: • main burner
• gas orifice
• pilot burner
• 24VAC valve with transformer
Taking care of the Electronic Ignition units is almost
identical to taking care of the Standing Pilot models.

19
Majestic Fireplaces®NVB Series B-Vent
7412950
NVB Series
Ref. Description NVB36 NVB42
1. Logs - Complete Set 20003868 20003910
1a. Log - Left Rear 20003862 20003904
1b. Log - Right Rear 20003863 20003905
1c. Log - Right Cross 20003864 20003906
1d. Log - Left Cross 20003865 20003865
1e. Log - Center Cross -- 20003907
1f. Log - Left Ember (Long) 20003866 20003908
1g. Log - Right Ember (Short) 20003867 20003909
2. Lava Rock Package 20000376 20000376
3. Bag of Embers 7060109 7060109
4. Burner Housing w/Tile 20003791 20003953
5. Ceramic Tile (single) 57803 57803
6a. Burner Orifice - Natural (Manifold & Orifice) 20003582 20003547
6b. Burner Orifice - LP (Manifold & Orifice) 20003541 20003552
7. Thermodisk 20001558 20001558
8. Remote Switch Kit 53875 53875
9. Fan ZA1110 ZA1110
16
6a/b
9
20
24
19a/b
H
I
L
O
O
F
F
O
N
O
F
F
P
I
L
O
T
O
F
F
E A
P
I
L
O
T
THTP TP TH
22
25
21a/b
27
26
23a/b
8
11 14 15
10
3
28a/b
32
31
H
I
L
O
E A
P
I
L
O
T
MV MVPV PV GND
(BURNER) 24V
GND 24V SENSE SPARK
7
18
2

20
Majestic Fireplaces®NVB Series B-Vent
7412950
NVB(continued)
Ref. Description NVB36 NVB42
10. Door Track - Black 3061102 3062102
Door Track - Brass 3067102 3072102
11. Side Brick - Left 3030104 3030104
12. Back Brick 3030102 3032102
13. Side Brick - Right 3030160 3030160
14. Ceramic Panel - Left 3043132 3051120
15. Ceramic Panel - Right 3043133 3051119
16. Glass 7540637 7540642
17. Grate 20000612 20000539
18. O.S.A. Assy. 20003076 20003076
19a. Valve Nova - Natural 7529141 7529141
19b. Valve Nova - LP 7529142 7529142
20. Piezo Ignitor 52464 52464
21a. Pilot Top Convertible - Natural (3 WayAssembly) 10002264 10002264
21b. Pilot Top Convertible - LP (3 Way Assembly) 10002265 10002265
22. Electrode Ignitor w/Cable 10001297 10001297
23a. Pilot Orifice - Natural 10002268 10002268
23b. Pilot Orifice - LP 10002269 10002269
24. Thermopile 18” 7533113 7533113
25. Pilot Tubing 10001296 10001296
26. Cable Ignitor 24” 7522432 7522432
27. Thermocouple 24” 7531137 7531137
28a. E. Valve - Natural 57884 57884
28b. E. Valve - LP 57883 57883
29a. E. Pilot Assy. - Natural (4 Way) 10002387 10002387
29b. E. Pilot Assy. - LP (4 Way) 10002388 10002388
30. Sensing Electrodes 57885 57885
31. Ignition Device - Honeywell 20000005 20000005
32. Transformer 7522409 7522409
33. Air Shutter - Natural 20000129 20000129
34. Air Shutter - LP 20000680 20000680
35. Conversion Kit - Natural 20003893 20003893
36. Conversion Kit - LP 20003894 20003894
37. Hearth Cover Shield 3043118 3051121
Contact Vermont Castings, Majestic Products for questions concern-
ing prices and policies covering replacement parts. Parts may be
ordered through your Vermont Castings, Majestic Products distribu-
tor or dealer.
You will need the following information when ordering replacement
parts:
1. The appliance model number.
2. The serial number.
3. A description of the part.
Should you need additional information beyond what your dealer
can furnish, contact:
Vermont Castings, Majestic Products
410 Admiral Blvd.
Mississauga, Ontario, Canada L5T 2N6
Attn: Manager of Customer Service
Model and serial numbers are listed on the
rating plate (located on right side of combustion
chamber).
Record your model and serial numbers here for
future reference:
Model # ____________________________
Serial # ____________________________
