Majestic TAB 814 User manual
Index
●Specifications
●Package Contents
●Description of the parts
●MicroSD card installation
●Getting started guide
◦Battery charging
◦Power on / off
◦Screen lock
◦Home screen
◦Navigation keys
◦Settings menu
●How to use the memory card
◦Memory card removal
●Software keyboard
●Touch screen
●Computer connection
●Internet connection
◦Wifi
◦Web browsing
●Camera
●Troubleshooting
◦End an application
◦Power off
◦Restore default settings
●Warnings
Specifications
32GB Flash expandable via MicroSD (up to 64GB) built-in
memory
8 "IPS HD capacitive multi-touch screen (1280x800)
A53 Quad-core A133 processor (4x1.6Ghz) RAM: 3GB
DDRIII
GE8300 GPU graphics
Wi-Fi Internet connection (b/g/n)
Built-in Bluetooth (version 4.2 LE)
2 Mpixel front camera and 5 Mpixel rear camera with LED
flash
Built-in microphone
Built-in loudspeaker
Type-C input for charging and data transfer (USB cable
supplied)
MicroSD input
3.5mm headphone output
Android 10 operating system
Power supply 3.7V rechargeable Lipo battery (3500mAh)
Power adapter AC 100 / 240V - 50 / 60Hz DC 5V / 2A
* NOTE : Internal storage is divided into two partitions, a system (hidden)
and a user (visible) partition. The software needed to restore the
operating system and the pre-installed applications reside in the hidden
partition, while the user data resides in the visible partition.
Package Contents
Tablet - 1pc
Power supply - 1pc
USB cable - 1pc
Instruction manual - 1pc
Warranty Card - 1pc
Description of the parts
1
Reset
Reset the system in the event of a crash / reboot
2 Power on / off
Press and hold to turn on / off the tablet ; short press to
activate / deactivate standby
3
Volume keys
Press to increase or decrease the audio volume
4
Rear Camera with LED Flash
5
Headphone socket
3.5mm input for use with earphones (not supplied)
6
MicroSD input
7
USB Type-C
Input for charging / data transfer
8
Integrated speaker + microphone
MicroSD card installation
Turn off the tablet and disconnect any external power
sources.
Open the cover and insert the MicroSD card into the
appropriate slot, respecting the direction of insertion, as
shown in the figure.
Getting started guide
Battery charging
The tablet has a built-in rechargeable Li-po battery .
• To recharge the battery, connect the adapter and the
USB Type-C socket on the left side of the tablet .
• The battery icon shows the battery condition and charge
status . The information on the battery charge status is
also visible in detail from the lock screen, or from the top
drop-down menu, once the screen is unlocked.
• The tablet can be used even if the battery is charging.
• Do not replace the battery without authorization and
contact an authorized service center only.
• Charge the tablet for at least half an hour if it has been
inactive for a long time and it won't start up.
• Recharge regularly at least once every month.
• The optimal temperature for recharging the battery is
between 5 ° and 35 °, otherwise the battery performance
may degrade.
Power on / off
ON:
Press the button for 3 seconds until the tablet turns on.
OFF:
Press the button for 2 seconds, then tap “Power off” to
turn off the tablet .
Screen lock
This function locks the screen and at the same time turns
off the backlight.
The screen freezes under the following conditions:
Automatically, when the system is idle.
Manually, by pressing the power button once.
Unlock Screen:
To unlock the screen, press the button , place your
finger on the bottom of the screen and drag it upwards.
Home screen
The main screen will look similar to the image below. To
switch between the different screens, slide your finger left
or right on the display.
The status bar and navigation keys are always visible, no
matter which screen is currently displayed.
The Home screen contains links to the most used
applications. Tap the Google ™ bar at the top of the screen
to search the web.

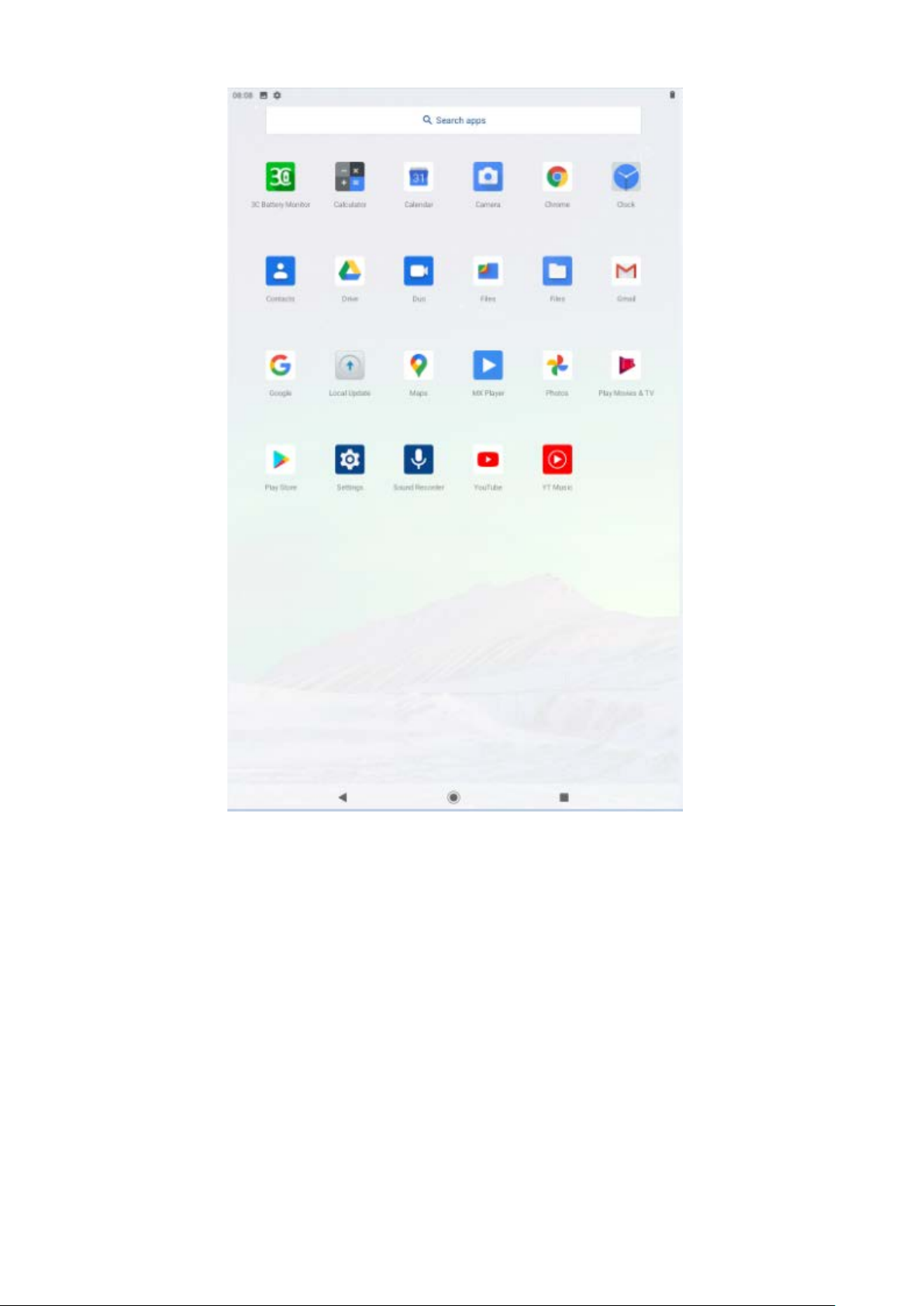

Swiping your finger from the bottom edge of the screen
upwards will launch the application menu.
