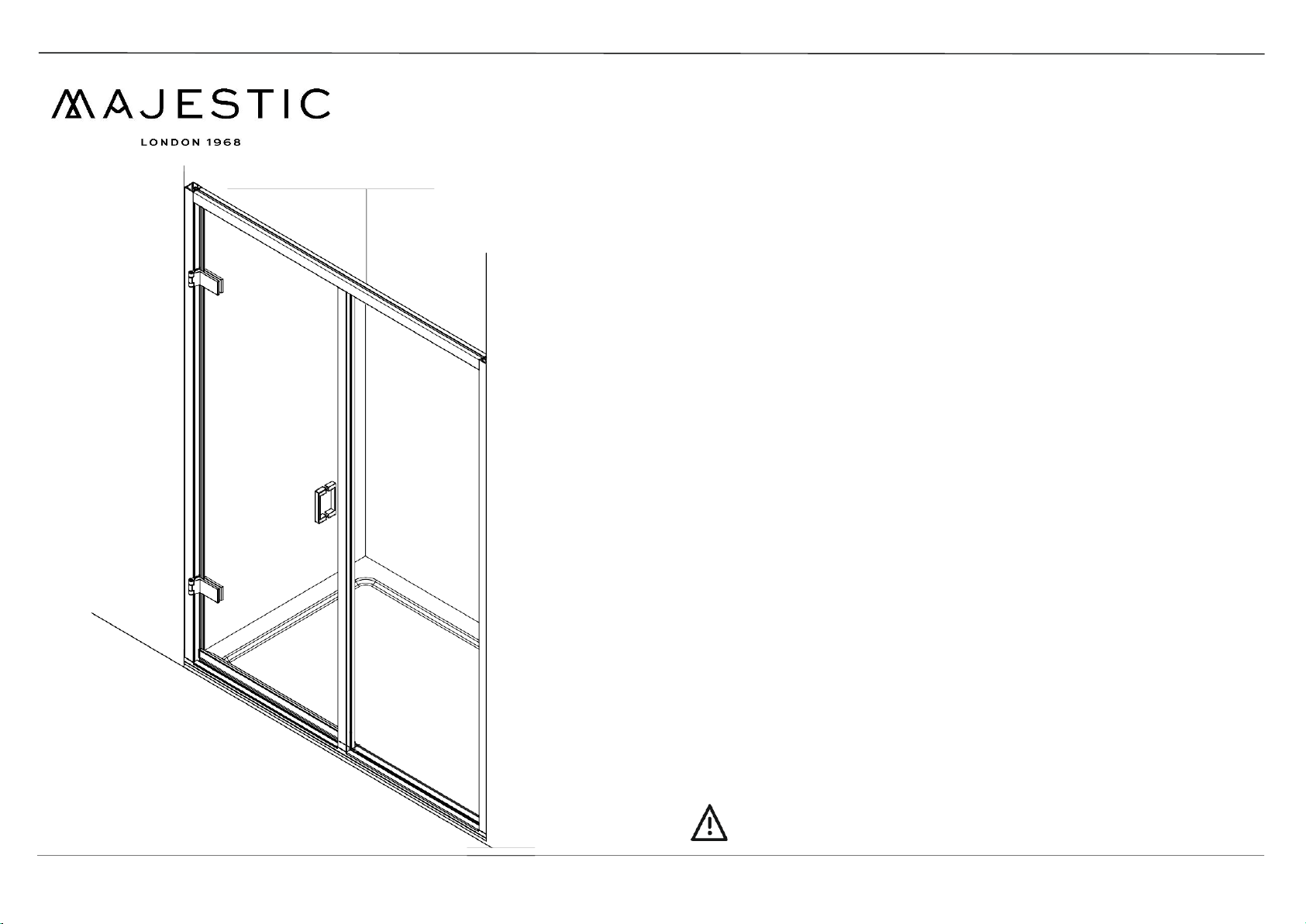

Thank you for purchasing this Como shower enclosure. Please study these instructions
carefully before assembly and installation.
Checking of Parts
Parts are listed at the beginning of this guide. Please check all supplied parts immediately
upon receipt and contact the Majestic Shower Company in the event of any missing or
damaged parts.
Handling of Parts
When handling glass, take care to ensure that corners or edges are not knocked. Do not
place glass on hard surfaces - place cushioning material underneath to prevent the glass
from shattering.
Unwrap all metal parts carefully to prevent damaging the plated surfaces.
Pre Installation Checks
Prior to undertaking installation, check the accuracy of the following against specifications
for the particular installation location:
- Verticality and flatness of the wall.
- Levelness and flatness of the floor or rim of the shower tray,
The Majestic Shower Company Limited
DO NOT ASSEMBLE WITHOUT FULLY READING THESE INSTRUCTIONS
Telephone [phone]

Como Installation Guide
2
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
1 x Glass Door with
bottom rail and seal
2 x Hinge assemblies
including screws
and gaskets
Door Handle or Towel Rail
assembly as ordered
1 x Template
1 x Glass Panel
A. Underframe
B.
Underframe Cover for Door
C. Underframe Cover for Panel
A
B
Wall Frame Assembly
- Door side
Centre Frame Assembly
Wall Frame Assembly
- Panel side
Top Frame
Adjustable Spacer Blocks
and Packers

Como Installation Guide
3
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com

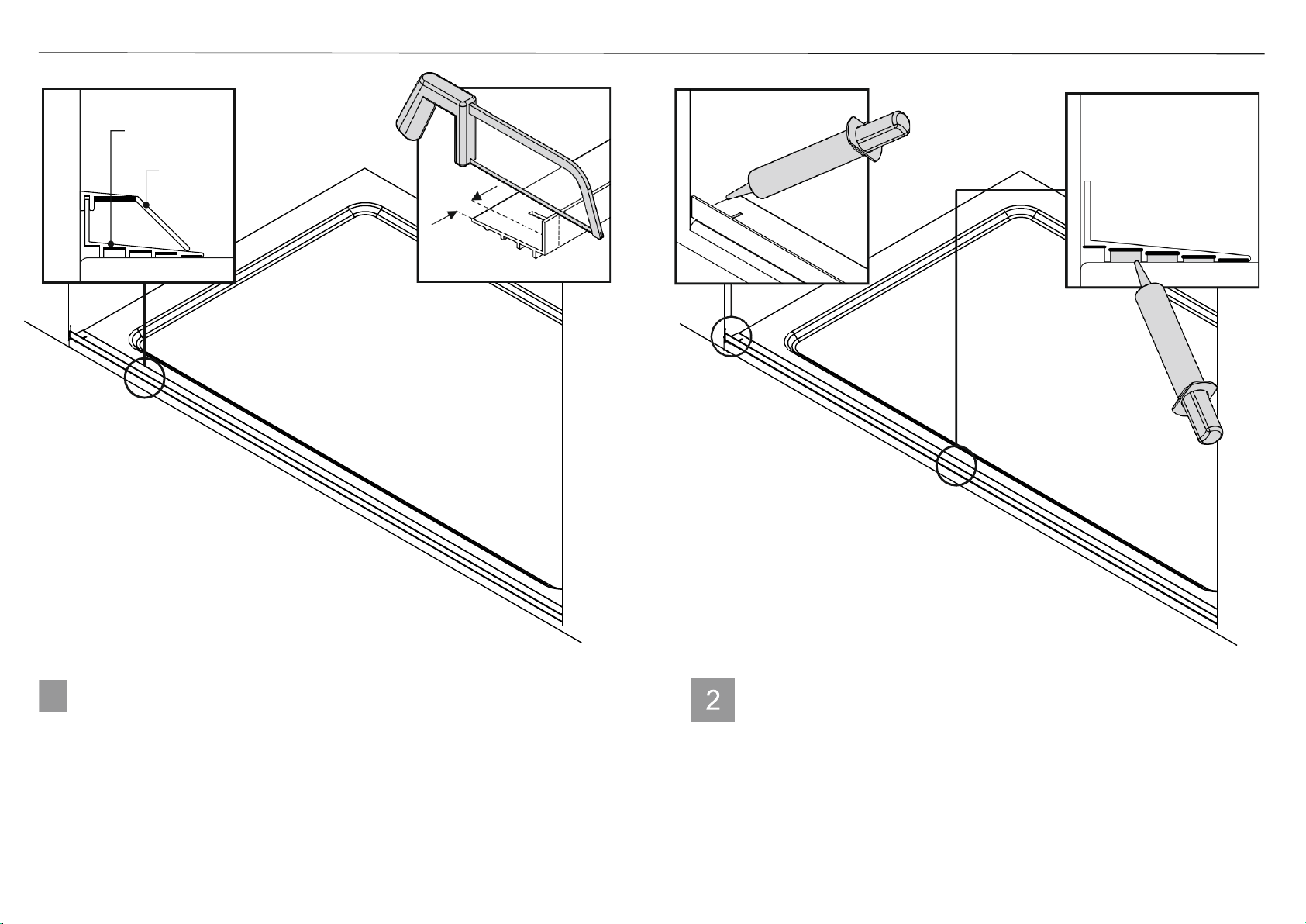

The Underframe is supplied over length to be trimmed to size on site.
You can trim up to a maximum of 15 mm from each end of the Underframe. So that the
wall profiles will be similar width on either side of the door, you would ideally trim an equal
amount from both ends of the underframe. However, it is essential to first check the
verticality of the walls. If a wall leans inwards, trim less from that end of the underframe.
If it leans outwards trim relatively more. Cut the underframe with a junior hacksaw and file
the cut ends smooth.
Do NOT cut the Underframe Cover to be used under the Door - this is supplied at the
correct length for your door.
Apply a generous amount of silicone to the recesses on the underside of the
Underframe and place it in position on the shower base. Hold it in position with
masking tape until the silicone has set.
Apply a fillet of silicone at each end of the Underframe to seal it against the walls.
Underframe
Cover -
Door side
< 15 mm
1

Como Installation Guide
4
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
Cover
Panel Side
Outer wall frame
Inner wall frame

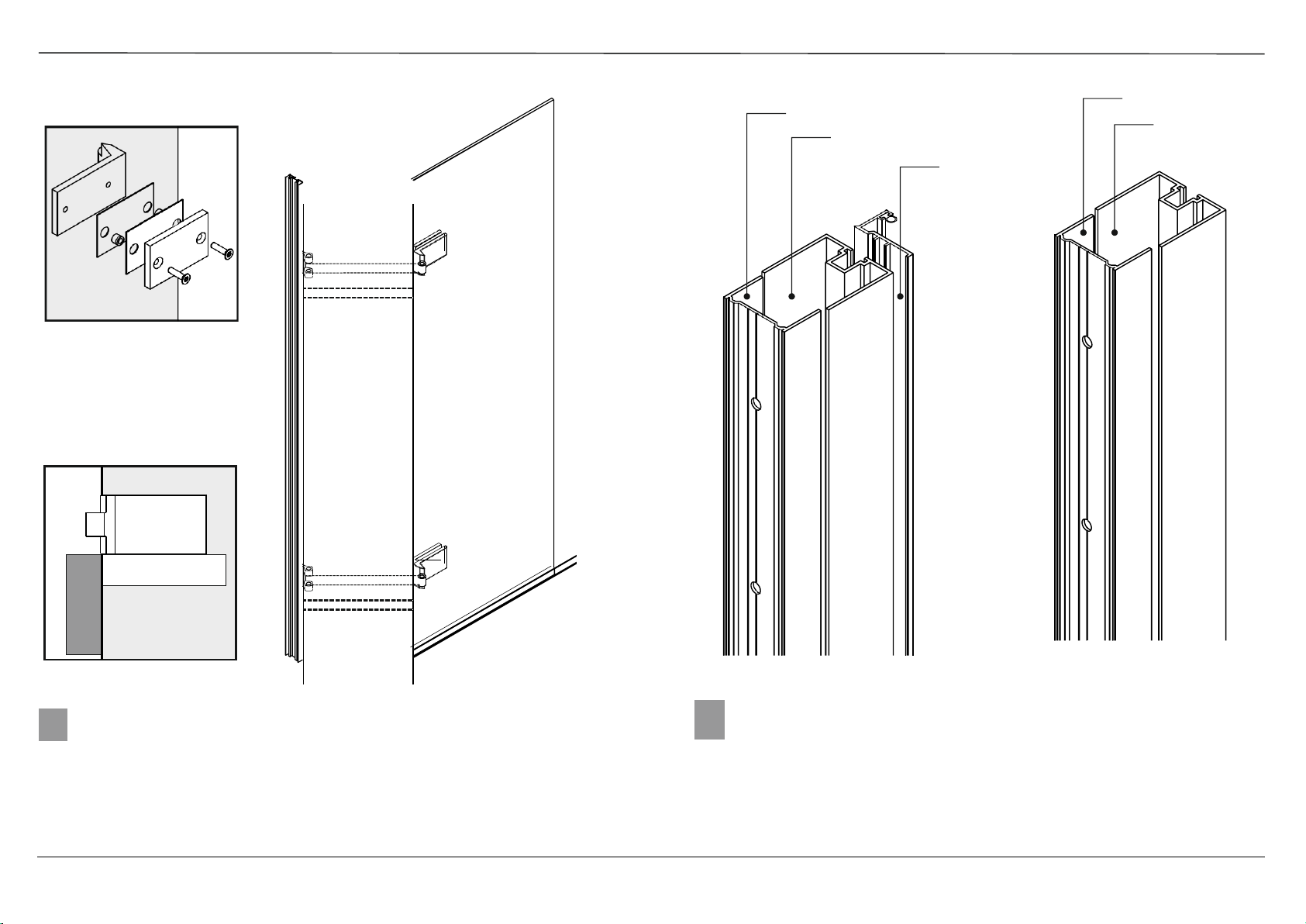

Assemble the hinges to the glass Door as shown. Ensure that the clear plastic
sleeves are fitted inside the holes in the glass and that gaskets are placed either
side of the glass.
Use the wall profile cover with hinge parts attached to check the spacing between the
hinges and use a set square to ensure that the hinges are correctly aligned.
Fully tighten the hinges. Leave for 10 minutes and then re-tighten to compensate
for compression of the gaskets.
4 Unscrew and separate the Wall Frame assemblies as shown .
CHECK
CHECK
Door Side
Outer wall frame
Inner wall frame
3

Como Installation Guide
5
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
6
Place the outer wall frames in position. Use the template provided to position the bottom
of each outer frame and ensure that there is enough space between it and the
Underframe for the inner wall frames to be fitted later. Use a spirit level to ensure that the
frames are plumb vertical.
Mark all screw hole positions on the wall, and drill and fit the wall plugs provided.
Run a bead of silicone down the back of the outer wall frames as shown to ensure a
waterproof seal against the wall.
Using 3 of the short (30 mm) screws supplied for each outer frame, screw the
frames to the wall at top, bottom and middle, using the countersunk holes in the
frame.
5
6

Como Installation Guide
6
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
Assemble the inner wall frames to the outer frames using the longer screws provided in the
remaining holes. Note that inner frame on the door side has a small metal tag protruding at
the bottom which is to locate in the pierced slot at the end of the Underframe.
Before screwing the frames together, place an Adjustable Spacer, and an additional
Packer if necessary, between the inner and outer frames as required to compensate for
any lean in or lean out of the walls and to ensure that the faces of the inner frames are
plumb vertical.
Once you are satisfied that the faces of the inner wall frames are at 90 degrees
to the shower base, fully tighten the wall screws and replace the cover plate on
the Door side Wall Frame as shown.
7
8

Como Installation Guide
7
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com

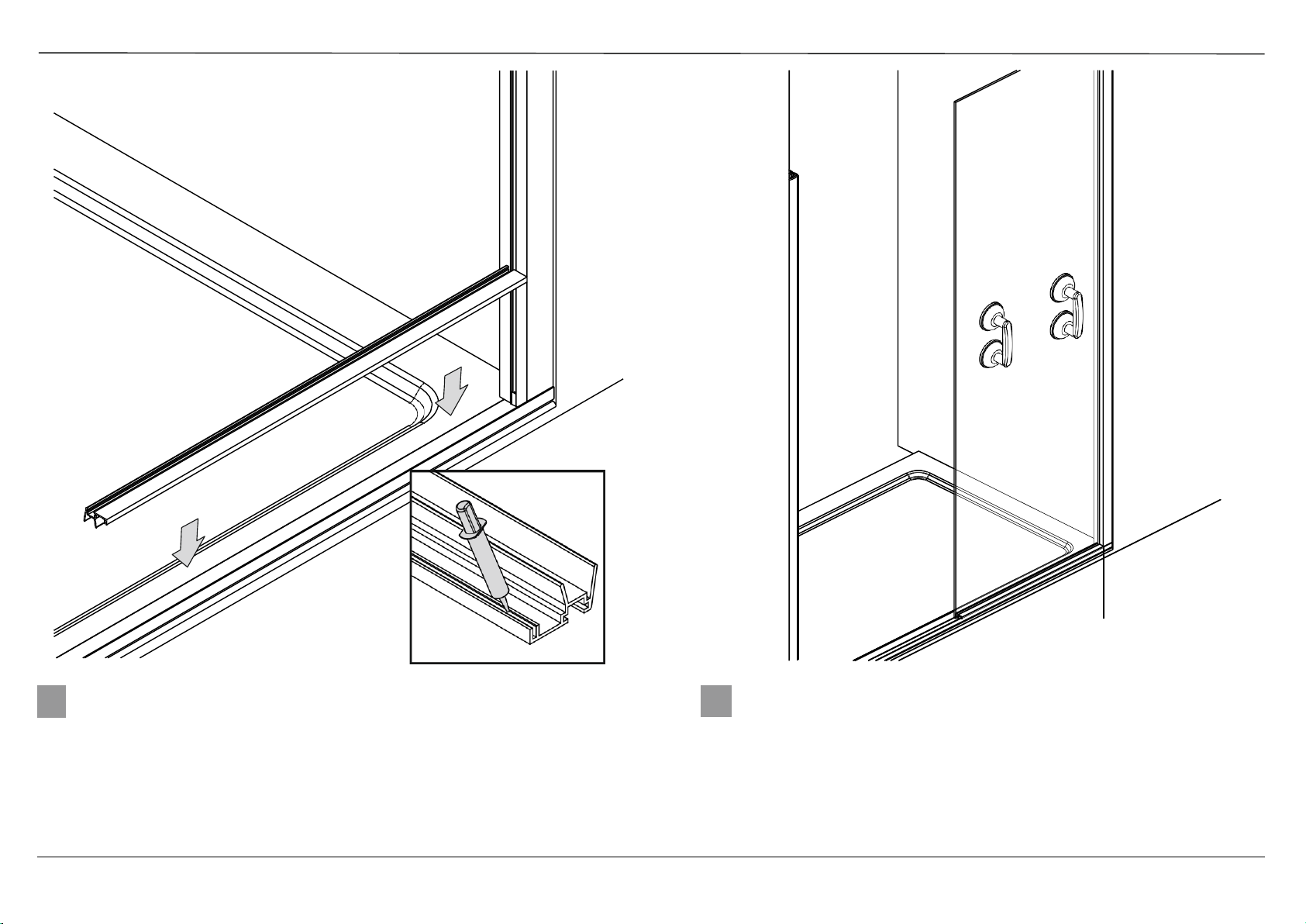

Fit the Panel side Underframe Cover to the underframe. Apply a thin bead of silicone
to the groove on the underside of the cover to retain it. Using suction glass lifters, place the glass panel in position in the channels in the
Underframe Cover and the Wall Frame.
9
10

Como Installation Guide
8
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
1 12

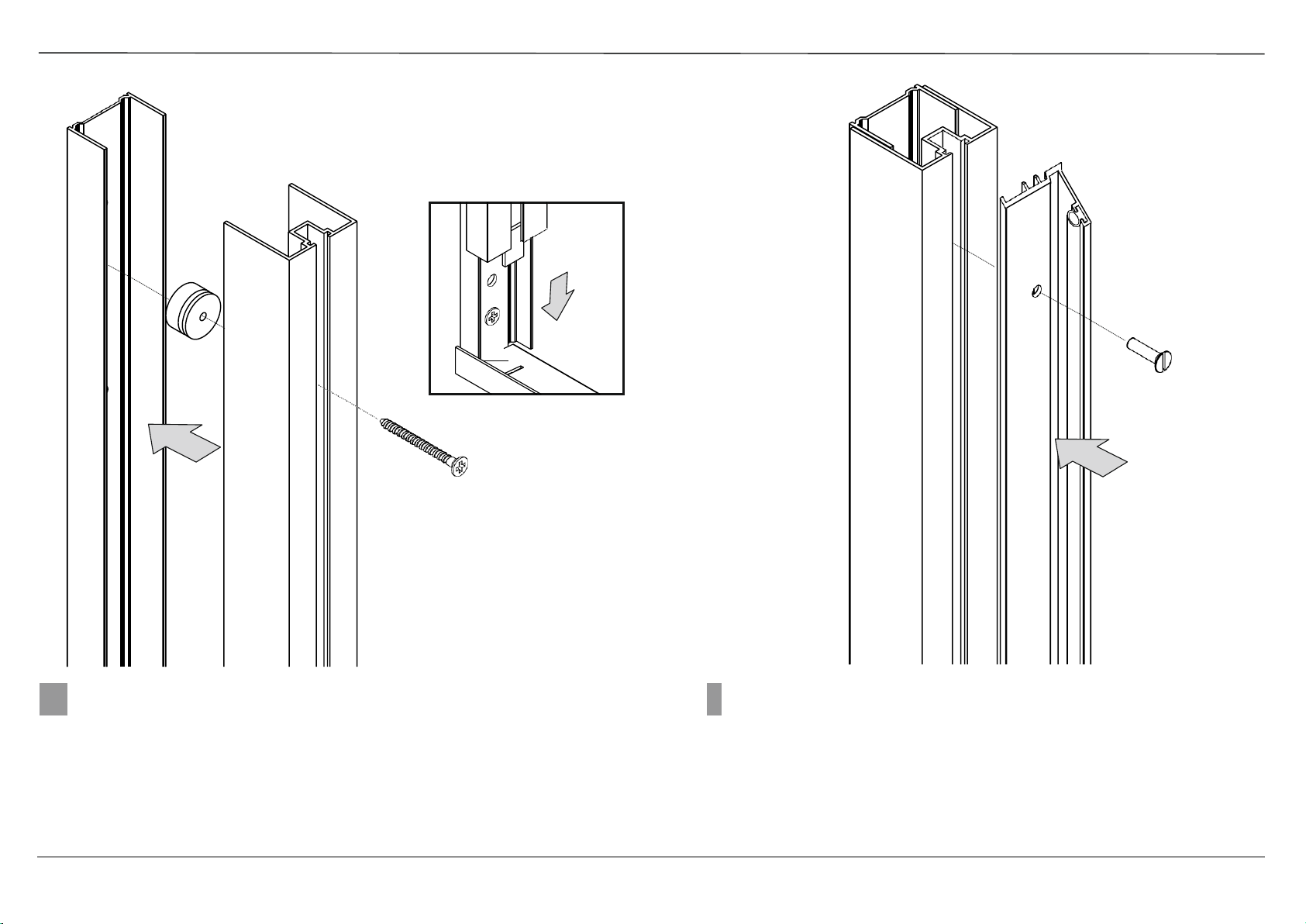

Position the Centre Frame assembly and lower the Top Rail into position.
The ends of the Head Rail are fitted with lugs and projecting boltheads. Slide the
lugs in to the Wall Frame assemblies and use the spanner provided to tighten the
bolt heads and lock the Rail in position.
The lug which projects from the underside of the centre of the Head Rail fits in to
the top of the Centre Frame. From the inside of the shower drill through the top of
Centre Frame into this lug and secure with the self tapping screw provided.
Fit the Door side Underframe Cover to the Underframe. This part is intended to
removable to facilitate cleaning.

Como Installation Guide
9
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com

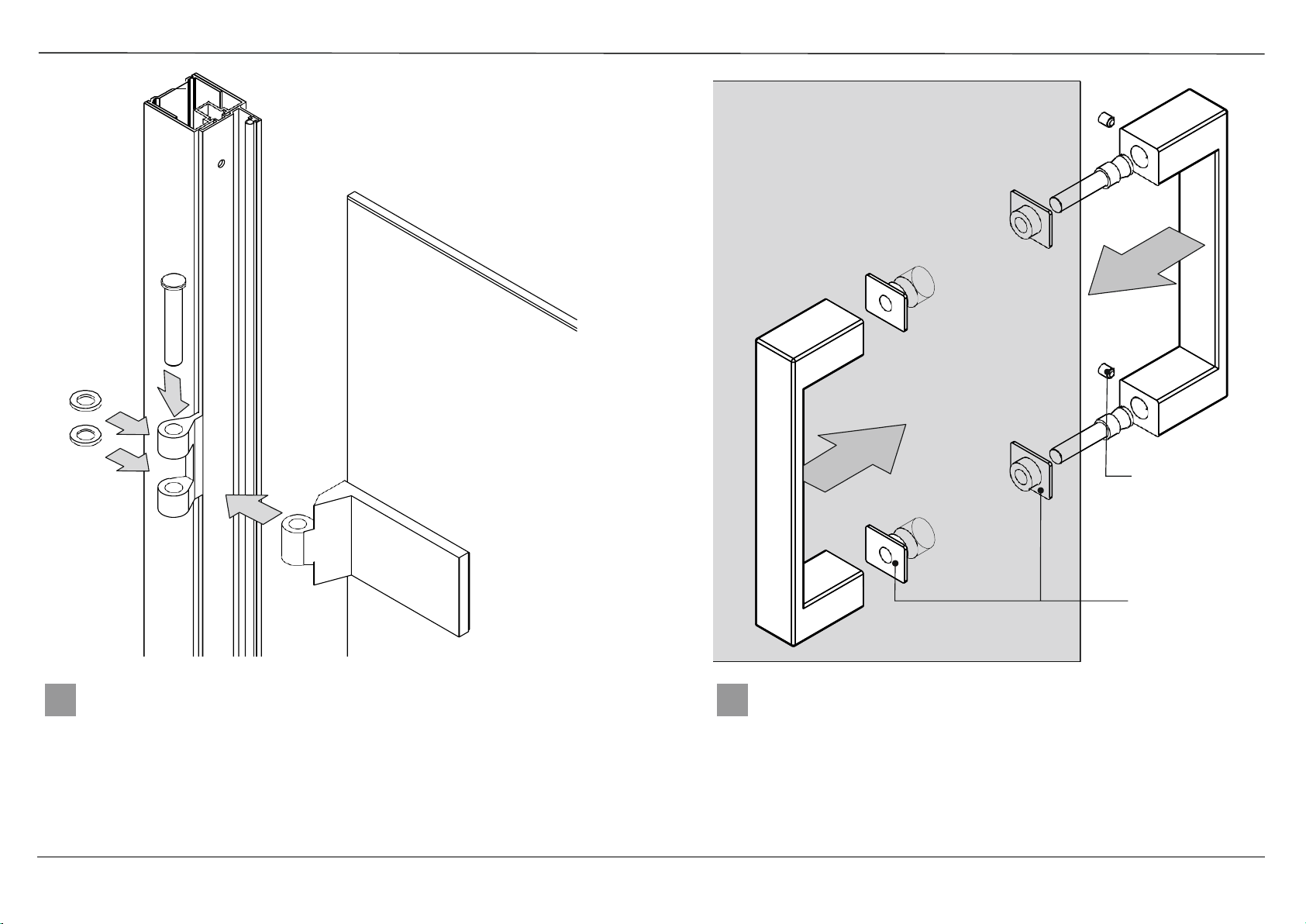

Offer up the assembled Door. Place the plastic washers in between the moving parts of
the hinge as shown and drop the retaining pins into place from above.
Apply a light smear of grease to the hinge pins before inserting them.
If you have chosen a back-to-back handle, fit this to the door as shown,
ensuring the black plastic washers are located in the holes on both sides of the
glass.
Tighten the grub screws on the inside handle to secure.
Alternatively, if you have chosen a towel rail handle, follow the instructions
supplied with that handle
Grub screw
INSIDE OF
SHOWER
Plastic washer
OUTSIDE OF
SHOWER
13
14

Como Installation Guide
10
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
Wood
block
Seal around the glass panel on the inside of the shower only as shown above. Push or peg
the glass away from you so that you have sufficient space between the glass and the frame
and apply a thin bead of silicone.
Check that the door opens and closes easily and that the seal at the bottom of
the door sits close to the underframe. If there is a gap, use a block of wood and
a mallet to gently tap the extrusion holding the seal downwards along its length.
15
INSIDE
INSIDE
Seal
16
