Majik Accurate Aim Archery Trainer User manual

ACCURATE AIMTM
ARCHERY TRAINER
Assembly Instructions
1-1-28345, 28368, 28379-DS
CONTACT INFO
Hours
Monday to Friday
(9:00am to 5pm EST)
Technical Support
Email us at: [email protected]
Visit us at: www.eastpointsports.com
Call: 973-585-4747
www.eastpointsports.com
Small parts.
N ot for children under 3 years.
WARNING:
CHOKING HAZARD -
WARNING:
ADULT ASSEMBLY REQUIRED -
Product must be assembled by an adult.
NOT FOR USE BY CHILDREN
WITHOUT ADULT SUPERVISION.
PLEASE READ INSTRUCTIONS CAREFULLY.
NOTE: BOW AND ARROWS ARE
NOT A TOY. CAUTION SHOULD BE TAKEN
WHEN SHOOTING ARROWS.
PLAY IN A CLEAR AREA AND
DO NOT AIM DIRECTLY AT ANYONE.

Required
TOOLS
• Phillips Head Screwdriver
(Standard Size) – Not Included
How to use the PARTS IDENTIFIER
Before you begin assembly, please make sure that
you have all the parts listed and in the correct
quantities. This will ensure the quickest and most
organized assembly.
1
STEP 1
Part Name
# 52703-QT x2
Instructions Parts ID #
Item #
Part Name
Part Image
Part Quantity
Step
Used In

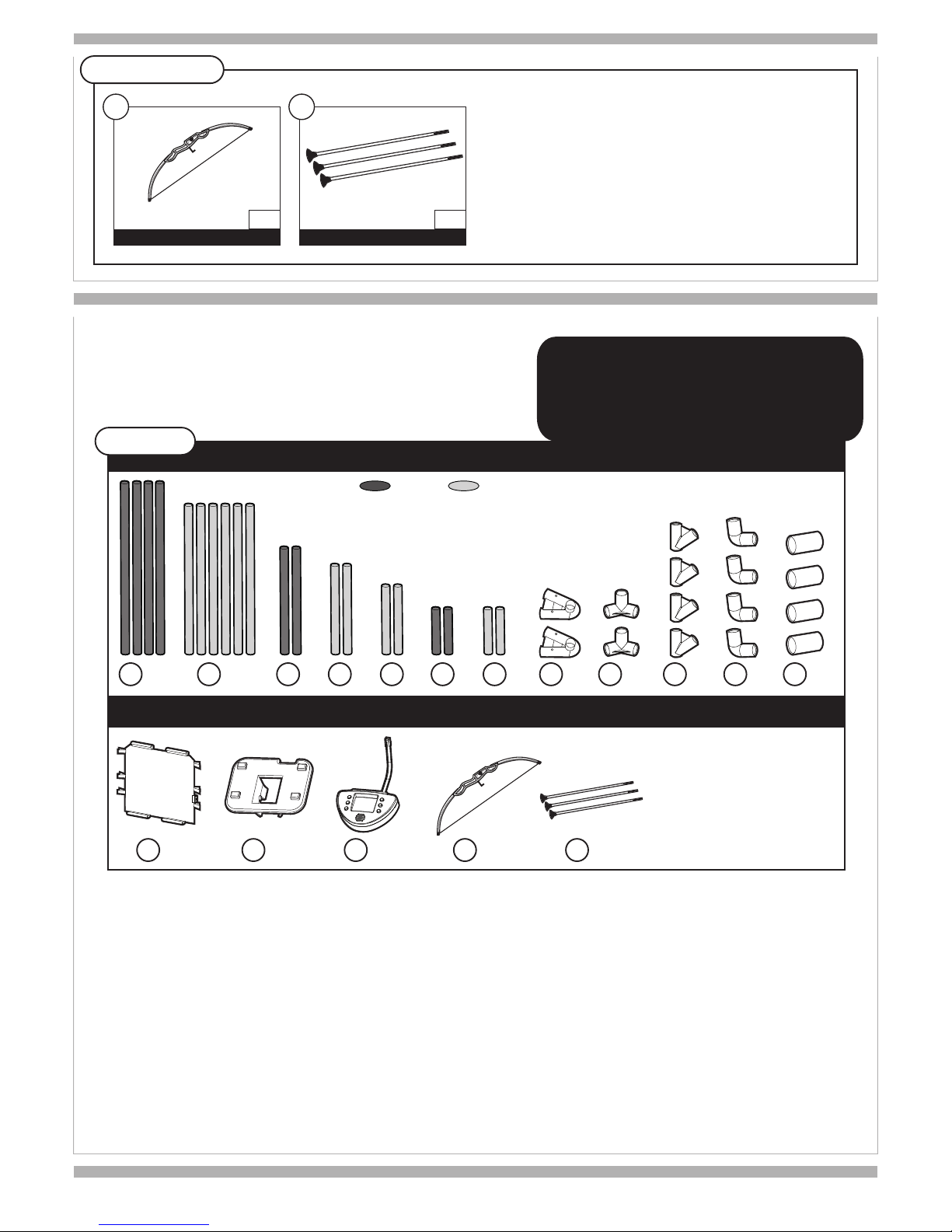

PARTS IDENTIFIER
x4
Pole - 2XL - Black
28345-01HX
STEP 1, 5
1
x6
Pole - XL - Brown
28345-02HX
STEP 4, 5
2
x2
Pole - Large - Black
28345-03HX
STEP 2
3
x2
Pole - Medium - Brown
28345-04HX
STEP 3
4
x2
Pole - Small - Brown
28345-05HX
STEP 2
5
x2
Pole - XS - Black
28345-06HX
STEP 3
6
x2
Pole - XS - Brown
28345-07HX
STEP 1
7
x2
Angle Connector - 3 Way
28345-08HX
STEP 1
8
x2
Connector - 3 Way
28345-09HX
STEP 1
9
x4
Angle Connector - 2 Way -
Wide
28345-10HX
STEP 1, 2
10
x4
Connector - Corner
28345-11HX
STEP 3
11
x4
Connector - Straight
28345-12HX
STEP 4, 5
12
x1
Target Mat
28345-13HX
STEP 4
13
x1
Scorer Holder
28345-14HX
STEP 7
14
x1
Scorer
28345-15HX
STEP 7
15
1
WIDE

ACCESSORIES
x1
Bow
28345-80HX
80
x3
Arrow
28345-81HX
81
2
Archery Trainer Construction
ASSEMBLY INSTRUCTIONS
BEFORE BUILDING - Please inspect and layout all your PARTS
NOTE - All parts are NOT to scale with each other
START
Helpful Hint!
Before building, lay out all the poles in numerical
order as shown below. This will help you find the
correct pole for each step and make assembly
much easier.
1x4 2x6 3x2 4x2 5x2 6x2 7x2 8x2 9x2 10 x4 11 x4 12 x4
13 x1 14 x1 15 x1 80 x1 81 x3
= BLACK = BROWN

3
Repeat all
connections for
the Right
Frame.
NOTE:

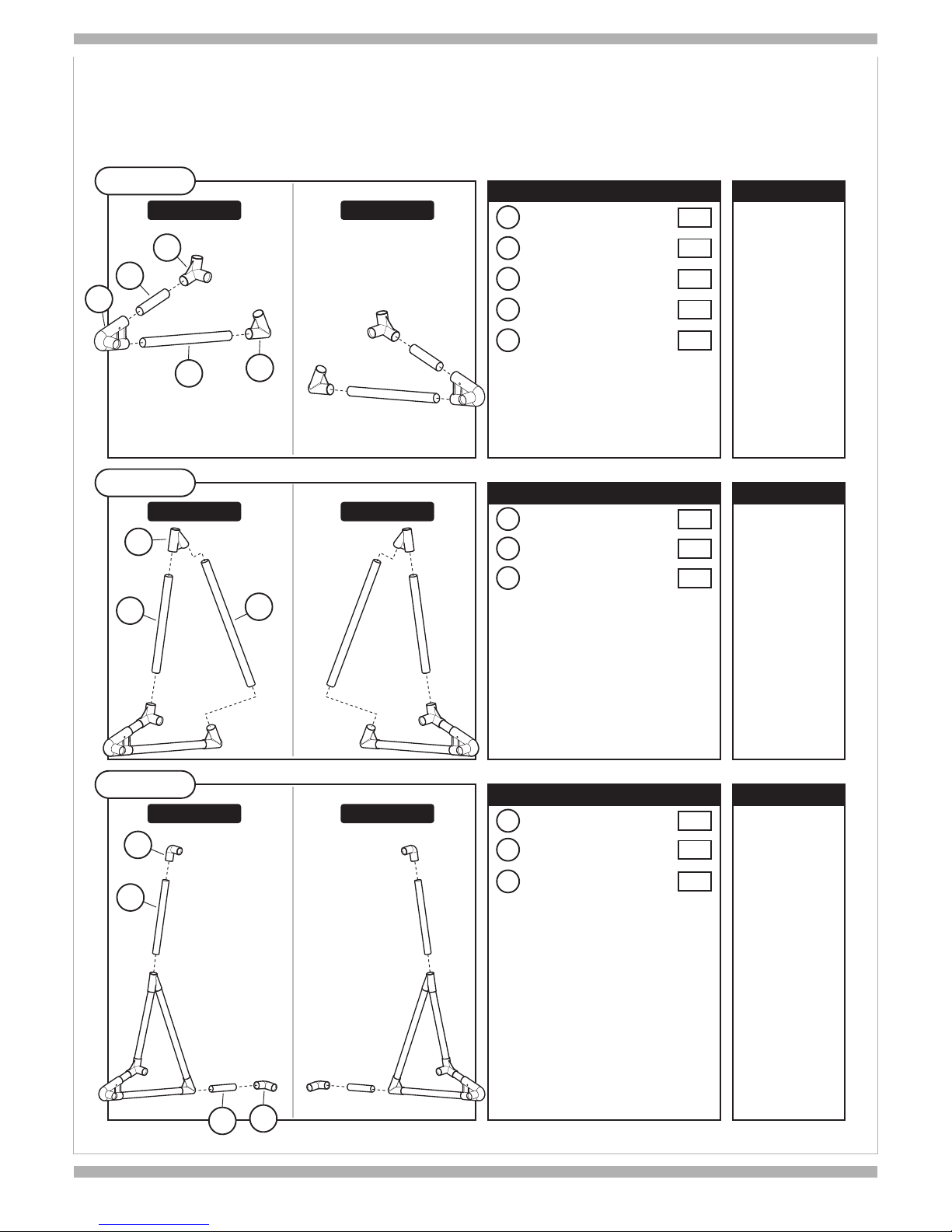

STEP 2 COMPONENTS QTY.
Pole - Large - Black
x2
3
Pole - Small - Brown
x2
5
Angle Connector - 2 Way - Wide
x2
10
Repeat all
connections for
the Right
Frame.
NOTE:
STEP 1 COMPONENTS QTY.
Pole - 2XL - Black
x2
1
Pole - XS - Brown
x2
7
Angle Connector - 3 Way
x2
8
Connector - 3 Way
x2
9
Angle Connector - 2 Way - Wide
x2
10
Repeat all
connections for
the Right
Frame.
NOTE:
STEP 3 COMPONENTS QTY.
Pole - Medium - Brown
x2
4
Pole - XS - Black
x2
6
Connector - Corner
x4
11
LEFT FRAME RIGHT FRAME
LEFT FRAME RIGHT FRAME
LEFT FRAME RIGHT FRAME
7
9
8
110
53
10
4
11
611

4
Attach the LEFT
& RIGHT FRAME
to Step 4
Assembly.
NOTE:
STEP 5 COMPONENTS QTY.
Step 4 Assembly
x1
LEFT FRAME
x1
RIGHT FRAME
x1
Pole - 2XL - Black
x2
1
Pole - 2XL - Brown
x2
2
Connector - Straight
x2
12
HELPFUL HINT:
It may be easier
laying this
assembly at on
the oor.
NOTE:
STEP 4 COMPONENTS QTY.
Pole - 2XL - Brown
x4
2
Connector - Straight
x2
12
Target Mat
x1
13
Hook and Loop
the Straps to
both the LEFT &
RIGHT FRAME.
NOTE:
STEP 6 COMPONENTS QTY.
13
12
12 2
2
2
2
RIGHT FRAME
LEFT FRAME
1
2
1
2
12
Step 4 Assembly
NOTE: Hook &
Loop all 6 Straps.

5
Snap
Scorer Holder
into position as
shown.
Place Scorer
down onto
Scorer Holder.
Then slide
Scorer down to
lock in position.
Insert the
Scorer Wire as
shown.
NOTE:
STEP 7 COMPONENTS QTY.
Scorer Holder
x1
14 A
B
C
Scorer
x1
15
CONTROL BOX OPERATION
CONTROL BOX ICONS
SCREEN ICONS
UP
RESET
POWER
SOUND ENTER
NEXT
HUNTER
RAM
DOE
HUNTER 1
BUCK
WOLF
MOUNTAIN
LION
HUNTER 2
BEAR
IMPORTANT:
Before attaching
Insert 3 AA
Batteries
(NOT INCLUDED)
into the Scorer.
A
B
C
14
15

GAME PLAY OPTIONS
GAME 1 - Trophy Hunt (1 or 2 Player Game)
The player that hits all the animals in the shortest amount of time wins.
Players are ranked based on how quickly they hit all the animals.
Winning Player’s Time Ranking
0-1 minute - - - - - - - - - - Sniper
1-3 minutes - - - - - - - - - - Professional
3-5 minutes - - - - - - - - - - Beginner
5+ minutes - - - - - - - - - - Keep Practicing
GAME 2 - Bag Limit (1 or 2 Player Game)
Players start with 11, 21 or 31 points. For each animal hit, the corresponding point value is subtracted from the player’s score.
Players must land exactly on 0 points to win! Be careful not to go over your bag limit. If more points are scored than required to land
exactly on 0, then no points are awarded and play continues. If your score is 5 or less, the game will play the sound of the animal you
should target to win the game as quickly as possible.
SCORER OPERATION and GAME SELECTION
POWER
Press POWER to turn the game ON.
Press and hold POWER for 2 seconds to turn the game OFF.
NOTE: Hold each button for the time specied in the manual. Buttons have delays to prevent accidental pressing by arrows.
SELECT GAME
Press UP to scroll between the two game options.
Press ENTER to select the desired game option.
SELECT BAG LIMIT (Bag Limit only)
Press UP to scroll through the Bag Limit point values – 11, 21 or 31 points.
Press ENTER to select the desired amount of points to win.
SELECT HUNTERS
Press UP to scroll through the number of players in your hunting group.
Press ENTER to select the desired number of hunters and begin hunting.
IMPORTANT: Before removing arrows from the scoring mat, press and hold NEXT HUNTER for 1
second to deactivate the scoring sensors. This will allow you to remove the arrows without accidentally
triggering a scoring sensor. Once all arrows have been removed, press NEXT HUNTER to reactivate the
scoring sensors and move on to the next player’s turn. This is for 2 player game only.
SOUND
Press and hold SOUND for 2 seconds to turn the sound ON or OFF.
RESET
Press and hold RESET for 2 seconds to reset the scoreboard.
NOTE: In 2 player game, if both players get the same score in the same time, the computer will randomly choose who wins.
6

1-1-28345, 28368, 28379-DS IM 185.194
Limited Warranty
As described in and as limited by this LimitedWarranty, EastPoint Sports, Ltd. (the“Company”) warrants this Game (the“Product”) to be free from defects in workmanship and materials for a
period of 90 days from the date of original purchase. The term defects shall mean any imperfections that impair the use of the product. The Company reserves the right to request conrmation
of Proof of Purchase when requesting parts or service in order to conrm that the game is within its warranty period.
What is Covered: Except as provided herein, this Limited Warranty covers all defects in materials and workmanship. This LimitedWarranty is void if the Product is:
• Damaged through improper usage or storage, negligence, misuse, abuse, transportation damage, acts of nature, or accident (including failure to follow the instructions supplied with the
product)
• Used in commercial applications, rentals or a commercial environment
• Modied or repaired by anyone not authorized by the Company
What is Not Covered:
The LimitedWarranty does not cover:
• Expendable items such as cosmetic parts, game playing accessories, and any other items that may show signs of wear due to normal usage
• Any transportation/delivery/installation costs incurred by the Consumer (either home from the original place of purchase or back to the original place of purchase)
What the Company Will Pay For:
• If any part or component of the Product which is covered by this Limited Warranty is found by the Company to be defective, the Company will provide replacement parts without charge.
The Company’s obligation to repair or replace the Product or any portion thereof, shall be limited to the original purchase price of the product.
• If during the Limited Warranty period, the product is found to be defective, the Company will, at the Company’s option, repair, replace, or make remuneration for the Product (either the
same or equivalent value) without charge.
How to Obtain Warranty Service: In order to enforce your rights under this Limited Warranty, you must follow these procedures:
• You must return the ORIGINAL COPY OF YOUR SALES RECEIPT to the Company.
• You must call the Company’s Consumer Service Department at 1-877-279-7071 on Monday through Friday between the hours of 9:00 A.M. and 5:00 P.M. (EST) to notify the Company of the
nature of the problem. At the Company’s option, replacement parts or a new Product (either the same or equivalent value) will be sent to you at no charge.
• If you are instructed to return the Product to the Company for servicing, you are responsible for shipping the Product, at your expense, to the address designated by the Company in
packaging that will protect against further damage.
• You must also include your name, address, daytime telephone number, Product model number, and a description of the problem.
• The Company will pay for any shipping charges to return the repaired of replaced Product to you.
THIS LIMITED WARRANTY IS AVAILABLE ONLY TO THE ORIGINAL PURCHASER OF THE PRODUCT AND IS VALID ONLY IN THE UNITED STATES. THE COMPANY’S LIABILITY IS LIMITED
TO THE REPAIR, REPLACEMENT, OR REMUNERATION, AT ITS OPTION, OF ANY DEFECTIVE PRODUCT AND SHALL NOT INCLUDE ANY LIABILITY FOR INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES OF ANY KIND. THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS OR DO NOT ALLOW FOR EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. TO THAT EXTENT, THE ABOVE LIMITATIONS MAY NOT
APPLY TO YOU.
This LimitedWarranty gives you specic legal rights, but you may also have other rights that vary from state to state.
If you have any questions regarding this Limited Warranty or the operation of the Product, you may call or write us.
ALL WARRANTY CLAIMS MUST BE ACCOMPANIED BY A COPY OF THE SALES RECEIPT/PROOF OF PURCHASE. REPORT ANY DEFECTS TO:
628 ROUTE 10, SUITE #5 WHIPPANY, NEW JERSEY 07981 • 1-973-585-4747
PRINTED IN CHINA
FCC IDENTIFIER :
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
Warning! Changes or modications to this unit not epressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the recieving antenna.
• Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
BATTERY WARNING
DO NOT mix old and new batteries.
DO NOT mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
DO NOT dispose of batteries in re, batteries may explode or leak.
MADE IN CHINA
