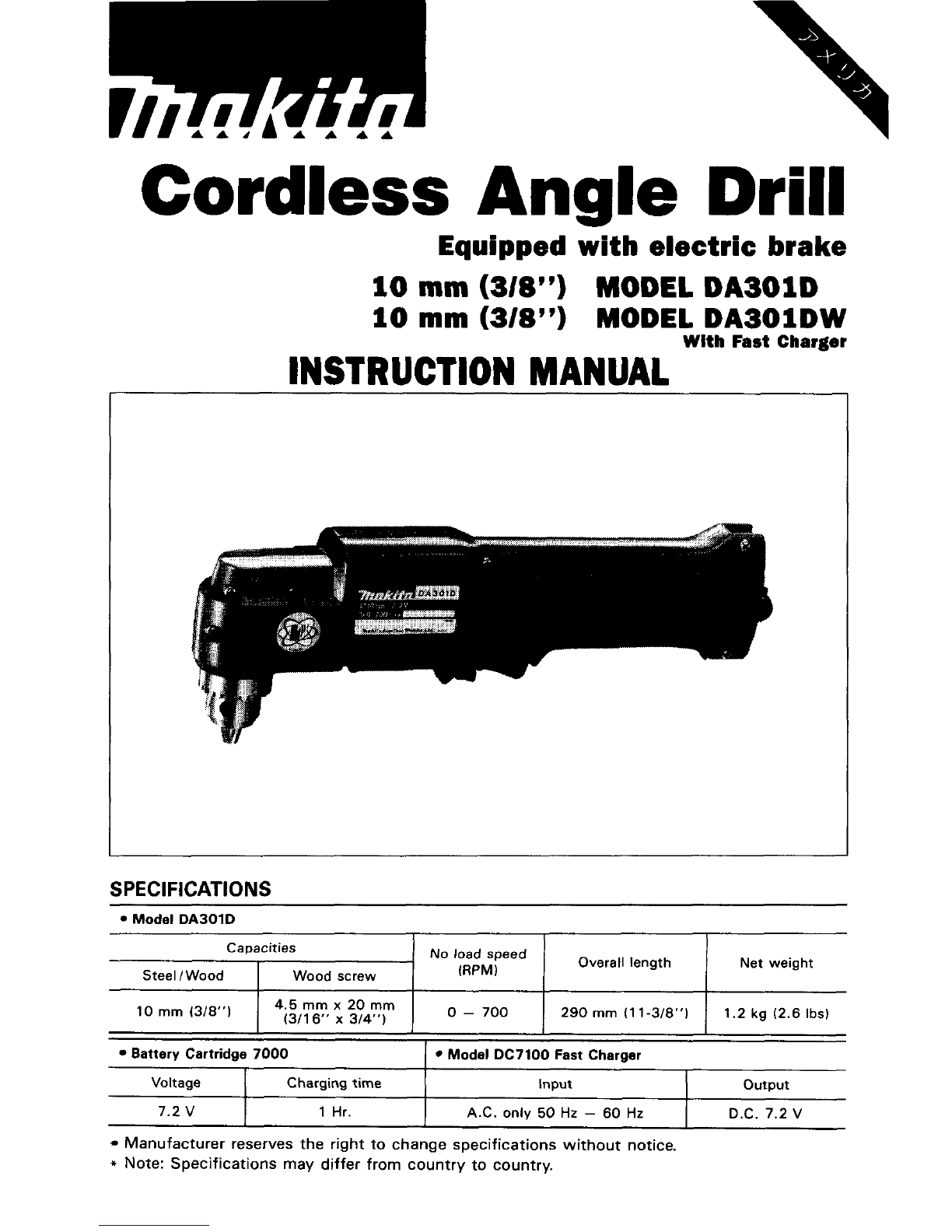

Makita DA30lD User manual

Cordless Angle Drill
Capacities
Steel/Wood
I Wood screw
Equipped with electric brake
10 mm (3/8”) MODEL DA30lD
10 mm (3/8’’) MODEL DA30lDW
With Fast Charger
No load speed Overall length Net weight
(RPM)
-
INSTRUCTION MANUAL
10 mm (3/8“)
SPECIFICATIONS
4’5 ” 2o “ 0 - 700 290 mm (1 1-3/8”1 1.2 kg (2.6 Ibs)
(3/16” x 3/4”)
Model DA301D
Battery Cartridge 7000
Voltage Charging time
7.2 V 1 Hr.
Model DC7100 Fast Charger
Input output
A.C. onlv 50 Hz - 60 Hz D C 7.2 U
Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.

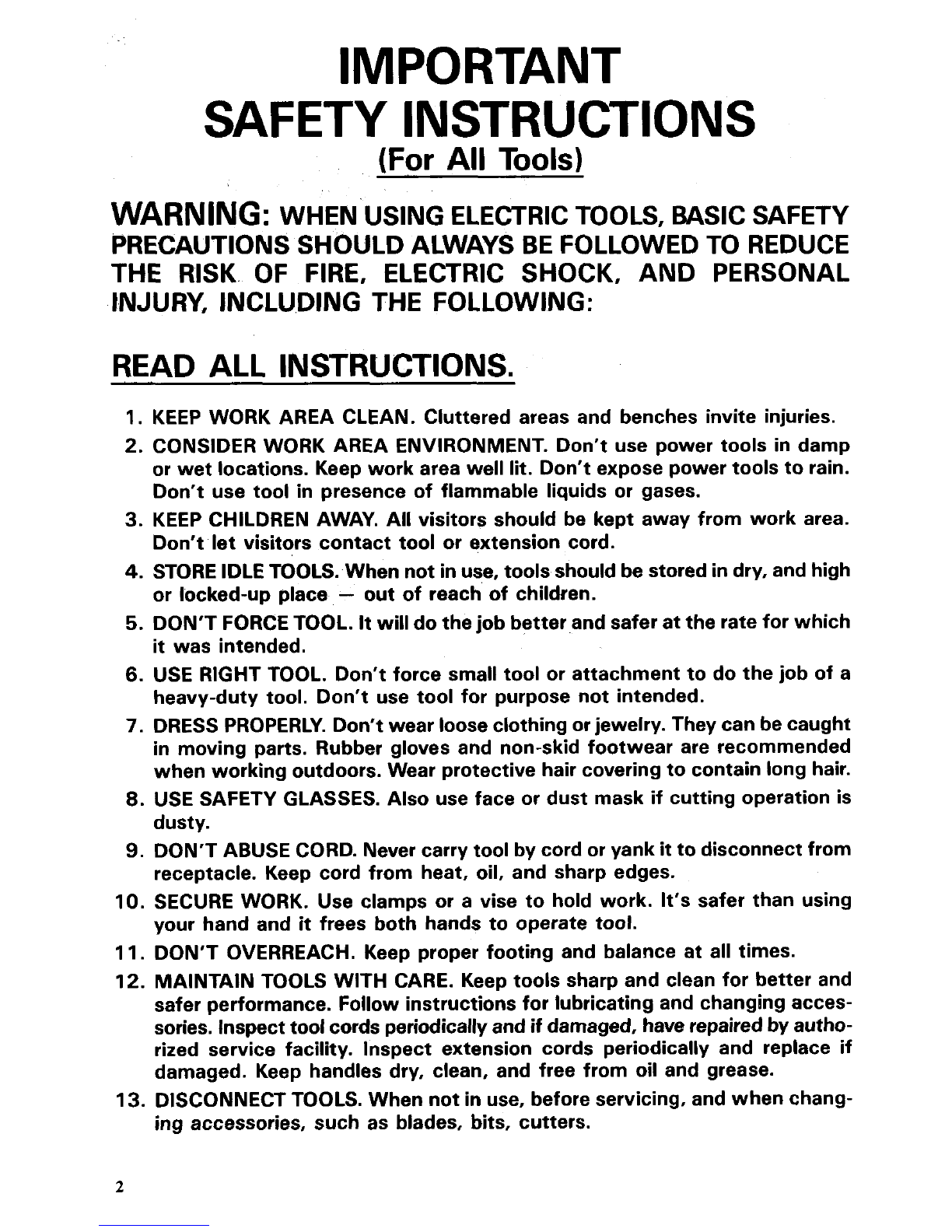

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USINGELECTRICTOOLS, BASICSAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK,
AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
a.
9.
10.
11.
12.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools torain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, toolsshouldbestored in dry, andhigh
or locked-up place - out of reach of children.
DON'T FORCETOOL.
It will dothe job better andsafer atthe ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do thejob of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing or jewelry. They canbecaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontainlonghair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool bycordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricatingand changing acces-
sories. Inspecttoolcordsperiodicallyandifdamaged, haverepairedbyautho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When not in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.
2

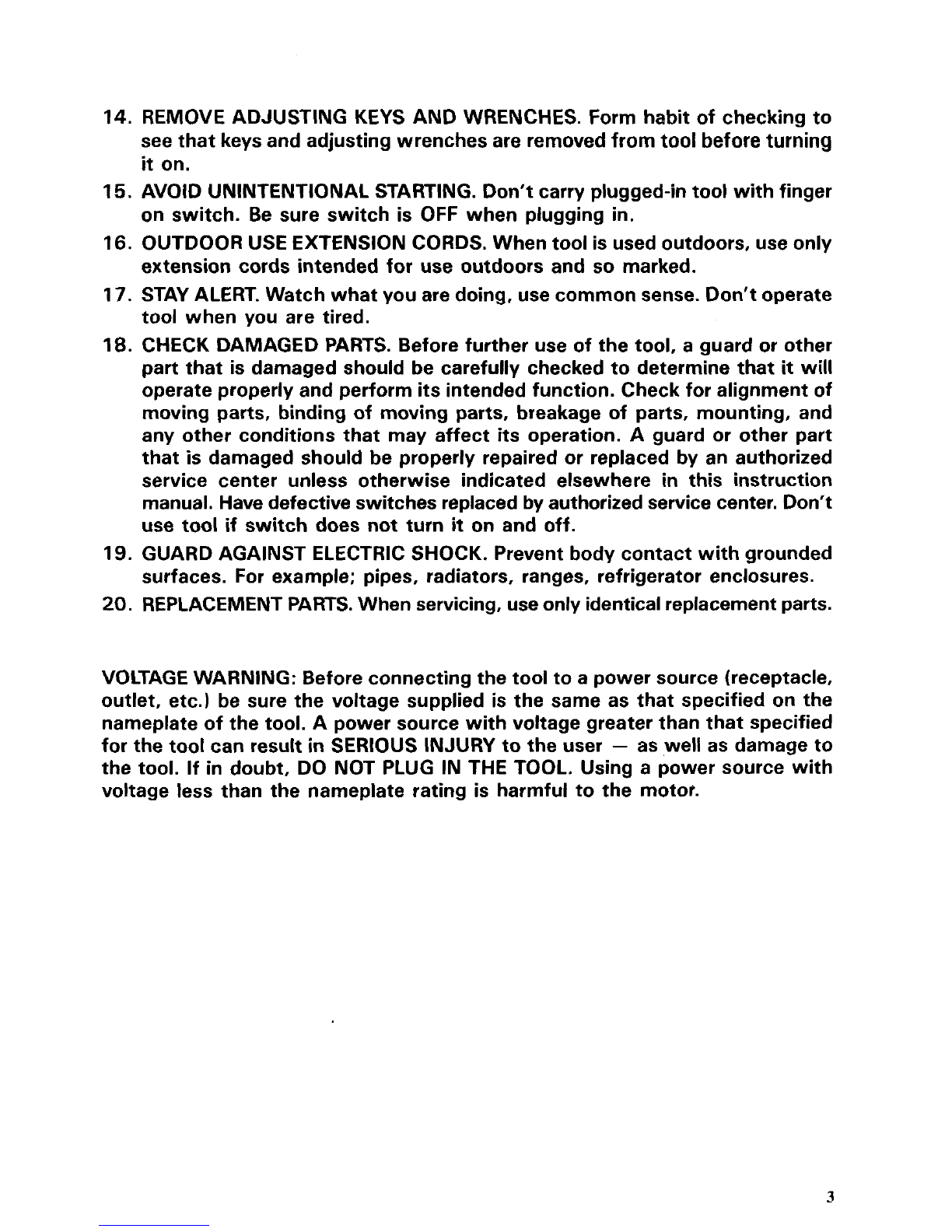

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removedfrom
tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don’t carry plugged-intool withfinger
on switch. Be sure switch is
OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. When tool is used outdoors, useonly
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, usecommon sense. Don‘t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere
in this instruction
manual. Havedefective switches replacedbyauthorizedservicecenter. Don’t
use tool
if switch does not turn it on and off.
19. GUARDAGAINST ELECTRIC SHOCK. Prevent body contact withgrounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS.When servicing, useonly identical replacementparts.
VOLTAGE WARNING: Before connecting the tool toa power source (receptacle.
outlet, etc.) be sure the voltage supplied
is the same as that specified on the
nameplate of the tool. A power source with voltage greater thanthat specified
for the tool canresult
in SERIOUS INJURYtothe user - as well as damage to
the tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet) 25 50
AWG Size of Cord 18 18 100 150
18 16
4

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OOF)
2. Do not attempt to use a step-up transformer, an engine generator or DC
3. Do not allow anything to cover or clog the charger vents.
4. Do notshort the battery cartridge. A batteryshort can cause a largecurrent
5. Do notstore the tool and Battery Cartridge inlocations where the tempera-
6. Do not incinerate the Battery Cartridge even if it is severely damaged or is
or ABOVE 40°C
(104OF).
power receptacle.
flow, overheating, possible burns and even a breakdown.
ture may reach or exceed 5OoC
(122OF).
completely worn out. The battery cartridge can explode in a fire.
ADDITIONAL SAFETY RULES
FOR CORDLESS ANGLE
DRILL
1. Be aware that this tool is always in an operating condition, because it does
2. Always be sure you have a firm footing.
3. Hold the tool firmly.
not have to be plugged into an electrical outlet.
Be sure no one is below when using the tool
in high locations.
4. Keep hands away from rotating parts.
5. When drilling into walls, floors or wherever "live" electrical wires may be
encountered, DO NOT TOUCH ANY METAL PARTS
OF THE TOOL!
Holdthe toolonly bythe plastic handleor plastic tool body toprevent electric
shock if you drill into a "live" wire.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Do not touchthe drill bit or the workpiece immediately after operation, they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

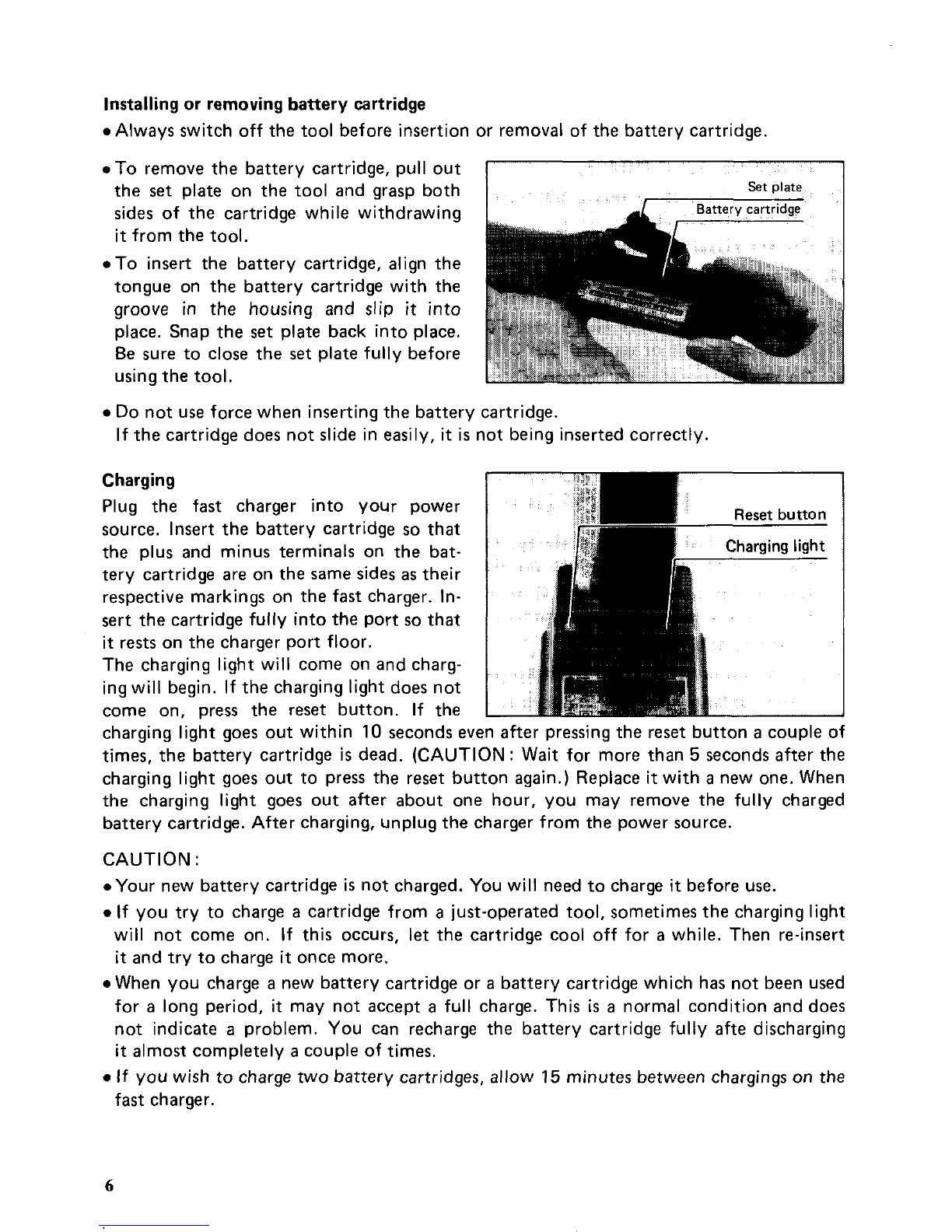

0 To remove the battery cartridge, pull out
the
set plate on the tool and grasp both
sides of the cartridge while withdrawing
it from the tool.
.To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip it into
place. Snap the
set plate back intoplace.
Be sure to close the set plate fully before
usingthe tool.
Set plate
0 Do not use force when inserting the battery cartridge.
Ifthe cartridge does not slide in easily,
it is not being insertedcorrectly.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides
as their
respective markings on the fast charger. In-
sert the cartridge fully intothe port so that
it rests on the charger port floor.
The charging light will come on and charg-
ingwill begin. If the charginglight does not
come on, press the reset button. If the
charging light goes out within
10 seconds even after pressing the reset button a couple of
times, the battery cartridge
is dead. (CAUTION : Wait for more than 5 seconds after the
charging light goes out to press
the reset button again.) Replace it with a new one. When
the charging light goes out after about one hour, you may remove the fully charged
battery cartridge. After charging, unplugthe charger from the power source.
CAUTION
:
.Your new battery cartridge is not charged. You will need to charge it before use.
0 If you try to charge a cartridge from a just-operated tool, sometimesthe charginglight
will not come on. If this occurs,
let the cartridge cool off for a while. Then re-insert
it and try to charge it once more.
0 When you charge a new battery cartridge or a battery cartridge which has not been used
for
a long period, it may not accept a full charge. This is a normal condition and does
not indicate
a problem. You can recharge the battery cartridge fully afte discharging
it almost completely a couple of times.
0 If youwish to charge two battery cartridges, allow 15 minutes betweenchargings on the
fast charger.
6

Installing or removingdrill bit or driver bit
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
installing or removingthe bit.
To install the bit, place it in the chuck as
far as it will go. Tighten the chuck by hand.
Place the chuck key in each of the three
holes
and tighten clockwise. Be sure to
tighten all three chuck holesevenly.
To remove the bit, turn the chuck key
counterclockwise in just one hole, then
loosen the chuck by hand.
Switch action
Move the reversing switch
lever to the
"FWD"
position for clockwise rotation or
the
"REV" position for counterclockwise.
Tool speed
is increased by increasing pres-
sure on the trigger.
To start the tool, sim-
ply pull the trigger. Release the trigger to
stop. When the reversing switch lever
is in
the neutral position, the tool will not start
even if
you pull the trigger.
CAUTION
:
0 Before inserting the battery cartridge into the tool, always check to see that the trigger
0 Always check the direction of rotation before drilling.
0Use the reversingswitch lever only when the tool comes to
a complete stop. Changing
When not operating the tool, keep the reversingswitch lever in the neutral position.
switch actuates properly and returns to the
"OFF" position when released.
the direction of rotation before the tool stops may ruin the tool.
7

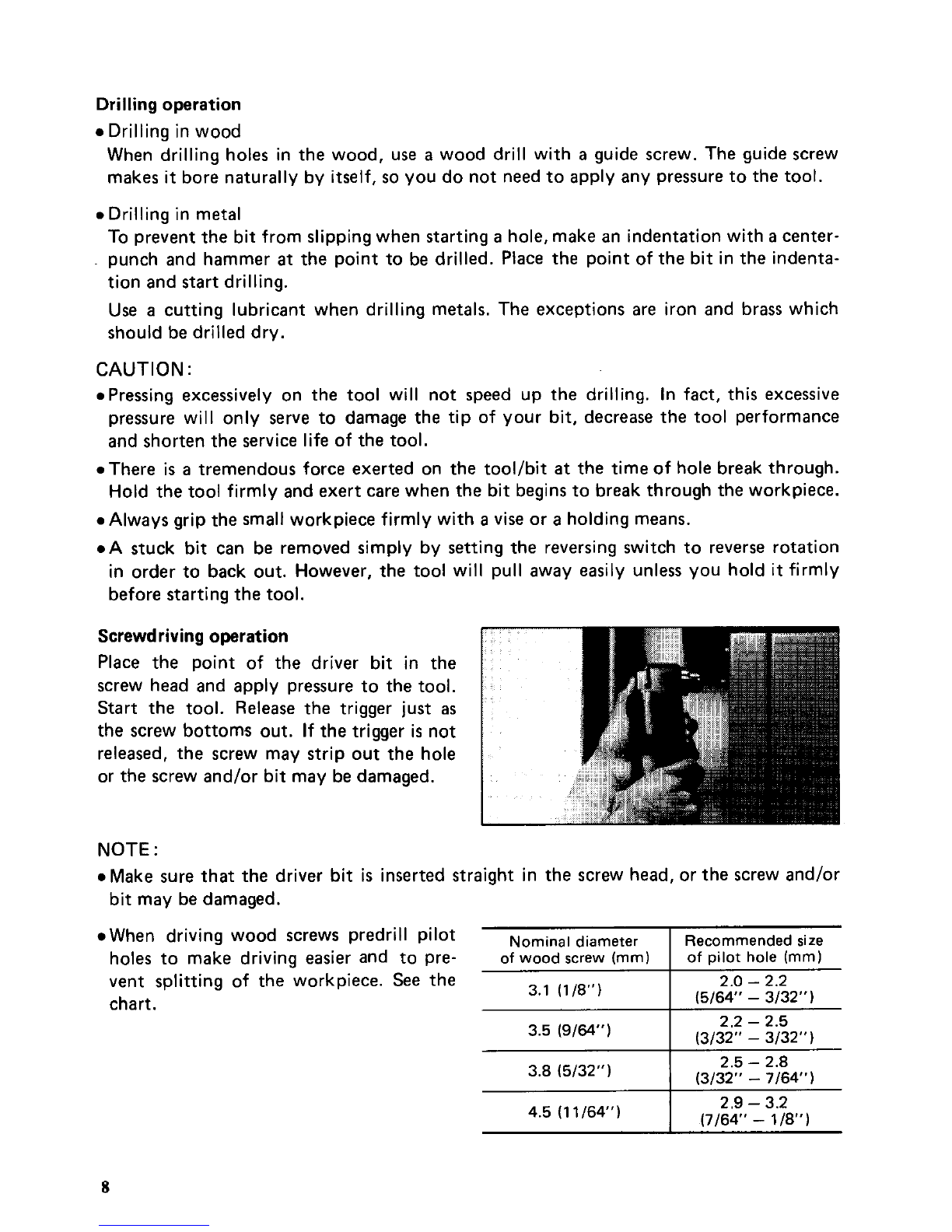

Drillingoperation
0 Drilling inwood
When drilling holes in the wood, use
a wood drill with a guide screw. The guide screw
makes
it bore naturally by itself, so you do not need toapply any pressure tothe tool.
0 Drilling in metal
To prevent the bit from slippingwhen starting
a hole,make an indentation with a center-
punch and hammer
at the point to be drilled. Place the point of the bit inthe indenta-
tion and start drilling.
Use
a cutting lubricant when drilling metals. The exceptions are iron and brass which
should
be drilled dry.
CAUTION
:
*Pressing excessively on the tool will not speed up the drilling. In fact, this excessive
pressure will only serve to damage the tip of your bit, decrease the tool performance
and shorten the service life of the tool.
0There is a tremendous force exerted on the tool/bit at the time of hole break through.
Hold the tool firmly and exert care when the bit begins to break through the workpiece.
0 Always grip the small workpiece firmly with a vise or a holding means.
.A stuck bit can be removed simply by setting the reversing switch to reverse rotation
in order to back out. However, the tool will pull away easily unless you hold
it firmly
before starting the tool.
Screwdriving operation
Place the point of the driver bit in the
screw head and apply pressure to the tool.
Start the tool.
Release the trigger just as
the screw bottoms out. If the trigger is not
released, the screw may strip out the hole
or the screw and/or bit may be damaged.
NOTE :
0 Make sure that the driver bit is inserted straight in the screw head, or the screw and/or
bit may be damaged.
When driving wood screws predrill pilot
holes to make driving easier and to pre-
3.1 (1/8")
3.5 (9/64") (3/32" - 3/32")
vent splitting of the workpiece. See the
chart.
2.9 - 3.2
(7164"
- 1/8")
4.5 (1 1/64')
8

Overloadprotector
The overload protector automatically cuts
out to break the circuit and the button
pops out, whenever heavy work is pro-
longed.
Wait 20-30 seconds before press-
ing the restart button to resume operation.
Your finger should not be on the trigger
when you press the restart button, how-
ever.
Application
Metal
Wood
Application
Wood screws
I I
Diameter of hole Workpiece Sheet/Board No. holes
3 mm (1/8") 200
Cold-rolled steel sheet or plate 1.6mm (1/16")
Aluminum sheet
1.6mm (1/16")
6.5 mm (1/4") 40
3 mm (1/8") 650
10 mm (3/8") 110
9 mm (5/16") Lauan wood 25 mm (1") 300
Dimensions of
wood screw
3.5
x 20 mm
Workpiece Fastenings
500 screws
(1/8' x 3/4') Lauan wood
4.5 x 20 mm
(3/16" x 3/4" )
400 screws
MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
attempting to perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, maintenanceand adjustment
should be performed
by Makita Authorized or Factory Service Centers, always using
Makita replacement parts.
9

ACC ESSO R I ES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachments might present a risk of injury to persons.
The accessories
or attachments should be used only in the proper and intended manner.
Slotted
0 Bits
#5F 1 784010-0A
I Size I Part NO.
Phi II ips I #2 1 784214-0A
1- #3 I 784215-0A
0 Fast charger
Model DC7100
Part No. 113086-6
0 12V Fast charger
ModelDC7012
Part No 113026-4
0 Rubber pad assembly
Part No. 123001-2
0 Wool bonnet
Part No. 743401-6
0 Wax buffer
Part No. 743023-2
0 Battery cartridge 7000
Part No. 632002-4
0 Chuck key
Part No. 763415-9
0 Battery holster
Holster holds extra battery.
Part
No. 823033-3C
0 Plasticcarrying case
Part No. 182424-3
10

L
ALI~ 28- 91 EN
10 mm (3/8")
CORDLESS ANGLE DRILL
Model DA301D
Note: The switch and other part configurations
may differ from country to country.
11

10
11
Drill Chuck S10
0 Ring 34
Plane Bearing 5
Housing Set IWith Item 11 l
Holder 6
Gear
Plane Bearing 4
Over Current Relay
Switch
DC Motor 7 2 V
Housing Set IWilh Item 41
11
21
31
41
51
61
71
81
91
I
1
Aug -28-’91 EN
‘LiM $Fo OESCRIPTION
13
14
15
16
17
18
19
20
21
22
1
9
1
1
1
1
1
1
1
1
Note The swmh and other part specifications may differ from country to cwntiy
Name Plate
Pan Head Screw M4x22 (With Washer1
set
Plate
Battery 7000
Spiral Bevel Gear 36
Ball Bearing 60BLLB
Ring 8
Woodruff Key 3
Retaining Ring S ~ 8
Label
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughlyinspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, retum the COMPLETE
tool, freight prepaid, to one
of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterationshave been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALEOR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEAR TERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts,
so the above limitation may not apply to YOU.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi 446 Japan
003700 - 063 PRINTED IN JAPAN
1991 - 11 - N
