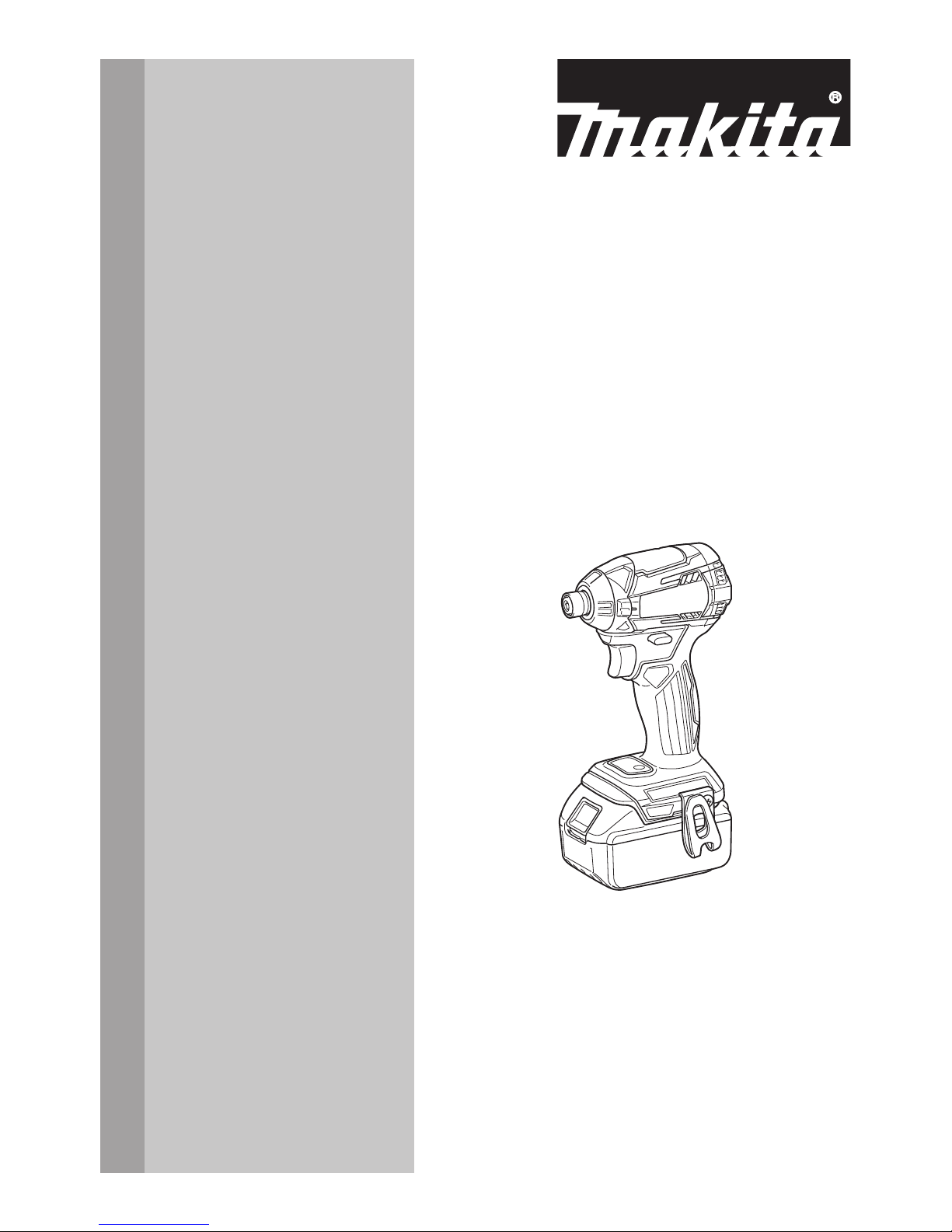

Makita DTD154 User manual

INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES
Cordless Impact Driver
Tournevis à Chocs sans Fil
Atornillador de Impacto
Inalámbrico
DTD154
IMPORTANT: Read Before Using.
IMPORTANT : Lire avant usage.
IMPORTANTE: Lea antes de usar.

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DTD154
Fastening capacities Machine screw 4 mm - 8 mm (5/32" - 5/16")
Standard bolt 5 mm - 16 mm (3/16" - 5/8")
High tensile bolt 5 mm - 14 mm (3/16" - 9/16")
No load speed (RPM) Hard impact mode 0 - 3,600 /min
Medium impact mode 0 - 2,100 /min
Soft impact mode 0 - 1,100 /min
T mode 0 - 3,600 /min
Impacts per minute Hard impact mode 0 - 3,800 /min
Medium impact mode 0 - 2,600 /min
Soft impact mode 0 - 1,100 /min
T mode 0 - 2,600 /min
Rated voltage D.C. 18 V
Overall length 117 mm (4-5/8")
Standard battery cartridge BL1815N, BL1820B BL1830, BL1830B, BL1840B,
BL1850B, BL1860B
Net weight 1.2 kg (2.7 lbs) 1.5 kg (3.3 lbs)
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsandbatterycartridgemaydifferfromcountrytocountry.
• Weight,withbatterycartridge,accordingtoEPTA-Procedure01/2003
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions.Waterenteringapowertoolwillincrease
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit inter-
rupter (GFCI) protected supply. Use of a GFCI
reduces the risk of electric shock.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication.Amomentofinattentionwhileoperating
powertoolsmayresultinseriouspersonalinjury.

3ENGLISH
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on.Awrenchorakeyleft
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts.Looseclothes,jewel-
lery or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2.
Do not use the power tool if the switch does not turn
it on and off.Anypowertoolthatcannotbecontrolled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting
the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7.
Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer.Achargerthatissuitablefor
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci-
dentally occurs, ush with water. If liquid con-
tacts eyes, additionally seek medical help. Liquid
ejectedfromthebatterymaycauseirritationorburns.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
3. Keep handles dry, clean and free from oil and
grease.
Cordless impact driver safety
warnings
1. Hold power tool by insulated gripping sur-
faces, when performing an operation where
the fastener may contact hidden wiring.
Fasteners contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
2. Always be sure you have a rm footing.
Be sure no one is below when using the tool in
high locations.
3. Hold the tool rmly.
4. Wear ear protectors.
5. Do not touch the bit or the workpiece immedi-
ately after operation. They may be extremely
hot and could burn your skin.
6. Keep hands away from rotating parts.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
Symbols
The followings show the symbols used for tool.
volts
direct current
no load speed

4ENGLISH
revolutions or reciprocation per minute
number of blow
Important safety instructions for
battery cartridge
1.
Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery char-
ger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.

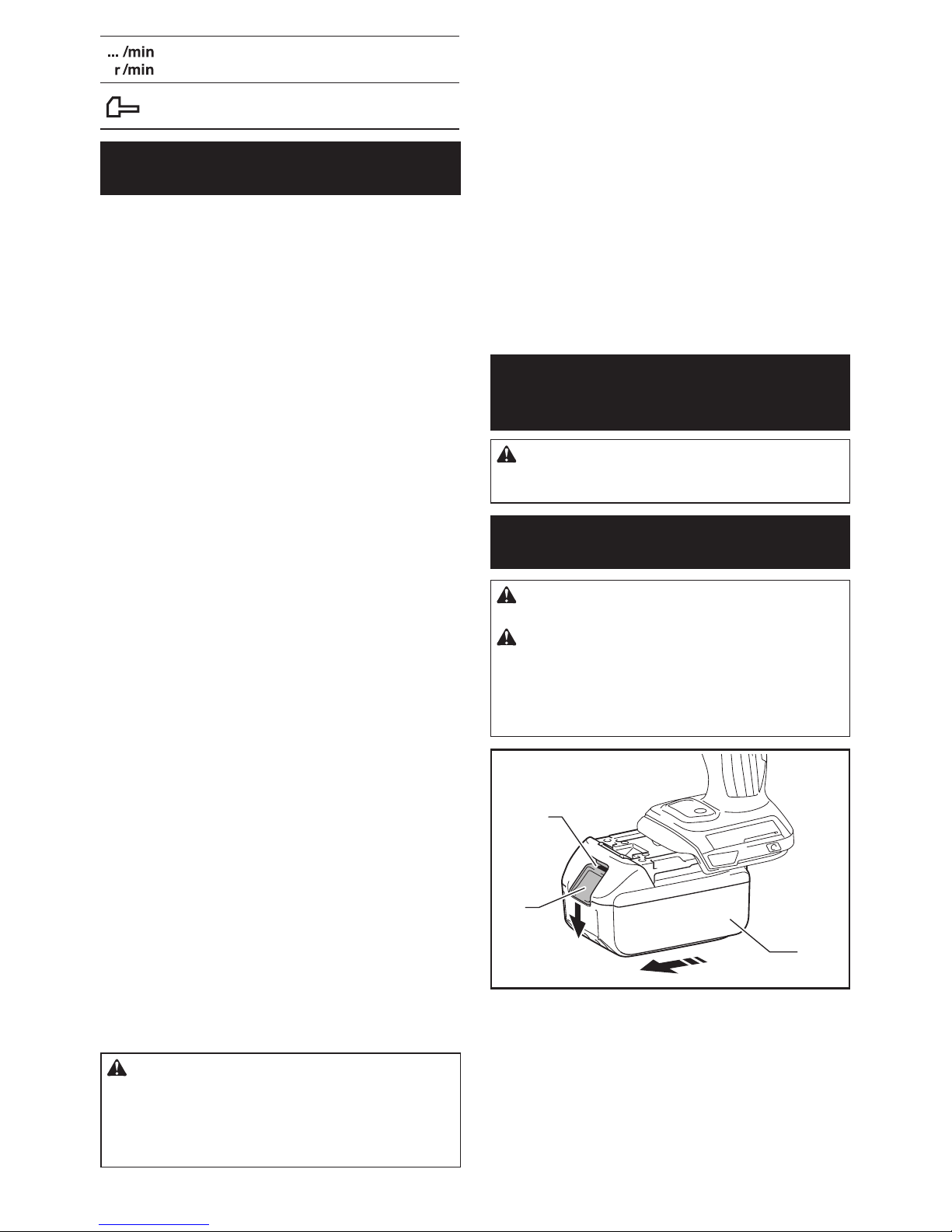

Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipoffyourhands
and result in damage to the tool and battery cartridge
andapersonalinjury.
1
2
3
►1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.

5ENGLISH
CAUTION:
Always install the battery cartridge fully
until the red indicator cannot be seen. If not, it may accidentally
falloutofthetool,causinginjurytoyouorsomeonearoundyou.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Indicating the remaining battery
capacity
Only for battery cartridges with "B" at the end of the
model number
1
2
►1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts off power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
Whenthebatteryisoperatedinamannerthatcauses
it to draw an abnormally high current, the tool automat-
ically stops without any indication. In this situation, turn
the tool off and stop the application that caused the tool
to become overloaded. Then turn the tool on to restart.
Overheat protection
Whenthetool/batteryisoverheated,thetoolstops
automatically. In this situation, let the battery cool
before turning the tool on again.
Overdischarge protection
Whenthebatterycapacityisnotenough,thetoolstops
automatically. In this case, remove the battery from the
tool and charge the battery.
NOTE: Overload protection will work only with batter-
ies with star marking.
1
►1. Star marking

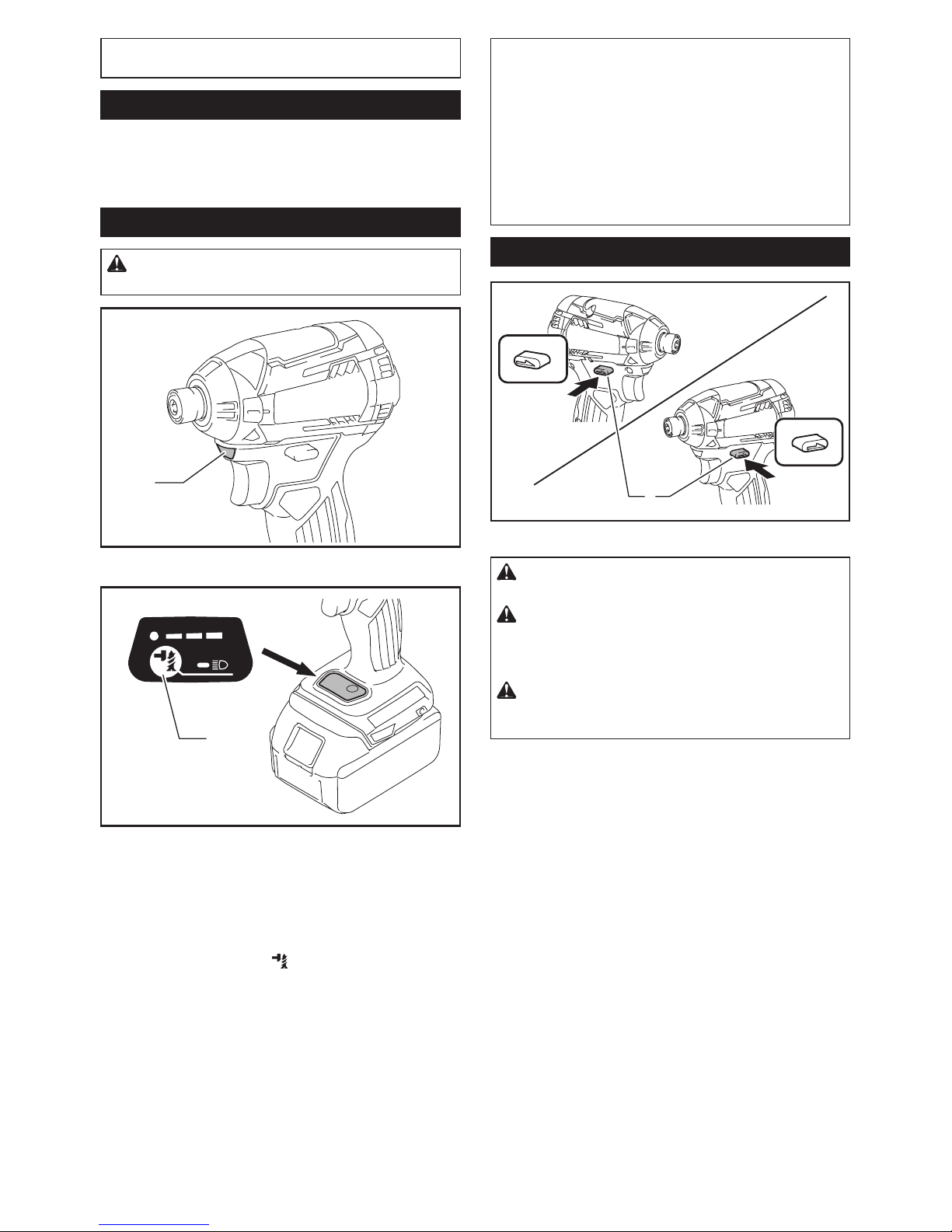

Switch action
1
►1. Switch trigger
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.

6ENGLISH
NOTE: The tool automatically stops if you keep pull-
ing the switch trigger for about 6 minutes.
Electric brake
This tool is equipped with an electric brake. If the tool
consistently fails to quickly stop after the switch trigger
is released, have the tool serviced at a Makita service
center.
Lighting up the front lamp
CAUTION: Do not look in the light or see the
source of light directly.
1
►1. Lamp
TS H
1
►1. Button
Pull the switch trigger to turn on the lamp. To turn off,
release it. The lamp goes out approximately 10 seconds
after releasing the switch trigger.
To keep the lamp off, turn off the lamp status. To turn off
thelampstatus,rstpullandreleasetheswitchtrigger.
Andthenpressthebutton for one second within 10
seconds.
To turn on the lamp status again, press the button again
similarly.
NOTE:Toconrmthelampstatus,pullthetrigger.
Whenthelamplightsupbypullingtheswitchtrigger,
thelampstatusisON.Whenthelampdoesnotcome
on, the lamp status is OFF.
NOTE:Whenthetoolisoverheated,thelightashes
foroneminute,andthentheLEDdisplaygoesoff.In
this case, cool down the tool before operating again.
NOTE: Use a dry cloth to wipe the dirt off the lens of
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
Reversing switch action
1
A
B
►1. Reversing switch lever
CAUTION: Always check the direction of
rotation before operation.
CAUTION: Use the reversing switch only after
the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may dam-
age the tool.
CAUTION: When not operating the tool,
always set the reversing switch lever to the neu-
tral position.
This tool has a reversing switch to change the direction
of rotation. Depress the reversing switch lever from the
AsideforclockwiserotationorfromtheBsideforcoun-
terclockwise rotation.
Whenthereversingswitchleverisintheneutralposi-
tion, the switch trigger cannot be pulled.

7ENGLISH

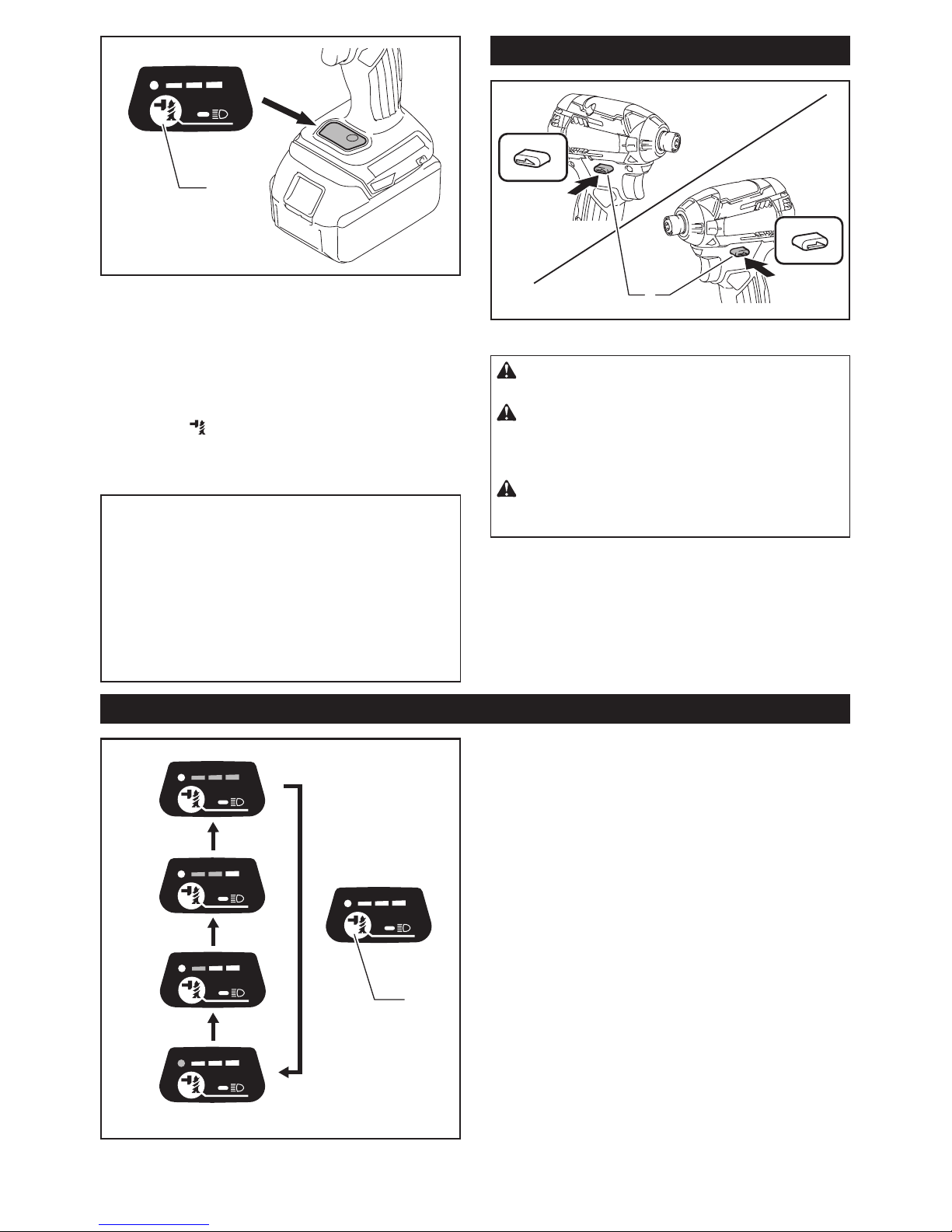

Changing the impact force
TS H
TS H
TS H
TS H
TS H
1
2
3
4
5
6
►1. Changed in four steps 2. Hard 3. Medium 4. Soft
5. T mode 6. Button
You can change the impact force in four steps: hard, medium, soft, and T mode.
This allows a tightening suitable to the work.
Everytimethebutton is pressed, the number of blows changes in four steps.
“T” is a special mode for fastening self drilling screws. In this mode, the tool starts to drive a screw with faster rota-
tion, which is suited for drilling with the self-drilling-screw tip. Once the tool starts to tighten the screw, it impacts in
medium force grade.
For approximately one minute after releasing the switch trigger, the impact force can be changed.
Impact force grade displayed
on panel
Maximum blows Purpose Example of application
Hard
TS H
3,800 min-1 (/min) Tightening when force and
speed are desired.
Tightening underwork mate-
rials, tightening long screws,
tightening bolts.
Medium
TS H
2,600 min-1 (/min) Tighteningwhenagoodnish-
ing is needed.
Tighteningnishingboards,
plaster boards.
Soft
TS H
1,100 min-1 (/min) Tightening with less force to
avoid screw thread breakage.
Tightening sash screws, tight-
ening small screws such as M6.
T mode
TS H
2,600 min-1 (/min) Tightening when speed and
goodnishingareneeded.
Tightening self drilling screws.
NOTE:Whenalllampsontheswitchpanelgoout,thetoolisturnedofftosavethebatterypower.Theimpactforce
grade can be checked by pulling the switch trigger to the extent that the tool does not operate.
NOTE:Whilepullingtheswitchtrigger,theimpactforcegradecannotbechanged.

8ENGLISH
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.

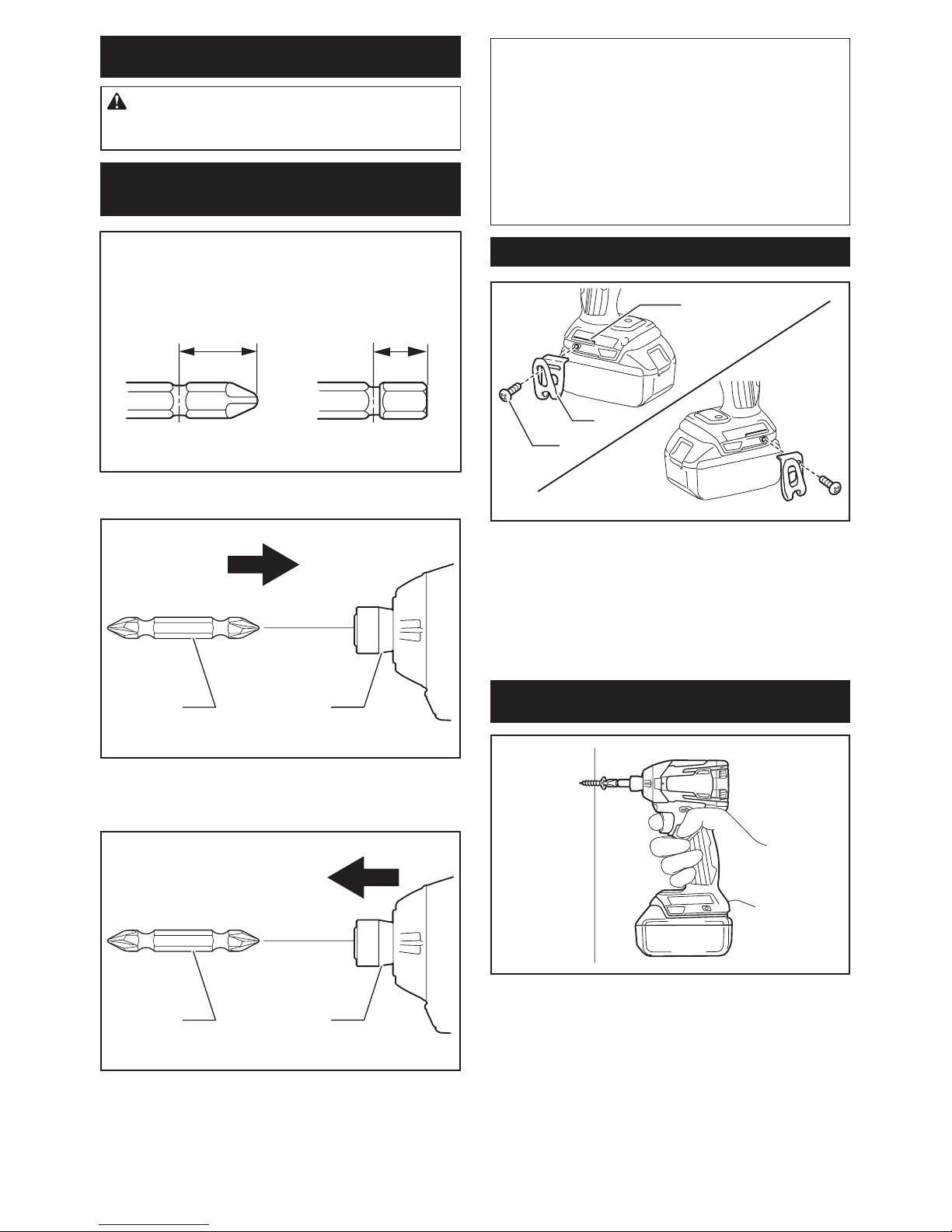

Installing or removing driver bit/
socket bit
12 mm
(15/32”)
9 mm
(3/8”)
Useonlythedriverbit/socketbitshowninthegure.Do
not use any other driver bit/socket bit.
12
►1. Driver bit 2. Sleeve
To install the driver bit, insert it into the sleeve as far as
it will go.
12
►1. Driver bit 2. Sleeve
To remove the driver bit, pull the sleeve in the direction
of the arrow and pull the driver bit out.
NOTE: If the driver bit is not inserted deep enough
into the sleeve, the sleeve will not return to its original
position and the driver bit will not be secured. In this
case, try re-inserting the bit according to the instruc-
tions above.
NOTE:Whenitisdifculttoinsertthedriverbit,pull
the sleeve and insert it into the sleeve as far as it will
go.
NOTE:Afterinsertingthedriverbit,makesurethatit
isrmlysecured.Ifitcomesout,donotuseit.

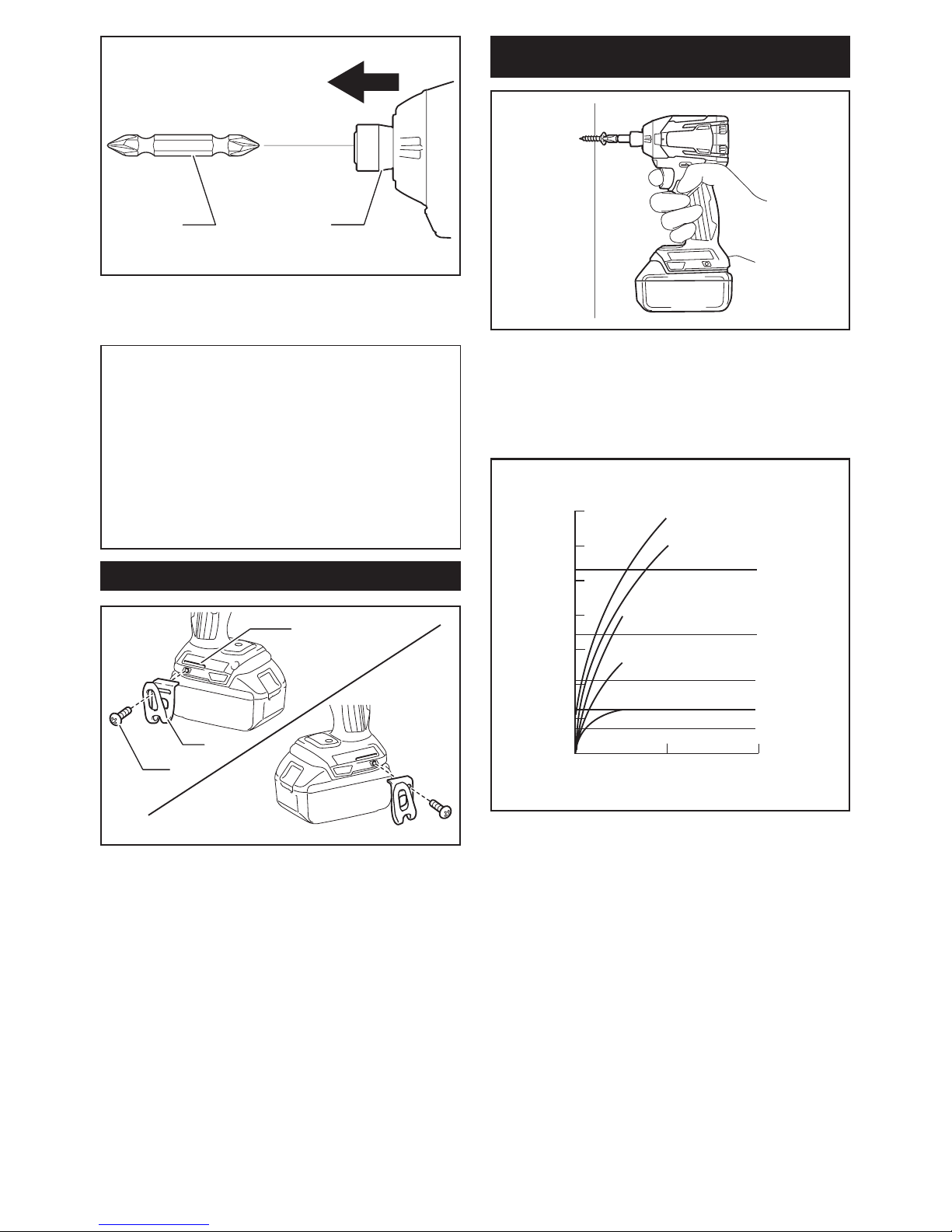

Installing hook
1
2
3
►1. Groove 2. Hook 3. Screw
The hook is convenient for temporarily hanging the tool.
This can be installed on either side of the tool. To install
the hook, insert it into a groove in the tool housing on
either side and then secure it with a screw. To remove,
loosen the screw and then take it out.
OPERATION
The proper fastening torque may differ depending upon
the kind or size of the screw/bolt, the material of the
workpiece to be fastened, etc. The relation between fas-
teningtorqueandfasteningtimeisshowninthegures.

9ENGLISH

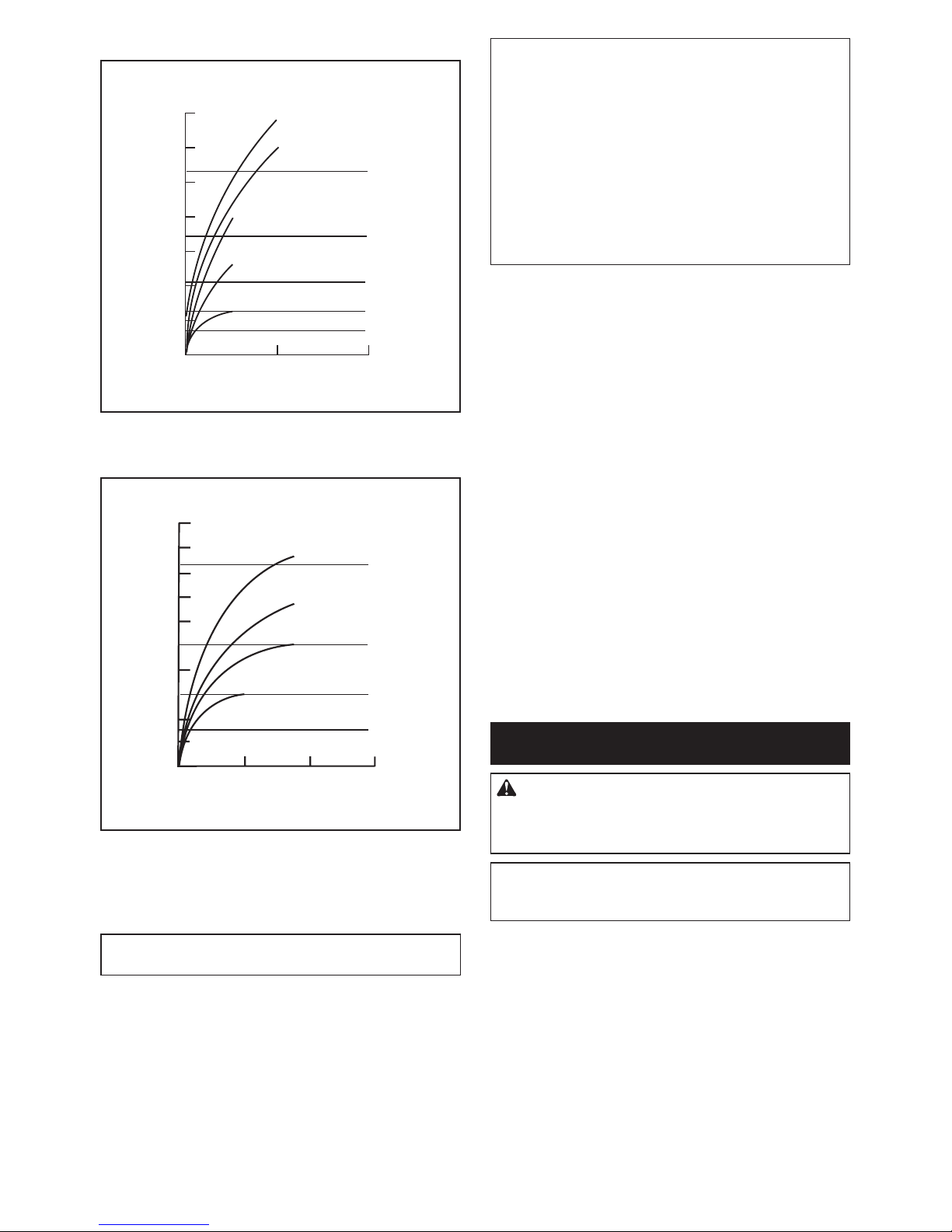

Proper fastening torque for standard bolt
N•m
(ft•lbs)
M14(9/16")
M12(1/2")
M10(3/8")
M8(6/16")
M16(5/8")
M14(9/16")
M12(1/2")
M10(3/8")
M8(6/16")
M16(5/8")
140
(101)
120
100
80
60
40
20
01
2
1
2
(87)
(72)
(58)
(43)
(29)
(14)
►1. Fastening time (second) 2. Fastening torque
Proper fastening torque for high tensile bolt
N•m
(ft•lbs)
2
1
M14(9/16")
M12(1/2")
M14(9/16")
M12(1/2")
M10(3/8")
M8(5/16")
M10(3/8")
M8(5/16")
200
(145)
180
(130)
160
(116)
140
(101)
120
(87)
100
(72)
80
(58)
60
(43)
40
(29)
20
(14)
0123
►1. Fastening time (second) 2. Fastening torque
Holdthetoolrmlyandplacethepointofthedriverbit
inthescrewhead.Applyforwardpressuretothetoolto
the extent that the bit will not slip off the screw and turn
the tool on to start operation.
NOTICE: If you use a spare battery to continue
the operation, rest the tool at least 15 min.
NOTE: Use the proper bit for the head of the screw/
bolt that you wish to use.
NOTE:WhenfasteningM8orsmallerscrew,carefully
adjustpressureontheswitchtriggersothatthescrew
is not damaged.
NOTE: Hold the tool pointed straight at the screw.
NOTE: If the impact force is too strong or you tighten
thescrewforatimelongerthanshowninthegures,
the screw or the point of the driver bit may be over-
stressed, stripped, damaged, etc. Before starting your
job,alwaysperformatestoperationtodeterminethe
proper fastening time for your screw.
The fastening torque is affected by a wide variety of
factorsincludingthefollowing.Afterfastening,always
check the torque with a torque wrench.
1. Whenthebatterycartridgeisdischargedalmost
completely, voltage will drop and the fastening
torque will be reduced.
2. Driver bit or socket bit
Failure to use the correct size driver bit or socket
bit will cause a reduction in the fastening torque.
3. Bolt
• Eventhoughthetorquecoefcientandthe
class of bolt are the same, the proper fasten-
ing torque will differ according to the diame-
ter of bolt.
• Eventhoughthediametersofboltsarethe
same, the proper fastening torque will differ
accordingtothetorquecoefcient,theclass
of bolt and the bolt length.
4. The manner of holding the tool or the material
of driving position to be fastened will affect the
torque.
5. Operating the tool at low speed will cause a reduc-
tion in the fastening torque.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
TomaintainproductSAFETYandRELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
beperformedbyMakitaAuthorizedorFactoryService
Centers, always using Makita replacement parts.

10 ENGLISH
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Driverbits
• Socketbits
• Hook
• Plasticcarryingcase
• Batteryprotector
• Toolhanger
• Makitagenuinebatteryandcharger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.
MAKITA LIMITED ONE YEAR
WARRANTY
Warranty Policy
EveryMakitatoolisthoroughlyinspectedandtested
before leaving the factory. It is warranted to be free of
defects from workmanship and materials for the period
ofONEYEARfromthedateoforiginalpurchase.
Should any trouble develop during this one year period,
returntheCOMPLETEtool,freightprepaid,toone
ofMakita’sFactoryorAuthorizedServiceCenters.If
inspection shows the trouble is caused by defective
workmanship or material, Makita will repair (or at our
option, replace) without charge.
ThisWarrantydoesnotapplywhere:
• repairshavebeenmadeorattemptedbyothers:
• repairsarerequiredbecauseofnormalwearand
tear:
• thetoolhasbeenabused,misusedorimproperly
maintained:
• alterationshavebeenmadetothetool.
INNOEVENTSHALLMAKITABELIABLEFORANY
INDIRECT,INCIDENTALORCONSEQUENTIAL
DAMAGESFROMTHESALEORUSEOFTHE
PRODUCT.THISDISCLAIMERAPPLIESBOTH
DURINGANDAFTERTHETERMOFTHIS
WARRANTY.
MAKITADISCLAIMSLIABILITYFORANYIMPLIED
WARRANTIES,INCLUDINGIMPLIEDWARRANTIES
OF"MERCHANTABILITY"AND"FITNESSFORA
SPECIFICPURPOSE,"AFTERTHEONEYEARTERM
OFTHISWARRANTY.
ThisWarrantygivesyouspeciclegalrights,andyou
may also have other rights which vary from state to
state. Some states do not allow the exclusion or lim-
itation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
Some states do not allow limitation on how long an
implied warranty lasts, so the above limitation may not
apply to you.

11 FRANÇAIS
FRANÇAIS (Mode d’emploi original)
SPÉCIFICATIONS
Modèle : DTD154
Capacités de serrage Vis de mécanique 4 mm - 8 mm (5/32" - 5/16")
Boulon standard 5 mm - 16 mm (3/16" - 5/8")
Boulon à haute résistance 5 mm - 14 mm (3/16" - 9/16")
Vitesse à vide (T/MIN) Mode d’impact dur 0 - 3 600 /min
Mode d’impact moyen 0 - 2 100 /min
Mode d’impact mou 0 - 1 100 /min
Mode T 0 - 3 600 /min
Percussions par minute Mode d’impact dur 0 - 3 800 /min
Mode d’impact moyen 0 - 2 600 /min
Mode d’impact mou 0 - 1 100 /min
Mode T 0 - 2 600 /min
Tension nominale C.C. 18 V
Longueur totale 117 mm (4-5/8")
Batterie standard BL1815N, BL1820B BL1830, BL1830B, BL1840B,
BL1850B, BL1860B
Poids net 1,2 kg (2,7 lbs) 1,5 kg (3,3 lbs)
• Étantdonnél’évolutionconstantedenotreprogrammederechercheetdéveloppement,lesspécications
contenuesdanscemanuelsontsujettesàmodicationsanspréavis.
• Lesspécicationsetlabatteriepeuventvariersuivantlespays.
• Poids,batteriecomprise,conformeàlaprocédureEPTA01/2003
CONSIGNES DE
SÉCURITÉ
Consignes de sécurité générales
pour outils électriques
MISE EN GARDE : Lisez toutes les
consignes de sécurité et toutes les instructions.
L’ignorance des mises en garde et des instructions
comporte un risque de choc électrique, d’incendie et/
ou de blessure grave.
Conservez toutes les mises en
garde et instructions pour réfé-
rence future.
Leterme«outilélectrique»quiguredanslesavertis-
sements fait référence à un outil électrique branché sur
une prise de courant (par un cordon d’alimentation) ou
alimentéparbatterie(sansl).
Sécurité de la zone de travail
1. Maintenez la zone de travail propre et bien
éclairée. Les zones de travail encombrées ou
sombres ouvrent grande la porte aux accidents.
2. N’utilisez pas les outils électriques dans
les atmosphères explosives, par exemple
en présence de liquides, gaz ou poussières
inammables. Les outils électriques produisent
des étincelles au contact desquelles la poussière
oulesvapeurspeuvents’enammer.
3. Assurez-vous qu’aucun enfant ou curieux ne
s’approche pendant que vous utilisez un outil
électrique. Vous risquez de perdre la maîtrise de
l’outil si votre attention est détournée.
Sécurité en matière d’électricité
1.
Les ches d’outil électrique sont conçues pour
s’adapter parfaitement aux prises de courant. Ne
modiez jamais la che de quelque façon que ce
soit. N’utilisez aucun adaptateur de che sur les
outils électriques avec mise à la terre. Ennemodi-
antpasleschesetenlesinsérantdansdesprises
de courant pour lesquelles elles ont été conçues,
vous réduirez les risques de choc électrique.
2.
Évitez tout contact corporel avec les surfaces
mises à la terre, telles que tuyaux, radiateurs, cuisi-
nières et réfrigérateurs. Le risque de choc électrique
est plus élevé si votre corps se trouve mis à la terre.
3. N’exposez pas les outils électriques à la pluie
ou à l’eau. La présence d’eau dans un outil élec-
trique augmente le risque de choc électrique.
4. Ne maltraitez pas le cordon. N’utilisez jamais
le cordon pour transporter, tirer ou débrancher
l’outil électrique. Maintenez le cordon à l’écart
des sources de chaleur, de l’huile, des objets à
bords tranchants et des pièces en mouvement.
Le risque de choc électrique est plus élevé lorsque
les cordons sont endommagés ou enchevêtrés.

12 FRANÇAIS
5. Lorsque vous utilisez un outil électrique à l’ex-
térieur, utilisez un cordon prolongateur conçu
pour l’usage extérieur. Les risque de choc élec-
trique est moindre lorsqu’un cordon conçu pour
l’usage extérieur est utilisé.
6. Si vous devez utiliser un outil électrique dans
un endroit humide, utilisez une source d’ali-
mentation protégée par un disjoncteur de fuite
à la terre.L’utilisationd’undisjoncteurdefuiteàla
terre réduit le risque de choc électrique.
Sécurité personnelle
1. Restez alerte, attentif à vos mouvements et
faites preuve de bon sens lorsque vous utili-
sez un outil électrique. N’utilisez pas les outils
électriques si vous êtes fatigué ou avez pris
une drogue, de l’alcool ou un médicament. Un
moment d’inattention pendant l’utilisation d’un
outil électrique peut entraîner une grave blessure.
2. Portez des dispositifs de protection person-
nelle. Portez toujours une protection oculaire.
Les risques de blessure seront moins élevés si
vous utilisez des dispositifs de protection tels
qu’un masque anti-poussière, des chaussures à
semelle antidérapante, une coiffure résistante ou
une protection d’oreilles.
3. Évitez les démarrages accidentels. Assurez-
vous que l’interrupteur est en position d’arrêt
avant de brancher l’outil à la prise de courant
et/ou au bloc-piles, et avant de prendre ou
de transporter l’outil. Vous ouvrez la porte aux
accidents si vous transportez les outils électriques
avec le doigt sur l’interrupteur ou si vous les bran-
chez alors que l’interrupteur est en position de
marche.
4. Retirez toute clé de réglage ou de serrage
avant de mettre l’outil électrique sous tension.
Toute clé laissée en place sur une pièce rotative
de l’outil électrique peut entraîner une blessure.
5. Ne vous étirez pas exagérément. Assurez-vous
d’une bonne prise au sol et d’un bon équilibre
en tout temps. Cela vous permettra d’avoir une
meilleure maîtrise de l’outil électrique dans les
situations imprévues.
6. Portez des vêtements adéquats. Ne portez ni
vêtements amples ni bijoux. Vous devez main-
tenir cheveux, vêtements et gants à l’écart des
pièces en mouvement. Les pièces en mouve-
ment peuvent happer les vêtements amples, les
bijouxetlescheveuxlongs.
7. Si des accessoires sont fournis pour raccorder
un appareil d’aspiration et de collecte de la
poussière, assurez-vous qu’ils sont correc-
tement raccordés et qu’ils sont utilisés de
manière adéquate. L’utilisation d’un appareil de
collecte permet de réduire les risques liés à la
présence de poussière dans l’air.
Utilisation et entretien des outils électriques
1. Ne forcez pas l’outil électrique. Utilisez l’outil
électrique adéquat suivant le type de travail à
effectuer. Si vous utilisez l’outil électrique adé-
quat et respectez le régime pour lequel il a été
conçu, il effectuera un travail de meilleure qualité
et plus sécuritaire.
2.
N’utilisez pas l’outil électrique s’il n’est pas pos-
sible de l’allumer et de l’éteindre avec son inter-
rupteur. Un outil électrique dont l’interrupteur est
défectueux représente un danger et doit être réparé.
3. Débranchez la che de la source d’alimen-
tation et/ou retirez le bloc-piles de l’outil
électrique avant d’effectuer tout réglage, de
remplacer un accessoire ou de ranger l’ou-
til électrique. De telles mesures préventives
réduisent les risques de démarrage accidentel de
l’outil électrique.
4.
Après l’utilisation d’un outil électrique, rangez-le
hors de portée des enfants et ne laissez aucune
personne l’utiliser si elle n’est pas familiarisée
avec l’outil électrique ou les présentes instruc-
tions d’utilisation. Les outils électriques repré-
sentent un danger entre les mains de personnes qui
n’en connaissent pas le mode d’utilisation.
5. Veillez à l’entretien des outils électriques.
Assurez-vous que les pièces mobiles ne sont
pas désalignées ou coincées, qu’aucune pièce
n’est cassée et que l’outil électrique n’a subi
aucun dommage affectant son bon fonction-
nement. Le cas échéant, faites réparer l’outil
électrique avant de l’utiliser. De nombreux
accidents sont causés par des outils électriques
mal entretenus.
6. Maintenez les outils tranchants bien aiguisés
et propres. Un outil tranchant dont l’entretien est
effectué correctement et dont les bords sont bien
aiguisés risquera moins de se coincer et sera plus
facile à maîtriser.
7. Utilisez l’outil électrique, ses accessoires, ses
embouts, etc., en respectant les présentes
instructions, en tenant compte des conditions
de travail et du type de travail à effectuer.
L’utilisation d’un outil électrique pour d’autres
usages que ceux prévus peut entraîner une situa-
tion dangereuse.
Utilisation et entretien des outils alimentés par
batterie
1. Pour recharger, utilisez uniquement le char-
geur spécié par le fabricant. L’utilisation d’un
chargeur conçu pour un type donné de bloc-piles
comporte un risque d’incendie lorsqu’il est utilisé
avec un autre type de bloc-piles.
2. N’utilisez un outil électrique qu’avec le bloc-
piles conçu spéciquement pour cet outil. Il y a
risque de blessure ou d’incendie si un autre bloc-
piles est utilisé.
3. Lorsque vous n’utilisez pas le bloc-piles, ran-
gez-le à l’écart des objets métalliques tels que
trombones, pièces de monnaie, clés, clous,
vis ou autres petits objets métalliques qui
risqueraient d’établir une connexion entre les
bornes. La mise en court-circuit des bornes de
batterie peut causer des brûlures ou un incendie.
4. Dans des conditions d’utilisation inadéquates
de la batterie, il peut y avoir fuite d’électrolyte;
évitez tout contact avec ce liquide. En cas
de contact accidentel, rincez avec beaucoup
d’eau. Si le liquide pénètre dans vos yeux, il
faut aussi consulter un médecin. L’électrolyte
qui s’échappe de la batterie peut causer des
irritations ou des brûlures.

13 FRANÇAIS
Réparation
1. Faites réparer votre outil électrique par un
réparateur qualié qui utilise des pièces de
rechange identiques aux pièces d’origine. Le
maintien de la sûreté de l’outil électrique sera ainsi
assuré.
2. Suivez les instructions de lubrication et de
remplacement des accessoires.
3. Maintenez les poignées de l’outil sèches,
propres et exemptes d’huile ou de graisse.
Consignes de sécurité pour le
tournevis à chocs sans l
1. Tenez l’outil par ses surfaces de prise isolées
pendant toute opération où l’accessoire de
xation pourrait venir en contact avec un
câblage dissimulé.Encasdecontactavecun
conducteur sous tension, les pièces métalliques à
découvert de l’outil peuvent devenir sous tension
et transmettre un choc électrique à l’utilisateur.
2. Pensez toujours à prendre pied solidement.
Assurez-vous qu’il n’y a personne plus bas
lorsque vous utilisez l’outil en position élevée.
3. Tenez l’outil fermement.
4. Portez une protection d’oreilles.
5. Ne touchez ni l’embout, ni la pièce à travailler
immédiatement après l’utilisation. Ils peuvent
être extrêmement chauds et vous brûler la
peau.
6. Gardez les mains éloignées des pièces en
rotation.
CONSERVEZ CES
INSTRUCTIONS.
MISE EN GARDE : NE vous laissez PAS
tromper (au l d’une utilisation répétée) par un
sentiment d’aisance ou de familiarité avec le
produit en négligeant les consignes de sécurité
qui accompagnent le produit.
UNE UTILISATION INCORRECTE ou le non-res-
pect des règles de sécurité énoncées dans le
présent manuel d’instructions peut provoquer
des blessures graves.
Symboles
Les symboles utilisés pour l’outil sont indiqués
ci-dessous.
volts
courant continu
vitesse à vide
tours ou alternances par minute
nombre de frappes
Consignes de sécurité importantes
pour la batterie
1. Avant d’utiliser la batterie, lisez toutes les
instructions et les mises en garde apposées
sur (1) le chargeur de batterie, (2) la batterie et
(3) le produit utilisant la batterie.
2. Ne démontez pas la batterie.
3. Cessez immédiatement l’utilisation si le temps
de fonctionnement devient excessivement
court. Il y a risque de surchauffe, de brûlures,
voire d’explosion.
4. Si l’électrolyte pénètre dans vos yeux, rin-
cez-les à l’eau claire et consultez immédiate-
ment un médecin. Il y a risque de perte de la
vue.
5. Ne court-circuitez pas la batterie :
(1) Ne touchez les bornes avec aucun maté-
riau conducteur.
(2) Évitez de ranger la batterie dans un
conteneur avec d’autres objets métal-
liques tels que clous, pièces de monnaie,
etc.
(3) Évitez d’exposer la batterie à l’eau ou à la
pluie.
Un court-circuit de la batterie pourrait provo-
quer un fort courant, une surchauffe, parfois
des brûlures et même une panne.
6. Ne rangez pas l’outil ou la batterie dans
des emplacements où la température peut
atteindre ou dépasser 50 °C (122 °F).
7. Ne jetez pas la batterie au feu même si elle est
sérieusement endommagée ou complètement
épuisée. La batterie peut exploser au contact
du feu.
8. Prenez garde d’échapper ou de heurter la
batterie.
9. N’utilisez pas une batterie si elle est
endommagée.
10. Les batteries lithium-ion fournies sont sou-
mises aux exigences de la législation sur les
marchandises dangereuses.
Des exigences particulières sur l’emballage et
l’étiquetage doivent être respectées lors du trans-
port commercial par des tiers, des transitaires, etc.
Pour préparer la marchandise à expédier, consul-
tez un expert en matériaux dangereux si néces-
saire. Respectez aussi les éventuelles réglemen-
tations nationales plus détaillées.
Recouvrez de ruban isolant les contacts exposés,
et emballez la batterie de sorte qu’elle ne puisse
pas se déplacer à l’intérieur de l’emballage.
11. Suivez la réglementation locale concernant
l’élimination de la batterie.
CONSERVEZ CES
INSTRUCTIONS.
ATTENTION : Utilisez exclusivement les bat-
teries fabriquées par Makita. Les batteries autres
que celles fabriquées par Makita ou les batteries
modiéespeuventexploseretcauserunincendie,
une blessure ou des dommages. Cela annule aussi la
garantie Makita de l’outil et du chargeur Makita.

14 FRANÇAIS
Conseils pour maintenir la
durée de service maximale de la
batterie
1. Rechargez la batterie avant qu’elle ne soit
complètement déchargée. Arrêtez toujours
l’outil et rechargez la batterie quand vous
remarquez que la puissance de l’outil diminue.
2. Ne rechargez jamais une batterie complète-
ment chargée. La surcharge réduit la durée de
service de la batterie.
3. Chargez la batterie à une température
ambiante comprise entre 10 °C et 40 °C (50 °F
et 104 °F). Si la batterie est chaude, laissez-la
refroidir avant de la charger.
4. Chargez la batterie si elle est restée inutilisée
pendant une période prolongée (plus de six
mois).
DESCRIPTION DU
FONCTIONNEMENT
ATTENTION : Assurez-vous toujours que
l’outil est éteint et que sa batterie est retirée avant
de l’ajuster ou de vérier son fonctionnement.
Installation ou retrait de la batterie
ATTENTION : Éteignez toujours l’outil avant
d’installer ou de retirer la batterie.
ATTENTION : Tenez fermement l’outil et la
batterie lors de l’installation ou du retrait de cette
dernière. Si l’outil et la batterie ne sont pas tenus
fermement, ils risquent de vous glisser des mains et
de subir des dommages, ou encore de vous blesser.
1
2
3
►1. Voyant rouge 2. Bouton 3. Batterie
Pour retirer la batterie, faites-la glisser hors de l’outil
tout en glissant le bouton qui se trouve à l’avant.
Pour installer la batterie, alignez sa languette sur la
rainure pratiquée dans le boîtier, et glissez la batterie en
place.Insérez-laàfondjusqu’àcequevousentendiez
un léger déclic. Si vous pouvez voir le voyant rouge sur
le dessus du bouton, la batterie n’est pas complètement
verrouillée.
ATTENTION : Installez toujours la batterie à
fond jusqu’à ce que vous ne puissiez plus voir le
voyant rouge.Autrementellerisquedetomberacci-
dentellement de l’outil et d’entraîner des blessures.
ATTENTION : Ne forcez pas sur la batterie
pour l’installer. Si la batterie ne glisse pas facile-
ment, c’est qu’elle n’est pas insérée correctement.
Afchage de la charge restante de la
batterie
Uniquement pour les batteries dont le numéro de
modèle se termine par « B »
1
2
►1. Témoins indicateurs 2.Boutondevérication
Appuyezsurleboutondevéricationdelabatteriepour
afcherlachargerestantedelabatterie.Lestémoins
indicateurs s’allument pendant quelques secondes.
Témoins indicateurs Charge
restante
Allumé Éteint Clignotant
75 % à 100 %
50 % à 75 %
25 % à 50 %
0 % à 25 %
Chargez la
batterie.
La batterie a
peut-être mal
fonctionné.
NOTE : Suivant les conditions d’utilisation et la
température ambiante, il se peut que l’indication soit
légèrement différente de la charge réelle.

15 FRANÇAIS
Dispositif de protection de l’outil et
de la batterie
L’outil est équipé d’un système de protection d’outil/
batterie. Ce système coupe automatiquement l’alimen-
tation du moteur pour augmenter la durée de vie de
l’outil et de la batterie. L’outil s’arrête automatiquement
pendant l’utilisation lorsque l’outil ou la batterie est dans
l’une des situations suivantes :
Protection contre la surcharge
Lorsque la batterie est utilisée d’une façon qui lui fait
consommer un courant anormalement élevé, l’outil
s’arrête automatiquement, sans aucune indication.
Dans ce cas, éteignez l’outil et arrêtez l’application qui
a causé la surcharge de l’outil. Rallumez ensuite l’outil
pour redémarrer.
Protection contre la surchauffe
Lorsque l’outil ou la batterie surchauffe, l’outil s’arrête
automatiquement. Dans ce cas, laissez refroidir la
batterie avant de rallumer l’outil.
Protection contre la décharge
excessive
Lorsquelachargedelabatterieestinsufsante,l’outil
s’arrête automatiquement. Dans ce cas, retirez la batte-
rie de l’outil et chargez la batterie.
NOTE : La protection contre la surcharge ne fonc-
tionne qu’avec les batteries qui portent la marque
d’étoile.
1
►1. Marque d’étoile
Interrupteur
1
►1. Gâchette
ATTENTION : Avant d’insérer la batterie dans
l’outil, vériez toujours que la gâchette fonc-
tionne bien et revient en position d’arrêt lorsque
libérée.
Pour mettre l’outil en marche, appuyez simplement sur
la gâchette. La vitesse de l’outil augmente à mesure
que l’on accroît la pression exercée sur la gâchette.
Pour arrêter l’outil, libérez la gâchette.
NOTE : L’outil s’arrête automatiquement si vous
appuyez constamment sur la gâchette pendant envi-
ron 6 minutes.
Frein électrique
Cet outil est muni d’un frein électrique. Si la libération
dulevierdelagâchettenepermetjamaisd’arrêter
promptement l’outil, faites-le réparer dans un centre de
service après-vente Makita.
Allumage de la lampe avant
ATTENTION : Évitez de regarder directement
le faisceau lumineux ou sa source.
1
►1. Lampe

16 FRANÇAIS
TS H
1
►1. Bouton
Appuyezsurlagâchettepourallumerlalampe.Pour
l’éteindre, libérez la gâchette. La lampe s’éteint environ
10 secondes après la libération de la gâchette.
Pour garder la lampe éteinte, désactivez l’état de la
lampe. Pour désactiver l’état de la lampe, appuyez
d’abordsurlagâchetteetlibérez-la.Appuyezensuite
sur le bouton pendant une seconde dans les 10
secondes qui suivent.
Pour réactiver l’état de la lampe, appuyez de nouveau
sur le bouton de la même façon.
NOTE :Pourvérierl’étatdel’éclairage,appuyezsur
la gâchette. Si la lampe s’allume lorsque la gâchette
est enfoncée, l’éclairage est activé (ON). Si la lampe
ne s’allume pas, l’éclairage est désactivé (OFF).
NOTE :
Lorsque l’outil surchauffe, la lampe clignote pen-
dantuneminutepuisl’afchageDELs’éteint.Dansce
cas, laissez refroidir l’outil avant de l’utiliser à nouveau.
NOTE :
Utilisez un linge sec pour enlever les poussières
sur la lentille de la lampe. Prenez garde de rayer la lentille
de la lampe, car cela peut affecter son intensité d’éclairage.
Fonctionnement de l’inverseur
1
A
B
►1. Levier inverseur
ATTENTION : Vériez toujours le sens de
rotation avant de mettre l’outil en marche.
ATTENTION : N’actionnez l’inverseur qu’une
fois l’outil complètement arrêté. Si vous changez
le sens de rotation avant l’arrêt de l’outil, vous risquez
de l’endommager.
ATTENTION : Lorsque vous n’utilisez pas
l’outil, placez toujours le levier inverseur en posi-
tion neutre.
L’outil possède un inverseur qui permet de changer le
sensderotation.Enfoncezlelevierinverseurducôté
Apourunerotationdanslesensdesaiguillesd’une
montre,ouducôtéBpourunerotationdanslesens
contraire des aiguilles d’une montre.
La pression sur la gâchette n’est pas possible lorsque le
levier inverseur se trouve en position neutre.
Modication de la force d’impact
TS H
TS H
TS H
TS H
TS H
1
2
3
4
5
6
►1. Changé selon quatre niveaux 2. Puissant
3. Moyen 4. Faible 5. Mode T 6. Bouton

17 FRANÇAIS
Vous pouvez changer la force d’impact selon quatre niveaux : dur, moyen, mou et mode T.
Ceci permet d’obtenir un serrage adéquat, selon le travail à effectuer.
Le nombre de frappes change à chaque pression sur le bouton , selon quatre niveaux.
« T » est un mode spécial pour serrer les vis auto-perceuses. Dans ce mode, l’outil commence à visser la vis avec
une rotation plus rapide, ce qui convient au perçage avec l’embout pour vis auto-perceuse. Une fois que l’outil com-
mence à serrer la vis, il frappe avec un niveau de force moyen.
Pendantenvironuneminuteaprèslalibérationdelagâchette,laforced’impactpeutêtremodiée.
Niveau de force d’impact
afché sur le panneau
Coups maximum But Exemple d’application
Puissant
TS H
3 800 /min Pour un serrage qui demande
force et vitesse.
Serrage dans un matériau de
fondations, serrage de longues
vis, serrage de boulons.
Moyen
TS H
2 600 /min Serrage lorsque le travail exige
unebonnenition.
Serrage dans des panneaux
denitionoudespanneaux
de plâtre.
Faible
TS H
1 100 /min Serrage avec moins de force
pouréviterdefoirerleslets
de la vis.
Serrage des vis de cadre de
châssis et des petites vis telles
que M6.
Mode T
TS H
2 600 /min Serrage lorsque le travail exige
de la vitesse et une bonne
nition.
Serrage des vis
auto-perceuses.
NOTE : Lorsque toutes les lampes du panneau de commutation s’éteignent, l’outil s’éteint pour économiser la
batterie.Leniveaudeforced’impactpeutêtrevériéenn’appuyantquelégèrementsurlagâchettepournepas
activer l’outil.
NOTE : Il n’est pas possible de changer le niveau de force d’impact pendant que l’on appuie sur la gâchette.
ASSEMBLAGE
ATTENTION : Assurez-vous toujours que
l’outil est éteint et que sa batterie est retirée avant
d’effectuer tout travail dessus.
Installation ou retrait de l’embout-
tournevis ou de l’embout-douille
12 mm
(15/32”)
9 mm
(3/8”)
Utilisez uniquement l’embout-tournevis ou l’em-
bout-douilleindiquésurlagure.N’utilisezaucunautre
embout-tournevis ou embout-douille.
12
►1.Embout-tournevis2. Manchon
Pour installer l’embout-tournevis, insérez-le à fond dans
le manchon.

18 FRANÇAIS
12
►1.Embout-tournevis2. Manchon
Pour retirer l’embout-tournevis, tirez le manchon dans
lesensdelaècheetdégagezl’embout-tournevis.
NOTE : Si l’embout-tournevis n’est pas inséré assez
profondément dans le manchon, celui-ci ne reviendra
sur sa position originale et l’embout-tournevis ne sera
pas verrouillé. Le cas échéant, réessayez en suivant
les instructions ci-dessus pour insérer l’embout.
NOTE :S’ilestdifciled’insérerl’embout-tournevis,
tirez sur le manchon et insérez l’embout à fond dans
le manchon.
NOTE :Aprèsavoirinsérél’embout-tournevis,assu-
rez-vous qu’il est bien verrouillé. S’il sort du man-
chon, ne l’utilisez pas.
Installation du crochet
1
2
3
►1. Rainure 2. Crochet 3. Vis
L’outil est équipé d’un crochet pratique qui permet de
lesuspendretemporairement.Ils’installed’uncôté
comme de l’autre de l’outil. Pour installer le crochet,
insérez-le dans l’une ou l’autre des rainures situées de
chaquecôtéduboîtierdel’outil,puisserrez-leavecune
vis. Pour le retirer, desserrez la vis et enlevez-la.
UTILISATION
Le couple de serrage adéquat peut varier en fonction du
type ou de la dimension de la vis/du boulon, du maté-
riaudelapièceàxer,etc.Lerapportentrelecouple
de serrage et le temps de serrage est indiqué sur les
gures.
Couple de serrage adéquat pour boulon standard
N•m
(ft•lbs)
M14(9/16")
M12(1/2")
M10(3/8")
M8(6/16")
M16(5/8")
M14(9/16")
M12(1/2")
M10(3/8")
M8(6/16")
M16(5/8")
140
(101)
120
100
80
60
40
20
01
2
1
2
(87)
(72)
(58)
(43)
(29)
(14)
►1. Durée de serrage (secondes) 2. Couple de
serrage

19 FRANÇAIS
Couple de serrage adéquat pour boulon à haute
résistance
N•m
(ft•lbs)
2
1
M14(9/16")
M12(1/2")
M14(9/16")
M12(1/2")
M10(3/8")
M8(5/16")
M10(3/8")
M8(5/16")
200
(145)
180
(130)
160
(116)
140
(101)
120
(87)
100
(72)
80
(58)
60
(43)
40
(29)
20
(14)
0123
►1. Durée de serrage (secondes) 2. Couple de
serrage
Tenez l’outil fermement et placez la pointe de l’em-
bout-tournevisdanslatêtedelavis.Appliquezàl’outil
unepressionversl’avantsufsantepourquel’embout
ne glisse pas hors de la vis, et mettez le contact pour
commencer à visser.
AVIS : Si vous devez utiliser une batterie de
rechange pour poursuivre le travail, laissez
d’abord reposer l’outil pendant au moins 15
minutes.
NOTE : Utilisez l’embout qui convient à la tête de la
vis/du boulon utilisé.
NOTE : Lorsque vous serrez des vis M8 ou plus
petites,ajustezsoigneusementlapressionsurla
gâchette de manière à ne pas endommager la vis.
NOTE : Tenez votre outil bien droit sur la vis.
NOTE : Si la force de frappe est excessive et que
vous serrez la vis plus longtemps qu’indiqué sur
lesgures,lavisoulapointedel’embout-tournevis
risque de subir une contrainte excessive, de foirer,
d’êtreendommagée,etc.Avantdecommencervotre
travail,effectueztoujoursunessaipourdéterminerla
durée de serrage appropriée pour votre vis.
Le couple de serrage dépend d’un certain nombre de
facteurs, dont les suivants. Une fois le serrage terminé,
vérieztoujourslecoupleavecuneclédynamométrique.
1. Lorsque la batterie est presque complètement
déchargée, la tension tombe et le couple de ser-
rage diminue.
2. Embout-tournevisouembout-douille
L’utilisation d’un embout-tournevis ou d’un
embout-douille de mauvaise dimension entraînera
une diminution du couple de serrage.
3. Boulon
• Mêmesilecoefcientducoupleetlacaté-
gorie du boulon sont les mêmes, le couple
de serrage adéquat variera en fonction du
diamètre de boulon.
• Mêmesilesdiamètresdesboulonssont
les mêmes, le couple de serrage adéquat
varieraenfonctionducoefcientdecouple,
de la catégorie du boulon et de la longueur
du boulon.
4. Le couple de serrage est affecté par la façon dont
vous tenez l’outil ou par la position de vissage
dans la pièce à visser.
5. L’utilisation de l’outil à vitesse réduite entraîne une
diminution du couple de serrage.
ENTRETIEN
ATTENTION : Assurez-vous toujours que
l’outil est hors tension et que la batterie est reti-
rée avant d’y effectuer tout travail d’inspection ou
d’entretien.
AVIS : N’utilisez jamais d’essence, de benzine,
de solvant, d’alcool ou autres produits similaires.
Une décoloration, une déformation ou la forma-
tion de ssures peuvent en découler.
PourmaintenirlaSÉCURITÉetlaFIABILITÉdupro-
duit, les réparations et tout autre travail d’entretien
ou de réglage doivent être effectués dans un centre
de service après-vente autorisé ou une usine Makita,
exclusivement avec des pièces de rechange Makita.
ACCESSOIRES EN
OPTION
ATTENTION : Ces accessoires ou pièces
complémentaires sont recommandés pour l’utili-
sation avec l’outil Makita spécié dans ce manuel.
L’utilisation de tout autre accessoire ou pièce com-
plémentaire peut comporter un risque de blessure.
N’utilisez les accessoires ou pièces complémentaires
qu’auxnsauxquellesilsontétéconçus.
Si vous désirez obtenir plus de détails sur ces acces-
soires, veuillez contacter le centre de service après-
vente Makita le plus près.
• Embouts-tournevis
• Emboutsàdouille
• Crochet
• Mallettedetransportenplastique
• Protecteurdebatterie
• Porte-outil
• ChargeuretbatterieauthentiquesMakita
NOTE : Certains éléments de la liste peuvent être
inclus avec l’outil comme accessoires standards. Ils
peuvent varier suivant les pays.

20 FRANÇAIS
GARANTIE LIMITÉE D’UN AN DE
MAKITA
Politique de garantie
Tous les outils Makita sont soigneusement inspectés et
mis à l’essai avant de quitter l’usine. Ils sont garantis
contre les vices de fabrication et de matériau pour une
périoded’UNANsuivantladatedel’achatoriginal.Si
un problème survient pendant cette période d’un an,
retournezl’outilCOMPLET,fretpayéd’avance,àune
usine ou un centre de service après-vente autorisé
Makita. S’il ressort de l’inspection que le problème est
dû à un vice de fabrication ou de matériau, Makita répa-
rera (ou remplacera, à son gré) l’outil gratuitement.
Cette garantie ne s’applique pas dans les cas où :
• desréparationsontétéeffectuéesoutentéespar
un tiers;
• desréparationssontnécessairesenraisonde
l’usure normale;
• l’outilaétémalmené,malutiliséounonadéquate-
ment entretenu;
• l’outilasubidesmodications.
MAKITANESERAENAUCUNCASRESPONSABLE
DETOUSDOMMAGESINDIRECTS,ACCESSOIRES
OUCONSÉCUTIFSDELAVENTEOUDE
L’UTILISATIONDUPRODUIT.CETAVISDENON-
RESPONSABILITÉS’APPLIQUEPENDANTET
APRÈSLAPÉRIODECOUVERTEPARCETTE
GARANTIE.
MAKITADÉCLINETOUTERESPONSABILITÉQUANT
ÀTOUTESGARANTIESIMPLICITES,YCOMPRIS
LESGARANTIESDE«QUALITÉMARCHANDE»
OUD’«ADAPTATIONÀUNUSAGEPARTICULIER»
APRÈSLAPÉRIODEDEGARANTIED’UNAN.
Cette garantie vous donne des droits légaux spéci-
ques,etvouspouvezégalementavoird’autresdroits
qui varient d’une province à l’autre. Certaines provinces
n’autorisant pas l’exclusion ou la restriction des dom-
mages accessoires ou consécutifs, il se peut que la
restriction ou l’exclusion ci-dessus ne s’applique pas à
vous. Certaines provinces n’autorisant pas de restric-
tion quant à la durée des garanties implicites, il se peut
que la restriction ci-dessus ne s’applique pas à vous.
Other manuals for DTD154
7
Table of contents
Languages:
Other Makita Impact Driver manuals

Makita
Makita DTD154 User manual

Makita
Makita BTW121 User manual

Makita
Makita DTD134 User manual

Makita
Makita DTD157 User manual

Makita
Makita TD0101 User manual

Makita
Makita TD020D User manual

Makita
Makita DTD129 User manual

Makita
Makita DTD152RTJ User manual

Makita
Makita DTD134 User manual

Makita
Makita TW1000 User manual

Makita
Makita DLX2145TJ User manual

Makita
Makita BTL060 User manual

Makita
Makita 6952 User manual

Makita
Makita BTD133 User manual

Makita
Makita TW0350 User manual

Makita
Makita TW0350 User manual

Makita
Makita BTW120 User manual

Makita
Makita DTD170 User manual

Makita
Makita 6935FD User manual

Makita
Makita TD110DSME User manual
