Makita BLM430 User manual

1
ENGLISH (Original instructions)
INSTRUCTION MANUAL
IMPORTANT: Read Before Using.
Cordless Lawn Mower
BLM430
LM430D
012295

2
ENGLISH (Original instructions)
SPECIFICATIONS
Model BLM430 / LM430D
Mowing width 430 mm
No load speed 3,600 min-1
during operation 1,450 mm -1,490 mm x 460 mm x 950 mm -1,020 mm
Dimensions (L x W x H) when stored 490 mm - 500 mm x 460 mm x 810 mm
Net weight 17.9 kg
Rated voltage D.C. 36 V
Standard battery cartridge(s)
Warning: Use only the battery cartridge(s) described. BL3626 / BL3622A
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003
END016-2
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･Take particular care and attention.
･Read instruction manual.
･Danger; be aware of thrown objects.
･The distance between the tool and
bystanders must be at least 15 m.
･Never put your hands and feet near the
blade under the mower.
･Remove the lock key before inspecting,
adjusting, cleaning, servicing, leaving
and storing the mower.
･Only for EU countries
Do not dispose of electric equipment or
battery pack together with household
waste material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment, 2006/66/EC on
batteries and accumulators and waste
batteries and accumulators and their
implementation in accordance with
national laws, electric equipment and
battery pack that have reached the end
of their life must be collected separately
and returned to an environmentally
compatible recycling facility.
ENG905-1
Noise
The typical A-weighted noise level determined according
to EN60335:
Sound pressure level (LpA) : 80 dB(A)
Sound power level (LWA) : 93 dB(A)
Uncertainty (K) : 3 dB(A)
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum)
determined according to EN60335:
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
ENG901-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).
Cd
Ni-MH
Li-ion

3
ENH217-1
For European countries only
EC Declaration of Conformity
We Makita Corporation as the responsible
manufacturer declare that the following Makita
machine(s):
Designation of Machine:
Cordless Lawn Mower
Model No./ Type: BLM430, LM430D
Specifications: see "SPECIFICATIONS" table.
are of series production and
Conforms to the following European Directives:
2000/14/EC, 2006/42/EC
And are manufactured in accordance with the following
standards or standardised documents:
EN60745, EN60335
The technical documentation is kept by our authorised
representative in Europe who is:
Makita International Europe Ltd.
Michigan Drive, Tongwell,
Milton Keynes, Bucks MK15 8JD, England
The conformity assessment procedure required by
Directive 2000/14/EC was in Accordance with annex VI.
Notified Body:
TÜV Rheinland LGA Products GmbH
Am Grauen Stein 29
51105 Köln Germany
Identification number 0197
Measured Sound Power Level: 93dB(A)
Guaranteed Sound Power Level: 94dB(A)
7.9.2011
000230
Tomoyasu Kato
Director
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi, 446-8502, JAPAN
GEB091-5
IMPORTANT SAFETY
INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
1. Do not insert key into mower until it is ready to
be used.
2. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
3. Children should be supervised to ensure that
they do not play with the appliance.
4.
Never allow children or people unfamiliar with
these instructions to use the machine. Local
regulations can restrict the age of the operator.
5. Never operate the machine while people,
especially children, or pets are nearby.
6. Keep in mind that the operator or user is
responsible for accidents or hazards
occurring to other people or their property.
7. While operating the machine always wear
substantial footwear and long trousers. Do not
operate the machine when barefoot or wearing
open sandals. Avoid wearing clothing or
jewelry that is loose fitting or that has hanging
cords or ties. They can be caught in moving
parts.
8. Operate the machine only in daylight or in
good artificial light.
9. Avoid operating the machine in wet grass.
10. Never operate the mower in the rain.
11. Battery tool use
- Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
- Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
12. Always keep a firm hold on the handle.
13. Always be sure of your footing on slopes.
14. Walk, never run.
15. Don't grasp the exposed cutting blades or
cutting edges when picking up or holding the
appliance.
16. Physical condition - Do not operate mower
while under the influence of drugs, alcohol, or
any medication.
17. Keep guards in place and in working order.
18. Keep hands and feet away from rotating
blades. Caution - Blades coast after turn off.

4
19. Remove key before servicing, cleaning or
removing material from the gardening
appliance.
20. Use only the manufacturer genuine blades
specified in this manual.
21. Check the blades carefully for cracks or
damage before operation. Replace cracked or
damaged blades immediately.
22.
Be sure the area is clear of other people before
mowing. Stop mower if anyone enters the area.
23. Remove foreign matters such as rocks, wire,
bottles, bones and large sticks from the work
area before mowing to prevent personal injury
or damage to the mower.
24. Stop operation immediately if you notice
anything unusual. Switch off the mower and
remove the key from the appliance. Then
inspect the mower.
25. Never attempt to make wheel height
adjustments while mower is running.
26. Release switch lever and wait for blade
rotation to stop before crossing driveways,
walks, roads, and any gravel-covered areas.
Also remove key if you leave it, reach to pick
up or remove something out of your way, or
for any other reason that may distract you
from what you are doing.
27. Objects struck by the lawn mower blade can
cause severe injuries to persons. The lawn
should always be carefully examined and
cleared of all objects prior to each mowing.
28. If lawn mower strikes a foreign object, follow
these steps:
- Stop the mower, release the switch lever and
wait until the blade comes to a complete stop.
-
Remove the lock key and the battery cartridge.
- Thoroughly inspect the mower for any
damage.
- Replace the blade if it is damaged in any way.
Repair any damage before restarting and
continuing to operate the mower.
29. Check the rear bag frequently for wear or
deterioration. For storage, always make sure
the rear bag is empty. Replace a worn bag with
a new factory replacement bag for safety.
30. Stop the motor and remove key whenever you
leave the equipment, before cleaning the
mower housing, and before making any
repairs or inspections.
31. Use extreme caution when reversing or pulling
the machine towards you.
32.
Stop the blade(s) if the machine has to be tilted
for transportation when crossing surfaces
other than grass, and when transporting the
machine to and from the area to be used.
33. Never operate the machine with defective
guards or shields, or without safety devices,
for example deflectors and/or grass collector,
in place.
34. Switch on the motor carefully according to
instructions and with feet well away from the
blade(s).
35. Do not tilt the machine when switching on the
motor, except if the machine has to be tilted
for starting. In this case, do not tilt it more
than absolutely necessary and lift only the
part, which is away from the operator.
36. Do not start the machine when standing in
front of the discharge opening.
37. Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at
all times.
38. Do not transport the machine while the mower
is turned on.
39. Stop the machine, and remove the disabling
device. Make sure that all moving parts have
come to a complete stop
- whenever you leave the machine,
- before clearing blockages or unclogging
chute,
- before checking, cleaning or working on the
machine,
- after striking a foreign object. Inspect the
machine for damage and make repairs before
restarting and operating the machine;
40. If the machine starts to vibrate abnormally
(check immediately)
- inspect for damage,
- replace or repair any damaged parts,
- check for and tighten any loose parts.
41. Be careful during adjustment of the machine
to prevent entrapment of the fingers between
moving blades and fixed parts of the machine.
42. Mow across the face of slopes, never up and
down. Exercise extreme caution when
changing direction on slopes. Do not mow
excessively steep slopes.
43. Do not wash with a hose; avoid getting water
in motor and electrical connections.
44. Check the blade mounting bolt at frequent
intervals for proper tightness.
45.
Keep all nuts, bolts, and screws tight to be sure
the equipment is in safe working condition.
46. Always allow the machine to cool down before
storing.
47. When servicing the blades be aware that, even
though the power source is switched off, the
blades can still be moved.
48.
Replace worn or damaged parts for safety. Use
only genuine replacement parts and accessories.

5
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
ENC007-7
IMPORTANT SAFETY
INSTRUCTIONS
FOR BATTERY CARTRIDGE
1. Before using battery cartridge, read all
instructions and cautionary markings on (1)
battery charger, (2) battery, and (3) product
using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical
attention right away. It may result in loss of
your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any
conductive material.
(2) Avoid storing battery cartridge in a
container with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current flow,
overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 ﾟC (122 ﾟF).
7.
Do not incinerate the battery cartridge even if it
is severely damaged or is completely worn out.
The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
SAVE THESE INSTRUCTIONS.
Tips for maintaining maximum battery life
1. Charge the battery cartridge before
completely discharged.
Always stop tool operation and charge the
battery cartridge when you notice less tool
power.
2.
Never recharge a fully charged battery
cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room
temperature at 10 ﾟC - 40 ﾟC (50 ﾟF - 104 ﾟF).
Let a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge once in every six
months if you do not use it for a long period of
time.
FUNCTIONAL DESCRIPTION

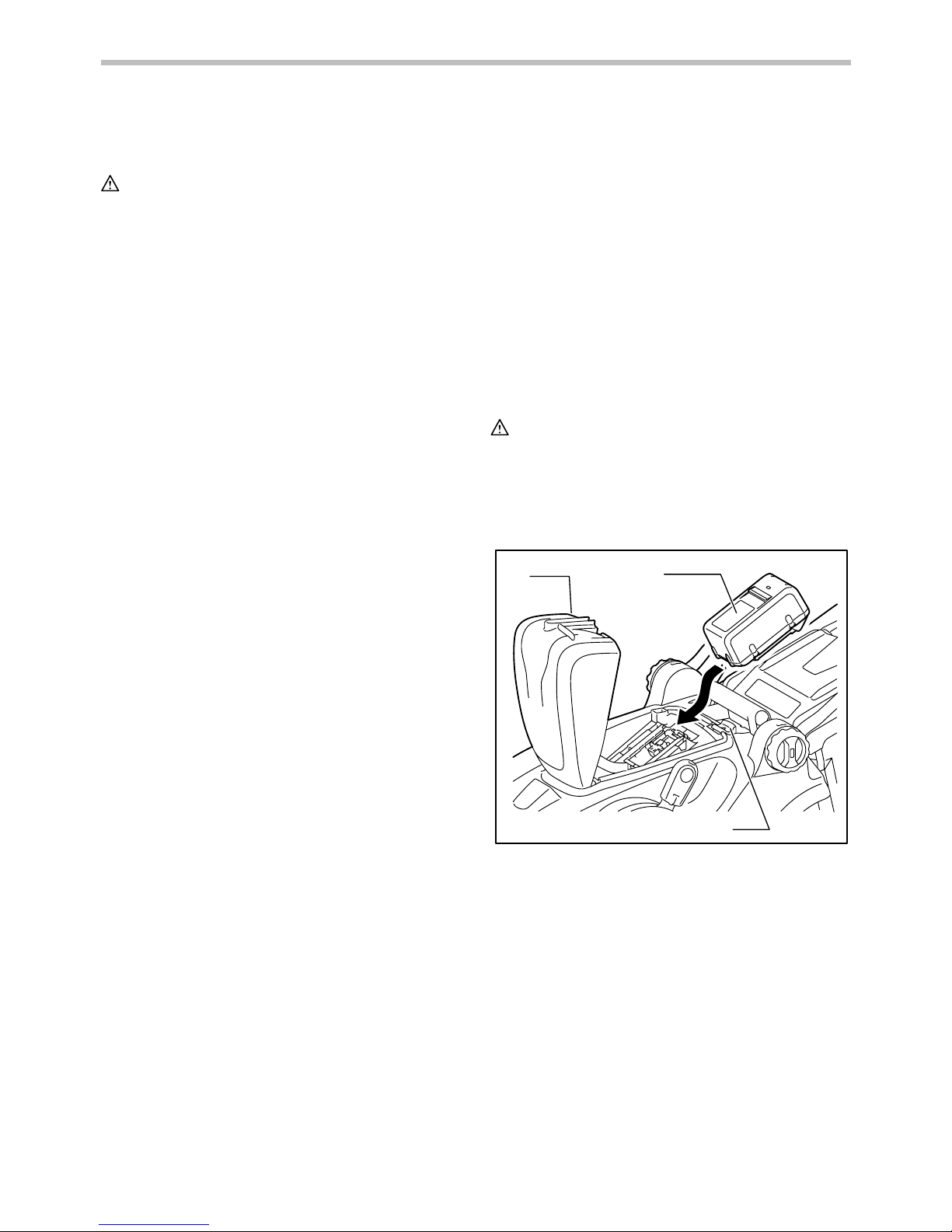

Installing or removing battery cartridge
CAUTION:
• Always switch off the tool before installing or
removing the battery cartridge.
• Make sure that you lock the battery cover before
use. Otherwise, mud, dirt, or water may cause
damage to the product or the battery cartridge.
32
1
012296

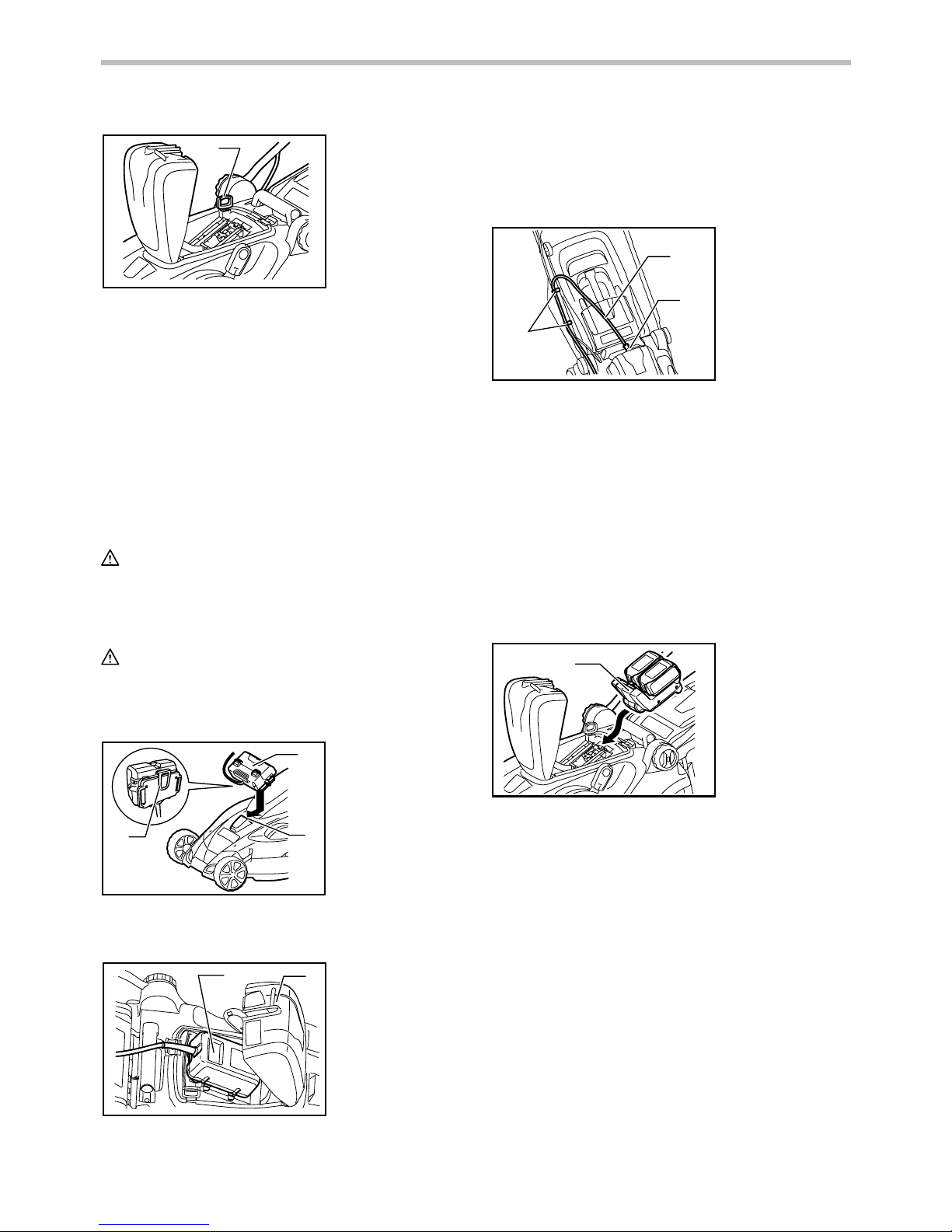

To install the battery cartridge;
1. Pull the battery cover locking lever toward
yourself and open the battery cover.
2. Insert the battery cartridge in the direction shown
in the figure until a click is heard.
1. Battery cover locking lever
2. Battery cartridge
3. Battery cover

6

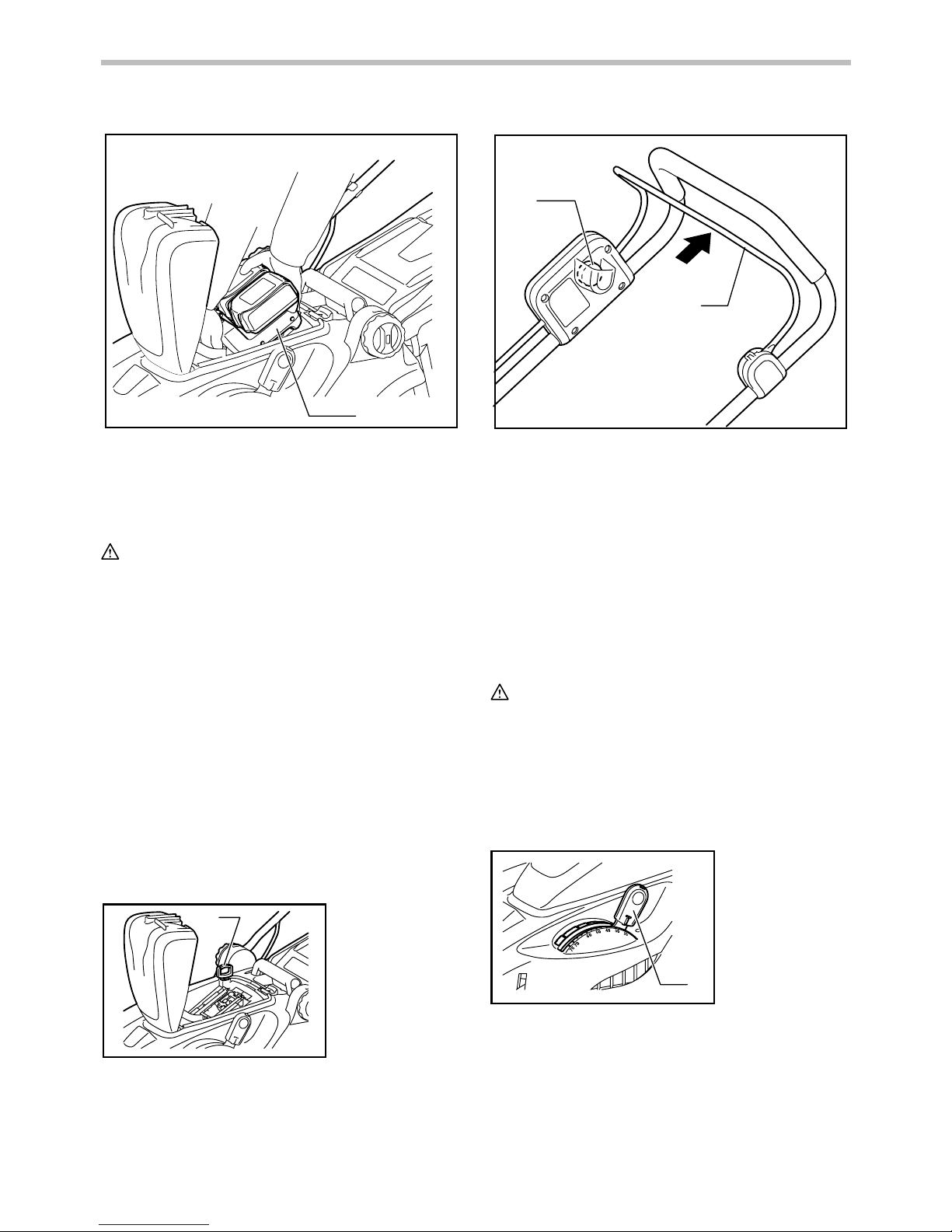

1
012297
3. Insert the lock key in the place shown in the figure
as far as it will go.
4. Close the battery cover and push it on until it is
latched with the locking lever.
To remove the battery cartridge from the mower;
1. Pull the battery cover locking lever toward
yourself and open the battery cover.
2. Pull out the lock key.
3. Withdraw it from the tool while sliding the button
on the front of the cartridge.
4. Close the battery cover.
Battery converters (optional accessory)
WARNING:
• Before installing or removing the battery converters
BCV01/BCV02, remove the lock key.
BCV01 (optional accessory)
WARNING:
• When using the BCV01, never attach it to any part
of your body. Attaching the BCV01 to any part of
your body may cause a serious injury.
1
2
3
012379
Slide the battery converter BCV01 into the installation
hole until it stops.
1
2
012380
Open out the battery cover on the mower and then slide
all the way and click the product mounting adapter of the
BCV01 into the battery port on the mower.
Run the cord of the BCV01 through the slit in the battery
cover and close the battery cover.
1
2
3
012381
Fit the cord of the BCV01 into the upper holders on the
handle.
NOTE:
• When using the battery converter BCV01 (optional
accessory), hook the power cord to the designated
holder on the mower. Failure to do so may cause
the cord to be cut off.
To remove the BCV01 from the mower, open out the
battery cover and then press the hook on the battery
mounting side of the BCV01.
BCV02 (optional accessory)
1
012383
Open the battery cover and click in the BCV02 into the
battery port on the mower.
Close the battery cover.
1. Battery
converter
(BCV02)
1. Cord
2. Slit
3. Upper holders
1. Battery cover
2. Product
mounting
adapter of the
BCV01
1. Battery
converter
(BCV01)
2. Installation hole
3. Hook
1. Lock key

7
1
012384
To remove the BCV02, press on the hook of the BCV02
and withdraw it with both hands.
Power switch action
WARNING:
• Before inserting the battery cartridge in the
tool, always check to see that the switch lever
actuates properly and returns to the original
position when released. Operating a tool with a
switch that does not actuate properly can lead to
loss of control and serious personal injury.
NOTE:
• Trying to mow much grass at a time may not allow
the motor to start due to the overload. At this time,
change the mowing height to higher level to restart.
• The mower does not start without pressing the
switch button even if the switch lever is squeezed.
This mower is equipped with the interlock switch and
handle switch. If you notice anything unusual with either
of these switches, stop operation immediately and have
them checked by your nearest Makita Authorized
Service Center.
1
012297
1. Insert the lock key into the interlock switch.
1
2
012603
2. Depress the switch button.
3. Pull the switch lever toward you while depressing
the switch button.
4. Release the switch button as soon as the motor
starts running. The mower will continue to run until
you release the switch lever.
5. Release the switch lever to stop the motor.
6. When not in use, remove the lock key. Store the
lock key in a safe place out of reach of children.
Adjusting the mowing height
WARNING:
• Never put your hand or leg under the mower unit
when adjusting the mowing height.
• Always make sure that the lever fits in the groove
properly before operation.
The mowing height can be adjusted in the range of
between 20 mm - 75 mm.
1. Remove the lock key.
1
012303
2. Pull the mowing height adjusting lever toward
yourself and move it to your desired mowing
height.
Make sure that the protrusion on the mowing height
adjusting lever fits in the groove in the mower.
1. Mowing height
adjusting lever
1. Switch button
2. Switch lever
1. Lock key
1. Battery converter (BCV02)

8
NOTE:
• The mowing height figures should be used just as
a guideline, as the state of the lawn or ground may
cause lawn height to be slightly different to the set
height figure.
• Try a test mowing of grass in a less conspicuous
place to get your desired height.
Battery protection system
Lithium-ion batteries are equipped with a protection
system. This system automatically cuts off power to the
tool to extend battery life.
The tool will automatically stop during operation if the
tool and/or battery are placed under one of the following
conditions:
• Overloaded:
The tool is operated in a manner that causes
it to draw an abnormally high current.
In this situation, release the trigger switch on
the tool and stop the application that caused
the tool to become overloaded. Then pull the
trigger switch again to restart.
If the tool does not start, the battery is
overheated. In this situation, let the battery
cool before pulling the trigger switch again.
• Low battery voltage:
The remaining battery capacity is too low and
the tool will not operate. In this situation,
remove and recharge the battery.

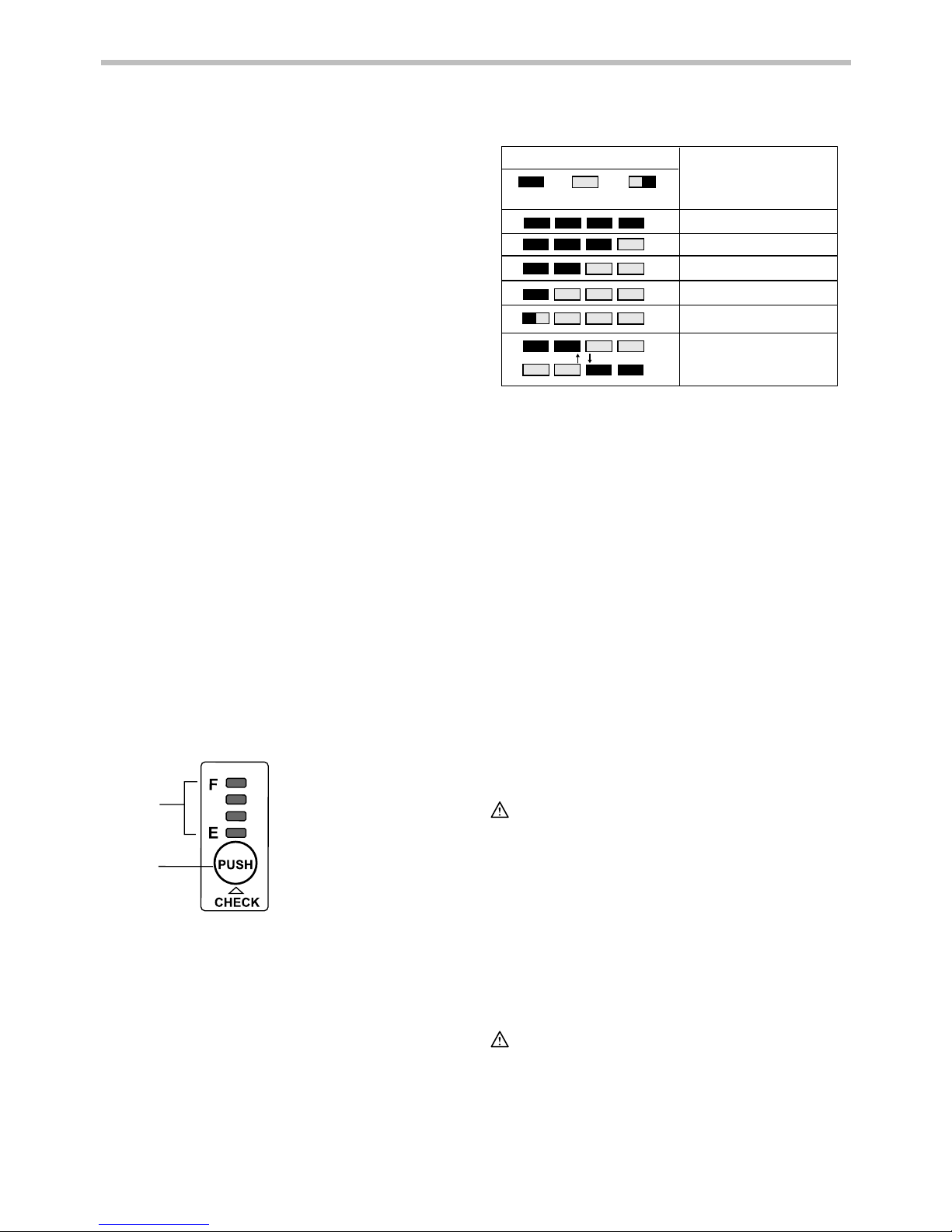

Battery remaining capacity indicator
(only for models with Battery BL3622A)
Battery BL3622A is equipped with the battery remaining
capacity indicator.
1
2
011715
Press the CHECK button to indicate the battery
remaining capacity. The indicator lamps will then light for
approx. three seconds.
Indicator lamps
Lighted Off Blinking
EF
Remaining capacity
70% to 100%
45% to 70%
20% to 45%
0% to 20%
Charge the battery.
The battery may have
malfunctioned.
011713
• When only the lowermost indicator lamp (next to the
“E”) blinks, or when none of the indicator lamps light,
the battery capacity has run out, so the tool does not
operate. In these cases, charge the battery or
replace the empty battery with a fully charged one.
• When two or more indicator lamps do not light
even after charging is complete, the battery has
reached the end of its service life.
• When the upper two and lower two indicator lamps
light alternately, the battery may have malfunctioned.
Contact your local Makita authorized service center.
NOTE:
• The indicated capacity may be lower than the actual
level during use or immediately after using the tool.
• Depending on the conditions of use and the
ambient temperature, the indication may differ
slightly from the actual capacity.
ASSEMBLY
WARNING:
• Always be sure that the lock key and battery
cartridge are removed before carrying out any
work on the mower. Failure to remove the lock
key and the battery cartridge may result in serious
personal injury from accidental start-up.
• Never start the tool unless it is completely
assembled. Operation of the tool in a partially
assembled state may result in serious personal
injury from accidental start-up.

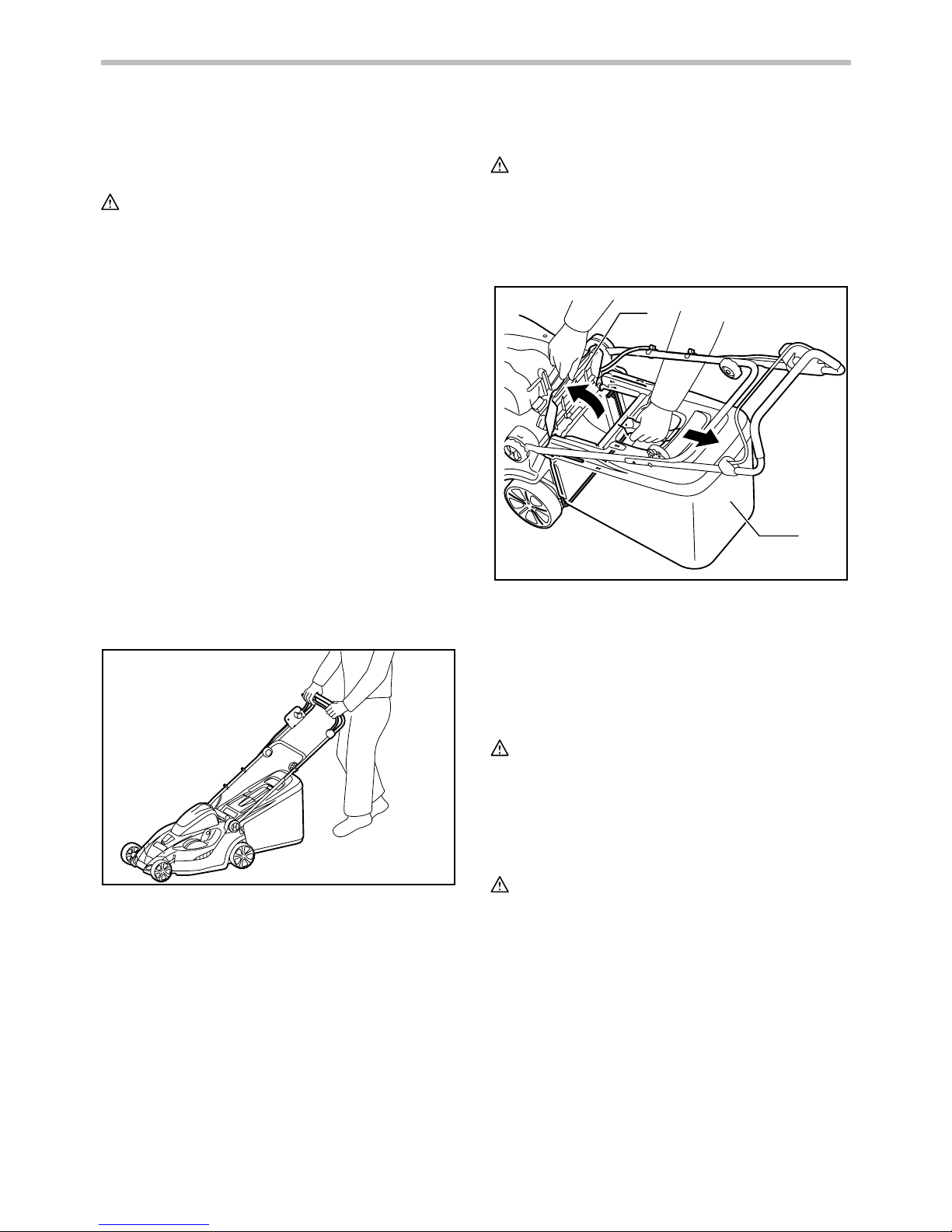

Installing the handle
WARNING:
• When installing handles, position the wires so that
they are not caught by anything in between the
handles.
1. Loosen the clamping screws (two pcs).
1. Indicator lamps
2. CHECK button

9
1
2
3
012385
Expand the lower handle to its both sides and with it
expanded in that position pivot it backward and then fit it
in the groove in the deck.
2. Tighten the clamping screws on both sides to
secure the lower handle.
1
2
3
4
012386
1
2
3
4
5
012606
3. Raise the upper handle and align the screw holes
in the upper handle with those in the lower handle
and then secure it with the supplied screws and
clamping nuts.
NOTE:
• At this time, keep a firm grip on the upper handle
so that it does not drop off your hand.
1
2
012421
1
2
012605
NOTE:
• Install the upper handle so that the direction of the
upper handle and the power supply cord are
positioned as shown in the figure.
1
23
4
012389
NOTE:
• The upper handle has two holes each on both sides.
Using the different position holes for the screws and
clamping nuts allows the handle height adjustment.
Removing or installing the blade
WARNING:
• Always remove the lock key and battery cartridge
when removing or installing the blade. Failure to
remove the lock key and battery cartridge may
cause a serious injury.
• The blade coasts for a few seconds after releasing
the switch. Make sure that the blade has come to a
complete stop.
• Always wear gloves when handling the blade.
1. Screw
2. Clamping nut
3. Upper handle
4. Lower handle
1. Holders
2. Cord
1. Holders
2. Cord
1. Clamping nut
2. Lower handle
3. Upper handle
4. Screw holes
5. Screw
1. Upper handle
2. Lower handle
3. Screw holes
4. Screw holes
1. Lower handle
2. Groove on the deck
3. Clamping screw

10
2
1
3
012304
1. Put the mower on its side so that the mowing
height adjusting lever is placed on the upper side.
2. To lock the blade, insert a screwdriver available or
the similars in market into a hole in the mower.
3.
Loosen the bolt counterclockwise with the wrench.
1
2
3
4
5
012601
4. Remove the bolt, outer flange, blade and inner
flange in order.
To install the blade, take the blade removal procedure in
reverse.
WARNING:
• Install the inner flange, the blade and the outer
flange carefully as these have a top/bottom facing.
• Tighten the bolt clockwise firmly to secure the blade.
• Put the blade so that the blade side with a
rotational direction arrow faces outward.
• Make sure that the blade is installed securely.
• Always take away the screwdriver or similars
inserted in a hole to lock the blade.
Installing the grass basket
Remove the lock key.
1
2
012302
1
2
3
012301
Raise the rear guard of the mower unit and hook the
grass basket on the groove of the mower unit.
1. Rear guard
2. Groove
3. Grass basket
1. Rear guard
2. Groove
1. Inner flange
2. Arrow
3. Outer flange
4. Bolt
5. Blade
1. Screwdriver
2. Blade
3. Bolt

11
OPERATION
Mowing
WARNING:
• Before mowing, clear away sticks and stones from
mowing area. Furthermore, clear away any weeds
from mowing area in advance.
• Always wear the safety goggles or safety glasses
with side shields when operating the mower.
Firmly hold the lawn mower handle with both hands
when mowing.
The front wheel outside edges of the main unit provide a
guideline to mowing width. Using the two front wheel
outside edges as a guideline, mow in strips, overlapping
by one half to one third the previous strip, to mow the
lawn evenly.
Periodically check the level of the grass basket, and
empty before it becomes full. Before every periodical
checks, be sure to stop the mower and remove the lock
key and the battery cartridge.
NOTE:
• Using the lawn mower with the grass basket full
prevents smooth blade rotation and places an extra
load on the motor, which may cause breakdown.
Mowing a long-grass lawn
012382
Do not try to cut long grass all in one go. Instead, mow
the lawn in stages, leaving it for a day or two between
mows, until the lawn is evenly short.
NOTE:
• Mowing long grass to a short length all in one go
may cause the grass to die and/or block up the
inside of the main unit.
Emptying the grass basket
WARNING:
• To reduce a risk of accident, regularly check the
grass basket for any damage or weakened
strength and replace it if necessary.
1. Release the switch lever.
2. Remove the lock key.
1
2
012307
3. Open the rear guard and take out the grass
basket with its handle.
4. Empty the grass basket.
MAINTENANCE & STORAGE
WARNING:
• Always be sure that the lock key and battery
cartridge are removed from the mower before
storage or attempting to perform inspection or
maintenance.
• Wear gloves when performing inspection or
maintenance.
CAUTION:
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
MAINTENANCE
1. REMOVE THE LOCK KEY. Store it in a safe place
out of the reach of children.
2. Clean your mower using only mild soap and a
damp cloth. Do not spray or pour water on your
mower when cleaning.
3. Turn mower on its side and clean grass clippings
that have accumulated on the underside of mower
deck.
1. Rear guard
2. Grass basket

12
4. Check all nuts, bolts, knobs, screws, fasteners etc.
for tightness.
5. Inspect moving parts for damage, breakage, and
wear. Have repairs made on any damaged or
missing parts.
6. Before storing the mower, remove the battery
cartridge from it.
7. Store mower indoors in a cool, dry and locked
place. Don't store the mower and charger in
locations where the temperature may reach or
exceed 40 ﾟC (l04 ﾟF).
Storage
012604
WARNING:
• When carrying or storing the mower, do not hold
the folded handles but the front grip of the mower.
Holding the folded handles may cause a serious
injury or damage to the mower.
012309
The mower can be stored in upright position.
1
2
3
4
5
012298
1. Loosen the clamping screw, expand the lower
handle to both sides and then move down the
handle forward.
NOTE:
• At this time, keep a firm grip on the lower handle so
that it does not fall down to the far side from the tool.
2. Loosen the clamping nut and pivot the upper
handle back.
1
2
012602
3. Take off the grass basket and put the mower in
the upright position.
1. Rear guard
2. Grass basket
1. Clamping screw
2. Expand
3. Move down forward
4. Clamping nut
5. Pivot back

13
1
012600
NOTE:
• When putting the mower in the upright position, do
not hold the handle but use the front grip of the
mower.
012420
4. Store the grass basket between the handle and
the mower body.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
TROUBLE SHOOTING
Before asking for repairs, conduct your own inspection
first. If you find a problem that is not explained in the
manual, do not attempt to dismantle the tool. Instead,
ask Makita Authorized Service Centers, always using
Makita replacement parts for repairs.
1. Front grip

14
Malfunction status
Mower does not start.
Cause
Battery cartridge is not installed.
Battery problem (under voltage)
Cutting height set is too low.
Battery power is dropping.
Electric or electronic malfunction.
Action
Install the battery cartridge.
Remove the foreign object.
Motor stops running after
a little use.
It does not reach maximum
RPM.
Cutting tool does not rotate:
stop the machine immediately!
Abnormal vibration:
stop the machine immediately!
Cutting tool and motor cannot
stop:
Remove the battery
immediately!
Blade is imbalanced, excessively
or unevenly worn
The drive system does not work
correctly.
Foreign object such as a branch is
jammed near the blade.
The drive system does
not work correctly.
Battery is installed improperly.
Battery's charge level is low.
Recharge the battery. If recharging
is not effective, replace battery.
Ask your local authorized service
center for repair.
Ask your local authorized service
center for repair.
Replace the blade.
Remove the battery and ask your
local authorized service center for
repair.
Recharge the battery. If recharging
is not effective, replace battery.
Install the battery cartridge as
described in this manual.
Raise the height.
Recharge the battery. If recharging
is not effective, replace battery.
The lock key is not inserted. Insert the lock key.
012350
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Blade
• Makita genuine battery and charger
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.

15

16
Makita Corporation
Anjo, Aichi, Japan
www.makita.com
885081A229
