TABLE OF CONTENTS
MALEKKOHEAVYINDUSTRY.COM
VARIGATE 8+ MANUAL V.2
SPECIFICATIONS 1
INSTALLATION 2
DESCRIPTION 3
OVERVIEW 4-5
CREATING YOUR FIRST GATE SEQUENCES 6
QUANTIZED CV OUTPUTS, THE NOTE FUNCTION AND GLIDE 7
SAVING AND RECALLING PRESETS AND HOW TO USE BANKS 8
SONG MODE 9
TRACK MODE 10
QUANITIZED CV OUTPUTS, KEY AND SCALE 11
RANDOMIZING 12
ADVANCED FEATURES 13-17
◦ RANDOMIZING GATE REPEATS PER STEP
◦ RANDOMIZE GATE DELAY PER STEP
◦ FREEZE
◦ SONG SEQUENCE DIRECTION
◦ LIVE GATE RECORD
◦ MUTE PAGES
◦ COPY SEQUENCE
◦ GATE+DELAY
◦ OCTAVE RESTRICT
◦ BOUNCING BALL
◦ LIVE CV RECORD
◦ SYNC/RESET MODES
◦ SOLO CHANNEL MODE
◦ ALL STEPS ON
USING VARIGATE 8+ WITH VOLTAGE BLOCK,
VARIGATE 4+, QUAD GATE DELAY AND QUAD LFO 18
WARRANTY 19

SPECIFICATIONS
MALEKKOHEAVYINDUSTRY.COM
VARIGATE 8+ MANUAL V.2
FORMAT:
EURORACK
DIMENSIONS:
26HP, 26mm deep
INTERNAL AND EXTERNAL SIGNALS (3.5mm jacks):
0-5V Logic I/O
MAX CURRENT:
+12V: 180mA
-12V: 39mA
PG. 1

INSTALLATION
MALEKKOHEAVYINDUSTRY.COM
VARIGATE 8+ MANUAL V.2
RED STRIPE TO SOLID WHITE LINE
Remove module from packaging.
Power down your modular synthesizer and disconnect the power cable from the
wall outlet.
Attach the included power cable to the module’s power connector and connect
the other end to the power distribution bus in your EuroRack synthesizer case.
Match the red stripe of the cable to the solid white line on your Varigate 8+.
Position the module on the mounting rails in your EuroRack case and screw
down mounting screws. Power up! If your case does not turn on properly then
you have installed the module incorrectly. Simply power down and make sure to
follow the diagram when reconnecting the module.
PG. 2

DESCRIPTION
VARIGATE 8+ is designed to be the ultimate compact sequencer and control station
over an entire Eurorack modular system. Create songs and live performance material
with 8 channels of gate outputs with up to 16 steps per channel, 2 independent CV
outputs for custom scale quantization, easy recall of 10 storage banks and 100 chan-
nel presets, random functions, mute functions and more.
FEATURES INCLUDE:
8 channels of gates, each with up to 16-steps
2 quantized 1v/oct CV channels
CV channels can be independent or linked to any gate channel
Save up to 100 presets
10 different song banks programmable by choosing any sequence of presets
Programmable scale per bank
Note and Glide per step
Forward, Reverse, Pendulum and Random directions per channel
Probability, Repeat, Delay and Pulsewidth control per channel
Individual clock multiplier, divider and sequence length per channel
Random gate input for applying variation to a pattern
All per step parameters can be randomized within a given range
Program gate channels with both sliders and buttons
Mute function (mute a channel or pattern)
Freeze gate input turns random sequences into static sequences while active
Reset input
Clear function for clearing channels and parameters
Tempo control knob
Clock in and Out
Keyboard Mode
Bouncing Ball Repeats
MALEKKOHEAVYINDUSTRY.COM
VARIGATE 8+ MANUAL V.2
PG. 3

DIVIDE/MULTIPLY
SEQ LENGTH
SEQ MODE
KEY
ROOT
ROOT + 1
ROOT + 2
ROOT + 3
ROOT + 4
ROOT + 5
ROOT + 6
ROOT + 7
ROOT + 8
ROOT + 9
ROOT + 10
VARIGATE 8+
CLK IN
CLK OUT TRACK
RESET
PROB
CLEARMUTE
RPT DLY
PW GLIDE
SONG
FREEZE
RND
TEMPO
GATE 1
NOTE
END
SAVE
GATE 3
RECALL
GATE 2 GATE 5 GATE 6
GATE 4 GATE 8GATE 7 CV 2
CV 1
BANK/ALL
ROOT + 11
B
A
G
F
E
D
C
MALEKKOHEAVYINDUSTRY.COM
VARIGATE 8+ MANUAL V.2

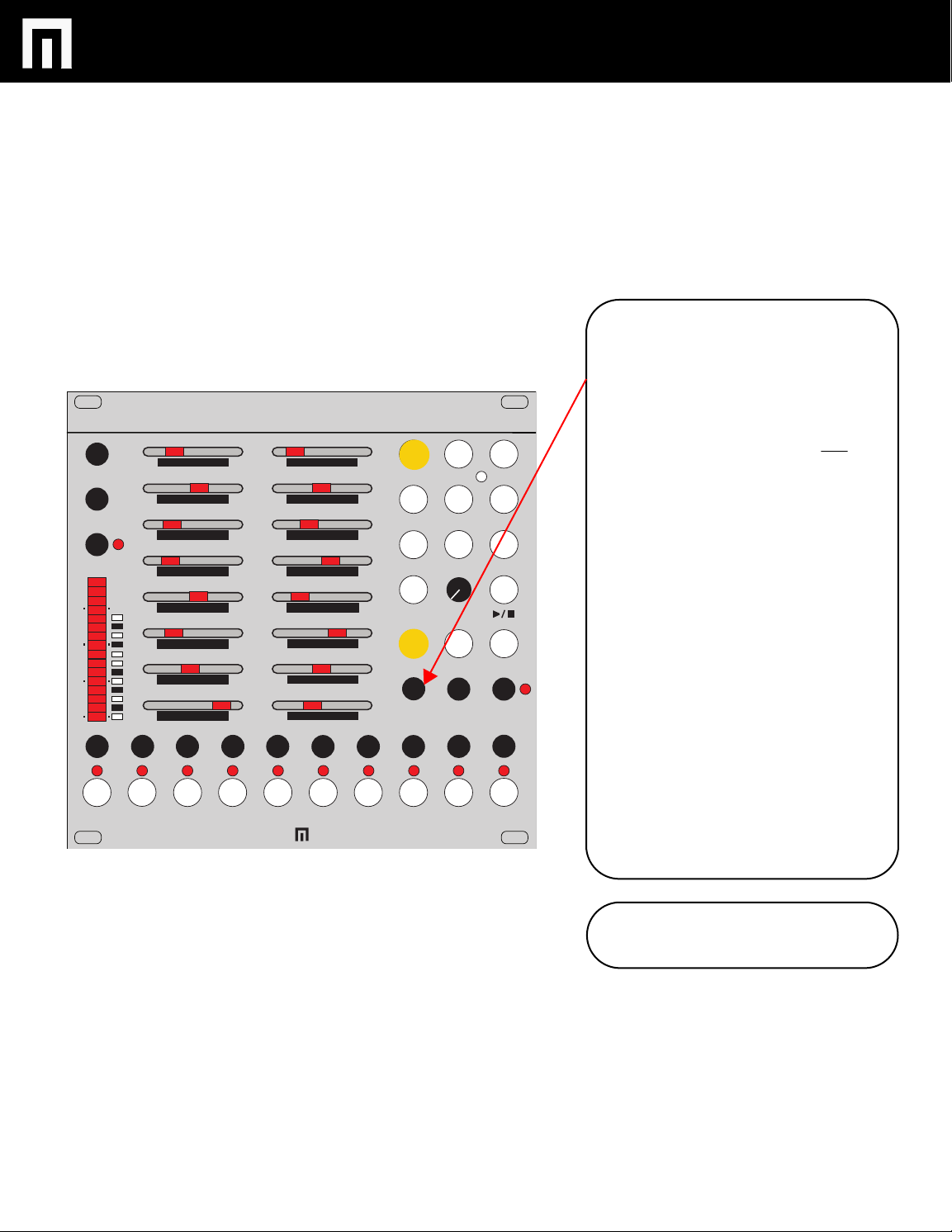

OVERVIEW
CV 1 and CV 2 are quantized (or unquantized)
CV outputs and also act as available
PRESETS as well as available BANKS.
CLOCK IN: External CLOCK INPUT.
RESET: Gate input for resetting to
step 1.
CLOCK OUT: CLOCK OUTPUT with
LED indicator.
LED BAR GRAPH: Displays various
mode settings.
STEP SLIDERS: Move to adjust
various slider features.
GATE OUTPUTS with LED indicators:
Connect your patch cables from these
outputs to other module gate or
trigger inputs.
NOTE: GATE buttons also act as
PRESET and BANK BUTTONS.
PG. 4

DIVIDE/MULTIPLY
SEQ LENGTH
SEQ MODE
KEY
ROOT
ROOT + 1
ROOT + 2
ROOT + 3
ROOT + 4
ROOT + 5
ROOT + 6
ROOT + 7
ROOT + 8
ROOT + 9
ROOT + 10
VARIGATE 8+
CLK IN
CLK OUT TRACK
RESET
PROB
CLEARMUTE
RPT DLY
PW GLIDE
SONG
FREEZE
RND
TEMPO
GATE 1
NOTE
END
SAVE
GATE 3
RECALL
GATE 2 GATE 5 GATE 6
GATE 4 GATE 8GATE 7 CV 2
CV 1
BANK/ALL
ROOT + 11
B
A
G
F
E
D
C
MALEKKOHEAVYINDUSTRY.COM
VARIGATE 8+ MANUAL V.2
OVERVIEW
PROB/PROBABILITY: Select and then
adjust a step slider to activate a gate per
step.
RPT/REPEAT: Select and then adjust a
step slider to control the amount a step
repeats.
DLY/DELAY: Select and then adjust a
step slider to control the amount of delay
per step. NOTE: Increasing delay on a
step proportionally shortens its pulse-
width. You can increase the pulsewidth
for that step after adjusting the delay but it
quickly reaches the end of the pulse and
will be sustained over into the next clock
pulse.
PW/PULSEWIDTH: Select and then
adjust a step slider to change the pulse-
width of a step.
GLIDE: Select a CV channel, then press
GLIDE to add glide per step.
TRACK: Select to enter TRACK MODE
for adjusting all of the features listed in
black under the sliders (DIVIDE/MULT,
SEQUENCE LENGTH, SEQUENCE
MODE, KEY etc.).
MUTE: Select to enter MUTE MODE and
MUTE PAGES.
CLEAR: Hold and press a GATE button to
clear that corresponding output/channel
SONG: Acivates SONG MODE.
TEMPO: Adjust to desired tempo.
PLAY/STOP: Start playback or stop.
RECALL: Hold while selecting a saved
preset to RECALL it.
RND/RANDOM: Insert gate signal to
randomize patterns.
FREEZE: Insert gate signal to freeze
randomization of all parameters.
END with LED indicator: Sends sequence
END gate out.
PG. 5

MALEKKOHEAVYINDUSTRY.COMMALEKKOHEAVYINDUSTRY.COM
VARIGATE 8+ MANUAL V.2
CREATING YOUR FIRST PATTERNS/SEQUENCES
PRESS THE PLAY BUTTON so that you
can hear what you are about to create.
Select one of the GATE channels so that
button is lit.
Next, press the PROBABILITY button
once and then adjust a step slider. If you
move a step slider all the way to the
right, the chance that that gate will occur
is 100%. Setting the slider to the center
and the gate will occur 50%of the time
and so forth.
NOTE: By default, there are 16 steps per
each GATE pattern/sequence.
You can change the PULSEWIDTH of
a gate per step by selecting the PW
button and adjusting a slider for a gate
you wish to change. Depending on the
module receiving the gate, you’ll hear
this step is audibly longer (because
the width of the gate is longer).
To clear an existing pattern, simply
hold the CLEAR button while selecting
one of the GATE buttons to clear that
pattern/sequence entirely.
To add REPEATS per step, such as
hi-hat rolls: Select a GATE channel, now
press the REPEAT button once and
adjust the slider/step you wish to add
REPEATS to. You should now hear
rolling repeats everytime that step plays.
Follow these instructions for GATE
channels 2-8.
HINT: You can create a quick
pattern/sequence on the fly by inserting
a gate signal into the RND/RANDOM
input.
Now add DELAY per step: follow the
same steps above but select the DELAY
button and adjust the step slider you
wish to add gate delay to. Notice that
each time that step plays it is now slightly
delayed or shuffled.
