MAMEN MIC-05 User manual

Mikrofon Video
MIC-05
Thank you for purchasing our product. For optimum performance
and safety, please read these instructions carefully before operating
the product. Please keep this manual for future reference.
Buku Manual

Pengenalan
Bagian
Fitur
Welcome to MIC-05 Photo Recording Microphone, this product is specially
designed for photography, interview and other professional fields.Designed
to fit common mid- to high-end cameras and SLR cameras, and is convenient
and fast Installed on the camera. Built-in professional high-performance
super-cardioid pickup microphone with dual-head mutual Complementary
sound pickup technology, with long pickup distance, wide frequency response,
and high-definition sound The resolution, effective pickup distance of 20 meters,
is the best companion for photographic recording.
* Installed on the camera. Built-in professional high-performance super-cardioid
pickup microphone with dual-head mutual Complementary interference pickup
technology, with far-distance pickup distance, wide frequency response, and
high-definition sound analysis Degree, the effective pickup distance is up to 20
meters;
* With NCR noise reduction pickup technology, superior noise reduction characteristics.
* External +20dB sensitivity enhancement switch to adapt to different sound
intensity pickups;
* With low power indication function, you can control battery usage at any time;
* It can be easily mounted and fixed to the camera using the standard universal
connector specifications.
* Output signal using a standard 3.5mm stereo plug;
Battery coverAAA Battery
connecting cable
Wind cap
Wirc clip
Slide rail adapter plug
Power/pick up of
the indicator
Power lighe

Fungsi dan Bagian
Cara Penggunaan
1. Combination switch: “OFF” power is off; when the switch is pulled to “0dB”, it is
normal pickup state;“+20dB” is a sensitivity-enhanced pickup for long-distance
pickup.
2. Power indicator: The power on is green, indicating that the microphone has
entered the pickup state; when the LED When the light is bright red, the battery
is low and the battery needs to be replaced. (Note: When low battery is displayed,
The battery can still work normally for 1 hour)
3. connecting cable: Φ3.5 plug spring connecting cable, the length is 700MM;
4. card slot
5. Battery compartment: Install AAA 1.5V alkaline battery
6. Shoe connector fixed plate
7. Shoe connector chuck.
8. Windshield
9. AAA battery
1. Open the battery compartment, please install the AAA 1.5V base correctly
according to the positive and negative batteries marked in the battery
compartment Battery.
2. When the microphone is mounted to the camera or SLR camera, install the shoe
connector to the boots of the device.In the seat, turn the shoe connector retaining
plate clockwise to tighten it.
3. Plug the Φ3.5 plug of the microphone into the MIC (microphone) connector of
the device and turn on the microphone.The source switch, at this time the
microphone enters the working state.
4. This microphone can meet the needs of different occasions, with 0dB and +20dB
enhancement.
1
2
6
7
3
8
9
5
4

Spesifikasi
Monomer: Electrostatic Capacitor Head
Pointing to the features: Super heart pointing
Frequency response: 50Hz-16kHz
Sensitivity enhancement：+ 20dB ±2dB
Sensitivity: -45dB±3dB (0dB=1V/Pa at 1kHz)
Equivalent noise level：24 dB A
Maximum sound pressure level：130dB(THD≤1.5% at 1KHz)
Output impedance:200Ω±30% (at 1kHz)
Channel: mono
Use voltage: AAA 1.5V alkaline battery Power consumption ≤ 5mA (typical)
Battery life: The new battery can be used continuously for 70-80 hours.
This product complies with the European Union Electromagnetic Compatibility
2004/108/EC standard
And the FCC Part15 standard.
Pola Rekam

Isi dalam Paket
Camera recording microphone: one
Windproof cotton : one
AAA 1.5V alkaline battery: one
Manual: One
Catatan
1, the microphone built-in professional condenser microphone core, high sensitivity,
need to pay attention not to fall or strong Impact.
2. When the microphone is not in use, store it in a dry and clean place. Avoid high
temperatures, high humidity and strong Store or use in a magnetic field.
3. When the microphone is stopped, the power switch should be pulled to “OFF”
to save battery power.Quantity; when not used for a long time, the battery should
be taken out to prevent the battery from leaking and damaging the circuit.
4. When the battery is low, the battery should be replaced in time.
5, in order to achieve a good sound pickup effect, please put a random configuration
of windproof cotton.

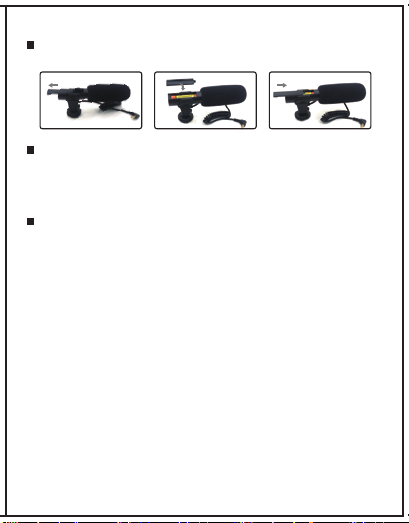

Cara Pemasangan Baterai
