MANDAI DESIGN Addison User manual

Addison
Assembly Instruction

View our instructional video for assembly.
You can scan the QR code below
or visit our YouTube channel:
https://youtube.com/@mandaidesign
Use your smartphone camera to scan the QR code or visit our website directly at:
www.mandai-design.com/pages/assembly-instructions
Assembly video
2AD.NOV.2023.01.EN

Addison is a versatile modular shelving system that offers our customers unlimited
design possibilities. These assembly instructions cover the fundamental steps to
assemble the frame, along with all available components. Please note that the
conguration you ordered may not include all the components explained here.
Modular assembly
3
Presentation-
box
Display board/
Chalk board
Shelf support
Shelf board
Back bar
Front arm
Diagonal-
connector
Connector
Storage box
Upright frame
Bracket
Fashion rail
Angled shelf-
board
Pedestal
AD.NOV.2023.01.EN

Safety tips
Any questions?
Follow the assembly steps carefully. We cannot be held responsible for any errors,
damages, or injuries that may occur due to improper execution. Ensure that you do
not exceed the recommended weight limit of the shelf system. Make sure the shelf
is assembled on a level surface.
To use Addison as a freestanding shelf, you must use the diagonal connectors to
interconnect the upright frames for stability. The assembly with diagonal connectors
can be found on page 15.
Please don‘t hesitate to contact us by phone:
[phone]
Or write us an email:
[email protected]
4AD.NOV.2023.01.EN

Tools needed
Plan ahead
Unpack all items and organize them to get a clear overview. Verify
your measurements on-site and mark the position of the shelf using tape.
Place an underlay beneath the shelf for protection. When planning the
placement of your shelving system, consider nearby doorways and walk-
ways. Ensure sufcient space is allocated for movement and functionality.
5
AD.NOV.2023.01.EN

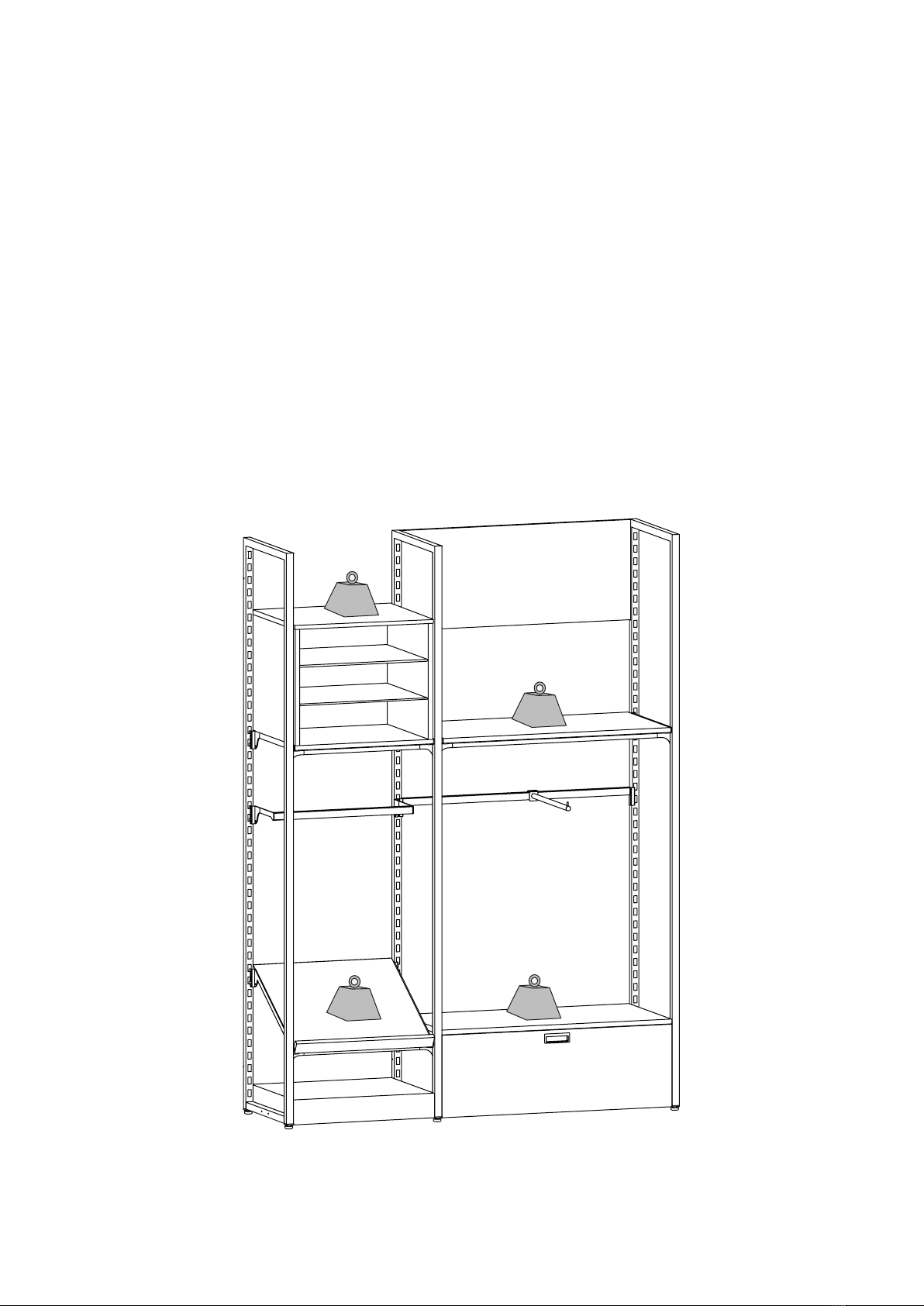

Load capacity
In general, we recommend the use of shelf support proles. These ensure a consistent
appearance, even when the shelves carry varying loads. Shelf support proles should
always be used for each shelf when the load is between 15 kg and up to a maximum
of 30 kg. The maximum weight per shelf system must not exceed 200 kg.
30 kg
30 kg 30 kg
30 kg
6AD.NOV.2023.01.EN

Accessories
Adjustable foot M8 Open-end
Wrench 13
Spacer sleeves
20/5 mm
Screw M6x12 Hex key 4 mm
Upright frame
50008
50004
50005
50009 50007 50006
For your added convenience, we include additional screws with each order.
You will nd these indicated in the drawings with the corresponding number.
The wall mounting anchor is suitable for both solid and drywall.
Note:
The leveling adjustable foot is pre-assembled and attached to the upright frame. The
AW20 screw bit is used both for wall mounting, display/chalk board and wooden elements.
Wall mounting
Bit AW20
50003
Anchor 6x36
50002
Screw 4,2x50
50001
Screw M8x16 Hex key 5 mm
Diagonal connector
50011 50010
Glass shelf support
5/2 mm
Glass components
50013
Screw 4x20
Wooden components
Bit AW20
50003
50012 50014
Display board/
Chalk board
Screw 3,5x17 Bit AW20
50003
7
AD.NOV.2023.01.EN

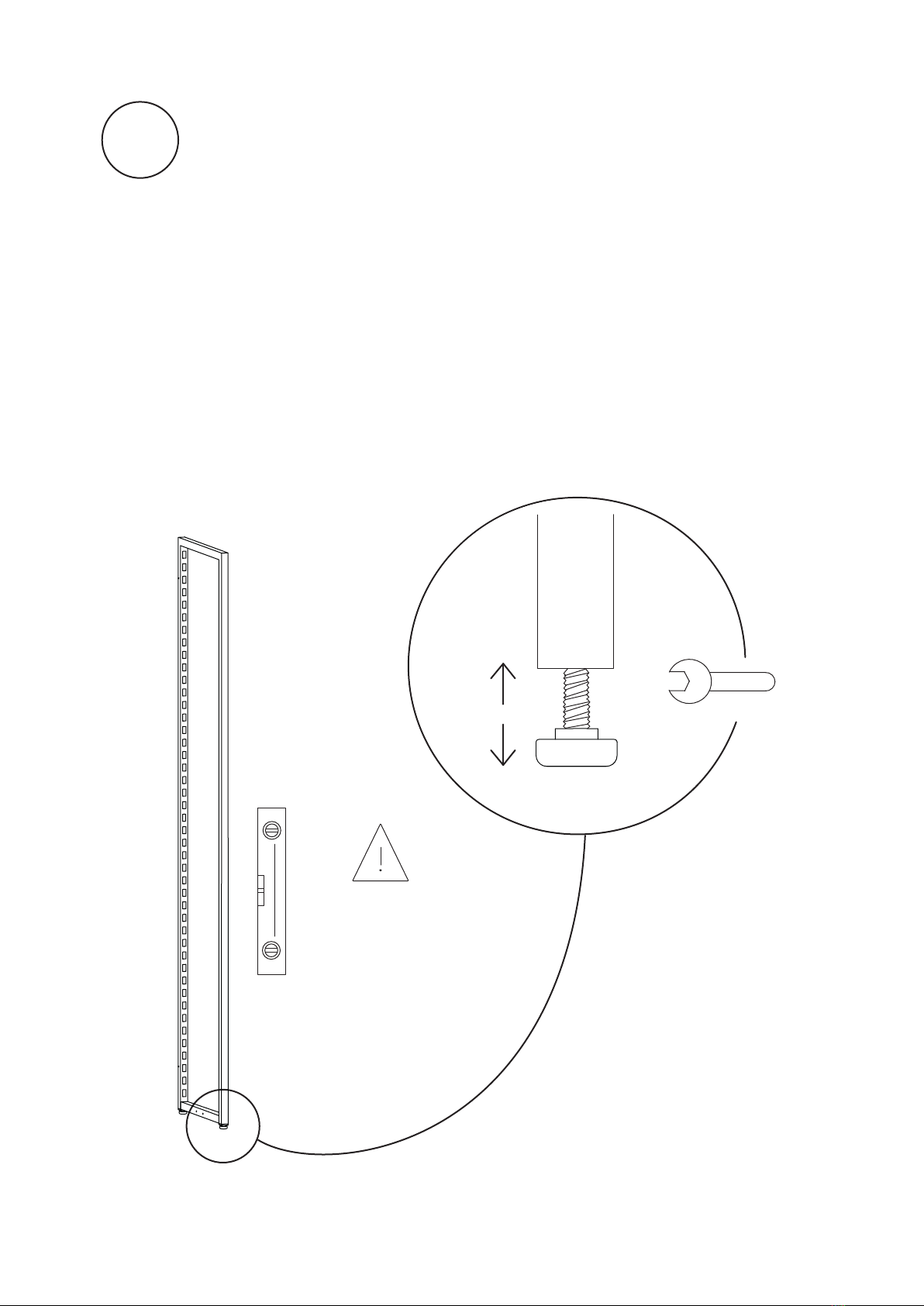

Frame alignment
1. Before starting, mark the beginning and the end of the shelf on the wall.
2. Set up the frame against the wall.
3. Align the frame with a spirit level. If necessary, adjust the feet
using the supplied wrench.
Note:
Pay particular attention to the back of the shelf
frame, there are six holes on the backside.
Ensure that the
frame is perfectly
level.
50004
max. 20 mm
50005
8
1
AD.NOV.2023.01.EN

Ensure that the
frame is perfectly
level.

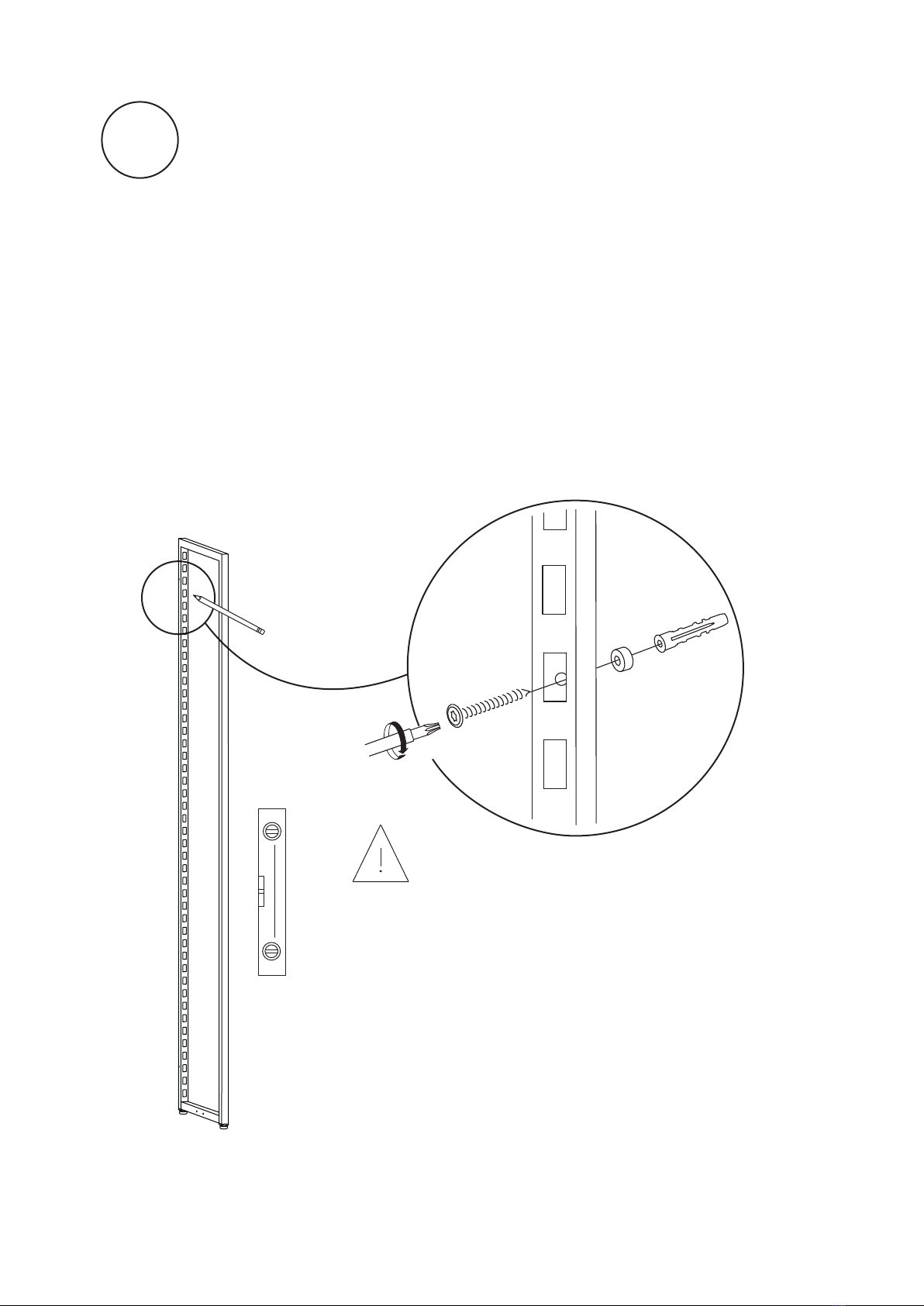

Wall mounting frame
1. Mark the drill holes with a pen through the hole in the
mounting frame, or measure the distance.
2. Drill holes for the anchors and insert them.
3. Select the spacer sleeve so that the mounting frame is level.
4. Screw the mounting frame to the wall.
Note:
For each mounting frame, a pair of holes are provided at the top and the bottom.
Only one hole need be used, the second hole serves as an alternative option.
Wall attachment
50001
50006/
50007
50003
50002
9
2
AD.NOV.2023.01.EN

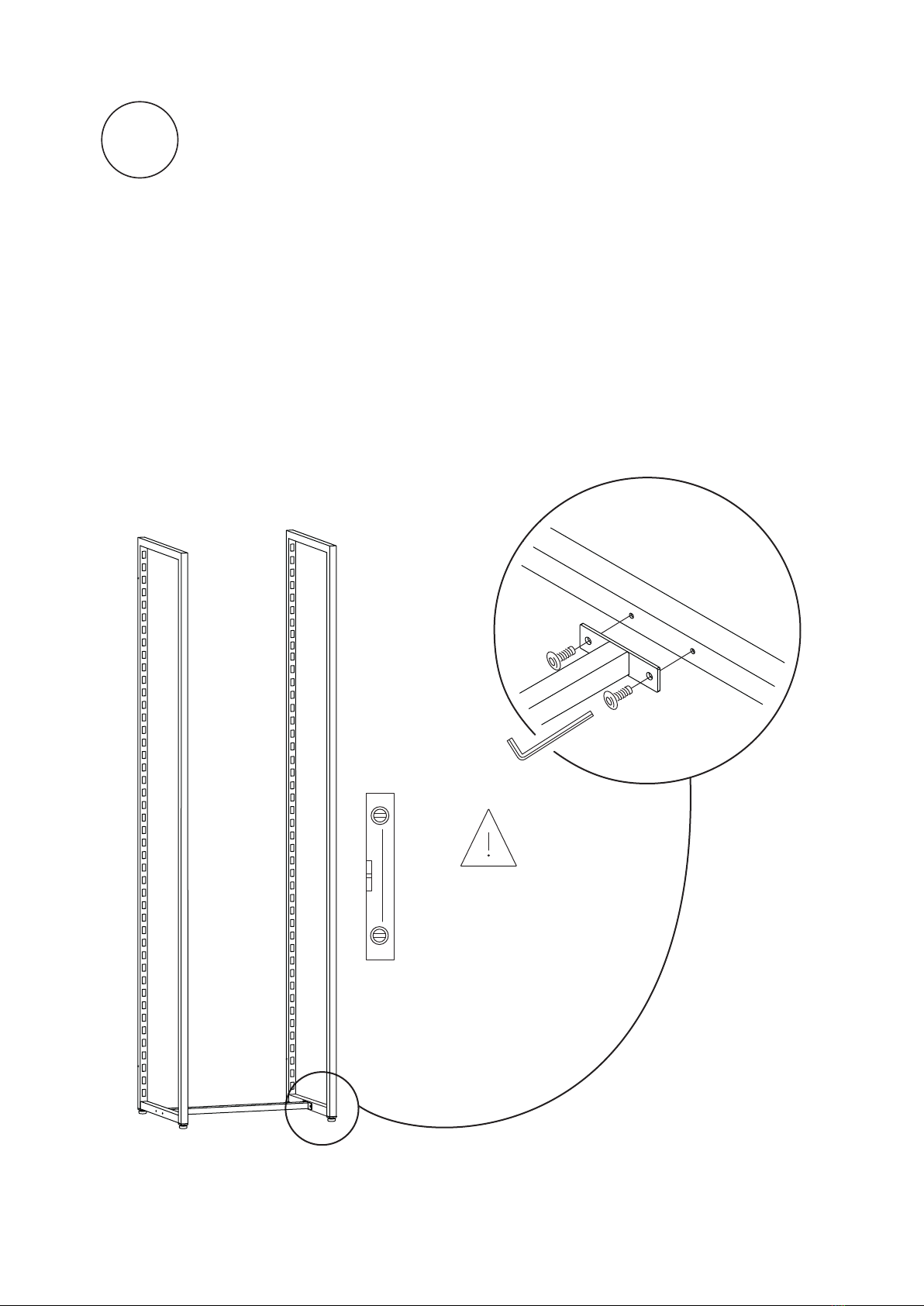

Frame extension
1. Screw the connector securely to the wall xed frame at the bottom.
2. Attach the next mounting frame to the other end of the connector.
3. Align this mounting frame with the level and mark the drill holes on the wall.
4. Screw the mounting frame to the wall.
5. Repeat this process with all other mounting frames.
Ensure that the
frame is perfectly
level.
50008
50009
10
3
AD.NOV.2023.01.EN

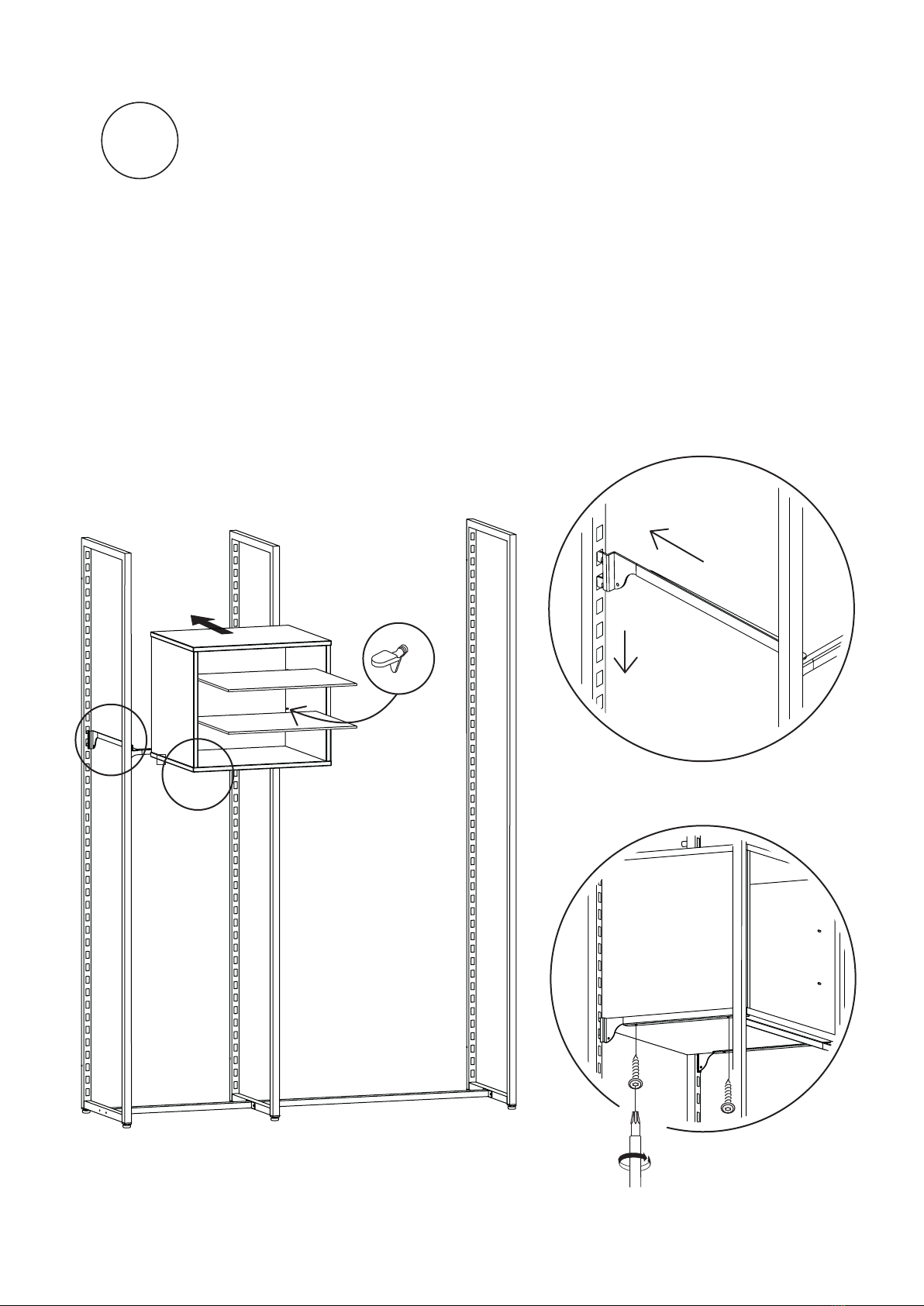

1. Hang the support prole at the desired height into the mounting frame.
2. Hang the two brackets at the same height.
3. Carefully slide the presentation box on the brackets. The presentation box must
be ush with the front edge and secured from below with a total of four screws.
4. Insert the glass shelf supports at the desired height.
5. Place the glass shelves into the presentation box.
Presentation box
3. Presentation box
50012
50003
2. Brackets
50013
3
2
4
11
4
AD.NOV.2023.01.EN

Shelf board, Display board +
Chalk board
Shelf board:
Screw the brackets to the underside of the shelves.
The bracket must be ush with the front edge of the shelf.
Display board/Chalk board
8x
50014
bottom
62,5mm
65mm
top
50014
Display board/Chalk board:
Screw the adapters to the back of the board according to the dimensions specied below
4x
50012 50003
50012
Shelf board
ush
12
5
AD.NOV.2023.01.EN

Shelf board, Display board,
Chalk board + Display ttings
1. Hang the shelves in position and use support proles as needed, depending on the
purpose. A support prole is required for the presentation box and the angled shelf board.
2. Hang the display/chalk board in the mounting frame.
3. Hang the back bar and fashion rail and attach the respective display ttings.
2. Display board / Chalk board
1. Shelf board
13
2
3
1
6
AD.NOV.2023.01.EN

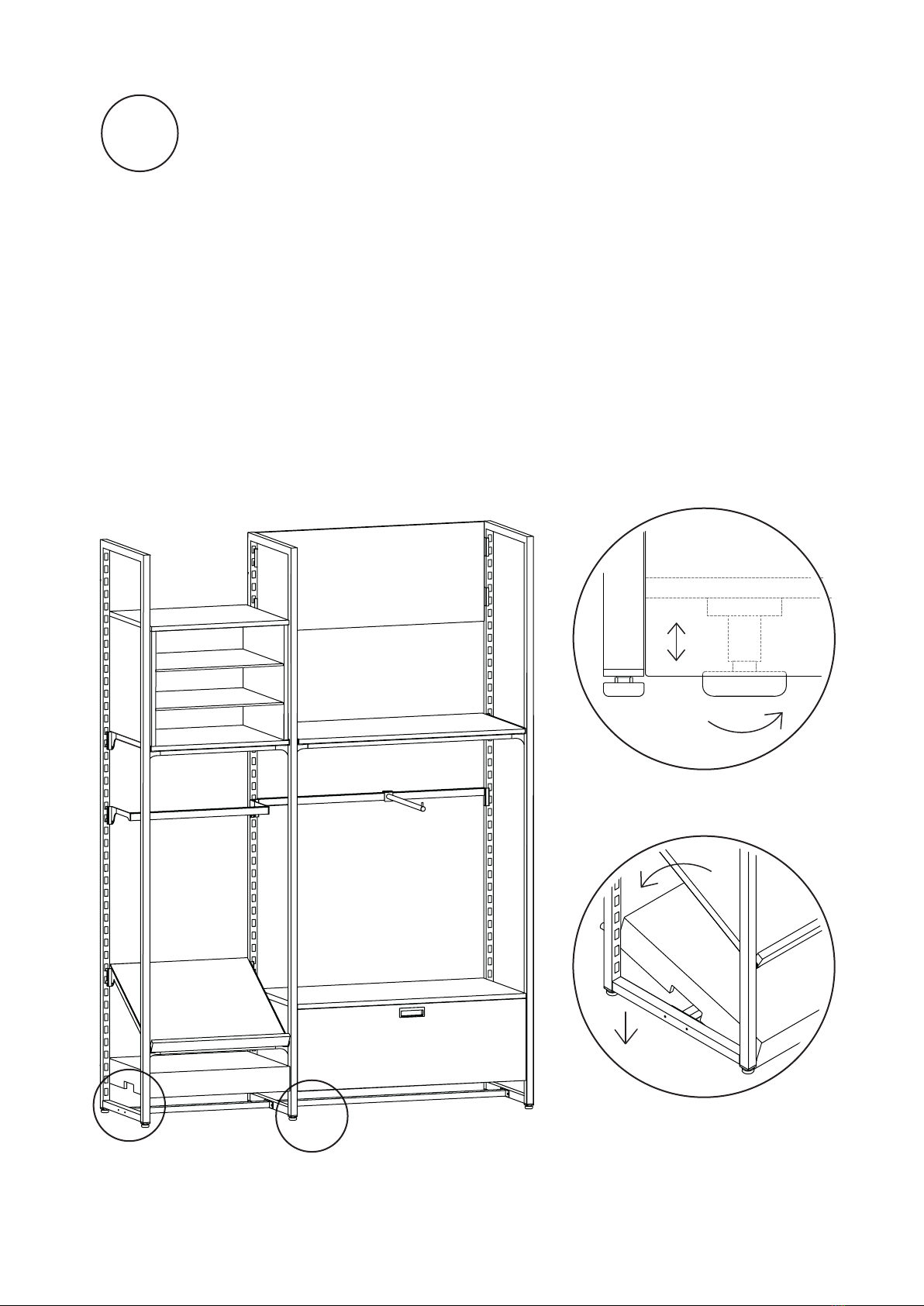

Storage box + Pedestal
1. Place the storage box on the connector.
2. Adjust the feet under the storage box by turning them by hand
until the desired position is reached. Ideally, the lower edge of the
storage box should align with the height of the mounting frame.
The same steps apply to the pedestal.
Storage box
Pedestal
7
14 AD.NOV.2023.01.EN

Free-standing shelf assembly
1. Set up the mounting frame.
2. Align the frame using a level.
3. If necessary, adjust the leveling
feet with a wrench.
1. Securely attach the connector to the
mounting frame.
2. Align the next mounting frame with a
level and fasten it at the bottom using
the connector.
1 2
3
50010
50004
50005
50008
50009
50011
15
1. Attach the diagonal connector to
the mounting frame and make any
necessary adjustments as needed.
2. Repeat this process with all the
other mounting frames.
AD.NOV.2023.01.EN
