Mantis SUB Quick setup guide

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
1
INTEGRATION GUIDE
FOR ROV, SUBMERSIBLE AND SURFACE STREAMING
OPERATIONS
MANTIS SUB ENCLOSURE
FOR INSTA360 PRO/PRO2
Please read these instructions carefully before using this product, and save this manual for future
use. For questions, email [e-mail] or visit https://www.mantis-vr.com/
Please note that the actual controls and components, menu items, etc. of your camera and software
may look somewhat different from those shown in the illustrations in this manual.

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
2
TABLE OF CONTENTS
ABOUT THE MANTIS SUB ENCLOSURE...................................................................3
CONTROLLING AND MONITORING...........................................................................3
ROV INTEGRATION OVERVIEW................................................................................4
SPECIFICATIONS.........................................................................................................5
Enclosure....................................................................................................................5
Power Consumption...................................................................................................5
Live Streaming............................................................................................................5
Connections................................................................................................................6
Mount Points...............................................................................................................6
Bulkheads...................................................................................................................6
DRAWINGS...................................................................................................................7
Front............................................................................................................................7
Side.............................................................................................................................7
Top..............................................................................................................................8
Base............................................................................................................................8
BULKHEAD CONNECTOR GUIDE..............................................................................9
Audio / Hydrophone....................................................................................................9
Ethernet ......................................................................................................................9
Power..........................................................................................................................9
Hybrid –Ethernet and Power...................................................................................10
HDMI.........................................................................................................................10
USB 3.1 Type-C .......................................................................................................11
WARRANTY AND LIMITATIONS OF LIABILITY .......................................................11
TRADEMARKS............................................................................................................11
CONTACT....................................................................................................................11

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
3

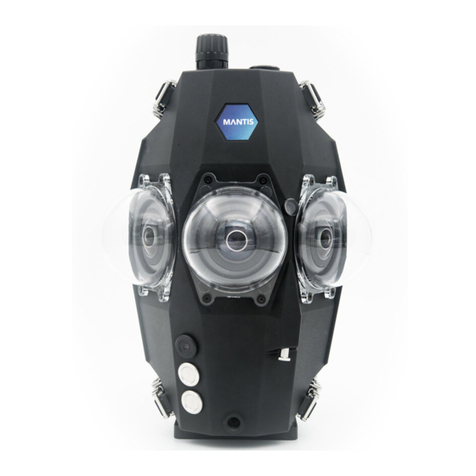

ABOUT THE MANTIS SUB ENCLOSURE
The Mantis Sub housing for the Insta360 Pro2 camera allows low-latency 4K3D live
streaming and 8K3D recording of full-spherical stereoscopic video at depths to 90
metres / 300 feet.
The distinctive hexagonal geometry of the allows an uninterrupted 360-degree view
with clean zenith and nadir. The camera can be switched on and controlled using
buttons on the body, or connected via a waterproof ethernet bulkhead to provide
control and livestreaming via the Insta360 app for mobile or desktop.
CONTROLLING AND MONITORING
The Insta360 Pro/Pro2 can be controlled with the buttons on the enclosure, or with
the free Insta360 App via Ethernet:
PC/Mac: https://www.insta360.com/download/insta360-pro2
iOS: https://apps.apple.com/us/app/insta360-pro-pro2-controller/id1245129112
Android: https://play.google.com/store/apps/details?id=com.arashivision.pro
The live stream can be viewed inside the Insta360 Pro Camera Control App
(windowed or full-screen) with minimal latency as low as 0.6s, depending on
resolution and hardware capabilities.
RTMP broadcasts to internet streaming platforms like Facebook, Youtube etc. have
a typical delay of 15s.

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
4
Please follow the streaming manual provided by Insta360 at
•https://onlinemanual.insta360.com/pro2/en-us/live/prepare/1
•https://www.insta360.com/de/support/supportcourse?post_id=3417
ROV INTEGRATION OVERVIEW
The housing is 300gr / 10oz positive in saltwater and should be mounted upright for
the best 3D experience. An optional ethernet or hybrid ethernet/power cable allows
integration into the ROVs ethernet network.
Cabling - Data only
4x 24 AWG for Cat 5 (required)
8x 24 AWG for Cat 6 (optional)
Cabling - Power only
2x 14 AWG for 12V5A
Cabling - Data and Power
4x 14 AWG 24 + 2x 14 AWG, or
8x 14 AWG 24 + 2x 14 AWG, or
Bulkhead
M16x1.0
Connector –Data
RJ45
Connector –Power
5.5x2.5mm barrel connector
IPv4
DHCP or fixed at 192.168.1.188
Bandwidth
20Mbps at 4K3D (3840x3840)
Latency
0.6s at 720P 3D(1440x1440)

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
5
SPECIFICATIONS
ENCLOSURE
•Housing body: Aluminium alloy.
•Surface treatment: Hard anodised.
•Dome Material: Acrylic.
•Depth rating: 90m/300ft.
•Buoyancy: freshwater 200g/7oz positive, seawater 300g/10oz positive
•Dimensions:
oDome: 90x70x40mm / 3.5*2.8*1.6 inch
oEnclosure w/o dome: 138*163*250mm / 5.5*6.4*9.85 inch
oEnclosure with domes: 190*209*250mm / 7.5*8.2*1.6 inch
•Weight without camera and batteries: 2.2 kg/4.8 lbs.
•Weight with camera and batteries: 3.7 kg/8.2 lbs.
•Battery life, controller: up to 12 hours
POWER CONSUMPTION
Mode
With battery installed
Without battery installed
Off
25mA
50mA
Idle
0.6A
0.4A
Ready
1.9A
1.7A
Recording
2.2A
2.0A
Streaming
2.1A
1.9A
Formatting
3.0A
3.0A
Off + Charging
1.6A
n/a
LIVE STREAMING
Resolution
Bitrate
Latency
4K3D (3840x3840)
20 Mbps
0.9s
4K (3840x1920)
15 Mbps
0.8s
4K (3840x2160)
15 Mbps
0.8s
1440P 3D (2880x2880)
15 Mbps
0.8s
1440P (2880x1440)
10 Mbps
0.8s
1080P (2160x1080)
6 Mbps
0.7s
1080P (1920x1080)
6 Mbps
0.7s
960P 3D(1920x1920)
10 Mbps
0.7s
960P(1920x960)
6 Mbps
0.7s
720P 3D(1440x1440)
8 Mbps
0.6s
720P(1440x720)
4 Mbps
0.6s

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
6
CONNECTIONS
Audio
Socket
2x 3.5mm stereo (input)
Ethernet
Socket
1x RJ45
Cable
Cat 5/5e/6 (min. 2x TP)
IP Address
192.168.1.188 or DHCP
Power
Socket
1x 5.5x2.5mm
Specification
DC 12V3A
HDMI
Socket
1x HDMI 2.0 Type D
(Micro)
Output
4K/60 fps
USB-C
Socket
1x USB 3.1 Type-C
Wifi (Insta360)
SSID
Insta360-Pro2-XXXX
IP Address
192.168.43.1
Password
88888888
WiFi (Mantis)
SSID
Mantis-Sub-XXXX
IP Address
192.168.44.1
Password
88888888
MOUNT POINTS
Top
15x 1/4-20 UNC, 9mm spacing
Base
16x 1/4-20 UNC, 9mm spacing
Front
1x 3/8-16 UNC
Back
1x 3/8-16 UNC
BULKHEADS
Top
2x M14x1.0
1x M16x1.0
Base
1x M16x1.0

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
7
DRAWINGS
All dimensions in mm.
FRONT
SIDE

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
8
TOP
BASE

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
9
BULKHEAD CONNECTOR GUIDE
AUDIO / HYDROPHONE
Insta360:
The Insta360 Pro and Pro2 feature a 3.5mm Audio input port at the base of the
camera to support external audio equipment.
The Insta360 Pro2 features an additional 3.5mm Audio input port, a USB2.0 port,
and a 1/4-20 UNC threaded hole at the top of the camera to support external audio
equipment mounted at the top. This is the preferred configuration.
Mantis:
The Mantis Sub enclosure features two M14x1 and one M16x1 bulkhead ports on
the top of the housing, and one M16x1 bulkhead port at the base. One M14x1 at the
top is typically taken by the Vacuum valve. The other ports are available to
accommodate audio connection and hydrophone(s) which are available from 3rd
parties.
3rd Party Equipment:
•Ambient Hydrophone ASF-G M14 with cable ASFG35DC, with M14x1
bulkhead connector.
ETHERNET
Insta360:
The Insta360 Pro1 and Pro2 feature a RJ45 socket at the base of the camera for
control, monitoring, and live streaming of pre-stitched 360 video. The minimum cable
requirement is Cat 5 (2x twisted pair). The maximum bandwidth requirement for live
streaming is 20MBit. This can be adjusted with the Insta360 App via WiFi and
Ethernet.
Mantis:
The Mantis Sub enclosure features one M16x1 bulkhead port at the base of the
housing. RJ45 bulkhead connectors are available from Mantis and 3rd parties.
3rd Party Equipment:
•DIVE AND SEE DNC-2025 LAN Ethernet Cat6 bulkhead connector, with
M16x1 thread.
POWER
The internal battery is able to supply power for up to 90 Minutes of continuous
recording. This can be extended by up to 30 Minutes with the Mantis battery pack.
For longer deployments, external power is desirable.
Insta360:

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
10
The Insta360 Pro and Pro2 feature a 5.5x2.5mm DC female socket at the base of
the camera to receive DC 10-12V at up to 3A (36W).
Mantis:
The Mantis Sub enclosure features one M16x1 bulkhead port at the base of the
housing. Power bulkhead connectors are available from Mantis and 3rd parties.
Please choose appropriate cable diameter and length considering current rating and
voltage drop.
3rd Party Equipment:
•DIVE AND SEE DNC-2067 waterproof power connector with voltage
regulator, with M16x1 thread.
HYBRID –ETHERNET AND POWER
For deployments on ROVs, Submarines or in Aquariums both Ethernet and power
connections may be desirable. This allows remote monitoring, control and live-
streaming for extended periods of time.
With one M16x1 port is available at the base where the Ethernet and power sockets
of the camera are located, a cable and connector with minimum 2x strands for power
and 4x for Cat 5 Ethernet is necessary. It is not possible to run a cable from the top
of the housing past the camera to the base. Suitable cables are available from
Falmart, Harting, Lapp and others, the best choice depends on the deployment
scenario. Please get in touch to discuss details.
3rd Party Equipment:
•Falmart XtremeNet
•Lapp ETHERLINE
•Harting PROFINET
HDMI
Insta360:
The Insta360 Pro and Pro2 feature a HDMI 2.0 Typ-D (HDMI Micro) socket at the
base of the camera for monitoring and live streaming of pre-stitched 360 video at
4K/60fps.
Please ensure that the collection device supports processing 4K/60 fps; if not
supported, Pro 2 will automatically reduce to other resolution specifications with a
frame rate of 60 fps.
Mantis:
The Mantis Sub enclosure features one M16x1 bulkhead port at the base of the
housing. HDMI bulkhead connectors are available from Mantis and 3rd parties.
3rd Party Equipment:

All rights reserved. Information and specifications may change at any time without notice.
Version 1.3, 2020-12-02
11
•DIVE AND SEE DNC-2048 Micro HDMI bulkhead connector, with M16x1
thread.
•Nauticam 25033 Standard HDMI bulkhead connector, with M16x1 thread.
USB 3.1 TYPE-C
Insta360:
The Insta360 Pro and Pro2 feature a USB 3.1 Type-C socket at the base of the
camera for fast file transfer.
Mantis:
The Mantis Sub enclosure features one M16x1 bulkhead port at the base of the
housing. USB-C bulkhead connectors are available from Mantis and 3rd parties.
3rd Party Equipment:
•DIVE AND SEE DNC-2061 USB 3.1 Type C bulkhead connector, with M16x1
thread.
WARRANTY AND LIMITATIONS OF LIABILITY
For warranty, limitations of liability and terms of sale see our standard terms at
https://www.mantis-vr.com/.
TRADEMARKS
•Mantis is a trademark or registered trademark in New Zealand and other
countries.
•Insta360 is a trademark or registered trademark of Shenzhen ARASHI
VISION INC.in the United States and/or other countries.
•Nauticam is a trademark or registered trademark of Nauticam Holdings
Limited in the United States and/or other countries.
•Falmat and XtremeNet are trademarks or registered trademarks of Falmat Inc.
•Lapp and Etherline are trademarks or registered trademarks of Lapp Group.
•All other trademarks are the property of their respective owners.
CONTACT
Mantis
132 Beaumont Street
Auckland, 1010
New Zealand
Web: https://www.mantis-vr.com/
Email: i[email protected]
Tel: [phone]
