MLDP ROUND OVEN
MEXICANTORTILLAMACHINE.COM
OPERATION’S MANUAL

OPERATION’S MANUAL
VER. 2.0 · SEPTEMBER 2022
MLDP ROUND OVEN
The total or partial reproduction of this manual
is prohibited by any means, whether printed or electronic;
without the prior, express and written authorization ot the author.

3
GENERAL SAFETY INSTRUCTIONS 4
CAUTION 5
GAS AND ELECTRICAL INSTALLATION 6
COMPONENTS 7
OPERATING INSTRUCTIONS 8
CLEANING AND MAINTENANCE 14
INDEX

4
OPERATION’S MANUALMLDP CIRCULAR OVEN
GENERAL SAFETY INSTRUCTIONS
WARNING: To reduce the risk of injury, read all instructions properly. Failure to follow the instructions listed
below can cause electric shock, fire, serious injuries, mutilation and/or damage to the equipment.
A. SAFETY IN THE WORK AREA.
* Keep the work area clean and lit. Crowded or dark areas lead to accidents.
* Do not operate the equipment without first checking all gas connections with soapy water, to ensure that
there are no leaks that could cause an explosion.
* Keep children, customers and non-company personnel away from the electrical and mechanical operation
area of the equipment.
* It is recommended to have a minimum space of one meter or three feet around the machine for safety
measure and to optimize work.
B. ELECTRICAL SAFETY.
* Machinery connections must be adapted to the power outlets.
* Do not use adapters for the switches: since you run the risk of receiving an electric shock.
* Do not expose the switches and / or electrical connections to rain or humidity. If water enters these
elements, there is a risk that they will break down or suffer an electric shock.
* Use cable in a single piece, if there are joints in the connections these can produce a short circuit.
* Do not expose cables or electrical connections to heat, oil, sharp edges, or moving parts, as damaged
cables can cause electric shock or short circuit.
C. PERSONAL SAFETY
* Do not operate the equipment if you are tired, under the influence of alcohol or drugs.
* Wear appropriate clothing, do not wear loose clothing, or necklaces, earrings, watches, if you have long
hair wear a tie to keep it up.
* Do not climb on the structure of the machine for any reason, falls or injuries may occur.
* Avoid using headphones, cell phones or any other equipment that works as a distraction to the operator.
* Make correct use of personal protective equipment if any maintenance is to be carried out on the machine.
* If any change is made to the model or component of the equipment, be it electrical, mechanical or gas
related, it must be de-energized, cut off the gas supply and stop the machine completely to avoid accidents.
* Keep limbs away from all moving parts.

5
OPERATION’S MANUALMLDP CIRCULAR OVEN
HOT HAZARD Some parts of the machine are hot while in operation.
ELECTRICAL RISK In which you can suffer electric shocks, if you do not comply with the
electrical safety provisions.
GEAR RISK Keep your hands away from the chains and gears of the machine.
TAKE CARE OF YOUR HANDS Hands should not be inserted while the machine is working.
CRUSHING HAZARD Keep hands away from the cam press when be in operation.
CAUTION
The following symbols indicate the safety measures that must be taken before and after starting up
the equipment.

6
OPERATION’S MANUALMLDP CIRCULAR OVEN
GAS AND ELECTRICAL INSTALLATION
At the outlet of the gas tank, a model 10-080 high pressure regulator must be installed, with a pressure gauge
in order to verify the correct supply pressure. The pipe used for the connection is 3/4”of diameter,
either L-type copper or 40-gauge black tubing.
The length of the pipe should not exceed 10 meters, from the outlet of the gas tank. A union nut must be installed
between the stopcock and the low-pressure regulator. Before the machine’s gas input, a low pressure regulator
must be installed.
Verify that the electrical connection is 220v. No short circuits, no loose or bare wires.
A
B
D
C
E
G
F
B
C
E
F

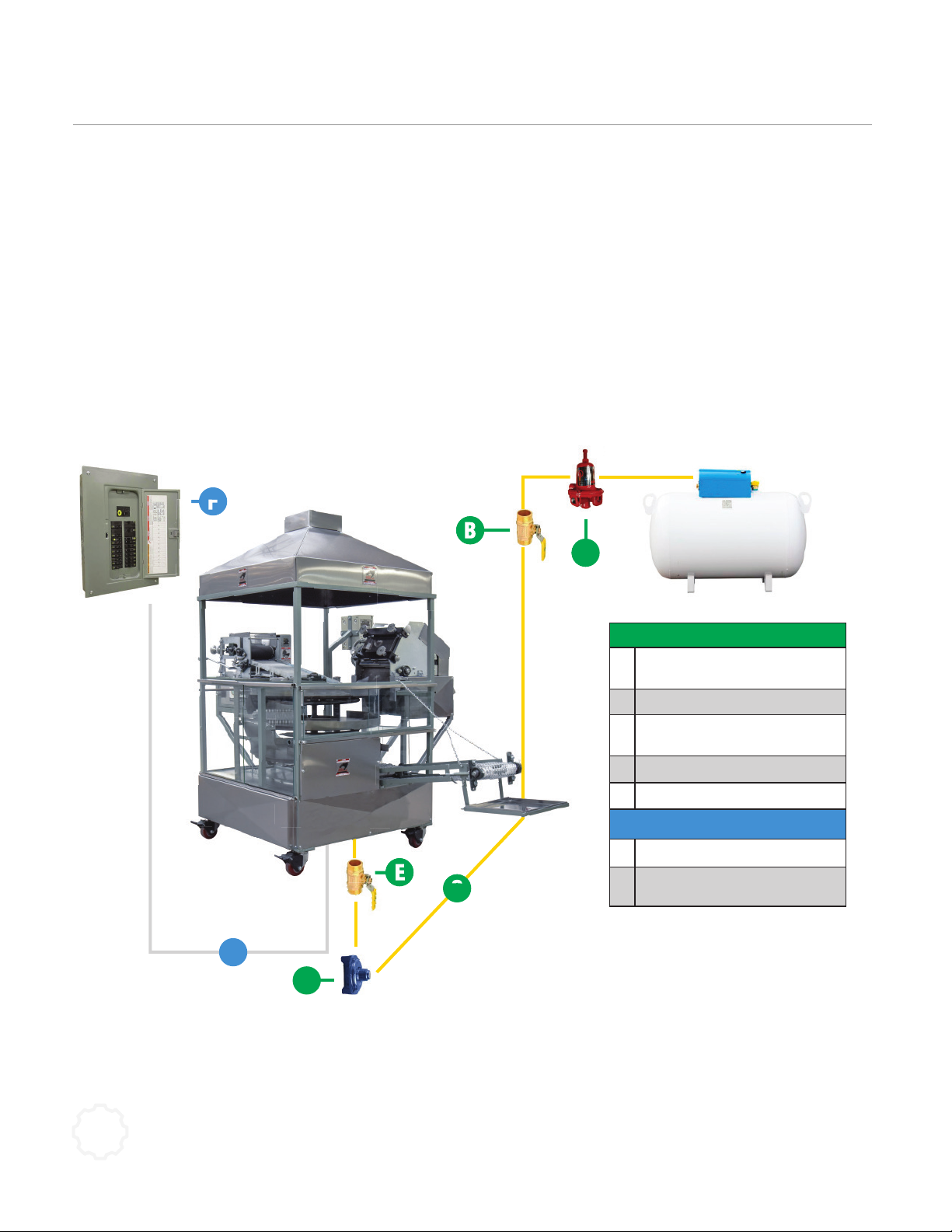

GAS INSTALLATION
AHigh pressure regulator
10-080 or 2403
BStopcock at 1.5m (height)
C3/4” Galvanized pipe LP gas
DLow pressure gas regulator
EStopcock valve
ELECTRICAL INSTALLATION
F220v Electrical installation
G12 gauge cable (conduit cable)

7
OPERATION’S MANUALMLDP CIRCULAR OVEN
SPEED
CONTROL
ROLLERS
HEAD UNIT
PRESS
STOPCOCK
VALVE
TEMPERED
GLASS
GRIDDLE
HOOD
SALIDA DEL
HORNO

8
OPERATION’S MANUALMLDP CIRCULAR OVEN
1
3
5
4
6
2

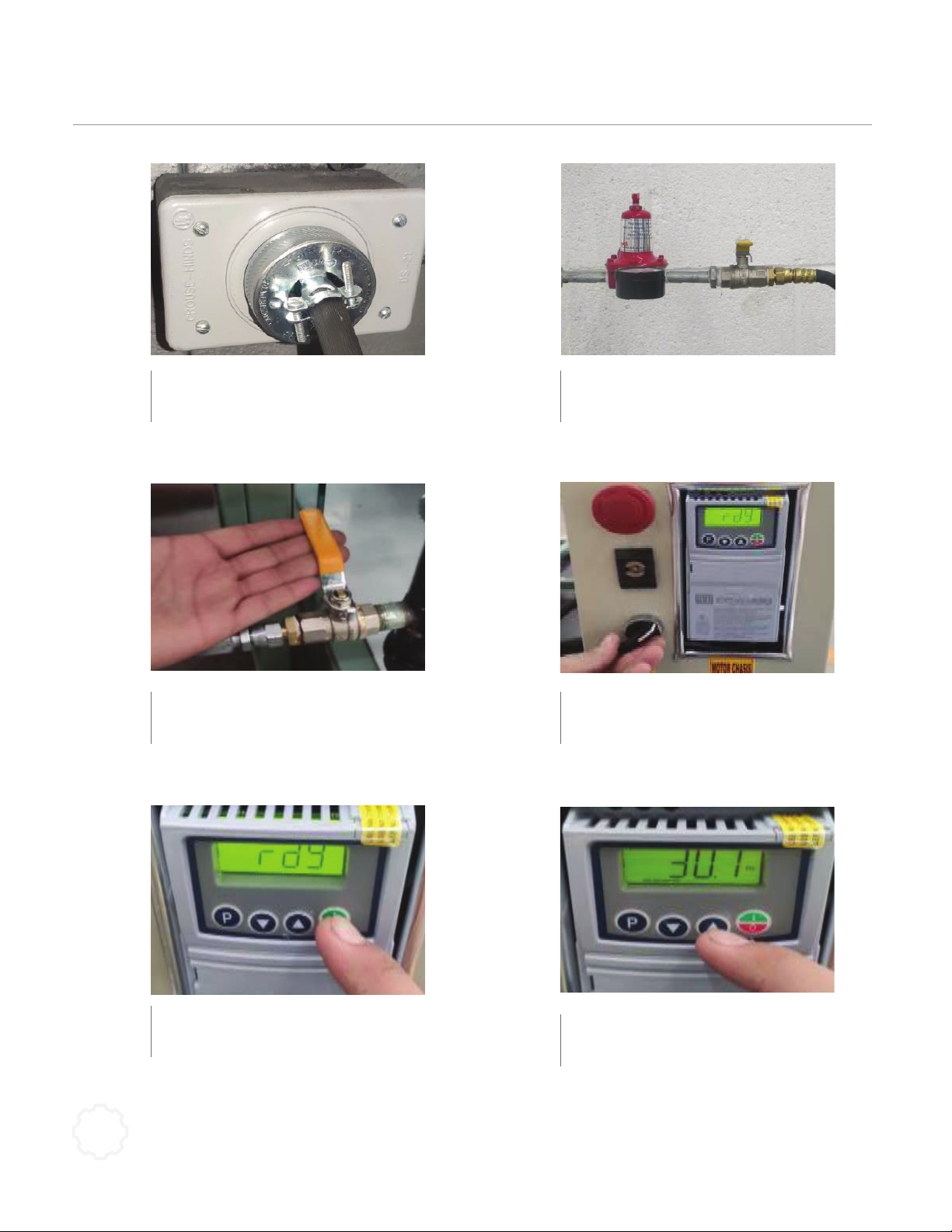

Plug the machine to an electrical outlet
Connect stopcock
in the Oven.
Turn on speed control
(by pressing green button)
Activate speed control switch ON/OFF
Adjustment of griddles rotation speed at 24 Hz
(buttons with arrows, decrease and increase)
Connect to gas outlet with
high pressure regulator.

9
OPERATION’S MANUALMLDP CIRCULAR OVEN
7 8
Open stopcock Light griddles, first, second
and third level.
9
11
10
12
Regulate the flame with the ¼” globe valve
(perform the procedure on the three levels of
the oven).
Connect rollers head unit to outlet.
Heat griddles for 6 minutes
before starting production.
Check that the straps rotate freely
CORN

10
OPERATION’S MANUALMLDP CIRCULAR OVEN
13
15
17
16
18
14

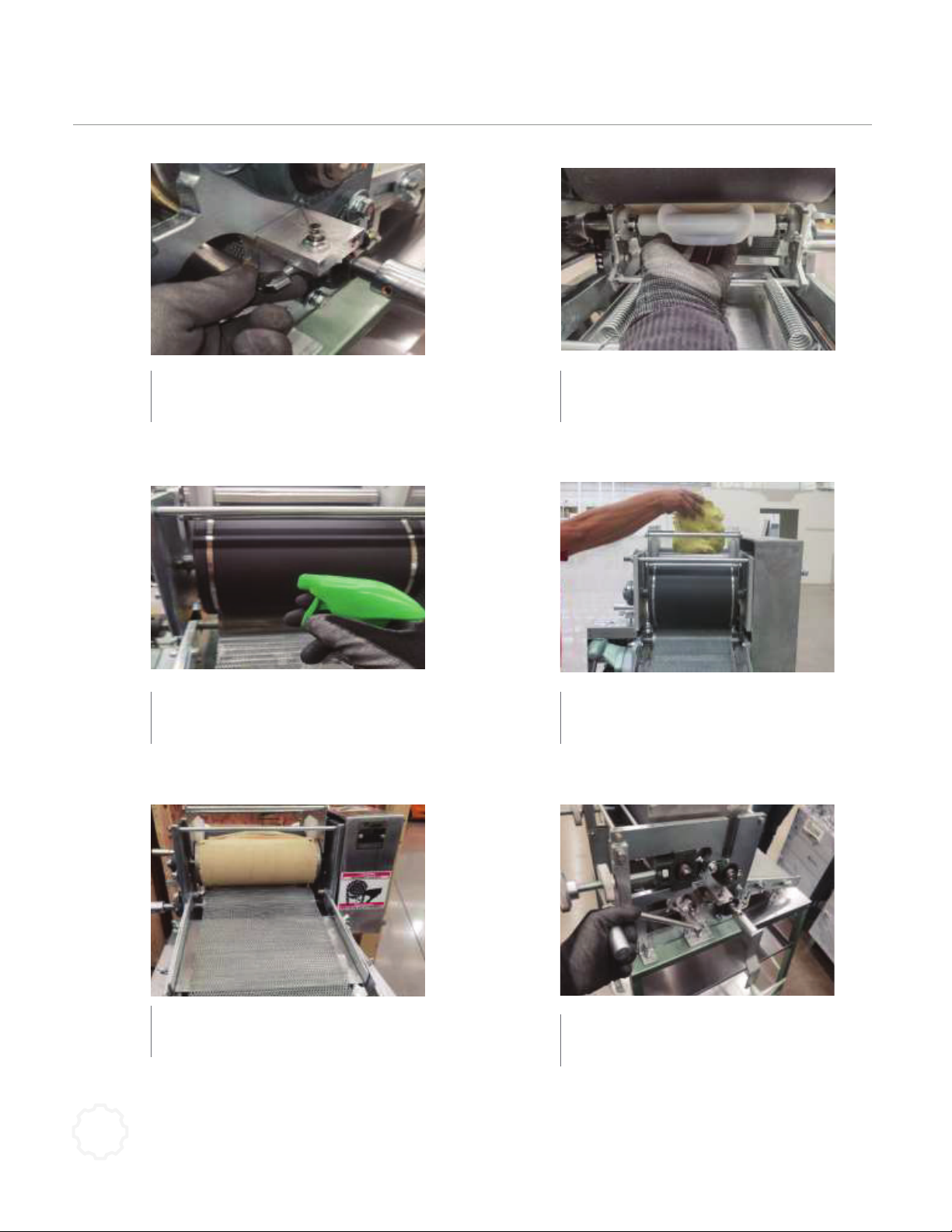

Make sure that the wire is tight and not broken
Spray grooves and straps with water
to remove excess product
Adhere dough curtain to front roller.
Add dough to rollers.
Release cutter lever.
Place cutter on the base, verify that it
is correctly installed and secured

11
OPERATION’S MANUALMLDP CIRCULAR OVEN
19 20
Verify that the dough unsticks correctly. When obtaining the desired cooking,
start with the production.
21 22

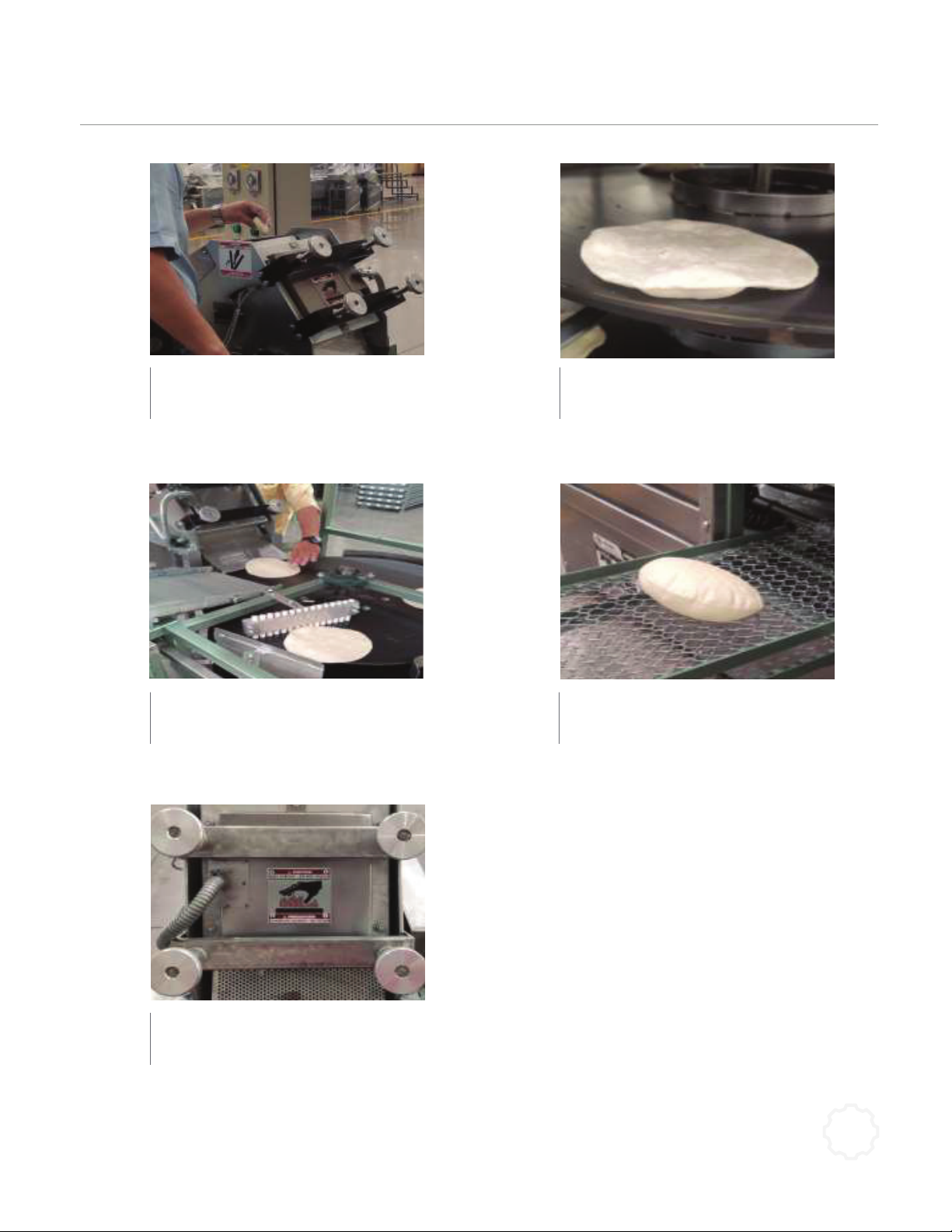

Check uniform heating, shape and roundness of
the tortilla at the outlet of the oven.
Regulate the thickness of the tortilla by turning
adjustment knobs:
Clockwise thins tortilla;
counterclockwise to thicken the tortilla.

12
OPERATION’S MANUALMLDP CIRCULAR OVEN
23
WHEAT
25
27
26
28
24
Plug the press to an electrical outlet
*It is necessary to regulate the intensity of the flame as the case may be,
since the cooking temperature of wheat tortillas is lower than corn tortillas.
The pyrometer OFF indicator will turn on
in the zero position.
Activate press motor switch OFF/ON
Turn the pyrometer to 140-160°C, the indicators
of the equipment in operation will turn on.
*Regulate the flame with the ¼” globe valve
(perform the procedure on the three levels of
the oven).
Turn the temperature control switch ON

13
OPERATION’S MANUALMLDP CIRCULAR OVEN
29 30
Place the dough ball in the press
each time the plates are open Verify tortilla heating in griddles
31 32
34
Upon obtaining desired cooking,
start production.
Check heating, shape and roundness of the
tortilla when it comes out of the oven.
To adjust the thickness of the tortilla:
Turn the knobs counterclockwise
for thinner tortillas.
And turn the knobs clockwise
for thicker tortillas.

14
OPERATION’S MANUALMLDP CIRCULAR OVEN
CLEANING PROCEDURE
WARNING: The cleaning of the Eco Lenin Press, MLR-30 Head and Round Oven must be carried out with the
machinery totally stopped and de-energized to avoid accidents such as crushing or electric shocks.
MLR-30 ROLLER HEAD UNIT CLEANING PROCEDURE
ADVERTENCIA: La limpieza tanto de los rodillos como la del banco debe realizarse con la máquina en paro total
para evitar accidentes tales como aplastamiento.
FRONT ROLLER CLEANING
1. Remove the dough residues from the front roller at total stop with your hands.
2. Turn the machine on again to change the position of the roller, turn off the machine and proceed with
cleaning. You must carry out this action as many times as necessary to complete the cleaning of the roller.
3. Clean the cable tie grooves with a plastic bristle brush to prevent the build-up of mass that may break the
wire when it dries.
4. Wipe the remaining dough from the top of the roller with a damp cloth.
5. After removing the dough residues from the roller, there will be an excess.
6. Spread a little water after removing the remaining dough to complete the cleaning of the roller.
7. Clean the rollers with a dry cloth after spreading water over it to remove excess moisture.
CLEANING THE REAR ROLLER
1. Clean the rear roller, pour in a little water and wipe with the cloth to remove any dough residues.
NOTICE: You will need to turn the machine on to change the position of the roller as many times as necessary
to clean them completely.
2. After you have cleaned the roller from the front and back, you should wipe the upper part of the
stainless steel roller with the damp cloth.
3. Use a damp cloth to clean the base of the bench and remove lumps from the slide with a wire brush.

15
OPERATION’S MANUALMLDP CIRCULAR OVEN
COUNTER TOP ECO LENIN PRESS CLEANING PROCEDURE
1. Remove excess dough from both aluminum plates.
2. Clean the plates with water, moistening a cloth and gently passing through the aluminum plates.
3. Carry out this action until the plates are without any residue of flour or dough.
4. Clean control panel, sides, sheets, motor and buttons.
The procedure for cleaning the cam press is described below:
A B
Remove the guard screws. Remove guard.
C D
Extract rod to release plate. Open top plate.

16
OPERATION’S MANUALMLDP CIRCULAR OVEN
E F
Clean the aluminum plates with a cloth. Close top plate.
G H
Place rod to secure. Place guard.
IScrew in the guard.

17
OPERATION’S MANUALMLDP CIRCULAR OVEN
PIECE LUBRICANT PERIOD
Chains SAE 40 Oil 3 times per week
Packed bearings BAT 3 Grease Every 3 days
Gears SAE 40 Oil Every week
Slide bronze bushing SAE 40 Oil 3 times per week
MAINTENANCE
Clean the machine before and after using it.
The duration of the spare parts will depend on the preventive maintenance and care taken to the machine.
The more frequent this maintenance is done, the parts will have a longer life.
LUBRICATION
The following table shows the parts, the type of lubricant and the frequency with which the machines and their
parts must be lubricated.

18
OPERATION’S MANUALMLDP CIRCULAR OVEN
The following figures show the schematic location of the parts that require lubrication.
Inject lubricant into
grease fitting
Inject lubricant into
grease fitting
Inject lubricant into
grease fitting
Inject lubricant into
grease fitting
Inject lubricant into
grease fitting
Inject lubricant into
grease fitting
Pour grease on
pinion and crown gear
A
A
A
A
B
A
A
A
It is recommended to change the
oil every three months. The used
oil must be drained and 400 ml of
new SAE 250 or 80/90 mineral oil
must be added.
LUBRICANT
A) BAT3 Grease
B) SAE 250 Oil or 80/90 mineral oil

19
OPERATION’S MANUALMLDP CIRCULAR OVEN
A
LUBRICANT
A) BAT3 Grease
B) SAE 250 Oil or 80/90
mineral oil
C) SAE 40 Oil
Inject lubricant into
grease fitting
Inject lubricant into
grease fitting
Inject lubricant into
grease fitting
Inject lubricant into
grease fitting
Inject lubricant into
grease fitting
Pour oil on chain
Lubricate slide bushing
A
A
C
C
A
A
