Mapeheat™
Thermo Touch
Operating Manual

1
Table of Contents
Introduction..................................................................................................................................... 2
System Tests.....................................................................................................................................3
Setup Wizard....................................................................................................................................3
GFCI.........................................................................................................................................................3
Section 1: Home Screen ......................................................................................... 4
1.1 Temporary bypass and hold options ............................................ 5
1.2 Energy use......................................................................................................... 5
1.3 Settings................................................................................................................ 6
Section 2: Setup/Preferences ..............................................................................7
2.1 Language........................................................................................................... 7
2.2 Date ........................................................................................................................ 7
2.3 Time........................................................................................................................ 7
2.4 Unit..........................................................................................................................8
2.5 Operating mode...........................................................................................8
2.6 Temperature control.................................................................................. 9
2.7 Temperature display.................................................................................. 9
2.8 Floor type ......................................................................................................... 10
2.9 “Early Start”..................................................................................................... 10
2.10 Floor limit ...........................................................................................................11
2.11 Screen brightness........................................................................................11
2.12 Screensaver ......................................................................................................11
Section 3: Program/Schedule............................................................................ 12
Section 4: Thermostat Information................................................................ 13
Section 5: Factory Reset....................................................................................... 13

2
Introduction
Thank you for choosing Mapeheat Thermo Touch thermostat.
You have chosen the most advanced thermostat to control your
Mapeheat Floor-Heating System. This manual will cover each of
the features of the Mapeheat Thermo Touch thermostat.

3
System Tests
Setup Wizard
GFCI
The Mapeheat Thermo Touch thermostat features a series of
diagnostic tests to conrm that the thermostat is installed and
functioning properly.
The System Tests option is available the rst time that the
thermostat is connected to power or after a factory reset is initiated.
The Mapeheat Thermo Touch thermostat features a Setup Wizard to guide you through the
basic setup process.
The Setup Wizard is available the rst time the thermostat is connected to power or after
a factory reset is initiated. Refer to Section 4 on Page 13.
The Mapeheat Thermo Touch thermostat has a built-in GFCI (ground-fault circuit interrupter).
The GFCI protects against risks of electrocution caused by a current leakage. If the current
leakage exceeds 5 mA, the GFCI will automatically be triggered, thus cutting power to the
oor-heating system. To indicate the fault, a message will appear on the screen informing
you of the fault. To reset the GFCI, press the button on the right side of the thermostat. If a
problem persists, contact MAPEI’s Technical Services Department at 1-800-992-6273 (USA)
or 1-800-361-9309 (Canada).

4

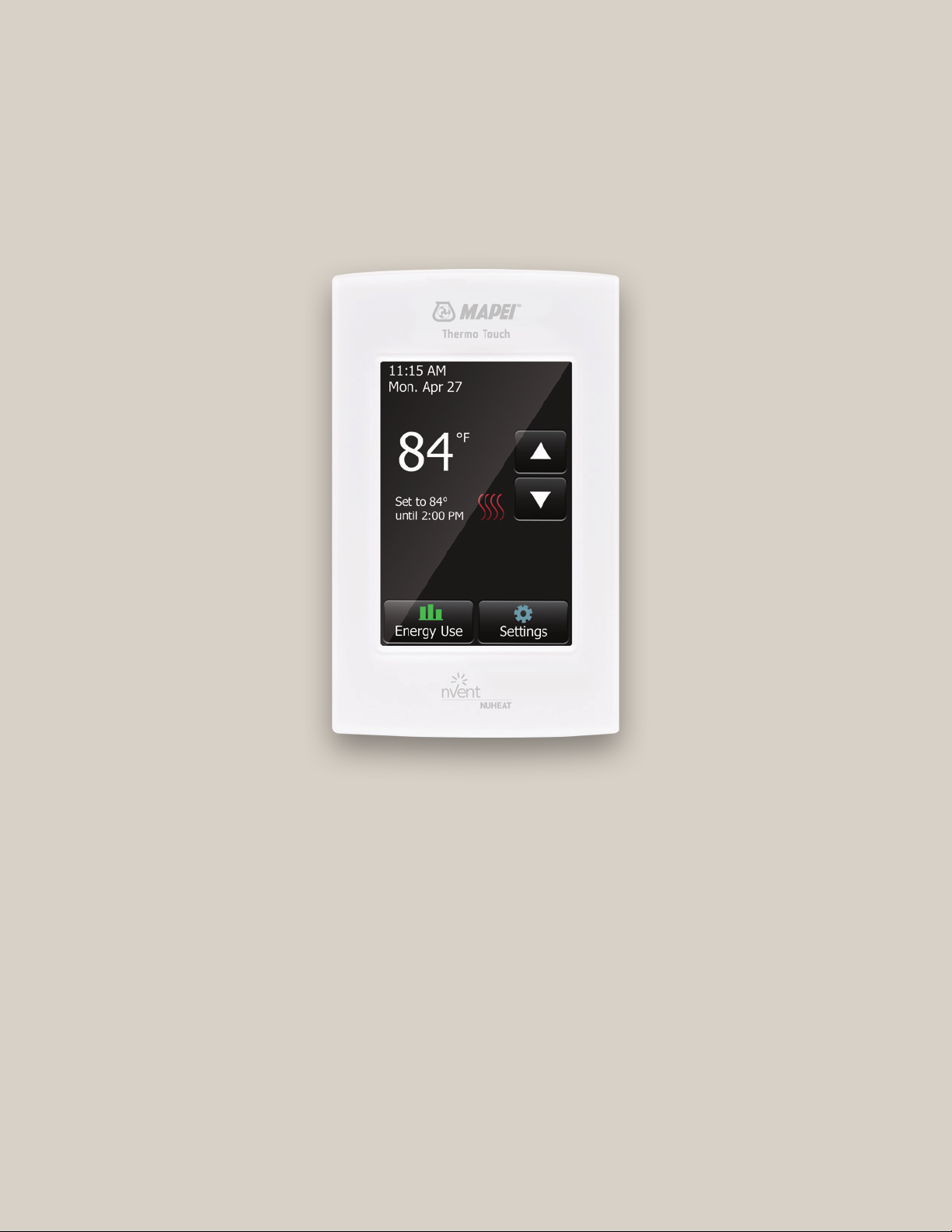

Section 1: Home Screen
1. Change date and time
2. Current temperature
3. Target temperature or setpoint
4. Operating mode: The Auto* mode means that the thermostat is following a program/
schedule. The Manual mode means that the thermostat is not following a program/
schedule and is being controlled manually. Refer to Section 2.5 on Page 8.
5. Increase the temperature
6. Decrease the temperature
7. Heating indicator: When visible, system is heating
8. Access “Energy Use” data
9. Access “Settings” menu
* When the thermostat is in Auto mode:
- “Resume Programmed Schedule”: This phrase only appears if the temperature is
manually increased/decreased.
- “Hold Options”: This phrase only appears if the temperature is manually increased/
decreased. Refer to Section 1.1 on Page 5.
1
2
3
5
6
7
4
8 9

5
Section 1: Home Screen
Section 1.1: Temporary bypass and hold
options
If the thermostat is following the program/schedule (in Auto mode),
you can temporarily bypass the programmed temperature by
pressing the ↑or ↓button until the desired “Set To” temperature
is displayed. The thermostat will maintain this temperature until the
start of the next period.
1. Press “Resume Program” to cancel the temporary bypass.
2. Press “Hold Options” to access more options.
Hold Options
The Mapeheat Thermo Touch thermostat allows you to set the
duration you want for the temporary bypass temperature.
1. Change the duration of the hold time by pressing the ↑or ↓
arrows.
2. Alternatively, press “Permanent Hold” to hold the temporary
bypass temperature indenitely.
3. Press “Cancel” to ignore the change or press “Save” to conrm.
4. On the home screen, press “Resume Program” to cancel the
temporary bypass.
Section 1.2: Energy use
The Mapeheat Thermo Touch thermostat tracks the amount of time
that your oor-heating system has been heating.
1. Press “Day/Week/Year” to view the different time ranges.
2. Press “Back” to return to the home screen.
Note that the thermostat cycles the heating on and off in order to
maintain the desired setpoint temperature. Actual heating time is
normally a percentage of the scheduled “On” time.
For example, let’s say that the thermostat is programmed to turn on
at 5:00 p.m. and turn off at 8:00 p.m. The total “On” time is 3 hours,
but the number of hours that the system is actually heating may be
a percentage of the total “On” time.

6
Section 1: Home Screen
Section 1.3: Settings
The following options are available under the “Settings” menu:
• “Setup/Preferences”
• “Program/Schedule”
• “Thermostat Info”
• “Factory Reset”

7
Section 2: Setup/Preferences
From the home screen, access the “Setup/Preferences” menu by
pressing “Settings > Setup/Preferences”. Press the < or > arrows at
the top to view both pages of “Setup/Preferences”.
Section 2.1: Language
1. Choose between “English / Français / Español”.
2. Press “Cancel” to ignore the change or press “Save” to conrm.
Section 2.2: Date
1. Set the current month/date/year.
2. Select whether to enable/disable daylight savings time based
on your region.
3. Press “Cancel” to ignore changes or press “Save” to conrm.
Section 2.3: Time
1. Set the current time.
2. Press “Cancel” to ignore changes or press “Save” to conrm.

8
Section 2: Setup/Preferences
Section 2.4: Unit
1. Choose between Fahrenheit or Celsius.
2. Press “Cancel” to ignore the change or press “Save” to conrm.
Section 2.5: Operating mode
The thermostat has two operating modes:
1. Auto: “Auto” is the default mode, allowing you to program a
heating schedule for your thermostat. Refer to Section 3 on
Page 12.
2. Manual: Select the “Manual” mode if you always want to set the
temperature manually, with no programmed schedule. The
thermostat will maintain the set temperature until it is manually
changed or until you switch to another operating mode.
3. Press “Cancel” to ignore the change or press “Save” to conrm.

9
Section 2: Setup/Preferences
Section 2.6: Temperature control
The thermostat can be congured to control the oor temperature,
air/room temperature, or a combination of oor and air/room
temperature.
Temperature Control Setting Description
Floor temp. (default) The thermostat controls the
oor temperature.
Air/room temp.
The thermostat controls the air/
room temperature. This setting
disables the oor sensor and
is useful if the oor sensor is
damaged or not installed.
Combined (advanced)
For advanced users only – This
setting allows control of the
oor-heating system based on
air/room temperature but will
not turn on the oor-heating
system if the oor temperature
is above the oor limit.
1. Select the desired temperature control.
2. Press “Cancel” to ignore the change or press “Save” to conrm.
Section 2.7: Temperature display
1. Select one of the following temperatures on the home screen
and screensaver:
- Floor temp. (default)
- Air/room temp.
2. Press “Cancel” to ignore the change or press “Save” to conrm.

10
Section 2: Setup/Preferences
Section 2.8: Floor type
1. Set according to your ooring type.
2. When “Engineered/Laminate/Vinyl” is selected, the oor
temperature will be limited to 82°F (28°C).
Note that this setting is not available if “Temperature Control” is
set to “Air/room temp.” Refer to Section 2.6 on Page 9.
3. Press “Cancel” to ignore the change or press “Save” to conrm.
Section 2.9: “Early Start”
Early Start calculates the optimal time to start heating in order
to ensure that your oor reaches the desired temperature at the
scheduled time in your program/schedule.
Note that it only applies if your thermostat is following a
programmed schedule (that is, when the thermostat is in Auto
mode).
1. Select “On” if desired.
2. Press “Cancel” to ignore the change or press “Save” to conrm.

11
Section 2: Setup/Preferences

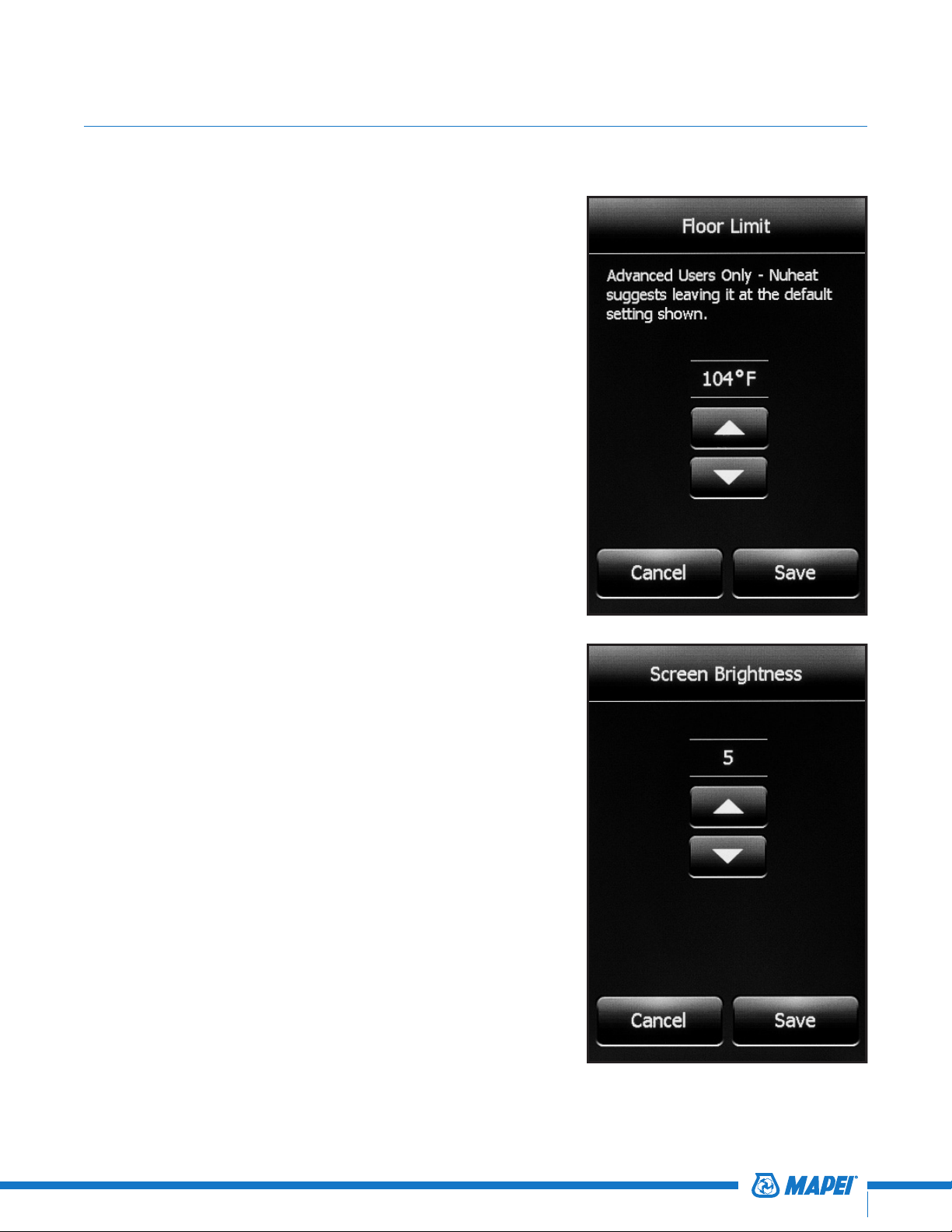

Section 2.10: Floor limit
1. Set the maximum temperature that you want the oor to reach.
The oor heating will not turn on if the oor temperature is
above the set oor limit. If the oor limit is set too low, your oor-
heating system will not turn on. MAPEI suggests leaving the
oor limit at the default factory temperature setting.
Note that this setting is not available if “Temperature Control” is
set to “Air/room temp”. Refer to Section 2.6 on Page 9.
2. Press “Cancel” to ignore the change or press “Save” to conrm.
Section 2.11 Screen brightness
1. Set the desired screen brightness.
2. Press “Cancel” to ignore the change or press “Save” to conrm.
Section 2.12: Screensaver
1. The thermostat will display a screensaver after two minutes of
inactivity. You can choose what information to display on the
screensaver.
2. Press “Cancel” to ignore the change or press “Save” to conrm.

12
Section 3: Program/Schedule
From the home screen, access the “Program/Schedule” menu by pressing “Settings >
Program/Schedule”.
Below is the default schedule of the Mapeheat Thermo Touch thermostat:
WEEKDAYS
To adjust the setpoint(s):
1. Use the < or > arrows to toggle between weekdays and weekend days.
2. Select the period that you want to adjust.
3. Using the ↑or ↓arrows, adjust the time and temperature of the setpoint.
4. Press “Cancel” to ignore the change or press “Save” to conrm.
To set a new program/schedule, press “New Program” at the bottom of the screen:
1. Select the days that share the same schedule.
2. Press “Next”.
3. Select the period that you want to adjust.
4. Using the ↑or ↓arrows, adjust the time and temperature of the setpoint.
5. Press “Cancel” to ignore the change or press “Save” to conrm.
6. Press “Next”.
7. Repeat Steps 1 to 6 until all days of the week have been programmed.
8. Press “Done” to save the program/schedule.
WEEKENDS
Period Start Time
Floor Temperature
Tile Wood
Wake 6:00 a.m. 88°F (31°C) 82°F (28°C)
Leave 9:00 a.m. 74°F (23°C) 74°F (23°C)
Return 5:00 p.m. 88°F (31°C) 82°F (28°C)
Sleep 11:00 p.m. 74°F (23°C) 74°F (23°C)
Period Start Time
Floor Temperature
Tile Wood
Wake 8:00 a.m. 88°F (31°C) 82°F (28°C)
Sleep 11:00 p.m. 74°F (23°C) 74°F (23°C)

13
Section 4: Thermostat Information
Section 5: Factory Reset
1. From the home screen, access the “Thermostat Info” items by
pressing “Settings > Thermostat Info”.
2. Press the < or > arrows at the top to view both pages of
thermostat information:
• “Thermostat ID” – The unique serial number assigned to the
thermostat during manufacturing.
• “Floor sensor” – The status of the oor sensor.
• “Air/room sensor” – The status of the built-in air/room
temperature sensor.
• “GFCI” – The status of the GFCI. If a “?” appears, it means the
GFCI has not been tested. Refer to the GFCI Section on Page 3.
• “GFCI tested” – The date when the GFCI was last tested.
• “Appl. Version” – The rmware version number (for internal use
during manufacturing).
From the home screen, access “Factory Reset” by pressing “Settings
> Factory Reset”.
Factory Reset allows you to reset the thermostat back to factory
default settings. This can be used to reset the thermostat for a new
owner or for troubleshooting purposes.
WARNING: Factory Reset will delete all information stored on the
thermostat, including energy usage data.

MAPEI Headquarters of North America
1144 East Newport Center Drive
Deereld Beach, Florida 33442
1-888-US-MAPEI (1-888-876-2734) /
[phone]
Technical Services
1-800-992-6273 (U.S. and Puerto Rico)
1-800-361-9309 (Canada)
Customer Service
1-800-42-MAPEI (1-800-426-2734)
Services in Mexico
0-1-800-MX-MAPEI (0-1-800-696-2734)
Copyright ©2019 by MAPEI Corporation (“MAPEI”) and all
rights are reserved. All intellectual property rights and other
information contained in this document are the exclusive
property of MAPEI (or its parent or related companies),
unless otherwise noted. No part of this document may be
reproduced or transmitted in any form without the prior
written consent of MAPEI.
MKT: 19-2457 11/19
MAPEI USA
MAPEI Canada
