CD Player
Owner’s Manual
1

Accessories 4
Inserting the batteries 5
Operating range of the remote control unit 5
Part names and functions 6
Front panel 6
Display 8
Rear panel 9
Remote control unit 10
Connections
Connecting an amplifier 15
Connecting to a device with digital audio input connectors 16
Connecting a USB flash drive to the USB port 17
Connecting devices with remote control connectors 18
Connection 18
Setting 18
Connecting the timer device 19
Connecting the power cord 20
Playback
Basic operation 22
Turning the power on 22
Switching the power to standby 22
Selecting the playback media mode 23
Switching the display’s brightness 23
Playing CDs 24
Playing CDs 24
Playing tracks in a specific order (Program playback) 26
Playing DATA CDs 27
Playing files 28
Playing a USB flash drive 30
Playing files stored on USB flash drives 31
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index

Settings
Menu map 33
Menu operation 34
H/P Amp Gain 35
Filter 35
Digital Out 36
Power On Link 36
Timer Play 37
Auto-Standby 37
Tips
Tips 39
Troubleshooting 40
Power does not turn on / Power is turned off 41
Operations cannot be performed through the remote control unit 42
Display on this unit shows nothing 42
No sound comes out 43
Sound is interrupted or noise occurs 43
Desired sound does not come out 43
USB flash drives cannot be played back 44
Cannot playback Discs 45
Appendix
Playing back Discs 46
Files 46
Playing back a USB flash drives 48
Playback order of music files 49
About discs and files 50
Cautions on using media 51
Loading discs 51
How to handle media 52
Cleaning discs 52
Explanation of terms 53
Specifications 55
Index 58
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories

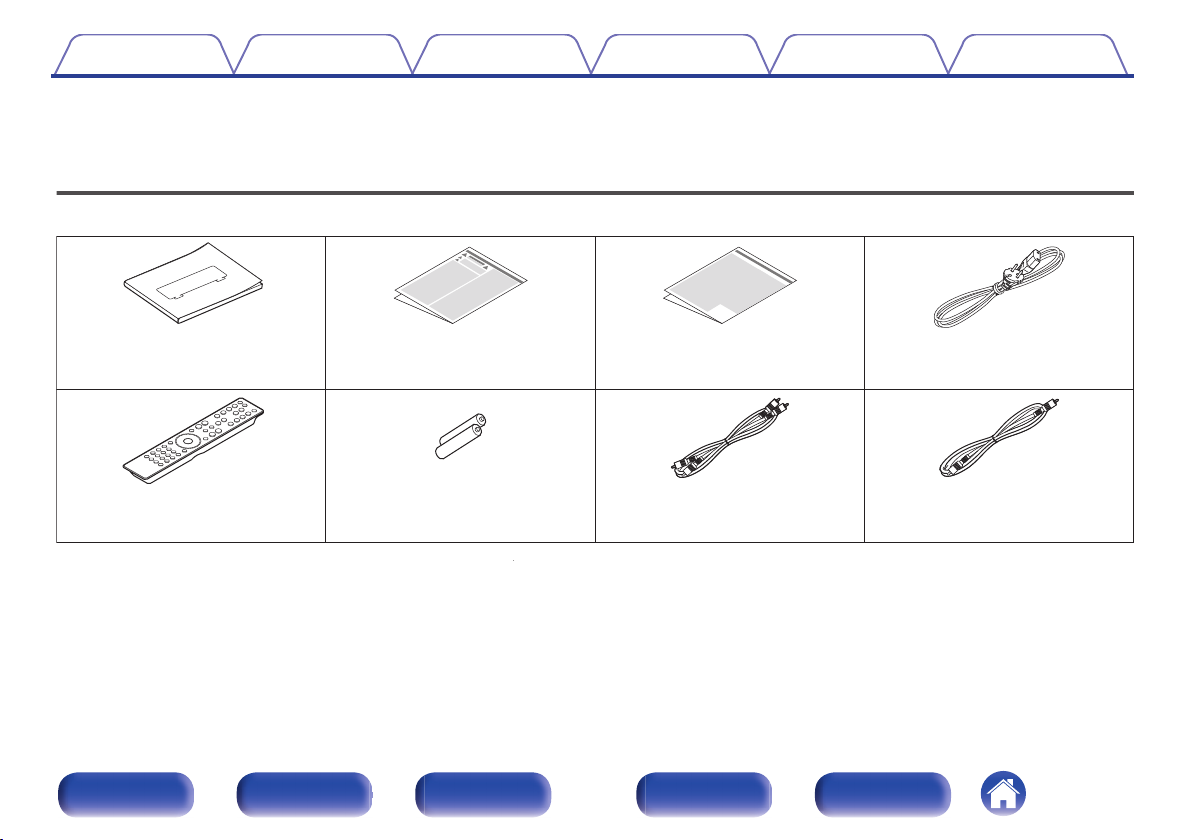

Check that the following parts are supplied with the product.
Remote connector cableAudio cable
Remote control unit
(RC005PMCD)
Quick Start Guide Safety Instructions Cautions on Using Batteries Power cord
2×R03/AAA batteries
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
2Insert two batteries correctly into the battery
compartment as indicated.
Batteries
3Put the rear lid back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
Approx. 7 m
30°
30°
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Part names and functions
Front panel

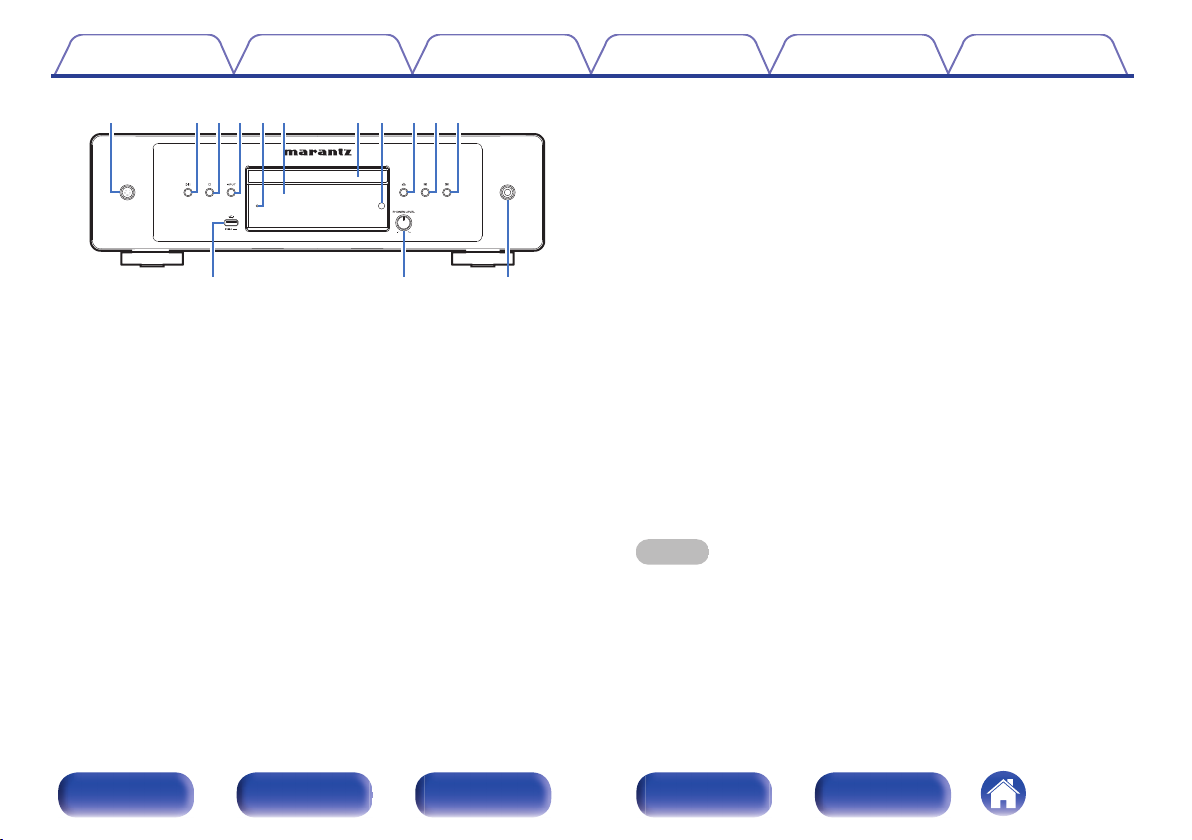

qw uiytoQ0 Q1er
Q
2
Q
3
Q
4
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

qw uiytoQ0Q1er
Q
2
Q
3
Q
4
APower operation button (X)
This turns the power on/off (standby). (v p. 22)
BPlay/Pause button (p)
Press this button to pause during playback. If pressed while paused or
stopped, resumes playback from the last track played.
CStop button (i)
Stops playback.
DINPUT button
Used to select the playback source. (v p. 23)
EProtection circuit indicator
This blinks when the protection circuit has operated. (v p. 41)
FDisplay
Various information is displayed here. (v p. 8)
GDisc tray
Used to insert a disc.
HRemote control sensor
This receives signals from the remote control unit. (v p. 5)
IDisc tray open/close button (q)
Opens and closes the disc tray. (v p. 24)
JReverse-skip button (k)
Returns to the start of the currently playing track. Press and hold to fast-
reverse the track.
KForward-skip button (j)
Plays the next track. Press and hold to fast-forward the track.
LUSB port
This is used to connect USB storages (such as USB flash drives).
(v p. 17)
MHeadphone volume control knob (PHONES LEVEL)
Adjusts the headphone volume.
NHeadphones jack
Used to connect headphones.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Display
wq ter y
AInformation display
Displays various information or playback elapsed time and so on of the
disc.
BPlayback mode indicators
1 : Lights up during playback.
3 : Lights up during pause.
CTOTAL indicator
Lights when the total number of tracks and total time of the CD are
displayed.
DRANDOM indicator
Lights during random playback.
ERepeat mode indicators
Lights to match the repeat mode settings.
FFolder mode indicator
Lights up when the folder mode is set in the CD-R/CD-RW playback
range. (v p. 29)
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Rear panel
twer
q
AAUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external amplifier. (v p. 15)
BDIGITAL AUDIO OUT connectors (COAXIAL/OPTICAL)
Used to connect an amplifier or D/A converter that has a digital input
connectors. (v p. 16)
CREMOTE CONTROL connectors
Used to connect to a Marantz amplifier that is compatible with the
remote control function. (v p. 18)
DEXTERNAL/INTERNAL switch
Turn this switch to “EXTERNAL” to operate the unit by pointing the
remote control at the amplifier connected to this unit using the remote
control connection. (v p. 18)
EAC inlet (AC IN)
Used to connect the power cord. (v p. 20)
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Remote control unit
e
q
r
w

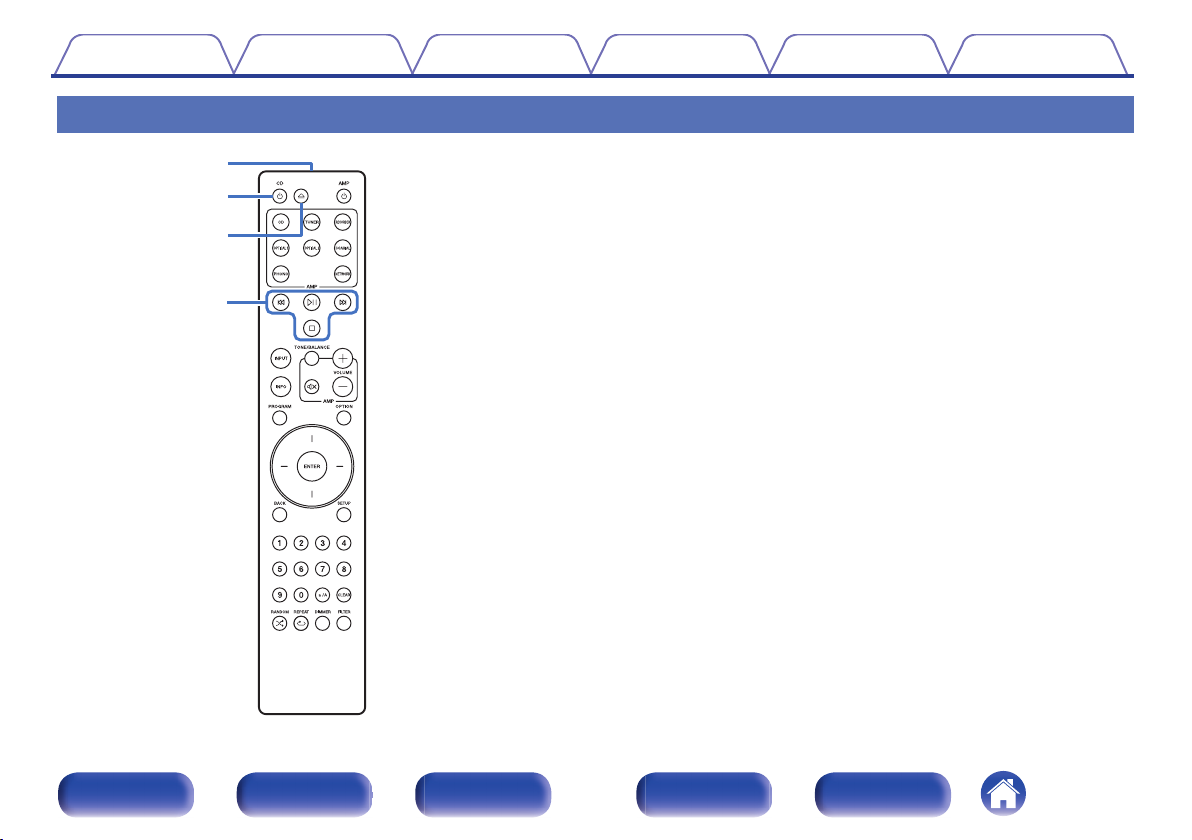

The remote control provided with this unit can control a Marantz amplifier.
0“Amplifier operations” (v p. 13)
oOperating this unit
ARemote control signal transmitter
This transmits signals from the remote control unit. (v p. 5)
BPower operation button (CD X)
This turns the power on/off (standby). (v p. 22)
CDisc tray open/close button (q)
Opens and closes the disc tray. (v p. 24)
DSystem buttons
These perform playback related operations.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

Q0
o
u
i
y
t
Q3
Q1
Q2

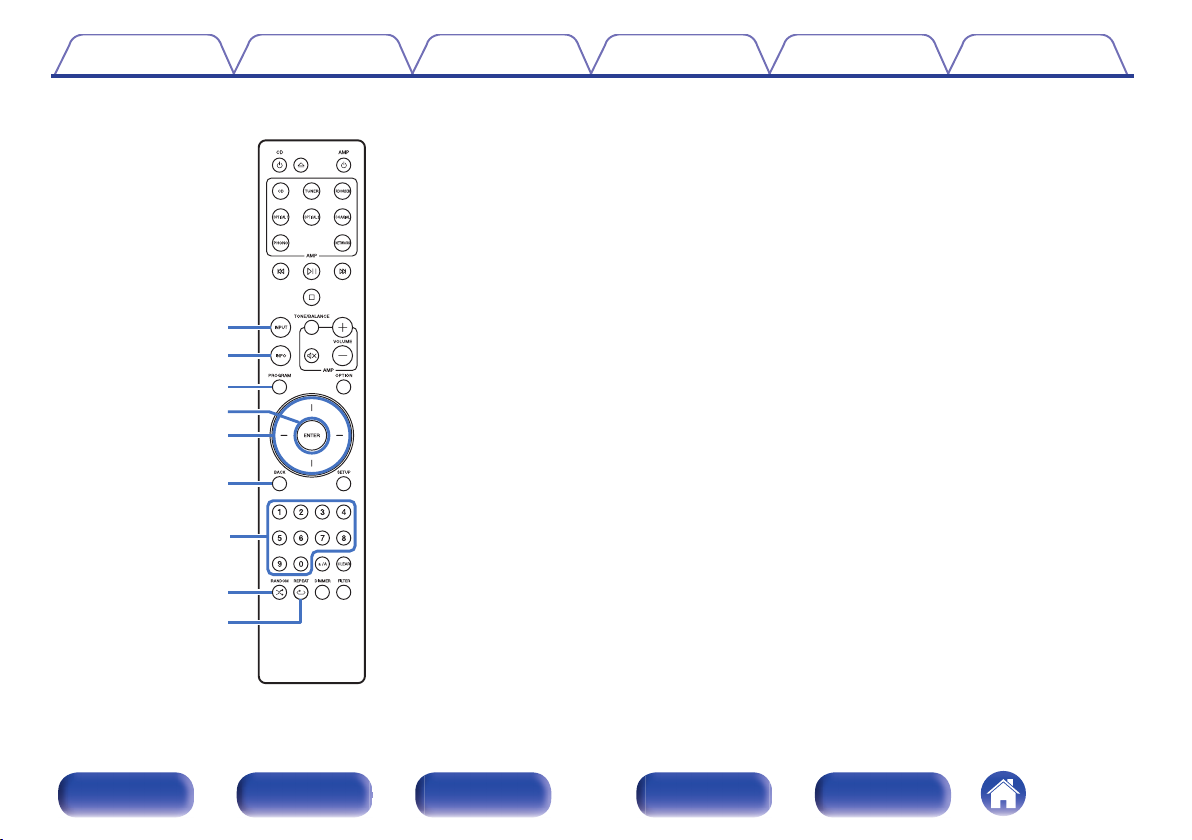

EMedia mode select button (INPUT)
Used to select the playback source. (v p. 23)
FInformation button (INFO)
This switches the track information shown in the display during
playback.
GPROGRAM button
This sets program playback. (v p. 26)
HENTER button
This determines the selection.
ICursor buttons
These select items.
JBACK button
Returns to the previous item.
KNumber buttons (0 – 9)
These enter numbers into the unit.
LRANDOM button (s)
Switches the random playback.
MREPEAT button (r)
Switches to the repeat playback.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

Q6
Q7
Q8
Q4
Q5

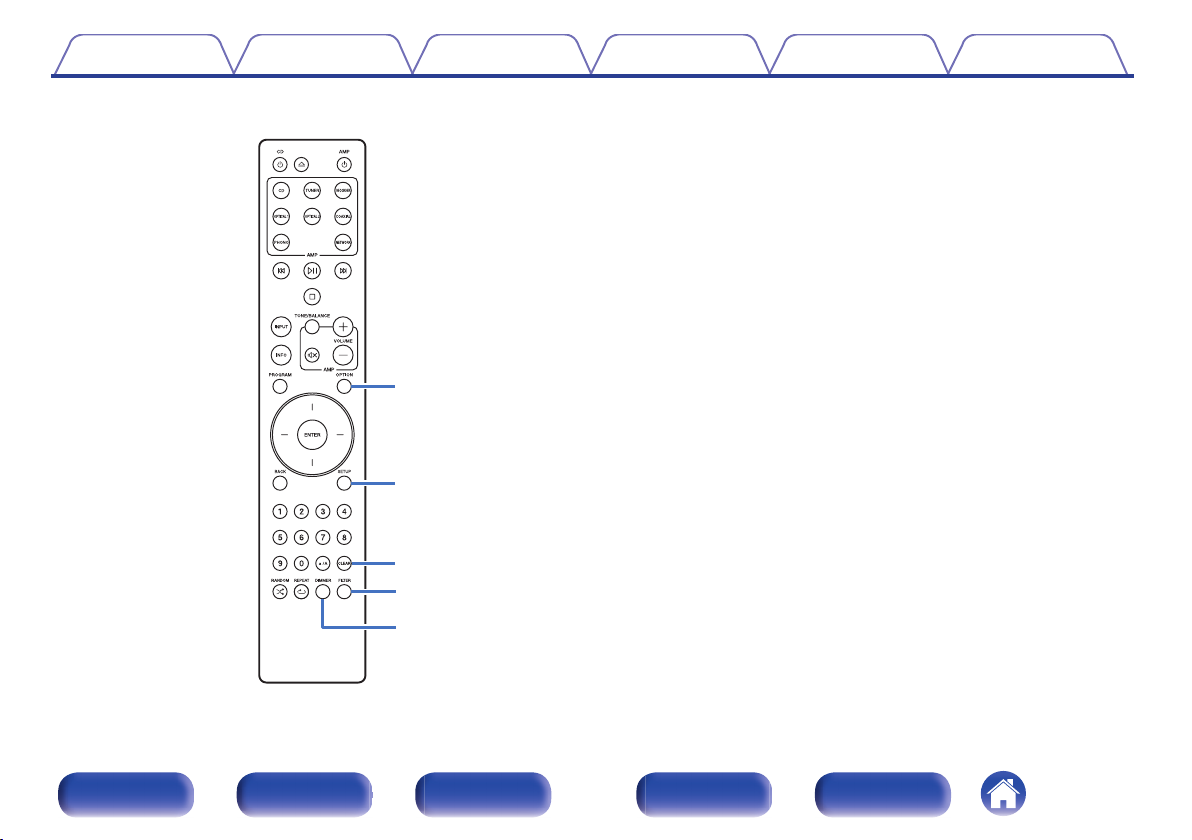

NOPTION button
0Selects the playback range of the data CD. (v p. 29)
0Selects the playback range of the USB flash drive. (v p. 32)
OSETUP button
This displays the setting menu on the display. (v p. 34)
PCLEAR button
This clears the program registration. (v p. 26)
QFILTER button
This switches the filter characteristics. (v p. 35)
RDIMMER button
This switches the brightness of the display. (v p. 23)
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

r
t
e
w
q
oAmplifier operations
A Marantz amplifier can be operated.
AInput source select buttons
BTONE/BALANCE button
CMUTE button (:)
DPower operation button (AMP X)
EVOLUME buttons (no)
0The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

oContents
Connecting an amplifier 15
Connecting to a device with digital audio input connectors 16
Connecting a USB flash drive to the USB port 17
Connecting devices with remote control connectors 18
Connecting the timer device 19
Connecting the power cord 20
NOTE
0Do not plug in the power cord until all connections have been completed.
0Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.

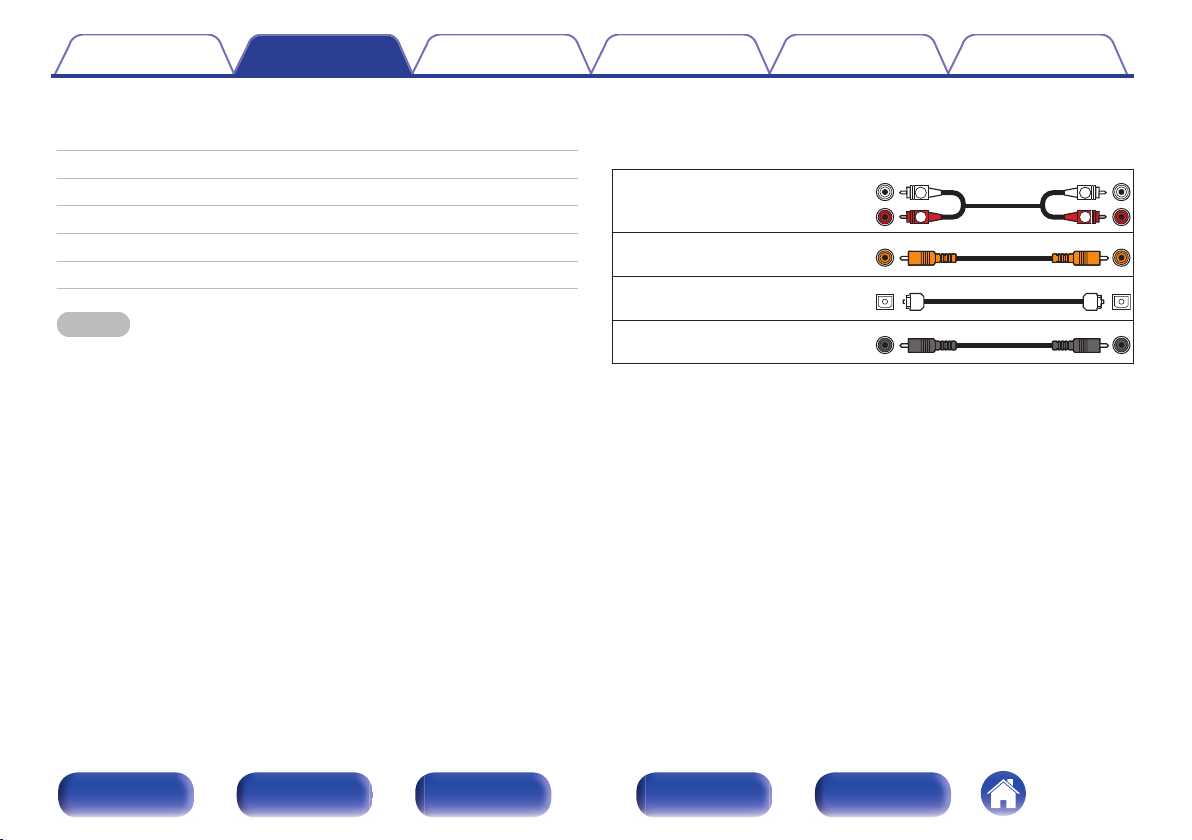

oCables used for connections
Provide necessary cables according to the devices you want to
connect.
Audio cable
(supplied)
R
L
R
L
Remote connector cable
(supplied)
Optical cable
Coaxial digital cable
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

Connecting an amplifier
RL
RL
AUDIO
RL
IN
Amplifier
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

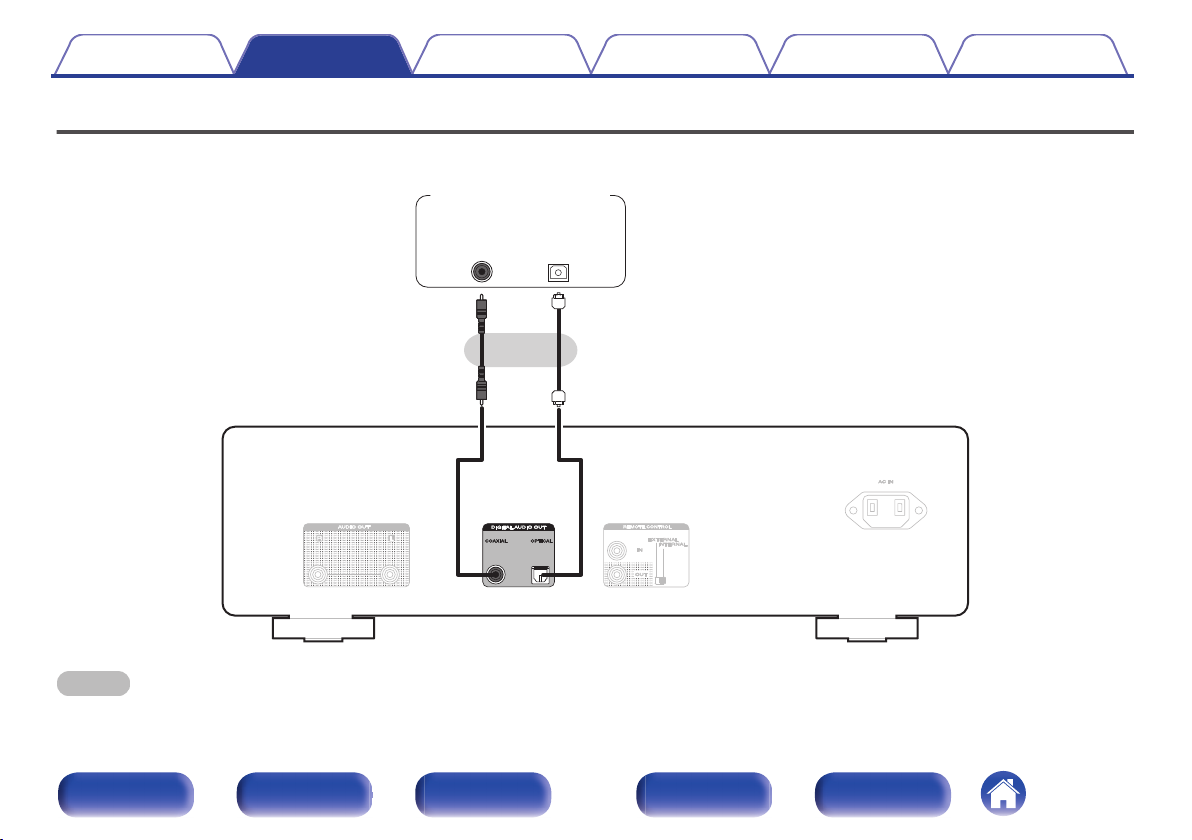

Connecting to a device with digital audio input connectors
You can enjoy digital audio playback by connecting an amplifier or D/A converter that has a digital audio connector to this unit.
or
OPTICAL
IN
COAXIAL
IN
Amplifier /
D/A converter
NOTE
0Digital audio output stops during playback of the DSD files via USB flash drive.
0To connect recorder that has a digital audio connector isn't recommended.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

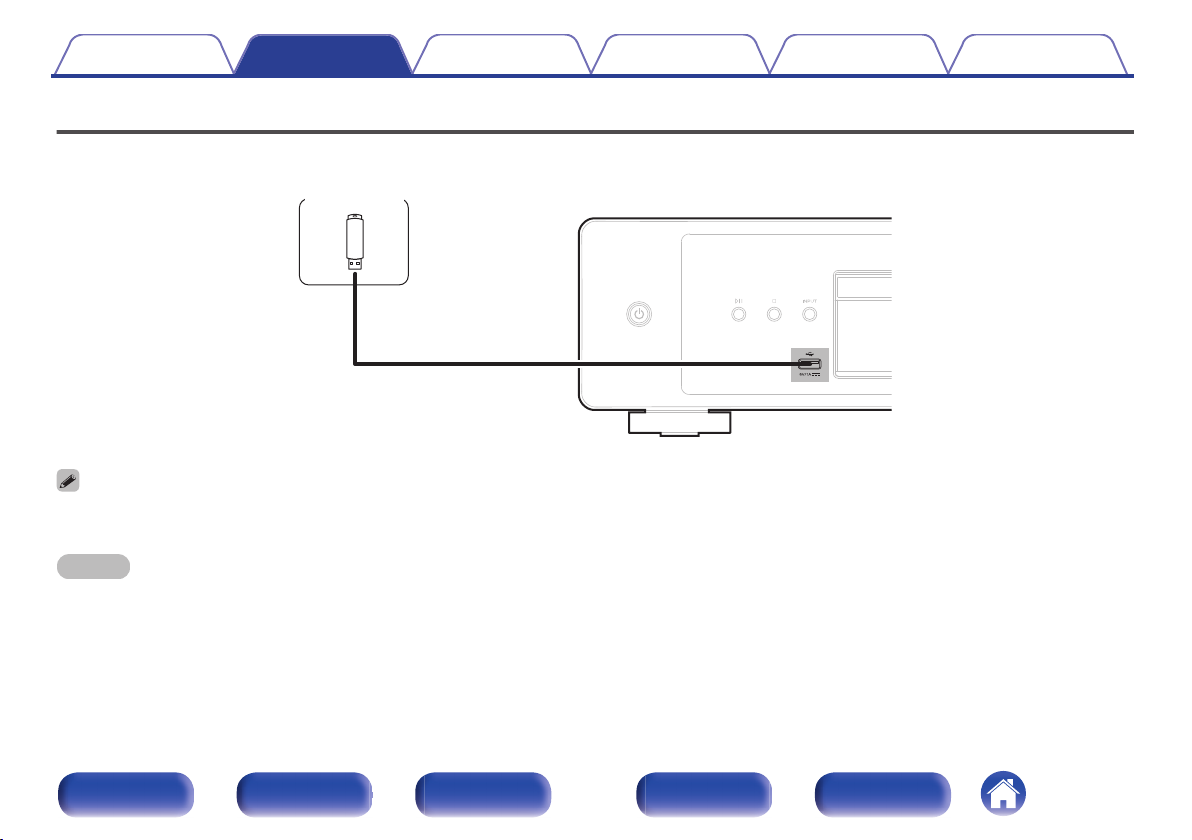

Connecting a USB flash drive to the USB port
For operating instructions see “Playing a USB flash drive”. (v p. 30)
USB flash
drive
0Marantz does not guarantee that all USB flash drives will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter, use
that device’s supplied AC adapter.
NOTE
0USB flash drives will not work via a USB hub.
0It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.
0Do not use an extension cable when connecting a USB flash drive. This may cause radio interference with other devices.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

Connecting devices with remote control connectors
The following functions can be used when this unit is connected to a Marantz amplifier.
0The remote control signal received with the amplifier is transmitted to
this unit in order to control this unit.
0When the power of this unit is turned on, the power of the amplifier turns
on, and the input source for the amplifier switches to “CD”. (Power on
link function)
0You can set the power on link function to on or off in “Power On Link” in the
settings menu. (v p. 36)
0Some operations may not be possible on some Marantz amplifiers.
Connection
Use the supplied remote connector cable to connect the REMOTE
CONTROL IN connector of this unit to REMOTE CONTROL OUT
connector of the amplifier.
Setting
Turn the EXTERNAL/INTERNAL switch on the unit to “EXTERNAL”.
0This setting will disable remote sensor reception of this unit.
0To operate the unit, point the remote control at the remote sensor of the
amplifier.
0To use this unit by itself without connecting an amplifier, turn the switch to
“INTERNAL”.
DIGITALAUDIO IN
DIGITALAUDIO IN
AUDIO IN
AUDIO IN
AUDIO IN
AUDIO IN
AUDIO OUT
AUDIO OUT
PRE OUT
PRE OUT
POWER AMP IN
POWER AMP IN
HDMI ARC
HDMI ARC
NETWORK
NETWORK
OPTICAL
OPTICAL
COAXIAL
COAXIAL
CD
CD
LINE
LINE
PHONO
PHONO
SIGNAL GND
SIGNAL GND
RECORDER
RECORDER
RECORDER
RECORDER
SUBWOOFER
SUBWOOFER
5V/1A
5V/1A
SPEAKERS
SPEAKERS
Bluetooth / Wi-Fi
Bluetooth / Wi-Fi
ANTENNA
ANTENNA
IN
IN
REMOTE CONTROL
REMOTE CONTROL
OUT
OUT
This unit
Remote
connector
cable
(supplied)
Signal flow Set to
“EXTERNAL”.
Amplifier
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

Connecting the timer device

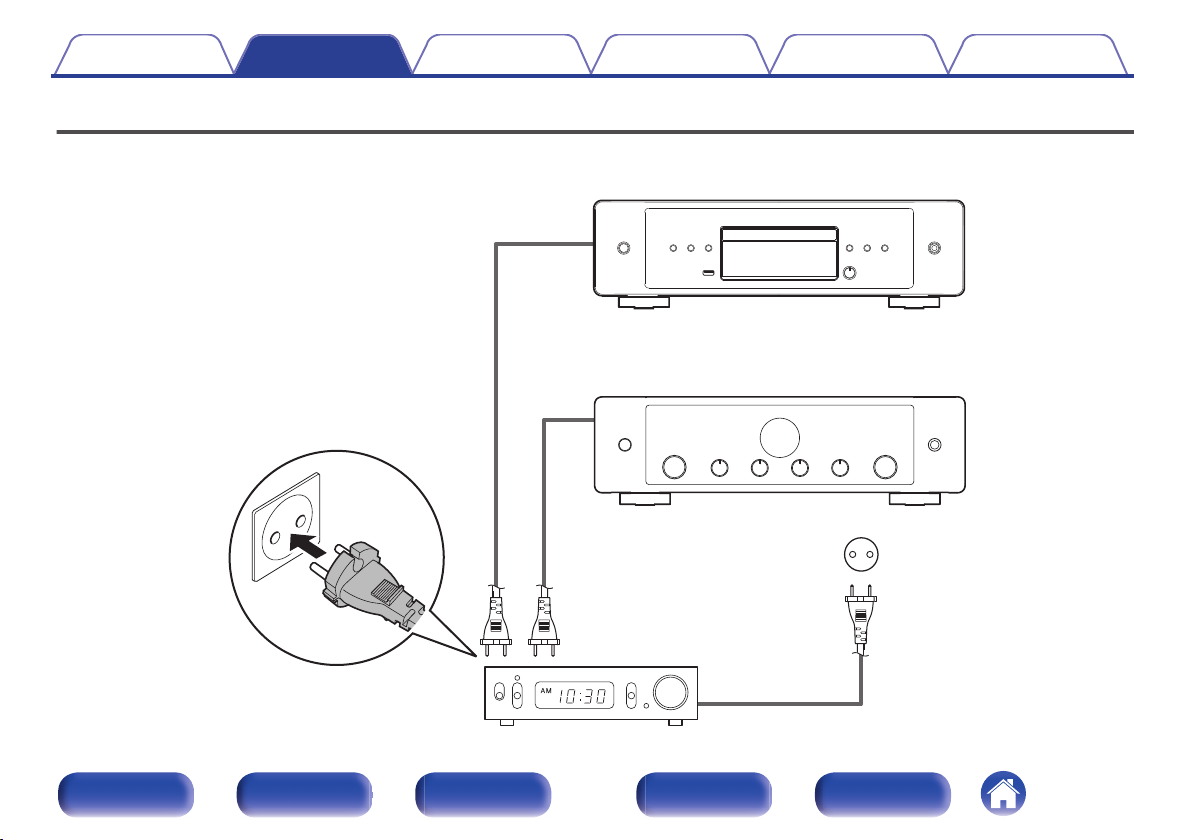

This unit can perform timer play when an amplifier and timer device are connected to this unit. (“Timer Play” (v p. 37))
This unit
Amplifier
To household power outlet
(AC 230 V, 50/60 Hz)
Timer device
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

Connecting the power cord
After completing all the connections, insert the power plug into the power outlet.
Power cord (supplied)
To household power outlet
(AC 230 V, 50/60 Hz)
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
