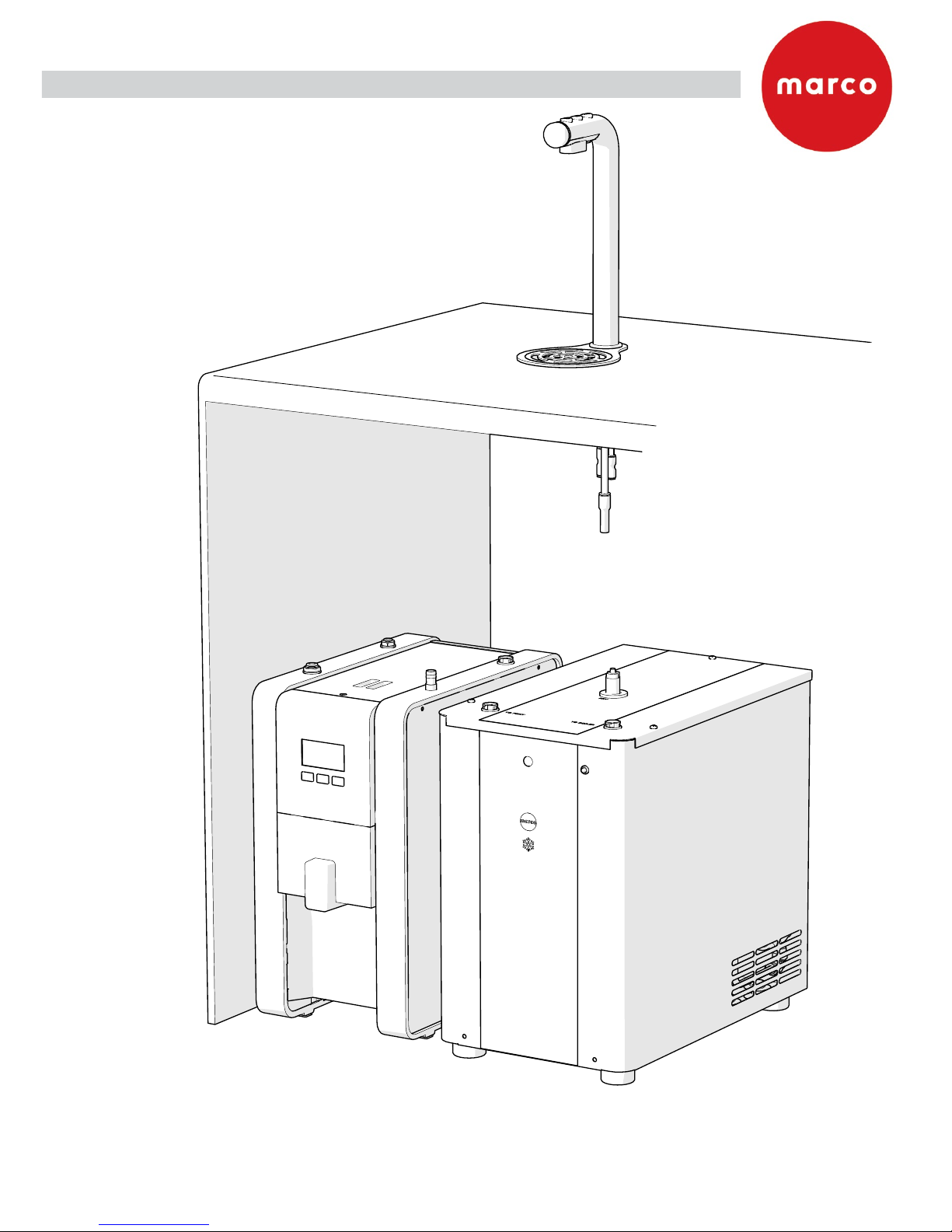

Instruction Manual
Machine P/N: 1000864# & 1000865# FRIIA

2
Contents
Introduction.................................................................................................................................3
1. Specication............................................................................................................................4
Installation requirements.............................................................................................4
2. Safety......................................................................................................................................4
4. Basic Installation.....................................................................................................................7
Chiller Installation........................................................................................................7
CO2 Installation...........................................................................................................8
3. Operation................................................................................................................................9
5. Sanitzation and Cleaning.......................................................................................................11
6. Troubleshooting.....................................................................................................................12
7. FRIIA Installation Guide.........................................................................................................13
Box Contents
FRIIA Cold/Carbonated Part no.
Chiller 1000861
Chiller to Boiler Cable 1501180
1m length 3/8” Tube
(water)
1800627
1m length 6mm Tube
(CO2)
1800628
User Manual n/a
It is highly recommended to t a water regulator to the supply feed. In the event of
mechanical failure a regulator set correctly will ensure the water supply is cut. Marco
suggests 10 litres continuous ow.
Machine BTU per hour (btu/h)
Chiller 682.43
Chiller/Carb 1023.64
Boiler 9554
FRIIA Cold Part no.
Chiller 1000860
Chiller to Boiler
Cable
1501180
1m length 3/8”
Tube (water)
1800627
User Manual n/a

3
The information provided in this manual is intended to assist in the installation and maintenance of the Marco FRIIA System. Please
read the instructions carefully to prevent accidents and ensure an efcient installation. This manual is not a substitute for any safety
instructions or technical data afxed to the machine or its packaging. All information in this manual is current at the time of publication
and is subject to change without notice. Only technicians or service providers authorised by Marco should carry out installation and
maintenance of these machines. Marco accepts no responsibility for any damage or injury caused by incorrect or unreasonable
installation and operation. Do not allow anyone to operate the equipment unless suitably trained. Keep the equipment in good
working order and do not allow any modications unless authorised by the manufacturer.
• This document shall be applied to equipment intended for the EC market only.
Introduction

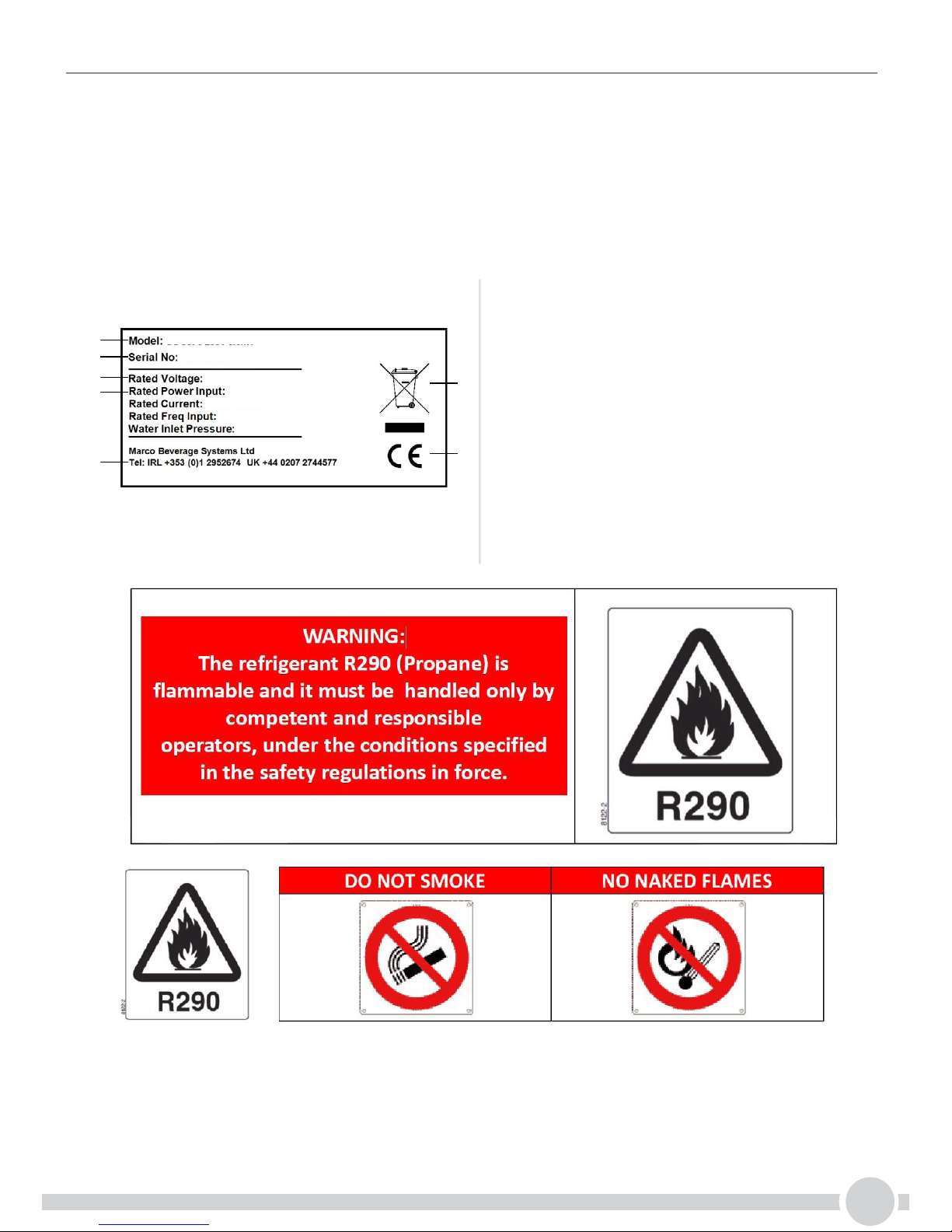

A. Model Number and name.
B. Product serial code (mmyyxxxxxx)
C. Rated Voltage.
D. Rated Power.
E. Contact details.
F. WEEE Logo
This logo indicates that the product must not be disposed
of as household waste. To help prevent possible harm to
human health and/or the environment, the product must
be disposed of in an approved and environmentally safe
recycling process. For further information on how to dis-
pose of this product correctly, contact product supplier,
or the local authority responsible for waste disposal in
your area.
G. Regulatory standard logo
This equipment has been designed and tested to comply
with all applicable regulatory standards set by
international, independent and government authorities.
A
B
C
D
EG
F
RATING PLATE
FRIIA Chiller
120W
100-900 kPa
1000860
230 V.a.c.
50Hz
2 amps

4
2. Safety
2.1 IMPROPER USE
This equipment is deisgned solely for the use and conditions as outlined in this manual. The use of this equipment for any other
purpose is not permitted in any circumstance.
This unit can be used by adults without any experience and knowledge under supervision or after instruction on the safe use of the
equipment and have understood the risks. Children should not operate the equipment. Installation cleaning and user maintenance
must not be carried out by children.
This equipment is not intended to be used by people (including children) with reduced physical or sensory capacities or with a lack of
experience and knowledge, unless under supervisionor instructed by someone responsible for their safety.
For safety reasons, and in accordance with the current legislation, any repair operations on the equipment must be carried out by
the Service Centre.
• Do not alter or tamper with the internal dispenser components; if they are not operating properly contact the Service Centre.
• Do not place anything on top of the Boiler or Chiller
• Do not run any other liquid besides water through the system.
• If you believe the system to be damaged, contact Marco Beverage systems.
1. Chiller Specification
2.3 SYMBOLS USED IN THE MANUAL
This manual uses the following safety symbols to draw the operator’s attention to all operations which must be strictly observed in
order to prevent injury to persons or damage to the equipment.
DANGER
Shows the existence, on or around the equipment, of a real risk of death or severe injury for the
operator and other persons; it is therefore essential to take the greatest care and proceed with the
greatest caution.
Safe operating temperature: N from +16 ° C to +32 ° C (standard class)
Cooling system: Aluminium black heat exchanger.
Colling capacity: 35-40 litres/hour.
Electrical requirements: Two 13 amp sockets operating on 230V single phase.
Voltage and frequency ratings: 230V / 50Hz.
Max power consumption (chiller): 200W.
Compressor nominal power: 1/8 HP.
Refrigerant type and quantity: R290 / 45 gr.
Carbonator volume (just for SW versions): 1ltr.
Net Weight: 35kg.
Mains water pressure required
downstream of any lter systems:
22 - 140psi (150 - 1000kPa) (1.5 - 10 bar)
If mains pressure is below 1 bar or the
ow rate is less than 2L/min:
t a device capable of increasing the mains pressure (autoclave or similar). ensure
your water net is able to supply at least 2L/min water owrate.
Water connection: 3/8” Quick connection tting.
Electrical requirements: Two 13 amp sockets operating on 230V single phase.
Machine location: The machine must be located in a well ventilated space, at least 10cm (3.9inch)
around back and top for ventilation.
1.1 Installation Requirements (See also Basic Installation p7, Installation Guide p13)

5
DANGER
CO2 (CARBON DIOXIDE)
CO2 cylinders must always be stored in a well-ventilated place where the air can ow in and out. Great
care must be taken to prevent CO2 leaks throughout the system, including the gas cylinders.
If a CO2 leak is suspected, especially in a small area, ventilate the contaminated area at once, persons
exposed to high concentrations of CO2 will experience trembling, swiftly followed by unconsciousness
and suffocation.
DANGER
ELECTRICAL MAINS
Always disconnect the equipment from the electricity supply before carrying out any work, to prevent
DANGER
GAS CYLINDER LOCATION
To prevent the risk of injury or damage, the CO2 cylinder must always be kept in a vertical position
against a wall, held in place by a chain xed to a bracket. Do not expose the bottle to heat sources or
very low temperatures.
Only super-dry food grade CO2 should be used.
Before connecting the pressure reducer to the gas cylinder, always vent any dirt from the valve, and
close the cylinder valve after few seconds
DANGER
Keep the ventilation openings on the equipment and on the cabinet in which the system is installed
free from obstruction.
DANGER
AUTHORIZED TECHNICAL STAFF
The refrigerant R290 (Propane) is ammable and it must be handled only by competent and responsible
operators, under the conditions specied in the safety regulations in force.
CAUTION
ELECTRICAL REQUIREMENTS
The electrical circuit must be correctly earthed and connected by means of a suitable differential safety
breaker.
CAUTION
REPLACEMENT OF THE POWER CABLE
If the power cable is damaged, it must be replaced by the manufacturer or their assistance service or a
similarly qualied person in order to prevent any possible risk.
CAUTION
LOW TEMPERATURE
If the equipment is exposed to temperatures lower than O°C, the water inside could turn to ice and
damage the equipment.
CAUTION
SANITISATION
Before sanitising the equipment, carefully read the instructions given by the sanitisation product
manufacturer and put on all the necessary personal protective equipment (gloves, masks, etc.).
Ensure that the premises are well ventilated.
The sanitisation operations should only be carried out by specialised technical assistance personnel.
2.4 LIST OF HAZARDS
The following list of hazards draws attention to safety aspects which must be considered at all times by anyone using the equipment.
Safe operating temperature: N from +16 ° C to +32 ° C (standard class)
Cooling system: Aluminium black heat exchanger.
Colling capacity: 35-40 litres/hour.
Electrical requirements: Two 13 amp sockets operating on 230V single phase.
Voltage and frequency ratings: 230V / 50Hz.
Max power consumption (chiller): 200W.
Compressor nominal power: 1/8 HP.
Refrigerant type and quantity: R290 / 45 gr.
Carbonator volume (just for SW versions): 1ltr.
Net Weight: 35kg.
Mains water pressure required
downstream of any lter systems:
22 - 140psi (150 - 1000kPa) (1.5 - 10 bar)
If mains pressure is below 1 bar or the
ow rate is less than 2L/min:
t a device capable of increasing the mains pressure (autoclave or similar). ensure
your water net is able to supply at least 2L/min water owrate.
Water connection: 3/8” Quick connection tting.
Electrical requirements: Two 13 amp sockets operating on 230V single phase.
Machine location: The machine must be located in a well ventilated space, at least 10cm (3.9inch)
around back and top for ventilation.
1.1 Installation Requirements (See also Basic Installation p7, Installation Guide p13)
WARNING
Shows the existence, on or around the equipment, of a potential risk of death or severe injury for the
operator or other persons; it is therefore essential to take great care and proceed with the greatest
caution.
CAUTION
Shows the existence, on or around the equipment, of a potential risk of minor injury for the operator
or other persons; it is therefore essential to take great care and proceed with the greatest caution.

6
DANGER
ELECTRICAL MAINS
Always disconnect the equipment from the electricity supply before doing any work on it, to prevent
damage and health hazards.
CAUTION
ELECTRICAL REQUIREMENTS
The electrical circuit must be correctly earthed and connected by means of a suitable differential
safety breaker.
CAUTION
ELECTRIC POWER SUPPLY
Do not connect or disconnect the machine from the socket with wet hands.
Insert the plug into the wall socket rmly.
Do not pull on the supply cable in order to remove the plug from the socket.
CAUTION
REPLACEMENT OF THE POWER CABLE
If the power cable is damaged, it must be replaced by the manufacturer or their assistance
service or a similarly qualied person in order to prevent any possible risk.
WARNING
MALFUNCTION
If smoke, unusual smells or strange noises are emitted from the machine, disconnect it
immediately from the socket and contact the local retailer or technical service assistance.
Use of the machine in these conditions could cause res or electric shocks.
ATTENTION
If the equipment is installed in a kitchen, European Standard EN 60335-2/75 species that it
must be connected to an equipotential circuit via a wire with section between 2,5 and 10 mm2.
This connection must be carried-out by a skilled technician, in compliance with the regulation
in force in the country of use.
WARNING
WATER SUPPLY
Connect the water dispenser exclusively to a line of drinkable water supply.
WARNING
WATER SUPPLY
In order to avoid accidental ooding due to losses that may occur on the water supply line,
external or internal device it is necessary to install the appropriate anti-ooding valve “WATER
BLOCK” (not included in the unit) .
DANGER
CO2 (CARBON DIOXIDE)
CO2 cylinders must always be stored in a well-ventilated place where the air can ow in and out. Great
care must be taken to prevent CO2 leaks throughout the system, including the gas cylinders.
If a CO2 leak is suspected, especially in a small area, ventilate the contaminated area at once, persons
exposed to high concentrations of CO2 will experience trembling, swiftly followed by unconsciousness
and suffocation.
DANGER
Do not use or store cylinders of CO2 at temperatures above 35°C.
Do not use or store cylinders of CO2 inside the appliance.
DANGER

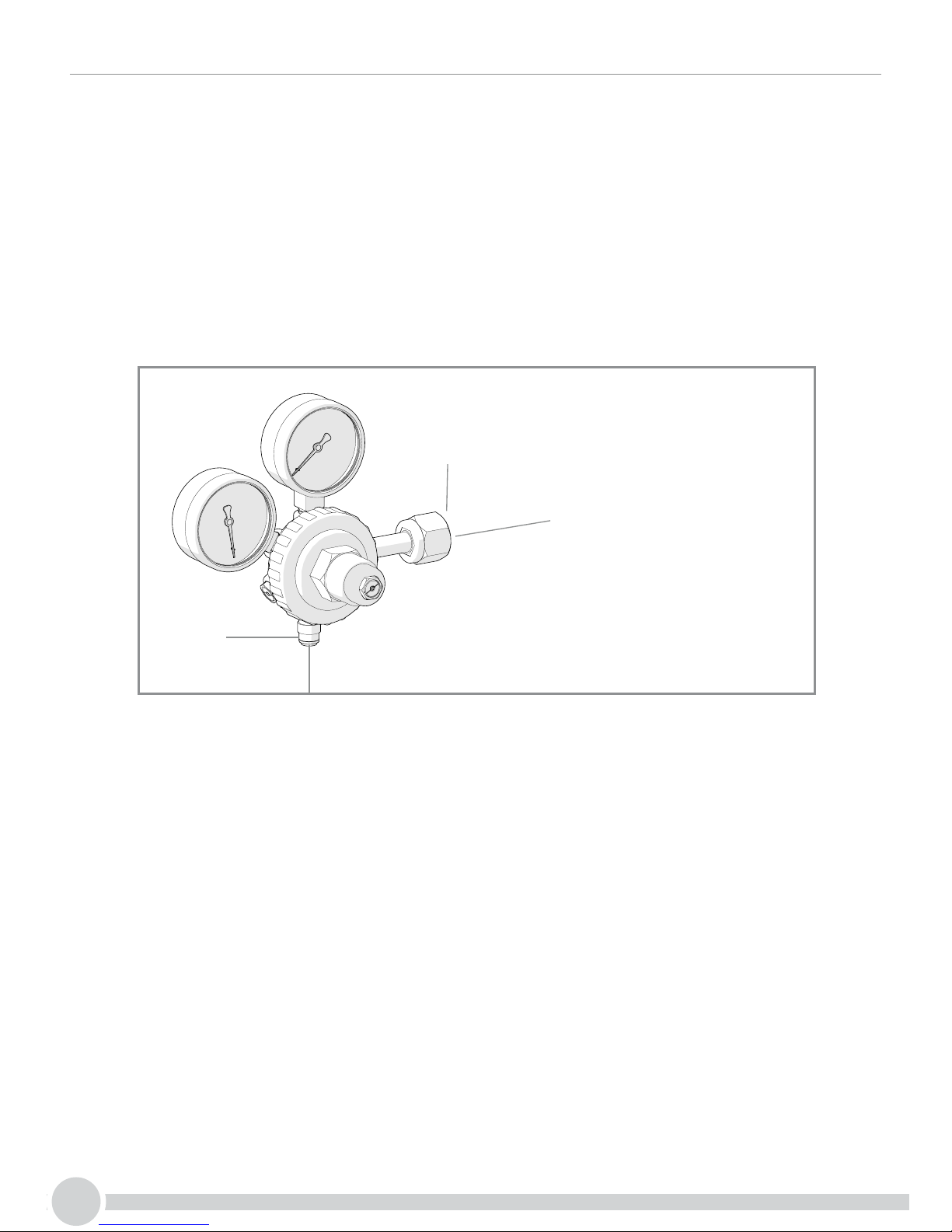

PRESSURE REDUCER
Never connect CO2 cylinder directly to the equipment. Always use a suitable pressure reducer.
DANGER
GAS CYLINDER LOCATION
To prevent the risk of injury or damage, the CO2 cylinder must always be kept in a vertical position
against a wall, held in place by a chain xed to a bracket. Do not expose the bottle to heat sources or
very low temperatures.
Only super-dry food grade CO2 should be used.
Before connecting the pressure reducer to the gas cylinder, always vent any dirt from the valve, and
close the cylinder valve after few seconds.

7
DANGER
ELECTRICAL MAINS
Always isolate chiller from power supply before doing any work on it, to prevent damage and health
hazards.
CAUTION
Before carrying out the following operations, carefully read the instructions given by the sanitization prod-
uct manufacturer and make sure all personal protective equipment (gloves, masks, etc.) is worn correctly.
The sanitization of the product lines must only be carried out by specialized technical service personnel.
During the sanitization operations, attach a warning sign to the tower concerned, to inform any other
personnel that this operation is in progress, and that it is forbidden to dispense beverages.
DANGER
ELECTRICAL MAINS
Always isolate chiller from power supply before doing any work on it, to prevent damage and health
hazards.
ATTENTION
Do not spray water on the device; this could cause electric shocks or res.
3. Basic Installation (See also Installation Guide p13)
3.1 UNPACKING INSTRUCTIONS
•The chiller must be handled only in a vertical position. Transporting the appliance in a horizontal position can cause severe damage
to the refrigerator.
•Remove the exterior and interior packing. Packing materials (especially any plastic bags) should be stored out of the reach
of children, as a potential source of danger. When disposing packaging parts, please follow current regulations on the matter,
separating carton from plastic parts.
•Always check that the equipment that is delivered corresponds to the model indicated in the accompanying document.
•The equipment is shipped in a cardboard box. Once the packaging has been removed, check the equipment has not been damaged
in transit; if damage is found, notify the carrier.
3.2 ELECTRICAL INSTALLATION PROCEDURE
When installing the machine, always observe the local regulations and standards. The appliance is supplied with a moulded power
cord. A suitable mains power supply socket should be available within easy access of the appliance so that it can be disconnected
easily after install.
3.3 PLUMBING INSTALLATION PROCEDURE
• Ensure that the equipment is installed according to local plumbing & water regulations.
• Fit a stop valve on a cold water line and attach a 3/8” BSP male tting, (E.g. 3/4” x 1/2” 311 or washing machine type stop valve).

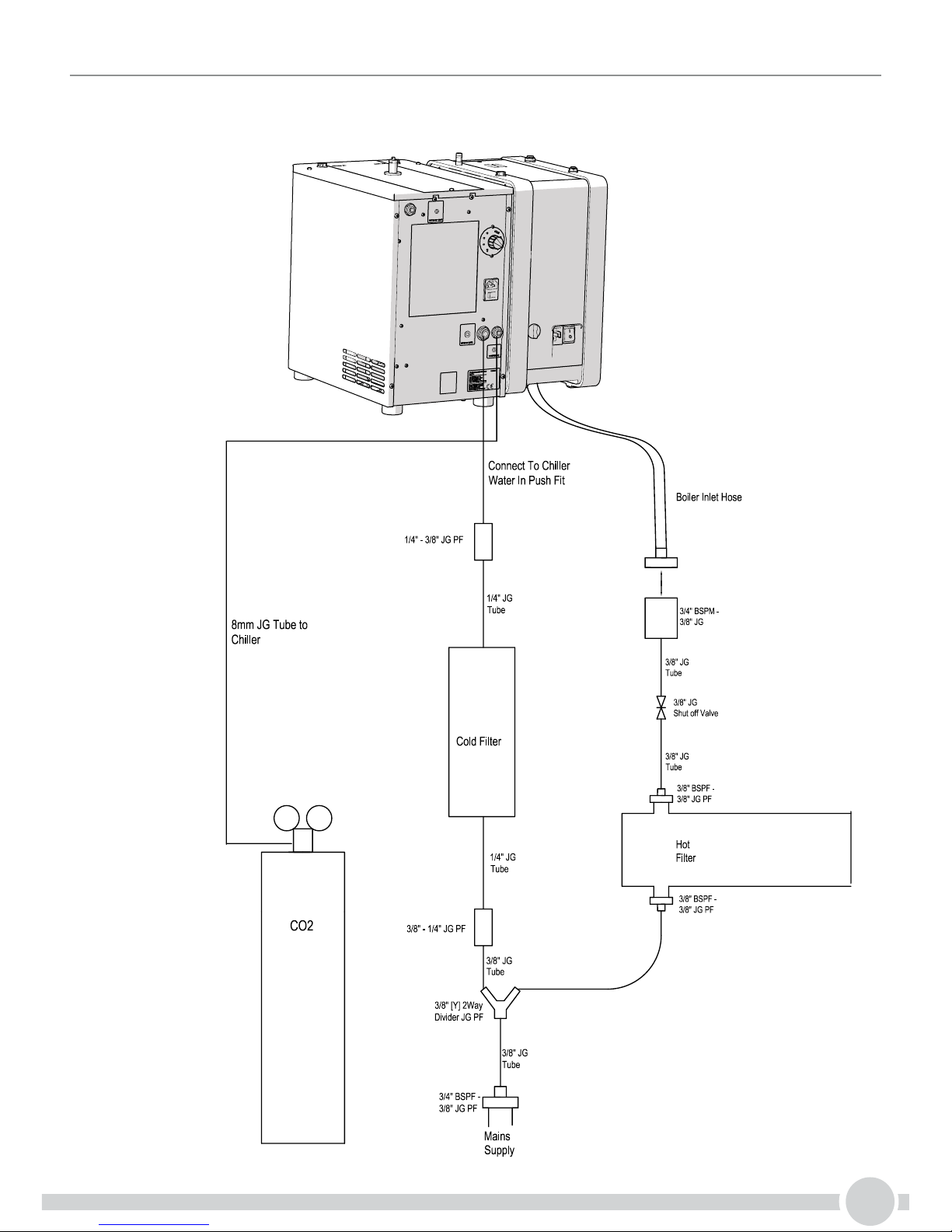

• Connect water supply lines following the installation drawings. As per installation guide (starting page 14)
• In case lter systems are used verify that they satisfy the requirements of the legislation in force.
• If the lter is new, turn on water and ush at least 10 liters (2.5 gallon) through the lter before to connect it to the cooler; if the
lter is a used one, connect water inlet to the chiller.
• To ensure that the maximum value of pressure of 3 Bar is not exceeded the chiller integrates a pressure reducer.
• Turn on the water to ush any impurities, dust etc from the inlet hose and water pipe. Allow several litres through. Especially for
new installations.

8
3.5 BACKFLOW PREVENTION
This equipment must be installed with adequate backow protection to comply with all applicable federal, state and local codes.
3.6 ENVIRONMENTAL CONDITION
• The equipment is not suitable for external use.
• The equipment must be placed so it is protected from rain and water splashes, and in a location with the temperature appropriate
to its climate class (stated in specication); otherwise warranty rights are forfeited and malfunctions may occur.
3.7 POSITIONING
•The equipment must be placed on a surface capable of bearing the weight of the dispenser complete with water. Install the
equipment following the schematic described in this user guide.
• The chosen position must in any case allow satisfactory ventilation; in particular, there must be a gap of at least 10 cm (3.9 in)
around the back and top for ventilation.
• The equipment must not be placed close to direct or indirect heat sources (ovens, stoves, radiators, etc.). The electrical
connection and water supply points must be close to the equipment and located in such a way the power cable and water hose do
not form an obstruction.
• The appliance must not be installed where water jets can be generated. Do not spray water on the device; this could cause
electric shock or res.
3.4 CO2 INSTALLATION PROCEDURES
Connect CO2 using the appropriate polyethylene tube.
CO2.
• Only use super-dry food grade CO2 should be used. Before connecting the pressure reducer to the gas cylinder, always
vent any dirt from the valve and close the cylinder valve after few seconds.
GAS CYLINDER LOCATION
• To prevent the risk of injury or damage, the CO2 cylinder must always be kept in a vertical position against a wall, held in
place by a chain and xed to a bracket. Do not expose the bottle to heat sources or very low temperatures.
PRESSURE REDUCERs
• There are different type of CO2 cylinder available. Always use a pressure reducer suitable for the type of valve on the cylinder.
• If you use CO2, especially in a small area, ventilate the contaminated area at once.
• Please use Dual gauge CO2 regulator 1400195
• Check for leaks using a solution of soapy water.
Recommended CO2 regulator
Marco Part number 1400195
To CO2 canister
To Chiller
BS8 connection
8mm push t
connection

9
CARBONATION PUMP
The device is equipped with a carbonation pump required for the addition of Carbon Dioxide in the water. After about 3.5 minutes
of continuous operation the pump stops carbonation. Stops and starts dictated by the carbonation level probes can be a
symptom of a leak in the water feed. To reset this simply disconnect and then reconnect the power to the equipment.
THERMOSTAT SETTING

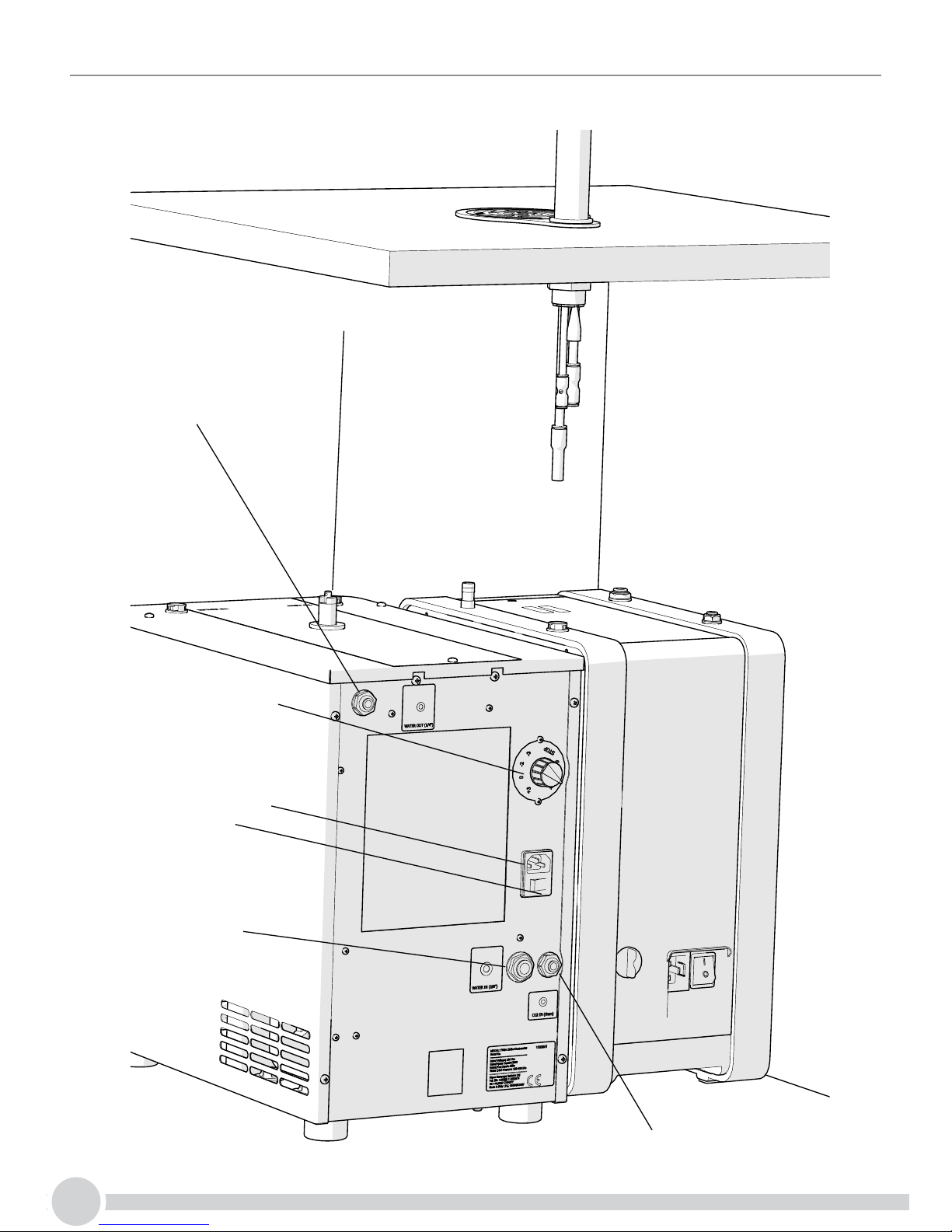

The temperature of the dispensed beverages can be adjusted using the thermostat on the back of the chiller.
If the knob is turned in a clockwise direction the water will be cooler, if turned in the opposite direction water will be less cool. If the
thermostat knob is turned completely anticlockwise (to “0” or “STOP” position), the compressor turns off.
4. OPERATING
4.1 BEFORE USING CHILLER
•Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility
of a malfunction.
•Check that all installation procedures have been carried out.
•Ensure water inlet is open.
•Before supplying power to the unit check water and Carbon Dioxide lines do not leak.

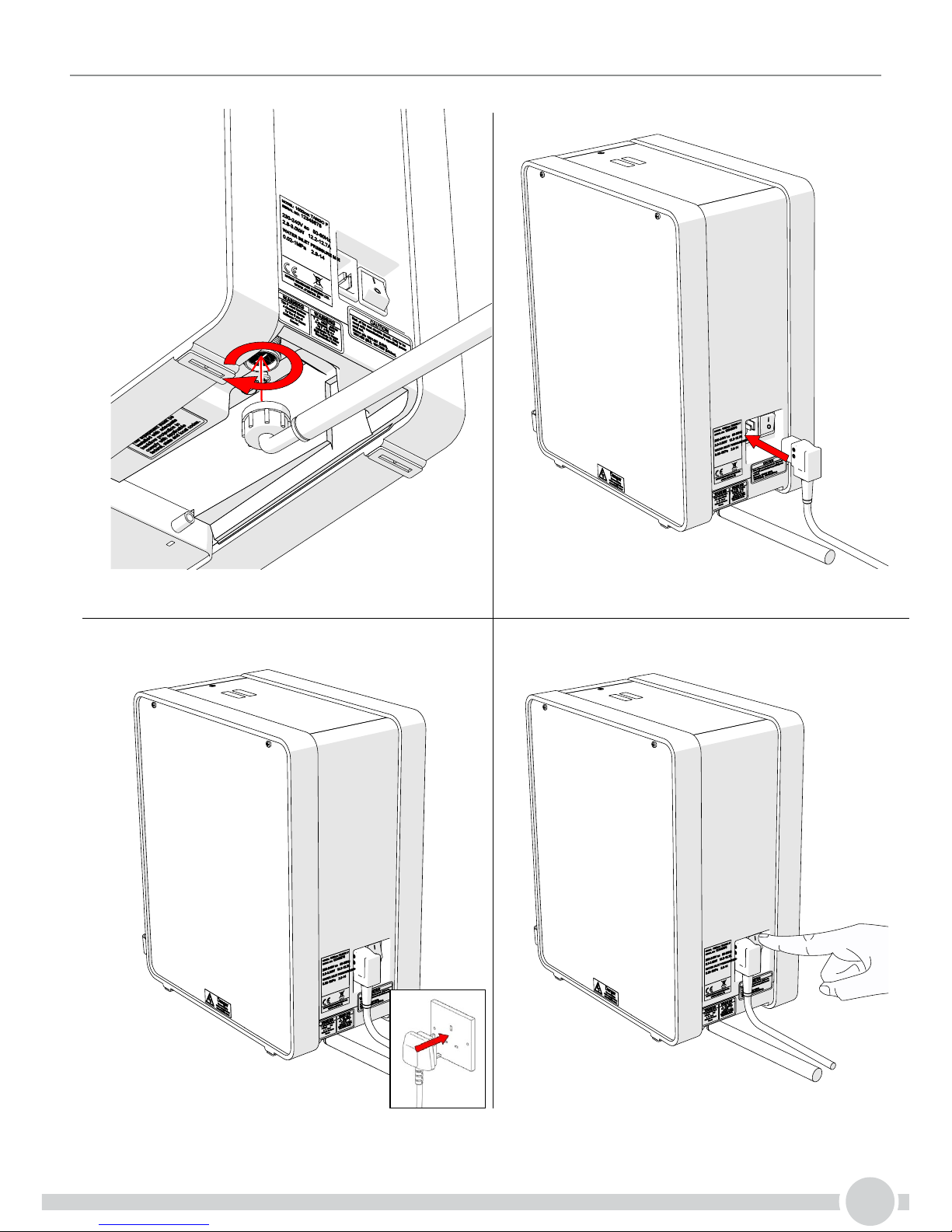

•Plug the chiller into a suitable socket switch ON/OFF switch on the rear of the chiller to ON position.
•The “Power ON Status” light will light-up.
•When the unit is on, the carbonation pump starts to ll. The carbonation device stops when it reaches the maximum level.
•Once water and CO2 are connected, open the vent on top of the Chiller by pulling the ring. This operation allows the escape of any
air bubbles present inside, which would affect the carbonation adversely.
•On the pressure reducer knob, adjust CO2 pressure to a value between 50 and 65 PSI (350 and 450 kPa) (3.5 - 4.5 bar)
This value depends on the temperature of the water and on the ambient temperature. The temperatures correspond to the CO2
pressure.
•To enable lling the lines, open the two lines in the following order: cold sparkling water and cold natural water, until the ows appear
regular and without the presence of air, in each case deliver and discharge at least 5 liters of water from each line.
•At this point you can dispense water.

10
4.3 MAINTENANCE
Maintenance procedures (described below) are required for optimum equipment operation.
4.3.1 DAILY MAINTENANCE
1. Water faucet. Clean the faucet nozzle and remove any residue using warm water; do not use solvents or abrasive
detergents. If required, remove all the limestone with a food descaling solution.
2. Drip tray. Clean the tray and remove any residue using warm water.
3. CO2 pressure. Review pressure CO2 gauges for proper settings.
4. Power cord. Check condition of the power cord. Replace if necessary.
4.3.2 LIMESCALE
Descaling of the machine should ideally be carried out by qualied service personnel.
4.3.3 CHECK FOR CO2 PRESSURE:
Review pressure CO2 gauges for proper settings. 50 - 65 psi (350 - 450 Kpi) (3-4.5 bar)
Replacing a carbon dioxide (CO2) cylinder.
the cyclinder must be replaced when the needle of the reducer high pressure gauge is in the red segment.
1.Record the pressure values set on the pressure reducer, then fully close the bottle with the valve.
2.Remove the pressure reducer or disconnect the high pressure hose from the bottle if tted. Check the condition of the
gaskets between the reducer and the bottle, replace them if necessary.
3.Replace the CO2 cylinder by slowly opening the valve to the fully open position and check that the pressure values are as
originally set.
4.3.4 CLEANING THE CHILLER CONDENSER:
Check the chiller condenser at monthly intervals and in accordance to the environmental conditions (humidity and dust). If
dust or dirt occurs between the condenser blades: remove screws, plastic clips and the removable upper panel then clean the
condenser ns using a soft brush, a vacuum cleaner or a low-pressure compressed air. Remove any dust from the cooling
and electrical components.
• Accumulation of dust and grease over the condenser may cause overheating which could damage the compressor
beyond repair. The condenser must always be cleaned when necessary.
• Do not use wire brushes or compressed air jets as they can damage the condenser.
