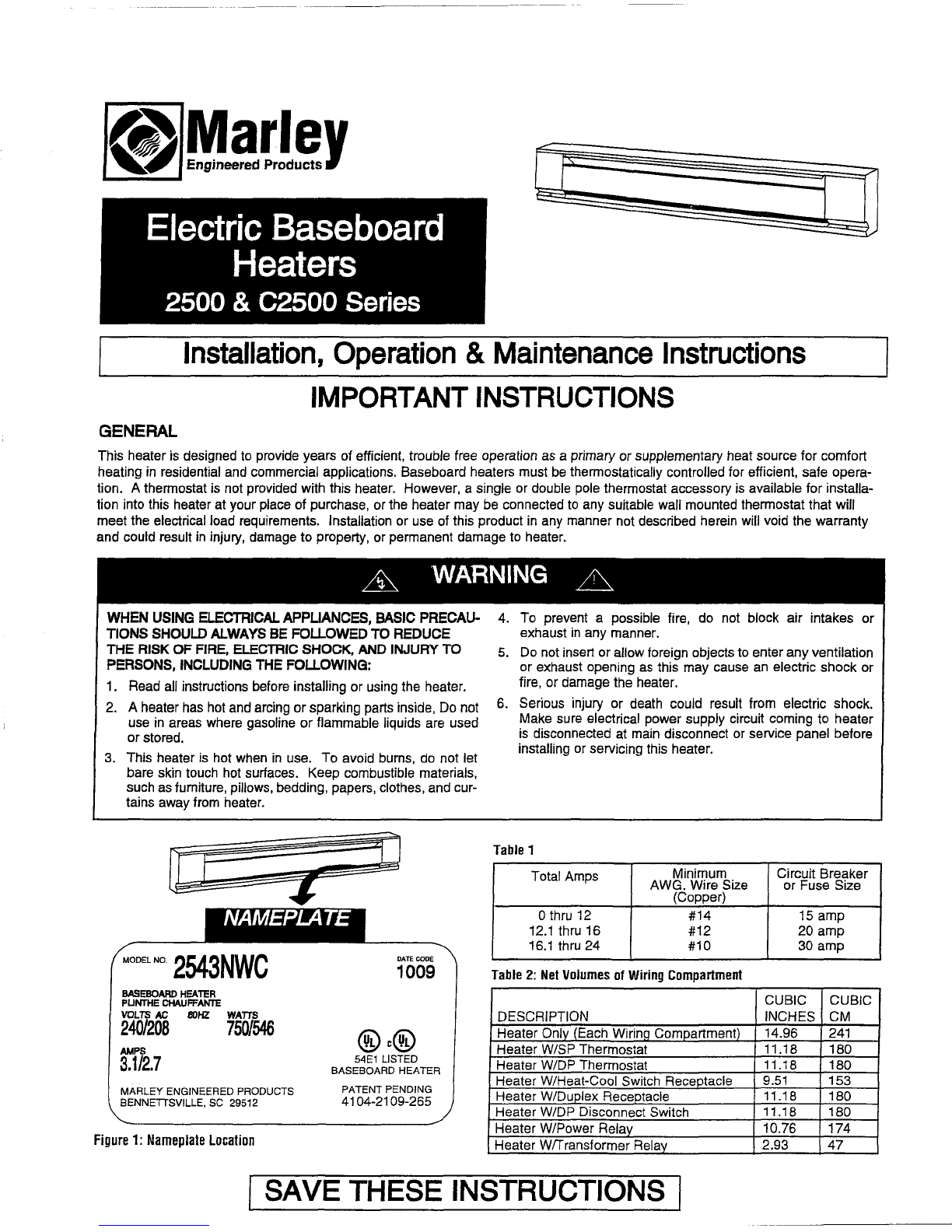

Electric Baseboard
Heaters
2500 &C2500 Series
Installation, Operation & Maintenance Instructions
IMPORTANT INSTRUCTIONS
GENERAL
This heater is designed to provide years of efficient, trouble free operation as aprimary or supplementary heat source for comfort
heating
in residential and commercial applications. Baseboard heaters must be thermostatically controlled for efficient, safe opera-
tion. Athermostat is not provided with this heater. However, asingle or double pole thermostat accessory is available for installa-
tion into this heater at your place of purchase, or the heater may be connected
to any suitable wall mounted thermostat that will
meet the electrical load requirements. Installation or use of this product in any manner not described herein will void the warranty
and could result
in injury, damage to property, or permanent damage to heater.
~ WARNING ~
WHEN USING ELECTRICAL APPUANCES, BASIC PRECAU-
TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO
PERSONS, INCLUDING THE FOLLOWING:
1. Read all instructions before installing or using the heater.
2. Aheater has hot and arcing or sparking parts inside, Do not
use in areas where gasoline or flammable liquids are used
or stored.
3. This heater is hot when in use. To avoid bums, do not let
bare skin touch hot surfaces. Keep combustible materials,
such as fumiture, pillows, bedding, papers, clothes, and cur-
tains away from heater.
NAMEPLATE
DATE CODE
1009
4. To prevent apossible fire, do not block air intakes or
exhaust
in any manner.
5. Do not insert or allow foreign objects to enter any ventilation
or exhaust opening
as this may cause an electric shock or
fire, or damage the heater.
6. Serious injury or death could result from electric shock.
Make sure electrical power supply circuit coming to heater
is disconnected at main disconnect or service panel before
installing or servicing this heater.
Table 1
Total Amps Minimum Circuit Breaker
AWG. Wire Size or Fuse Size
(Copper)
Othru 12
#14 15 amp
12.1 thru 16
#12 20 amp
16.1 thru 24
#10
30 amp
Table 2: Net Volumes of Wiring Compartment
BASEBOARD HEATER
PUNTHE CHAUFFANTE
VOLTS AC 80HZ WATTS
240/208 750/546
AMPS
3.1/2.7
MARLEY ENGINEERED PRODUCTS
BENNETTSVILLE,
SC 29512
Figure 1: Nameplate Location
@c@
54El LISTED
BASEBOARD HEATER
PATENT PENDING
4104-2109-265
CUBIC CUBIC
DESCRIPTION INCHES CM
Heater Only (Each Wirinq Compartment) 14.96 241
Heater WISP Thermostat 11.18 180
Heater W/DP Thermostat 11.18
180
Heater W/Heat-Cool Switch Receptacle 9.51
153
Heater W/Duplex Receptacle 11.18 180
Heater W/DP Disconnect Switch 11.18
180
Heater W/Power RelaY 10.76 174
Heater Wffransformer Relav 2.93
47
ISAVE THESE INSTRUCTIONS I

•

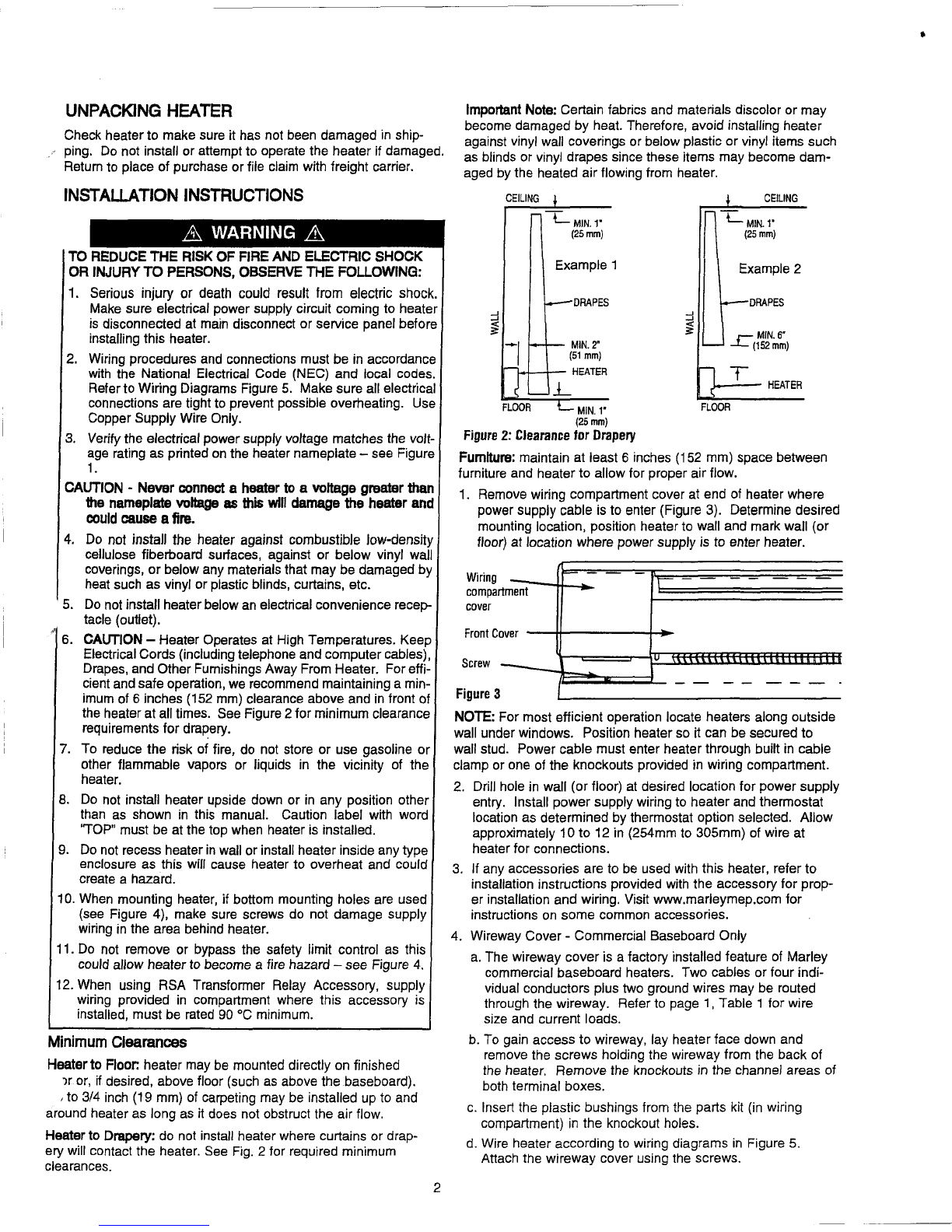

UNPACKING HEATER
Check heaterto make sure it has not been damaged in ship-
ping.
Do not install or attempt to operate the heater if damaged.
Retum to place of purchase or file
claim with freight carrier.
Important Note: Certain fabrics and materials discolor or may
become damaged by heat. Therefore, avoid installing heater
against vinyl wall coverings or below plastic or vinyl items such
as blinds or vinyl drapes since these items may become dam-
aged
by the heated air flowing from heater.
INSTALLATION INSTRUCTIONS
CEILING CEILING
.& WARNING AL
MIN. 1"
(25mm)
L
MIN
.1"
(25mm)
Example 2
DRAPES
MIN.fi
r(152mm)
T
.....-- HEATER
FLOOR
DRAPES
Example 1
-
ment
over
--------
MIN. 1"
(25mm)
Figure 2: Clearance for Drapery
Furniture: maintain at least 6inches (152 mm) space between
furniture and heater to allow for proper air flow.
1. Remove Wiring compartment cover at end of heater where
power supply cable is to enter (Figure 3). Determine desired
mounting location, position heater to wall and mark wall (or
floor) at location where power supply is to enter heater.
Figure 3
NOTE: For most efficient operation locate heaters along outside
wall under windows. Position heater
so it can be secured to
wall stud. Power cable must enter heater through built
in cable
clamp or one of the knockouts provided in wiring compartment.
2. Drill hole
in wall (or floor) at desired location for power supply
entry. Install power supply wiring to heater and thermostat
location as determined
by thermostat option selected. Allow
approximately 10 to 12 in (254mm to 305mm) of wire at
heater for connections.
3. If any accessories are to be used with this heater, refer to
installation instructions provided with the accessory for prop-
er installation and wiring. Visit www.marleymep.com for
instructions
on some common accessories.
4. Wireway Cover -Commercial Baseboard Only
a. The wireway cover is afactory installed feature of Marley
commercial baseboard heaters. Two cables or four indi-
vidual conductors plus two ground wires may be routed
through the wireway. Refer to page
1, Table 1for wire
size and current loads.
b. To gain access to wireway, lay heater face down and
remove the screws holding the wireway from the back of
the heater. Remove the knockouts in the channel areas of
both terminal boxes.
c. Insert the plastic bushings from the parts kit (in wiring
compartment)
in the knockout holes.
d. Wire heater according to wiring diagrams in Figure 5.
Attach the wireway cover using the screws.
Front C
Wiring
compart
cover
Screw
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK
OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
1. Serious injury or death could result from electric shock.
Make sure electrical power supply circuit coming to heater
is disconnected at main disconnect or service panel before
installing this heater.
2. Wiring procedures and connections must be in accordance
with the National Electrical Code (NEC) and local codes.
Refer to Wiring Diagrams Figure
5. Make sure all electrical
connections are tight to prevent possible overheating. Use
Copper Supply Wire Only.
3. Verify the electrical power supply voltage matches the volt-
age rating as printed on the heater nameplate -see Figure
1.
CAUTION -Never connect aheater to avoltage greater than
the nameplate voltage as this will damage the heater and
could cause a fire"
4. Do not install the heater against combustible low-density
cellulose fiberboard surfaces, against or below
Vinyl wall
coverings, or below any materials that may be damaged by
heat such as
Vinyl or plastic blinds, curtains, etc.
5. Do not install heaterbelow an electrical convenience recep-
tacle (outlet).
6. CAUTION -Heater Operates at High Temperatures. Keep
Electrical Cords (including telephone and computer cables),
Drapes, and Other Furnishings Away From Heater. For effi-
cient and safe operation, we recommend maintaining amin-
imum of 6inches (152 mm) clearance above and
in front of
the heater at all times. See Figure 2for minimum clearance
requirements for drapery.
7. To reduce the risk of fire, do not store or use gasoline or
other flammable vapors or liquids in the vicinity of the
heater.
8. Do not install heater upside down or in any position other
than
as shown in this manual. Caution label with word
"TOP" must
be at the top when heater is installed.
9. Do not recess heater in wall or install heater inside any type
enclosure as this will cause heater to overheat and could
create ahazard.
10. When mounting heater, if bottom mounting holes are used
(see Figure 4), make sure screws
do not damage supply
wiring
in the area behind heater.
11.
Do not remove or bypass the safety limit control as this
could allow heater to become afire hazard -see Figure
4.
12. When using RSA Transformer Relay Accessory, supply
wiring provided
in compartment where this accessory is
installed, must
be rated 90°C minimum.
Minimum Clearances
Heaterto Floor: heater may be mounted directly on finished
1ror, if desired, above floor (such
as above the baseboard).
,to 3/4 inch (19 mm) of carpeting may be installed up to and
around heater as long
as it does not obstruct the air flow.
Heater to Drapery: do not install heater where curtains or drap-
ery will contact the heater.
See Fig. 2for required minimum
clearances.
2

5. Loosen screw in built-in cable clamp (Figure 4) or remove
desired knockout from heater wiring compartment. Install
power cable into wiring compartment allowing at least 6
in
(153mm) of cable for connection to heater. To install two
power cables using the built-in cable clamp, bend tab cover-
ing second hole
up and back to rear wall of wiring compart-
ment. If built-in cable clamp is not used. install approved
cable restraint (not included) in desired knockout.
NOTE: cross stamped mounting perforations are provided in
back of heater enclosure above heating element at mounting
screw locations, see Figure
4.
6. Position heater at desired location and attach to wall using
wood screws or appropriate hardware. Locate studs and
drive screws into studs where possible. For heaters up to 6
feet (1.8
m) in length, one screw at each end is adequate.
For longer units,
an additional screw in center is required.
Tighten screws and then loosen screws at least
14 tum to
allow heater to expand and contract during use. If unit
is
mounted above floor, two additional mounting holes are pro-
vided at each end below the heating element (see Figure 4).
Install an additional screw at each end for stability making
sure to loosen each screw at least
14 turn.
7. Connect the supply cable grounding wire to the bare copper
pigtail in wiring compartment.
8. Follow the desired wiring diagram, as shown in Figure 5, to
connect the power supply to the heater using approved wire
nuts.
NOTE: When accessories are installed, use wiring diagram
supplied with the accessory.
9. If front cover was removed, reinstall by hooking the top edge
on the support bracket(s). Then push down to latch onto the
support bracket(s).
10.Replace wiring compartment cover(s).
11.Follow instructions accompanying thermostat for installation
and wiring thermostat. Visit www.marleymep.com for typical
thermostat wiring diagrams.
OPERATING INSTRUCTIONS
1. This heater must be properly installed before it is used.
2. After the baseboard system has been completely installed,
all thermostats should be tumed to LOW or NO HEAT.
Turn on breakers, wait 3to 5minutes and check to see that
none of the heaters are operating.
If operating, disconnect
power and check wiring. If none are operating then turn
thermostats to highest position and wait 3to 5minutes.
Check to see that all heater(s) are operating. Should any not
be operating, disconnect power and check wiring.
3. Allow entire system to operate steadily for 1/2 hour. This
should remove oily residue from manufacturing. (Some
smoking may occur).
4. Select the setting for comfort on all thermostats.
5. Asafety limit control is provided to tum off the heater auto-
matically if it
is blocked or otherwise overheats due to an
abnormal condition-see Figures 4and 5. DO NOT bypass or
remove this safety device from the electrical circuit-see
Warning
11 on page 2. During normal use, this safety control
should not operate. If you find that this control is operating,
make sure the heater
is not being blocked. If it continues to
cycle the heater
off, disconnect power to heater and have it
checked and repaired by aqualified electrician.
3
Safety limit DO
NOT BYPASS
o I~~~III
_______ -.:..Q ~Bottom mounting holes
Figure 4: Left Side Wiring Compartment Shown
MAINTENANCE INSTRUCTIONS
Your heater will give you years of service and comfort with only
minimum care. To assure efficient operation follow the simple
instructions below.
A WARNING A
1. Serious injury or death could result from electric shock.
Make sure electrical power supply circuit coming to heater
is disconnected at main disconnect or service panel before
servicing this heater. Allow heater to cool before cleaning
to prevent apossible bum.
2. Use care when cleaning element fins to avoiding damaging
fins. Note also that fins are sharp and may cause cuts so
avoid contact.
1. The user can perform some basic cleaning of the heater. All
other servicing is to
be done by qualified service personnel.
2. Because of the convection heating principle which depends
upon acirculation
of air through the finned element, dust will
collect between the fins. The heater should
be cleaned regu-
larly for maximum efficiency.
3. To clean heating element fins, first remove both wiring com-
partment covers and the front cover. Using avacuum cleaner
or compressed air, remove the dust and lint from the alu-
minum heating element fins while being careful not to dam-
age the fins.
4. The painted heater cabinet may be cleaned using aslightly
damp cloth. Do not use abrasive cleaners or waxes
as these
may damage the finish or leave aresidue that will discolor.
5. Replace front cover (making sure it is latched in place at
each element support bracket and at each end) and two
wiring compartment covers (using the two screws
prOVided),
restore power and check heater for proper operation.
Painting
If it becomes necessary to repaint heater, use only aquality
enamel paint suitable for metal surfaces following the instruc-
tions provided with the paint. DO NOT paint the heating element
or safety limit capillary tube. Repaint only the exterior of the
cabinet.

~
GROUND
FACTORY WIRING --
AElD WIRING -----
FACTORY WIRING --
FIELD WIRING -----
L2
SA
UMIT
WHITE OR BLACK
Left End Supply Wiring
GROUND
GRNO
Right End Supply Wiring
GROUND
GROUND
** NOTE: White for 120V & 277V
Black for all others
/~...,..,..,-{)"''''-r Orange wire nut
(Disconnect for right side
supply wiring)
WHITE RBlACK
~
GROUND
Orange wire nut--+ .... 6-....,.,...,.--" I
(Disconnect
for lett side
supply wiring) "'-t--------------t .....
GROUND
':' JJ _
GROUND FACTORYWlRfNG -- I I ORND
AELDWlRlNG - - - - - I I
Ll L2
* Note: Heater element leads are color coded by voltage-
Yellow 120V
Blue 208V
Red 240V
Brown 277V
Connection For Adjacent Heaters
Factory Wiring Shown
Safety limit in left side r==:-=:-------------......,
DO NOT BYPASS WHITE OR BlACK**
Figure 5: Wiring Diagrams
Note: For multiple heaters on one circuit, the heaters must be wired in parallel
LIMITED WARRANTY
All products manufactured by Marley Engineered Products are warranted against defects in workmanship and materials for one year from date of installation. except
heating elements which are warranted against defects
in workmanship and materials for ten years from date of installation. This warranty does not apply to damage from
accident, misuse.
or alteration; nor where the connected voltage is more than 5% above the nameplate voltage; nor to equipment improperly installed or wired or
maintained in violation of the product's installation instructions. All claims for warranty work must
be accompanied by proof of the date of installation.
The customer shall be responsible tor all costs incurred
in the removal or reinstallation of products, including labor costs, and shipping costs incurred to return products
to Marley Engineered Products Service Center. Within the limitations of this warranty. inoperative units should be returned to the nearest Marley authorized service cen-
ter or the Marley Engineered Products Service Center. and we will repair
or replace. at our option, at no charge to you with return freight paid by Marley. It is agreed that
such repair
or replacement is the exclusive remedy available from Marley Engineered Products.
THE ABOVE WARRANTIES ARE IN LIEU OF
AlL OTHER WARRANTIES EXPRESSED OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR APARTICULAR PURPOSE WHICH EXCEED THE AFORESAID EXPRESSED WARRANTIES ARE HEREBY DISCLAIMED AND EXCLUDED FROM
THIS AGREEMENT. MARLEY ENGINEERED PRODUCTS SHALL NOT BE LIABLE FOR
CONSEQUENTiAl DAMAGES ARISING WITH RESPECT TO THE
PRODUCT. WHETHER BASED UPON NEGLIGENCE, TORT. STRICT LIABILITY. OR CONTRACT.
Some states do not allowthe exclusion
or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives
you specific legal rights. and you may also have other rights which vary from state to state.
For the address
of your nearest authorized service center. contact Marley Engineered Products in Bennettsville. SC. at 1-800-642-4328. Merchandise returned to the fac-
tory must be accompanied by areturn authorization and service identification tag. both availabie from Marley Engineered Products. When requesting return authorization.
include all catalog numbers shown on the products.
HOW TO OBTAIN WARRANTY SERVICE AND
WARRANTY PARTS PWS GENERAL INFORMATION
1. Warranty Service or Parts HIOD-642-4328
2. Purchase Replacement Parts 1-80D-654-3545
3. General Product Information www.marleymep.com
Note: When obtaining service always have the following:
1. Model number of the product
2. Date of manufacture
3. Part numberor description
470 BelIuty Spot Ad. East
Bennettsville. SC 29512 USA
Part No. 5200-2194-010 ECR39036
02/11
4
