Owner’s Manual
Model
DLG1058
7211950100R03
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this Log Grate. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this Log Grate.
!NOTE: Procedures and
techniques that are
considered important
enough to emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result
in damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations..................3
IMPORTANT INSTRUCTIONS ................4
Log Grate Assembly ........................7
Log Grate Installation ......................10
Operation................................11
Maintenance.............................15
Warranty ...............................16
ReplacementParts........................18

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an Electric
Log Grate from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your Log Grate.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
Model Number
Serial Number

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
①Read all instructions before
using the Log Grate.
②The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation. Keep
combustible materials, such
as furniture, pillows, bedding,
papers, clothes, and curtains at
least 3 feet (0.9m) from the front
of the unit.
③ Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the Log Grate
when not in use.
⑤ Do not operate any unit with
a damaged cord or plug, or if the
heater has malfunctioned, or if the
Log Grate has been dropped or
damaged in any manner. Return
heater to authorized service
facility for examination, electrical
IMPORTANT INSTRUCTIONS
or mechanical adjustment, or
repair.
⑥ Do not use outdoors.
⑦ The Log Grate is not intended
for use in bathrooms, laundry
areas and similar indoor locations.
Never locate heater where it may
fall into a bathtub or other water
container.
⑧Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners, or the like.
Arrange cord away from trafc
area and where it will not be
tripped over.
⑨To disconnect the unit, turn the
controls off, then remove the plug
from the outlet.
⑩Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑪ To prevent a possible re, do
not block air intake or exhaust
in any manner. Do not use on
soft surfaces, like a bed, where
openings may become blocked.
⑫All electrical heaters have hot
and arching or sparking parts

5
SAVE THESE INSTRUCTIONS
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored or
where the unit will be exposed to
ammable vapors.
⑬Do not modify the Log
Grate. Use it only as described
in this manual. Any other use
not recommended by the
manufacturer may cause re,
electric shock or injury to persons.
⑭ To reduce the risk of electric
shock, this appliance has a
polarized plug (one blade is wider
than the other). This plug will t in
a polarized outlet only one way.
If the plug does not t fully in the
outlet, reverse the plug. If it still
does not t, contact a qualied
electrician to install the proper
outlet. Do not change the plug
in any way. Avoid the use of an
extension cord. Plug the cord
directly into an appropriate wall
receptacle.
⑮ Do not burn wood or other
materials in the Log Grate.
⑯Always use a certied
electrician should new circuits or
outlets be required.
⑰ Always use properly
grounded, fused and polarized
outlets.
⑱ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
⑲ When transporting or storing
the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
CAUTION: This equipment has
been tested and found to comply with
the limits for Class B digital device,
pursuant to part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and
on, the user is encouraged to try to
correct the interference by one or
more of the following measures:
Reorient or relocate the receiving•
antenna.
Increase the separation between•
the equipment and the receiver.
Connect the equipment into an•
outlet on a circuit different from
that to which the receiver is
connected.
Consult the dealer or an•
experienced radio/TV technician
for help.
Operation is subject to the following
two conditions: (1) this device may
not cause interference and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
IMPORTANT INSTRUCTIONS
WARNING: Remote control
contains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types - may
explode or leak causing injury.
!NOTE: Changes or modications
not expressly approved by the party
responsible for compliance could
void user's authority to operate the
equipment.

7

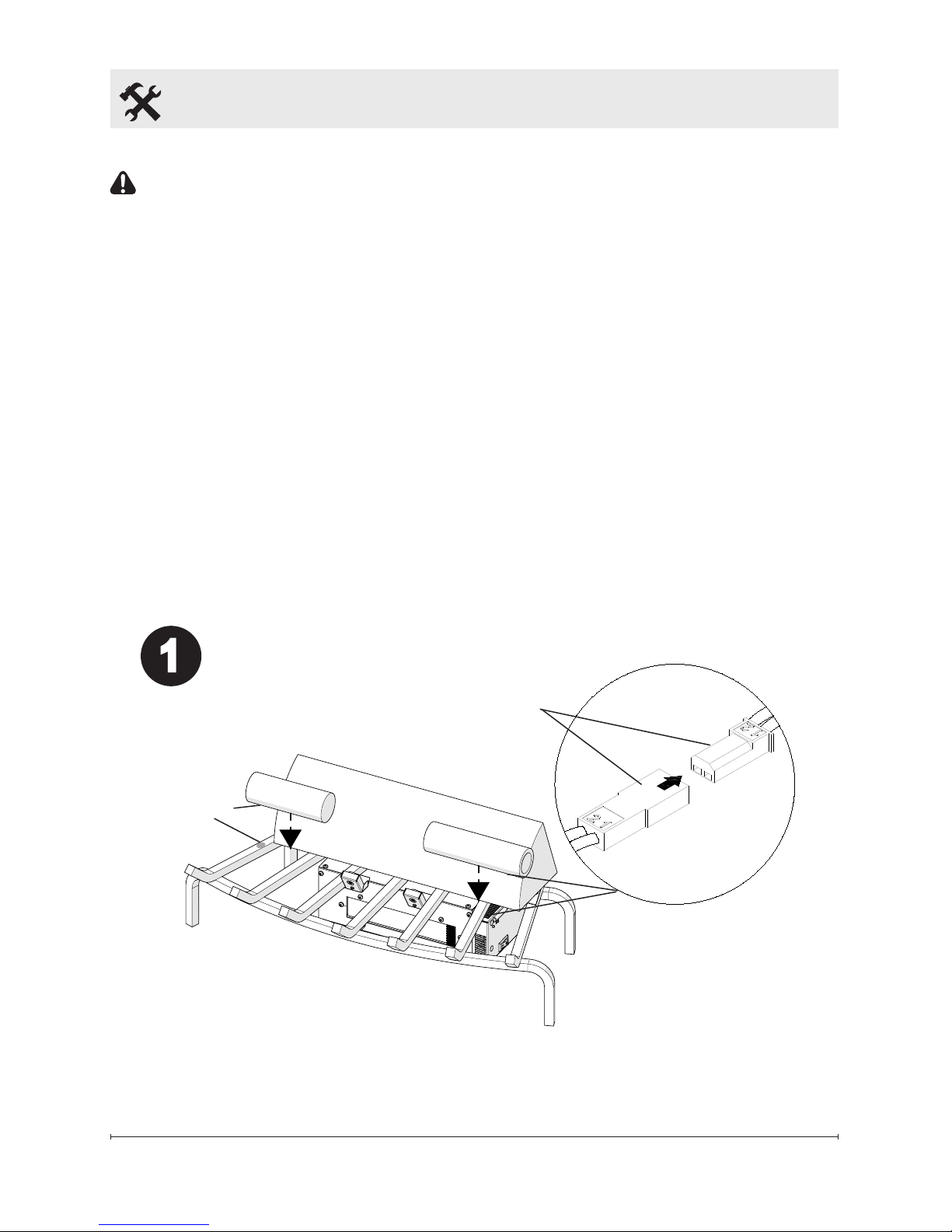

Log Grate Assembly
1
CAUTION: Handle logs
carefully, they are fragile and can
easily crack or break, if dropped.
Each log is a separate component
that needs to be placed on the
grate. Position each log so that
the hook and loop dot on the
backside of the log lines up with
the corresponding hook and loop
pad on the Log Grate. These
pads assist with securing the logs
to the grate.
Each of the logs contain LED
lights to create a ickering effect.
During assembly, each log
requires the electrical connectors
on the log and grate to be
connected as they are being
placed. In some cases, these
wires will need to have tie wraps
added to prevent the wires from
being seen after nal assembly.
Hook and
Loop Pads
Wire Connectors

8 www.dimplex.com

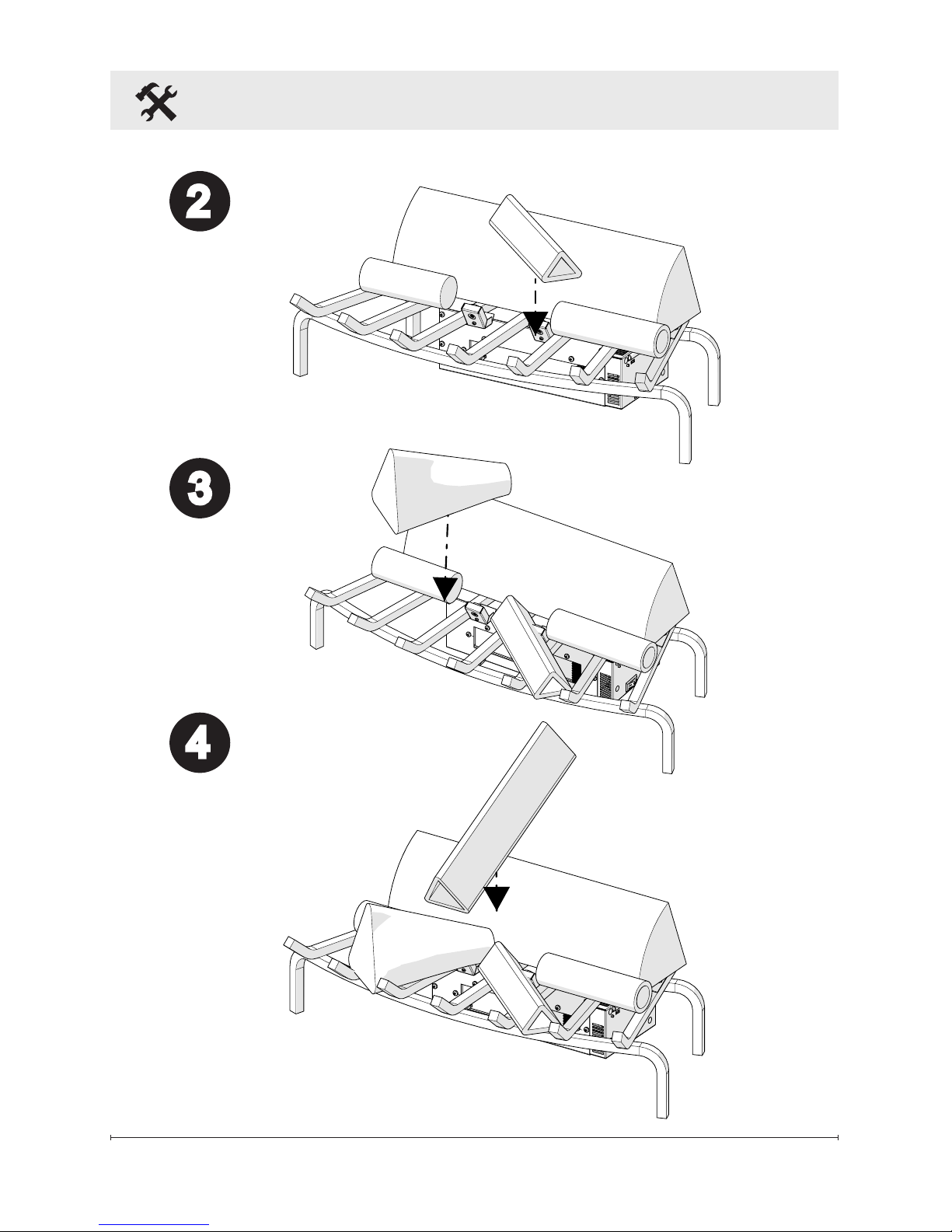

Log Grate Assembly
4
3
2

9
Log Grate Assembly
6
5
7
CAUTION: Ensure
that none of the
connecting wires are left
hanging in front of the
heater outlet.

10 www.dimplex.com
Log Grate Installation
!NOTE: A 15amp, 120 volt
circuit is required. A dedicated
circuit is preferred but not
essential in all cases. A dedicated
circuit will be required if, after
installation, the circuit breaker
trips or fuse blows on a regular
basis when the heater is
operating. Additional appliances
on the same circuit may exceed
the current rating of the circuit
breaker.
WARNING: Ensure the power
cord is not installed so that
it is pinched or against a
sharp edge and ensure that
the power cord is stored or
secured to avoid tripping or
snagging to reduce the risk of
re, electric shock or injury to
persons.
Construction and electrical
outlet wiring must comply with
local building codes and other
applicable regulations to reduce
the risk of re, electric shock and
injury to persons.
Do not attempt to wire your own
new outlets or circuits. To reduce
the risk of re, electric shock or
injury to persons, always use a
licensed electrician.
Make sure the units On/1.
Off switch is switched OFF
(refer to operating instruction
section).
Plug the unit into a 15 Amp/2.
120 volt outlet.
!NOTE: For optimal ame
projection, it is recommended that
the unit be placed 4" (10.2 cm)
from the back of the mantel.
The addition of a mesh spark
screen in front of the Log Grate
and Fireplace tools can be used
to complete the look of your
hearth.
To enhance the look of the Log
Grate, further, non-toxic materials
such as cat litter and/or lava rock
to replicate the look of ashes and
embers, can also be used.
CAUTION: We do not
recommend the use of additional
decorative material in homes
with young children or pets
where these materials could be a
choking hazard.

11
Operation
The manual controls for the Log
Grate are located in the front right
side. (Figure 1)
A. On/Off Switch
Supplies power to the 2-Position
Switch.
B. 2-Position Switch
The 2-Position Switch toggles the
unit between Manual Operation
and Remote Operation.
Remote (Front Position):•
The unit is operated with the
remote control.
Manual (Back Position):• The
unit operates with the ames,
logs and ember bed. When
the manual control is in the
Manual position the heater
does not run.
!NOTE: When the manual
control switch is in the Manual
position, the Log Grate unit will
not operate with the remote
control.
C. Initialization Button
Used to synchronize the supplied
remote control with the Log Grate.
Resetting the Temperature
Cutoff Switch
Should the heater overheat, an
automatic cutout will turn the
heater off and it will not come
back on without being reset. It
can be reset by switching the On/
Off Switch to Off and waiting 5
minutes before switching the unit
back on.
CAUTION: If you need to
continuously reset the heater,
unplug the unit and call Dimplex
North America Limited at
1-800-668-6663.

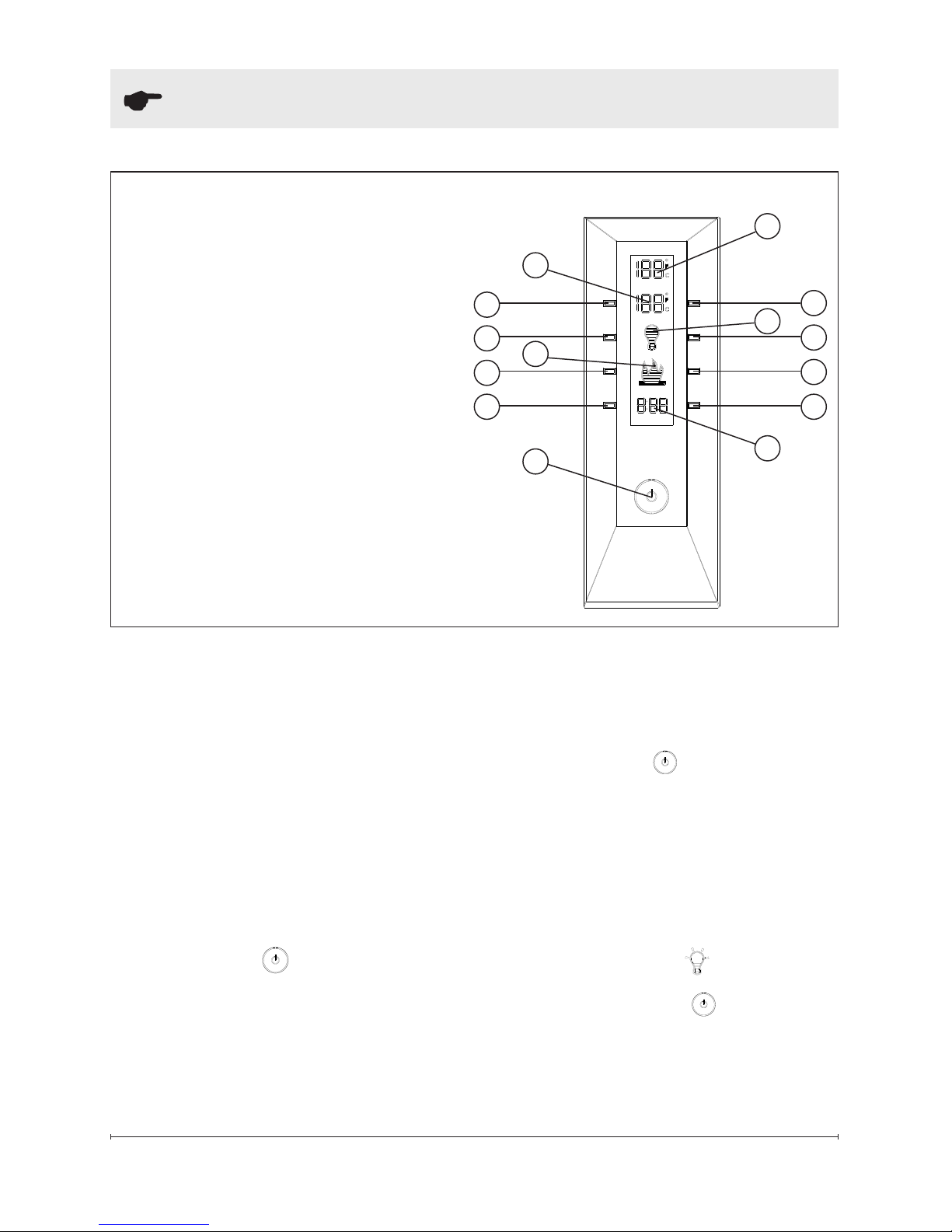

Remote Control
The remote control has a range
of approximately 50 feet (15.25
m), it does not have to be pointed
at the Log Grate and can pass
through most obstacles (including
walls). It is supplied with 243
independent frequencies to
prevent interference with other
units.
Battery Installation
Depress tab on the battery1.
cover on the back of the
remote control and remove
battery cover.
Figure 1
A
B
C

12 www.dimplex.com
Operation
Install two (2) AAA batteries2.
into the remote control
(included).
Ensure Child Lock is in the3.
“unlocked” position (Figure 2).
Replace the battery cover.4.
!NOTE: When the “BAT”
symbol is present on
the remote control it is
recommended to replace the
batteries promptly, to maintain
full functionality of the remote/
Log Grate. The remote control
has a battery backup time of
only several hours.
Battery must be recycled
or disposed of properly.
Check with your Local
Authority or Retailer for recycling
advice in your area.
Remote Control Initialization/
Reprogramming
Plug cord into 120 Volt wall1.
outlet.
Ensure the On/Off Switch2.
(Figure 1A)
(ON) position.
Set the 2-Position Switch3.
(Figure 1B) to the Remote
position (front position).
Press and hold the4.
Initialization Button on the unit
(Figure 1C).
While holding the Initialization5.
Button, press the Flame/
Heat On/Off button on the
remote control.
Release the Initialization6.
Button on the unit.
Press the Flame/Heat On/Off7.
button to turn the Flame/
Heat function On.
Frequency Interference
If the Log Grate does not respond
properly to the remote control,
the remote operating frequency
may have to be reset. The
remote control can send another
frequency code to the remote
control receiver to eliminate
interference.
Simultaneously press the1.
“Temperature Down” button
and the “Flame Speed
Figure 2
Batteries
Unlocked
Locked
Child Lock Tab

13
Operation
Down” button on the remote
control (Figure 3).
“2. COD” will appear in place of
the sleep timer digits.
Release the “3. Temperature
Down” button and the “Flame
Speed Down” button.
Press the Initialization Button4.
on the unit (Figure 1C).
Press the Flame/Heat On/5.
Off Button button on the
remote.
Your remote will now
have a different frequency
communicating with the Log
Grate.
Remote Control Functions
(All letter references are to Figure 3)
B. Set Temperature
Press Fbutton ( ) to turn Log
Grate on.
Press Hto raise the thermostat.
Press Gto lower the thermostat.
Press both Hand Gto change °F
to °C.
C. Light Dimmer
Press the Fbutton ( ) to turn the
Flame/Heat on.
Repeatedly press the Jor Ibutton
to decrease or increase the
Figure 3 - Remote Control Functions
A. Room Temperature
B. Set Temperature
C. Light Dimmer
D. Flame Speed Control
E. Sleep Timer
F. Flame & Heat On/Off
G. Temperature Down
H. Temperature Up
I. Light Dimmer Down
J. Light Dimmer Up
K. Flame Speed Down
L. Flame Speed Up
M. Sleep Timer Down
N. Sleep Timer Up
K
J
L
I
B
E
A
D
GC
NM
H
F

14 www.dimplex.com
Operation
brightness of the up lights.
D. Flame Speed
Press the Fbutton ( ) to turn the
Flame/Heat on.
Press the Lbutton to increase the
speed of the ame.
Press the Kto decrease the
speed of the ame.
E. Sleep Timer
The Sleep Timer automatically
shuts off the Log Grate after a
preset time (from 30 minutes to 8
hours).
Press the Fbutton ( ) to turn the
Log Grate on.
To set the sleep timer press the N
button.
Set the timer from 30 minutes
through 8 hours. The Log Grate
will automatically turn off when
the sleep timer reaches zero (0)
minutes.
The Sleep Timer can be cancelled
at any time by pressing the M
button repeatedly until the sleep
timer displays nothing.
WARNING: Disconnect
power before attempting any
maintenance or cleaning to
reduce the risk of re, electric
shock or damage to persons.
F. Flame & Heat On/Off Button
Press the Fbutton ( ) to turn the
Flame/Heat function on. When
Bis higher then Athe heat will
come on. To turn the heat off,
lower the Bso that it’s setting
is lower then the A. The default
temperature setting is 72°F
(22°C).
!NOTE: When using the
remote control the heater runs
on a thermostat. Press the H
or Gbuttons to adjust the set
temperature. Once the desired
set temperature is reached
the heater will turn off. The
heater will cycle on and off
to maintain the desired set
temperature.
Child Lock (Figure 2)
Depress tab on the battery1.
cover on the back of the
remote control and remove
the battery cover.
Move2. Child Lock tab to
the right to lock the remote
control.
Move3. Child Lock tab back to
the left to unlock the remote
control.
Replace the battery cover.4.
!NOTE: To temporarily unlock
the remote control press (in order)

15
WARNING: Disconnect power
before attempting any main-
tenance or cleaning to reduce
the risk of re, electric shock
or damage to persons.
Log Grate Surface Cleaning
Use warm damp cloth only to
clean surfaces of the Log Grate.
Do not use abrasive cleaners.
Maintenance
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
Gthen Hthen I.
When the remote control’s
backlight is illuminated the Child
Lock is bypassed. When the
backlight is off the Child Lock is
re-activated.
Operation
Servicing
An authorized service representa-
tive should perform any servicing.

16 www.dimplex.com
ONE YEAR LIMITED WARRANTY
Products to which this limited warranty
applies
This limited warranty applies to your
newly purchased Dimplex Electric Log
Grate. This limited warranty applies
only to purchases made in any province
of Canada except for Yukon Territory,
Nunavut, or Northwest Territories or in
any of the 50 States of the USA (and the
District of Columbia) except for Hawaii
and Alaska. This limited warranty applies
to the original purchaser of the product
only and is not transferable.
Products excluded from this limited war-
ranty
Light bulbs are not covered by this limited
warranty and are the sole responsibility of
the owner/purchaser. Products purchased
in Yukon Territory, Nunavut, Northwest
Territories, Hawaii, or Alaska are not
covered by this limited warranty. Products
purchased in these States, provinces, or
territories are sold AS IS without warranty
or condition of any kind (including, without
limitation, any implied warranties or condi-
tions of merchantability or tness for a
particular purpose) and the entire risk of
as to the quality and performance of the
products is with the purchaser, and in the
event of a defect the purchaser assumes
the entire cost of all necessary servicing
or repair.
What this limited warranty covers and for
how long
Products covered by this limited warranty
have been tested and inspected prior to
shipment and, subject to the provisions
of this warranty, Dimplex warrants such
products to be free from defects in mate-
rial and workmanship for a period of 12
months from the date of the rst purchase
of such product.
The limited 12 month warranty period also
applies to any implied warranties that may
exist under applicable law. Some jurisdic-
tions do not allow limitations on how long
an implied warranty lasts, so the above
limitation may not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
products that have been repaired (except
by Dimplex or its authorized service
representatives) or otherwise altered. This
limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation,
improper maintenance or handling, or
operation with an incorrect power source.
What you must do to get service under
this limited warranty
Defects must be brought to the attention of
Dimplex Technical Service by contacting
Dimplex at 1-888-DIMPLEX (1-888-346-
7539), or 1367 Industrial Road, Cam-
bridge Ontario, Canada N1R 7G8. Please
have proof of purchase, catalogue/model
and serial numbers available when calling.
Limited warranty service requires a proof
of purchase of the product.
What Dimplex will do in the event of a
defect
In the event a product or part covered by
this limited warranty is proven to be defec-
tive in material or workmanship during the
12 month limited warranty period you have
the following rights:
Dimplex will in its sole discretion•
either repair or replace such defec-
tive product or part without charge. If
Dimplex is unable to repair or replace
Warranty

17
such product or part, or if repair or
replacement is not commercially
practicable or cannot be timely made,
Dimplex may, in lieu of repair or
replacement, choose to refund the
purchase price for such product or
part.
Limited warranty service will be per-•
formed solely by dealers or service
agents of Dimplex authorized to
provide limited warranty services.
The purchaser is responsible for•
removal and transportation of such
product or part (and any repaired
or replacement product or part) to
and from the authorized dealer's or
service agent's place of business.
This limited warranty does not entitle•
the purchaser to on-site or in-home
services. On-site or in-home services
may be performed at the purchaser's
specic request and expense at
Dimplex’s then-current rates for such
services.
Dimplex will not be responsible for,•
and the limited warranty services
shall not include, any expense
incurred for installation or removal of
the product or part (or any replace-
ment product or part) or any labour or
transportation costs. Such costs shall
be the purchaser’s responsibility.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO THE PURCHASER OR
ANY THIRD PARTY, WHETHER IN CON-
TRACT, IN TORT, OR ON ANY OTHER
BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUEN-
TIAL, OR INCIDENTAL LOSS, COST,
OR DAMAGE ARISING OUT OF OR
IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO
USE THE PRODUCT, EVEN IF DIMPLEX
OR ITS DIRECTORS, OFFICERS, OR
AGENTS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH
LOSSES, COSTS, OR DAMAGES ARE
FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIREC-
TORS, OR AGENTS BE LIABLE FOR
ANY DIRECT LOSSES, COSTS, OR
DAMAGES THAT EXCEED THE PUR-
CHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic
legal rights, and you may also have other
rights which vary from jurisdiction to juris-
diction. The provisions of the United Na-
tions Convention on Contracts for the Sale
of Goods shall not apply to this limited
warranty or the sale of products covered
by this limited warranty.
Warranty

18 www.dimplex.com
Replacement Parts
FlickerMotor.......................................2000450100RP
Heater Assembly (with cutout)..........................2203580100RP
On/OffSwitch ......................................2800070700RP
Power Cord (with Strain Relief) . . . . . . . . . . . . . . . . . . . . . . . . . 4100010800RP
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000350100RP
Remote Control Receiver & Housing. . . . . . . . . . . . . . . . . . . . . 3000960100RP
LogSetAssembly.................................DLG1058-LOGRP
Back Log (with Flame Screen) . . . . . . . . . . . . . . . . . . . . . . . . . 0440740100RP
Wire Harness Set (includes Grate and Up Lights). . . . . . . . . . . . . . . 250066RP
Ember Bed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0441000100RP
© 2012 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N1R 7G8
