Marmitek Octopus User manual

20103/200505 © ALL RIGHTS RESERVED MARMITEK ®
OCTOPUS
TV MEDIA
USB LINK
OCTOPUS
TV MEDIA
USB LINK
USER MANUAL 3
GEBRAUCHSANLEITUNG 33
GUIDE UTILISATEUR 63
GEBRUIKSAANWIJZING 93

2MARMITEK
Contents
1. Introduction _____________________________________________________________3
1.1 Contents ________________________________________________________________3
1.2 System requirements ______________________________________________________3
2. Getting started ___________________________________________________________4
3. Using the Octopus programme ____________________________________________10
3.1 Starting the Octopus Software for the first time _____________________________10
3.2 Watch TV or video on your laptop or PC (continued use of Octopus) ____________12
3.3 Record video images, camera images or TV programs _________________________13
3.4 Make a photo from a video image _________________________________________14
4. Playing video files, using Movie player ______________________________________15
5. Watching images, using Browse Image _____________________________________18
6. The remote control ______________________________________________________19
6.1 Replacing the battery ____________________________________________________19
6.2 Button functions ________________________________________________________19
7. Extra software for burning DVD’s, using Time Shift ___________________________20
7.1 Installing WinDVR3 ______________________________________________________20
7.2 Starting the software for the first time _____________________________________23
7.3 Burning a CD or DVD ____________________________________________________24
7.4 TimeShift_______________________________________________________________27
8. Extra software Showshifter: Create your own media centre ____________________29
9. Troubleshooting _________________________________________________________30
10. Technical information ____________________________________________________30

3OCTOPUS
Safety warnings
• To prevent short circuits, this product should only be used inside and only in dry spaces.
Do not expose the components to rain or humidity. Do not use the product close to a
bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright
light sources.
• Do not open the product: The device contains live components. The product should only
be repaired or serviced by a qualified repairman.
• In case of improper usage or if you have opened, altered and repaired the product your-
self, all guarantees expire. Marmitek does not accept responsibility in case of improper
usage of the product or when the product is used for other purposes than specified.
Marmitek does not accept responsibility for additional damage other than covered by
the legal product responsibility.
1. Introduction
Congratulations on your purchase of Octopus TV Media USB Link! This product allows you to
connect various media to your PC. The Octopus connects the various appliances to your PC.
The options include:
• Watching TV on your laptop or PC
• Recording programmes on your PC (just like a Hard Drive recorder)
• You can transfer your favourite VHS tapes to your PC by connecting your video recorder,
edit the files and burn them onto a DVD (if you have a writer)
• Edit and archive camcorder movies by connecting your camcorder to your PC (you can
also burn a DVD)
• Connect a security camera to your PC to record images while you are away. You can look
at the images later to see what happened in your absence
• Use your PC as a TV while on vacation (if there is an aerial or cable connection)
1.1 Contents
The Octopus kit contains the following components:
• Octopus TV Media USB Link box
• 1 Audio/USB cable
• 1 cable with RCA plugs (RCA-RCA cable)
• 1 Remote control
• 1 User manual (4 languages)
• 1 CD with installation software The CD contains 3 software packages:
- Octopus software
- WINDVR3 software
- Showshifter software
1.2 System requirements
• IBM PC or comparable system
- 1 GHz CPU (comparable to a Pentium III) or higher (this allows you to watch TV,
but not record images)
ENGLISH

4MARMITEK
-1.5 GHz CPU (comparable to a Pentium IV) or higher for 352x288 MPEG1 recording
-2.0 GHz CPU (comparable to a Pentium IV) or higher for 640x480 MPEG2 recording
-2.4 GHz CPU (comparable to a Pentium IV) or higher for 720x480 MPEG2 recording
• Minimum of 128 MB internal memory
• Minimum of 100 MB free disk space
• VGA video card with DirectDraw driver 16 bit colour or higher
• A free USB port (2.0 /1.1)
• Microsoft Windows® 2000/XP
• CD ROM drive
• Hard drive: 5400 RPM or higher (preferably 7200 RPM)
2. Getting started
The Octopus TV Media USB Link comes with a CD containing installation software. The CD
contains 3 software packages:
- Octopus software
- WINDVR3 software (to burn DVD’s, and use the time-shift function)
- Showshifter software (with this program in combination with other Marmitek
products you can create your own media centre)
The Octopus Software consists of three parts:
1. Octopus program. This enables you to watch the connected source
(TV, Video, video recorder), record images and also make photos from the images.
2. Movie player. This allows you to play the images you recorded with the Octopus
software.
3. Browse Image. This enables you to view and edit the photos you created.
Follow these steps to connect the Octopus TV Media USB Link to your laptop or PC:
Attention: Do not connect the USB cable to the USB port of the computer until asked!
1. Connect the TV antenna or cable connection to the “RF” connector on the back.
2. Connect your video recorder or video camera “SVHS OUT” to “S-VIDEO IN”
or the “VIDEO OUT” to “VIDEO IN”. This entirely depends on the cables and connections
on your video recorder or video camera.
3. Connect the “AUDIO OUT” of the video recorder or video camera to “AUDIO IN”.
4. Connect the audio cable supplied with the Octopus to the "LINE IN" of the sound card
of the laptop or PC and to the "AUDIO OUT" of the Octopus next to the USB port on
the back.
5. Do not connect the USB cable to the USB port of the computer until asked!
6. Place the supplied CD in the CD ROM drive. Now it is time to install the necessary
Windows 2000/XP drivers.

5OCTOPUS
7. Select Octopus drivers in the Autorun menu.
Click “Next”.
Click “Continue anyway”.
ENGLISH

6MARMITEK
Click “Finish”.
Click “OK” to restart the computer.
Now connect the USB cable to the PC and follow the on-screen instructions.
You now see a window called “Add Hardware Wizard”.
Select “No, not this time” and click “Next” to start the installation.
Select "Install the software automatically (Recommended)” and click “Next”.

7OCTOPUS
Click “Continue anyway”.
Click “Finish”.
8. In order for the Octopus TV Media USB Link to communicate with the video card on your
laptop or PC, you must install the DirectX program. Follow these steps:
Insert the CD in the CD ROM drive, open Windows Explorer and select DirectX in the Autorun
menu.
ENGLISH

8MARMITEK
Select "I accept the agreement” and then click “Next”
Click “Next”.
Click “Finish”. The DirextX software is now installed.
Restart the PC if requested.`

9OCTOPUS
9. You can now install the Octopus software on your laptop or PC. Follow these steps:
Place the installation CD in the CD ROM drive and and click "OCTOPUS Software" in the
Autorun menu to start the installation.
Click “Next”.
Click “Yes”.
Click “Next” to install in the recommended folder.
ENGLISH

10 MARMITEK

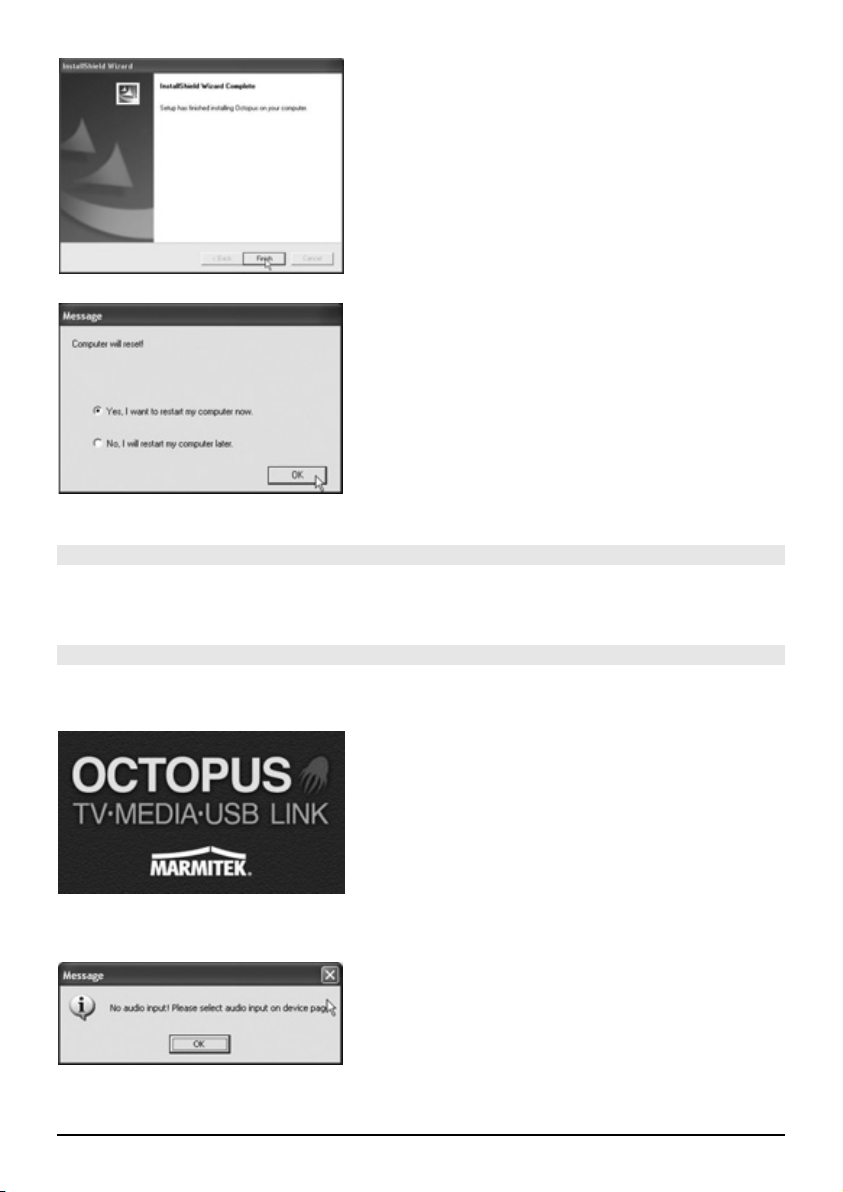

Click “Finish”.
Click “OK” to finish the installation and to restart the computer.
3. Using the Octopus programme
Use the Octopus Software to watch the connected source (TV, Video, video recorder), record
images and make photos from the images.
3.1 Starting the Octopus Software for the first time
1. Click “Start” in the task bar and go to All Programs\OctoPus\Octopus. Or double click
the icon on the desktop.
2. You now see the Octopus Iogo
3. You see the following text:

11OCTOPUS

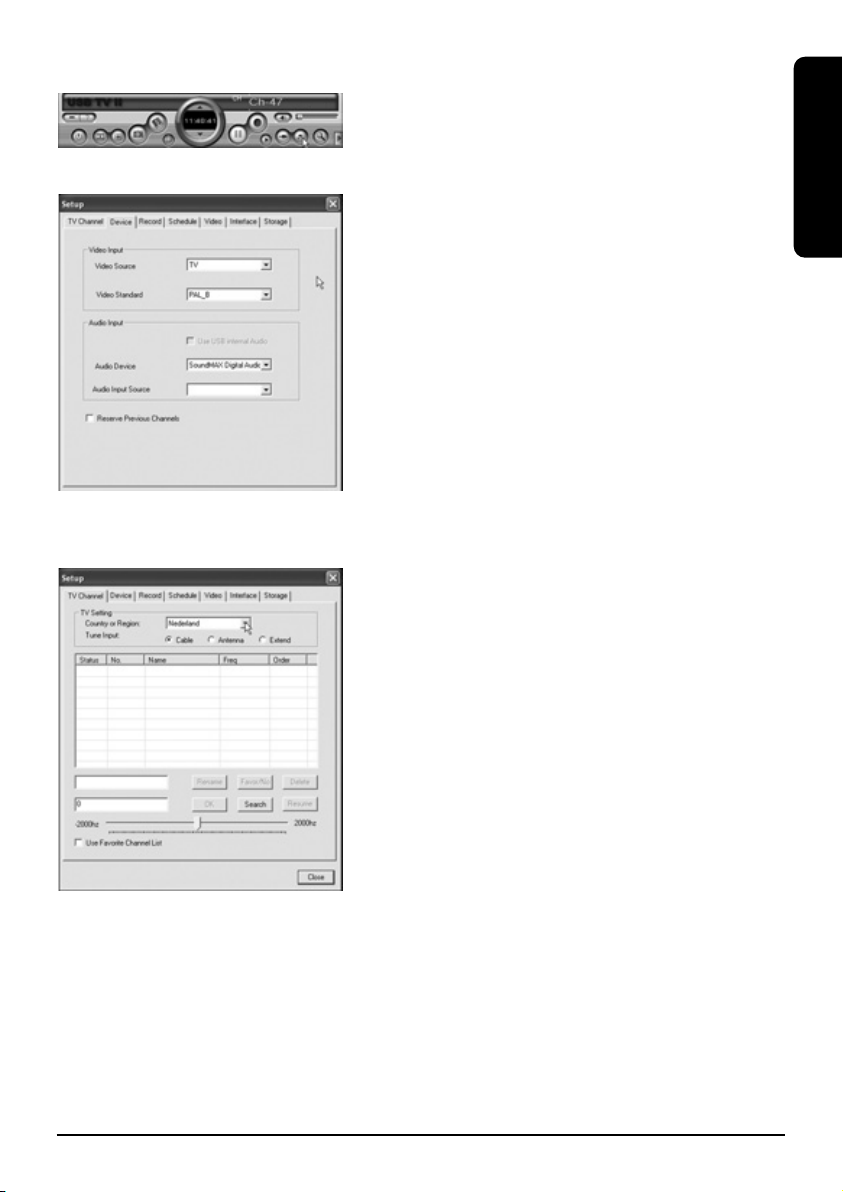

4. Click “OK” and then “Setup”.
5. Select the “Device” tab.
6. Under “Audio Input Source”, select the port the audio plug is connected to. (line in)
7. Now select the TV Channel tab and select the right country under Country or Region.
8. Indicate whether the antenna cable is a Cable (cable connection), Antenna (antenna
connection) or Extend (cable connection with + and – channels (in The Netherlands).
ENGLISH

12 MARMITEK

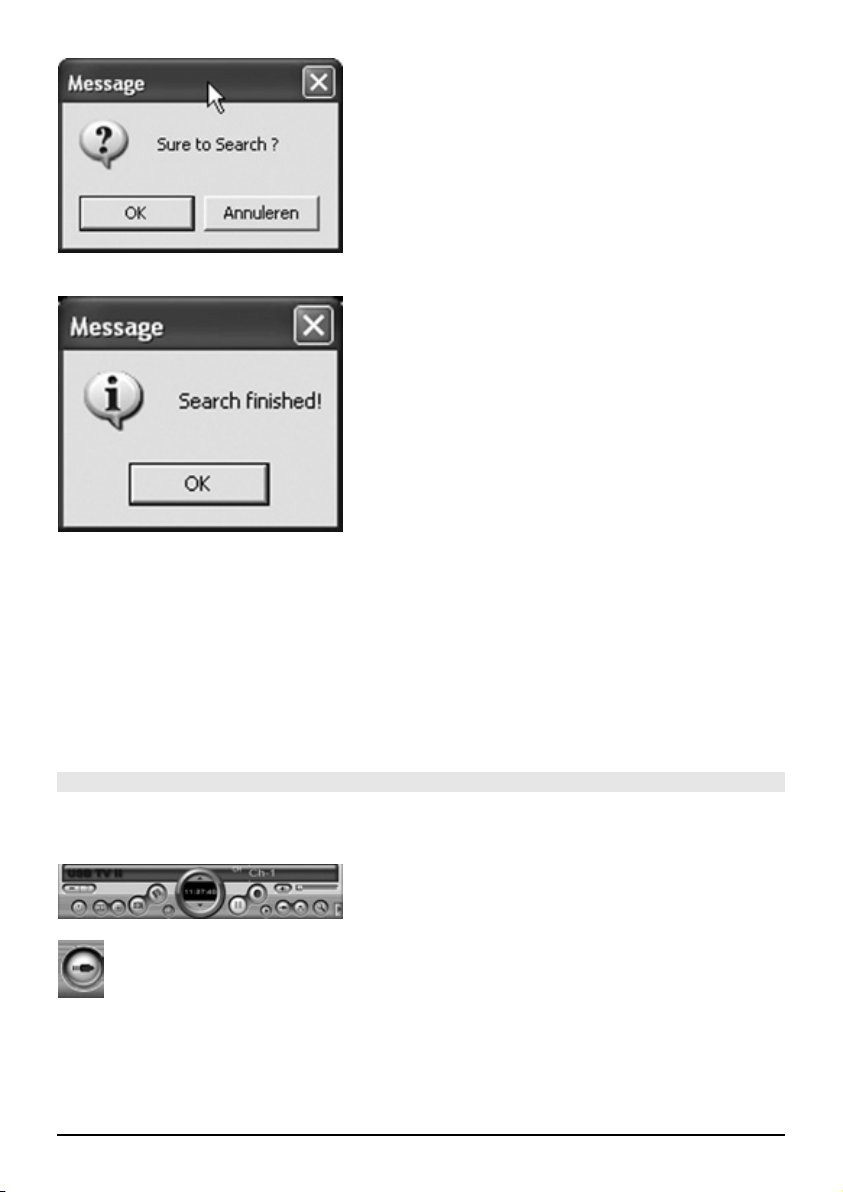

9. Now click “Search” and “OK” to let the tuner run through all the channels
10. All the channels have now been added, click OK.
11. You can change the name of a channel by clicking Rename.
12. The order of channels can be changed by clicking on the channel info line (line turns
blue) once and holding down the left mouse button. You can move this line up or down
to achieve the order you prefer. Click Close to close the window.
You can now watch TV or video. Follow the steps in chapter 3.2.
3.2 Watch TV or video on your laptop or PC
(continued use of Octopus)
Click “Start” in the task bar and go to All Programs\Octopus\Octopus or double click on the
icon on your desktop.
1. Source switcher: Click the icon until the TV, “Video In” or “S-Video In” symbol
appears. Keep on clicking the same icon, this is a toggle button. The images will
appear automatically, depending on where and with which cables you have connected
the video recorder to the Octopus (also see chapter 2, step 2).

13OCTOPUS

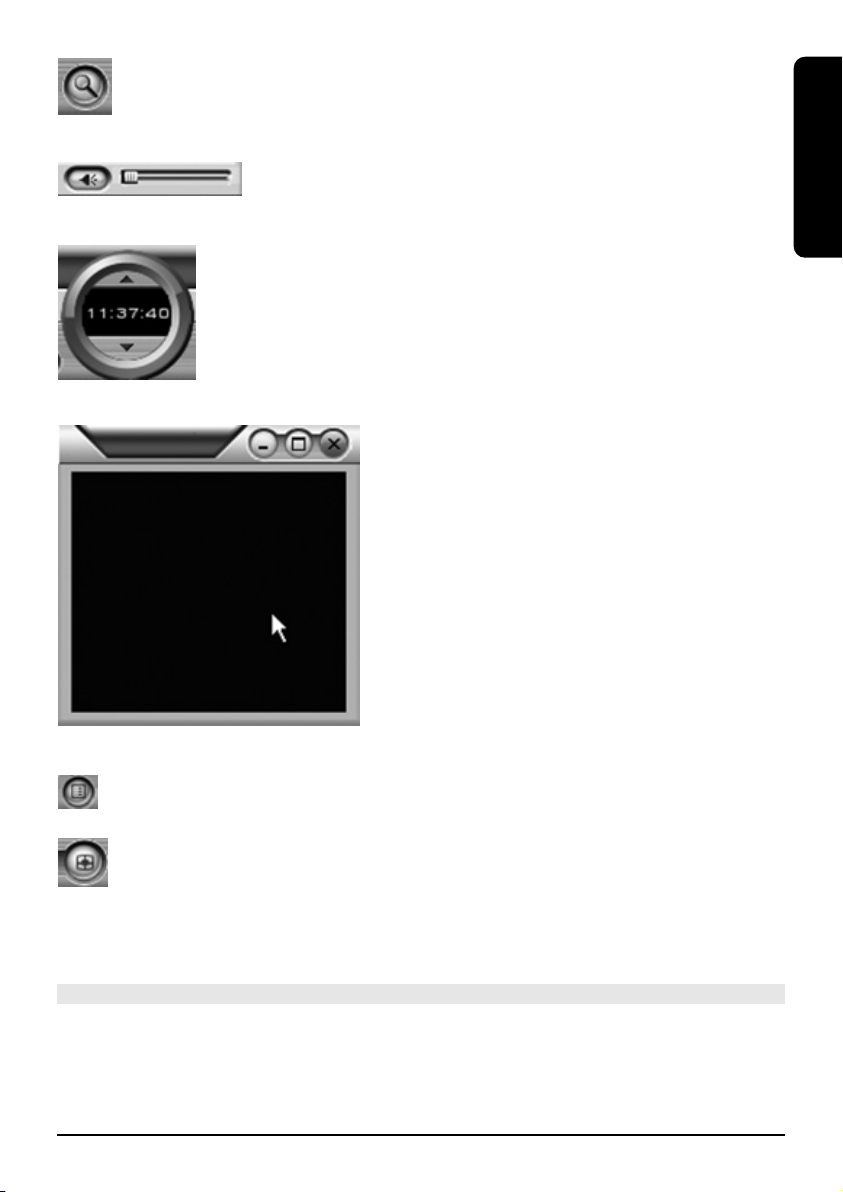

2. Search TV channels: click to search for available channels.
3. Volume control: Adjust the volume or switch off the sound.
4. Channel selector: Choose a channel up or down.
5. Double click the screen for full-screen display.
Channel list: Overview of all available TV channels.
6. TV overview: Gives a 4x4 overview of all channels.
3.3 Record video images, camera images or
TV programs
To record your video images, camera images or your favourite TV program onto the hard drive
of your laptop or PC, follow these steps:
ENGLISH

14 MARMITEK

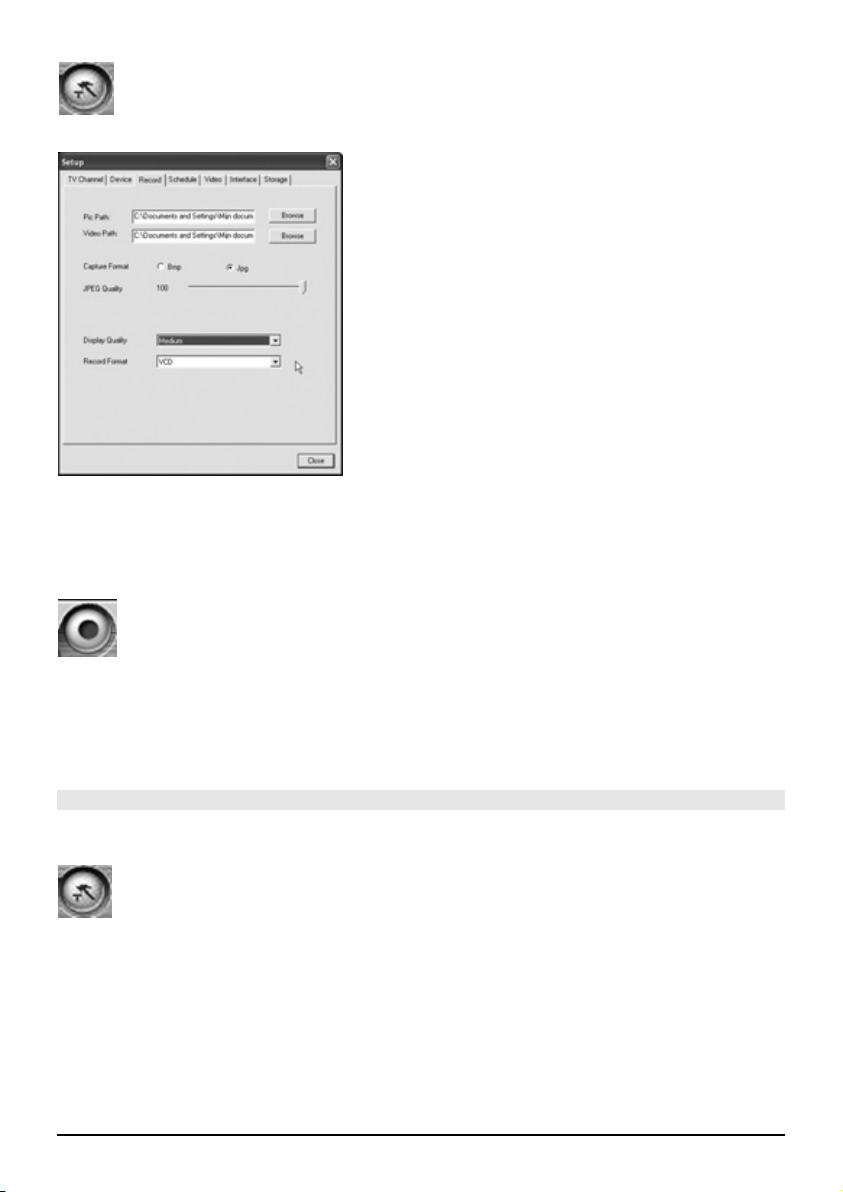

1. Click Setup and go to the Record tab.
2. Fill in the location where you want to save the files to and select the desired “Display
Quality” and “Record Format”. Depends on e.g. the speed of your PC. See 1.2 system
requirements.
3. Click “Close”.
4. Click Record to start recording. Click this button again to stop recording.
Then continue in TV mode.
5. Start the Movie player to watch the images you have just recorded.
Read more on this in chapter 4.
3.4 Make a photo from a video image
You can make a photo from a TV, video or camera image as follows:
1. Click “Setup” and go to the “Record” tab.

15OCTOPUS
2. Under Capture Format, select whether the image is to be saved as a .BMP or .JPG file
and under “Pic Path:” indicate where this image is to be saved.
3. Click the ”Snapshot” button to save the image. You can now send the photo to e.g.
a photo lab. (Take into account that these are low resolution images).
4. Playing video files, using Movie player
To play the video files or TV programs you recorded with Octopus, Octopus will start the
Movie player program. Follow these steps:
1. Click “Playback” to open the playback menu.
2.
3. Click “Playlist” to open the overview of files already recorded.
4. Select the file you want and double click to play it.
ENGLISH

16 MARMITEK

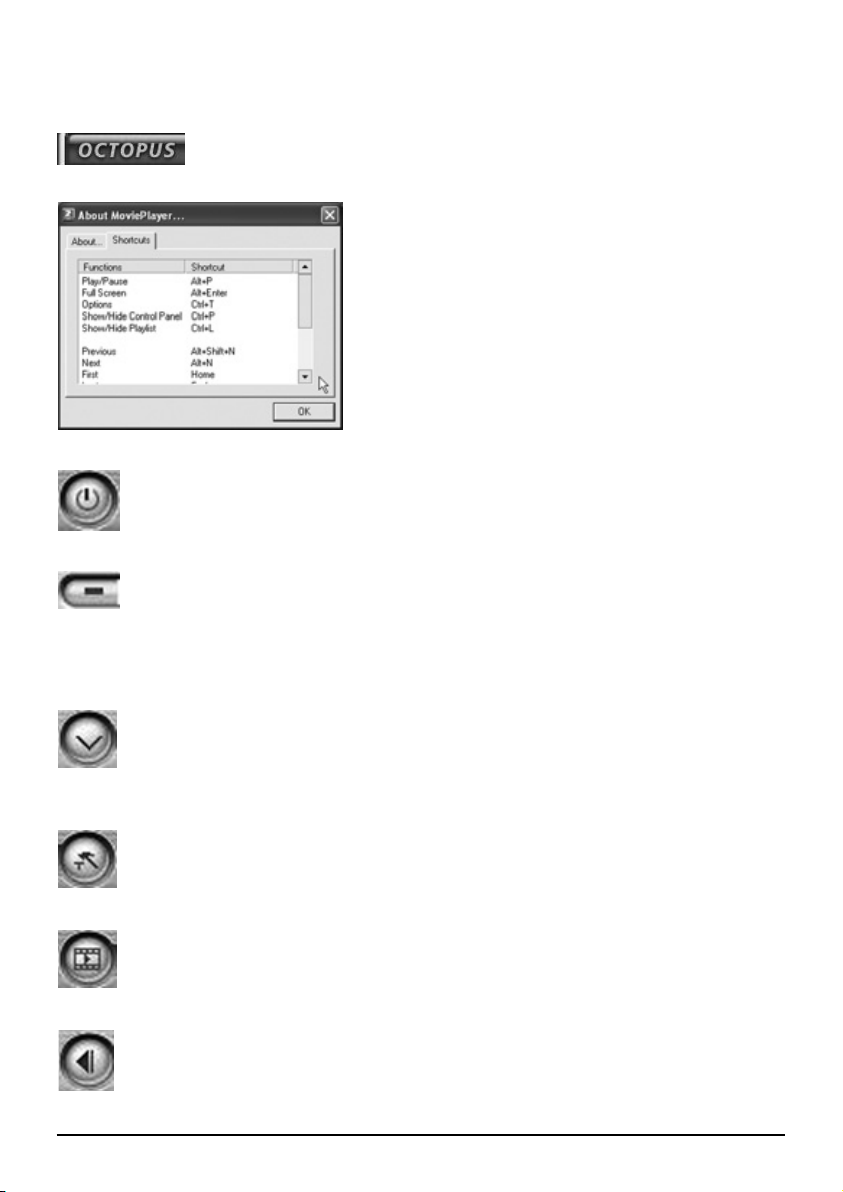

TIP:
You can also control the Octopus Software with hotkeys. Follow these steps for an overview
of all the keyboard commands:
Click and then the Shortcuts tab.“Octopus”
You now see an overview of all the keyboard commands.
Exit: to close the “Video playback window”.
Minimize: to minimise the “Video playback window”.
Click “Movie Player” in the task bar to restore it.
Useful functions
Hide Control Panel: This closes the control panel. Right click the video image and select
“Control panel” to make it visible again (Ctrl+P).
Options: Menu to program the video display.
Browse Image: Start the “Image viewer” program.

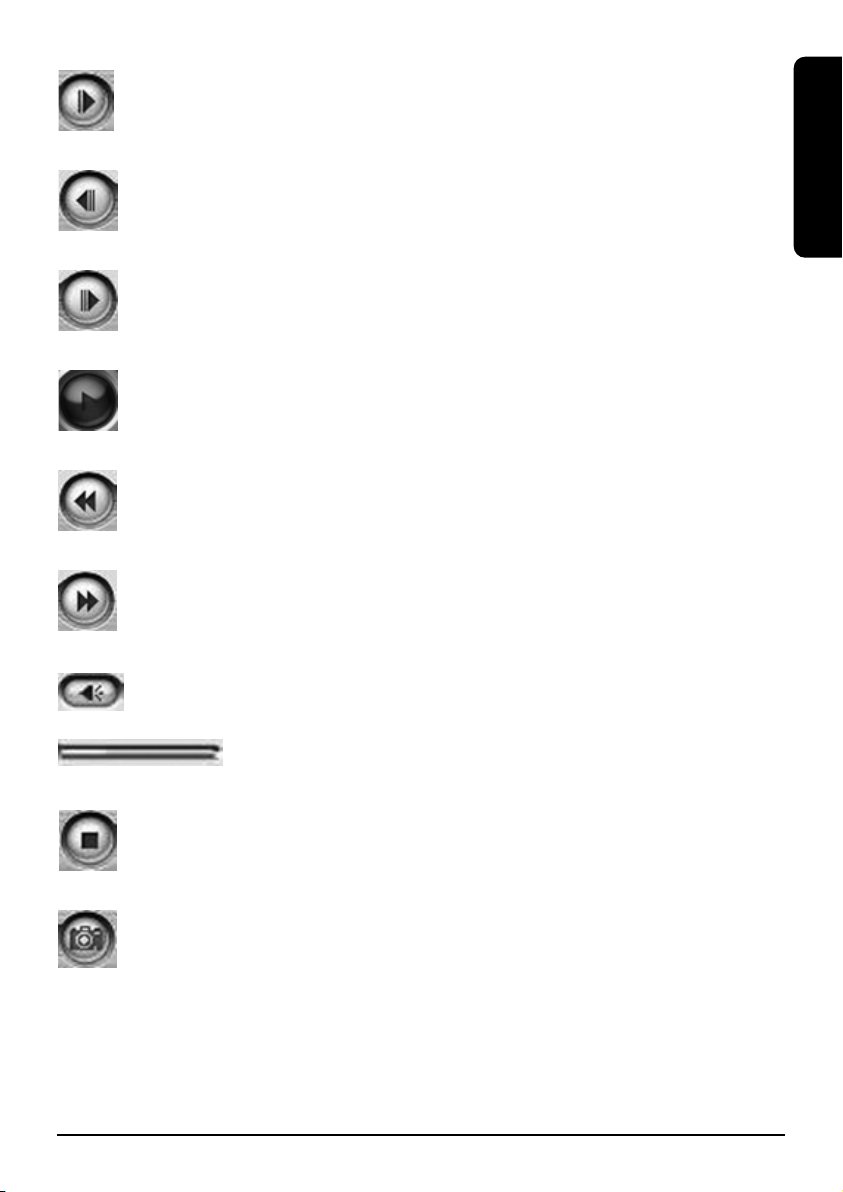

Step Backward: Pause the image and go back one frame.

17OCTOPUS
Step Forward: Pause the image and go forward one frame.
Slow Backward: The image goes backwards slowly.
Slow Forward: The image goes forwards slowly.
Play/ Pause: Click to start play, click again to pause and click again to continue watching.
Fast Backward: To quickly rewind the image.
Fast Forward: To fast forward the image.
Mute: To turn the sound on and off.
Volume Adjust: To adjust the volume.
Stop: Stops the video.
Snapshot: Save the video image as a BMP or JPG file. The image will be saved (along with
the current date and time) in the “My Pictures” folder in the “My documents” folder.
This location can be changed by clicking “Options” and the “Snap setting” tab.
ENGLISH

18 MARMITEK
Playlist: Displays the list of files in the playlist.
5. Watching images, using Browse Image
To watch the photos made by Octopus, click “Browse Image” to start the “Image viewer”.
The Browse Image program will now start. You can enlarge images and rename them with
this software.
Click “Browse Image” to start the “Image viewer”.
Along the top are “buttons” to perform various actions:
Refresh: Refreshes the images in the current folder.
Path Panel: Displays and hides the directory structure on the left of the screen.

19OCTOPUS
Image Bar: Switches the preview window on and off.
Set wallpaper: Sets the current image as the desktop background.
Skin: Adjusts the appearance of “Image viewer”.
Zoom out: Reduces the selected image on the screen.
Zoom in: Enlarges the selected image on the screen.
Match Zoom: Select the right display from the list.
Full Size: Displays the image at 100%.
Fit Image: Adjusts the image to fit the screen.
Fit Width: Adjusts the image to fit the screen width,
Fit Height: Adjusts the image to fit the screen height.
Lock: Locks the images to its current size.
6. The remote control
You can use the remote control included to turn the Octopus software off, select the chan-
nels and adjust the volume. Point the remote control at the Octopus and use
it just like a “normal” remote control. The battery has already been inserted in the remote
control. Before use, remove the plastic strip from the bottom of the remote control.
6.1 Replacing the battery
If the battery is empty, you can replace it yourself. Open the battery compartment at the back
and insert the Lithium Cell CR2025 with the text on the battery facing downwards.
Close the battery compartment.
6.2 Button functions
Power: closes the Octopus software program.
Mute: Sound on/off.
ENGLISH

20 MARMITEK
Vol.: Sound up/down.
CH. : Channel up/down.
Recall: Back to the previous channel.
AV Source: Switch between TC signal, S_VHS and AV signal.
Snapshot: Save the image.
Record: Record a program (press again to stop recording).
Freeze: Pause the display.
Video Default: Set the brightness and contrast back to the default values.
Video settings: Select brightness, contrast, colour, saturation and sharpness.
Left and right arrow: Set the selected values in the Video settings mode.
Full screen: Full screen video on/off.
Hide Panel: Control panel visible/invisible.
7. Extra software for burning DVD’s, using Time Shift
The software CD also contains the following program: Intervideo WinDVR3. You can use this
program to burn the images and programs that you have copied to your laptop or PC with
Octopus onto a DVD (if you have a DVD writer on your laptop or PC).
This software also has a Time Shift function. This allows you to pause the TV program you are
watching and continue watching it when you want to. This means you do not have to wait
until the entire program has been recorded (as is the case with video tapes).
Finally, you can use the Octopus in combination with WinDVR3 to watch TV and record (in
real-time) onto your computer in the MPEG-2 format. The channel overview makes it easy to
switch to the desired channel and record it.
7.1 Installing WinDVR3
1. Insert the installation CD in the CD-ROM drive
