Marmitek Connect AE24 UHD 2.0 User manual

n
ect AE24 UH
D
20671/ 20170601 • Connect AE24 UHD 2.0™
ALL RIGHTS RESERVED MARMITEK ©
USER MANUAL 3
Connect AE24 UHD 2.0
™
GEBRAUCHSANLEITUNG 17
GUIDE UTILISATEUR 31
MODO DE EMPLEO 45
MANUALE D’ISTRUZIONI 59
GEBRUIKSAANWIJZING 73

© MARMITEK
2

Connect AE24 UHD 2.0™
3
ENGLISH
1 Table of contents
1Table of contents...................................................................... 3
2Safety instructions.................................................................... 4
3Your product ............................................................................ 5
3.1 Introduction .............................................................................. 5
3.2 Benefits.................................................................................... 6
3.3 HDMI properties....................................................................... 7
3.4 Package contents..................................................................... 8
4Getting started ......................................................................... 9
4.1 Installation tips ......................................................................... 9
4.2 Installation................................................................................ 9
5Use ........................................................................................ 11
5.1 Audio settings ........................................................................ 11
5.1.1 Audio Return Channel (ARC)..................................... 11
5.1.2 Audio format settings ................................................. 11
6Technical specifications ......................................................... 12
7Frequently asked questions (FAQs) ....................................... 13
8Notification ............................................................................. 15
8.1 Declaration of conformity........................................................ 15
8.2 Recycling ............................................................................... 15
8.3 Copyrights.............................................................................. 16

© MARMITEK
4
2 Safety instructions
xPlease read these instructions thoroughly before you use the
device and keep them for future reference.
xOnly for indoor use.
xDo not use the product in a damp environment or near water.
xDo not expose the product to extremely high or low
temperatures, strong light sources or direct sunlight.
xThis product is not a toy. Keep out of reach of children.
xDo not open the product: the device may contain live parts.
xConnect the adapter to the mains only after you have verified
that the line voltage corresponds to the value specified on
the type plates.
xNever connect a power adapter if it's damaged. In such
cases, please contact your supplier.
xRepairs or service should only be performed by qualified
personnel.
xDisconnect the AC/DC power adapter from the mains when
this device is not in use for prolonged time.
xImproper use, self-installed modifications or repairs will void
any and all warranties.
xMarmitek does not accept any product responsibility for
incorrect use of the product or use other than for which the
product is intended.
xMarmitek does not accept liability for any consequential
damage other than the legal product responsibility.

Connect AE24 UHD 2.0™
5
ENGLISH
3 Your product
3.1 Introduction
Congratulations on your purchase of the Marmitek Connect AE24
UHD 2.0™!
Connecting a TV to this type of audio equipment can often lead to
problems when:
xYour TV, monitor or projector does not have a separate
audio output;
xYou want to use your TV's ARC function, but the audio
amplifier is not equipped with it;
xYou want to connect various HDMI sources to a soundbar
that has too few connections;
xYour AV receiver does not support 4K UHD or 3D video
formats;
xYour TV only has a digital audio output (TOSlink or coaxial),
but you want to connect a stereo HiFi set.
The Connect AE24 UHD 2.0™ allows you to separate the sound
from the HDMI signal and connect it to your audio equipment
(home cinema set, AV receiver or soundbar). The
Connect AE24 UHD 2.0™ can be used as a versatile problem
solver when connecting your audio equipment.
All our products are designed and manufactured to the highest
quality requirements. Please read this manual first and follow the
instructions in order to fully enjoy the possibilities of this product.

© MARMITEK
6
3.2 Benefits
The Connect AE24 UHD 2.0™ is a versatile problem solver when
connecting your audio equipment to your TV, monitor or projector.
This may include:
xPlaying the audio from your Smart TV applications (Netflix,
YouTube) or built-in TV decoder on your home cinema set,
AV receiver or soundbar.
xConnecting HDMI sources without a dedicated audio output
(Chromecast, Nintendo, media players) to your audio
equipment anyway.
xListening to music (MP3, audio streams, radio channels)
without requiring the TV being turned on.
xAvoiding compatibility issues with your current AV receiver
because of its unique HDMI output without image
reproduction.
xStill being able to use your TV's Audio Return Channel (ARC)
function, even when your audio equipment is not suitable for
it.
xBeing a versatile problem solver when connecting your audio
equipment to your TV, monitor or projector.

Connect AE24 UHD 2.0™
7
ENGLISH
3.3 HDMI properties
xThe maximum throughput speed is 18 Gbit/s (gigabits per
second). This allows HDMI 2.0 to display Ultra HD 4K
images at 60 fps (frames per second).
xSuitable for the latest Ultra HD 4K60 resolution (3840 x 2160
/ 60Hz), High Dynamic Range (HDR), Deep Color and 4:4:4
chroma colours.
xSupports all 3D formats (suitable for use with your own 3D
equipment)
xDeep Color 36-bit (billions instead of millions of colours,
better reproduction of subtle differences in gradation and a
higher contrast ratio).
xARC (Audio Return Channel, synchronises your TV's audio
and video and sends it back to your AV amplifier, using the
digital audio output.
xSupports Dolby Atmos and DTS:X and all other common
audio formats.

© MARMITEK
8
3.4 Package contents
A. 1 x Connect AE24 UHD 2.0™ - HDMI audio extractor
B. 1 x Power adapter
C. 1 x User manual
Power adapter
EDID button
Toslink
output
A
ARC button
H
DMI output
with ARC
Connector for
power cable
B
HDMI audio
only
output
Analog
ue
audio output
H
DMI output

Connect AE24 UHD 2.0™
9
ENGLISH
4 Getting started
4.1 Installation tips
xTurn off all devices (TV and HDMI sources) before
connecting them to the Connect AE24 UHD 2.0™. If a device
cannot be turned off, please remove the plug from the
socket.
xOnly use High Speed HDMI® certified cables for the best
picture and sound quality. Using too much force to connect
or disconnect the HDMI cables may damage them.
xPlease be careful when connecting your HDMI cables. These
damage easily.
4.2 Installation

© MARMITEK
10

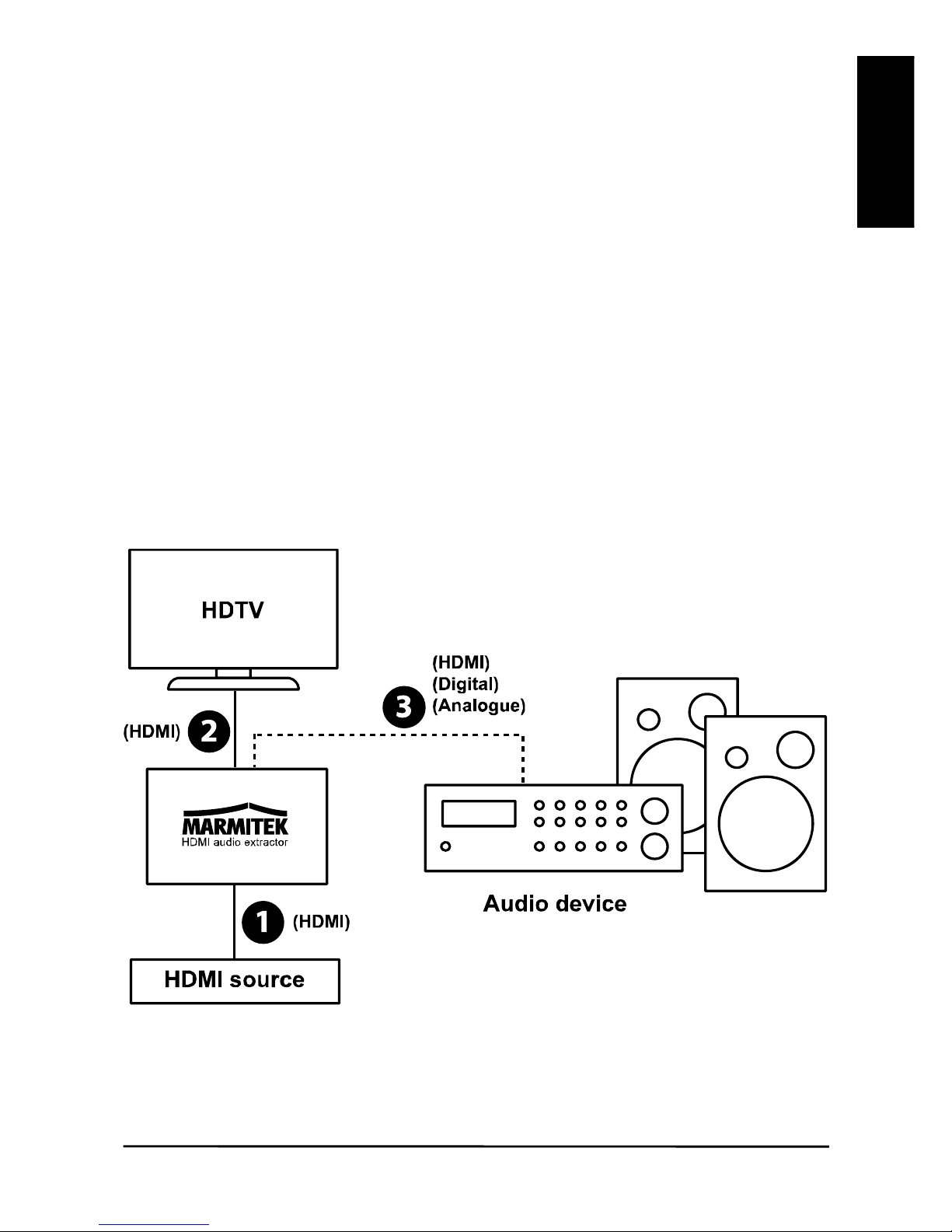

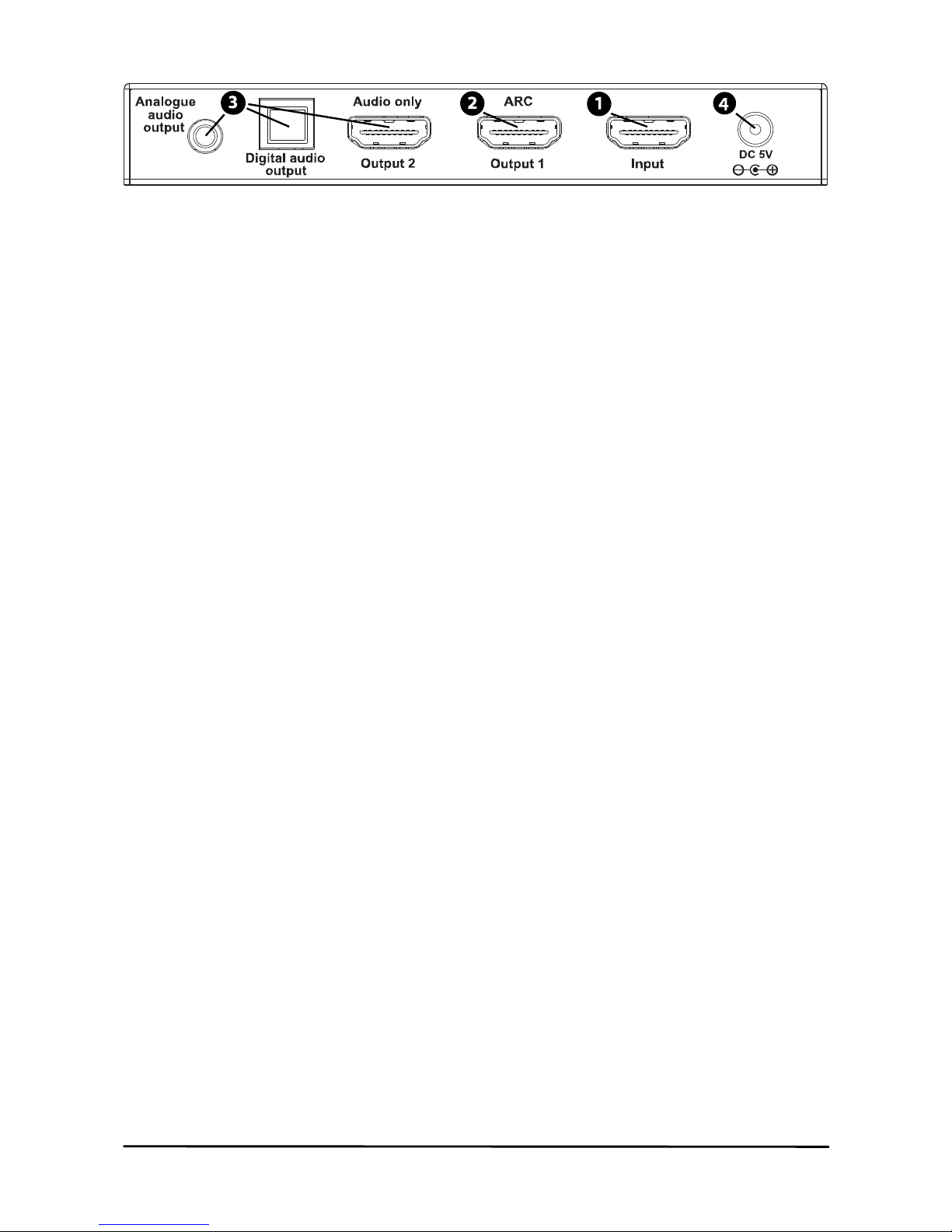

1. Use an HDMI cable to connect the HDMI source (digital TV
decoder, Chromecast, media player) to the "Input” (1).
2. Use an HDMI cable to connect the TV (monitor or projector)
to "Output 1” (2). If you want to use the ARC function (refer to
page 11), your TV needs to support this. Please refer to your
TV's user manual to check which HDMI port supports ARC.
3. Use the appropriate cable to connect your audio device
(home cinema set, AV receiver or soundbar) to the output (3)
marked "Audio only”, “Digital audio" or "Analogue audio".
xAudio only: use an HDMI cable. This output only
reproduces audio and supports Dolby Atmos, DTS:X
and all other common audio formats.
xDigital audio: use an optical (Toslink) or coaxial cable.
This audio output supports the DTS 5.1, Dolby
Digital/AC3 and PCM 2.0CH stereo formats.
xAnalogue audio: use a stereo jack cable; this output
supports the analogue stereo audio format.
4. Connect the power adapter to the "DC 5V" input (4) and
insert the plug into the socket.

Connect AE24 UHD 2.0™
11
ENGLISH
5 Use
5.1 Audio settings
Select the desired audio settings by using the EDID and ARC
buttons at the front of the Connect AE24 UHD 2.0™.
5.1.1 Audio Return Channel (ARC)
If your AV amplifier is connected via the "Audio out", there may be
a slight lag between your TV's image and the sound coming from
the AV amplifier. This is caused by image processing on your TV
and is sometimes referred to as lip sync problem. The
Connect AE24 UHD 2.0™ supports ARC (Audio Return Channel).
This involves the sound first being sent to the TV, and then
returned by your TV at exactly the right moment, using the same
HDMI cable. This allows you, without the use of additional wiring
or settings, to synchronise images and sound. The "ARC" switch
allows you to enable or disable this feature.
ARC must be supported by your TV to be able to use this feature.
If your TV does not support ARC, you can either turn off image
processing on your TV, or delay the audio coming from your AV
amplifier or HDMI source. Please refer to your device's manual for
the correct settings.
5.1.2 Audio format settings
Using the EDID button, you can set the desired audio format for
your audio equipment. In standard situations, it will be sufficient to
select OUTPUT 1 or 2. However, should you experience any
problems, please select another format manually.
xOutput 1 automatically detects the best possible audio format
that is supported by your TV.
xOutput 2 automatically detects the best possible audio format
that is supported by your AV receiver.
x7.1CH supports up to HD audio.
x5.1CH supports up to DTS and Dolby Digital/AC3 audio.
x2.0CH supports 2-channel audio.

© MARMITEK
12
6 Technical specifications
Connections
HDMI input 1 x HDMI (19-pin female)
HDMI output 1 x HDMI (19-pin female)
HDMI audio output 1 x HDMI (19-pin female,
no video, only audio).
HDMI cable length max. 15 metres
Digital audio output 1 x toslink (optical)
Analogue audio output 1 x stereo 3.5mm
Video
Supported resolutions 4K (4096x2160)@
24/30/50/60Hz,
480i~1080p@50/60Hz,
1080p@120Hz and
3D@1080p/60Hz.
Supported PC resolutions max. QSXGA
(2560x2048@60Hz).
HDMI standards HDMI 2.0b, HDR, CEC, ARC,
EDID, DVI, all 3D formats and
Deep Color 36-bit, x.y. colour.
HDCP standards HDCP 2.2 and HDCP 1.4
Colour formats RGB and YCbCr 4:4:4, 4:2:0
or 4:2:2.
Colour depth max. 36-bit.
Throughput speed max.18 Gbit/s.
Clock frequency max. 600 MHz.
Audio
HDMI outputs Dolby Atmos, Dolby TrueHD,
Dolby Digital/ AC3 , DTS:X,
DTS-HD Master Audio, DTS
5.1 and PCM 2.0CH stereo.
Digital audio output DTS 5.1, Dolby Digital/ AC3
and PCM 2.0CH stereo.
Analogue audio output 2.0CH stereo

Connect AE24 UHD 2.0™
13
ENGLISH
Housing
Dimensions (H x W x D) 130 x 75 x 19 mm
Weight 262 g
Environment
Ambient temperature +0 to +40° C
Ambient humidity 20% to 90%
Power
External power adapter 100-240VAC @50-60Hz,
5VDC @ 1A
Specifications may change without prior notice.
7 Frequently asked questions (FAQs)
No (or poor) image and sound
If you experience poor or no picture after connecting the
Connect AE24 UHD 2.0™,, please try to identify the problem by
connecting the devices to your screen (TV, monitor or projector)
one by one. This allows you to determine whether the problem is
with the HDMI sources, the HDMI cables, the Connect AE24 UHD
2.0™or the screen.
xMake sure the power adapter is connected and plugged in.
xFor the best picture and sound quality, only use High Speed
HDMI® certified cables.
xDo not use HDMI cables longer than those specified in the
technical data.
xCheck the HDMI cables and/or connectors for damage.
xBoth the HDMI source and your screen should fully support
HDMI.
xCheck that your HDMI sources and screen support HDCP
2.2 (High Bandwidth Digital Content Protection) copy
protection.

© MARMITEK
14
Incorrect 3D display
xPlease check whether the HDMI source is set to display 3D
and/or it is set to automatic.
xBoth the HDMI source and your HD screen should support
the same 3D formats.
xPlease check that 3D is displayed correctly by connecting the
HDMI source directly to the HD display with an HDMI cable.
Do you have any other questions that have not been resolved by
the above information? Please go to www.marmitek.com

Connect AE24 UHD 2.0™
15
ENGLISH
8 Notification
8.1 Declaration of conformity
Hereby, Marmitek BV, declares that this
Connect AE24 UHD 2.0™ is in compliance with the
essential requirements and other relevant provisions of
the following Directives:
Directive 2014/30/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonisation of the laws of
the Member States relating to electromagnetic compatibility
(recast)
Directive 2014/35/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonisation of the laws of
the Member States relating to the making available on the market
of electrical equipment designed for use within certain voltage
limits.
Directive 2011/65/eu of the European parliament and of the
council of 8 June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment.
8.2 Recycling
Environmental Information for Customers in the European
Union. European Directive 2002/96/EC requires that the
equipment bearing this symbol on the product and/or its
packaging must not be disposed of with unsorted municipal waste.
The symbol indicates that this product should be disposed of
separately from regular household waste streams. It is your
responsibility to dispose of this and other electric and electronic
equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will
help prevent potential negative consequences to the environment
and human health. For more detailed information about the
disposal of your old equipment, please contact your local
authorities, waste disposal service, or the shop where you
purchased the product.

© MARMITEK
16
8.3 Copyrights
Marmitek is a trademark of Germatron B.V.
Connect AE24 UHD 2.0™ is a trademark of Marmitek B.V. All
rights reserved. Every effort has been made to ensure that the
information in this manual is accurate. Marmitek is not responsible
for printing or clerical errors. Copyright and all other proprietary
rights in the content (including but not limited to model numbers,
software, audio, video, text and photographs) rests with Marmitek
B.V. Any use of the Content, but without limitation, distribution,
reproduction, modification, display or transmission without the
prior written consent of Marmitek is strictly prohibited. All copyright
and other proprietary notices shall be retained on all
reproductions. Other company and product names mentioned
herein may be trademarks of their respective companies. Mention
of third-party products is for informational purposes only and
constitutes neither an endorsement nor a recommendation.
Marmitek assumes no responsibility with regard to the
performance or use of these products.
Marmitek BV - PO Box 4257 - 5604 EG Eindhoven
The Netherlands

Connect AE24 UHD 2.0™
17
DEUTSCH
1 Inhaltsverzeichnis
1Inhaltsverzeichnis................................................................... 17
2Sicherheitshinweise ............................................................... 18
3Ihr Produkt ............................................................................. 19
3.1 Introductie .............................................................................. 19
3.2 Vorteile................................................................................... 19
3.3 HDMI eigenschaften............................................................... 20
3.4 Verpackungsinhalt.................................................................. 21
4Los geht’s .............................................................................. 22
4.1 Bevor Sie beginnen................................................................ 22
4.2 Installation.............................................................................. 22
5Anwendung ............................................................................ 24
5.1 Audio-Einstellungen ............................................................... 24
5.1.1 Audio Return Channel (ARC)..................................... 24
5.1.2 Audioformateinstellungen .......................................... 25
6Technische Daten .................................................................. 26
7Häufig gestellte Fragen (FAQs).............................................. 28
8Hinweis .................................................................................. 29
8.1 Konformitätserklärung ............................................................ 29
8.2 Recycling ............................................................................... 29
8.3 Urheberrechte ........................................................................ 30

© MARMITEK
18
2 Sicherheitshinweise
Lesen Sie diese Gebrauchsanleitung sorgfältig durch, bevor
Sie das Gerät in Betrieb nehmen und bewahren Sie diese
Anleitung bitte für eventuelle, spätere Bedarfsfälle auf.
xAusschließlich für Verwendung in Innenräumen.
xDieses Produkt nicht in einer feuchten Umgebung oder nahe
Wasserquellen verwenden.
xSetzen Sie dieses Produkt nicht extrem hohen oder
niedrigen Temperaturen, starken Lichtquellen und direkter
Sonneneinstrahlung aus.
xDieses Produkt ist kein Spielzeug. Außer Reichweite von
Kindern halten.
xDas Produkt niemals öffnen: Das Gerät kann Teile enthalten,
worauf lebensgefährliche Stromspannung steht.
xSchließen Sie den Netzadapter erst dann an das Stromnetz
an, nachdem Sie überprüft haben, ob die Netzspannung mit
dem auf dem Typenschild angegeben Wert übereinstimmt.
xSchließen Sie niemals einen Netzadapter an, wenn diese
beschädigt sind. In diesem Fall nehmen Sie Kontakt mit
Ihrem Lieferanten auf.
xÜberlassen Sie Reparaturen oder Wartung nur Fachleuten.
xEntfernen Sie den AC/DC Speisungsadapter aus der
Steckdose, wenn Sie das Gerät längere Zeit nicht nutzen.
xBei einer zweckwidrigen Verwendung, selbst angebrachten
Veränderungen oder selbst ausgeführten Reparaturen
verfallen alle Garantiebestimmungen.
xMarmitek übernimmt bei einer falschen Verwendung des
Produkts oder bei einer anderen Verwendung des Produktes
als für den vorgesehenen Zweck keinerlei Produkthaftung.
xMarmitek übernimmt für Folgeschäden keine andere Haftung
als die gesetzliche Produkthaftung.

Connect AE24 UHD 2.0™
19
DEUTSCH
3 Ihr Produkt
3.1 Introductie
Herzlichen Glückwunsch zum Erwerb Ihres Marmitek Connect
AE24 UHD 2.0™!.
Der Anschluss des Fernsehgeräts an diese Art von Audiogeräten
kann ein Problem darstellen, wenn:
xIhr TV, Monitor oder Projektor keinen separaten Audio-
Ausgang hat;
xSie die ARC Funktion des TV nutzen möchten, Ihr A/V-
Empfänger damit jedoch nicht ausgerüstet ist;
xSie verschiedene HDMI Quellen an eine Soundbar
anschließen möchten, die wenig Anschlüsse hat;
xIhr AV Empfänger keine 4K UHD oder 3D Videoformate
unterstützt;
xIhr Fernseher nur einen digitalen Audio-Ausgang hat (Toslink
oder Koaxial) und Sie ein Stereo Hifi-Set anschließen
möchten.
Mit dem Connect AE24 UHD 2.0™ können Sie den Ton vom
HDMI Signal trennen und mit Ihren Audiogeräten verbinden
(Heimkinoanlage, AV Empfänger oder Soundbar).
Der Connect AE24 UHD 2.0™ kann als vielseitiger Problemlöser
zum Anschluss Ihrer Audiogeräte eingesetzt werden.
Alle von Marmitek entwickelten und hergestellten Produkte
entsprechen den höchsten Qualitätsanforderungen. Lesen Sie
diese Anleitung bitte sorgfältig durch und befolgen Sie die
Anweisungen, um die Möglichkeiten dieses Produkts optimal
nutzen zu können.
3.2 Vorteile
Der Connect AE24 2.0 UHD ist ein vielseitiger Problemlöser für
Anschlussprobleme mit Ihren Audiogeräten oder Ihrem TV,
Monitor oder Projektor. Denken Sie beispielsweise an:

© MARMITEK
20
xDas Abspielen des Tons Ihrer Smart TV Applikationen
(Netflix, YouTube) oder Ihres eingebauten TV Decoders auf
Ihrer Heimkinoanlage, AV Empfänger oder Soundbar.
xDen Anschluss von HDMI Quellen ohne eigenen Audio
Ausgang (Chromecast, Nintendo, Media Player) an Ihre
Audiogeräte.
xDas Abspielen von Musik (MP3, Audiostreams,
Radiosender), ohne dass dazu der TV eingeschaltet sein
muss.
xBegegnet aufgrund des einzigartigen HDMI Ausgangs ohne
Bildwiedergabe Kompatibilitätsproblemen mit Ihrem heutigen
AV Empfänger.
xVerwenden Sie, obwohl Ihre Audiogeräte dazu nicht geeignet
sind, dennoch die Audio Return Channel (ARC) Funktion
Ihres Fernsehgeräts.
xVielseitiger Problemlöser für den Anschluss Ihrer
Audiogeräte an Ihren TV, Monitor oder Projektor.
3.3 HDMI eigenschaften
xDer maximale Datendurchsatz beträgt 18 Gbit/s (Gigabit pro
Sekunde). Somit kann HDMI 2.0, Ultra HD 4k Aufnahmen in
60 BpS (Bilder pro Sekunde) wiedergeben Unterstützt alle
3D Formate (geeignet für Verwendung mit Ihren eigenen 3D
Geräten).
xGeeignet für die neueste Ultra HD 4K60 Auflösung (3840 x
2160 / 60 Hz), High Dynamic Range (HDR), Deep Color und
4:4:4 Chroma Farben.
xDeep Color 36-Bit (Milliarden anstatt Millionen Farben,
bessere Wiedergabe von subtilen Farbwerten und höheres
Kontrastverhältnis).
xARC (Audio Return Channel), synchronisiert Bild und Ton
Ihres Fernsehers und sendet es über den digitalen
Audioausgang zu Ihrem AV Verstärker zurück.).
xUnterstützt Dolby Atmos und DTS:X und alle übrigen,
gängigen Audioformate.
