STUDIO JUBILEE
2525H & 2525C
USER MANUAL

ENGLISH
CONGRATULATIONS ON
PURCHASING YOUR MARSHALL
STUDIO JUBILEE AMP.
THE STUDIO JUBILEE DELIVERS THE TONE AND FLEXIBILITY OF AN ICONIC
2555 SILVER JUBILEE AMP IN A MORE PORTABLE FORM. GIVING THOSE
IN THE STUDIO AND PLAYING INTIMATE GIGS ACCESS TO THAT FAMOUS
MARSHALL SOUND.
WE HOPE YOU ENJOY YOUR NEW AMP AS MUCH AS WE HAVE ENJOYED
DESIGNING AND BUILDING IT FOR YOU.
THE MARSHALL TEAM

Warning: before going any further, make
sure that your amp is compatible with your
mains electricity supply. If you have any
doubt, please seek help from a qualied
technician – your Marshall dealer can help
you with this.
MAINS INPUT & FUSE
The specic mains input voltage rating
that your amp has been manufactured for
is indicated on the rear panel of the amp.
Your amp is provided with a detachable
mains (power) lead, which should be
connected to the mains input socket on the
rear panel of the amp. The correct value
and type of mains fuse is specied on the
rear panel of the amp.
Never attempt to bypass the fuse or t one
of the incorrect value or type.
IMPORTANT SET UP INFORMATION
1. When using your amp with one or
more speaker cabinets, make sure
that they are connected to the correct
loudspeaker jack sockets.
Warning: failure to do the above may
damage your amp. When connecting
a speaker cabinet make sure that you
use a proper speaker cable. Never use a
screened (shielded) guitar cable for this
purpose.
2. Ensure that the power switch is set to
the off position and the output switch
is set to standby.
3. Connect the supplied mains (power)
lead into the mains input on the rear
panel rst and then into an electricity
outlet.
4. Ensure that any master, volume and/
or output level controls on the front
panel are set to zero.
5. Plug your guitar into the input jack
socket on the front panel.
6. Turn the front panel power switch on
and wait a couple of minutes.
7. Select between 20W / 5W using the
output switch.
8. Turn the volume up to your preferred
level and you’re ready to play.
TRANSPORTING YOUR EQUIPMENT
Please ensure that your amp is switched
off, unplugged from the mains electricity
supply and all removable cables have been
disconnected from your equipment before
attempting to move it.
ENGLISH
1.0
WARNING! SAFETY INSTRUCTIONS
PLEASE READ THIS MANUAL CAREFULLY BEFORE PLUGGING IN. FOLLOW ALL INSTRUCTIONS AND HEED ALL WARNINGS.

The JCM25/50 Silver Jubilee Series was
produced in 1987 to celebrate 25 years
of Marshall Amplication and 50 years of
Jim Marshall being in the music business.
Inspired by this acclaimed series, the
2525C and the 2525H combine Silver
Jubilee preamp features and styling in a
lower power design.
2525H AND 2525C
VALVES
2 x ECC83, 1 x ECC83 (phase splitter),
2 x EL34
CHANNELS
2 (Split)
POWER CONTROL
20W or 5W
SPEAKERS
1 x 12”
Celestion G12M-25 (16Ω, 25W)
(combo only)
EQUALISATION
Treble, middle, bass and presence
SPEAKER OUTPUTS
5 x 1/4” jack sockets
(16Ω load / 8Ω load / 4Ω load)
OUTPUTS
DI Output
ENGLISH
2.0
OVERVIEW AND SPECIFICATION

1. POWER
This is the on/off switch for the mains
power to the amp. When power is
switched on, the switch will light red.
Warning: please ensure that the amp
is switched off and unplugged from the
mains electricity supply before being
moved.
2. OUTPUT
The output power is in low power mode
(5W) when set to low, when in the middle
position it is set to standby and when set
to high power the unit runs at full power
(20W).
Standby mode: should be used during
breaks in performances, instead of leaving
the amp on full power. Always turn the
power on for two minutes before using the
standby switch.
3. PRESENCE
Adjusts the high frequencies of the power
amp. Increasing the high frequencies adds
more bite to your sound.
4. BASS
Adjusts the low frequencies of the amp.
It will add bottom end and depth to your
sound.
5. MIDDLE
Adjusts the mid frequencies of the amp.
Giving you anything from a fat and full
sound to an aggressive tone.
6. TREBLE
Adjust the upper frequencies of the amp.
Your tone will get brighter as it is turned
up.
2525H (COMBO SHOWN ON NEXT PAGE)
ENGLISH
118 9 107
6
54321
3.0

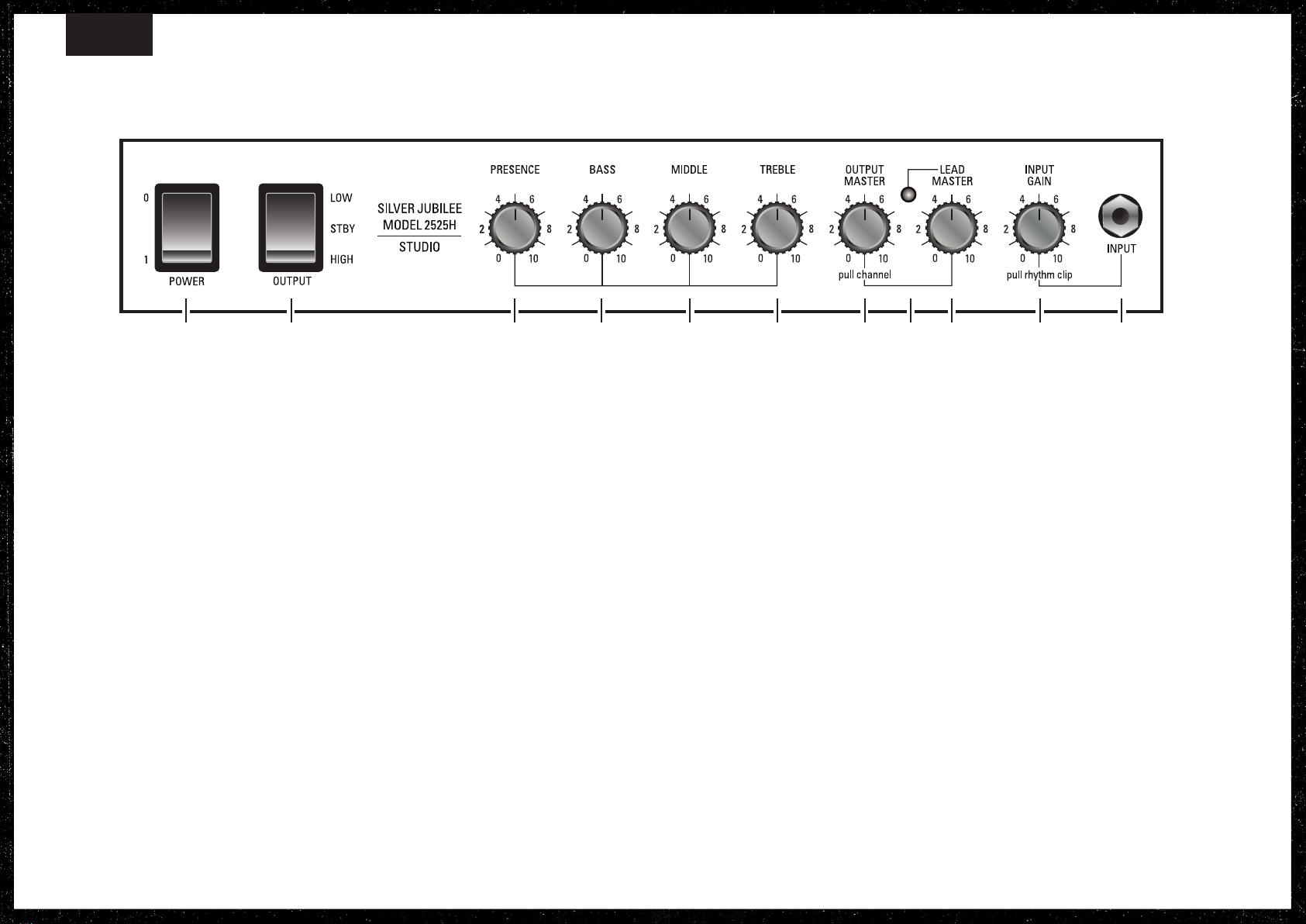

FRONT PANEL FUNCTIONS

7. OUTPUT MASTER / LEAD CHANNEL
The output master control adjusts the
output of the preamp section to the power
stage.
The lead channel is selected using the
footswitch (supplied PEDL-90003). The
channel can also be switched by using the
push/pull function of the output master
control. The amount of gain applied to the
lead channel can be controlled using the
input gain control (front panel function
10).
8. LEAD CHANNEL LED
The LED indicator will light and glow red
when the lead channel is selected.
9. LEAD MASTER
When the lead channel is active (front
panel function 7) the lead master control
adjusts the output level of the lead
channel.
10. INPUT GAIN
Adjusts the overall sensitivity of the input
circuit. It controls the gain level of the
clean/crunch rhythm clip mode and the
lead channel. The pull switch activates
rhythm clip mode, providing heavier, more
driven tones.
Note: the apparent drop in volume when
rhythm clip mode is selected may be
overcome by increasing the level of the
output master (front panel function 7).
11. INPUT
Use this jack socket to connect your guitar
to the amp.
2525C (HEAD SHOWN ON PREVIOUS PAGE)
ENGLISH
11 8910 7 65 4 3 2 1
3.0
FRONT PANEL FUNCTIONS CONTINUED

1. LOUDSPEAKERS
There are ve speaker outputs available.
These are 1/4” jack sockets. They are
labelled according to the intended
impedances:
• 16Ω: connect a 16 Ohm guitar cabinet
to this jack.
• 8Ω: connect a single 8 Ohm guitar
cabinet or two 16 Ohm cabinets.
• 4Ω: connect a single 4 Ohm guitar
cabinet or two 8 Ohm guitar cabinets.
Warning: although the amplier has
ve speaker outputs, never attempt to
connect more speakers than rated. The
safe combinations are: 1 x 16 Ohm, 1 x 8
Ohm, 1 x 4 Ohm, 2 x16 Ohm or 2 x 8 Ohm.
Any other speaker conguration may
stress the power amplier section and in
extreme cases may lead to valve and/or
output transformer failure.
Never use the 2525 without a speaker
load.
2. DI OUTPUT
A DI output allows you to connect to
recording device or sound desk.
Note: using the DI does not omit the need
for a speaker to be connected. See the
warning on rear panel function 1.
3. FOOTSWITCH
Connect the channel footswitch here
(PEDL-90003, supplied).
4. FX LOOP
The series FX loop connects the amp to
external FX (nominal level -10dBV). The
send jack socket connects to the input
of the external FX unit and the return
jack socket connects to the output of the
external FX unit.
Note: the send jack socket can be used
to connect to an external power amp. This
does not omit the need for a speaker to be
connected to the amplier’s output stage.
See the warning on rear panel function 1.
The return can be used to connect an
external preamp.
2525H (COMBO SHOWN ON NEXT PAGE)
ENGLISH
4.0
REAR PANEL FUNCTIONS
PANL-00370 Iss A
RETURNSEND
MAINS INPUT
230V ~ 50Hz
100 WATTS
FUSE
230V - T1AE250V
100-130V - T2AE250V
MODEL: 2525H
1 x 16 OHM
“CLASS 2 WIRING”
CONNECT SPEAKERS
BEFORE USE
OUTPUT: 20 WATTS RMS
LOUDSPEAKERS
FX LOOP
1 x 8 OHM
2 x 16 OHM
1 x 4 OHM
2 x 8 OHM
HT FUSE
T315mAE250V
FOOTSWITCHD.I.
1 2 3 4 5 6

5. HT FUSE
The panel mounted fuse holder allows
access to replace blown fuses. If necessary
the HT fuse will blow to protect the
internal circuitry. This can sometimes
happen in the event of output valve
failure.
Note: replace the fuse only with the
value shown on the rear panel. Before
attempting to change the fuse you must
always rst switch the amp off and
disconnect it from the mains electricity
supply. If in doubt, contact your Marshall
dealer.
6. MAINS INPUT
Connects the amp to the mains power
supply.
Note: the mains input socket has an
integrated fuse compartment. Ensure
that the value of a replacement fuse
matches the labelling on the amp rear
panel. You must always rst switch off
and disconnect from the mains electricity
supply before attempting to access the
fuse compartment. If in doubt, contact
your Marshall dealer.
2525C (HEAD SHOWN ON PREVIOUS PAGE)
ENGLISH
4.0
REAR PANEL FUNCTIONS CONTINUED
RETURN SEND 1 x 16 OHM
LOUDSPEAKERS
FX LOOP
1 x 8 OHM
2 x 16 OHM
1 x 4 OHM
2 x 8 OHM
FOOTSWITCH D.I.
MAINS INPUT
HT FUSE
T315mAE250V
PANL-00372 Iss A
230V ~ 50Hz
100 WATTS
FUSE
230V - T1AE250V
100-130V - T2AE250V
123456

ENGLISH
WHILST THE INFORMATION CONTAINED HEREIN IS CORRECT AT THE TIME
OF PUBLICATION, DUE TO ITS POLICY OF CONSTANT IMPROVEMENT AND
DEVELOPMENT, MARSHALL AMPLIFICATION PLC RESERVES THE RIGHT TO
ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
MARSHALL AMPLIFICATION PLC,
DENBIGH ROAD,
BLETCHLEY, MILTON KEYNES,
MK1 1DQ, ENGLAND.
T: [phone]
MARSHALL AMPLIFICATION PLC
REGISTERED IN ENGLAND
REGISTERED NUMBER: 805676
M3310.127 | BOOK-00154-00-V.1
