Marshall Amplification CV503-WP User manual

Broadcast A/V Division
User Manual

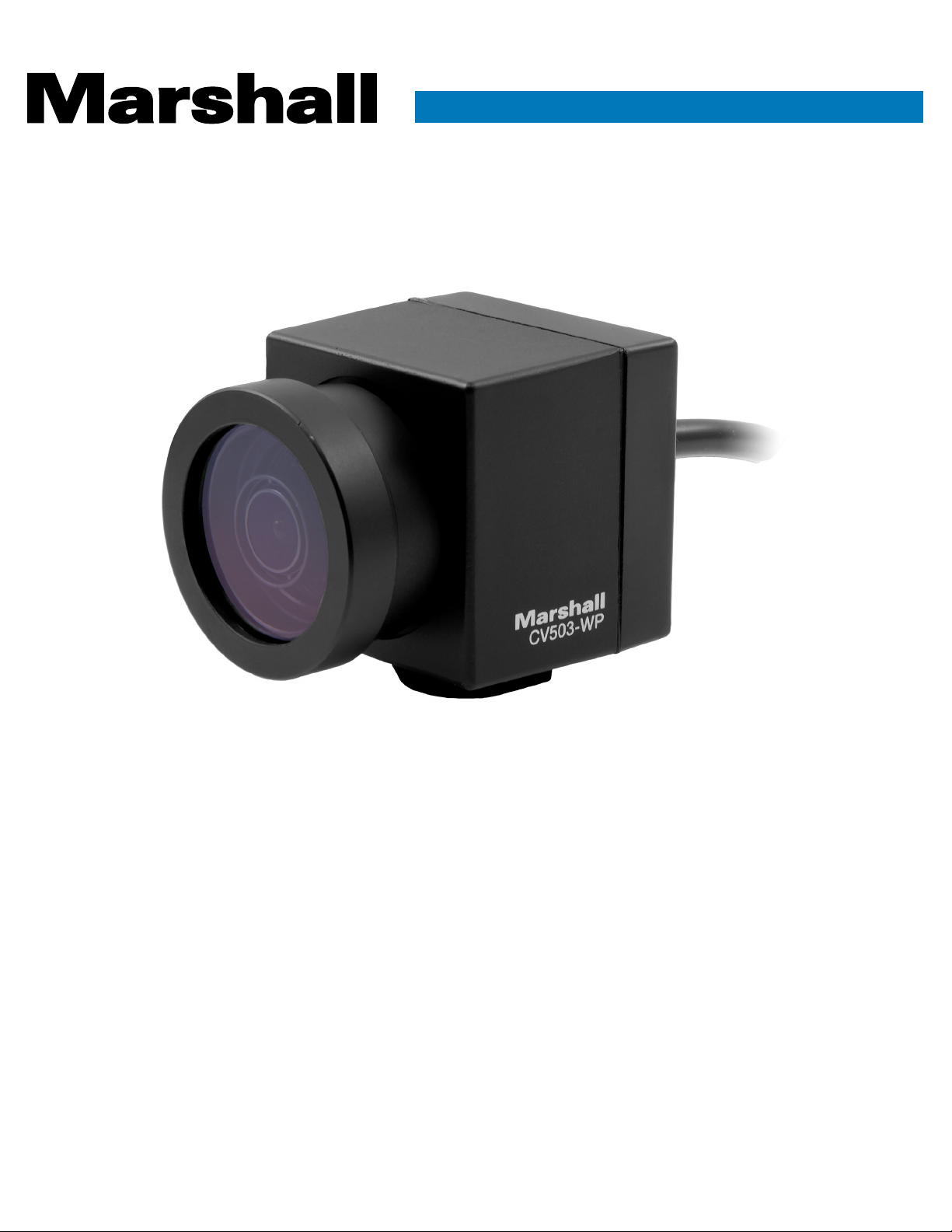

CV503-WP
All-Weather HD Miniature Camera

CV503-WP Manual
www.marshall-usa.com1 2
Table of Contents
Table of Contents
7. Special
4. AE Control
2. OSD Joystick and Button
1. Menu Structure
8. Setup
9. Reset
10. Exit
11. Troubleshooting
Warranty
5. Day / Night
3. WB Control
6. Image Control
01
09
06
04
02
10
11
12
13
END
07
05
08
SETUP SUB MENU SUB MENU
WB CONTROL
ATW
ONE PUSH
INDOOR
OUTDOOR
MANUAL BLUE
RED
AE CONTROL
AUTO
AGC MAX
SENS UP
AE BRIGHT
FLK CONTROL
LENS MODE (DC IRIS ONLY)
SHUT FIX
SHUTTER
AGC MAX
SENS UP
AE BRIGHT
FLK CONTROL
AGC FIX
AGC
AE BRIGHT
FLK CONTROL
LENS MODE (DC IRIS ONLY)
MANUAL
SHUTTER
IRIS
AGC
FLK CONTROL
LENS MODE (DC IRIS ONLY)
DAY / NIGHT DAY
NIGHT NIGHT COLOR
IMAGE CONTROL
LENS SHADING
CONTRAST
BRIGHTNESS
1. Menu Structure

CV503-WP Manual
www.marshall-usa.com3 4
SETUP SUB MENU SUB MENU
IMAGE CONTROL
SATURATION
HUE
EDGE ENHANCE
AUTO SATURATE
AUTO EDGE
BLACK WHITE LEVEL
GAMMA CORRECT
DNR DNR MODE
DNR LEVEL
SPECIAL
DZOOM
DEFOG
DIS
BACKLIGHT
BINNING
DEFECT PIXEL
DISP FUNCTION
WDR
FLICKER DETECT
PRIVACY
SETUP
CAM TITLE
COMMUNICATION RS-485/ID
SYSTEM INFO
OUTPUT FORMAT
RESET USER/FACTORY
EXIT
2. OSD Joystick and Button
WB CONTROL
AE CONTROL
DAY/NIGHT
IMAGE CONTROL
SPECIAL
SETUP
RESET
EXIT
>
>
>
>
>
>
>
MENU
503-WP
I/O Cable (included in box) for CV503, CV506, CV344, CV346
RS485
POWER
SDI OUT
Use the UP & DOWN
buttons to select the
desired item.
Use the LEFT & RIGHT
buttons to change the
sub-item.
> Icon indicates “Press OSD button” or “Enter Sub Menu”
1. SET Used to access the menu and confrim selection.
2. UP Used to move the cursor up.
3. DOWN Used to move the cursor down.
4. LEFT Used to move the cursor left and change the value
5. RIGHT Used to move the cursor to the right and change the value.
Press SET button to access the Main Menu
1
3
2
54 R
U
L
D

CV503-WP Manual
www.marshall-usa.com5 6
3. WB CONTROL
• ATW: Continuously adjusts camera color balance in accordance with any change in color
temperature. Compensates for color temperature changes within the range of 1,900°K to
11,000°K.
• ONE PUSH: Color temperature will be manually adjusted by pushing the OSD button. Place
the white paper in front of the camera when OSD button is pressed to obtain the optimum
result.
• MANUAL: Select this to fine-tune White Balance manually.
You can adjust the blue and red tone level manually.
1. BLUE: Adjust the Blue tone of the image. (0~100)
2. RED: Adjust the Red tone of the image. (0~100)
• INDOOR: Select this to adjust white balance to indoor lighting condition.
• OUTDOOR: Select this to adjust white balance to outdoor lighting condition.
WB CONTROL
AE CONTROL
DAY/NIGHT
AUDIO
IMAGE CONTROL
SPECIAL
SETUP
RESET
EXIT
MODE
PUSH
BLUE
RED
RETURN
>
>
>
>
>
>
>
>
MANUAL
50
50
>
MENU WB CONTROL
1. Adjust White Balance first by using the ATW mode before switching to MANUAL mode.
2. White Balance may not work properly under the following conditions. In this case, select
the ATW mode.
• When the ambient illumination of the subject is dim.
• If the camera is directed towards a fluorescent light or is installed in place where
illumination changes dramatically, the White Balance operation may become unstable.
Select WB CONTROL using the UP or DOWN button. You can change between AUTO, ATW, PUSH,
and MANUAL using the LEFT or RIGHT buttons.
4. AE CONTROL
• AUTO: Adjusts the exposure level automatically. Detailed fine tuning options are available
under this menu.
• SHUT FIX: Provides more detailed shutter speed options. All other controls are tuned for the
selected shutter speed.
• AGC FIX: Provides more detailed gain option. All other controls are tuned for the selected gain
value.
• MANUAL: Adjusts the exposure level manually.
1. SHUTTER: Speed can be set at auto or manual. (1/30~1/10,000)
2. IRIS SPEED: Electronic Iris speed can be controlled, for DC Iris lens only. (0~5)
3. AGC: Electronic Iris speed can be controlled, for DC Iris lens only. (0~5)
4. AGC MAX: Used to set maximum gain value to control the video noise caused by Auto
Gain Control. (Off, Low, Middle, High, DMIN, DMID, DMAX)
5. SENS UP: Controls the digital slow shutter to allow extra light into the camera and adjust
the picture quality. (Off, x2~x10)
6. AE BRIGHT: Select this to adjust auto exposure brightness levels. (0~10)
7. LENS MODE: Lens setting will be optimized for selected environment, for DC Iris lens only.
8. FLK CONTROL: Provides a proper image sensor frequency to match the power frequency
in order to minimize video flicker.
WB CONTROL
AE CONTROL
DAY/NIGHT
AUDIO
IMAGE CONTROL
SPECIAL
SETUP
RESET
EXIT
AE MODE
SHUTTER
IRIS
AGC
AGCMAX
SENS UP
AE BRIGHT
FLK CONTROL
LENS MODE
RETURN
>
>
>
>
>
>
>
>
AUTO
13
OFF
6
OFF
MENU AE CONTROL
Select AE CONTROL using the UP or DOWN button. You can select one sub-mode using the UP or
DOWN buttons.

CV503-WP Manual
www.marshall-usa.com7 8
• MODE: Auto, Day, Night
• AUTO: Camera will change between day and night mode when the light condition
changes.
• DAY: Camera will stay on day mode.
• NIGHT: Camera will stay on night mode.
• DEL AY [ SEC ] : Delay time of changing mode can be adjusted from this menu.
• D->N LEVEL: Change the camera threshold value of Day to Night mode.
• N->D LEVEL: Change the camera threshold value of Night to Day mode.
• NIGHT COLOR: Change the camera threshold value of Night to Day mode.
WB CONTROL
AE CONTROL
DAY/NIGHT
IMAGE CONTROL
SPECIAL
SETUP
RESET
EXIT
MODE
DELAY [SEC]
D->N LEVEL
N->D LEVEL
NIGHT COLOR
RETURN
>
>
>
>
>
>
>
>
AUTO
5
22
12
OFF
MENU DAY/NIGHT
5. DAY / NIGHT
Select DAY / NIGHT using the UP or DOWN button. You can select one sub-mode from AUTO,
COLOR, and NIGHT using the UP or DOWN buttons.
• LENS SHADING: Corrects inconsistent brightness level in the image.
• CONTRAST: Adjust the image contrast level value.
• BRIGHTNESS: Adjust the image brightness level value.
• SATURATION : Adjust the image saturation level value.
• HUE: Adjust the image hue level value.
• EDGE ENHANCED: Adjust the image sharpness level.
• AUTO SATURATE : Decrease saturation automatically when noise scene is detected.
• AUTO EDGE: Adjust line sharpness level automatically.
• BLACK WHITE LEVEL: Adjust the image black level value.
• GAMMA CORRECT: Adjust the image output gamma level.
• DNR: Reduces the video noise at low ambient light.
Select the DNR level from OFF, LOW, MIDDLE, and HIGH using the LEFT or RIGHT button.
WB CONTROL
AE CONTROL
DAY/NIGHT
IMAGE CONTROL
SPECIAL
SETUP
RESET
EXIT
LENS SHADING
CONTRAST
BRIGHTNESS
SATURATION
HUE
EDGE ENHANCE
AUTO SATURATE
AUTO EDGE
BLACK WHITE LV
GAMMA CORRECT
DNR
RETURN
>
>
>
>
>
>
>
>
OFF
11
11
10
0
5
MIDDLE
ON
>
DEFAULT
>
MENU IMAGE CONTROL
6. IMAGE CONTROL
Select IMAGE CONTROL using the UP or DOWN button.
You can select LENS SHADING, CONTRAST, HUE, And EDGE ENHANCE using the UP or DOWN
buttons.

CV503-WP Manual
www.marshall-usa.com910
• DZOOM: Digitally zoom the video by the desired ratio.
• DEFOG: This feature will help increase visibility in extreme weather conditions, such as fog,
rain or in a very strong luminous intensity.
• DIS: This feature enables digital image stabilization.
• BACKLIGHT: Adjust backlight compensation by choosing either BLC HLM from this menu.
• BINNING: Enable or disable pixel binning.
• DEFECT PIXEL: Advanced defective pixel correction menu.
• DISP FUNCTION: Display effect such as freeze mirror, rotation, and style can be applied from
this menu.
• WDR: This feature enables user to view both object and background more clearly when
background is too bright.
• FLICKER DETECT: Adjust the image sensor frequency to match the power frequency.
• PRIVACY: Mask an area you want to hide on the screen by applying the privacy zones.
WB CONTROL
AE CONTROL
DAY/NIGHT
IMAGE CONTROL
SPECIAL
SETUP
RESET
EXIT
DZOOM
DEFOG
DIS
BACKLIGHT
BINNING
DEFECT PIXEL
DISP FUNCTION
WDR
FLICKER DETECT
PRIVACY
RETURN
>
>
>
>
>
>
>
OFF
OFF
OFF
OFF
OFF
ON
>
OFF
OFF
>
MENU SPECIAL
7. SPECIAL
Select SPECIAL using the UP or DOWN button.
You can select DEFOG, MOTION DETECT, BACKLIGHT, DEFECT PIXEL, and FLICKER DETECT using
the UP or DOWN buttons.
• CAM TITLE: Camera title can be turned ON or OFF.
• COMMUNICATION: VISCA communication can be adjusted.
1. CAM ID: Camera ID can be setup. (0~7)
2. ID DISPLAY: Camera ID display can be displayed.
3. BAUDR ATE : Camera baudrate can be set.
(2400, 4800, 9600, 19200, 38400)
• SYSTEM INFO: Camera information can be found under this menu.
• OUTPUT FORMAT: Camera resolution and frame rate can be set.
(1080 by default)
Select the FRAME RATE using the LEFT or RIGHT buttons.
Available Frame Rates are:
1920 x 1080p 60, 59.94, 50, 30, 29.97, 25, 24, 23
1920 x 1080i 60, 59.94, 50
1280 x 720p 60, 59.94, 50
WB CONTROL
AE CONTROL
DAY/NIGHT
IMAGE CONTROL
SPECIAL
SETUP
RESET
EXIT
CAM TITLE
COMMUNICATION
SYSTEM INFO
OUTPUT FORMAT
RETURN
>
>
>
>
>
>
>
OFF
>
>
1080p 59.94
MENU SETUP
8. SETUP
CAMERA setup can be adjusted from this menu.
You can select CAMERA ID, Communication, System Info, and Output Format using the UP or DOWN
buttons.

CV503-WP Manual
www.marshall-usa.com11 12
• ON: Set the camera setting to either “FACTORY” or “USER” of “CHANGE” menu. Make sure
to select the right mode from “CHANGE” before defaulting the camera.
• RESET MODE: Select the desired setting mode.
Select from USER or FACTORY using the LEFT or RIGHT button.
1. USER: Select “USER” if setting value user saved last is needed.
2. FACTORY: Select “FACTORY” if factory default setting is needed.
“FRAME RATE”, “CAM ID”, and “BAUDRATE” will note change.
• RESET: Reset the camera settings the factory defaults or user setting value.
WB CONTROL
AE CONTROL
DAY/NIGHT
IMAGE CONTROL
SPECIAL
SETUP
RESET
EXIT
RESET MODE
RESET
SAVE AS USER
RETURN
>
>
>
>
>
>
>
FACTORY
>
MENU RESET
9. RESET
Select RESET using the UP or DOWN buttons.
• SAVE: Exit the setup after saving the value changes.
WB CONTROL
AE CONTROL
DAY/NIGHT
IMAGE CONTROL
SPECIAL
SETUP
RESET
EXIT
>
>
>
>
>
>
>
MENU
10. EXIT
Select EXIT using the UP or DOWN button.
To RESET Camera to default settings
(1920x1080p30fps) power-cycle the camera
then use the following combo on OSD Joystick:
UP, DOWN, UP, DOWN, then push and HOLD
joystick in for 5 seconds then release.

20608 Madrona Avenue, Torrance, CA 90503
Tel: [phone] • Fax: [phone]
www.marshall-usa.com
[e-mail]
Marshall Electronics warranties to the first consumer that this device will, under normal use,
be free from defects in workmanship and materials, when received in its original container, for
a period of two years from the purchase date. This warranty is extended to the first consumer
only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase
provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty
set forth above. Therefore, labor and parts may be charged to the consumer. This warranty
does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or
modifications in design or construction void this warranty. No sales personnel of the seller or
any other person is authorized to make any warranties other than those described above, or to
extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period
described above.
Due to constant effort to improve products and product features, specifications may change
without notice.
Warranty
NB070819a
13
11. TROUBLESHOOTING
Before sending the camera for repair, please check below to make sure that the camera is
installed correctly. If it still does not perform adequately, please consult with your supplier.
Problem Solution
Nothing appears on the
screen.
1. Check that all connected devices are powered on.
2. Confirm that the voltage is correct.
3. Confirm that the power supply provides enough current to
power the camera.
4. Check that all video cables are properly connected.
The picture is not clear.
1. Check that your monitor is correctly adjusted.
2. Confirm that the glass in front of the lens is clean. If there is
dust, dirt or fingerprints on the glass, the image quality will be
affected.
3. To clean the glass, use a soft, dry and non-abrasive cloth or a
commercially available lens cleaning set.
4. Adjust the focus by carefully rotating the threaded M12 lens.
The picture has interference.
1. Ensure that the camera is not positioned near a high voltage
source, such as a power generator.
2. Check that the connected BNC cable is terminated properly.
3. Check that all video cables are properly connected.
The picture is flickering
continually.
1. Check the termination and set the impedance at 75Ω properly.
2. Ensure that the camera is not pointing towards the Sun or any
light source.
3. Check the performance of any intermediate devices.
4. Check if the distance of the video cable exceeds the maximum
transferable limitation.
Focus
The miniature (M12) lens that comes installed on camera is set to
optimal focus position, however if lens is slightly out of focus rotate
lens clockwise or counter-clockwise slightly to fine tune. Once
the desired focus point is achieved, rotate the locking nut back
towards the camera which will hold the lens position at optimal
focus point.
