Marshall Electronics V-R653-IMD-3GTE User manual

1
Marshall Electronics
Model No. V-R653-IMD-3GTE
High Definition LCD Monitor with In-Monitor Display
Operating Instructions
Edition 2 Revision 8W

2
This page intentionally left blank

3
Table of Contents
Installation and Initial Setup ------------------------------------------------------------------------------------------------------5
Top and Front Panel Features ----------------------------------------------------------------------------------------------------6
Rear Panel Features-----------------------------------------------------------------------------------------------------------------7
Compatible Input Formats---------------------------------------------------------------------------------------------------------8
MAIN MENU AND NAVIGATION--------------------------------------------------------------------------------------------------9
Using the menu buttons........................................................................................................................................................................9
Using the RotoMenu knob ....................................................................................................................................................................9
MARKER SETUP SUBMENU..................................................................................................................................................................10
VIDEO CONFIGURATION SUBMENU....................................................................................................................................................12
COLOR CONFIGURATION SUBMENU...................................................................................................................................................15
SYSTEM CONFIGURATION SUBMENU .................................................................................................................................................16
DEINTERLACER SUBMENU...................................................................................................................................................................18
OSD CONFIGURATION SUBMENU .......................................................................................................................................................19
CC CONFIGURATION SUBMENU..........................................................................................................................................................23
AUDIO CONFIGURATION SUBMENU ...................................................................................................................................................24
IMD CONFIGURATION SUBMENU .......................................................................................................................................................25
SERVICE SUBMENU..............................................................................................................................................................................28
Specifications----------------------------------------------------------------------------------------------------------------------- 29
Dimensions-------------------------------------------------------------------------------------------------------------------------- 30
Maintenance------------------------------------------------------------------------------------------------------------------------ 31
Warranty ---------------------------------------------------------------------------------------------------------------------------- 31

4

5
Installation and Initial Setup
■Unpacking
Carefully unpack the V-R653-IMD-3GTE monitor and verify that the following items are included:
• V-R653-IMD-3GTE Monitor
• V-PS12-5V-1 DC Power Supply
• Operating Instructions
Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately
contact Marshall Electronics at [phone]. If you are not located within the continental United States, call +1 (310) 333-
0606.
■Installation
The V-R653-IMD-3GTE can be mounted in any standard EIA 19” equipment rack. The attached rack ears can be angled to provide
the user control over the viewing angle. Adequate ventilation is required when installed to prevent possible damage to the
monitor’s internal components. Please see the Dimensions section for more information.
■Connections, Power-On and Initial Setup
Plug the DC Power Supply into an AC power source (100-240 V @ 50/60 Hz). Attach the Power connector to the back of the
monitor. Connect the required cables for video signal input and output. (Power must be applied to the V-R653-IMD-3GTE for the
active loop-though output to be activated.) The monitor defaults to ‘ON’ when power is supplied. Video will automatically be
detected and displayed on the screen.

6

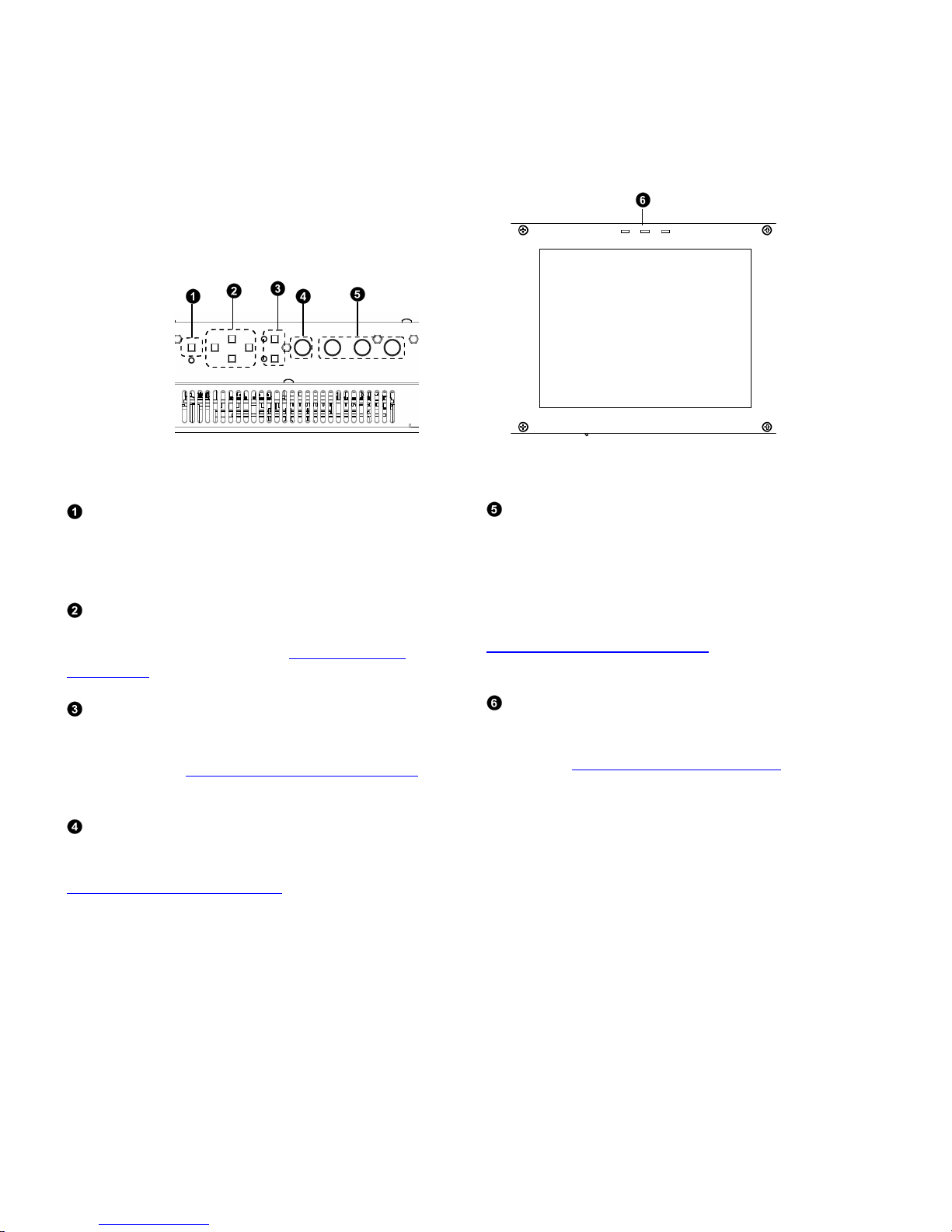

Top and Front Panel Features
Power Button
Turn the monitor panel off or on by pressing the power
button. In the ON state, the LED on the power button will
illuminate green.
Menu Navigation Buttons
Use the Menu, ↑, ↓, and Select buttons to display and
navigate the on-screen menu. See MAIN MENU AND
NAVIGATION for details on using the Menu.
User-Definable Function Buttons
Two user-definable function buttons can be used for direct
access to various settings. Functions are assigned using the on-
screen menu. See SYSTEM CONFIGURATION SUBMENU for
information on changing Functions.
RotoMenu™Knob
The RotoMenu™knob is alternate means of accessing and
navigating the main menu, using only a single control. See the
Using the RotoMenu knob section for details on using the
RotoMenu.
Image Adjustment Knobs
Use the image adjustment knobs to adjust color saturation,
brightness and contrast of the image. The status of each image
adjustment parameter is shown on the bottom left of the
screen, with values ranging from 0 to 100. Pressing a knob
once displays the current value. Pressing a knob twice resets
the corresponding adjustment to the default setting. See
VIDEO CONFIGURATION SUBMENU for information on Blue
Only calibration.
LED Tally
Three LED tally lights (yellow, red, green) are available above
the screen. Each tally light can be controlled from a variety of
sources. See IMD CONFIGURATION SUBMENU for more
details.

7
Rear Panel Features
3G-SDI Input and Output
The V-R653-IMD-3GTE has one HD-SDI input and one active
loop-through output. See Compatible Input Formats for
details on accepted formats.
Headphone Jack
The 1/8” jack on the back of the monitor takes two channels
of embedded SDI audio and provides a Headphone audio
signal. Volume can be adjusted via the RotoMenu knob or in
the Audio Configuration submenu. See the Audio
Configuration section for instructions on how to select the two
audio channels.
RS-422/485 Serial Interface
The RS-422/485 ports are used to remotely control the IMD or
all V-R653-IMD-3GTE features, using a variety of industry
standard protocols. (Note: Connector/pin-out may need to be
adapted depending on protocol and controlling device used).
Only one connection to either port is needed to control the
monitor. The second port can be used to loop multiple
monitors in the same bus. See IMD CONFIGURATION
SUBMENU for further details.
Tally / GPI Interface (HD-15)
LED tally, OSD tally and GPI can be activated via the HD-15
connector by connecting the corresponding pin to ground. A
variety of external devices can be used to perform the contact
closure. No additional power should be supplied to the HD-15
port. See the System Configuration section for details on
configuring GPI.
Power Input
Connect the 12VDC input to the power input connector.
Power can be supplied from the included power supply, or
from a variety of DC sources supplying at least 5.0 Amps at 12
Volts.

8
Compatible Input Formats
SDI/HDSDI Inputs
525i/ 59.94, 625i/ 50
720p/ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080p/ 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
1035i/ 59.94, 60
1080i/ 50, 59.94, 60
3G-SDI Inputs
3G – Level A and Level B
YCbCr, YCbCr+A, RGB, RGB+A
1080p/ 60, 59.94, 50
1080p/ 30, 29.97, 25, 24, 23.98, 30sF, 29.97sF, 25sF, 24sF, 23.98sF
1080i/ 60, 59.94, 50

9
MAIN MENU AND NAVIGATION
Access and navigate the main menu using the 4 menu buttons or the RotoMenu™knob:
Using the menu buttons
• Press the MENU button to enter the main menu.
• Use the and buttons to scroll through the main menu or each submenu.
• Press the SELECT button to enter a submenu or choose a setting.
• Press the MENU button to exit the main menu, or return to the main menu from a submenu.
Using the RotoMenu knob
• Press the RotoMenu™knob to enter the main menu.
• Rotate the knob to scroll up or down in the main menu or each submenu.
• Press the RotoMenu™knob to enter a submenu or choose a setting.
The menu automatically times out after 15 seconds of being idle.
Main Menu

10
MARKER SETUP SUBMENU
Use the Marker Setup submenu to select various types of markers and settings in 4:3, 16:9, or Full Screen mode.
■Marker Enable
The Marker Enable setting turns 16:9 or 4:3 screen markers On or Off. By default, this setting is On. If you turn the setting OFF,
the markers are automatically turned ON the next time you initiate a Screen Marker through a Function Button or through the
Marker submenu.
■16:9 Markers
Use this setting to superimpose one of 10 markers on the screen when in 16:9 or Full Screen mode. This setting is disabled when
the aspect ratio is set to 4:3, or when Pixel-to-Pixel mode is enabled. Note that in Full Screen mode, markers are vertically
stretched along with the picture to fit the 16:10 screen.
• Off (No Marker)
• 95% Safe Area
• 93% Safe Area
• 90% Safe Area
• 88% Safe Area
• 80% Safe Area
• 1.85:1 Aspect Ratio
• 2.35:1 Aspect Ratio
• 4:3 Aspect Ratio
• 14:9 Aspect Ratio
• 13:9 Aspect Ratio
16:9 Marker Examples:
Marker Setup Submenu
OFF (No Marker) 90% Safe Area

11
■4:3 Markers
Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio
is set to 16:9 or Full Screen, and when Pixel-to-Pixel mode is enabled.
• Off (No Marker)
• 95% Safe Area
• 93% Safe Area
• 90% Safe Area
• 88% Safe Area
• 80% Safe Area
4:3 Marker Examples:
■Marker Background
Use this setting to choose how selected markers are displayed on the screen:
• Off The marker is superimposed on the complete image.
• 50% Gray Screen area beyond the marker is shown at 50% intensity.
• Black Screen area beyond the marker is shown as black.
Example (80% Marker in 4:3 Mode):
■Center Marker
Use this setting to display a center marker on the screen.
Center Marker
Background OFF 50% Gray Background Black Background
OFF (No Marker) 90% Safe Area

12
VIDEO CONFIGURATION SUBMENU
Use the Video Configuration submenu to select various video settings such as monochrome mode or blue-only mode.
■Monochrome Mode
Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale picture.
■Blue-Only Mode
Use this setting to enable Blue-Only mode. This mode displays only the blue color component of the image, switching off the red
and green components. Use this mode when calibrating the monitor to SMPTE color bars with the following procedure:
1. Allow the monitor to warm up for at least 5-10 minutes.
2. Display SMPTE split-field color bars on the monitor using an external source.
3. Enable Monochrome mode.
4. Locate the pluge pattern (super black, black, and gray bars) at the lower-right corner of the screen. Adjust the
Brightness knob until there is no visible difference between the super black and black bars, but the gray bar is still visible.
5. Adjust the Contrast knob until an even grayscale appears along the top bars.
6. Disable Monochrome mode.
7. Enable Blue-Only mode and adjust the Color knob so that the outermost bars (white and blue) appear to match in
brightness.
Video Configuration Submenu

13
■Pixel-to-Pixel Mode
Use this setting to enable Pixel-to-Pixel mode.
This mode bypasses the monitor’s internal scaling function and displays images in their native resolution and aspect ratio, with a
one-to-one mapping of incoming image pixels to screen pixels:
• For incoming formats smaller than the native resolution of the screen (or selected aspect ratio), the image will be
displayed in the center of the screen using only the necessary LCD pixels. For example, 720p images will occupy exactly 1280x720
pixels in the center of the screen. The surrounding screen area will be black.
■Aspect Ratio Settings
Use this menu option to switch between several aspect ratio settings.
As the V-R653-IMD-3GTE monitor has a native resolution of 1366x768 RGB pixels, incoming images are automatically scaled to fit
the screen:
• In 4:3 mode, images are scaled up or down to fill the maximum 4:3 portion of the screen. IMD text and time code are
superimposed on the lower portion of the image. The audio presence indicator and on-screen tally are displayed at the bottom
of the screen, outside the image.
• In Scaled 4:3 mode, images are scaled to a smaller 4:3 portion of the screen, leaving space for IMD text, tally, and audio
presence indicator to be displayed below or around the image. Time code is superimposed on the lower portion of the image.
• In Scaled16:9 mode, images are scaled to fill the maximum 16:9 portion at the top of the screen. In this mode, IMD text
and on-screen tally are displayed below the image. Time code and the audio presence indicator are superimposed on the lower
portion of the image.
• In 16:9 mode, images are scaled to fill the entire 16:9 screen. In this mode, all OSD features are superimposed on the
image. Note that when using a 16:9 input image in this mode, the image will be vertically stretched by approximately 10%.

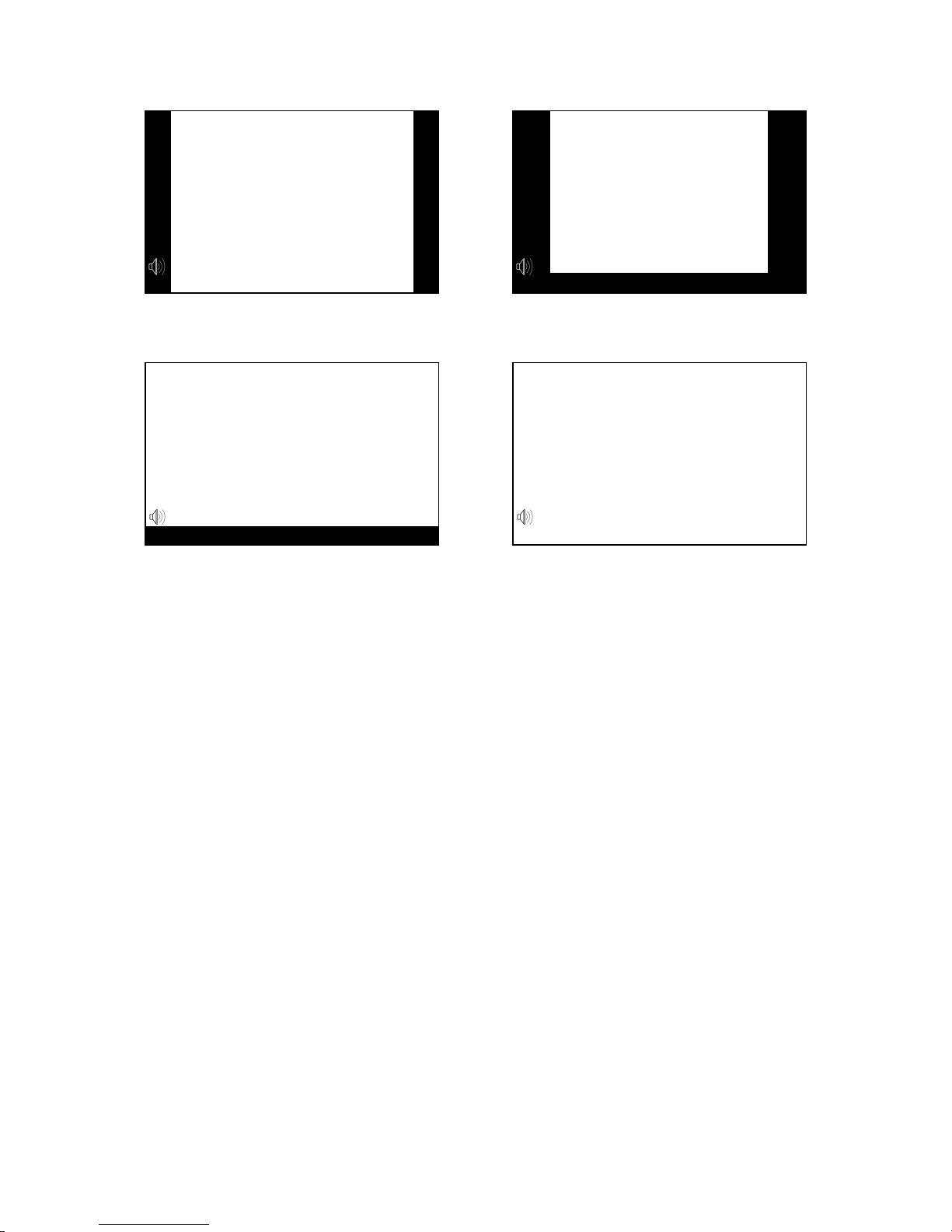

The diagrams on the following page show how IMD text, timecode, and the audio monitor icon are simultaneously displayed on
the screen in each aspect ratio setting. The white area represents the video image.

14
■Curtain Color
Use this setting to choose the default color displayed on the screen when no video input is present. Available colors are blue,
red, green, white, and black.
■Sharpness
Sharpness is a type of edge enhancement that can be applied to incoming video signals. Use this setting to increase or decrease
the amount of enhancement applied to the image. A value of 000 will make edges appear soft, and a value of 006 will cause
edges to be enhanced. The default value is 003.Note: Values higher than 003 will sometimes cause artifacts to appear on the
screen if the image includes many natural edges.
IMD Text
00:00:00:00 00:00:00:00
IMD Text
00:00:00:00
IMD Text
00:00:00:00
IMD Text
00:00:00:00
4:3 Scaled 4:3
Scaled 16:9 16:9

15
COLOR CONFIGURATION SUBMENU
Use the Color Configuration submenu to adjust the color temperature of the display.
■Ctemp/Gamma
Use this setting to choose one of three color temperature / gamma presets:
• D55 (5500K)
• D65 (6500K)
• D93 (9300K)
• Linear (No gamma applied)
■Red, Green, and Blue Offset
Use the offset controls for red, green, and blue to adjust the color temperature of the display. Each setting adjusts the offset, or
brightness, of each individual color component. These settings will affect whichever color temperature preset is selected.
• Red (0-100)
• Green (0-100)
• Blue (0-100)
■Red, Green, and Blue Gain
Use the gain controls for red, green, and blue to adjust the color temperature of the display. Each setting adjusts the gain, or
contrast, of each individual color component. These settings will affect whichever color temperature preset is selected.
• Red (0-100)
• Green (0-100)
• Blue (0-100)
Color Configuration Submenu

16
■Delete Gamma
Use this setting to Delete any custom Gamma tables that have been loaded to the monitor’s memory. Note: Once a setting is
Deleted, it cannot be recovered from the monitor.
SYSTEM CONFIGURATION SUBMENU
Use the System Configuration submenu to control various system parameters.
■Gray Levels
Use the Gray Levels menu option to view 256 levels of flat field gray. This feature is useful for color temperature comparison and
calibration. The input must be disconnected for the Gray Levels feature to function.
■User-Definable Function Buttons
Use the Function 1 and Function 2 menu items to define each function button on the front panel of the monitor. The following
options are available for each button:
• Marker Enable and rotate amongst marker settings (choices depend on aspect ratio setting)
• Center Marker Enable/disable center marker
• Marker Enable Enable/disable screen markers
• Marker Backgrd Rotate amongst marker backgrounds
• IMD Display/hide IMD text
• Anc. Time Code Display/hide time code
• OSD Tally Rotate amongst types of OSD Tally
• Audio Monitor Display/hide audio presence indicator
• User 1-6 Load any of the 6 User Customizable presets
• Mute Enable 100 dB audio signal attenuation
• Aspect Ratio Toggle between 4:3 and 16:9 aspect ratios
System Configuration Submenu

17
• Pixel to Pixel Enable/disable Pixel-to-Pixel mode
• Ctemp/Gamma Rotate amongst color temperature settings
• Blue Only Enable/disable Blue Only mode
• Monochrome Enable/disable Monochrome mode
■Save Defaults
Use this setting to save the current values of the Color, Brightness, and Contrast controls as the default values. The defaults can
then be accessed by pushing the knob twice.
• Back Exit without making any changes
• Save Save current settings as defaults
• Mfg Return to the manufacturer’s defaults (all settings at 50).
■Saving and Loading User Presets
Use the SAVE CONFIG and LOAD CONFIG menus to save current settings to one of 6 presets, or load a preset. Each Preset saves
all monitor settings except for IMD configuration.
• Use the LOAD CONFIG menu to load one of presets USR1 – USR6. Factory default settings can also be loaded by
selecting MFG. (Factory defaults cannot be overwritten.)
• Use the SAVE CONFIG menu to save the current settings to a preset from USR1- USR6.
■Green, Red, Yellow GPI
Use the GPI settings to determine the function of a specific Tally pin on the back of the unit. The GPI Pin actions are toggled by
bringing the pin LOW. The Red, Green or Yellow Tally pins can activate a variety of settings, listed below.
• Tally Illuminate Green, Red or Yellow Tally LED
• Monochrome Enable/disable Monochrome mode
• Blue Only Enable/disable Blue Only mode
• Pixel to Pixel Enable/disable Pixel to Pixel mode
• Audio Monitor Display/hide Audio Presence indicator
• OSD Tally Rotate amongst types of OSD Tally
• IMD Display/hide IMD text
• CTemp/Gamma Rotate amongst CTemp/Gamma presets
• Aspect Ratio Toggle between 4:3 and 16:9 aspect ratios
• Anc. Time Code Display/hide time code
• Marker Level Rotate amongst marker settings
The following settings are activated only when the Green, Red or Yellow Pin is brought into a LOW state by connecting it with
one of the GND pins. Once the Tally Pin is brought HIGH again (remove the connection to GND), the settings will be deactivated.
• Monochrome (L) Rotate amongst color temperature settings
• Markers (L) Enable/disable Blue Only mode
• Marker Mask 50% (L) Enable/disable Monochrome mode
• Marker Mask Black (L) Enable/disable Blue Only mode
• Marker Center(L) Enable/disable Monochrome mode

18
DEINTERLACER SUBMENU
Use the Deinterlacer submenu to control the type of deinterlacing performed on interlaced input signals.
■Deinterlacer Mode
Use the Deinterlacer Mode option to set the type of deinterlacing algorithm used:
• In Auto mode, the deinterlacer defaults to Motion Adaptive mode (see below), but uses Film Mode (see below)
whenever a film cadence is detected. This is the optimum deinterlacing mode for best picture quality and should be used
whenever possible.
• In Motion Adaptive mode, the image processor uses a motion adaptive de-interlacing algorithm. Film cadence detection
is disabled. Motion adaptive interlacing uses a variety of real-time algorithms to perform the best possible deinterlacing based on
the content.
• In Field to Frame, each incoming field is scaled to a full progressive frame by the scaler. It is normal for the image to
appear vertically “bouncy” or as shaking.
• In Interpolate (Bob) mode, each field is scaled to a full progressive frame by interpolating the missing lines from the
adjacent lines. It is normal for the image to appear vertically “bouncy” or as shaking.
• In Static Mesh (Weave) mode, the Deinterlacer combines or “weaves” each pair of fields into a progressive frame. It is
normal to see jagged artifacts on fast-moving edges.
■ Film Mode
Film mode uses specialized algorithms to correctly deinterlace content that originated in either 24fps or 25fps. Film Mode is
automatically entered whenever a film-to-video cadence is detected in the content. Film cadence detection is active whenever
the Deinterlacer Mode is set to Auto.
System Configuration Submenu

19
Use the Film Mode setting to limit the film mode detection to a specific cadence.
• Auto Deinterlacer automatically identifies the film cadence
• 2:2 only Deinterlacer only recognizes content originating in 25fps, and uses 2:2 film mode. 24fps content is
ignored.
• 3:2 only Deinterlacer only recognizes content originating in 24fps, and uses 3:2 film mode. 25fps content is
ignored.
■ Film Indicator
Use the Film Indicator setting to enable or disable the film mode detection icon. If the Film Indicator is set to On, a green square
will appear in the top left corner of the screen whenever a film cadence is detected. The Film Indicator can only be turned on
only when the Deinterlacer Mode is set to Auto. It is normal for the Film Indicator to sporadically turn on and off, depending on
the content.
■Motion Display
Use the Motion Display options to display inter-field motion as false color (green) on the screen. This feature is used to visualize
how the deinterlacer is detecting motion in the content. It is normal for the screen to show large portions of green when viewing
moving images.
• Off Motion Display is off.
• Noise Pixels which change value between fields are displayed as green.
• Motion After a noise reduction filter, pixels which change value between fields are displayed as green.

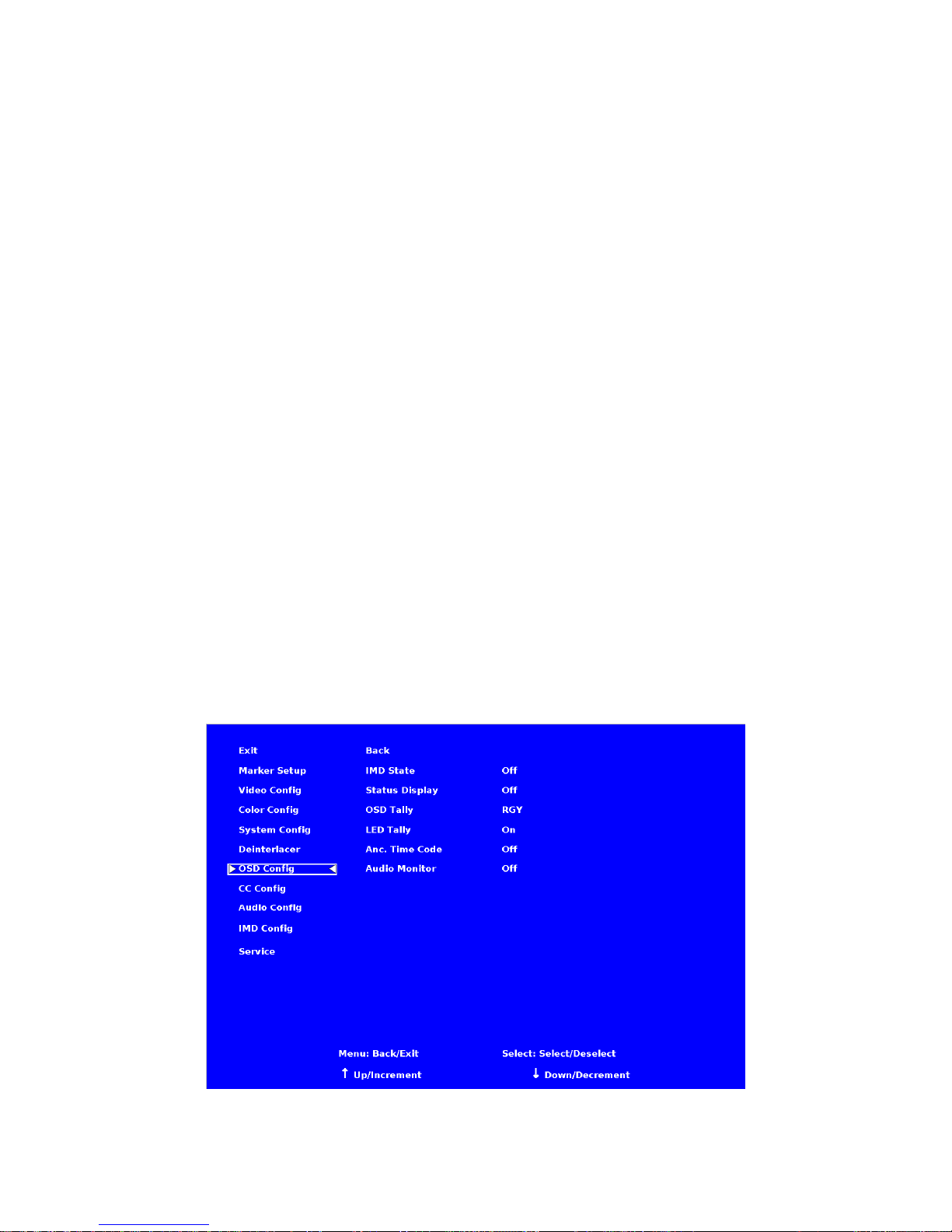

OSD CONFIGURATION SUBMENU
Use the OSD Configuration submenu to select a variety of information to be displayed on the screen.
OSD Configuration Submenu

20
■IMD State
Use this setting to turn the IMD text display on or off. This setting affects both fixed string IMD text and remote IMD text
commands (see IMD Configuration Submenu for details).
■Status Display
Use this setting to enable or disable status display. When enabled, the current video input standard is displayed on the top left of
the screen. When disabled, status is only displayed for 2 seconds when the monitor is powered on, when an input is applied, or
when the input video standard changes. The status display reads “No Input” when no video input is present.
Status Display
