Marshall Electronics VS-5326-3GSDI User manual

Marshall Electronics
VS-5326-3GSDI / HDI / CVBS
2 Megapixel IP Box Camera
User Manual
Firmware Version V3.609R01
Copyright © 2016, Marshall Electronics, Inc.
All Rights Reserved. This document may not be copied.

Trademarks
Other trademarks used in this document are registered trademarks or manufacturer or vendor
trademarks associated with the products.
Disclaimer
Product options and specifications can be changed without notice. The information in this manual is
furnished for informational use only and should not be construed as a commitment by Marshall
Electronics, Inc. Marshall Electronics, Inc. assumes no responsibility or liability for any errors or
inaccuracies that may appear in this publication.
Safety Precaution
Make sure to turn off the power before installing IP camera.
Do not install under direct sunlight or in dusty areas.
Make sure to use the product within the temperature and humidity specified.
Do not operate the product in presence of vibrations or strong magnetic fields.
Do not put electrically conducting materials in the ventilation hole.
Do not open the top cover of the products. It may cause a failure or electric shock on the
components.
Make sure to leave a space of at least 10 cm from the ventilation hole in order to prevent
overheating.
Check voltage and current requirements before connecting a power supply.
We appreciate your IP camera purchase.
Before installing the product, please read the following with care.

1. Introduction..........................................................................................................................4
1.1 About this Manual.........................................................................................................4
1.2 Features.......................................................................................................................4
1.3 Product and Accessories..............................................................................................5
1.4 System Connections.....................................................................................................6
2. Installation............................................................................................................................9
2.1 Connecting Power........................................................................................................9
2.2 Connecting Network.....................................................................................................9
2.3Connecting Video.........................................................................................................9
2.4Connecting Audio .........................................................................................................9
2.5Connecting Serial Ports................................................................................................9
2.6Connecting Sensor & Alarm .........................................................................................9
2.7Check If It Works........................................................................................................10
3. System Operation..............................................................................................................11
3.1 Remote Video Monitoring...........................................................................................11
3.2 Initialization of IPAddress...........................................................................................13
4. Remote Configuration.......................................................................................................14
4.1 System Configuration.................................................................................................14
4.2 Video & Audio Configuration.......................................................................................14
4.3 Image Configuration...................................................................................................20
4.4 Network Configuration................................................................................................25
4.5 Event Configuration....................................................................................................39
4.6 Record Configuration..................................................................................................47
4.7 Device Configuration..................................................................................................53
4.8 PTZ Configuration ......................................................................................................54
4.9 User Configuration......................................................................................................59
4.10 System Configuration...............................................................................................62
5. VS Manager........................................................................................................................68
6. Data Sheet..........................................................................................................................69

1. Introduction
User Manual VS-5326 –V2.1 Page 4 of 70 10/2016
1.1 About this Manual
This User Manual provides information on installation setup, operation of the IP
Camera, as well as troubleshooting tips.
1.2 Features
This product is a network-based box camera with live remote monitoring, audio
monitoring and control via an IP network such as LAN, ADSL/VDSL, and wireless
LAN.
Video
Highly Efficient Compression Algorithm; H.264 & MJPEG support
Wide range of Transmission Rates: 32kbps - 16mbps
Various Transmission Modes: CBR, VBR, Hybrid
Motion Detection
Audio
Multi-Transmission Mode: Simplex (IP Camera to Client PC or Decoder/ Client PC
or Decoder to IP Camera), Full Duplex
Network
Fixed IP & Dynamic IP (DHCP) support
1:1, 1:N support
Multicasting
Various types of Protocol support: TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP,
SNMP, RTP, RTSP
OnVIF, PSIA compliant
Serial Data
RS-485 support
Data Pass-Through Mode: Serial Data Communication between IP Camera and
Decoder
Sensor and Alarm
Supports direct connections of External Sensor and Alarm Devices
Event Alarm Notification
If an external sensor is activated, camera can be set to move to the corresponding
preset position
User Interface
Diagnose and upgrade through dedicated program called VS Manager
High Reliability
Reliable Embedded System

1. Introduction
User Manual VS-5326 –V2.1 Page 5 of 70 10/2016
1.3 Products and Accessories
Part Names and Functions
Rear View
3G-SDI Output Model HDMI Output Model
①
②
③
④
⑤
⑥
⑦
⑧
⑨

1. Introduction
User Manual VS-5326 –V2.1 Page 6 of 70 10/2016
Number
Function
1. Ethernet / 802.3af
Ethernet port / 802.3af
LED: Booting and system checking
2. RESET button
Initialization of network setting
3. AUDIO IN
Audio Input
4. AUDIO OUT
Audio Output
5. POWER IN
DC 12V
6. Sensor / Alarm
Sensor Input / Alarm Output
7. RS-485
RS-485 Port
8. VIDEO OUT
3GSDI, HDMI and CVBS Video Output
(Depending on Model)
9 SD Card
SD Memory Card slot
1.4 System Connections
The IP Camera can be connected in one of two ways:
1) 1 to 1 connection where one camera is connected to one PC client or a decoder
system, or 2) 1 to many connections where one system can be connected to several
PCs and decoder systems (the video server can work as a video decoder which takes
the data from a video server or IP camera, decodes and outputs analog video).
Topology
Generally, the IP Camera and PC or a Decoder is connected in a 1-to-1 mode or a 1-to
many configuration:
1:1 Connection
One camera is installed at a site where video images are transmitted. A PC or a
decoder is installed at a central location to receive and view the video images on an
analog monitor. Audio and serial data are transferred in either direction.
1:N Connection

1. Introduction
User Manual VS-5326 –V2.1 Page 7 of 70 10/2016
In this configuration, a site can be monitored from many remote central locations.
Although up to 64 PCs or Decoders can be connected to one IP Camera, the maximum
connections would be limited by network bandwidth connection. Functionally, the VMS
(Video Management System) software provided can replace the decoder.
Multicast Mode
If the network supports Multicasting, a large number of decoders can be used to
receive video effectively using a single video and audio streaming. However, Multicast
Mode is possible only when the network environment supports Multicast.
Relaying
In this arrangement, video and audio can be re-transmitted from one center to another
center. The arrangement is useful when the network bandwidth at the site is limited
while there is more than one center wanting to monitor the site.

1. Introduction
User Manual VS-5326 –V2.1 Page 8 of 70 10/2016
VMS (Video Management System)
VMS (Video Management System) is a Windows based remote monitoring program to
access multiple servers for real-time monitoring or control of the servers and
connected cameras. Please refer to the VMS User Manual for more information on
VMS.

2. Installation
User Manual VS-5326-3GSDI –V2.0 Page 9 of 70 3/2016
2.1 Connecting Power
After confirming the Power Source, connect Power Adaptor and connect the 12VDC
Connector to the System.
2.2 Connecting Network
Plug the Network Cable into the Ethernet port (RJ-45 network port).
2.3 Connecting Video
1) To display video through the composite or HD-SDI port, connect each port to a
monitor using BNC coaxial cable. To display video through the HDMI port, connect
the port to a monitor using the HDMI cable.
2) On the Video tab, the Enable Preview option should be set to “ON”.(Please refer
to the Video Configuration section for more details):
Video cannot be viewed if the BNC coaxial cable is not connected when using
HD-SDI.
If the video transmission distance is too far away, the video data may not be
transmitted due to a reduction in the video signal. In order to prevent this, install a
repeater in the middle.
When using HD-SDI, the video can be viewed on the HD-SDI monitor.
When using HDMI, the video can be viewed on the monitor supporting HDMI.
2.4 Connecting Audio
Audio is Full-Duplex. It is possible to set the mode as Tx-only, Rx-only, or Tx-Rx.
Connect audio input and output ports to audio devices accordingly.
The Audio signal required is line level, so audio equipment with an amp, mixer or
other amplifier should be used.
2.5 Connecting Serial Port (RS-485 Communication)
This IP Box Camera can be connected to external equipment such as a PT receiver,
etc. The camera can send PT commands via the Serial Ports.
When a Decoder System is used to connect the IP Box Camera to the Serial Port, the
Decoder System works in Pass-Through Mode (data from one port is delivered to the
other port.
2.6 Connecting Sensor and Alarm
Connect Sensor and Alarm Devices to corresponding terminals accordingly.

2. Installation
User Manual VS-5326 –V2.1 Page 10 of 70 10/2016
2.7 Check If It Works
Once the power is supplied to the camera, it will start booting. The system will boot up
to operation mode after approximately 40-60 seconds. The green LED on the Ethernet
Port will flash indicating the system is ready.

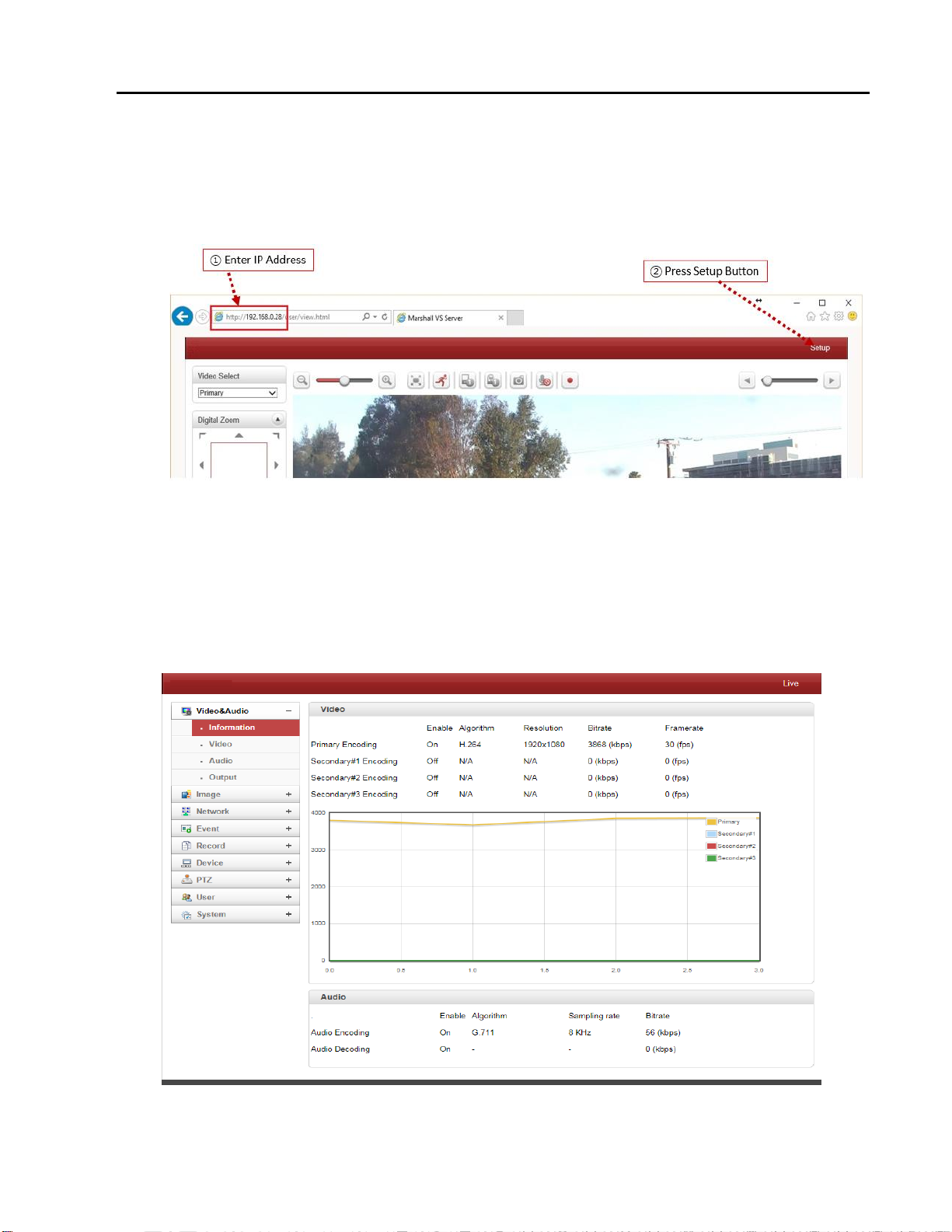

Software provided on the disc called VS Manager allows you to check the IP address
and other network details of the camera. Please refer to the VS Manager manual for
instructions on how to find the IP address of the camera and to make necessary
changes.
