Marshalltown Company Enforcer E400 User manual

™
Instruction Manual
Instructivo • Fiche D’instructions
by
E400
EDI-10400

2 Phone [phone] • Fax [phone] • www.MARSHALLTOWN.com 3
For more information visit www.marshalltown.com
CAUTION: DO NOT USE THE ENFORCER™ UNTIL YOU
HAVE FULLY READ AND UNDERSTOOD THE INSTRUCTION
MANUAL AND ALL THE WARNING LABELS.
DO NOT USE THIS PRODUCT UNLESS YOU ARE WILLING TO
OBSERVE ALL THE INSTRUCTIONS AND WARNING LABELS.
PRIOR TO EACH USE OF THE ENFORCER CHECK ALL
CONNECTIONS AND CHECK FOR WORN PARTS. REPLACE IF
NECESSARY WITH SPECIFIED ENFORCER™ PARTS. DO NOT
MODIFY THIS PRODUCT IN ANY MANNER. DOING SO COULD
RESULT IN SERIOUS INJURY.
U.S. and Foreign Patents Pending
CUIDADO: NO UTILICE LA ENFORCER™ HASTA QUE
HAYA LEÍDO Y COMPRENDIDO EN SU TOTALIDAD EL
MANUAL DE INSTRUCCIONES Y TODAS LAS ETIQUETAS DE
ADVERTENCIA.
NOUTILICEESTEPRODUCTOAMENOSQUEESTÉDISPUESTO
A RESPETAR TODAS LAS INSTRUCCIONES Y ETIQUETAS DE
ADVERTENCIA.
ANTES DE CADA USO DE LA ENFORCER™ REVISE TODAS
LAS CONEXIONES Y VERIFIQUE QUE NO TENGA PIEZAS
DESGASTADAS. SI ES NECESARIO, REEMPLÁCELAS CON
LAS PIEZAS ENFORCER™ ESPECIFICADAS. NO MODIFIQUE
DE NINGUNA MANERA ESTE PRODUCTO. HACERLO PODRÍA
CAUSAR LESIONES GRAVES.
Patentes de los E.U.A y en el extranjero pendientes
ATTENTION : NE PAS UTILISER LE PULVÉRISATEUR
ENFORCER™ AVANT D’AVOIR ENTIÈREMENT LU ET COMPRIS
LE MODE D’EMPLOI ET TOUTES LES ÉTIQUETTES DE MISE
EN GARDE.
NE PAS UTILISER CE PRODUIT À MOINS D’ÊTRE PRÊT À
RESPECTER TOUTES LES INSTRUCTIONS ET ÉTIQUETTES
DE MISE EN GARDE.
AVANT CHAQUE UTILISATION DE L’ENFORCER™, VÉRIFIER
TOUS LES RACCORDS ET CONTRÔLER L’ÉTAT D’USURE
DES PIÈCES. LE CAS ÉCHÉANT, REMPLACER PAR DES
PIÈCES ENFORCER™ PRÉCONISÉES. NE MODIFIER CE
PRODUIT D’AUCUNE FAÇON. CECI POURRAIT RÉSULTER EN
DES BLESSURES GRAVES.
Brevets en instance aux États-Unis et dans d’autres pays
CAUTION
CAUTION: DO NOT USE THE ENFORCER
™
UNTIL YOU HAVE FULLY READ AND
UNDERSTOOD THE INSTRUCTION MANUAL
AND ALL WARNING LABELS.
DO NOT USE THIS PRODUCT UNLESS YOU
ARE WILLING TO OBSERVE THESE
INSTRUCTIONS AND WARNING LABELS.
PRIOR TO EACH USE OF THE ENFORCER
™
CHECK ALL CONNECTIONS AND CHECK
FOR WORN PARTS. REPLACE IF
NECESSARY WITH SPECIFIED ENFORCER
™
PARTS ONLY.
DO NOT MODIFY THIS PRODUCT IN ANY
MANNER. DOING SO COULD RESULT IN
SERIOUS INJURY.
U.S. & Foreign Patents Pending
WARNING!
DO NOT EXCEED AN INLET AIR
PRESSURE OF 120 PSI . DOING SO
COULD RESULT IN COMPONENT
FAILURE AND POSSIBLE INJURY.
CAUTION
CAUTION: DO NOT USE THE ENFORCER
™
UNTIL YOU HAVE FULLY READ AND
UNDERSTOOD THE INSTRUCTION MANUAL
AND ALL WARNING LABELS.
DO NOT USE THIS PRODUCT UNLESS YOU
ARE WILLING TO OBSERVE THESE
INSTRUCTIONS AND WARNING LABELS.
PRIOR TO EACH USE OF THE ENFORCER
™
CHECK ALL CONNECTIONS AND CHECK
FOR WORN PARTS. REPLACE IF
NECESSARY WITH SPECIFIED ENFORCER
™
PARTS ONLY.
DO NOT MODIFY THIS PRODUCT IN ANY
MANNER. DOING SO COULD RESULT IN
SERIOUS INJURY.
U.S. & Foreign Patents Pending
WARNING!
DO NOT EXCEED AN INLET AIR
PRESSURE OF 120 PSI . DOING SO
COULD RESULT IN COMPONENT
FAILURE AND POSSIBLE INJURY.
CAUTION
CAUTION: DO NOT USE THE ENFORCER
™
UNTIL YOU HAVE FULLY READ AND
UNDERSTOOD THE INSTRUCTION MANUAL
AND ALL WARNING LABELS.
DO NOT USE THIS PRODUCT UNLESS YOU
ARE WILLING TO OBSERVE THESE
INSTRUCTIONS AND WARNING LABELS.
PRIOR TO EACH USE OF THE ENFORCER
™
CHECK ALL CONNECTIONS AND CHECK
FOR WORN PARTS. REPLACE IF
NECESSARY WITH SPECIFIED ENFORCER
™
PARTS ONLY.
DO NOT MODIFY THIS PRODUCT IN ANY
MANNER. DOING SO COULD RESULT IN
SERIOUS INJURY.
U.S. & Foreign Patents Pending
WARNING!
DO NOT EXCEED AN INLET AIR
PRESSURE OF 120 PSI . DOING SO
COULD RESULT IN COMPONENT
FAILURE AND POSSIBLE INJURY.

2 Phone [phone] • Fax [phone] • www.MARSHALLTOWN.com 3

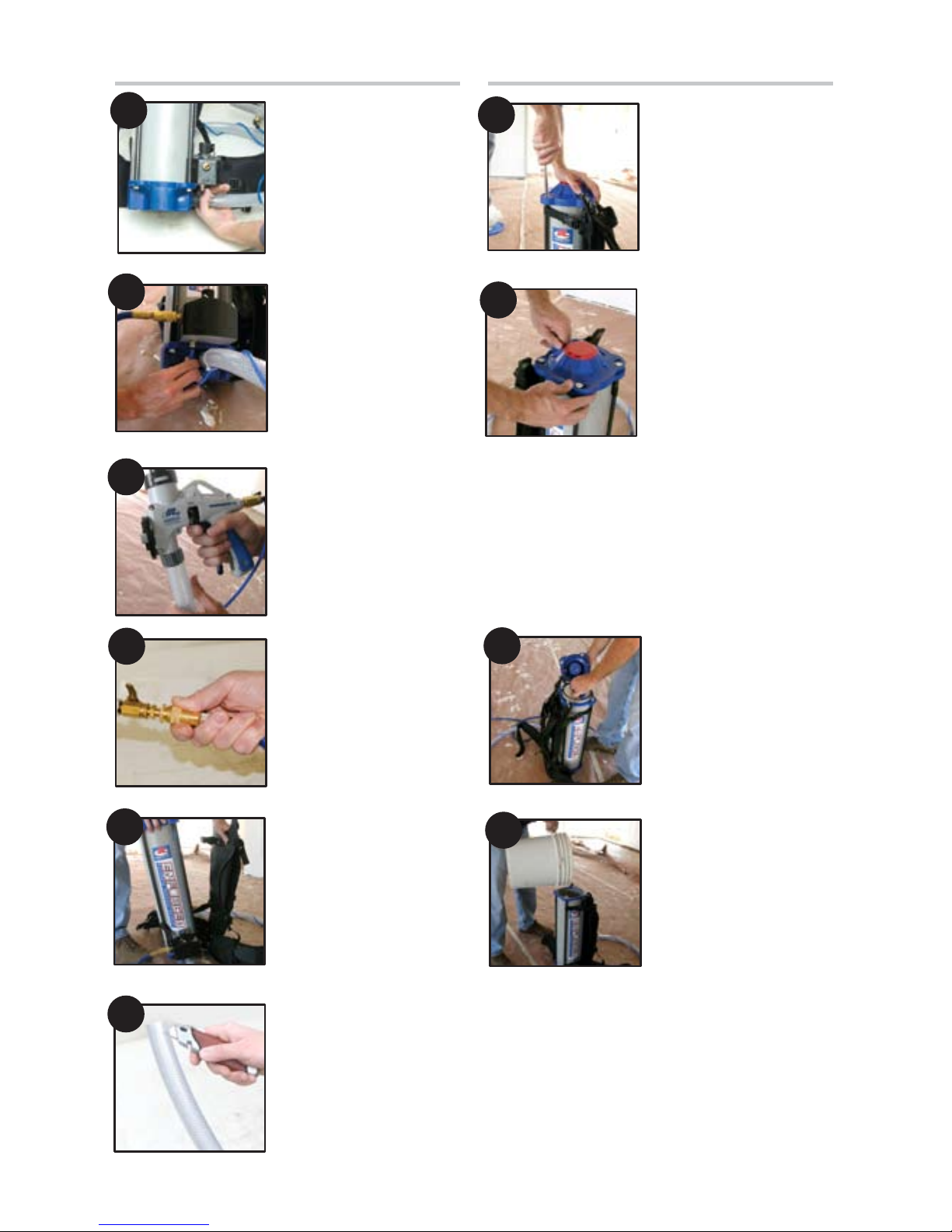

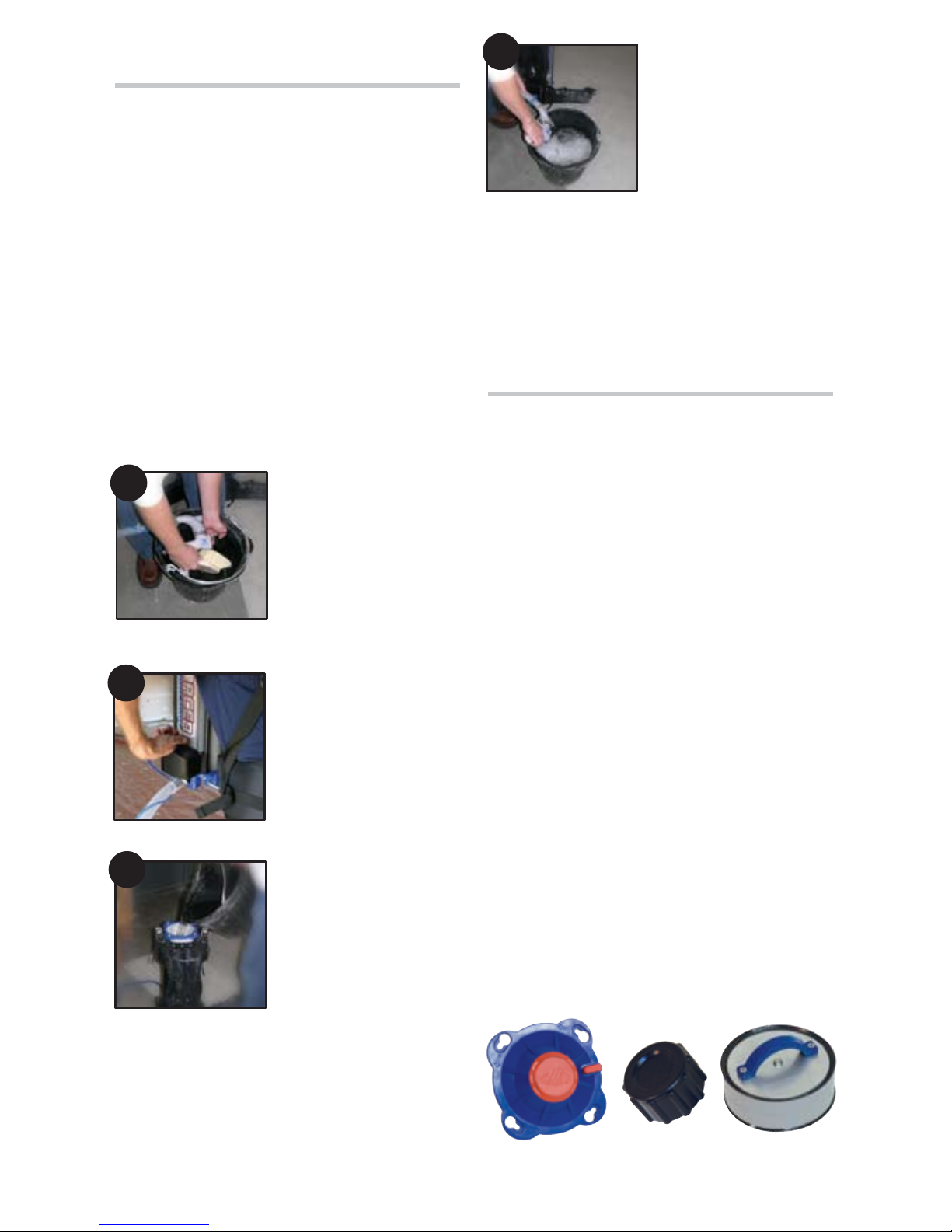

Assembly
Attach mud hose
assembly to tank out-
let. Thread mud hose
fitting into bottom cap
until tight.
Insert the coiled blue
air hose into the push-
lock fitting in the bot-
tom of the pneumatic
assembly cover until it
locks in place.
Attach mud hose
assembly to the bottom
inlet of gun. Tighten by
hand. DO NOT OVER
TIGHTEN.
Connect the quick-
disconnect coupler into
the back of the gun.
Place bottom of tank
over backpack support
bar and lock straps.
Ensure the pneumatic
assembly faces the
right side. Tighten
straps until there is a
secure fit.
Cut one end of the fill
hose ½” deep length-
wise and connect this
end of the fill hose to
the outlet of your mud
pump. Tighten clamp
with screw driver.
Priming the Unit
Flip toggle switch to
FILL/OFF. To remove
the top cap, begin by
loosening the top bolts
1-2 turns.
Next, while pulling and
holding the top cap
release pin up (red),
turn the top cap coun-
ter clockwise until it
stops. Lift up on the
cap to remove.
NOTE: YOU MAY FEEL SUBSTANTIAL
RESISTENCE THE FIRST TIME YOU
TRY TO TWIST THE TOP CAP. THIS
IS CAUSED BY THE SEAL LUBRICANT
THAT WAS APPLIED PRIOR TO SHIPPING.
THIS IS NORMAL.
Remove piston by
squeezing the gun trig-
ger and pulling upward
on the piston handle.
Next, fill the tank ¾ full
of drywall compound
by pouring mixed mud
into the top of the tank.
Insert piston into tank
and push down until
it is situated on top
of the mud. A slight
twisting or rocking motion may be necessary
to release the air trapped between the piston
and the mud.
Place top cap back
onto the tank. Once
the top cap is securely
in place, push down
the lock release to
ensure a tight fit.
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9

4 Phone [phone] • Fax [phone] • www.MARSHALLTOWN.com
4 Phone [phone] • Fax [phone] • www.MARSHALLTOWN.com 5

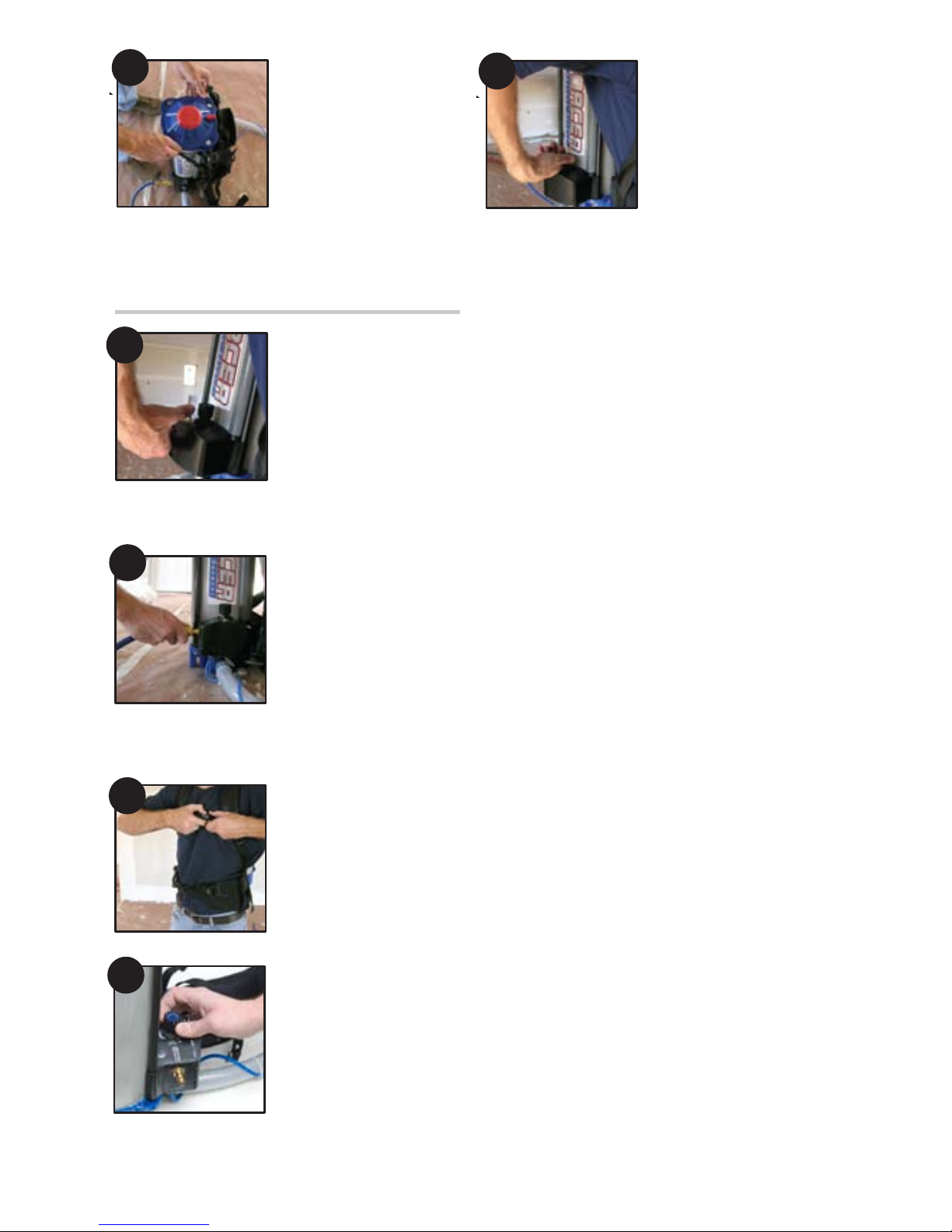

Spraying
Ensure the fill/spray
toggle switch is in the
FILL/OFF position
and that the mud flow
control is turned all
the way in the coun-
terclockwise direction.
Finally, make sure the
air flow control on the gun is turned to the off
position.
Connect the air com-
pressor hose to the
male air inlet on the
pneumatic assembly.
Set the air compressor
to 40 psi and adjust
as desired. DO NOT
EXCEED 120 PSI.
DOING SO COULD RESULT IN SERIOUS
INJURY.
Once the air compres-
sor hose is connected,
put the backpack on.
There are several
adjustments that can
be made to the straps
to ensure a comfort-
able, snug fit. Once the
backpack is in a secure and comfortable posi-
tion, flip the fill/spray toggle switch to SPRAY
and adjust the gun airflow by opening the ball
valve at the base of the gun.
While holding down the
trigger of the gun, begin
adjusting the mud flow.
Simply lift and turn the
mud flow control in a
clockwise direction to
increase flow and turn
counterclockwise to
decrease flow. This may require spraying
some material onto a scrap sheet of material.
Once the desired mud
flow is achieved, lock
the mud flow con-
trol by pushing the
outer portion of the
dial back down. DO
NOT ATTEMPT TO
OVERTIGHTEN THE
KNOB. DOING SO COULD RESULT IN
COMPONENT FAILURE AND SERIOUS
INJURY.
You are now ready to use the ENFORCER™
NOTE: There are several adjustments that
can be made to the Sharpshooter 2.0, the
ENFORCER, and the compressor to get the
texture of spray you desire.
• The more open the trigger; the more
material will be applied with a resulting
coarser pattern.
• Thehighertheairpressure,thefinerthe
pattern; the lower the air pressure, the
coarser the pattern.
•Thehighertheairflow,thefinerthe
pattern; the lower the air flow, the coarser
the pattern.
•Largerorificeopeningswillproducea
coarser pattern than will a smaller opening.
• Ofthethreemostpopularpatterns,orange
peel, knockdown, and popcorn – orange
peel and knockdown are generally applied
to walls while popcorn aggregate is a
ceiling finish.
•Themoreopenthemudflowcontrolonthe
ENFORCER™, the more mud that will be
applied.
To apply orange peel: select the second
smallest opening (#6) in the orifice plate, set
the trigger so that the end of the air nozzle
is approximately 1/8" (3.18 mm) from the ori-
fice plate. Air pressure should be 22–30 psi.
Again, before spraying the finished product,
check for the desired texture on a scrap piece
of sheetrock.
To apply knockdown: also referred to as
splatter, change the orifice plate to the middle
opening (.315"/8.0 mm dia.) (#4), set the trig-
ger fully open. The air pressure should be
reduced to 18–25 psi. Again, before spraying
finished product, check for the desired texture
on a scrap piece of sheetrock.
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9

4 Phone [phone] • Fax [phone] • www.MARSHALLTOWN.com
4 Phone [phone] • Fax [phone] • www.MARSHALLTOWN.com 5
To apply popcorn: ceiling texture, use one
of the largest openings (#1, 2, or 3) - Which
one will depend on the size of the acoustic
aggregate. The trigger setting should be fully
open. The air pressure should be 30–40 psi.
NOTE: The textures described above are
made using either a 3/8" or 1/2" I.D. hose. If
you are using a 1/4" I.D. hose, use greater
air pressures than specified.

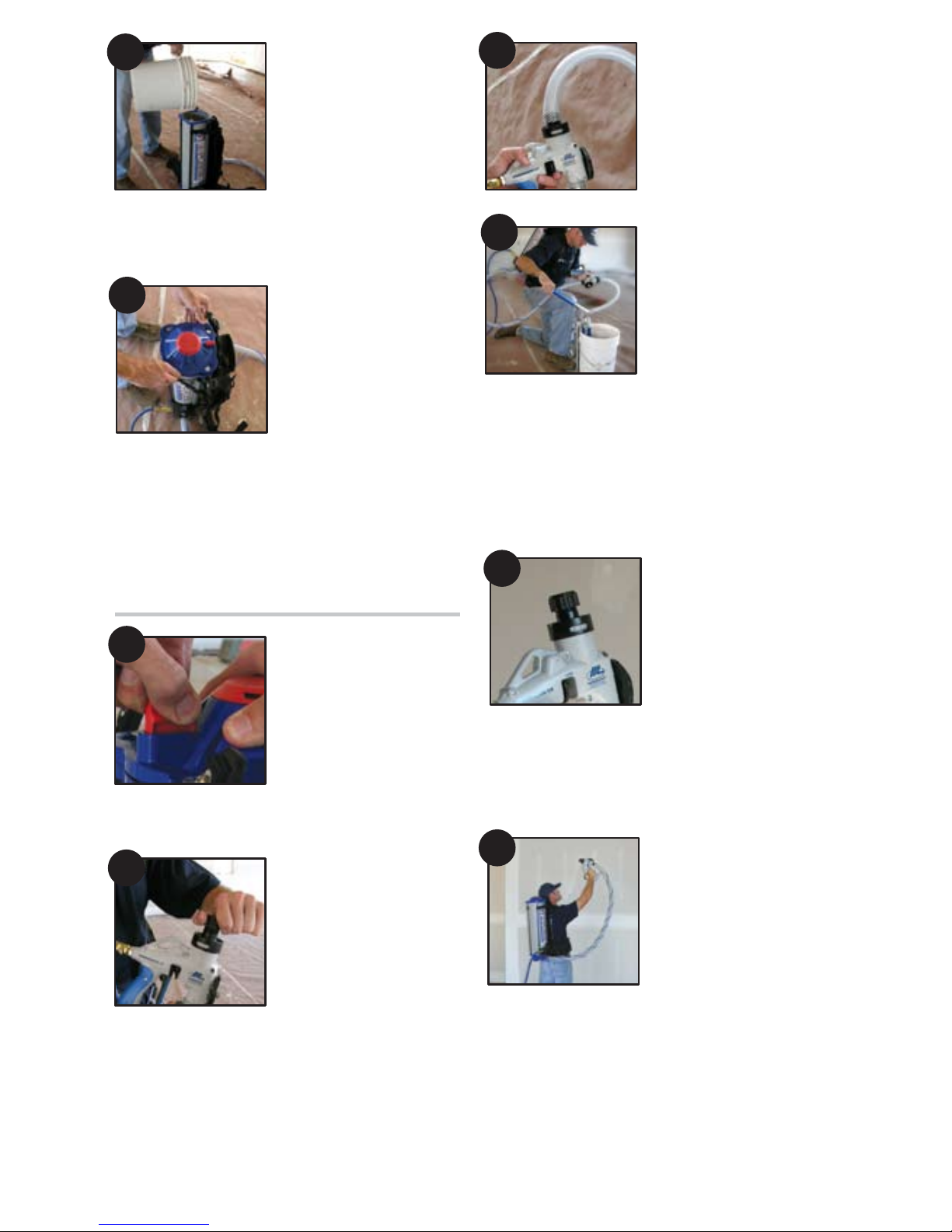

Refilling WITHOUT Mud Pump
Remove the tank from
your back and place on
a secure, level surface.
Flip the fill/spray toggle
switch to the FILL posi-
tion.
Pull upward on the
red lock release to
relieve the built up air
pressure. Ensure all
air pressure has been
released before moving
to the next step.
To remove the top cap,
begin by loosening
the top bolts 1-2 turns.
Next, while holding
the red lock release
up, turn the top cap
counter clockwise until
it stops. Lift up on the
cap to remove.
Remove piston by
squeezing the gun trig-
ger and pulling upward
on the handle.
Next, fill the tank ¾ full
of drywall compound.
Insert piston into tank
and push down until
it is situated on top of
the mud. A slight twist-
ing or rocking motion
may be necessary to
release the air trapped between the piston
and the mud.
Place top cap back
onto the tank by posi-
tioning over the top
bolts and twisting
clockwise. Once the
top cap is securely in
place, push down the
lock release to ensure a
tight fit. Tighten top bolts as necessary.
Refilling WITH Mud Pump
Flip the fill/spray toggle
switch to the FILL posi-
tion. Ensure all air
pressure is released
from the tank before fill-
ing is started. You will
know this is done when
the air stops exhausting
from the pneumatic assembly.
Next, remove the cap
on the top of the gun
port plug by turning
counter clockwise.
Prime the pump until
the fill hose has filled
with mud. Failure to
do this step will force
air into the tank which will result in incon-
sistent textures.
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
