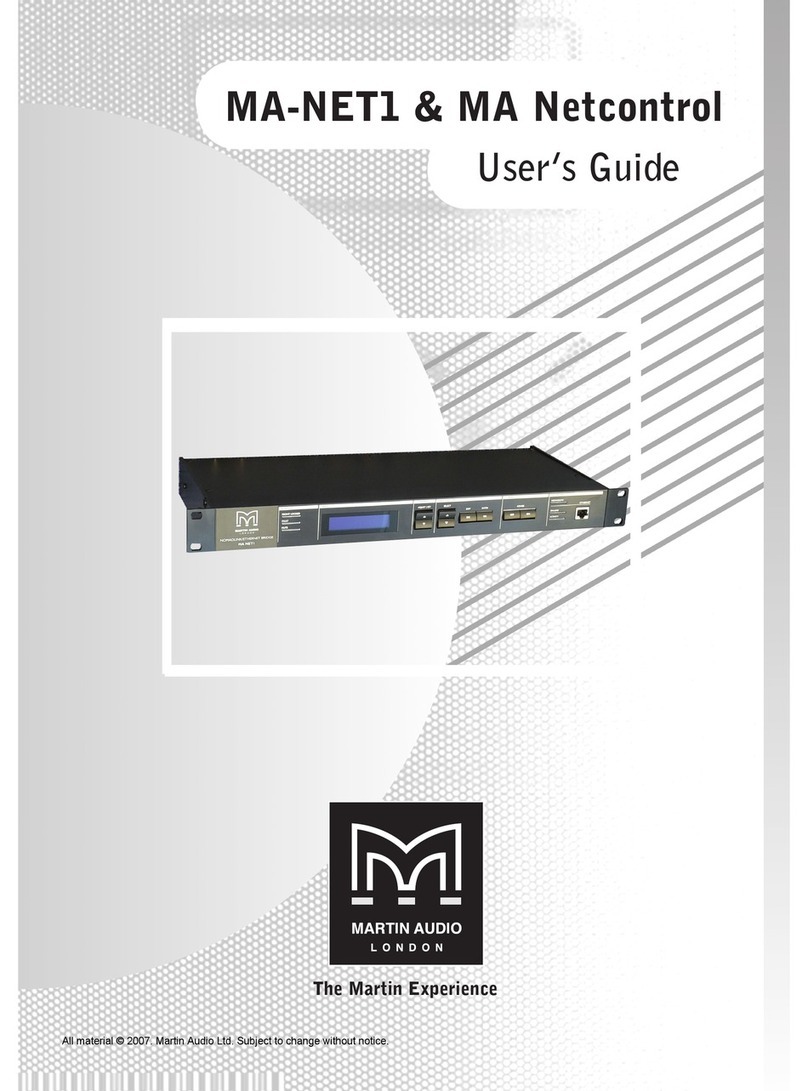

Martin Audio MA-NET1 User manual

MMAA--NNEETT11
NomadLink®/Ethernet Bridge
features
Control of up to 240 amplifier channels
Standard CAT-5 cable link to amplifiers
Local monitoring and control via front panel
Remote switch on/off of amplifiers
applications
Fixed installations
Stadiums
Theatres
Clubs
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: [phone] Facsimile: [phone]
E-mail: [email protected]
All information is Copyright © 2007 Martin Audio Ltd.
The MA-NET1 NomadLink®/Ethernet Bridge acts as a subnet
master for up to 60 units (240 channels) of networked
NomadLink®-ready amplifiers. Bridging between the
NomadLink® daisy-chained network and standard
Ethernet/LAN, the MA-NET1 provides utilization of any standard
Ethernet architecture when connecting a PC running the MA
Netcontrol software.
If desired, the PC can be disconnected after a subnet of
amplifiers is created and adjusted, and the MA-NET1 maintains
and monitors the network instead. With the user interface of the
MA-NET1 it is possible to power on/off the amplifiers as needed,
as well as navigate through and monitor various features on the
display.
www.martin-audio.com
overall dimensions
technical specifications
NETWORK CONNECTIONS
Nomadlink Out EtherCon housed RJ45
Nomadlink In EtherCon housed RJ45
Ethernet rear-panel Ethercon housed RJ45
Ethernet front-panel Standard RJ45
GENERAL PURPOSE INPUTS (GPI)
One Voltage sensing input Two pole Phoenix
Two contact closure inputs Two pole Phoenix
FRONT PANEL INDICATORS
Front operation locked Yellow LED
Fault warning Red LED
Amplifier subnet muted Red LED
NomadLink network connected/activity Blue LED
Ethernet connected Orange LED
Ethernet activity Yellow LED
2 x 16 character display White text on blue background
DIMENSIONS
WIDTH 483mm (19ins)
HEIGHT 44mm (1.75ins) 1U
DEPTH 208mm (8.2ins)
WEIGHT 2.3kg (5lbs)
